Exploded views run through all 29 pages, mapping each major assembly down to the individual line item. You can trace the universal joint and bevel gear box, then move through the mower deck, wheel assemblies, tension pulley, and the complete lift arm linkage. Part numbers and component callouts stay grouped by system, so pinning down the right blade holder, center pulley, or discharge cover piece is a single lookup. The multi-belt measures 110 inches and the gear box shim sits at 0.2mm, two numbers worth checking before any aftermarket order ships. A mismatched digit on a parts order costs a week waiting on a return. Bookmarks open the file straight to the group you need, whether on a phone at the deck or a laptop at the bench.
What's Inside This Kubota RC54-71B Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Universal Joint | 4-5 | Universal Assy Joint, Quick Yoke, PTO Yoke, Joint Shaft, Joint Yoke, Cross Assy Joint, Snap Ring, Grease Nipple |
| Gear Box/Center Pulley | 6-7 | Bevel Gear Assy Case, Pinion Shaft, Bevel Kit Gear, Oil Seal, O Ring, Bevel Case Cover, Center Assy Pulley, Bevel Gear Shaft |
| Pulley Holder/Blade | 8-9 | Pulley Center Holder, Oil Seal, Extension Pipe, Grease Nipple, Blade Boss, Blade, Blade Retainer, Blade Boss Joint |
| Side Pulley/Blade | 10-11 | Pulley LH Holder, Pulley RH Holder, Plate, Blade RH Shaft, Blade LH Shaft, Oil Seal, Grease Nipple, Side RH Pulley |
| Tension Pulley | 12-13 | Multi Inch Belt, Tension Arm, Bush, Tension Collar, Tension Assy Pulley, Grease Nipple, Tension Spring |

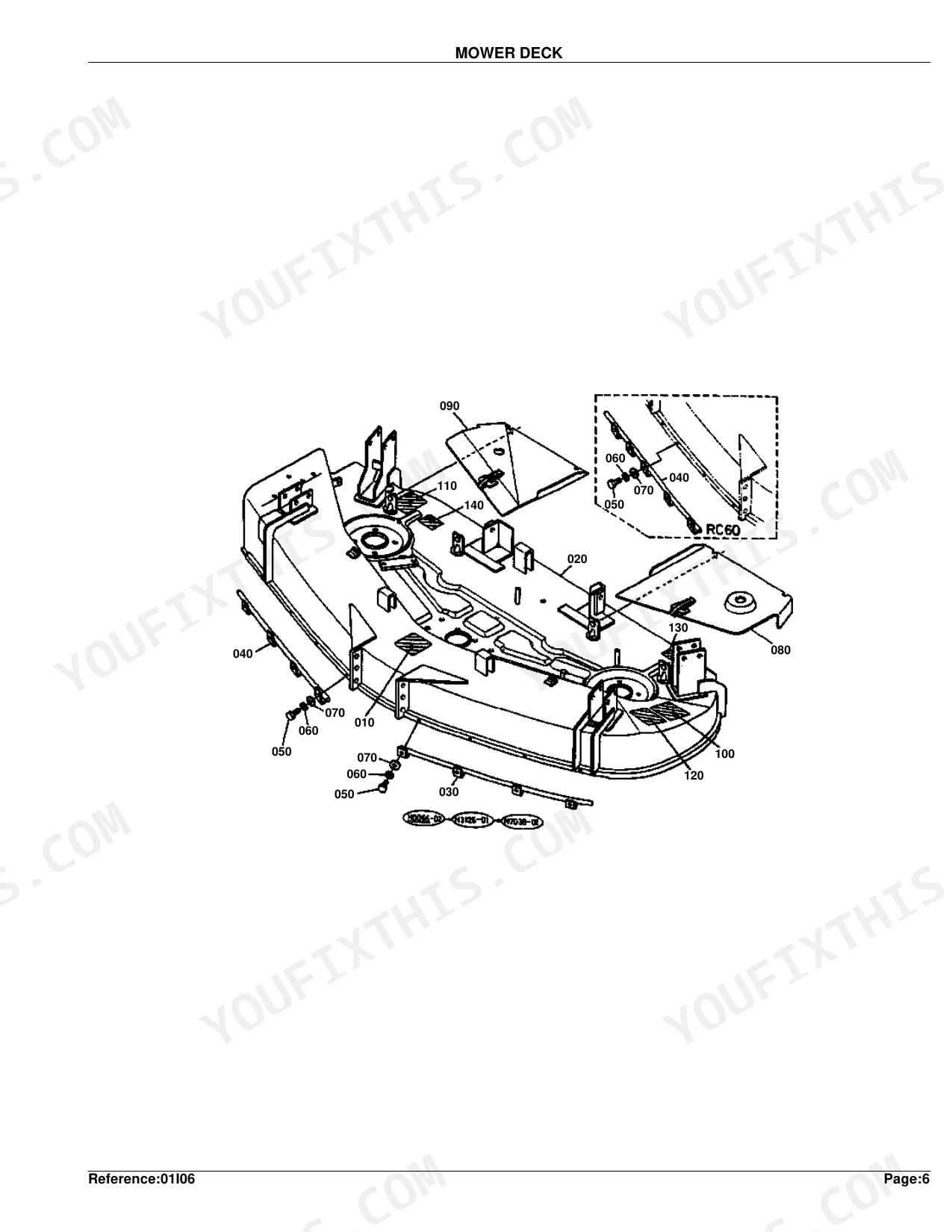

| Mower Deck | 14-15 | Blade Label, Blade Name Plate, Front LH Bar, Front RH Bar, LH Cover, RH Cover, Caution Label |
| Wheel | 16-17 | Front Wheel, Bush, Front Wheel LH Stay, LH Stay, Front Wheel RH Stay, Grease Nipple, Collar, Wheel Shaft |
| Linkage | 18-19 | LH Bracket, RH Bracket, Anti-Sca Assy Roller, Bush, LH Stay, Stay, Hinge Pin Spring, Link Fulcrum Lever |
| Discharge Cover | 20-21 | Assy Roll.anti-scalp, Bush, Chute Cover, Caution Label, Chute Stopper, Spring |
| Lift Linkage | 22-23 | Front LH Stay, Front RH Stay, Rear LH Stay, Rear RH Stay, Lift LH Fulcrum, Lift RH Fulcrum, Bush, Support |
| Rear Linkage | 24-25 | Rear LH Link, Rear RH Link, Hinge Pin Spring, Link, Bar |
| Lift Arm | 26-28 | Rod, Turnbuckle, Lift LH Arm, Lift RH Arm, Collar |
| Accessories and Service Parts | 29 | Instruction Manual, Kit Blade, Bolt |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Belt, Multi Length | 110 INCH | p. 13 |
| Shim Thickness (Gear Box) | 0.2MM | p. 7 |
| Universal Joint Assembly Weight | 2.9 kgf | p. 5 |
| Bevel Gear Case Assembly Weight | 7.7 kgf | p. 7 |
| Center Pulley Assembly Weight | 2.6 kgf | p. 7 |
| Mower Deck Weight | 50 kgf | p. 15 |
| Front Wheel Weight | 1.8 kgf | p. 17 |
| Wheel Stay Assembly Weight | 1.68 kgf | p. 17 |
| Anti-Scalp Roller Assembly Weight | 0.28 kgf | p. 21 |
| Blade Kit Weight | 4.38 kgf | p. 29 |
| Blade Weight | 1.45 kgf | p. 9 |
Kubota RC54-71B Common Problems This Manual Covers
Kubota RC54-71B blade part number conflicts with RC54-B listings, ordered wrong blade p. 8
Check the Pulley Holder/Blade exploded view on pages 8-9 for center blade components and pages 10-11 for side blade parts. Each blade weighs 1.45 kgf, so use that figure to confirm the right replacement. The blade kit appears on page 29 under Accessories and Service Parts (4.38 kgf total). Confirm your serial number range first, since RC54-71B and RC54-B part numbers will not interchange.
Manual Section: Pulley Holder/BladeReplacement blade belt part number unclear, unsure if 110-inch spec matches aftermarket listing p. 12
Match the belt spec before trusting any listing. This mower's multi-belt measures exactly 110 inches, shown in the Tension Pulley exploded view on page 12, so reject any aftermarket part that misses it. The parts list on page 13 carries the correct part number alongside the tension arm and collar components. Verify both against the diagram before placing the order.
Manual Section: Tension PulleyAnti-scalp roller assembly broken, can't identify correct roller and pin part numbers p. 20
Open the Discharge Cover section on page 20. The anti-scalp roller assembly weighs 0.28 kgf in total, a quick way to confirm you have the full kit when sourcing parts. Pages 20-21 break out the roller, bush, and pin as separate line items, each with its own part number. Tick off every component number before ordering so you don't end up with a partial kit.
Manual Section: Discharge CoverGear box disassembled for service, correct shim kit part numbers and thickness unknown p. 6
Start in the Gear Box/Center Pulley section on page 6. Its exploded view lists the bevel gear shim kit in two stocked thicknesses, 0.2 mm and 0.3 mm (page 7); order both if you are not sure which gap you measured at teardown. The bevel gear case assembly weighs 7.7 kgf, a figure that tells you whether every component arrived before you reassemble.
Manual Section: Gear Box/Center PulleyUniversal joint cross and yoke parts needed but exploded view part numbers unreadable p. 4
Pull the Universal Joint parts list on page 5. The page 4 diagram shows the quick yoke, cross, and shaft with individual item numbers, and the complete assembly weighs 2.9 kgf, so weigh your kit against that to spot a missing piece. Quick yoke and standard yoke are separate line items; confirm which one failed before you order.
Manual Section: Universal JointDeck sits uneven after reassembly, lift arm turnbuckle and pin part numbers unknown p. 26
Trace the Lift Arm section across pages 26-28, where the exploded view breaks out the rod, turnbuckle, and both Arm Lift Lh and Arm Lift Rh as separate part numbers. The mower deck assembly weighs 50 kgf (page 15), so identify every pin and joint before ordering. For the full fastener list, cross-reference Lift Linkage on pages 22-23 and Rear Linkage on pages 24-25.
Manual Section: Lift ArmFrequently Asked Questions
What are the replacement specifications for blades?
Part No. 76529-34330 is the replacement blade for the Kubota RC54-71B, each one weighing 1.45 kgf (3.19 lb). It shows up in several sections: PULLEY HOLDER/BLADE, SIDE PULLEY/BLADE, and ACCESSORIES AND SERVICE PARTS.
What are the replacement specifications for blade belt?
The blade belt for the Kubota RC54-71B is a BELT, MULTI, Part No. 76529-34710. It runs 110 INCH and weighs 0.91 kgf (2.002 lb).
What shim thicknesses are available for the RC54-71B gear box, and what does the bevel gear case weigh?
The bevel gear case assembly weighs 7.7 kgf per page 7. The exploded view lists two shim kit thicknesses, 0.2 mm and 0.3 mm, stocked as separate line items. Order both if you are uncertain which gap you measured at teardown.
What is the total weight of the Kubota RC54-71B universal joint assembly?
The complete universal joint assembly weighs 2.9 kgf per page 5. Page 4 diagrams the quick yoke, cross, and shaft as individual items. Weigh the kit against 2.9 kgf to confirm all pieces are present before reassembly.
How much does the RC54-71B anti-scalp roller assembly weigh and what components are listed separately?
The anti-scalp roller assembly weighs 0.28 kgf total, per the Discharge Cover section on page 20. Pages 20-21 break out the roller, bush, and pin as separate line items with individual part numbers, so you can source only the failed component.
Is this Kubota RC54-71B Parts Catalog a digital download?
Yes. The full 29-page searchable Parts Catalog downloads the moment your payment clears, ready to open on a laptop, tablet, or phone right at the workbench.
Can I print specific sections of this Kubota RC54-71B Parts Catalog?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
