Finding the right part number for your Kubota RCK60-24B mower just got easier. This 60-inch mid-mount deck gets documented assembly by assembly across 28 pages, from the universal joint yoke and bevel gear case down to the discharge cover rollers and lift arm turnbuckles. Fully exploded views pair with numbered parts lists covering the key assemblies: blade spindles, tension pulleys, front and rear gauge wheels, linkage brackets, and the full lift linkage system. Need to cross-reference the Multi Belt 119 or confirm the M6x1.0 grease nipple thread before you order? Every part is called out by number, with country-code variants flagged so you pick the right one the first time. No more squinting at blurry microfiche or guessing from a forum post. Bookmarked by assembly and searchable by keyword, it opens on your phone right next to the machine.
What's Inside This Kubota RCK60-24B Parts Manual
| System | Pages | Key Topics |
|---|---|---|

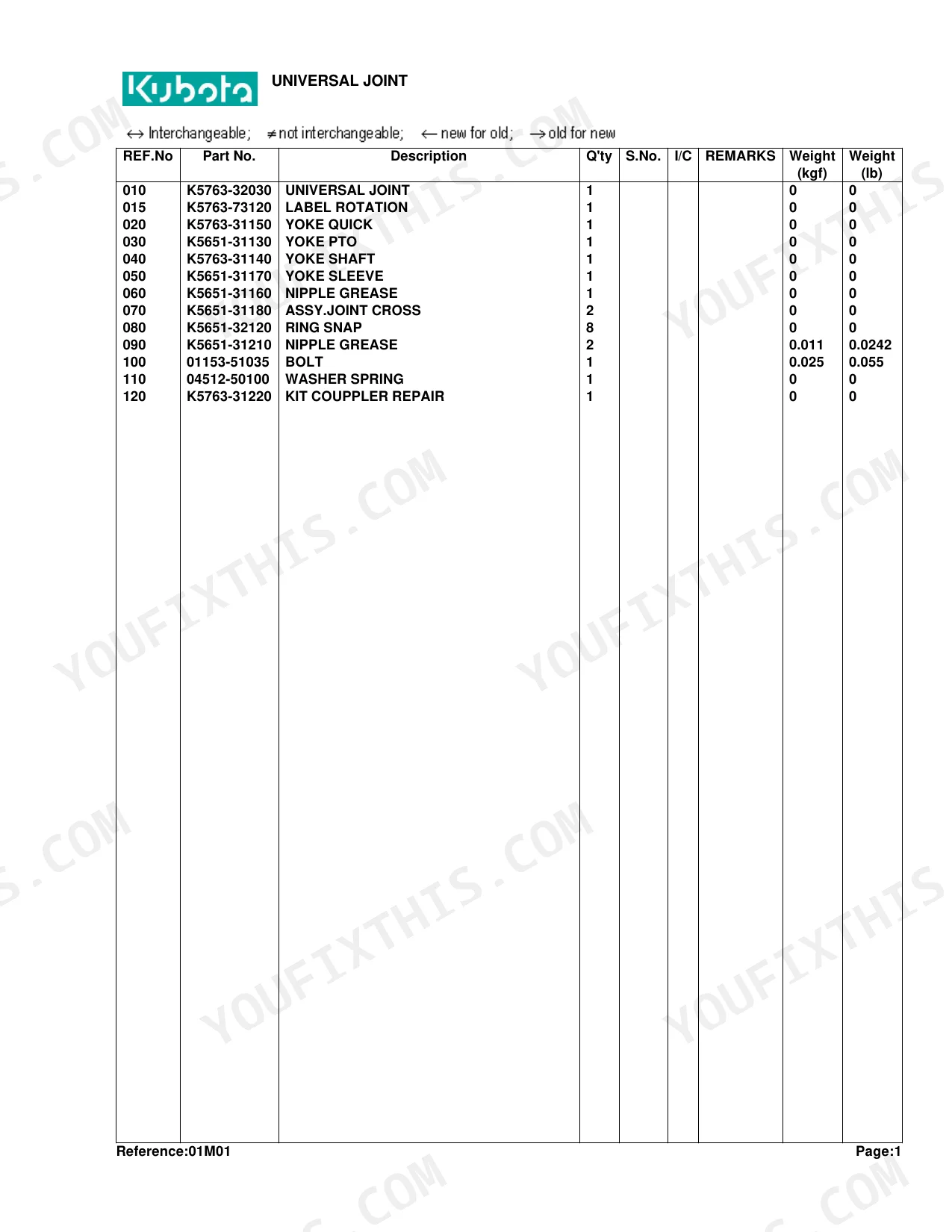

| Universal Joint | 3-4 | Label Rotation, Yoke Quick, Yoke PTO, Yoke Shaft, Yoke Sleeve, Nipple Grease, Assy.joint Cross |

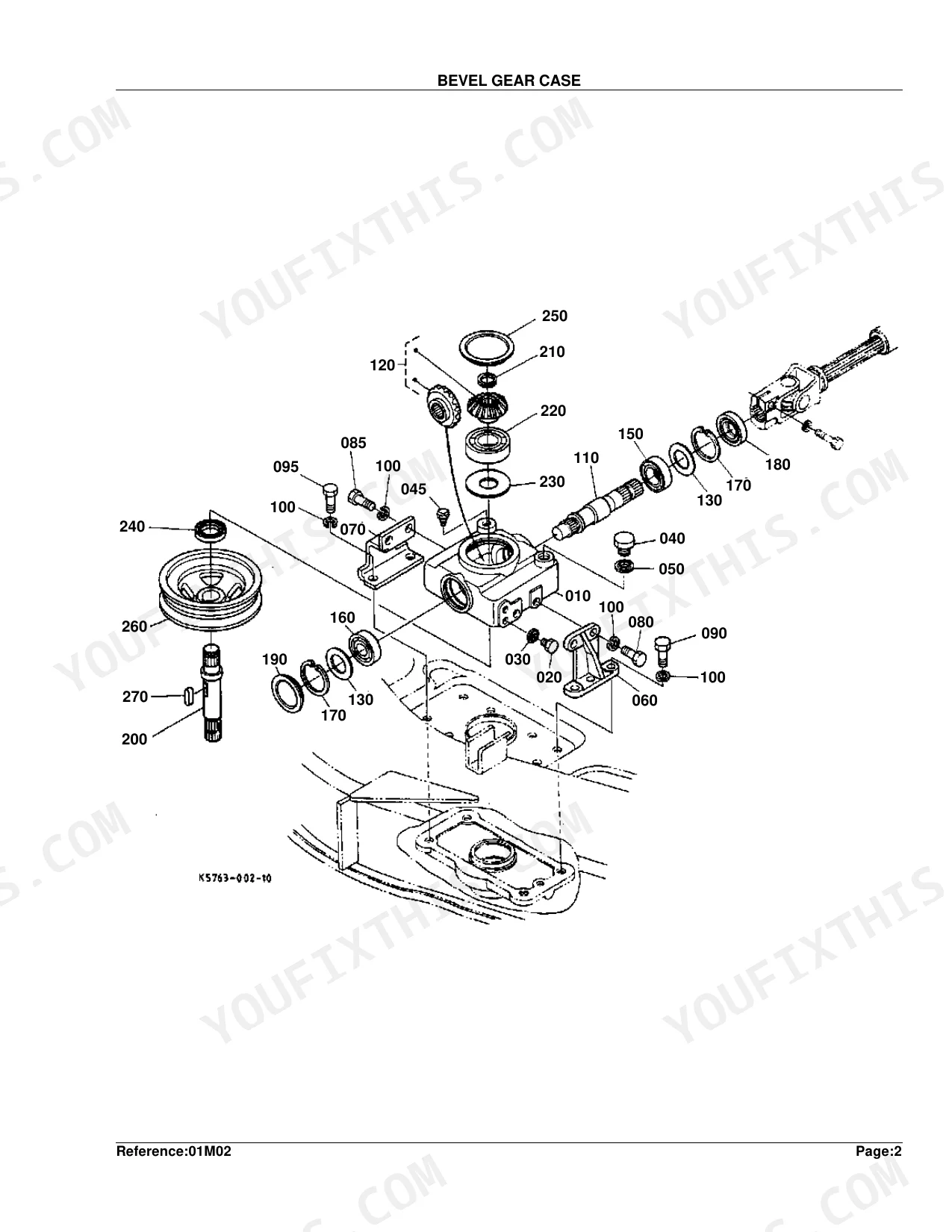

| Bevel Gear Case | 5-6 | Case Bevel Gear, Gasket, Stay Case LH, Stay Case RH, Shaft Pinion, Kit Gear Bevel, Bearing, Seal Oil |
| Pulley Holder | 7-8 | Holder Pulley Center, Bearing, Oil Seal Upper, Oil Seal Lower, Pipe Extension, Nipple Grease 45DEG, Boss Spline, Cover Dust |
| Blade | 9-10 | Holder Pulley Side, Holder Pulley RH, Shaft Spindle, Bearing, Oil Seal Upper, Oil Seal Lower, Nipple Grease, Pulley Side RH |
| Tension Pulley | 11-12 | Multi Belt, Arm Tension, Bushing Tension, Collar Tension, Pulley Tension, Cover Tension, Seal Bearing, Nipple Grease 45DEG |
| Mower Deck | 13-14 | Assy Mower Deck, Label Caution, Label Danger, Cover Left, Cover Right, Label Height, Plate Name |

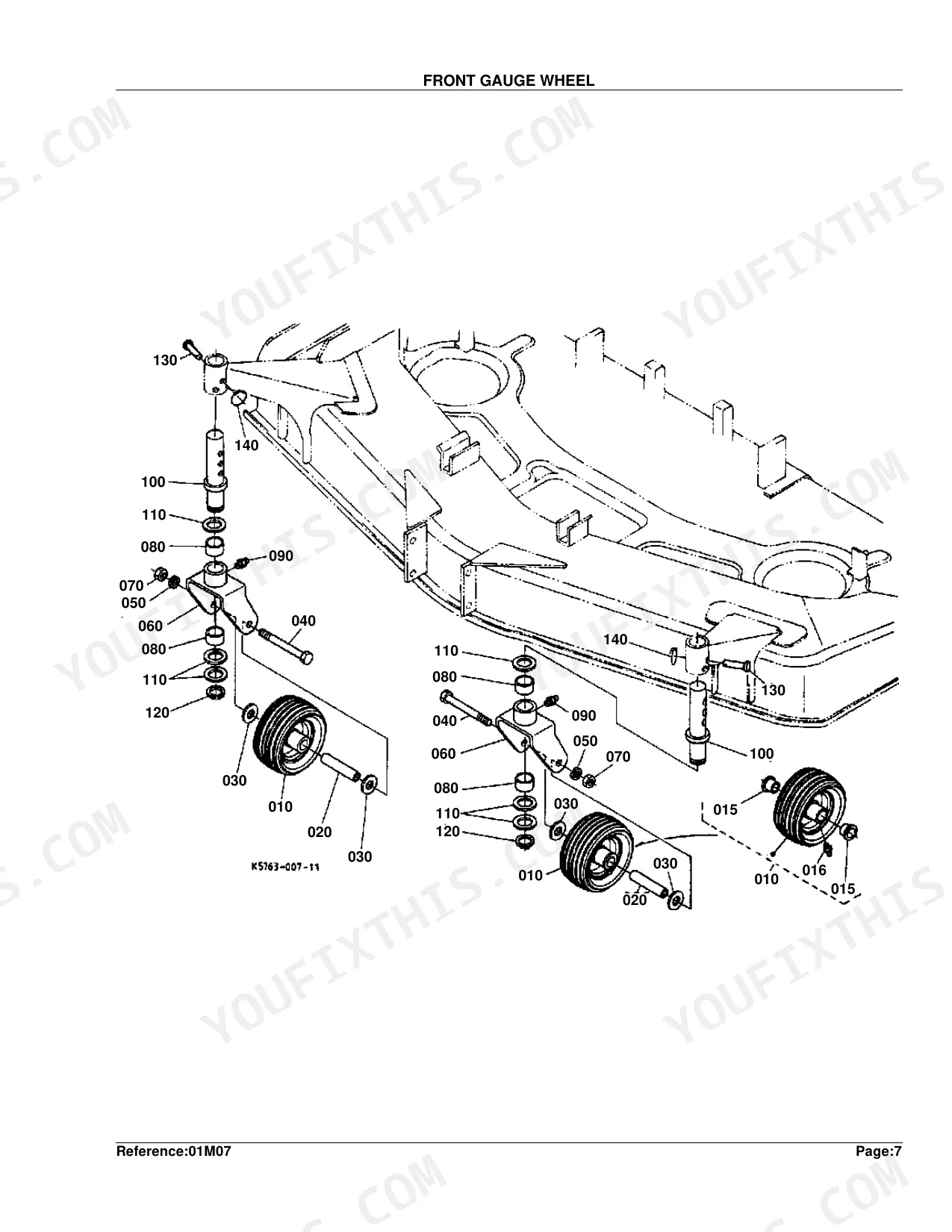

| Front Gauge Wheel | 15-16 | Assy Wheel Gauge, Bushing I.d, Nipple Grease, Collar Wheel, Holder Gauge, Bushing Gauge Holder, Shaft Holder, Collar Holder |
| Linkage | 17-18 | Bracket LH B, Bracket RH B, Assy Roller .0S, Stay Front, Spring Pin Front, Grip Lever, Link Front, Hex.nut |
| Rear Wheel | 19-20 | Arm Rear Wheel, Bracket Rear Wheel, Assy Wheel Gauge, Bushing I.d, Nipple Grease, Shaft Rear Wheel, Collar Rear Wheel, Plate Guide |
| Discharge Cover | 21-22 | Support Stay Roller, Assy Roller .0S, Shaft Roller LH, Roller, Ring Snap, Cover Discharge, Spring Discharge |
| Lift Linkage | 23-24 | Stay Mid LH, Stay Mid RH, Shaft Lift, Arm Lift LH, Arm Lift RH, Nipple Grease 45DEG, Plate Stopper, Ring Snap |
| Lift Arm | 25-27 | Rod Lift L, Rod Lift S, Turnbuckle, Arm Lift LH, Arm Lift RH |

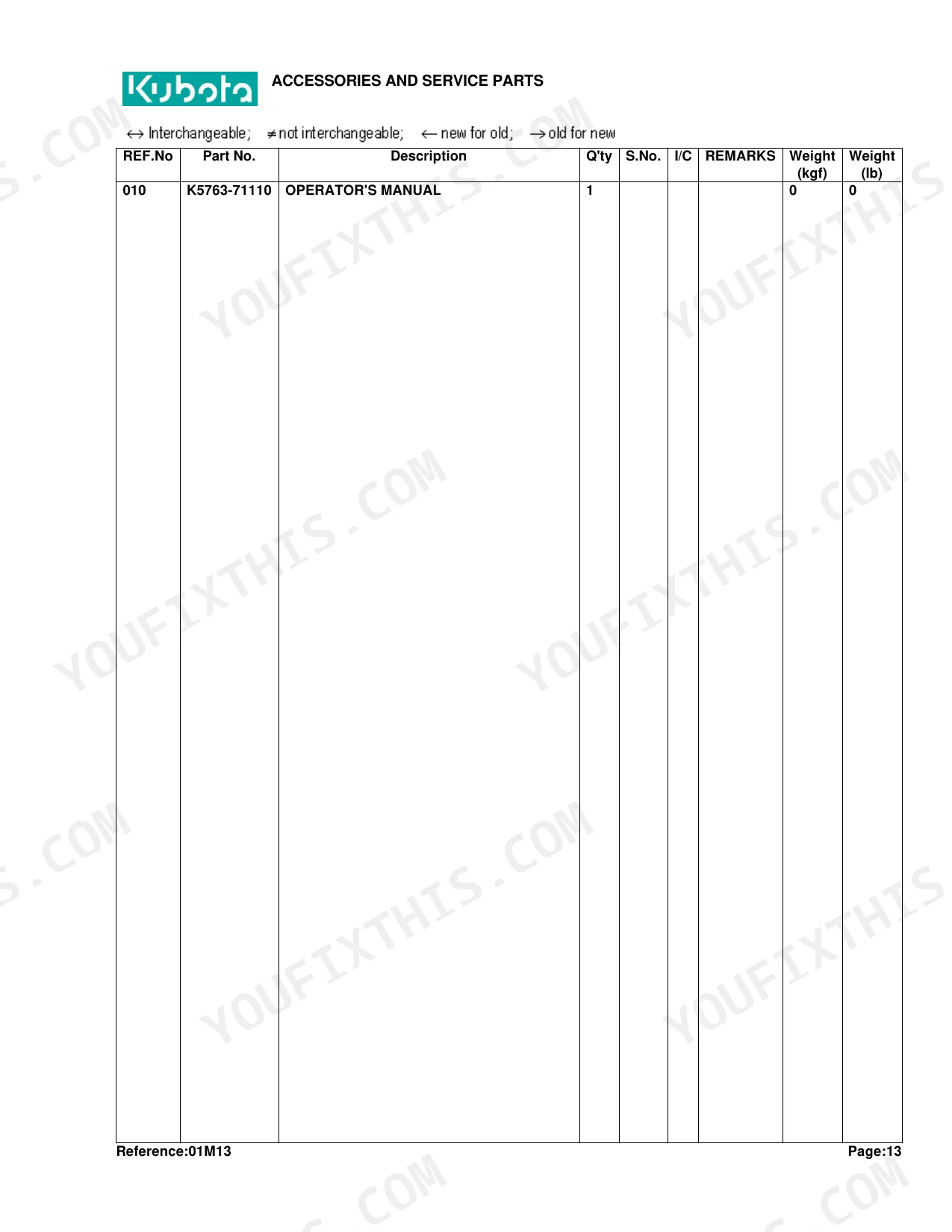

| Accessories and Service Parts | 28 | Operator's Manual |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Nipple Grease Thread Size | M6 * 1.0 | p. 10 |
| Pin Clevis Dimension | 1/2 * 1/3/4 inches | p. 14 |
| Pin Cotter Dimension | 1/8 * 1 inches | p. 22 |
| Pin Spring Dimension | 7/32-3/4 inches | p. 22 |
Kubota RCK60-24B Common Problems This Manual Covers

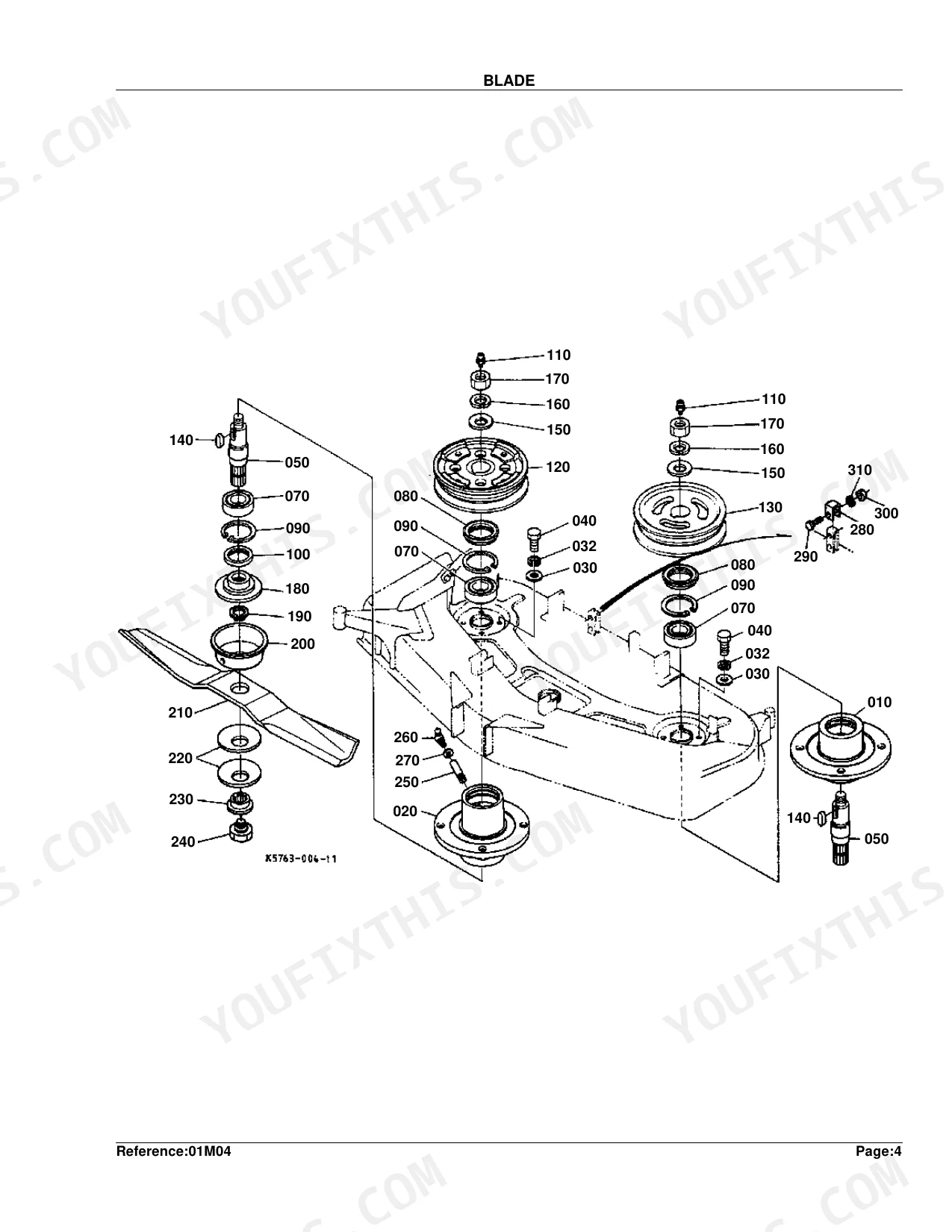

Need exact Kubota RCK60-24B spindle shaft and hardware part numbers for excessive deck vibration p. 9
Pull up the exploded view on page 9 to pin down the spindle shaft, bearings, and upper oil seal. The grease nipple for this assembly takes an M6 * 1.0 thread, confirmed on page 10. Match all of these part numbers against your machine before you order.

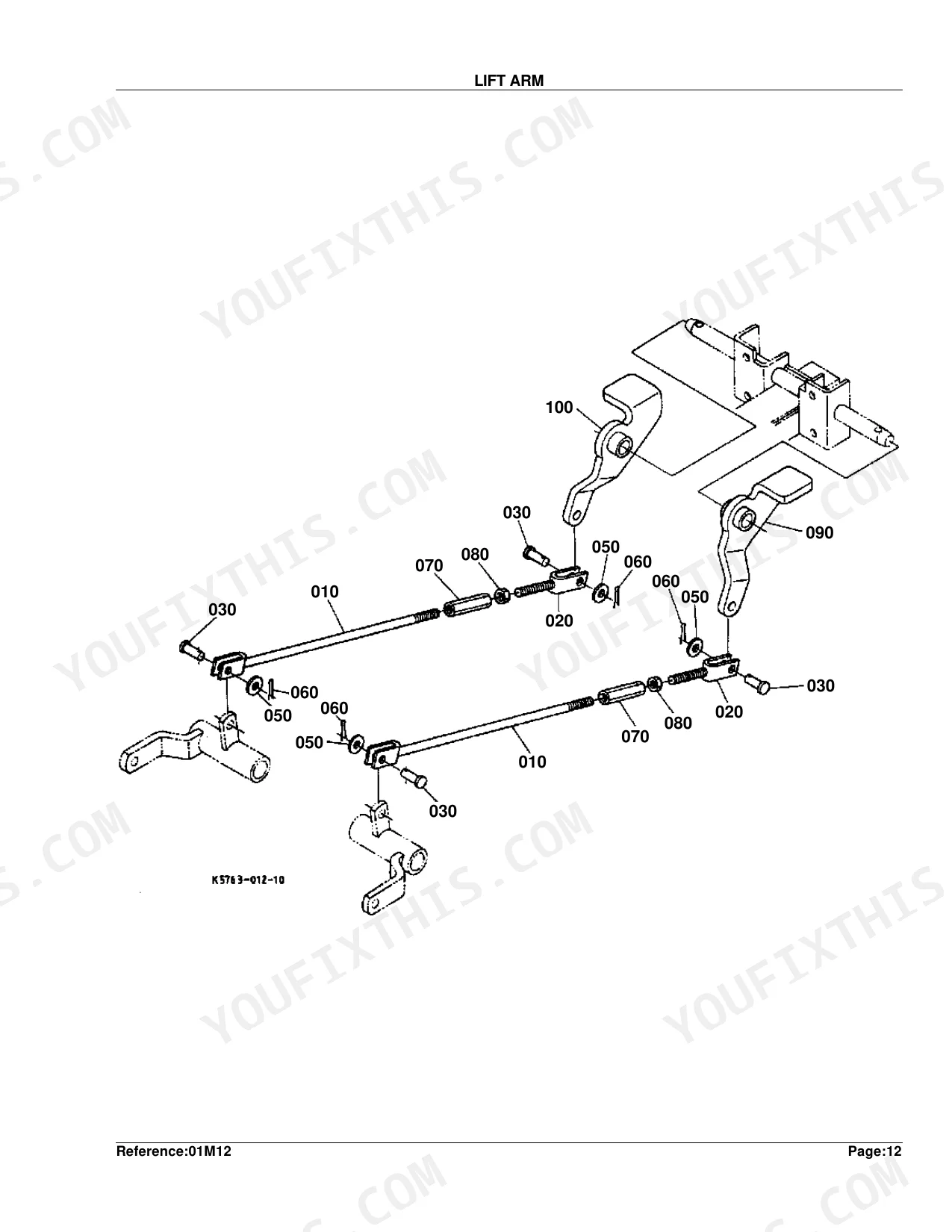

Manual Section: BladeMissing linkage hardware and fasteners making the mower deck uneven or completely unlevel p. 25
Trace the lift rod and turnbuckle assemblies on the page 25 diagram before you buy. The clevis pins that lock the lift arm to the deck measure 1/2 * 1/1/4 inches and appear on page 26, so order those alongside the rod.
Manual Section: Lift ArmCannot find the correct safety cover part numbers or replacement fasteners for a rattling mower deck p. 13
Open the mower deck parts list on page 13 for the left and right cover assemblies. The clevis pin that holds those panels runs 1/2 * 1/3/4 inches per page 14, listed next to the hairpin cotters that retain it.
Manual Section: Mower DeckNeed part numbers for missing roller shafts and support stays on the grass discharge side p. 21
Find the support stay and roller shaft numbers in the discharge cover breakdown on page 21. The 1/8 * 1 inches cotter pins on page 22 lock the new 3.0S roller assembly in place, so grab those in the same order.
Manual Section: Discharge CoverFrequently Asked Questions
What are the replacement specifications for universal joint?
The universal joint replaces as Part No. K5763-32030, listed at 0 kgf (0 lb). If you only need the coupler hardware, Part No. K5763-31220 covers the repair kit, also at 0 kgf (0 lb).
What are the replacement specifications for bevel gear case?
The bevel gear case itself is Part No. K5761-33114 at 0 kgf (0 lb). For the full set of gears, order Part No. K5763-33320, which weighs 0.45 kgf (0.99 lb).
What fastener thread spec does the Kubota RCK60-24B spindle grease nipple use?
The spindle assembly grease nipple uses an M6 x 1.0 thread, confirmed on page 10. Pull up the exploded view on page 9 to identify the spindle shaft, bearings, and upper oil seal before ordering replacement parts.
What size clevis pin holds the Kubota RCK60-24B deck cover panels?
The left and right deck cover assemblies are retained by a 1/2 x 1-3/4 inch clevis pin, listed alongside matching hairpin cotters on page 14. The cover parts list is on page 13.
What format is this manual in?
It is a 28-page searchable PDF, available to download the moment checkout completes. Read it on a laptop, tablet, or phone and carry it straight to the shop floor.
Can I print specific sections of this Kubota RCK60-24B Parts Catalog?
The PDF ships DRM-free, so print whatever sections you want for the shop. Standard letter or A4 paper both work.
