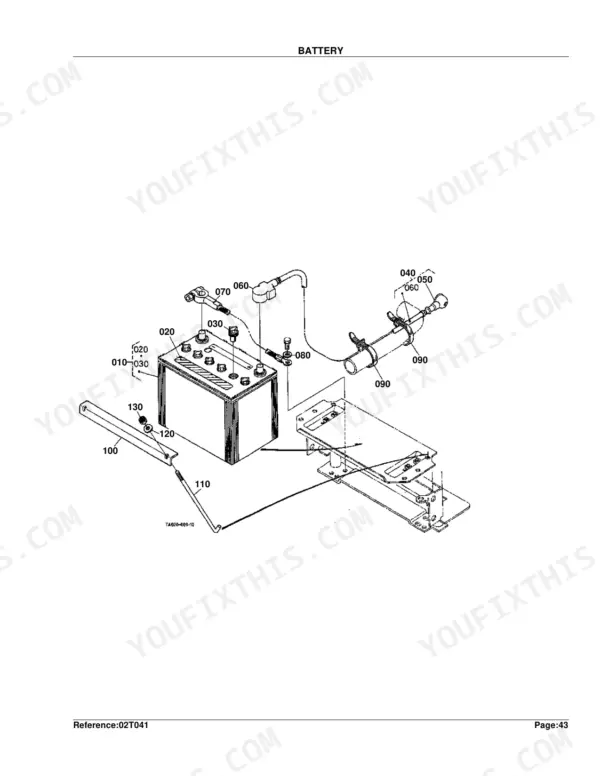

Need the factory part numbers for your Kubota L2900F tractor? This 312-page Kubota L2900F parts catalog PDF maps every component to its OEM reference through exploded views organized by system across the full machine. Inside: 140 pages of itemized parts lists spanning engine internals from injection pump component parts to nozzle holder internals, clutch and all transmission variants, hydraulic pump and control valve assemblies, steering cylinder components, 3-point linkage, and the full electrical system. Factory-listed weights travel with every part number: the crankcase assembly at 48.5 kgf, the flywheel at 25.7 kgf. Called the dealer with the wrong number before? Search by keyword, jump to any system via bookmarks, and read the exact OEM part number off your screen before you dial.
What's Inside This Kubota L2900F Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Nozzle Holder/Glow Plug, Nozzle Holder, Fuel Camshaft, Injection Pump, Engine Stop Lever, Speed Control Plate, Governor, Air Cleaner, Double Air Cleaner, Stop Solenoid and Engine Stop Wire, Accelerator Lever, Accelerator Linkage, Accelerator Rod, Fuel Tank, Fuel Pipe and Fuel Filter, Fuel Filter | |
| Cooling System | Water Pump, Water Flange and Thermostat, Water Pipe, Radiator, Reserve Tank | |
| Engine | Crankcase, Piston and Crankshaft, Main Bearing Case, Flywheel, Cylinder Head, Valve and Rocker Arm, Cylinder Head Cover, Inlet Manifold, Gear Case, Upper Gasket Kit, Lower Gasket Kit, Exhaust Manifold and Muffler | |
| Electrical System | Alternator, Starter, Switch, Panel Board, Light, Electrical Wiring | |
| Clutch & Transmission | Clutch, Clutch Lever, Clutch Pedal, Clutch Housing, Mid Case, Transmission Case, Main Shaft, Countershaft, Shuttle Shaft, Range Gear Shaft, PTO Countershaft, PTO Clutch, Main Gear Shift Lever, Main Gear Shift Fork, Shuttle Shift Lever, Shuttle Shift Fork | |
| PTO | PTO Shaft, Mid PTO, PTO Hydraulic Oil Line, Drawbar and PTO Protector | |
| Rear Axle, Differential & Brakes | Rear Differential, Rear Axle, Rear Wheel, Brake, Brake Pedal, Brake Rod 1, Brake Rod 2 | |

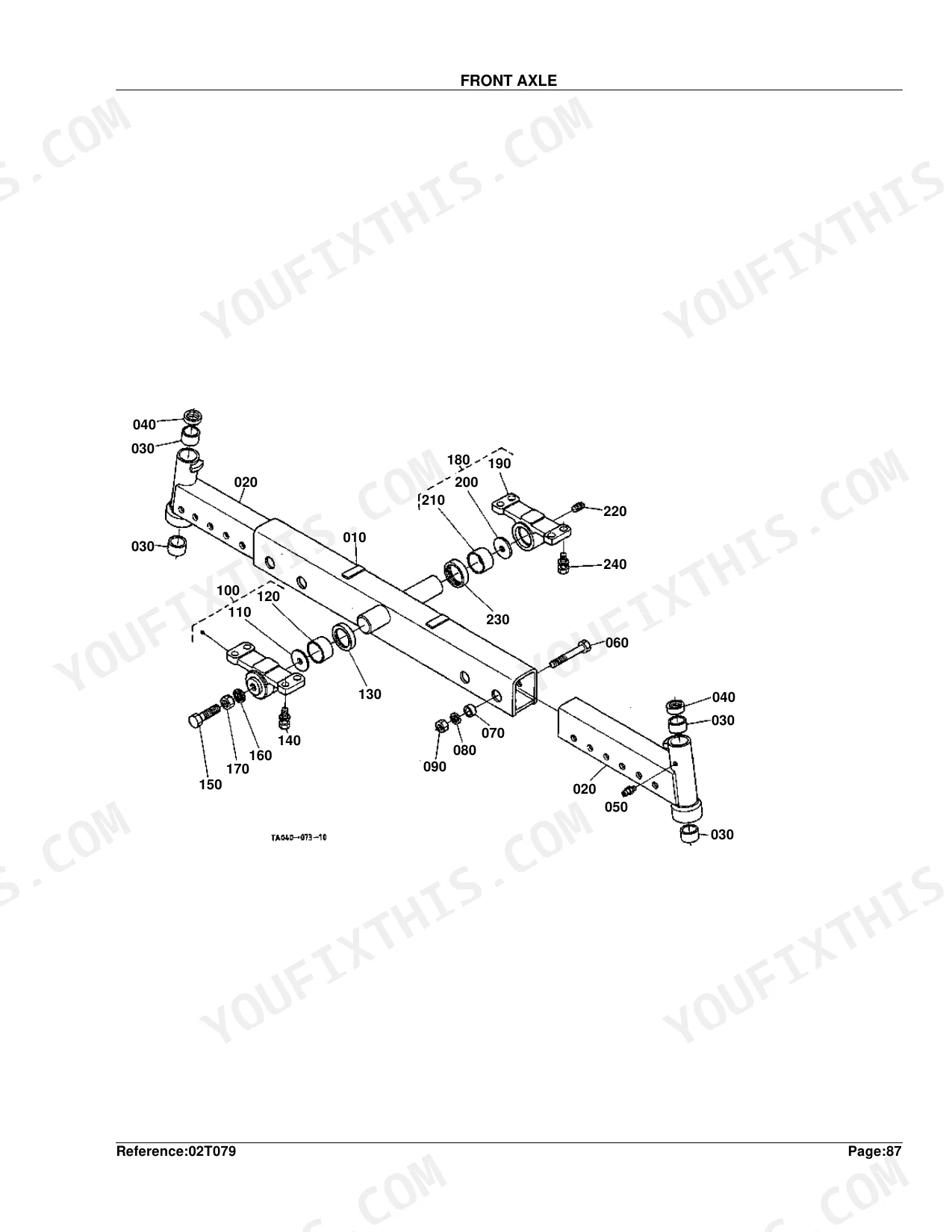

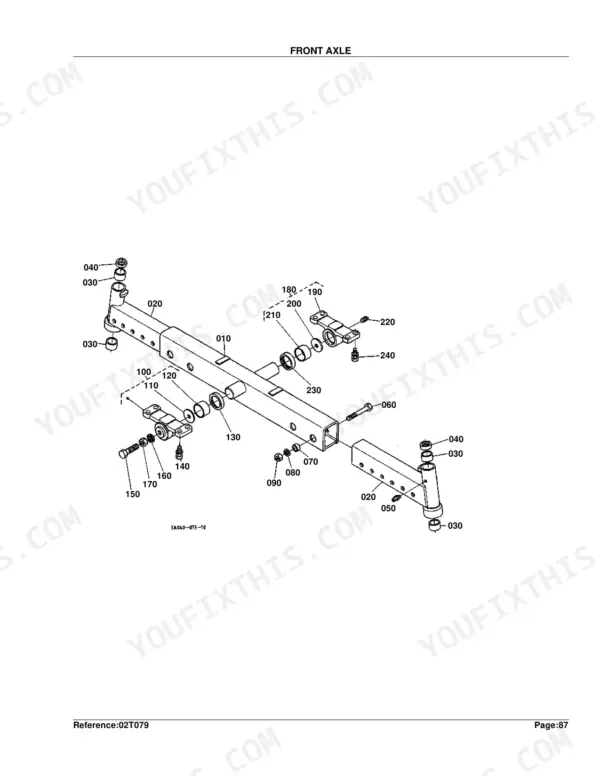

| Front Axle & Steering | Spiral Bevel Pinion, Front Axle, Front Wheel, Front Axle Frame, Front Wheel Drive Shaft, Steering Linkage, Steering Cylinder, Steering Controller, Steering Handle | |

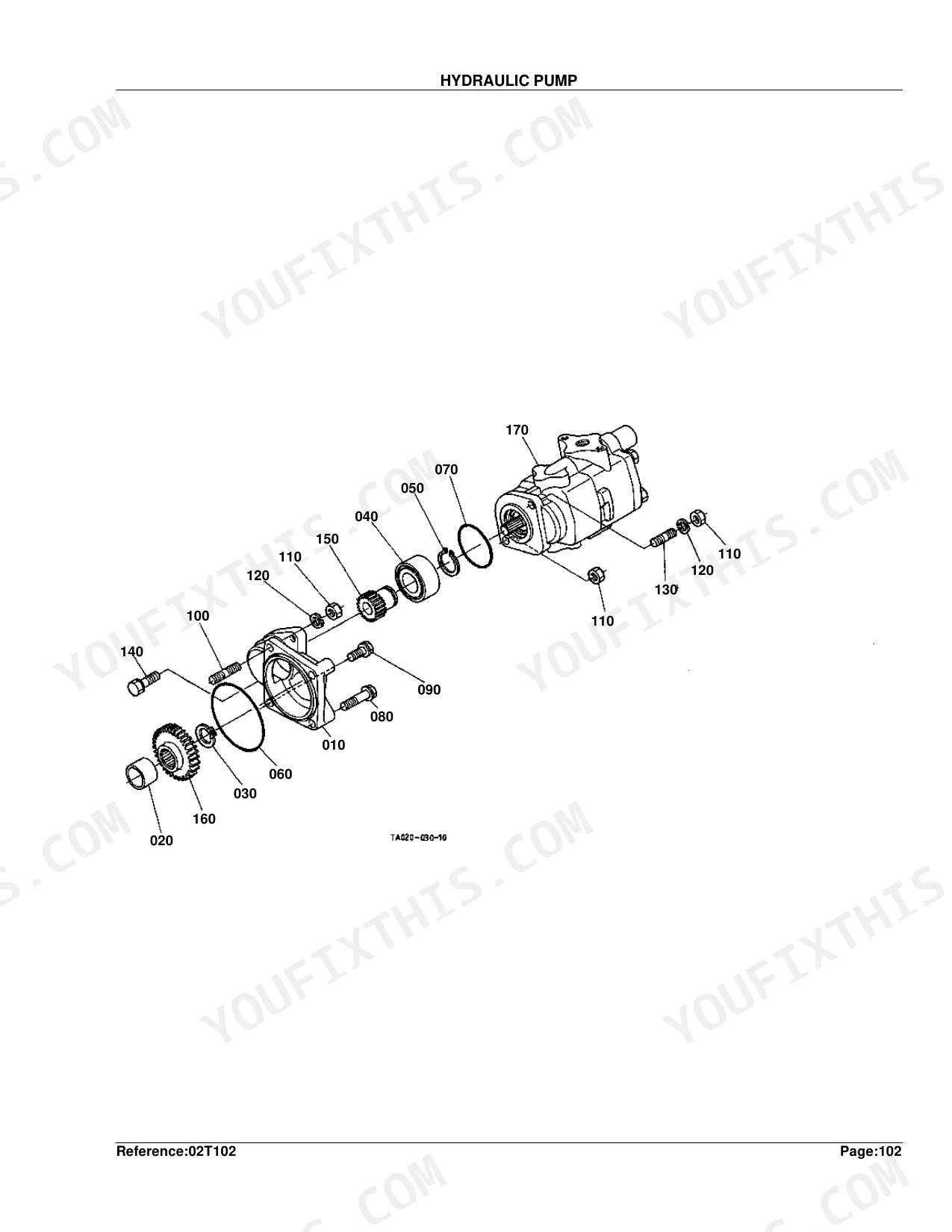

| Hydraulics & 3-Point Hitch | Hydraulic Oil Line, Regulator Valve, Hydraulic Pump, Hydraulic Outlet Block, Hydraulic Cylinder, Lift Arm, Control Valve, Feed Back Lever, Position Control Lever, Draft and Position Control Lever 1, Draft and Position Control Lever 2, Top Link Holder, Swinging Drawbar and Clevis Drawbar, Remote Control Valve Lever 1, Remote Control Valve Lever 2, Remote Control Valve Lever 3 | |
| Body & Operator Station | Front Grille, Front Grille Support, Hood, Side Cover, Side Cover Lower, Shutter Plate, Panel Frame, Fender, Floor Seat, Seat, Step, ROPS | |
| Decals & Accessories | Label 1, Label 2, Accessories and Service Parts | |
| Other Components | Knuckle Shaft |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

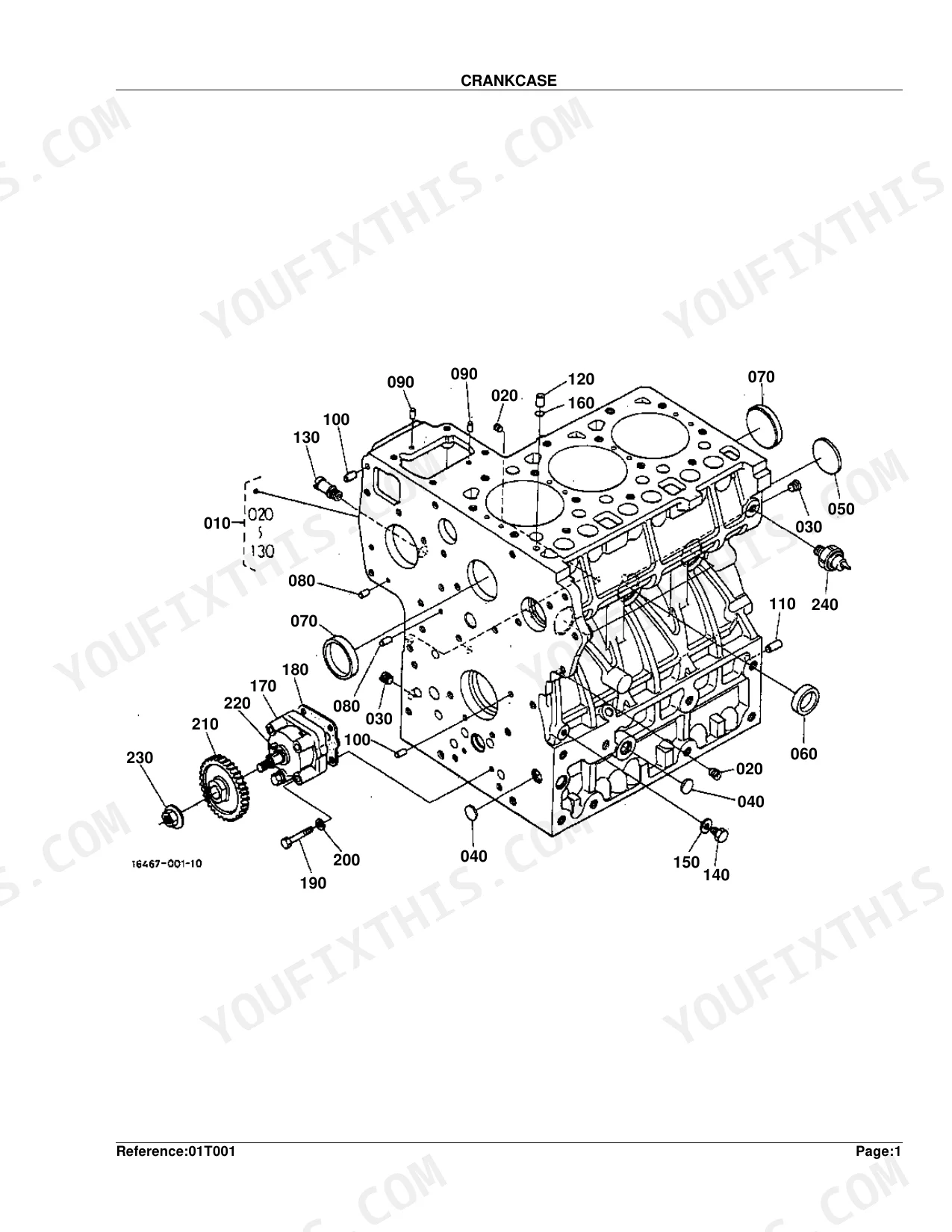

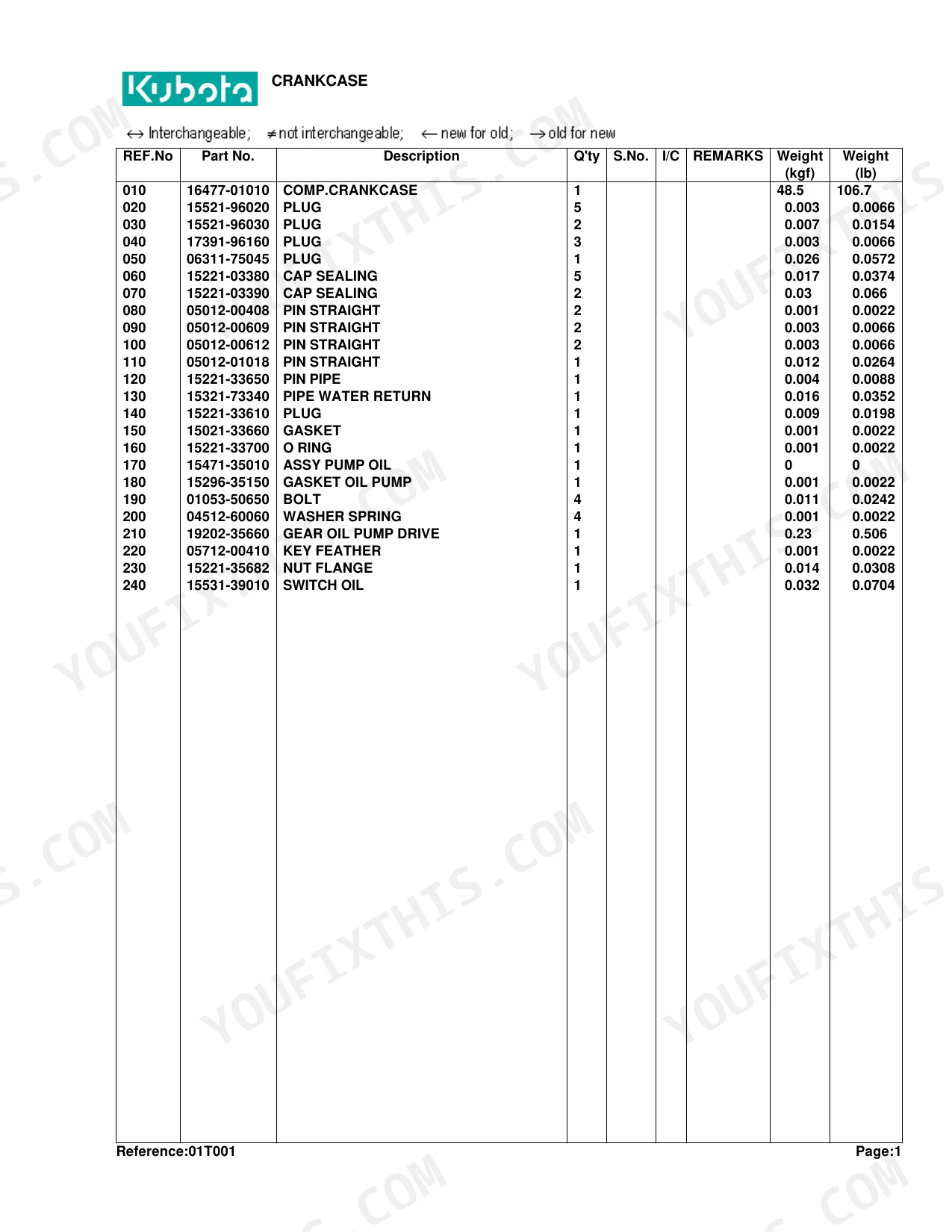

| COMP.CRANKCASE Weight | 48.5 kgf | p. 7 |
| COMP.FLYWHEEL Weight | 25.7 kgf | p. 16 |
| ASSY CAMSHAFT Weight | 3.42 kgf | p. 35 |
| ASSY CASE GEAR Weight | 4.2 kgf | p. 37 |
| ASSY PUMP WATER Weight | 1.21 kgf | p. 39 |
| ASSY RADIATOR Weight | 5.9 kgf | p. 84 |
| ASSY ALTERNATOR Weight | 2.85 kgf | p. 89 |
| ASSY STARTER Weight | 3.4 kgf | p. 93 |

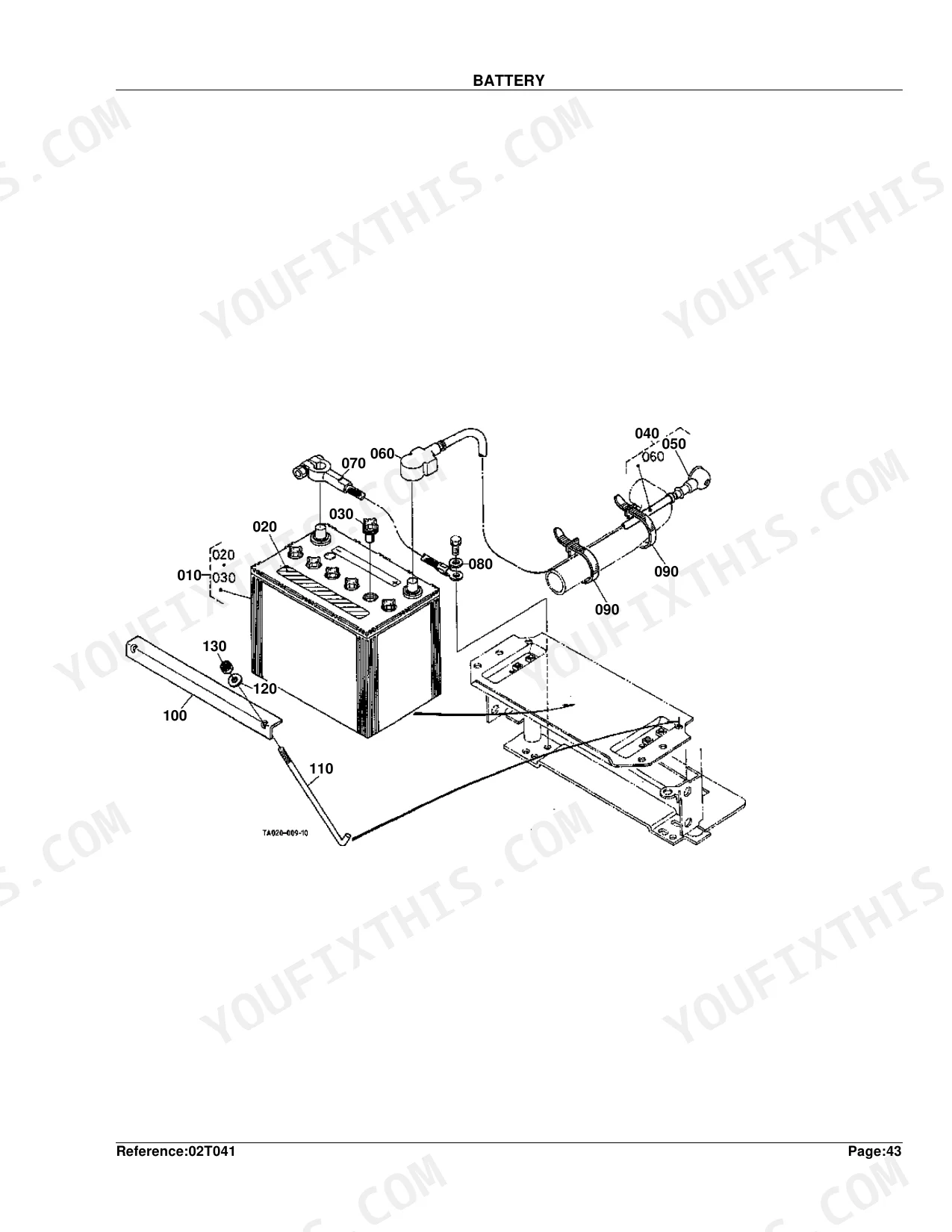

| CORD BATTERY Weight | 0.55 kgf | p. 97 |
| ASSY PLATE PRESSURE Weight | 6.5 kgf | p. 109 |
| CLUTCH HOUSING Weight | 41 kgf | p. 116 |
| ASSY REAR WHEEL Weight | 133 kgf | p. 183 |
Kubota L2900F Common Problems This Manual Covers
Kubota L2900F intermittent hard start or clicking noise when turning the key in cold weather.
Check the starter component parts breakdown on page 94. Identify the exact replacement part numbers for the armature, internal bearings, or the complete starter assembly. The full ASSY STARTER weighs exactly 3.4 kgf, so support it carefully when unbolting it from the engine block to avoid dropping it.
Manual Section: Starter [Component Parts] p. 94Positive pressure and light oil haze blowing out of the valve cover breather line.
Inspect the cylinder head cover parts diagram on page 30. Find the correct part numbers for the breather element, joint breather, and cylinder head cover gasket. Replace the clogged element before it forces leaks at the crankcase, which weighs 48.5 kgf and requires a major teardown.
Manual Section: Cylinder Head Cover p. 30Engine overheating under heavy load with visible coolant dripping from the front timing cover area.
Review the water pump exploded view on page 38. Locate the replacement part numbers for the mechanical seal, impeller, and water pump gasket. Order the complete assembly if the housing is cracked. The ASSY PUMP WATER weighs 1.21 kgf, making it easy to swap out once drained.
Manual Section: Water Pump p. 38Grinding gears or extreme difficulty shifting between ranges while the tractor is running.

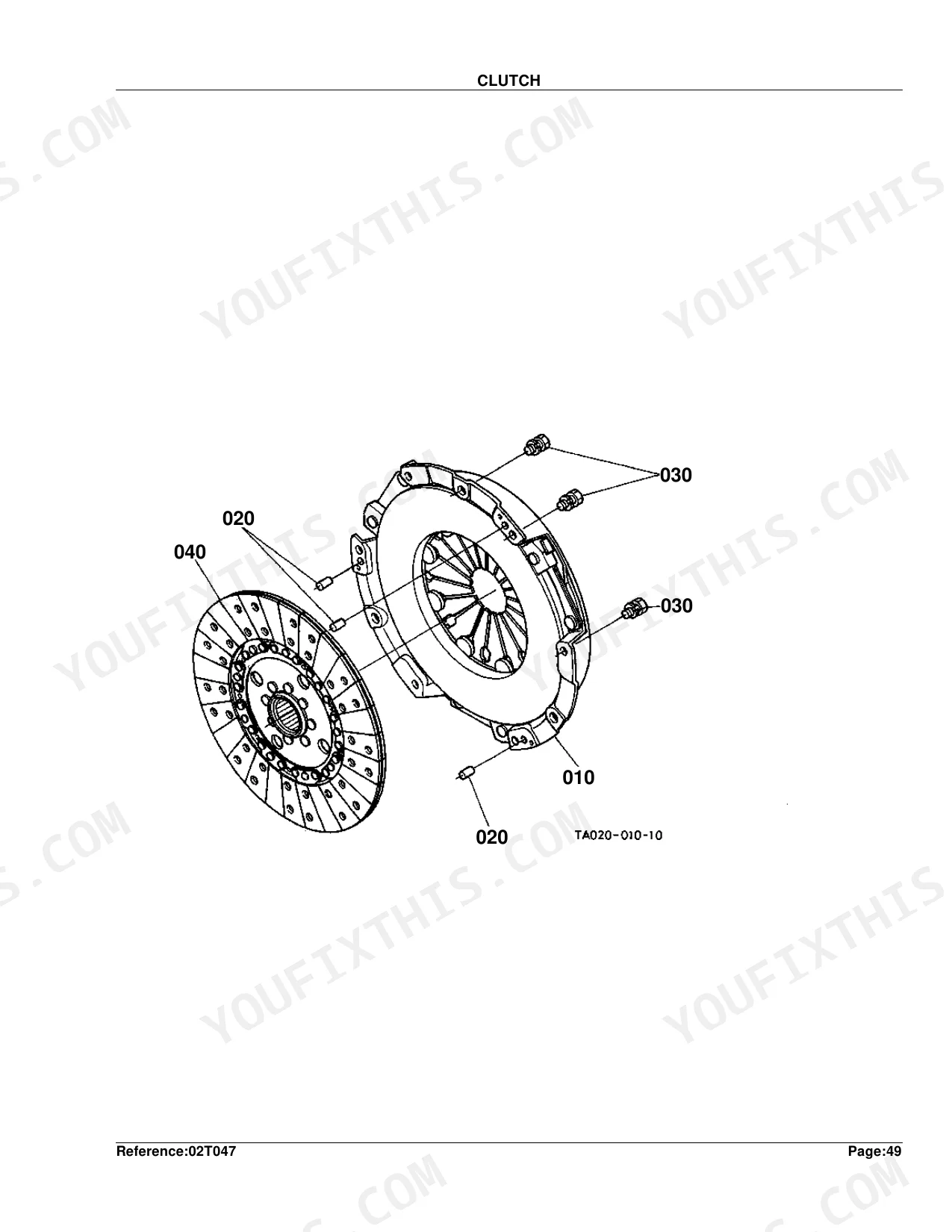

Examine the manual transmission clutch housing diagram on page 114. Find the proper part numbers for the pressure plate, release bearings, and associated hardware. If replacing the entire housing, prepare a floor jack because the bare CLUTCH HOUSING weighs 41 kgf and requires heavy support during splitting.
Manual Section: Clutch Housing [Manual T/M Type] p. 114Frequently Asked Questions
What are the replacement specifications for steering seals?
The manual provides part numbers and weights for steering-related seals and gaskets, but not detailed replacement specifications such as dimensions or material properties. For example, the 'SEAL OIL' for the front axle is part number 38240-13140, with a quantity of 2 and a weight of 0.004 kgf (0.0088 lb). Other related parts include 'GASKET ROD' (TA040-37560) and 'SEAL DUST' (TA040-37580) for the steering cylinder, each with specific part numbers and weights. p. 194
What are the replacement specifications for hydraulic hoses?
The manual lists part numbers and weights for various hydraulic hoses and pipes, but does not provide detailed replacement specifications such as pressure ratings, lengths, or material types. For instance, a 'HOSE DELIVERY' is part number 34530-33510, weighing 0 kgf (0 lb), and an 'ASSY HOSE RETURN' is part number 34030-33530, weighing 0.29 kgf (0.638 lb). A 'HOSE INLET' is identified by part number TA020-33340, with a weight of 0.065 kgf (0.143 lb). p. 221
Is this Kubota L2900F Parts Catalog a digital download?
Immediate download of the complete 312-page searchable Parts Catalog. Access it on any device, laptop at your desk or phone in the field.
