This operator's manual covers eight Kubota tractors: the L3240, L3540, L3940, L4240, L4740, L5040, L5240, and L5740. Its 132 pages serve owners running any of these models with HST, GST, or manual transmission.Inside are the full specification tables for each transmission type, traveling speeds, implement limitations, and the controls layout, followed by starting procedures, PTO and three point hitch operation, and the hydraulic control system. The maintenance chapter lays out service intervals, lubricants, and periodic service, and a troubleshooting chapter addresses engine, HST, and GST faults.Use it to learn a new tractor, set the correct fluid capacities and intervals, adjust the hitch and hydraulics, or diagnose a running problem, with the procedures matched to your exact model and transmission.
What's Inside This Kubota L3240–L5740 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|

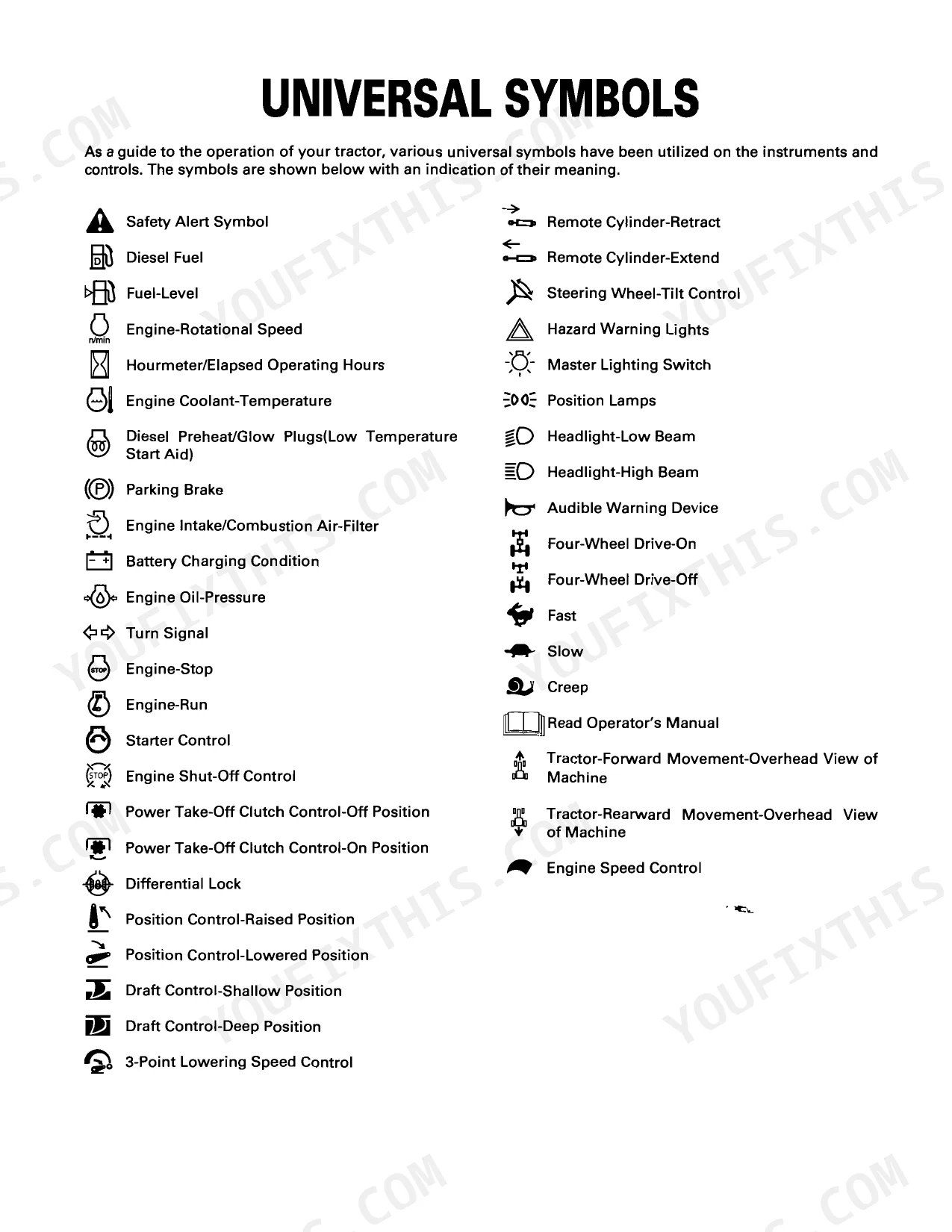

| Universal Symbols | 3 | Introduction to Universal Symbols, List of Universal Symbols, Safety Alert Symbol |

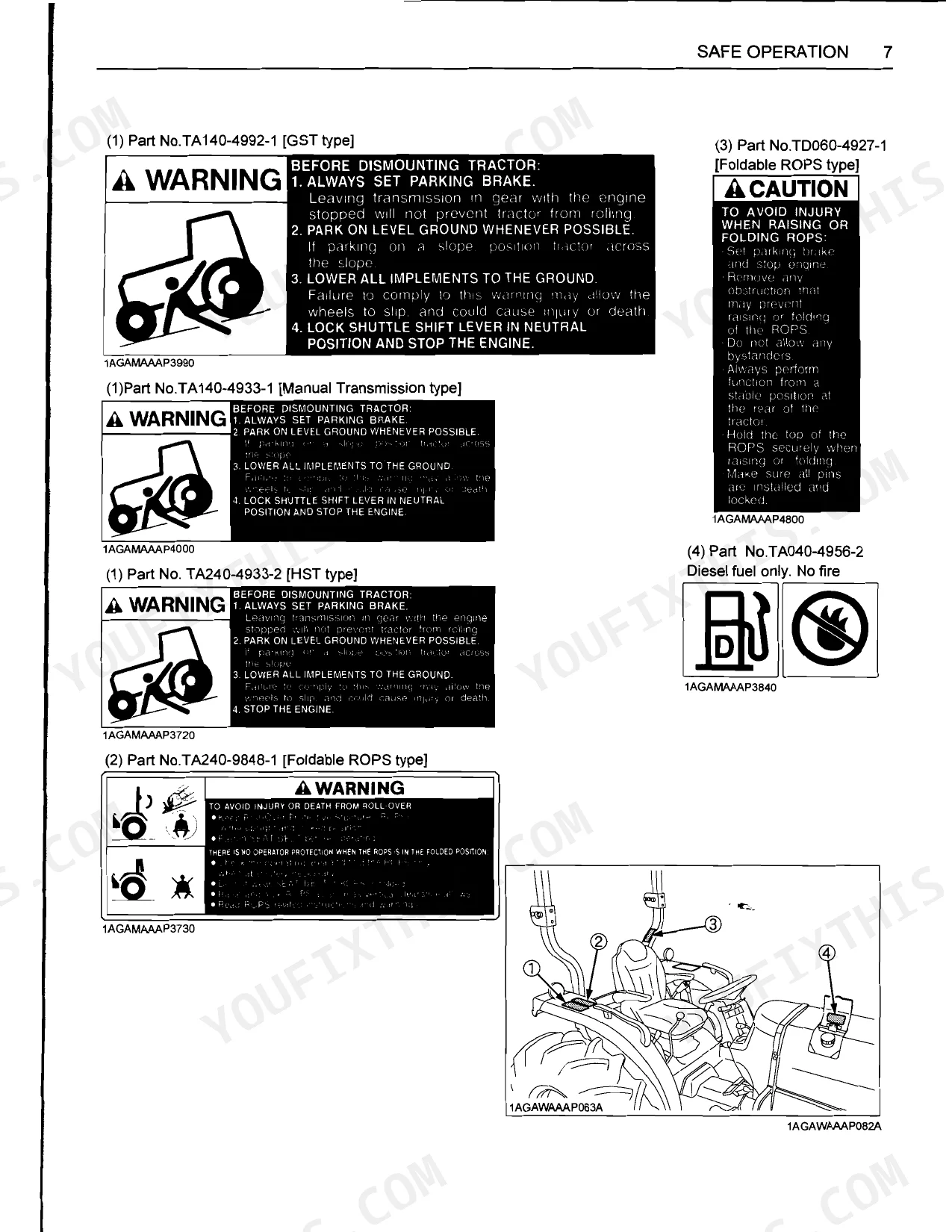

| Safe Operation | 8-16 | Before Operating the Tractor, Driving the Tractor on the Road, Using 3-Point Hitch, Danger, Warning and Caution Labels, Care of Danger |
| Servicing of Tractor | 17-19 | Specifications, HST Type Specifications, Gst Type Specifications, Manual Transmission Type Specifications, Traveling Speeds, Tractor Identification |

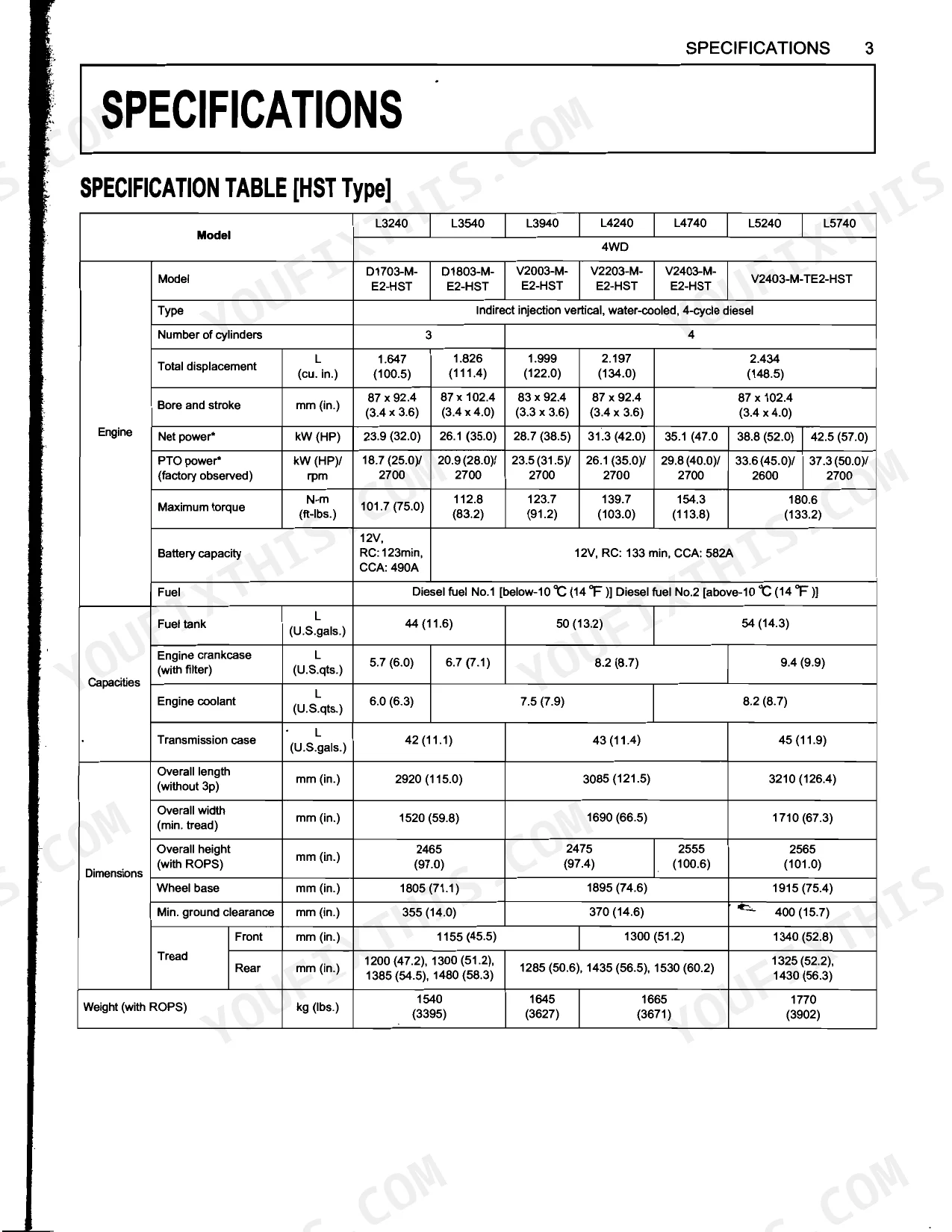

| Specifications | 20-28 | Specification Table [HST Type], Specification Table [Gst Type], Specification Table [Manual Transmission Type], Traveling Speeds [HST Type], Gst Type, Manual Transmission Type |
| Implement Limitations | 29-30 | Tread, Lower Link Lifting Capacity, Implement Weight, Max. Drawbar Load, Trailer Loading Weight, Implement Types |
| Instrument Panel and Controls | 31-34 | HST Type Controls, GST/Manual Transmission Type Controls, Instrument Panel Indicators, 3-Point Hitch Controls, PTO Controls, Hydraulic Controls |
| Pre-Operation Check | 35 | Daily Check, Check Item, Check Danger, Warning and Caution Labels |
| Operating the Engine | 36-43 | Starting the Engine, Check Easy Checker(TM) Lamps, Cold Weather Starting, Stopping the Engine, Jump Starting |
| Operating the Tractor | 44-73 | Operating New Tractor, Starting, Glove Box, Light Switch, Tractor Lights, Brake Pedals (Right and Left), Clutch Pedal, HST Response Control Dial |
| PTO Operation | 74-77 | PTO Clutch Control Lever, Rear and Mid-PTO Speed, Mid-PTO Lever, Stationary PTO, IntelliPanel Message, PTO Shaft Cover and Shaft Cap |

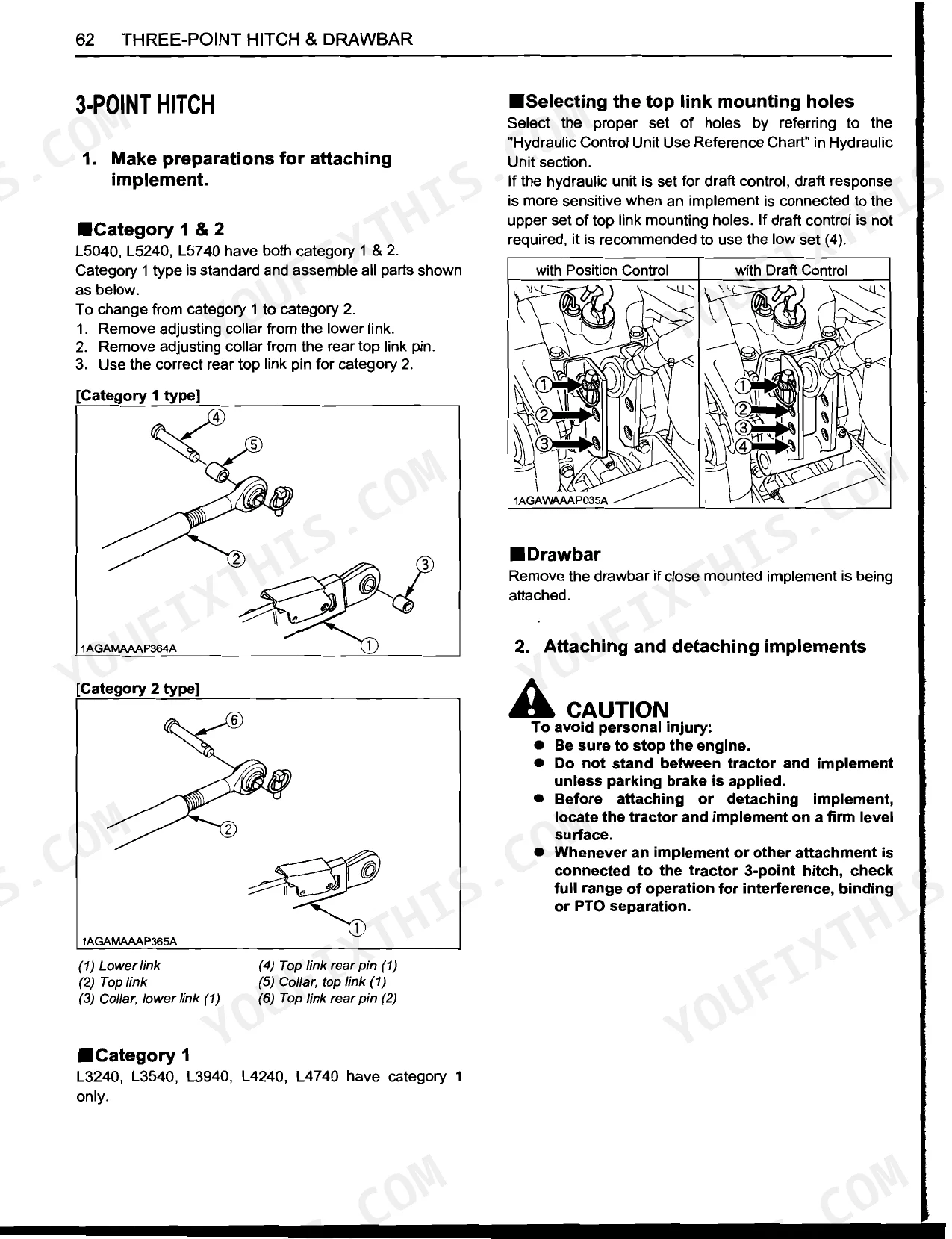

| Three-Point Hitch & Drawbar | 78-81 | 3-Point Hitch, Make Preparations for Attaching Implement, Selecting the Top Link Mounting Holes, Drawbar, Attaching and Detaching Implements, Lifting Rod, Telescopic Stabilizers |
| Hydraulic Unit | 82-87 | 3-Point Hitch Control System, Position Control, Draft Control, Mixed Control, Float Control, 3-Point Hitch Lowering Speed, Dual Remote Hydraulic Control System |
| Tires, Wheels and Ballast | 88-94 | Tires, Dual Tires, Inflation Pressure, Wheel Adjustment, Front Wheels, Rear Wheels, Ballast, Front Ballast |
| Maintenance | 95-120 | Service Intervals, Lubricants, Periodic Service, How to Open the Hood, Side Cover, Front Cover, Floor Seat, Daily Check |
| Service As Required | 121-123 | Bleeding Fuel System, Draining Clutch Housing Water, Replacing Fuse, Replacing Light Bulb, Replacing Head Lamp |
| Storage | 124 | Tractor Storage, Removing the Tractor From Storage |
| Troubleshooting | 125-130 | Engine Troubleshooting, HST (Hydrostatic Transmission) Troubleshooting, Gst (Glide Shift Transmission) Troubleshooting |
| Options | 131-132 | Engine Block Heater, Work Light, High Visibility for Night Work |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel nut torque | 185 N-m (19 kgf-m, 136 ft-lbs) | p. 73 |
| Lug nut torque | 185 N-m (19 kgf-m, 136 ft-lbs) | p. 73 |
| Battery Capacity | 12V, RC: 123min, CCA: 490A | p. 20 |
| Hydraulic System Pressure | 17.7 MPa (180 kgf/cm²) | p. 20 |
| Engine Oil Change Interval | Every 200 Hr | p. 78 |
| Greasing Interval | Every 50 Hr | p. 78 |
| L3240 | ||
| Engine Oil Capacity (with filter) | 5.7 L (6.0 U.S.qts.) | p. 80 |
| L5740 | ||
| Engine Oil Capacity (with filter) | 9.4 L (9.9 U.S.qts.) | p. 80 |
| L3240, L3540 | ||
| Transmission Case Capacity | 42 L (11.1 U.S.gals.) | p. 80 |
| Front Axle Case [4WD] Capacity | 6.5 L (6.9 U.S.qts.) | p. 80 |
| Rear PTO Engine Speed | 540/2685 rpm | p. 20 |
Kubota L3240–L5740 Series Common Problems This Manual Covers
Overheating from a clogged radiator screen
These tractors overheat when the grille, radiator screen, or oil cooler pack with debris. The Maintenance section covers cleaning them as part of the daily and periodic service.
Manual Section: Maintenance p. 95No-start or slow cranking
A discharged battery, loose connections, or a blown fuse leaves the tractor cranking slowly or not at all. The Troubleshooting section walks through the engine starting checks.
Manual Section: Troubleshooting p. 125Weak hydraulics and slow implements
Low or contaminated fluid makes the loader and 3-point hitch respond slowly or weakly. The Hydraulic Unit section explains the control system and its settings.
Manual Section: Hydraulic Unit p. 82Uneven or weak brakes
Brake pedals that feel soft or grab unevenly are a recurring safety concern. The Pre-Operation Check section lists inspecting the brake pedals before each use.
Manual Section: Pre-Operation Check p. 35Oil, fuel, or coolant leaks
Loose fittings and aging hoses lead to leaks under the tractor. The Service As Required section covers replacing the fuel, power steering, and hydraulic hoses.
Manual Section: Service As Required p. 121Easy Checker warning lamps stay on
A lit Easy Checker lamp signals low fluid, a clogged filter, or an electrical fault that needs attention. The Operating the Engine section explains checking the lamps at startup.
Manual Section: Operating the Engine p. 36Frequently Asked Questions
Which models does this manual cover?
It covers eight Kubota tractors: the L3240, L3540, L3940, L4240, L4740, L5040, L5240, and L5740. The 132 page operator's manual applies to HST, GST, and manual transmission versions.
Does it cover HST and GST transmissions?
Yes. The Specifications section gives separate specification tables and traveling speeds for the HST, GST, and manual transmission types, so you can match the figures to your tractor. p. 20
What are the main service intervals?
The manual sets the maintenance schedule, including an engine oil change every 200 hours and greasing every 50 hours, applied across the series. p. 78
Does it help with troubleshooting?
Yes. The Troubleshooting section covers engine faults plus HST hydrostatic and GST glide shift transmission problems, with likely causes and checks. p. 125
How will I receive this Kubota L3240–L5740 Series Operator Manual?
You get a 132-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, bring it right to the shop floor.
Is this Kubota L3240–L5740 Series Operator Manual printable?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
