This is the operator's manual for the Kubota L4400 tractor, powered by the V2203-M-E2A diesel engine. Across 92 pages it walks an owner through safe operation, daily checks, starting, and the routine service that keeps the tractor running.You get the specification tables, service intervals, and step by step maintenance for the engine, fuel and air filters, hydraulics, PTO, three point hitch, tires, and electrical system. It also includes torque values for the wheel bolts, battery details, and a troubleshooting chart for common running problems.Whether you are new to the L4400 or servicing one you have owned for years, the manual gives you the correct procedures, capacities, and intervals so you can operate it safely and handle maintenance yourself instead of guessing.
What's Inside This Kubota L4400 Manual
| System | Pages | Key Topics |
|---|---|---|
| A Safe Operation | - | Before Operating the Tractor, Safety for Children, Operating on Slopes, Driving the Tractor on the Road, Parking the Tractor, Operating the PTO, Using 3-Point Hitch |
| Servicing of Tractor | - | Tractor Serial Number, Engine Serial Number, Tractor Identification Plate |
| Specifications | - | Specification Table, Traveling Speeds, Implement Limitations |
| Pre-Operation Check | - | Daily Check, Check Item, Care of Danger, Warning and Caution Labels |

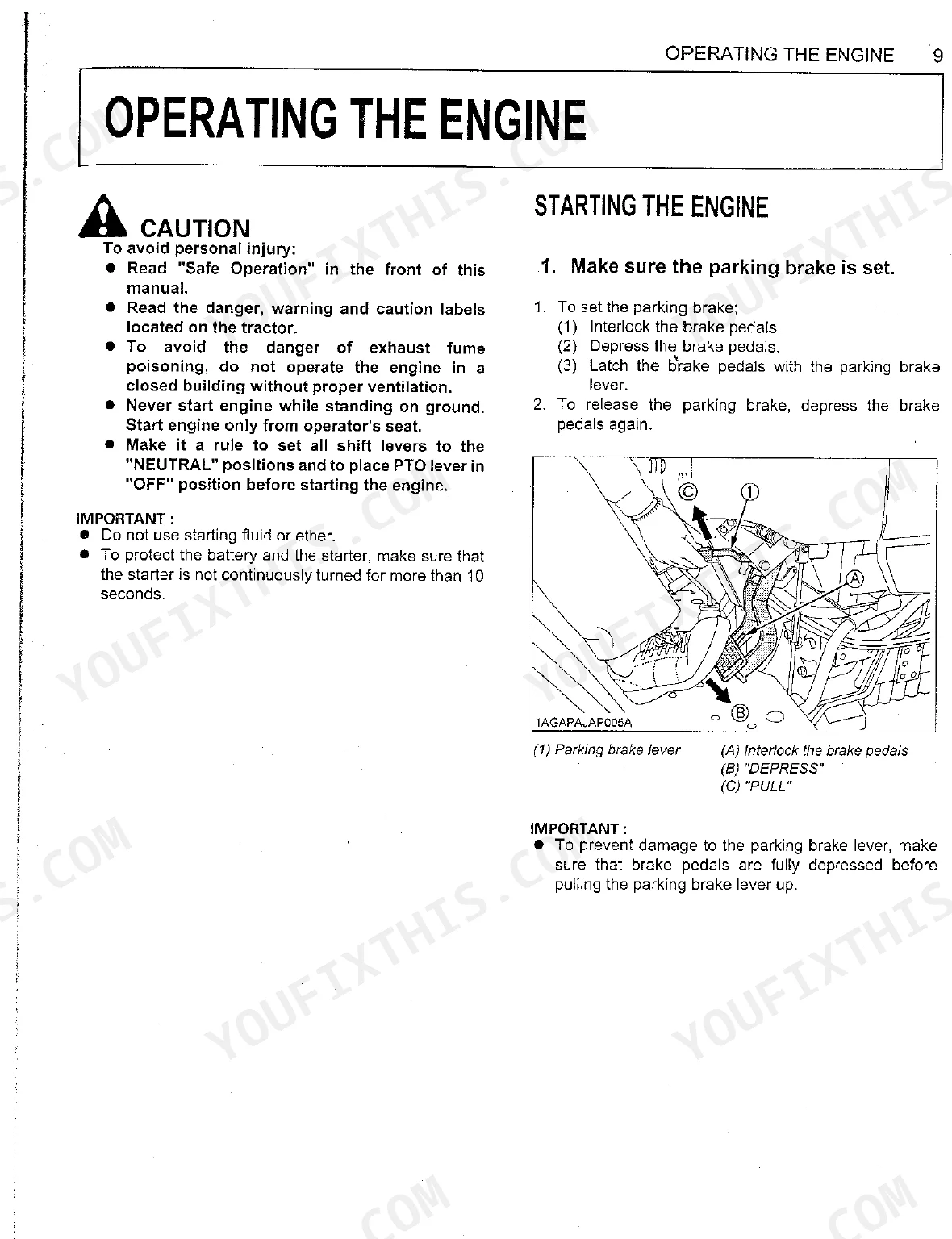

| Operating the Engine | - | Starting the Engine, Cold Weather Starting, Stopping the Engine, Warming Up, Jump Starting |
| Operating the Tractor | - | Operating New Tractor, Operating Foldable ROPS, Adjusting Operator's Position, Selecting Light Switch Positions, Checking Brake Pedal, Selecting Travel Speed, Accelerate Engine |
| PTO | - | PTO Operation, PTO Clutch Control Lever, Stationary PTO, PTO Shaft Cover and Shaft Cap |

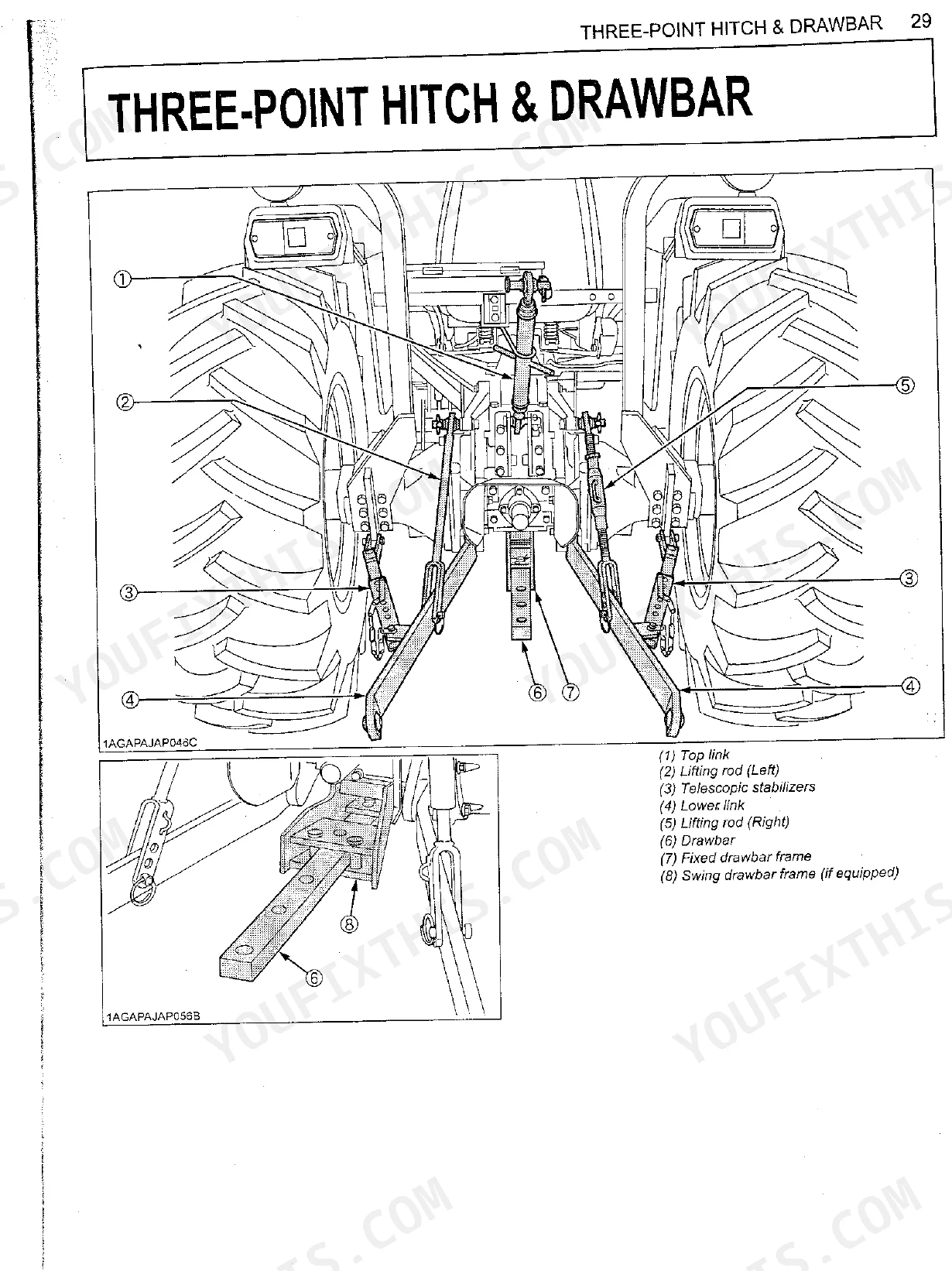

| Three-Point Hitch & Drawbar | - | 3-Point Hitch, Selecting Top Link Mounting Holes, Lifting Rod, Telescopic Stabilizers, Drawbar, Swing Drawbar |
| Hydraulic Unit | - | 3-Point Hitch Control System, Position Control, Draft Control, Mixed Control, Float Control, 3-Point Hitch Lowering Speed, Auxiliary Hydraulics, Remote Hydraulic Control System |
| Tires, Wheels and Ballast | - | Inflation Pressure, Dual Tires, Wheel Adjustment, Front Wheels (2WD/4WD), Rear Wheels, Ballast, Front Ballast, Rear Wheel Weights |

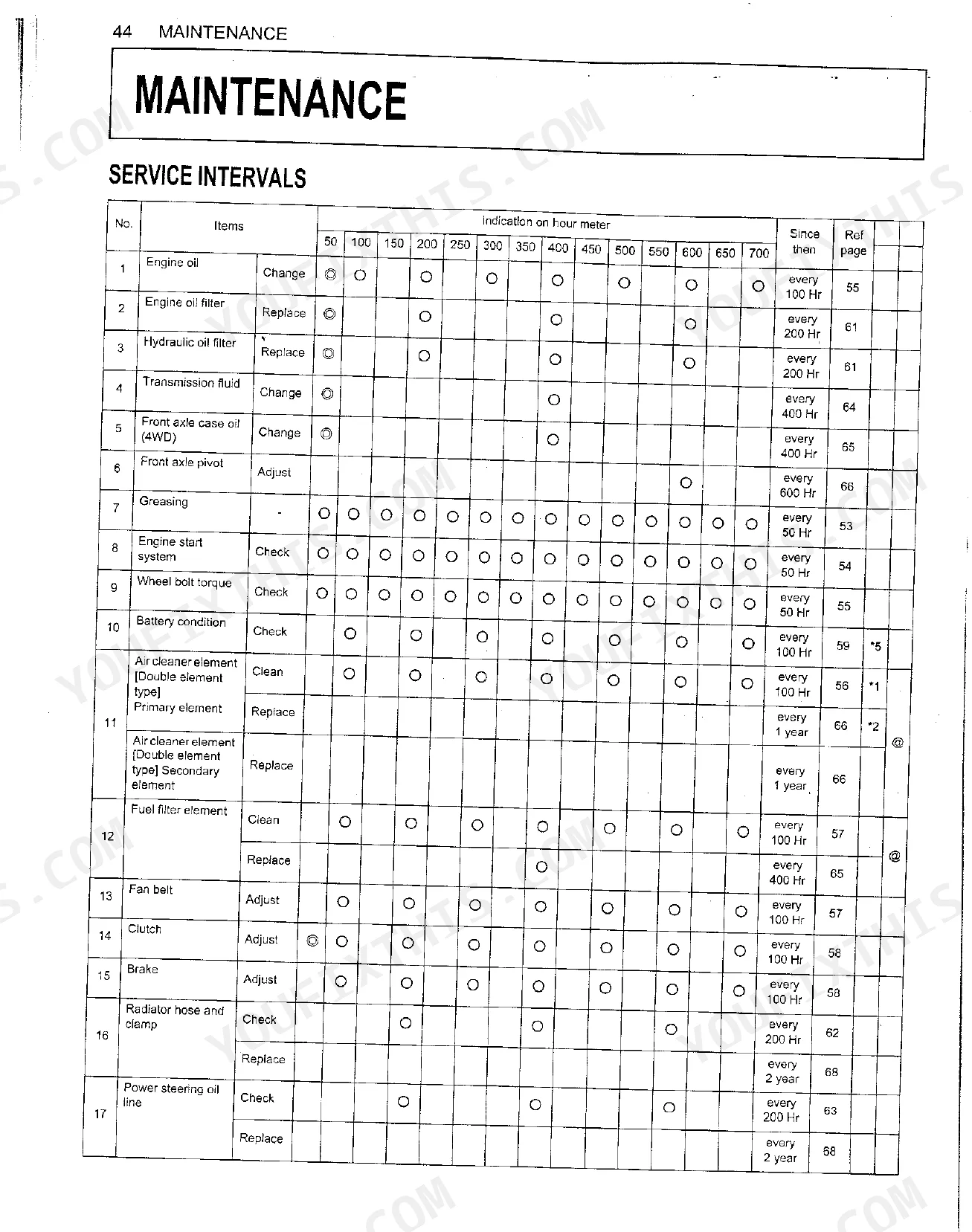

| Maintenance | - | Service Intervals, Lubricants, Periodic Service, Daily Check, Every 50 Hours, Every 100 Hours, Every 200 Hours, Every 400 Hours |
| Storage | - | Tractor Storage, Removing the Tractor From Storage |
| Troubleshooting | - | Engine Troubleshooting, No Fuel Flow, Insufficient Engine Power, Engine Stops Suddenly, Exhaust Fumes Colored, Engine Overheats |
| Options | - | Engine Block Heater, Work Light, Double Acting Remote Hydraulic Control Valve, Draft Control, Swinging Drawbar, Front Bumper, Rear Wheel Weights, Sunshade |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel bolt torque (1) | 137 N-m (14 kgf-m, 100 ft-lbs) | p. 58 |
| Wheel bolt torque (2) | 215 N-m (22 kgf-m, 160 ft-lbs) | p. 58 |
| Fuel filter element replacement interval | every 100 hours | p. 65 |
| Air cleaner primary element replacement interval | Once yearly or after every sixth cleaning, whichever comes first. | p. 56 |
| Air cleaner secondary element replacement interval | every 1 year | p. 66 |
| Starter relay fuse capacity | 5 A | p. 70 |
| Power steering oil line replacement interval | every 2 year | p. 62 |
| Battery capacity | 12V, RC: 133min, CCA: 582A | p. 19 |
| Battery TYPE | 80D26R | p. 60 |
| Engine Oil Capacity (with filter) | 7.6 L | p. 19 |
| Transmission Case Capacity | 40 L | p. 19 |
| Engine Coolant Capacity | 6.5 L | p. 19 |
Kubota L4400 Common Problems This Manual Covers
Intermittent no-crank at start
The L4400 can refuse to crank until the neutral, PTO, or seat safety switch is set correctly, a widely reported owner issue. The Troubleshooting section walks through the engine starting checks.
Manual Section: TroubleshootingEngine stalls after filter service
After a fuel filter change the tractor may lose prime and stall from air trapped in the lines. The Maintenance section covers fuel filter replacement and the steps that follow.
Manual Section: MaintenanceWeak or leaking hydraulics
Worn hoses, fittings, or seals cause hydraulic leaks and sluggish loader or 3-point performance. The Hydraulic Unit section explains the control system and its adjustments.
Manual Section: Hydraulic UnitHard cold-weather starting
Diesels start harder in the cold, and poor procedure makes it worse. The Operating the Engine section covers cold weather starting and warm up.
Manual Section: Operating the EngineLow tire pressure and poor handling
Incorrect inflation hurts traction, ride, and stability under load. The Tires, Wheels and Ballast section lists inflation pressures and ballast setup.
Manual Section: Tires, Wheels and BallastRough running from neglect
Skipped daily checks lead to power loss, rough running, and overheating over time. The Pre-Operation Check section lists the daily items to inspect before use.
Manual Section: Pre-Operation CheckFrequently Asked Questions
Which tractor and engine does this manual cover?
It is the operator's manual for the Kubota L4400 tractor, which uses the V2203-M-E2A diesel engine. The 92 page manual covers operation, specifications, and maintenance for that model.
Does it list torque specs?
Yes. It gives wheel bolt torque values of 137 N-m (100 ft-lbs) and 215 N-m (160 ft-lbs), along with other service figures you need for basic work. p. 58
What maintenance intervals are included?
The manual sets the schedule, including an engine oil change every 100 hours and a coolant change every 2 years, plus daily and hourly checks. p. 61
What battery does the L4400 use?
The manual specifies a 12V battery, type 80D26R, with 133 minutes reserve capacity and 582 A cold cranking amps, listed in the maintenance specifications. p. 60
What do I get after purchasing this Kubota L4400 manual?
A 92-page Owner's Manual as a searchable PDF, downloadable the moment checkout completes. Open it on a computer, tablet, or phone, with no shipping wait.
Can I print this manual?
No restrictions at all: the PDF is DRM-free. Print whatever sections you need for the shop. Standard letter or A4 paper works fine.
