Operating your Kubota L2800, L3400, or L4400 requires more than just turning the key. This 93-page factory reference (OEM #1AGAPAAAP0020) details exact procedures for safe operation, routine maintenance, and implement limits. Safety protocols, including ROPS and seat belt guidelines, come first before detailed operating instructions covering cold-weather starting, gear and HST operation, and slope driving. Maintenance sections outline exactly when to check fluid levels, adjust belt tension, and replace fuses. You will find specific schedules, such as swapping the fuel filter every 400 hours or 1 year, and torquing the larger rear wheel bolts to 215 N-m (160 ft-lbs). Because the PDF is bookmarked and searchable, finding the right dashboard warning lamp explanation or hydraulic control setting takes seconds.
What's Inside This Kubota L2800, L3400, L4400 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction & Safety | - | Manual Overview, General Safety Rules, ROPS/Seat Belt, Danger/Warning/Caution Labels, Label Care |

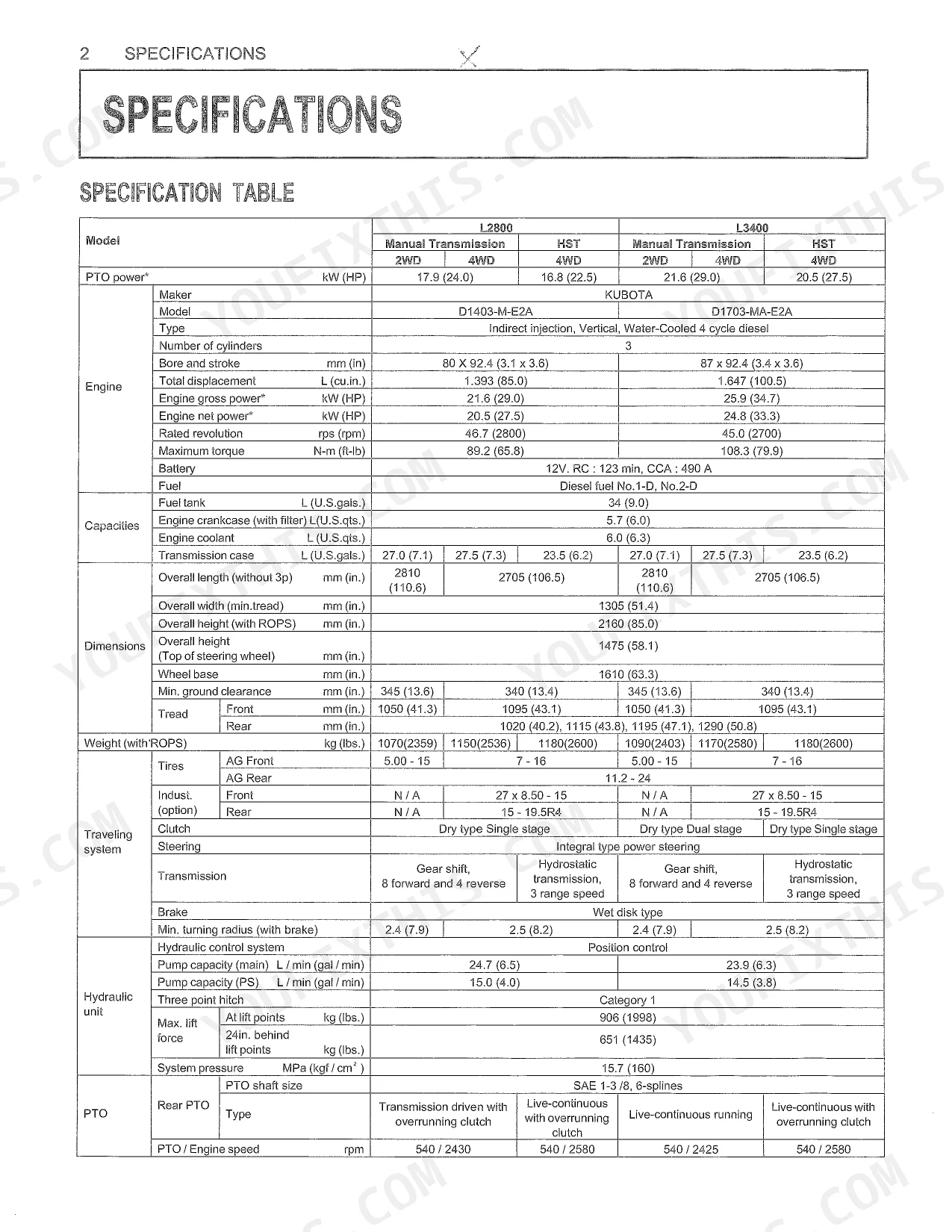

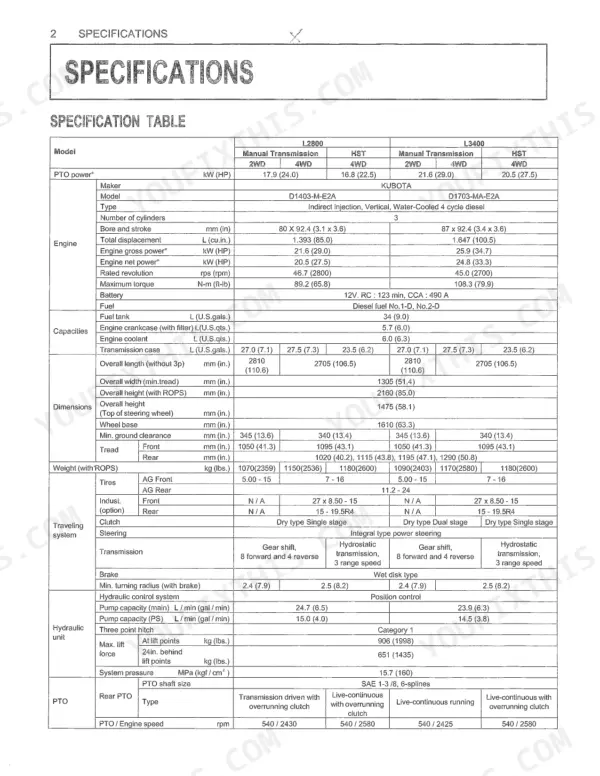

| Tractor Identification & Specifications | - | Serial Numbers, Engine Specs, Capacities, Dimensions, Weights, Tire Types, Traveling Speeds |
| Implement Limitations | - | Max. Tread Width, Lower Link Lifting Capacity, Drawbar Load, Trailer Load, Implement Compatibility Chart |

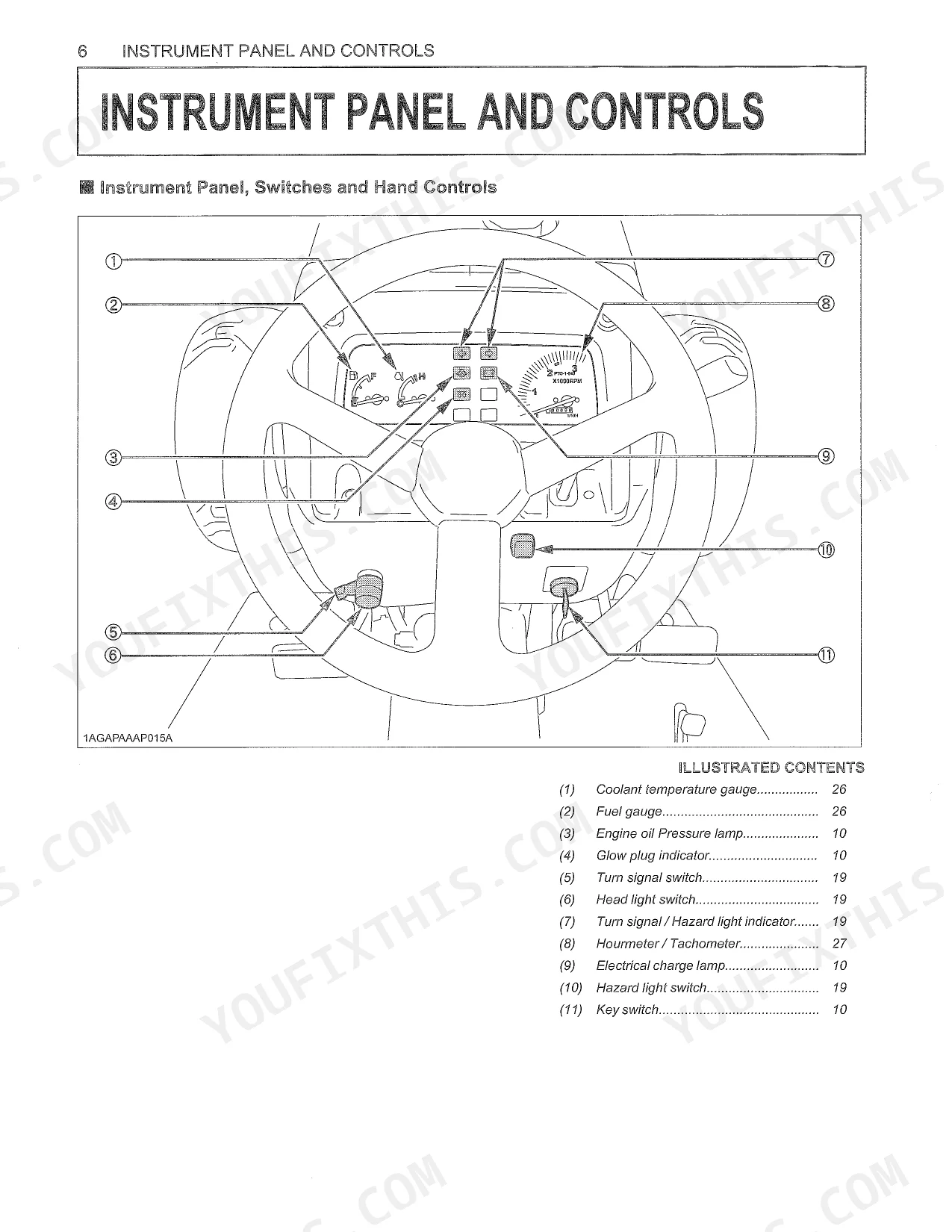

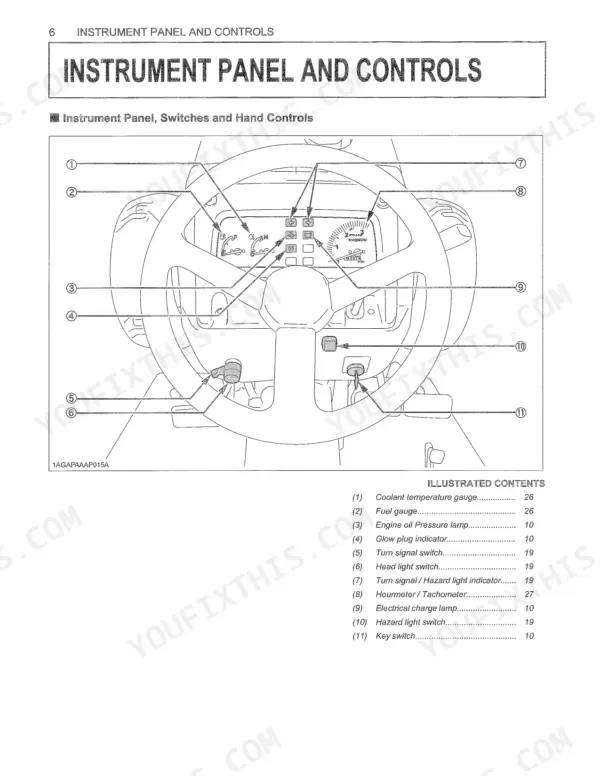

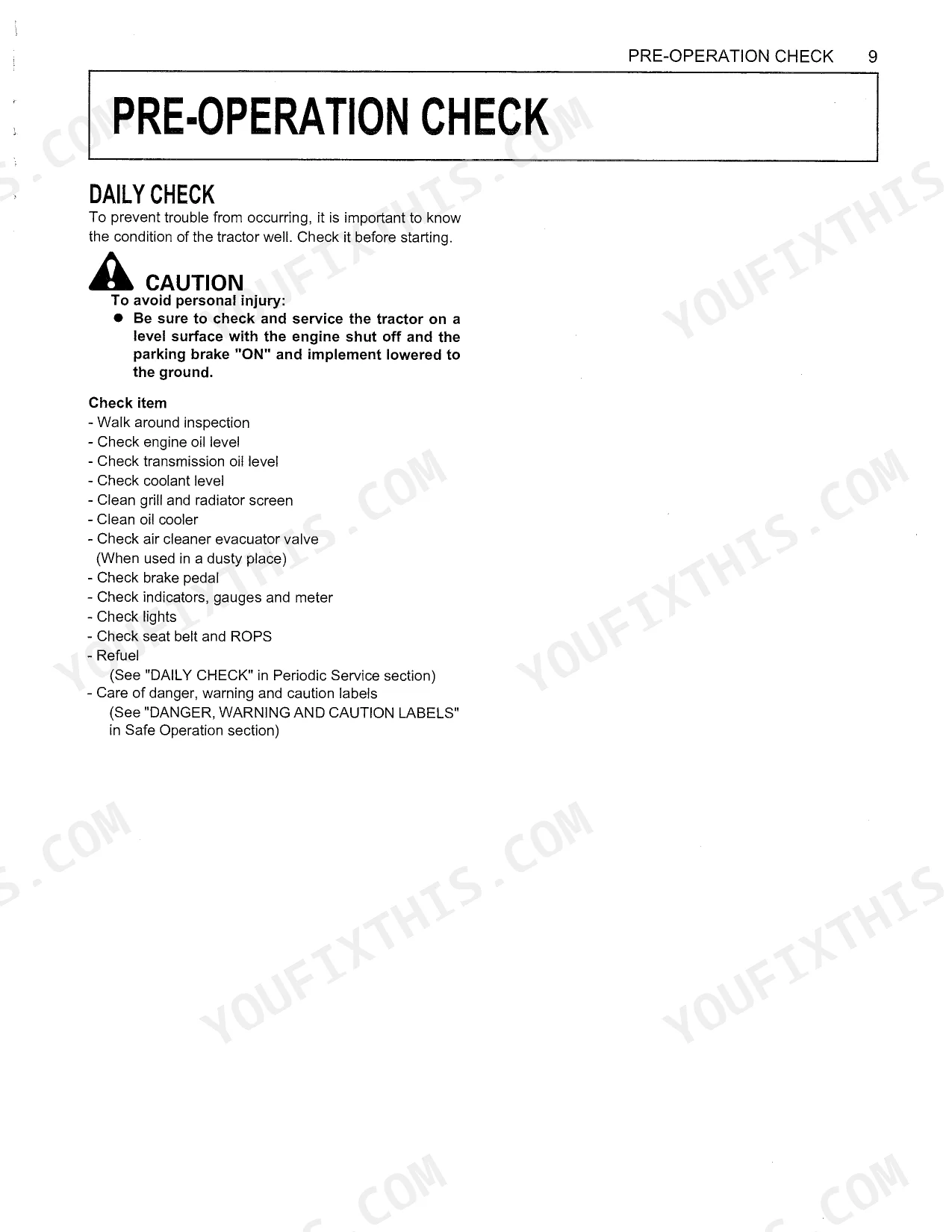

| Controls & Pre-Operation | - | Instrument Panel Layout, Hand & Foot Controls, Daily Check Procedures, Warning Lamps |
| Engine Operation | - | Starting Procedures, Preheating, Cold Weather Start, Stopping Engine, Jump Starting |
| Tractor Operation | - | New Tractor Break-In, ROPS Folding/Raising, Seat Adjustment, Lights & Signals, Brake Operation, Speed Selection, Cruise Control |
| Driving & Parking Techniques | - | Checks During Driving, Parking Procedures, Differential Lock, Road Operation, Slope Operation, Power Steering |
| PTO Operation | - | PTO Safety, Gear Shift Lever, Stationary PTO, Live PTO, Shaft Cover |
| Point Hitch & Drawbar | - | Hitch Components, Implement Attachment, Top Link, Lifting Rod, Check Chains, Drawbar Use |
| Hydraulic System | - | 3-Point Hitch Control (Position, Draft, Float), Lowering Speed, Auxiliary Hydraulics, Implement Reference Chart |
| Tires, Wheels & Ballast | - | Tire Safety, Inflation Pressure, Wheel Tread Adjustment, Front/Rear Wheels, Ballast Types (Front, Rear, Liquid) |

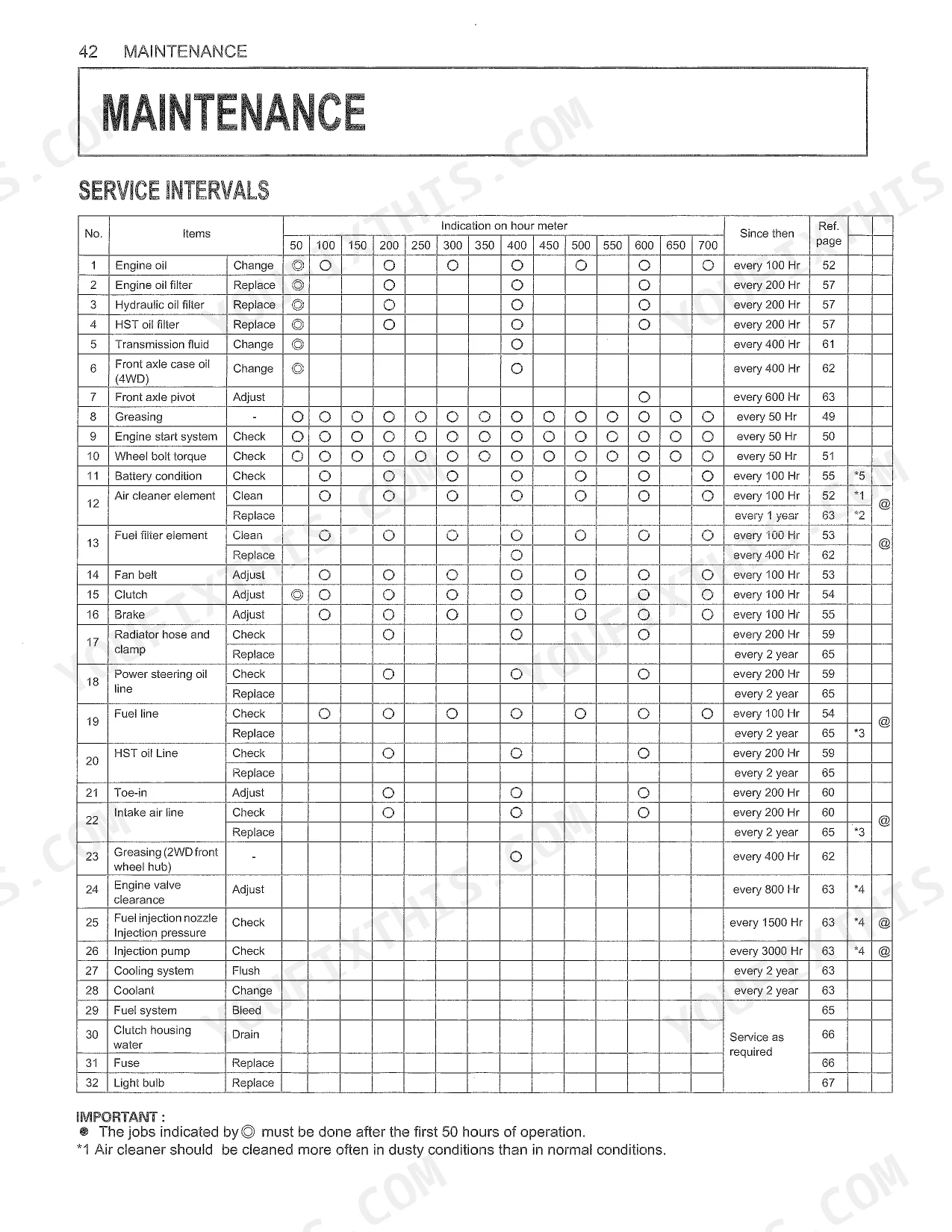

| Maintenance Schedule & Lubricants | - | Service Intervals Table, Recommended Lubricants, Engine Oil Types, Transmission Oil |

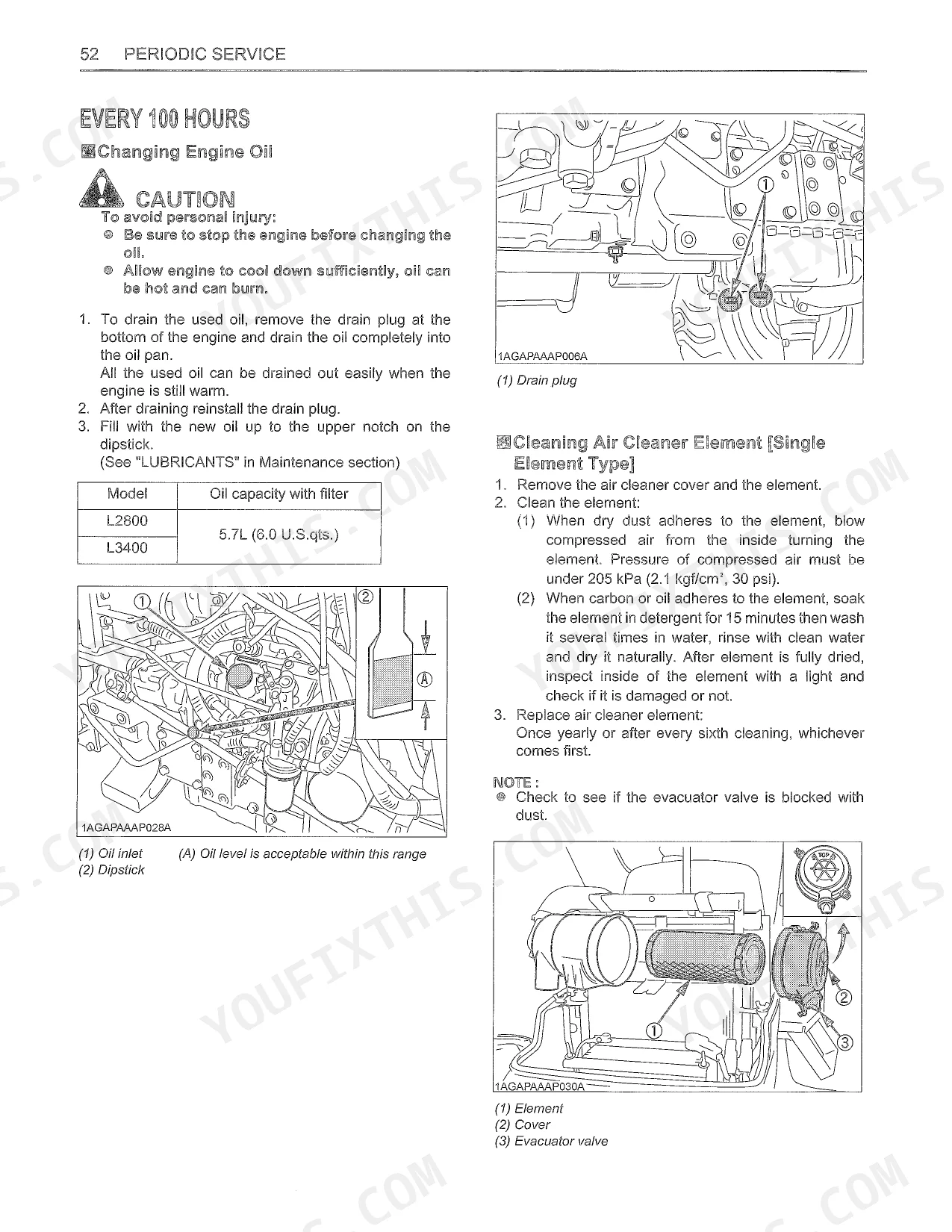

| Periodic Service Procedures | - | Hood/Cover Access, Fluid Level Checks, Filter Cleaning/Replacement, Belt Tension, Pedal Adjustments, Battery Care, Fuse/Bulb Replacement |
| Storage | - | Long-Term Storage Preparation, Removing From Storage |
| Troubleshooting | - | Engine No-Start, Low Power, Sudden Stop, Exhaust Issues, Overheating |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel bolt torque (smaller bolts) | 137 N-m (14kgf-m, 100ft-lbs) | p. 50 |
| Wheel bolt torque (larger bolts) | 215 N-m (22kgf-m, 160ft-lbs) | p. 50 |
| Fuel filter element replacement interval | Every 1 year or 400 Hr | p. 53 |
| Starter relay fuse capacity | 5 A | p. 78 |
| HST oil line replacement interval | Every 2 year | p. 53 |
| Power steering oil line replacement interval | Every 2 year | p. 53 |
| L2800, L3400 | ||
| Battery model | 75D26R | p. 67 |
| Battery voltage | 12 V | p. 67 |
| L2800 Manual Transmission Type, HST Type | ||
| Clutch pedal free travel | 20 to 30 mm (0.8 to 1.2 in.) | p. 65 |
| L3400 Manual Transmission Type | ||
| Dual clutch clearance | 1.4 to 1.5 mm (0.055 to 0.059 in.) | p. 65 |
| L2800 HST | ||
| PTO power | 23.5 HP | p. 93 |
| L3400 Gear-Drive | ||
| PTO power | 30.0 HP | p. 93 |
Kubota L2800, L3400, L4400 Common Problems This Manual Covers
Kubota L4400 engine will not crank over when turning the ignition key in cold weather
Examine the battery condition and terminals. Check the starter relay fuse capacity on page 78, ensuring it is a 5 A fuse. Verify the PTO gear shift lever and clutch pedal are fully disengaged to satisfy the safety interlocks before attempting another start.
Manual Section: Periodic Service Procedures p. 78Engine dies under heavy load or experiences severe power loss during operation
Drain the fuel system to check for water or dirt contamination. Replace the fuel filter element, which requires replacement every 1 year or 400 Hr as specified on page 53. Bleed air from the fuel lines before restarting the tractor.
Manual Section: Maintenance Schedule & Lubricants p. 53Grinding noise when shifting gears or tractor continues moving with the clutch pedal fully depressed
Measure the clutch pedal free travel using a ruler. Adjust the linkage to achieve 20 to 30 mm of free travel as detailed on page 65. Tighten the lock nut securely once the correct measurement is reached to prevent future slipping.
Manual Section: Periodic Service Procedures p. 65Clunking noise from the front axle or noticeable wheel wobble while driving on hard surfaces
Inspect the wheel rims for damage or elongation around the mounting holes. Torque the front wheel bolts to 137 N-m using a calibrated torque wrench, following the specifications on page 62. Check tire pressures before operating.
Manual Section: Periodic Service Procedures p. 62Dashboard warning lights dim and starter clicks rapidly without turning the engine over
Test the battery fluid levels and clean the terminal connections. If replacing the battery on an L2800 or L3400, verify the new unit matches the 75D26R model specification listed on page 67. Check the alternator output if the battery discharges repeatedly.
Manual Section: Periodic Service Procedures p. 67Frequently Asked Questions
What are the torque specifications for Kubota L2800 wheel lugs?
Tighten the wheel bolts to the specified torques when re-fitting or adjusting a wheel. The specifications are 137 N-m (14kgf-m, 100ft-lbs) for the smaller bolts and 215 N-m (22kgf-m, 160ft-lbs) for the larger ones. Recheck the torque after driving the tractor 200m (200yards) and at regular service intervals. p. 62
What are the torque specifications for Kubota L3400 wheel lugs?
When re-fitting or adjusting a wheel, tighten the bolts to the specified torques. The torque specifications are 137 N-m (14kgf-m, 100ft-lbs) for one type of bolt and 215 N-m (22kgf-m, 160ft-lbs) for another. Recheck the torque after driving the tractor 200m (200yards) and thereafter according to service interval. p. 62
How will I receive this Kubota L2800, L3400, L4400 Operator Manual?
Instant PDF download (5 MB). You get the full 93-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this Kubota L2800, L3400, L4400 manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
