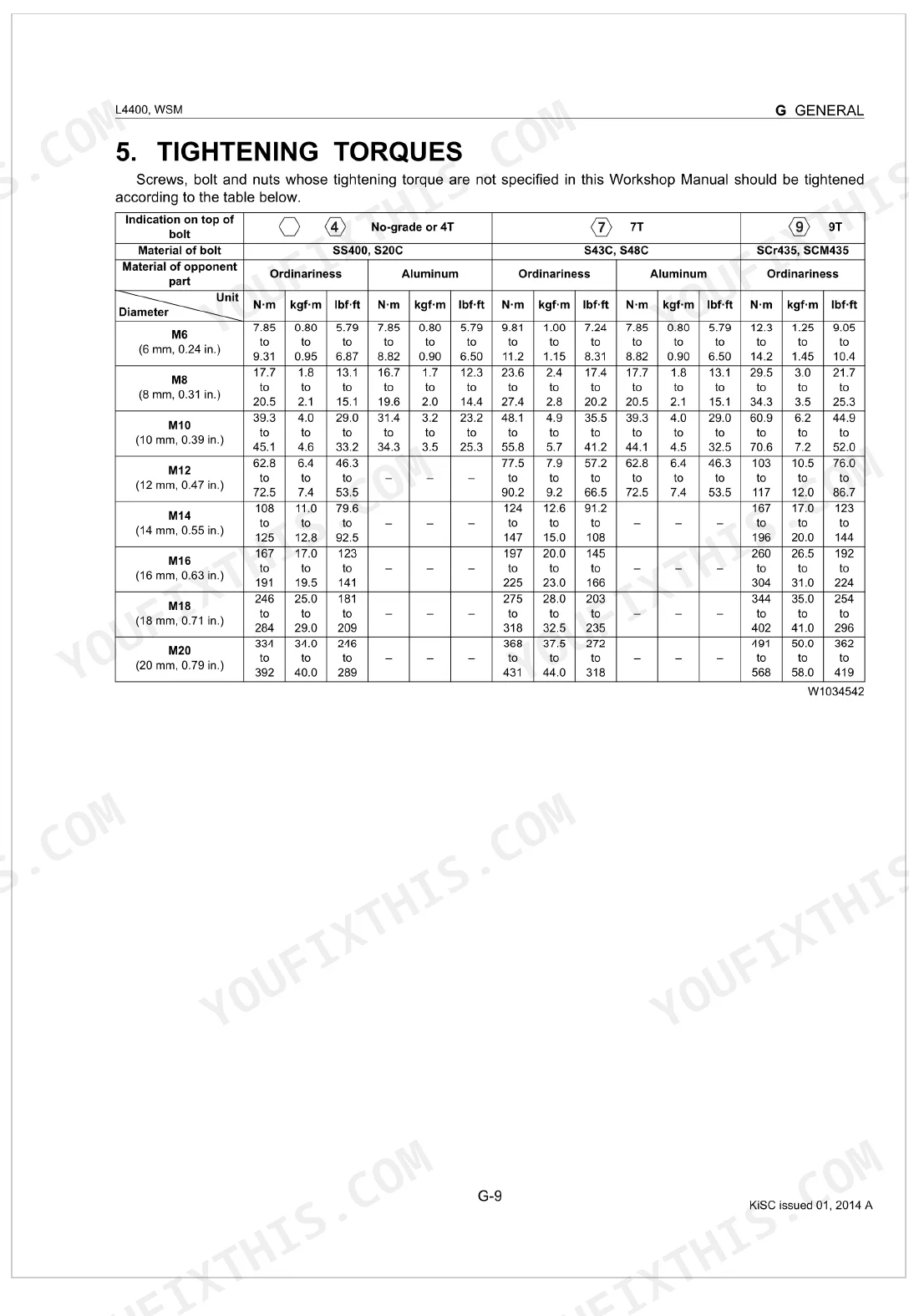

This 378-page Kubota L4400 Workshop Manual (OEM #9Y011-13502) carries factory service procedures for every major system on the tractor: engine, clutch, transmission, axles, brakes, steering, hydraulics, and electrical. Flip to the hydraulic section for full circuit schematics covering the three-point system and front hydraulic block, plus wiring diagrams and complete electrical troubleshooting. It packs 150 pages of step-by-step disassembly and assembly, 12 pages of tightening torques, 18 pages of system troubleshooting charts, and exploded views across every assembly to keep you oriented during teardown. Engine capacity runs 7.6 L with the filter; check coolant at 6.5 L and transmission fluid at 40 L before cracking anything open. Stop hunting forums for numbers that might not match your serial. Bookmarked and keyword-searchable, it opens on any device.
What's Inside This Kubota L4400 Manual
| System | Pages | Key Topics |
|---|---|---|
| Record of Revisions | 3 | Main Revised Point and Corrective Measures |
| Safety First | 4-6 | Danger, Warning, Caution, Important, Note, Before Servicing and Repairing |
| Safety Decals | 7-9 | Manual Transmission type decal, HST type decal, Foldable ROPS type decal, Diesel fuel type decal, Battery safety decal, General personal injury decals |

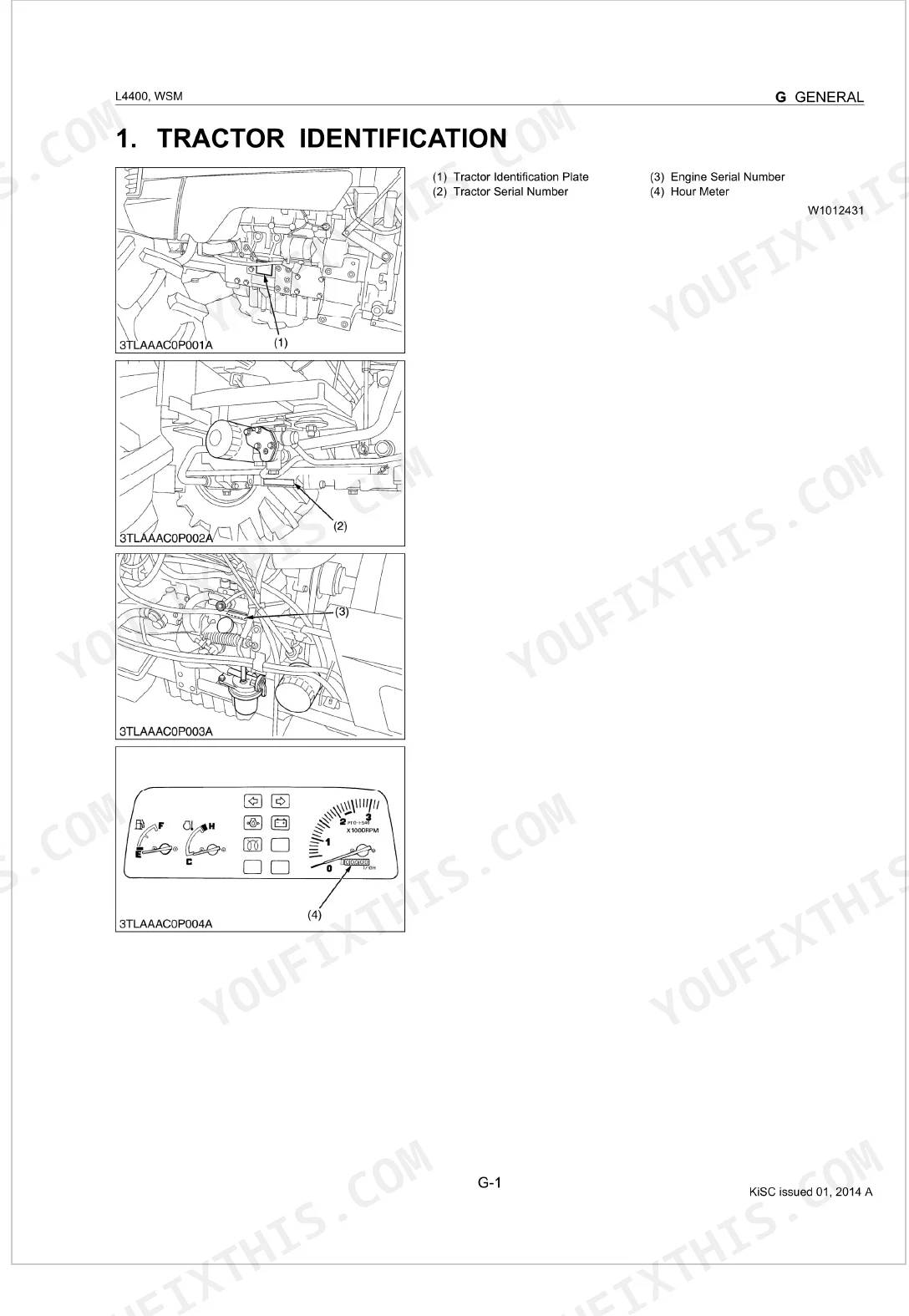

| General | 13-69 | Tractor Identification, Handling Precautions for Electrical Parts and Wiring (Battery, Fuse, Connector, Handling of Circuit Tester), Lubricants, Fuel and Coolant |
| Engine | 70-134 | Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling and Servicing (Checking and Adjusting, Preparation, Disassembling and Assembling) |
| Clutch | 135-170 | Troubleshooting (Traveling Clutch, PTO Clutch), Servicing Specifications (Traveling Clutch, Tightening Torques, Checking |
| Transmission | 171-214 | Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling and Servicing (Preparation, Disassembling and Assembling) |
| Rear Axle | 215-225 | Troubleshooting, Tightening Torques, Disassembling and Servicing (Preparation, Disassembling Rear Axle) |
| Brakes | 226-241 | Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling and Servicing (Checking and Adjusting, Preparation, Disassembling and Assembling) |
| Front Axle | 242-265 | Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling and Servicing (Checking and Adjusting, Preparation, Disassembling and Assembling) |
| Steering | 266-291 | Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling and Servicing (Disassembling and Assembling) |

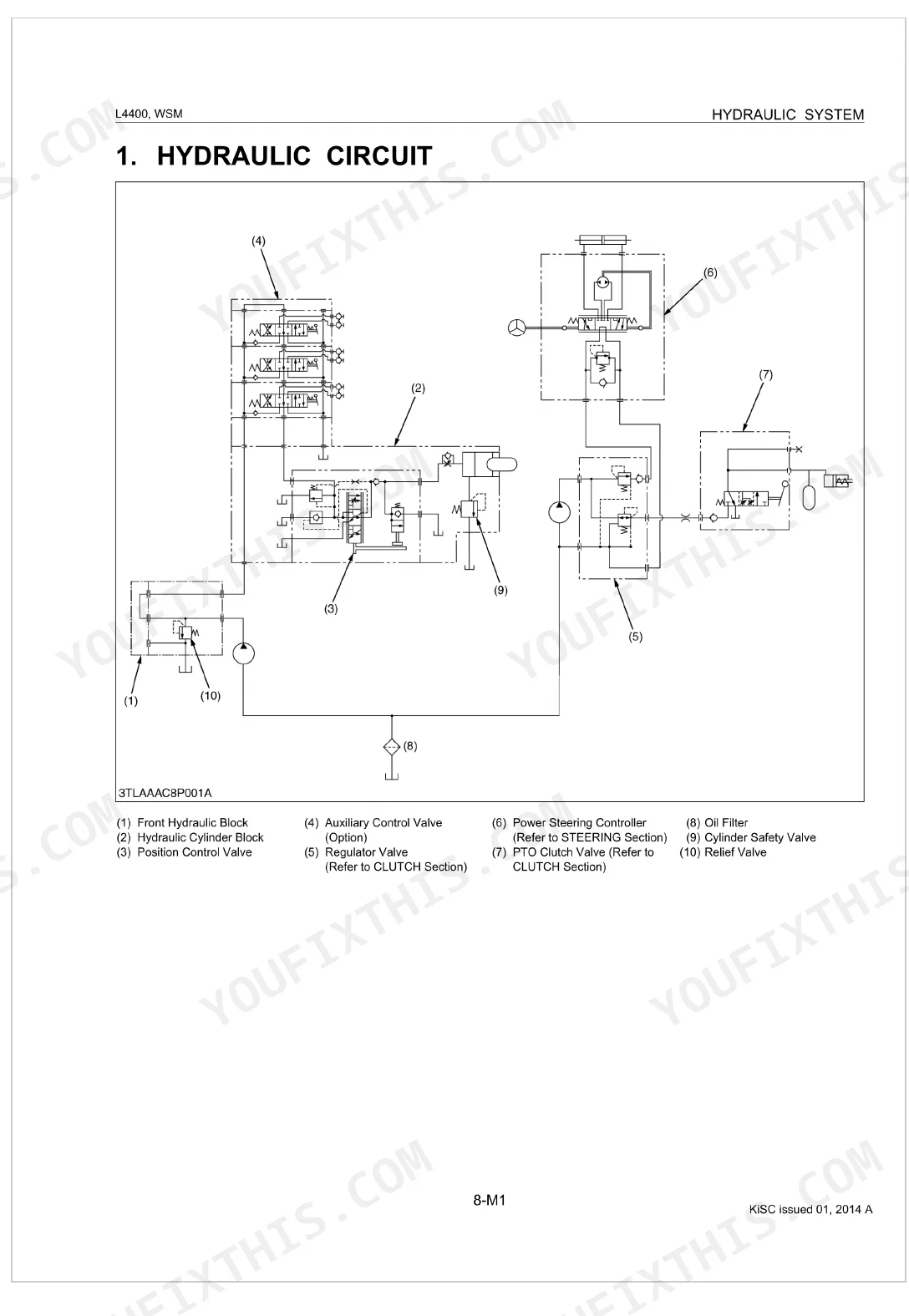

| Hydraulic System | 292-330 | Hydraulic Circuit, Structure, Hydraulic Circuit for Three Point Hydraulic System, Hydraulic Cylinder, Linkage Mechanism, Front Hydraulic Block, Servicing Specifications |
| Electrical System | 331-377 | Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling and Servicing (Checking and Adjusting, Disassembling and Assembling) |
| Editor | 378 | Kubota Farm & Industrial Machinery Service, Ltd., Contact Information, Publication Details |

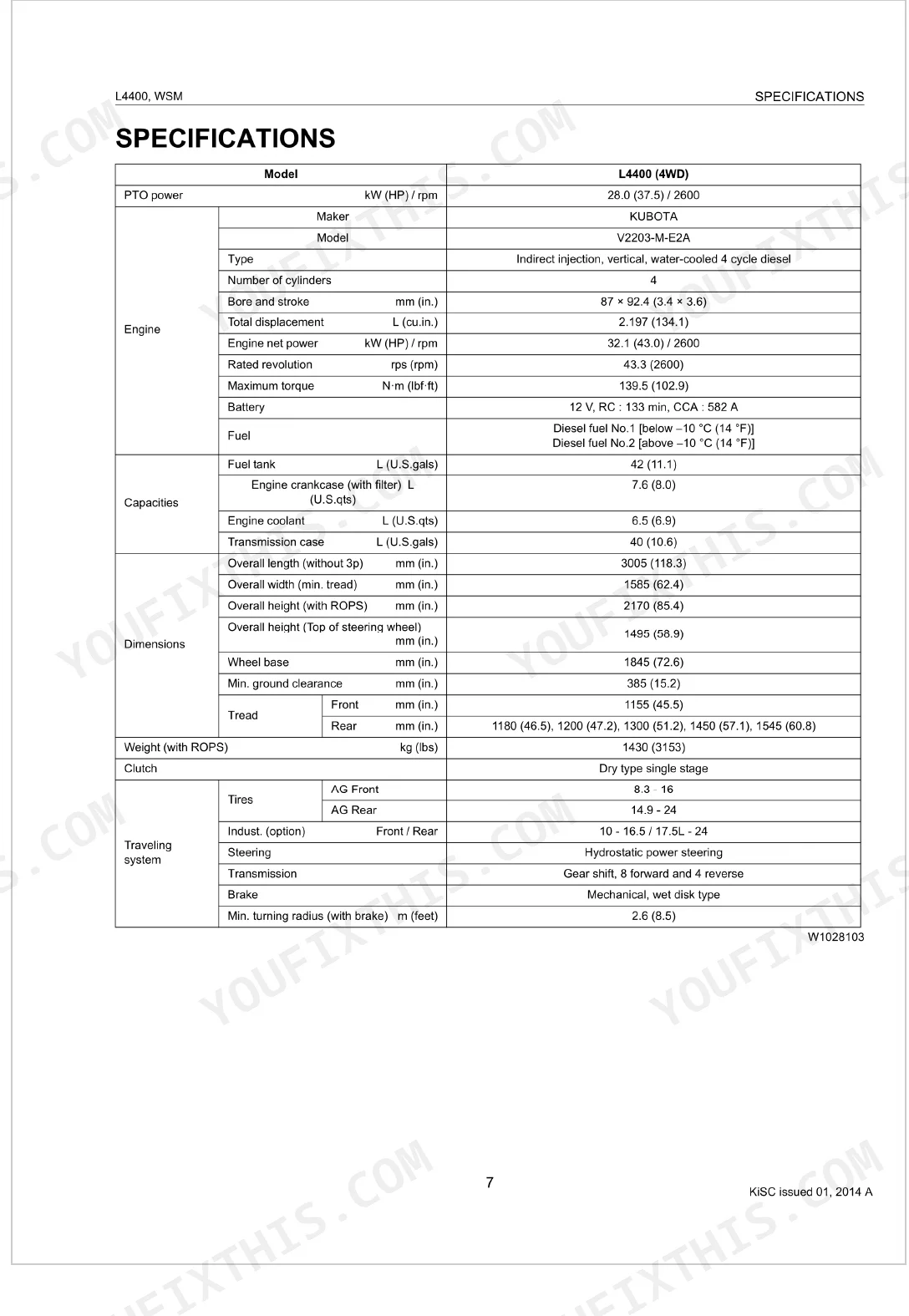

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel tank capacity | 40 L | p. 10 |
| Engine oil capacity | 7.6 L | p. 10 |
| Engine Oil Capacity (with filter) | 7.6 L | p. 22 |
| Transmission Fluid Capacity | 40 L | p. 22 |
| Coolant Capacity (with recovery tank) | 6.5 L | p. 22 |
| Clutch Pedal Free Play | 20 to 30 mm | p. 143 |
| Engine Oil Pressure (Idle Speed) | More than 98 kPa | p. 86 |
| Valve Clearance (When Cold) | 0.18 to 0.22 mm | p. 75 |
| Cylinder Head Surface Flatness (Allowable Limit) | 0.05 mm | p. 118 |
| Front Wheel Alignment (Toe-in) | 2 to 8 mm | p. 252 |
| PTO Clutch Disc Thickness | 1.70 to 1.90 mm | p. 143 |
| Hydraulic Pump (Power Steering) Delivery at Rated Pressure | Above 17.6 L/min | p. 280 |
Kubota L4400 Common Problems This Manual Covers
Kubota L4400 engine coolant temperature gauge climbing past midpoint, radiator fans running but tractor overheats
Start with coolant level; the system holds 6.5 L total. Inspect the radiator core for debris and blow it clean with compressed air. Confirm the thermostat opens fully and the cap seals. Check fan belt tension and condition. If temperature still climbs, work through the overheating checklist.

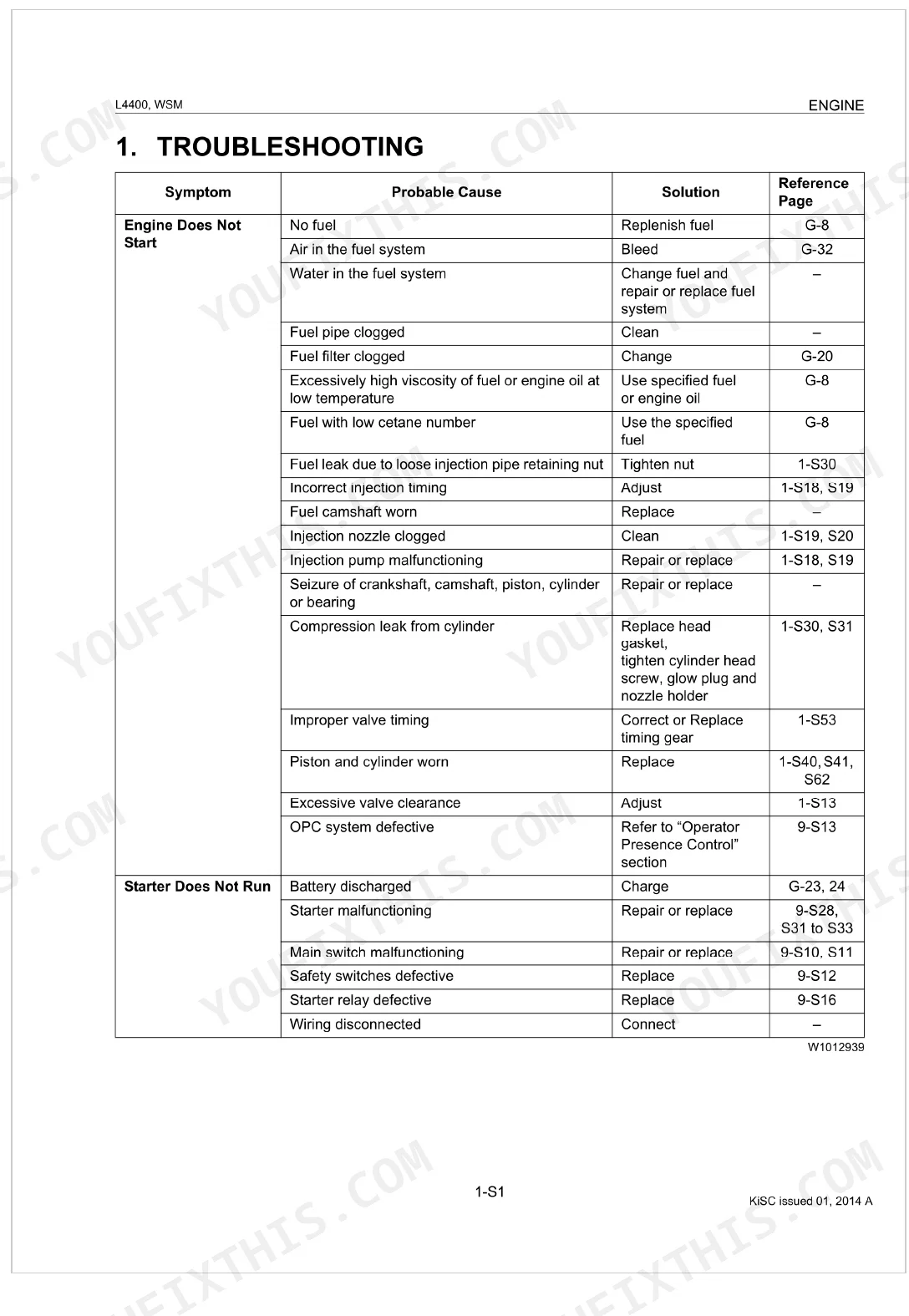

Manual Section: Engine TroubleshootingEngine cranks but won't fire, or turns over too slowly to start in cold weather
Test battery voltage under load; a weak battery won't crank fast enough once oil thickens in the cold. Verify the glow plugs fire and the fuel filter hasn't gelled. Inspect valve clearance, spec is 0.18 to 0.22 mm cold per page 75, if cranking speed is fine but it still won't fire.
Manual Section: Engine TroubleshootingThree-point hitch won't raise implement under load, arms drift down when parked p. 292
Confirm hydraulic fluid level in the transmission case, which holds 40 L total. Inspect the hydraulic filter for blockage and the lift control valve for sticking. Verify the draft control linkage moves freely. If the hitch hunts or surges during operation, see the hydraulic troubleshooting section starting at page 292.
Manual Section: Hydraulic System TroubleshootingClutch pedal feels soft or spongy, tractor creeps forward with pedal fully depressed p. 143
Measure clutch pedal free play at the pedal pad; spec is 20 to 30 mm per page 143. Adjust the clutch rod if it falls out of range. Inspect the clutch disc for oil contamination or glazing if slipping continues after adjustment. Check the release bearing for wear or binding during engagement.
Manual Section: Clutch TroubleshootingTractor pulls hard to one side when brakes are applied, left and right pedals feel uneven p. 226
Equalize both brake pedals individually before locking them together. Inspect the brake cam plates and linings on each side for uneven wear or oil contamination from the axle. Verify the brake linkage and equalizer rod move freely. Grease the brake pivot points every 50 hr per the maintenance schedule on page 24.
Manual Section: Brakes TroubleshootingBattery dead in the morning, all electrical equipment not working, fuse keeps blowing p. 331
Check alternator output at the battery terminals with the engine running; a discharging battery points to the alternator or its wiring. Verify belt tension and torque the alternator pulley nut to 58.3 to 78.9 N-m per page 349. Trace any short before fitting a replacement fuse.
Manual Section: Electrical System TroubleshootingFrequently Asked Questions
What are the recommended service intervals?

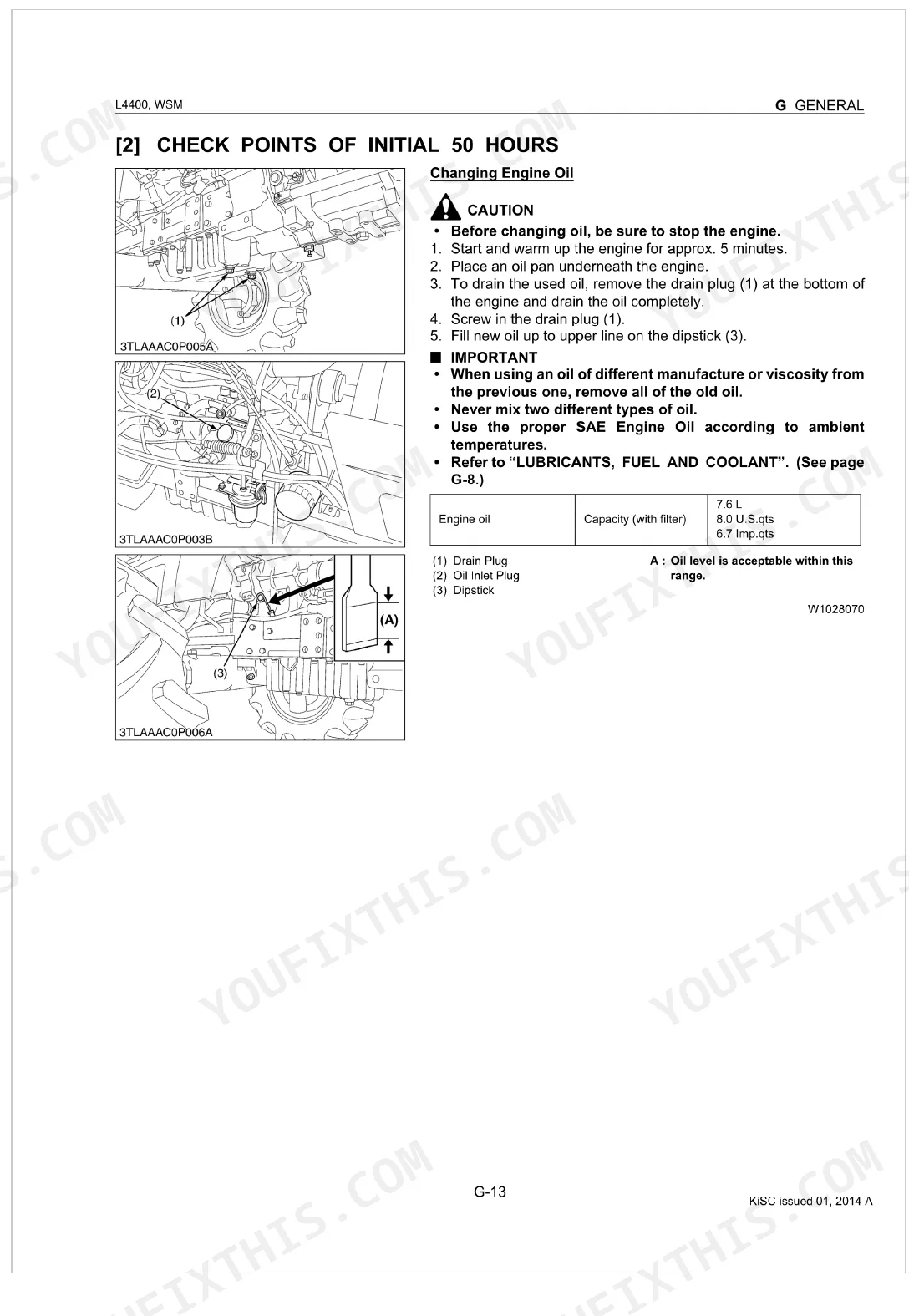

The manual lays out a full maintenance schedule with service intervals for each component. Engine oil, for example, gets changed every 200 hours and the battery checked every 100 hours. The complete schedule sits in the "Maintenance" table on pages 24 and 25.
What fluids and capacities does this machine require?
Each system calls for specific fluids and capacities. The engine crankcase takes 7.6 L (8.0 U.S.qts, 6.7 Imp.qts) of SAE 10W-30 or 10W-40 oil. The transmission case holds 40 L (10.6 U.S.gals, 8.8 Imp.gals) and uses KUBOTA UDT or SUPER UDT fluid.
How to troubleshoot engine won't start?
Several culprits can keep the engine from starting. A clogged fuel pipe or filter needs cleaning or changing; a discharged or defective battery needs recharging or replacement. Incorrect injection timing calls for adjustment, and a failing injection pump needs repair or replacement.
What are the hydraulic system specifications?
Specs vary by component. The power steering pump delivers above 17.9 L/min (4.73 U.S.gals/min.) at no pressure, with an allowable limit of 15.7 L/min. The three-point system pump runs a rated pressure of 17.1 to 18.1 MPa (175 to 185 kgf/cm²).
What do I get after purchasing this Kubota L4400 manual?
A 378-page service manual in searchable PDF format, ready to download the moment checkout completes. View it on a computer, tablet, or phone. No shipping wait.
Can I print this Kubota L4400 manual?
None at all. The PDF is DRM-free, so print whatever sections you need for the shop. Standard letter or A4 paper works.

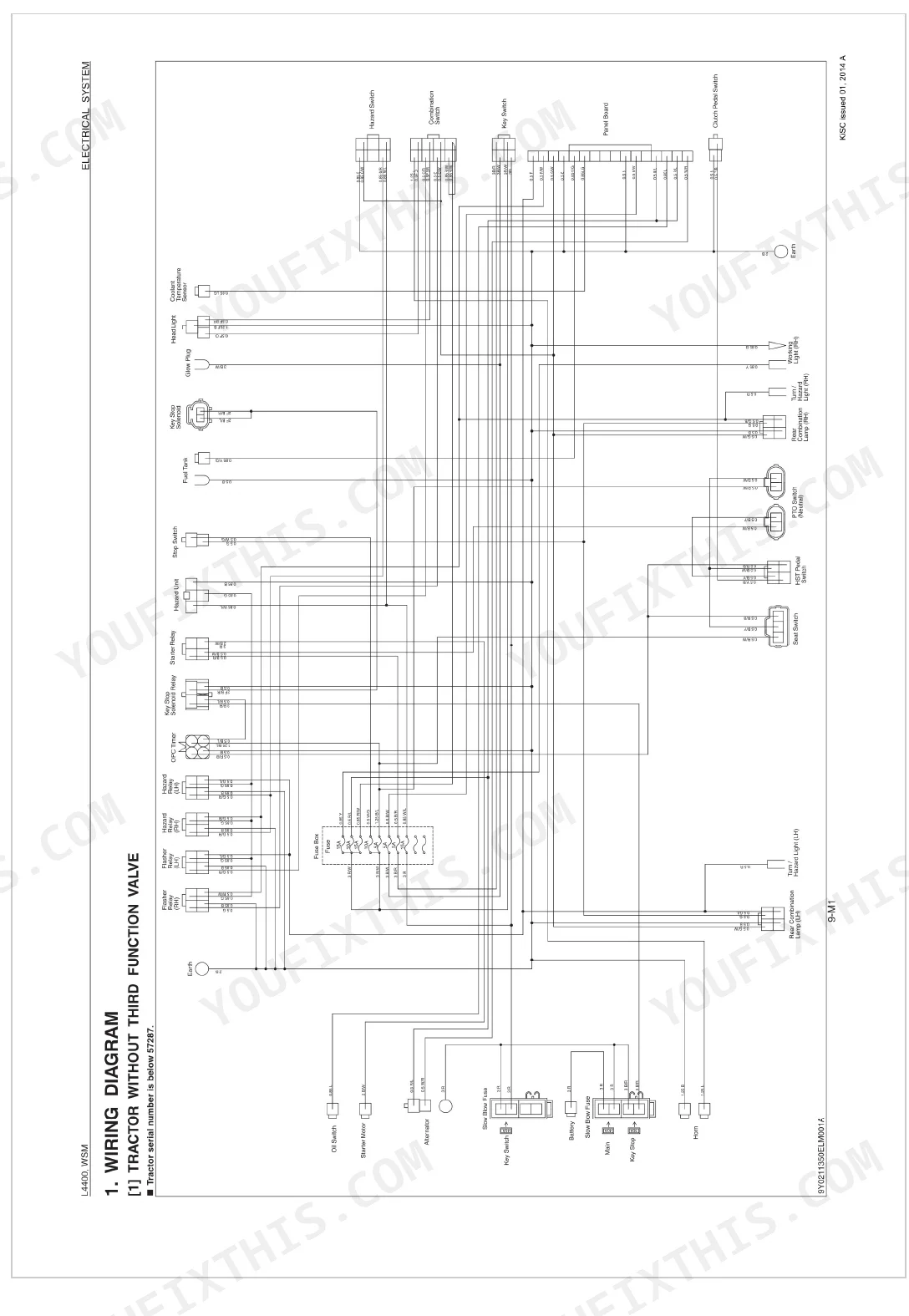

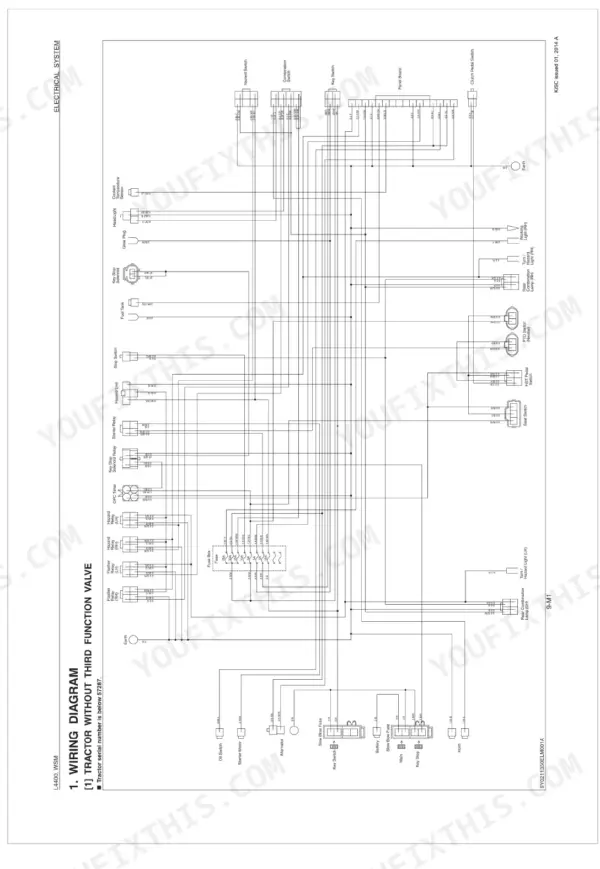

Can I find wiring schematics in this Kubota L4400 manual?
Yes. Full electrical schematics are included, with wire colors, connector locations, and circuit descriptions.
Document Quality
This document is a scanned PDF with an OCR text layer, meaning you can search and copy the full text. The text quality is crisp and consistently easy to read throughout. Diagrams and illustrations are raster images, generally clear, and their labels are readable at normal viewing magnifications. All pages are clean, free from scan artifacts, stains, or skewed content. Section title pages like "GENERAL" and "ENGINE" are present, but there are no truly blank or unnecessary filler pages.
