This is the Kubota Shop Manual for the V1505-T-E4B diesel engine, a turbocharged four cylinder with a 1498 cubic centimeter displacement and a 23 to 1 compression ratio. It runs 131 pages with a searchable text layer and a high document quality grade.The manual is organized into information and specifications, general identification and maintenance, the mechanism section, and a large servicing section. It covers the engine body, closed breather, control system and governor, and the after treatment devices including the diesel oxidation catalyst and diesel particulate filter, plus troubleshooting, servicing specifications, tightening torques, and full disassembly and assembly.Use it to diagnose a running fault, service the emissions hardware, set correct clearances and torques, or rebuild the V1505-T-E4B properly whether it powers a machine or a generator set.
What's Inside This Kubota V1505-T-E4B Manual
| System | Pages | Key Topics |
|---|---|---|
| Information | 4-13 | - |
| General | 14-54 | Engine Identification (Model Name and Engine Serial Number, Cylinder Number), Muffler Full Assembly Identification (Part Number and Serial Number) |

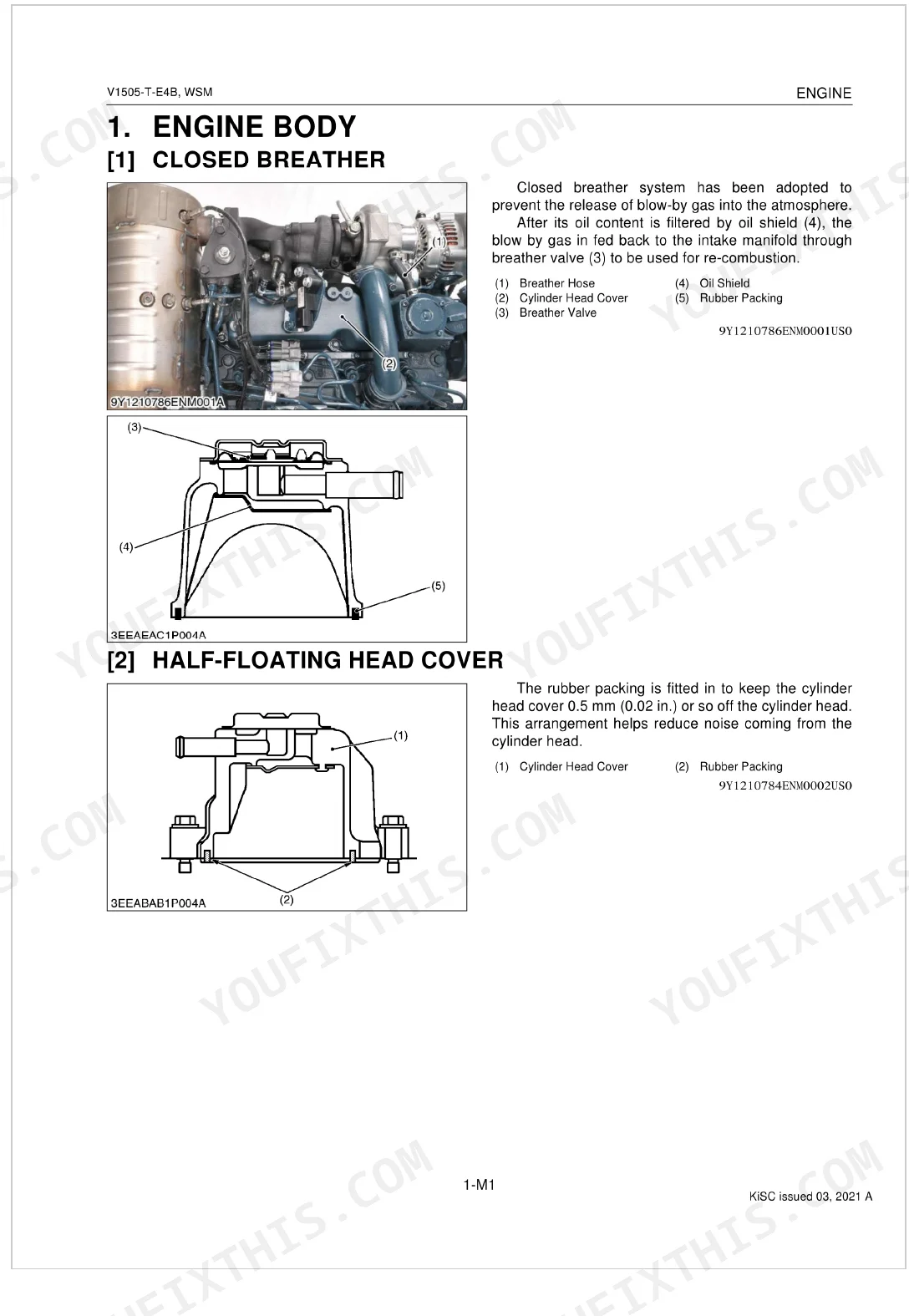

| Mechanism | 55-60 | Engine Body (Closed Breather, Half-Floating Head Cover, Engine Control System, Governor, Electronic Governor) |
| Servicing | 61-131 | Troubleshooting, Servicing Specifications, Tightening Torques (General Use Screws, Bolts and Nuts, Special Use Screws, Bolts and Nuts), Checking |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

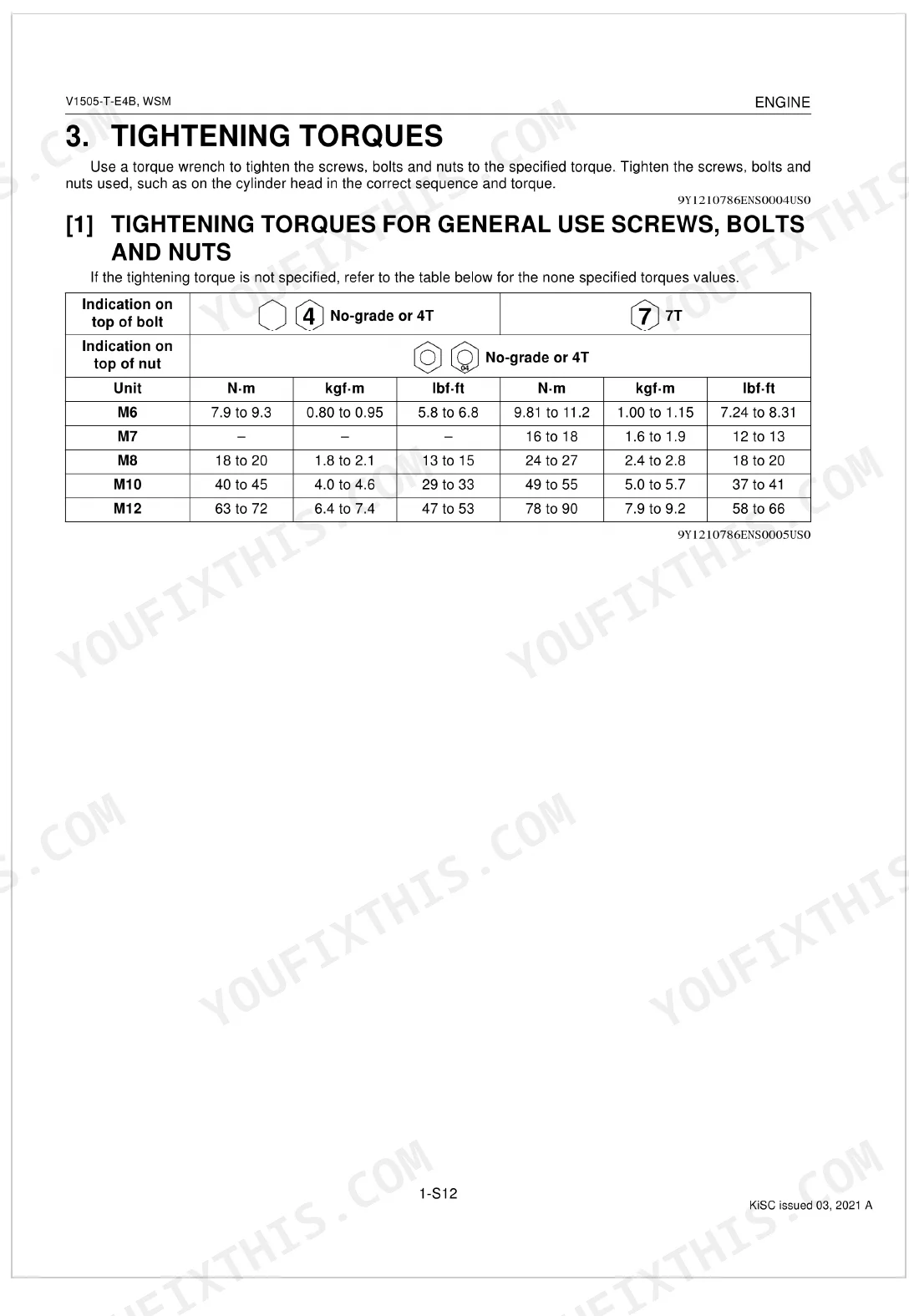

| General Use M8 bolt torque | 18 to 20 N·m | p. 73 |
| Cylinder head cover torque | 9.81 to 11.2 N·m | p. 74 |
| Lubricating Oil Capacity | 6.7 L (1.8 U.S. gals) | p. 10 |
| Coolant Capacity | Not specified as a single volume, refers to 'FULL' and 'LOW' levels | p. 25 |
| Changing engine oil interval | Every 50 hours | p. 21 |
| Cleaning air cleaner element interval | Every 50 hours | p. 21 |
| Engine Oil Capacity | 6.7 L (1.8 U.S. gals) | p. 10 |
| Total Displacement | 1498 cm³ (91.4 cu.in.) | p. 10 |
| Compression Ratio | 23 | p. 10 |
| Engine Oil Change Interval | 200 hours | p. 21 |
| Fan Belt Deflection (Factory Spec) | 7.0 to 9.0 mm | p. 25 |
| Battery Electrolyte Specific Gravity (100% Charged) | 1.280 Sp. Gr. | p. 35 |
Kubota V1505-T-E4B Common Problems This Manual Covers
Hard starting or poor running

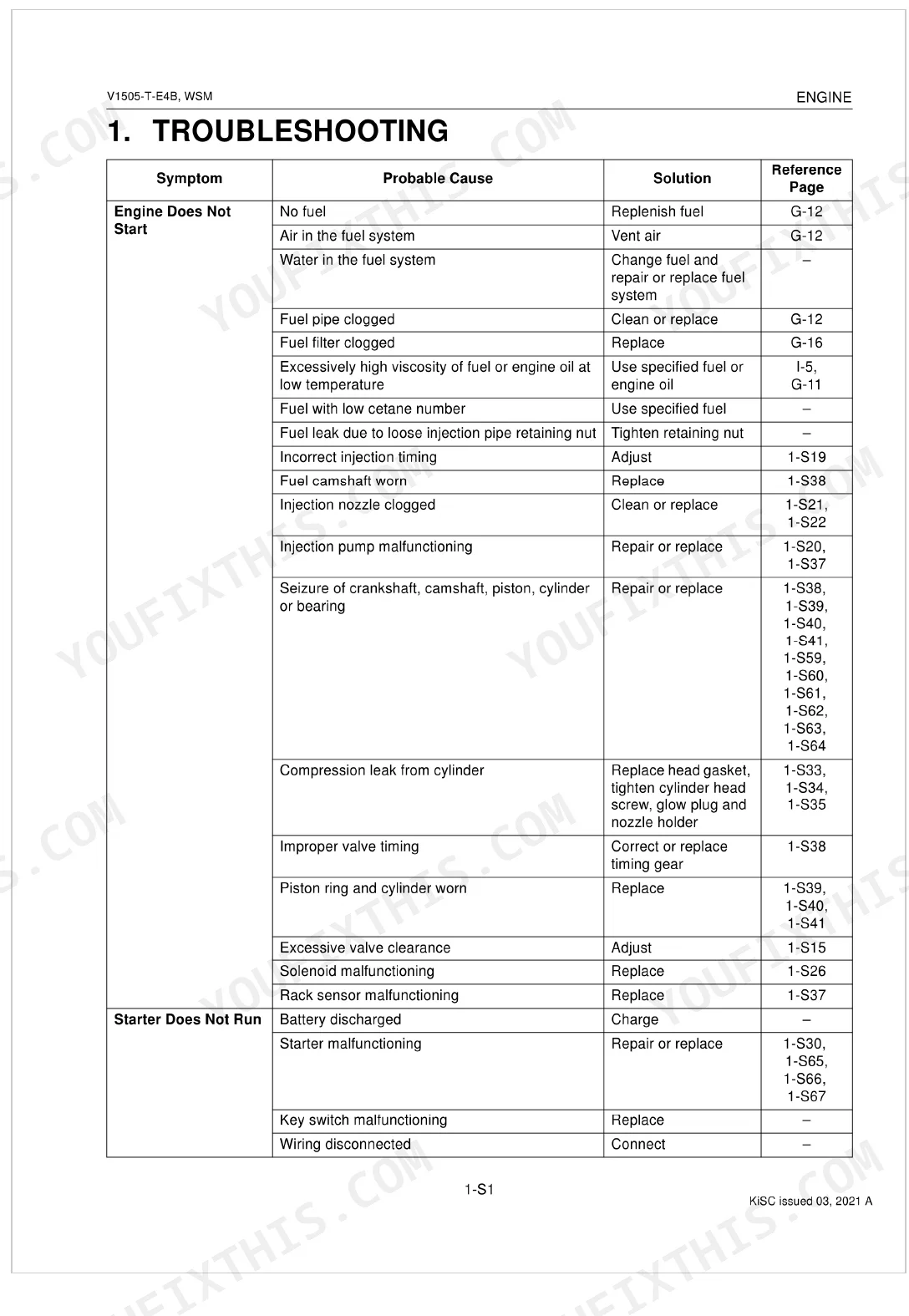

Hard cold starts, low power, or rough running on the V1505-T-E4B call for a structured diagnosis of compression, fuel, and glow circuits. The Servicing section opens with a troubleshooting chart, then the servicing specifications to check against.
Manual Section: Servicing p. 61Low oil pressure
Low oil pressure at idle or rated speed threatens the engine and needs checking against the factory figures. The Servicing section covers the lubricating system checks and the oil pressure specifications for this engine.
Manual Section: Servicing p. 61DPF or after treatment faults
Poor regeneration, warning signals, or emissions faults involve the after treatment hardware rather than the base engine. The Mechanism section explains the diesel oxidation catalyst, diesel particulate filter, and the temperature and differential pressure sensors.
Manual Section: Mechanism p. 55Overheating
Running hot points to the cooling system, thermostat, or coolant level, all of which need checking before further damage. The Servicing section covers cooling system checks and the related servicing specifications.
Manual Section: Servicing p. 61Loose fan belt or weak charging
A slack fan belt causes a squeal, a weak charge, and overheating together. The General section covers the maintenance check list and the fan belt deflection specification to set the belt correctly.
Manual Section: General p. 14Valve clearance drift
Clearances that fall out of spec cause noise, hard starting, and lost power over time. The Servicing section gives the cold valve clearance limits and the checking and adjusting procedure.
Manual Section: Servicing p. 61Frequently Asked Questions
Which engine does this manual cover?
It covers the Kubota V1505-T-E4B, a turbocharged four cylinder diesel with 1498 cubic centimeters of displacement and a 23 to 1 compression ratio.
Where are the tightening torques and specifications?
The Servicing section holds the servicing specifications and the tightening torques for both general use and special use screws, bolts, and nuts, along with the checking and disassembly steps. p. 61
Does it cover the DPF and emissions system?
Yes. The Mechanism section covers the after treatment devices, including the diesel oxidation catalyst, diesel particulate filter, and the temperature and differential pressure sensors. p. 55
How do I get the manual?
You download the PDF instantly after checkout, with no shipping and no wait. Keep it on a computer, tablet, or phone for reference.
What do I get after purchasing this Kubota V1505-T-E4B manual?
Immediate download of the complete 131-page searchable Shop Manual. Access it on any device, laptop at your desk or phone in the field.
Is this Kubota V1505-T-E4B Shop Manual printable?
Yes. The PDF has no DRM restrictions, print any page or section you need for your shop. Works with any standard printer.
Are there wiring harness diagrams in this Kubota V1505-T-E4B manual?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
