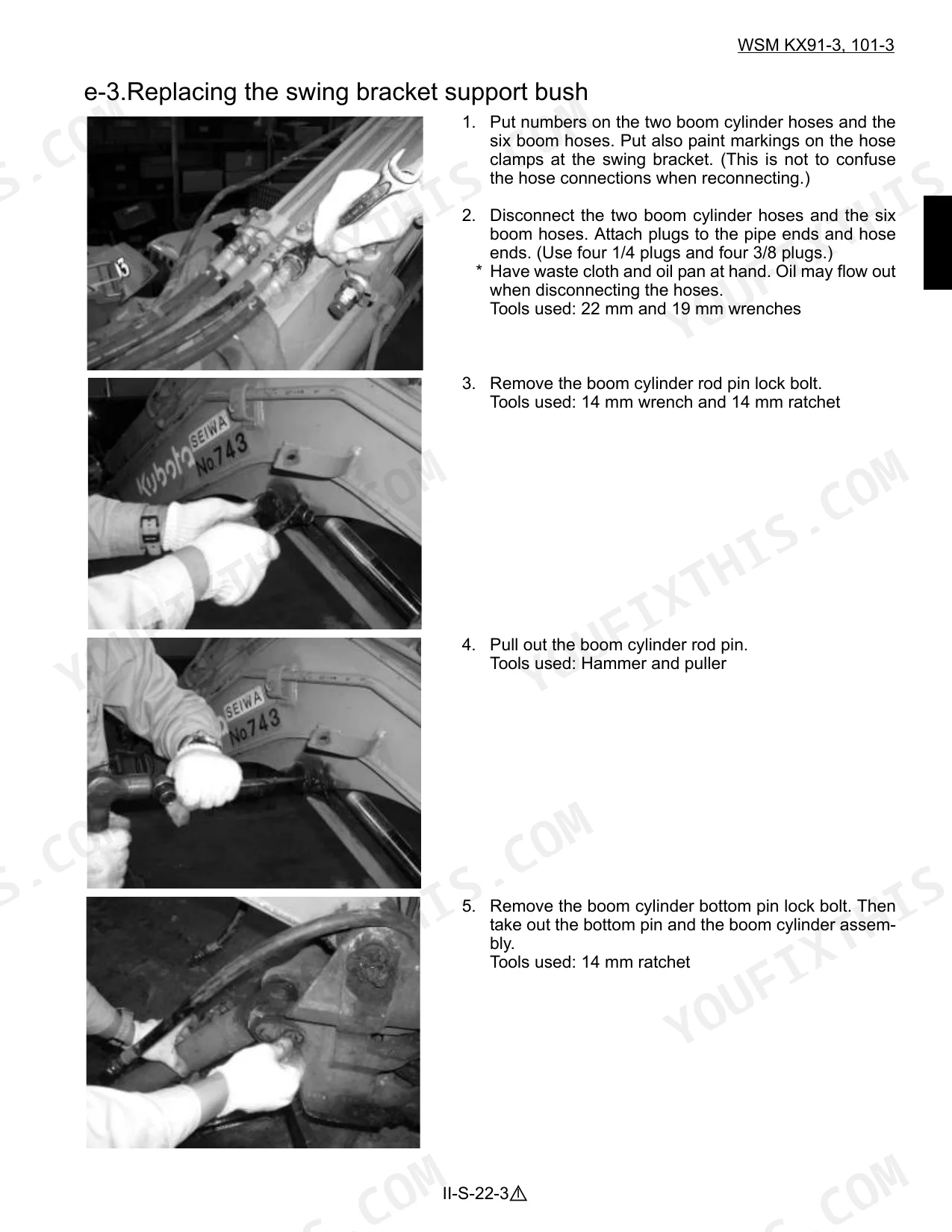

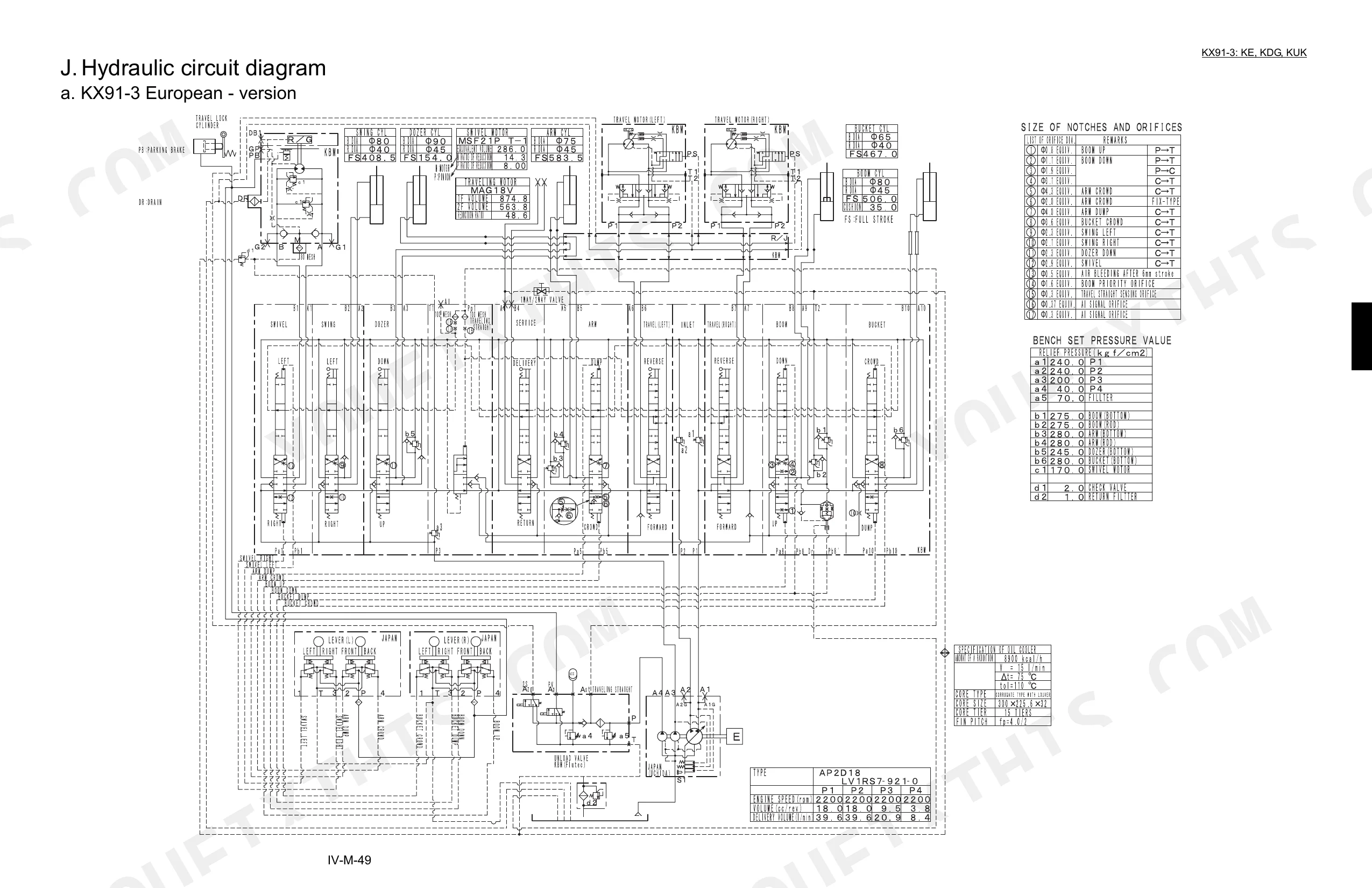

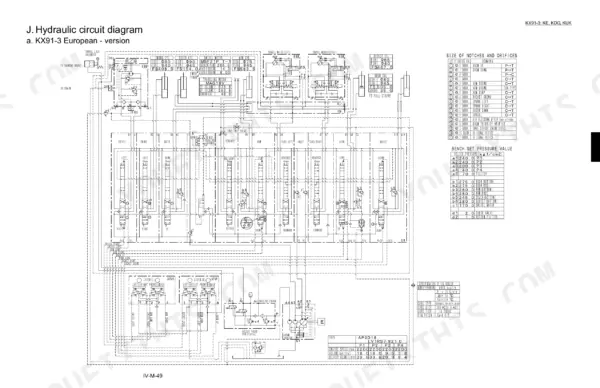

All 610 pages of this Kubota KX91-3, KX101-3 Shop Manual (OEM #97899-60520) are factory-written for both mini excavators, covering every major system from engine through hydraulics and electrical. Inside, you get hydraulic content including full circuit diagrams for European, KTC, KCL, and KTA versions, troubleshooting broken down by circuit (common circuit, front attachment, swivel, travel), and complete wiring diagrams for Standard and AI-version configurations. Disassembly and assembly procedures walk you through every component teardown and rebuild. The counterbalance valve torques to 235.0~245.0 N·m; travel motor relief valves seat at 58.8~68.6 N·m. No more chasing circuit faults with a forum wiring diagram. Bookmarked and keyword-searchable, this PDF opens on laptop, tablet, or phone so the right spec is one search away.
What's Inside This Kubota KX91-3, KX101-3 Manual
| System | Pages | Key Topics |
|---|---|---|
| I. General | 5-18 | Body And Engine Identification Marks, Safty Precautions For Servicing |

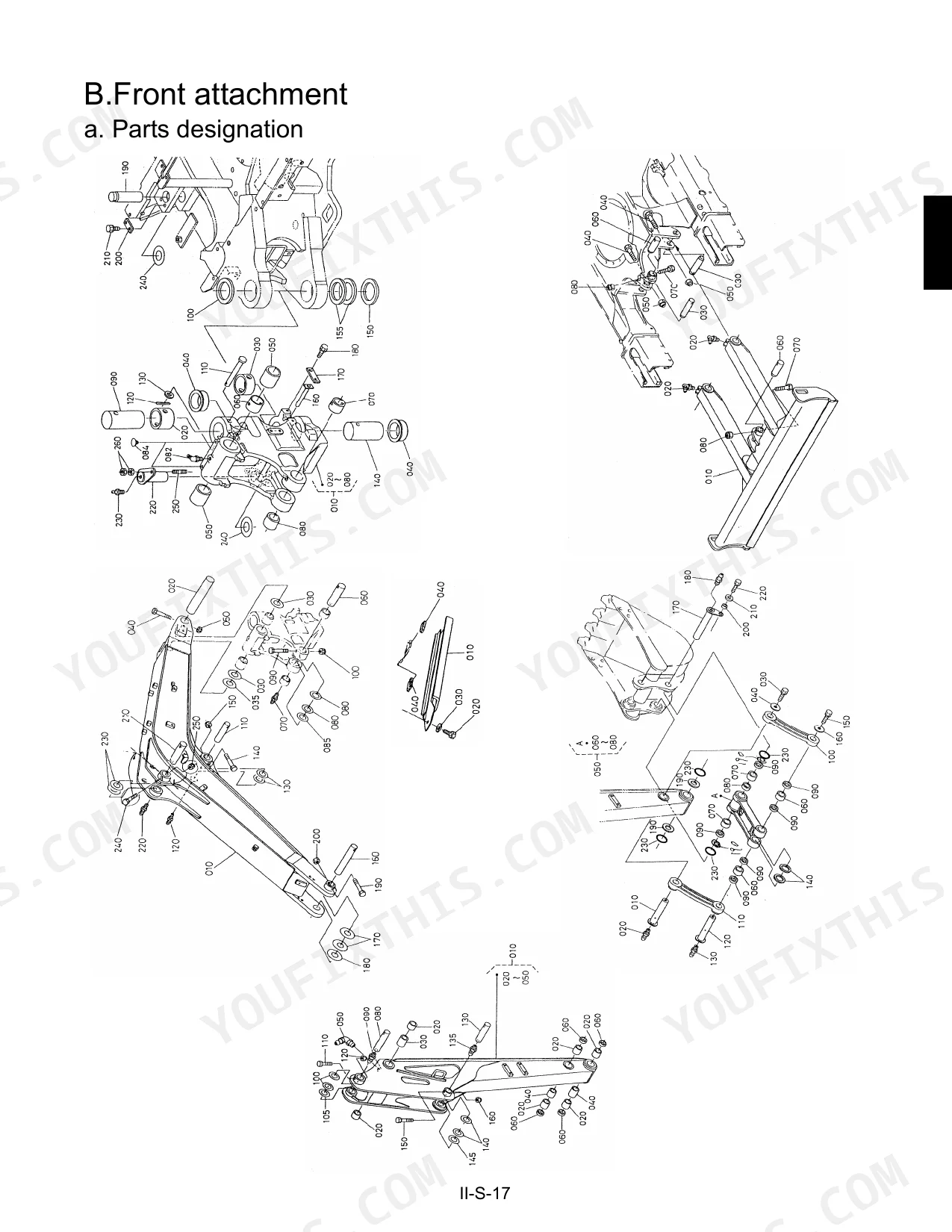

| II. Machine body(Mechanism section) | 19-34 | Front Attachment (Greasing Points, Bucket Interchangeability), Swivel Frame And Components (Accel Lever, Auto Idle-Version, Accel Cable, Swivel Bearing) |

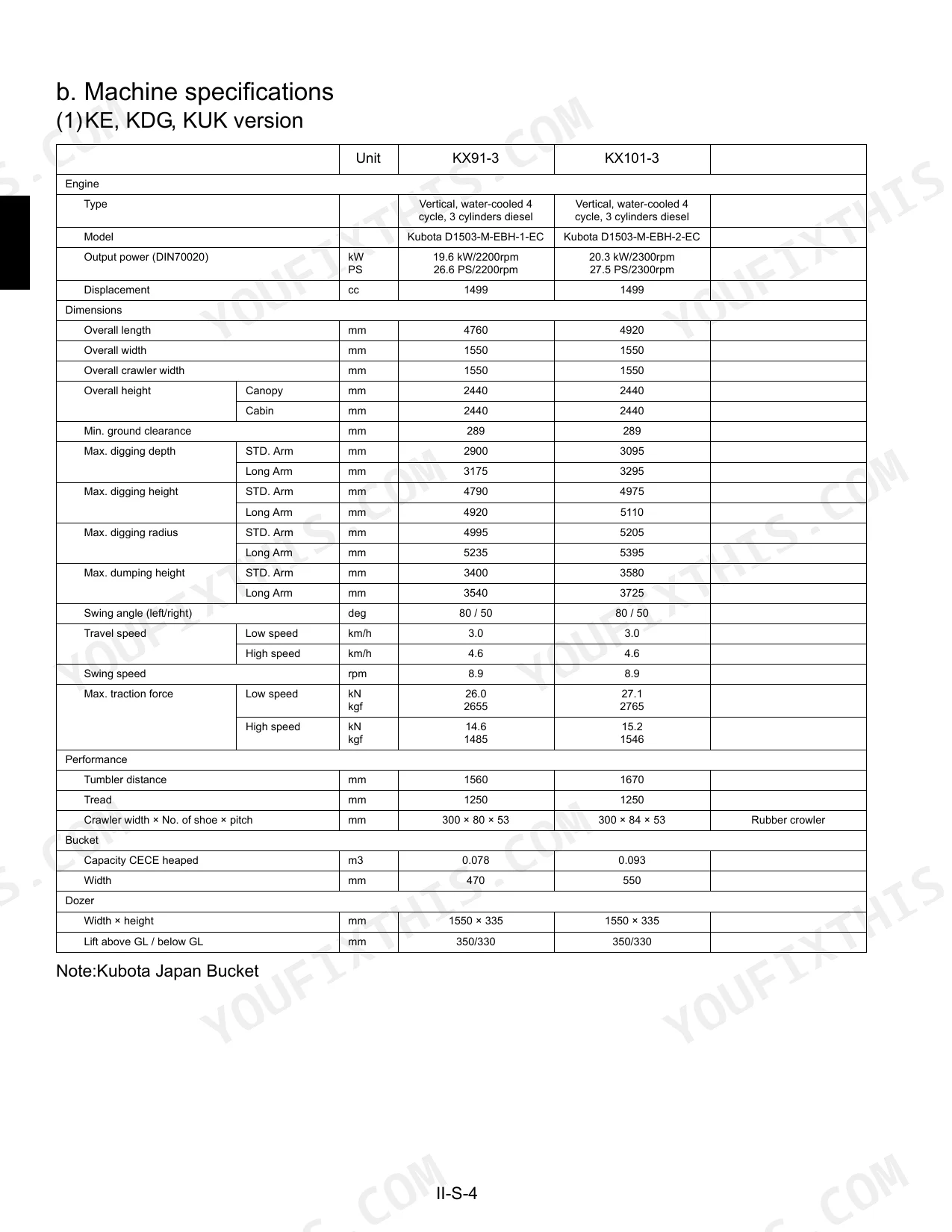

| II. Machine body(Service section) | 35-82 | Specifications (Machine Weight, Machine Specifications, Lever Stroke And Operating Force, Dimensions Of Parts) |
| III. Engine(Mechanism section) | 83-98 | Specification & Features (Specifications), Fuel Injection Pump (Structure, Precaution Of Removing Reassembly) |

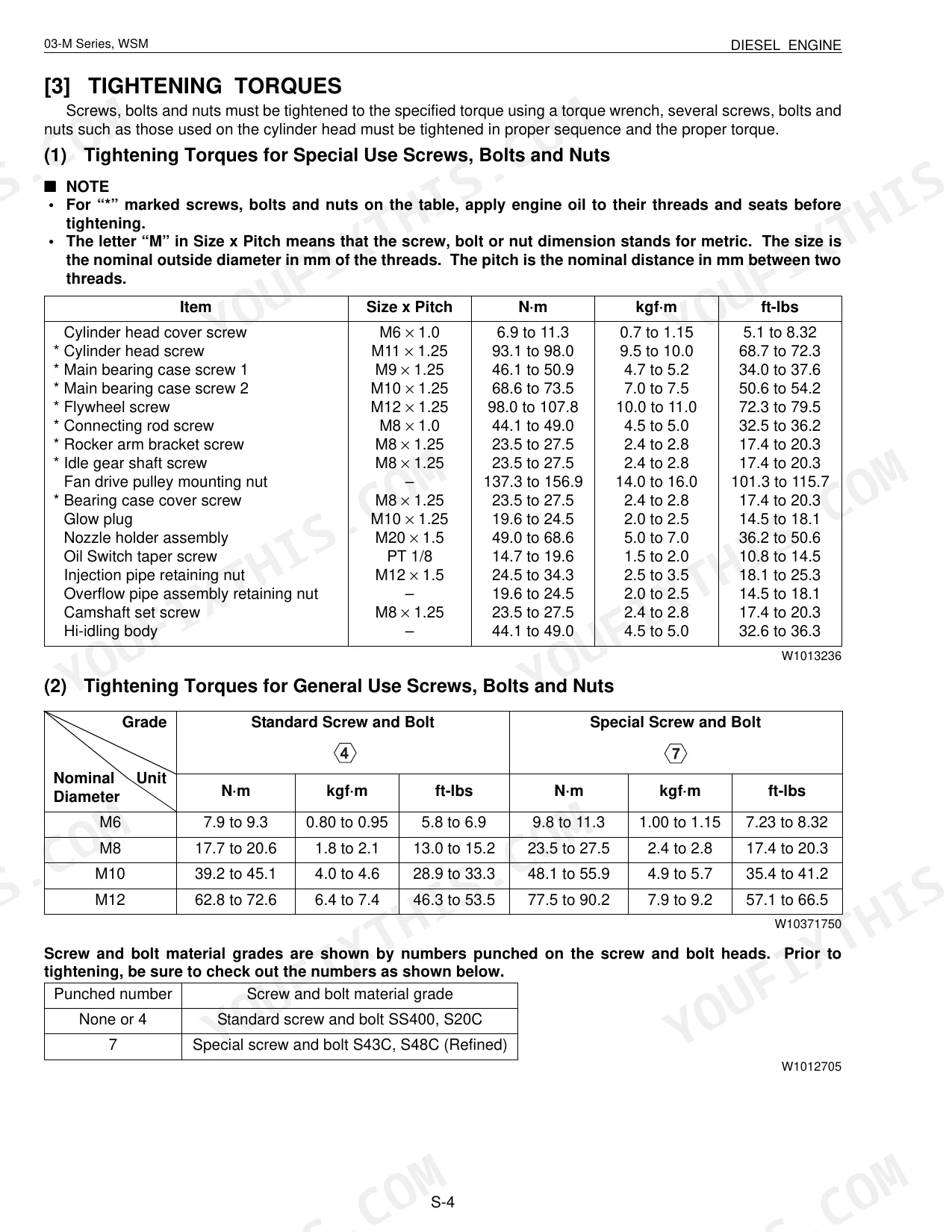

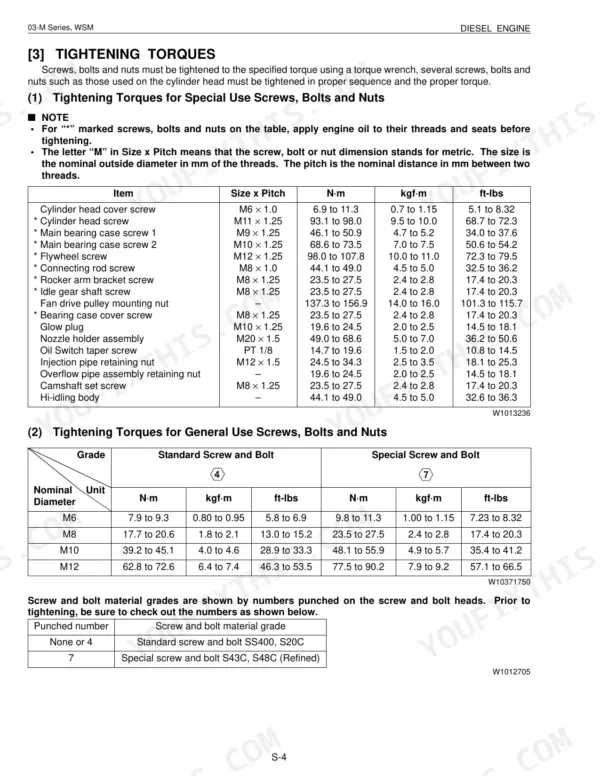

| III. Engine(Engine WSM (Addition)) | 99-210 | General (Engine Identification, Tightening Torques, Troubleshooting, Servicing Specifications, Maintenance Check List, Check And Maintenance, Special Tools) |
| IV. Hydraulic system(Mechanism section) | 211-270 | Features Of Hydraulic System, Hydraulic System Specifications, Main Pump (Structure & Specifications, Performance Curve) |

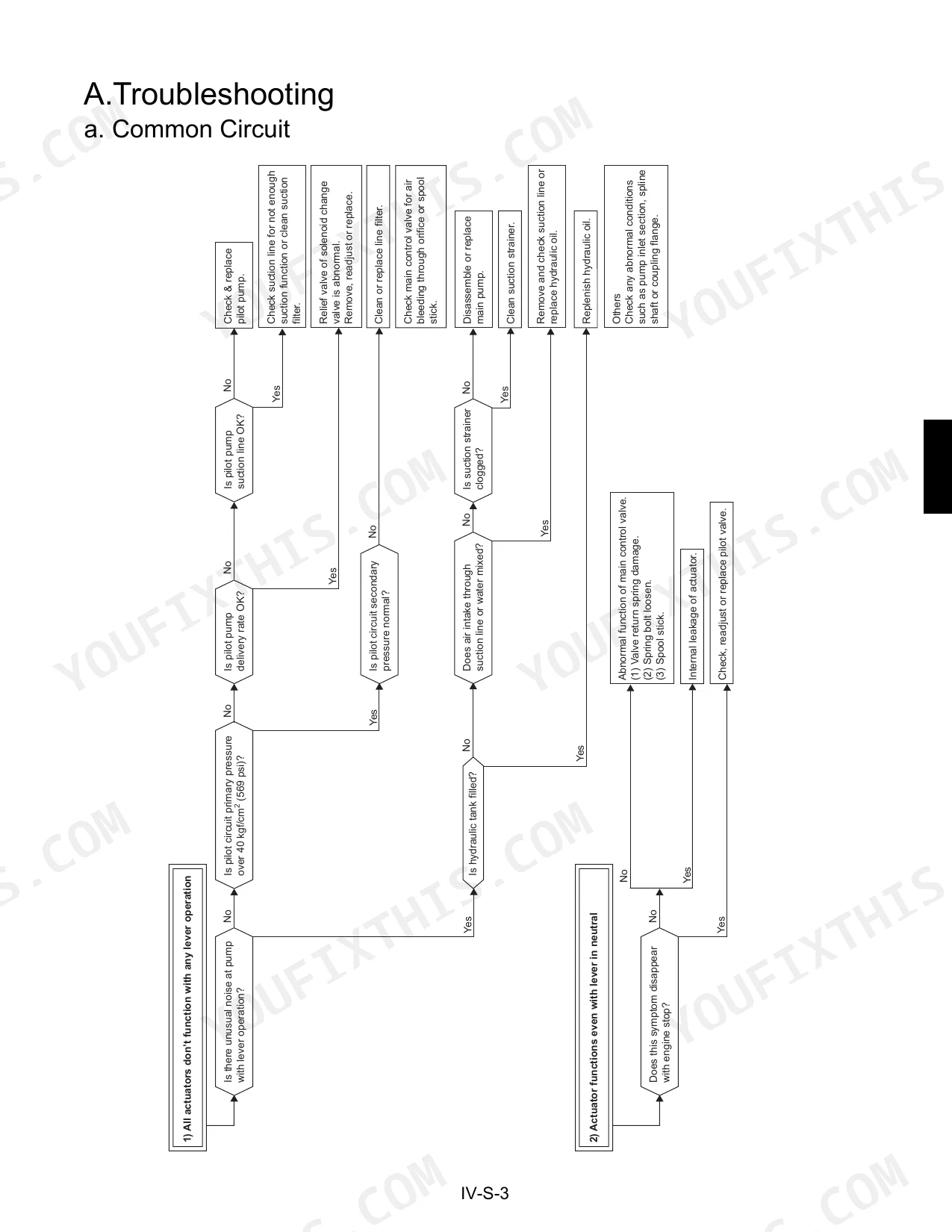

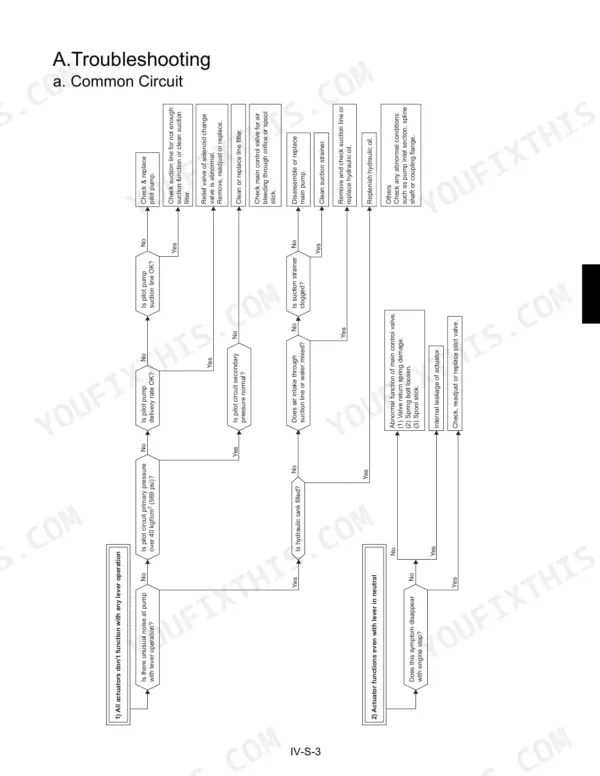

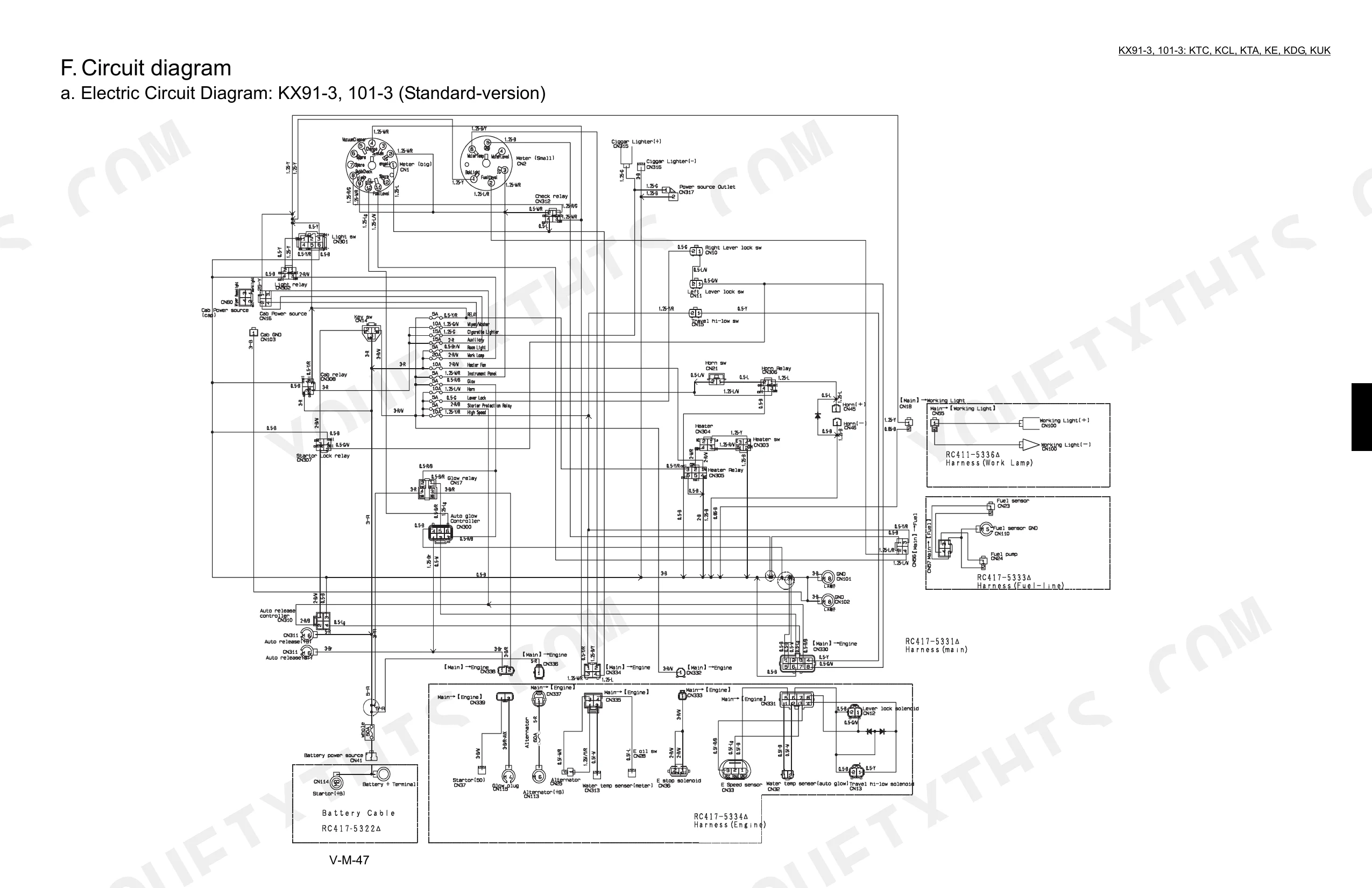

| IV. Hydraulic system(Service section) | 271-432 | Troubleshooting (Common Circuit, Front Attachment, Swivel Circuit, Travel Circuit) |
| V. Electrical system(Mechanism section) | 433-490 | Outline, Components & Harness Layout, Couplers, KX91-3, 101-3 Standard Version |
| V. Electrical system(Service section) | 491-538 | Electrical system, Front attachment, Engine electrical system, Auto idle system, Auto glow controller, Auto release controller |
| VI. Optional Units | 539-610 | A. KTA-Version (Actual Service Port Flow : KX91-3 KTA-Version Only, Breaker Performance Test Sample : KTA-Version Only), B. KTC-Version |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Travel motor Relief valve tightening torque | 58.8 ~ 68.6 N·m (6.0 ~ 7.0 kgf·m) | p. 374 |
| Travel motor Plug tightening torque | 58.8 ~ 68.6 N·m (6.0 ~ 7.0 kgf·m) | p. 374 |
| Swivel motor Relief valve assembly tightening torque | 58.8 ~ 68.6 N·m (6.0 ~ 7.0 kgf·m) | p. 245 |
| Swivel motor Shockless piston Plug tightening torque | 58.8 ~ 68.6 N·m (6.0 ~ 7.0 kgf·m) | p. 245 |
| Pilot filter Durable pressure | 70kgf/cm2 | p. 256 |
| Pilot filter Filtering rate | 10 µ | p. 256 |
| Fuel filter Ring nut tightening torque | 15 N·m (150 kg·cm) | p. 92 |
| Fuel filter Filtering area | 800cm2 | p. 92 |
| Air filter Outer element Filtering area | 1.0m2 | p. 93 |
| Air filter Inner element Filtering area | 262cm2 | p. 93 |
| Fan belt deflection (force for check) | 98 N (10 kgf, 22 lbs) | p. 130 |
| Fan belt deflection (factory spec) | 7.0 to 9.0 mm (0.28 to 0.35 in.) | p. 130 |
Kubota KX91-3, KX101-3 Common Problems This Manual Covers
Front attachment cylinders operate slowly and digging force feels weak under load p. 281
Begin by testing the main relief pressure (P1, P2) at the pump. Adjust the relief valve to achieve 23.5 MPa as detailed on page 281. Check the hydraulic tank level, adding fluid if it falls below the 36.0 L capacity shown on page 50. Inspect the pilot filter and replace if restricted.
Manual Section: Hydraulic System Troubleshooting (Front Attachment)Engine runs continuously hot and triggers frequent high-temperature warnings during heavy trenching operations p. 130
Inspect the cooling system for restrictions. Measure fan belt deflection using 98 N of force. Adjust the tensioner until deflection is between 7.0 to 9.0 mm as shown on page 130. Examine radiator hoses for leaks and verify coolant level. Replace hoses if cracked or damaged.
Manual Section: Cooling System Checking and AdjustingFrequently Asked Questions
How do I reset the error code on a Kubota KX91-3?
To reset error codes on a Kubota KX91-3 (AI version), enter the service mode and go to the "Fail record delete menu". Turn the AI operation switch to ON first and then to OFF to delete the fail records. After deletion, the AI operation lamp (green) will blink 11 times, indicating all fail records are cleared.
How do I enter service mode on a Kubota KX91-3?
To enter service mode on a Kubota KX91-3, first disconnect the 8-pin coupler from the AI controller. Then, turn the AI operation switch to the OFF position. Finally, turn the key switch to the ON position or start the engine to activate the service mode.
What does error code 11 mean on a Kubota KX91-3?
On a Kubota KX91-3, error code 11 indicates a "Controller system malfunction". This is identified by the trouble indicator lamp blinking 11 times in operating mode.
How do I clear fail records on a Kubota KX101-3?
To clear fail records on a Kubota KX101-3, enter the service mode and access the "Fail record delete menu". Turn the AI operation switch to ON first and then to OFF. This action deletes the fail records, and the AI operation lamp (green) will blink 11 times to confirm deletion.
Is this Kubota KX91-3, KX101-3 Shop Manual a digital download?
This is a 610-page searchable PDF ready for immediate download. Works on any device, pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this Kubota KX91-3, KX101-3 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Are there wiring harness diagrams in this Kubota KX91-3, KX101-3 manual?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
Document Quality
This is a scanned PDF document with an OCR layer, allowing you to search and copy the full text. The text quality is crisp and highly readable throughout. Diagrams and illustrations are scanned images, which remain clear and legible at typical zoom levels, though some fine details might soften if zoomed excessively. Pages are clean, free from scan artifacts, stains, or skewed content. Be aware that the document includes numerous blank pages, likely serving as section dividers or placeholders.
