Factory-level diesel service is the whole job here, spanning Kubota's ER and KND lineup in one OEM volume (#9Y011-00761). The 158 pages carry exploded views of the engine body from cylinder head to flywheel, disassembly and assembly for every subsystem, and servicing clearances, plus a troubleshooting guide that pairs root causes with corrective steps. Performance curves for all eight variants sit beside full PTO shaft, V-pulley, and flywheel specs. Torque the nozzle holder mounting nut to 17.7 to 20.6 N·m; on ER1700DI through KND2200DI models, the nozzle nut and holder go to 58.8 to 78.5 N·m. When injection pressure goes soft, you stop hunting through forum threads. Open the PDF, jump to any bookmarked section, and confirm the spec before the wrench turns.
What's Inside This Kubota ER1500 & variants Manual
| System | Pages | Key Topics |
|---|---|---|

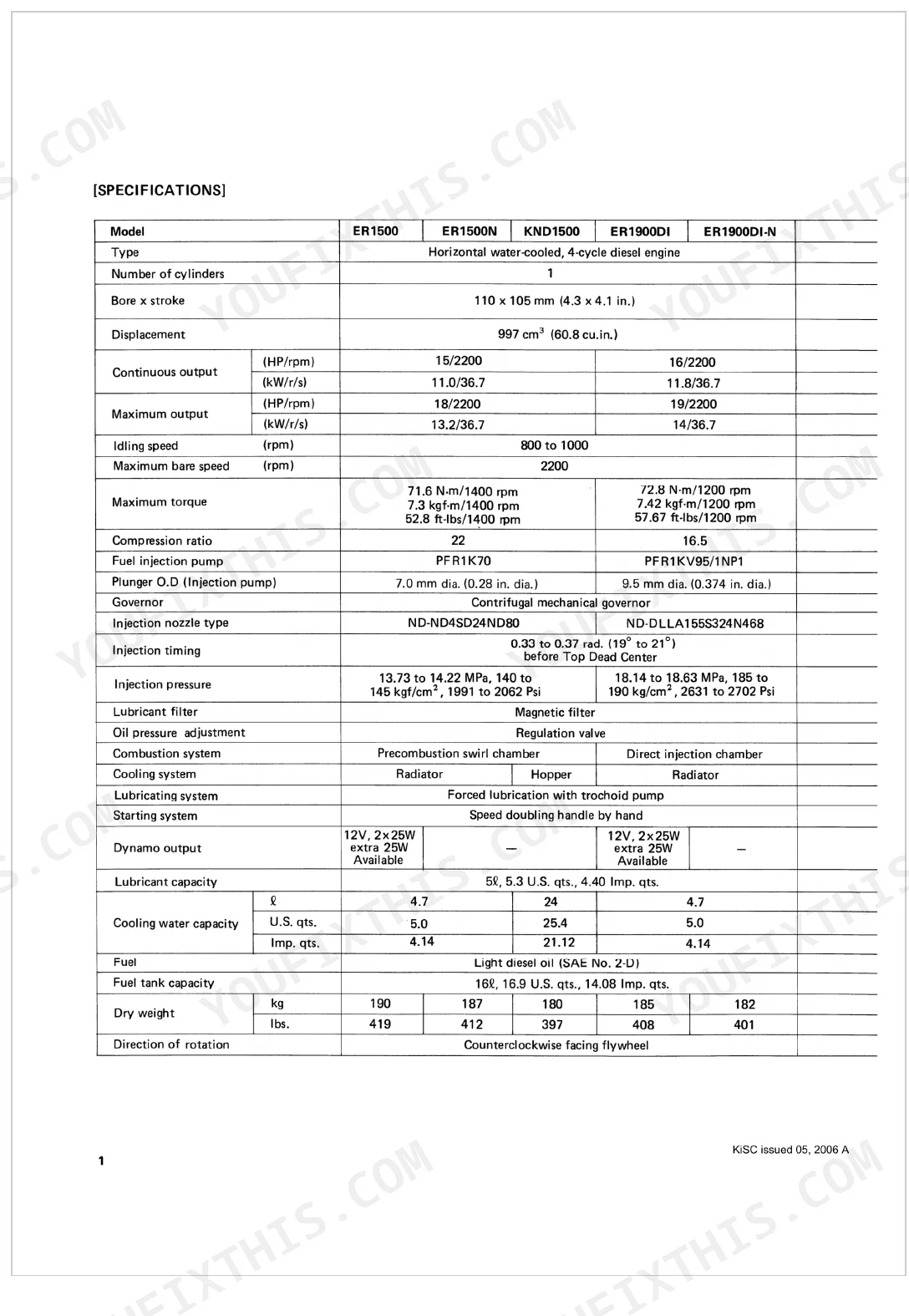

| Specifications | 3-6 | Model And Type, Engine Dimensions, Output And Torque, Fuel System Specifications, Cooling And Lubricating Systems, Electrical System And Weights, Spécifications Générales |
| Performance Curves | 7-8 | ER1500, KND1500 Performance, Er1700Di, Knd1700Di, Er2200Di |
| Dimensions | 9-10 | ER1500 Dimensions, KND1500 Dimensions, ER 1700DI, ER 1900DI, ER 2200DI Dimensions, KND1700DI, KND1900DI, KND2200DI Dimensions |
| Various PTOs | 11 | PTO Shaft And Bolt Specifications, Pulley Flange Assembly, Flat Pulley Specifications, Différentes Prises De Force, Ensemble De Bride De Pulie, Poulie Plate |
| V-Pulley | 12 | V-Pulley Specifications, Detail Of Flywheel, Installation, Poulie En V, Description De Volant |

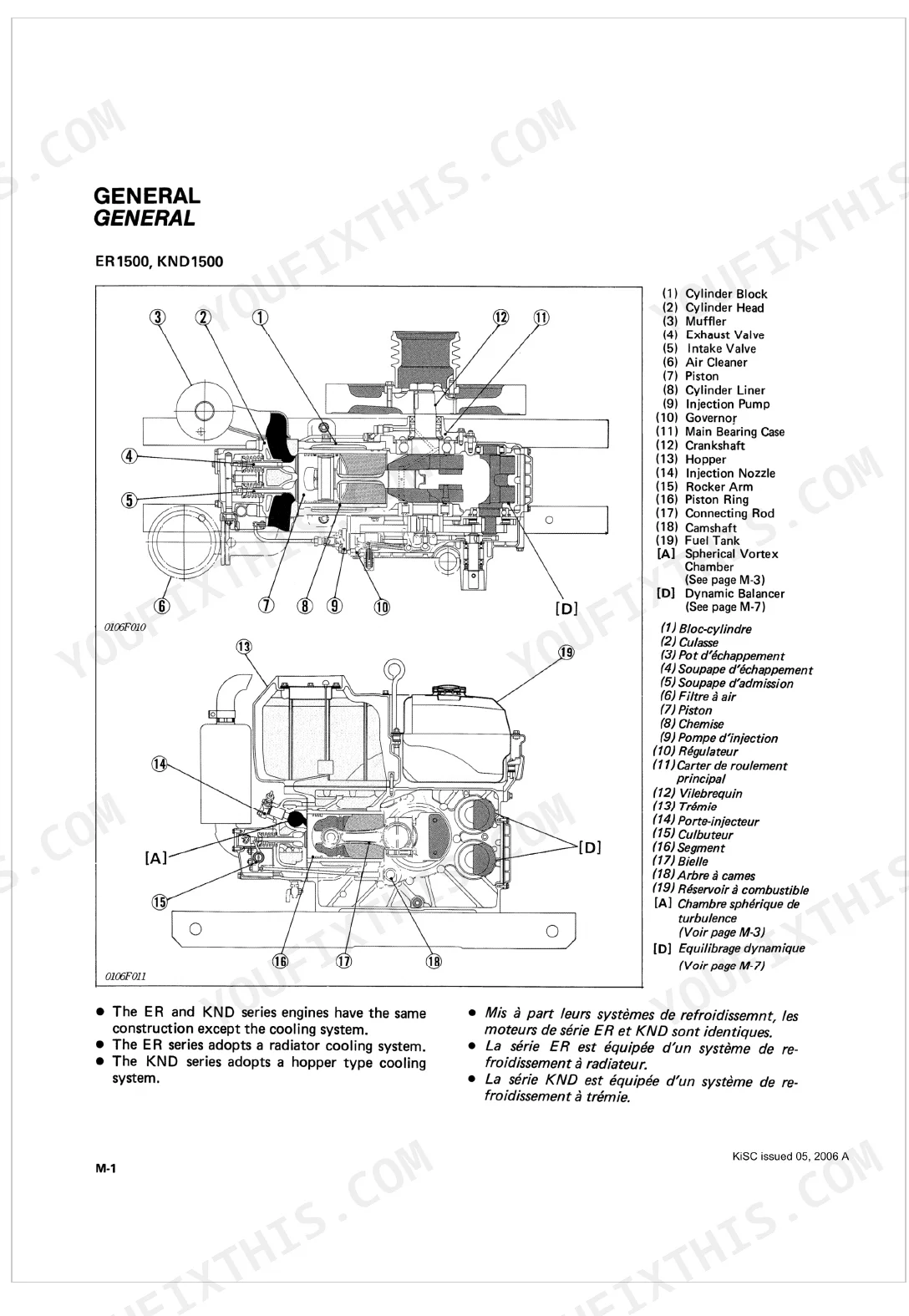

| Mechanism | 13-50 | Engine Body, Cylinder Head, Valve Mechanism, Crankcase And Cylinder Liner, Crankshaft And Crankshaft Journal Bearing, Piston And Piston Ring, Connecting Rod And Crankpin Bearing, Timing Gears |
| Disassembly and Servicing | 51-158 | General (Engine Identification, Tightening Torques, Troubleshooting, Servicing Standards, Maintenance Check List, Check And Maintenance, Special Tools) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Reset procedure for low oil pressure alarm | Not specified as a numerical value; troubleshooting steps are provided for the cause of low oil pressure. | p. 60 |
| Fuel filter specifications | No specific numerical clearance or torque values found. Replacement is based on damage/deformation or maintenance interval (cleaning every 300 h). | p. 79 |

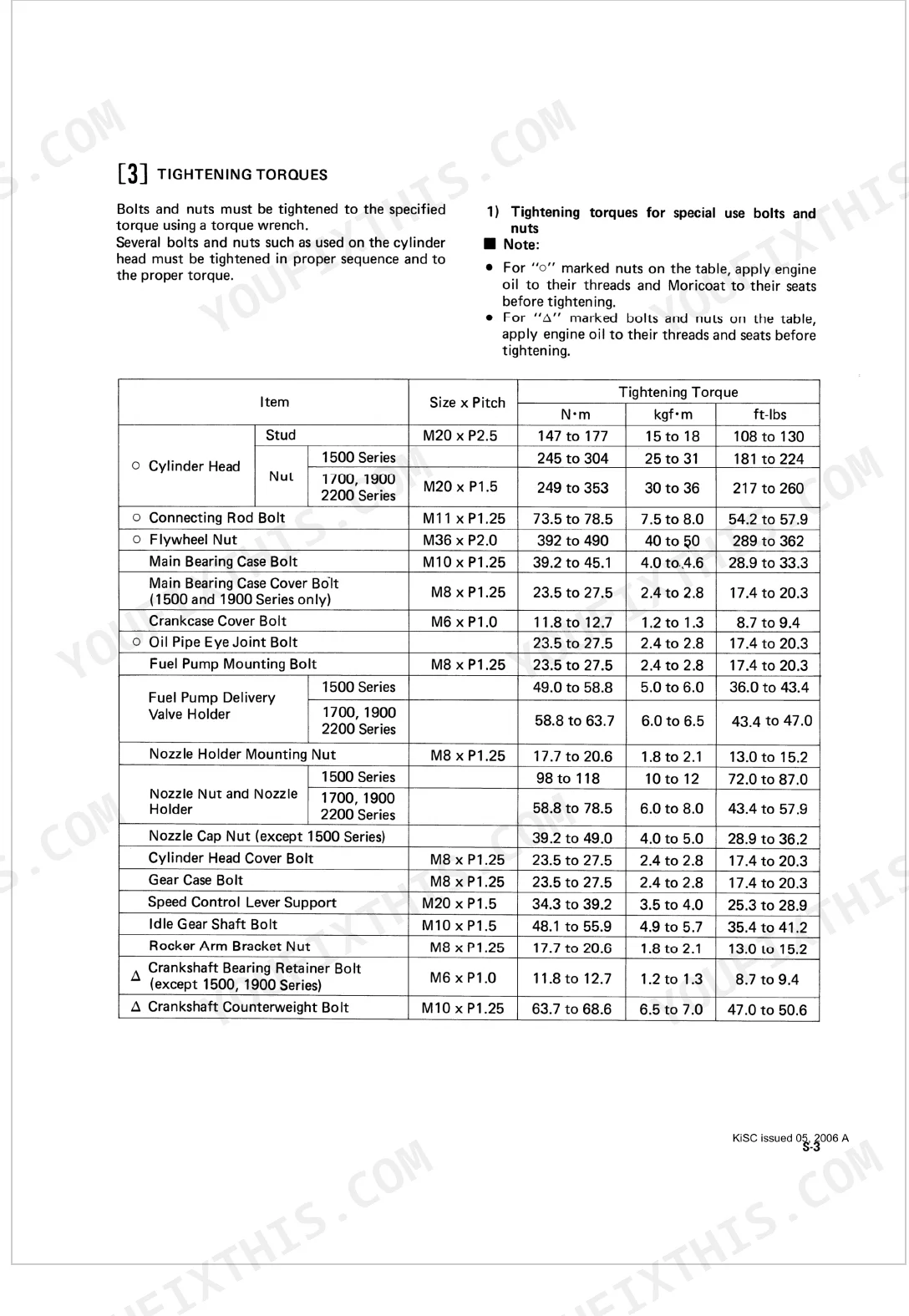

| Nozzle Holder Mounting Nut torque | 17.7 to 20.6 N·m | p. 55 |
| Nozzle Nut and Nozzle Holder torque | 98 to 118 N·m | p. 55 |
| Water pump specifications | No specific numerical clearance or torque values found. | p. 64 |
| Thermostat specifications | No specific numerical clearance or torque values found. | p. 64 |
| Fan belt deflection at 98N (10 kgf, 22 lbs.) | 26 to 28 mm | p. 68 |

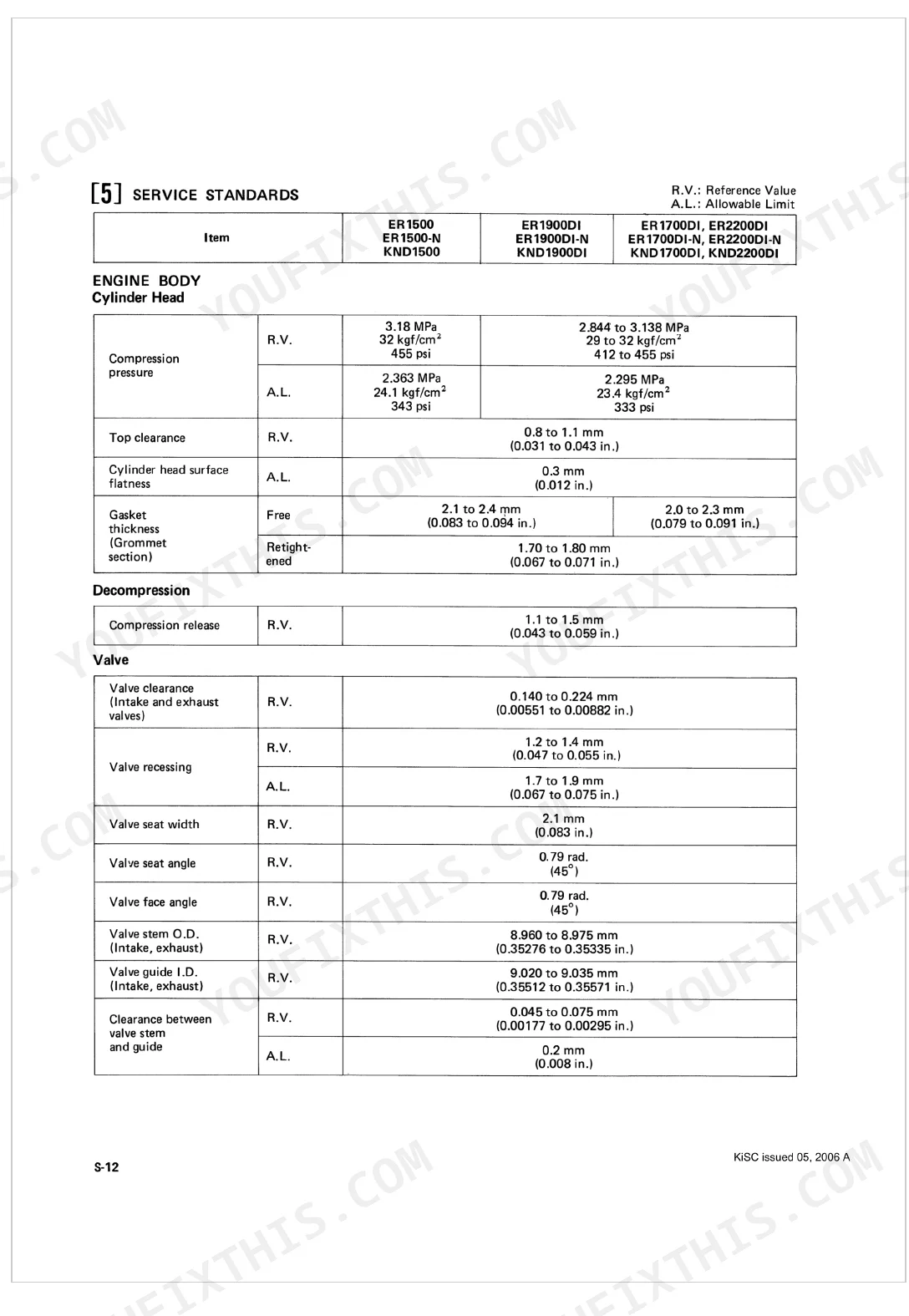

| Gasket thickness (Grommet section) Free | 2.1 to 2.4 mm | p. 64 |
| Gasket thickness (Grommet section) Retightened | 1.70 to 1.80 mm | p. 64 |

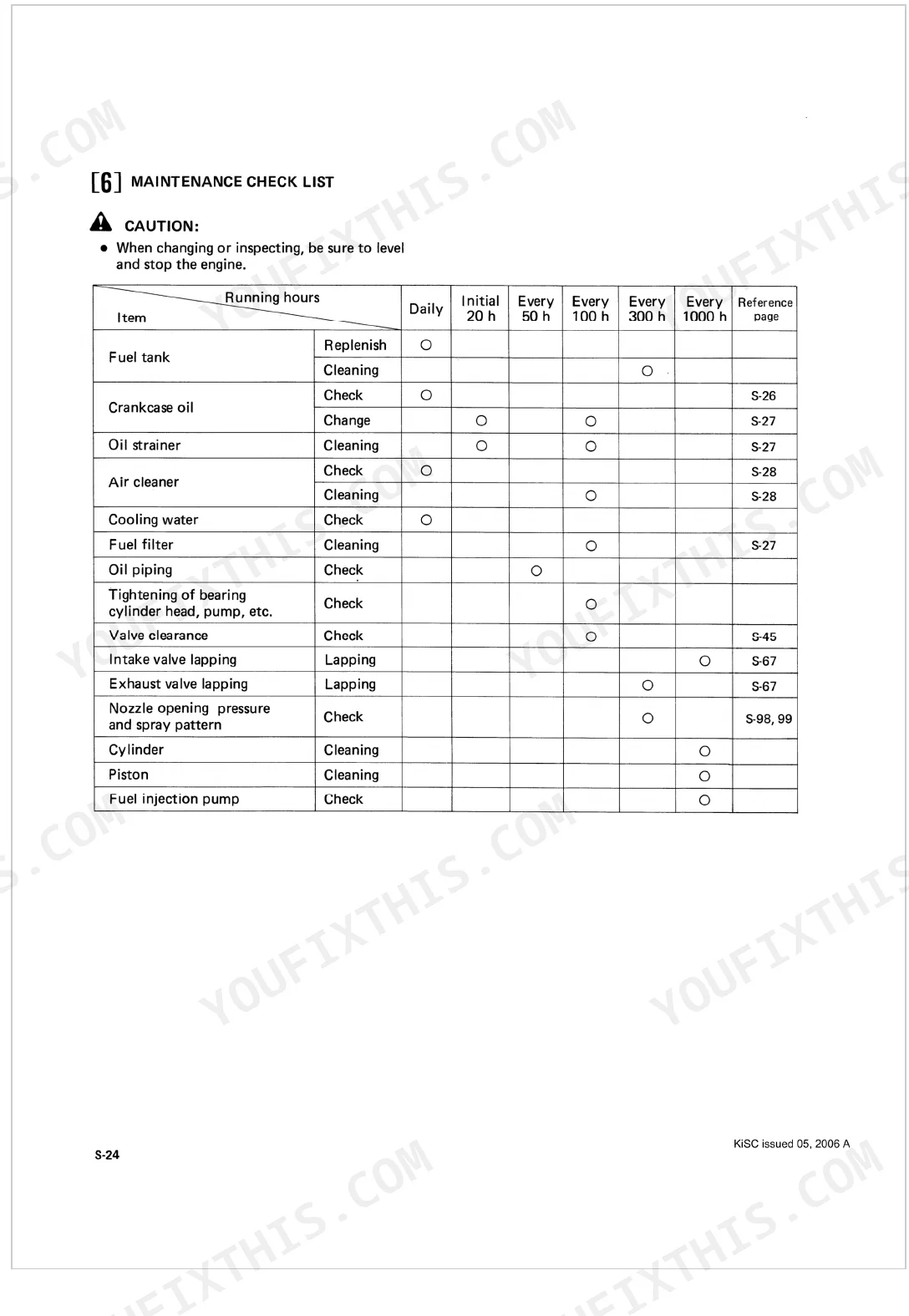

| Oil filter specifications | No specific numerical clearance or torque values found. Replacement is based on deformation/breakage or maintenance interval (cleaning every 50 h). | p. 79 |
| Air filter specifications | No specific numerical clearance or torque values found. Maintenance interval is cleaning every 100 h. | p. 80 |
| Radiator cap opening pressure | 88 kPa | p. 68 |
Kubota ER1500 & variants Common Problems This Manual Covers

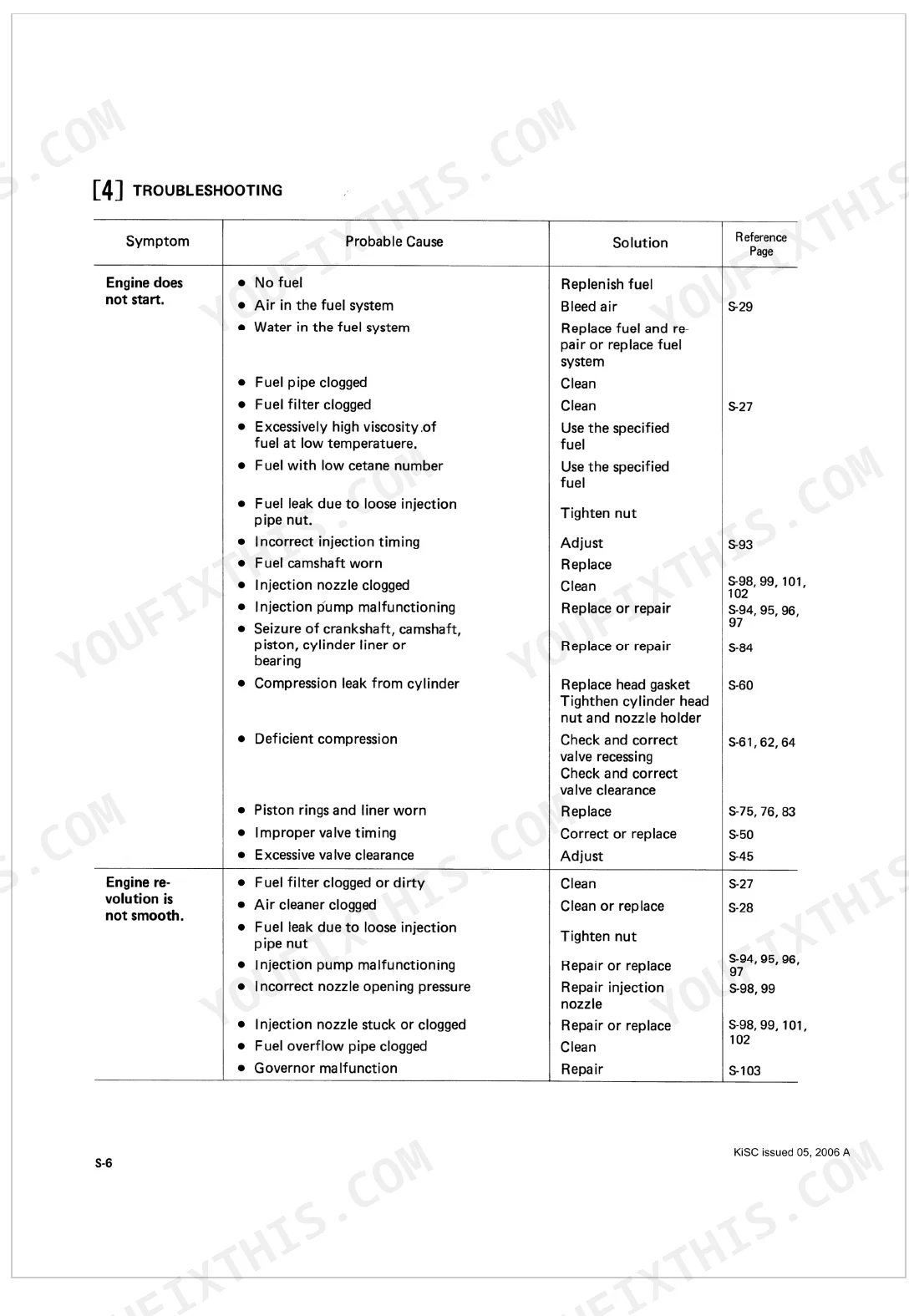

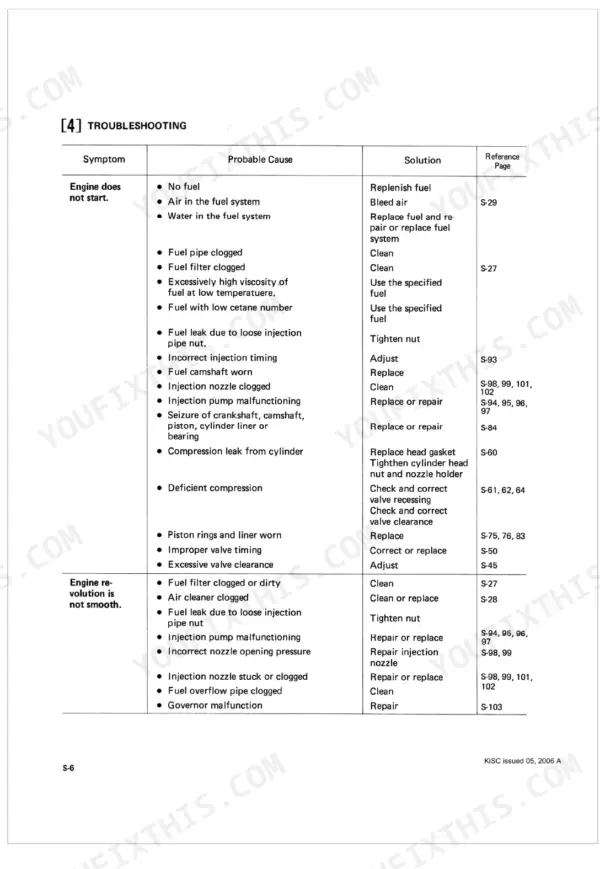

Kubota ER-series diesel hard to start after sitting, cranks but won't fire
Check the fuel system for air ingestion and inspect the fuel filter; the cleaning interval is every 300 hours. Bleed the fuel lines completely before cranking. Test each injector spray pattern for clogging or poor atomization. Work through the no-start diagnostics to isolate whether the fault is fuel supply, filter restriction, or injector delivery.
Manual Section: Engine TroubleshootingEngine overheats under load, coolant level drops, temperature gauge climbs into the red p. 68
Inspect the fan belt first; correct deflection under 98 N load is 26 to 28 mm (page 68). Test the radiator cap, which should hold 88 kPa before venting. Check coolant level and flush radiator passages if restricted. If temperature still climbs, pull the water pump and verify the impeller isn't slipping on its shaft.
Manual Section: Disassembly and ServicingOil pressure warning light triggers at idle, engine knocks under heavy load
Stop the engine immediately and check the oil level. Fill to the full mark; total capacity is 5.0 L. Verify oil pressure at rated speed is between 98 and 196 kPa. If pressure stays low after refilling, follow the troubleshooting chart to identify whether the fault is the oil pump, a blocked passage, or bearing wear.
Manual Section: Engine TroubleshootingBlack or white exhaust smoke, engine runs rough with loss of power p. 64
Clean the air filter every 100 hours and confirm it isn't restricting intake. Measure valve clearance cold; the spec is 0.140 to 0.224 mm for both intake and exhaust on page 64. If smoke persists with clean air and correct valve clearance, check compression and inspect the injector nozzles for worn spray patterns or clogged tips.
Manual Section: Disassembly and ServicingFuel drips at nozzle holder, engine runs rough immediately after injector service p. 55
Torque the nozzle holder mounting nut to 17.7 to 20.6 N·m (page 55). For 1500-series engines, torque the nozzle nut to 98 to 118 N·m. For 1700, 1900, and 2200-series engines, torque the nozzle nut to 58.8 to 78.5 N·m and the cap nut to 39.2 to 49.0 N·m. Run the engine and recheck all joints for weeping.
Manual Section: Disassembly and ServicingFrequently Asked Questions

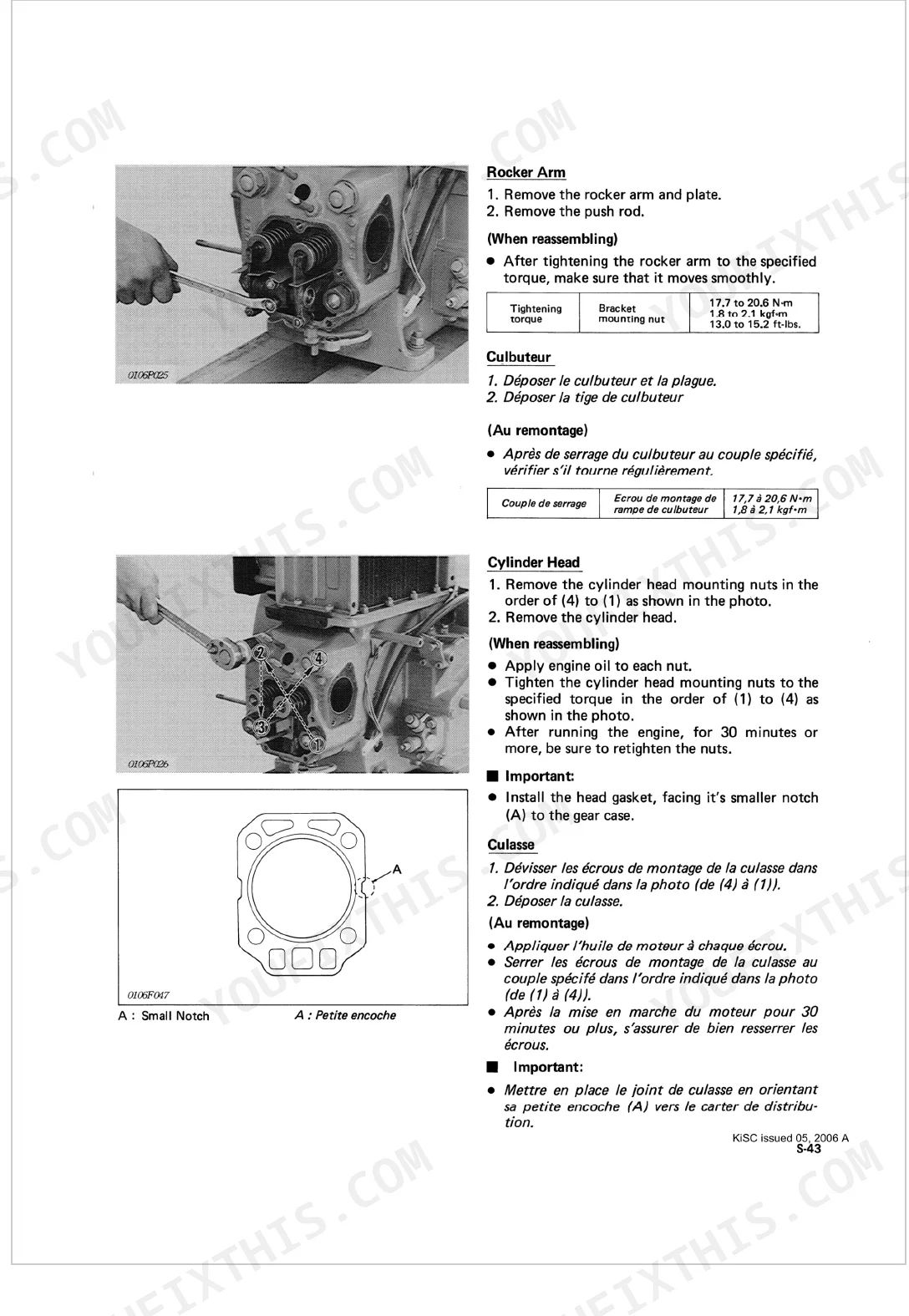

What are the torque specs for Kubota ER2200DI/KND2200DI head bolts?
Cylinder head nuts on the ER2200DI/KND2200DI torque to 249 to 353 N·m (30 to 36 kgf·m, 217 to 260 ft-lbs). That figure covers the M20 x P1.5 nuts used across the 1700, 1900, and 2200 Series engines.
What are the replacement specifications for fuel filters?
Replace the fuel filter element whenever it is damaged or deformed. There's no fixed replacement interval, but the manual calls for cleaning the filter every 300 hours.
What are the replacement specifications for injector nozzles?
Swap the injector nozzle piece when the spray pattern or spraying direction is off. On the 1500 Series, it also needs replacing if the needle valve won't slide freely to its seat. Always renew the nozzle needle and nozzle piece together as an assembly.
What format is this Kubota ER1500 & variants manual in?
This is a 158-page searchable PDF, available the moment you check out. Open it on a laptop, tablet, or phone and take it straight to the shop floor.
Can I print this Kubota ER1500 & variants manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This document is a scanned PDF with an active OCR layer, enabling you to search and copy the full text content. The text is consistently crisp and easy to read across all pages, with no blurry or faded sections. Diagrams and illustrations are raster images, which show some pixelation upon high zoom, but all labels and details remain clearly readable. The page condition is clean, without any significant scan artifacts, stains, or skewed pages. No notable blank or filler pages are present in this manual.
