This is the factory Kubota Service Manual for the B3200HSD and B3200HSDWO compact tractors, a 367 page PDF covering the V1505-E3-D24 diesel engine and every major system on the machine.Inside you get the mechanism theory and the servicing procedures side by side: engine, clutch, hydrostatic transmission, front and rear axles, brakes, power steering, the hydraulic system, and the full electrical system with wiring diagrams. Each section carries troubleshooting charts, servicing specifications, and tightening torques so you can diagnose a fault and set the correct clearance or torque the first time.Whether you are chasing a weak HST, a no start condition, or a slow three point hitch, this manual gives owners and independent mechanics the same reference Kubota technicians use for full teardown and reassembly.
What's Inside This Kubota B3200HSD, B3200HSDWO Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Instructions | - | Safety First, Before Servicing and Repairing, Safety Starting, Safety Working, Avoid Fires, Ventilate Work Area, Prevent Acid Burns, Dispose of Fluids Properly |
| Safety Decals | - | - |

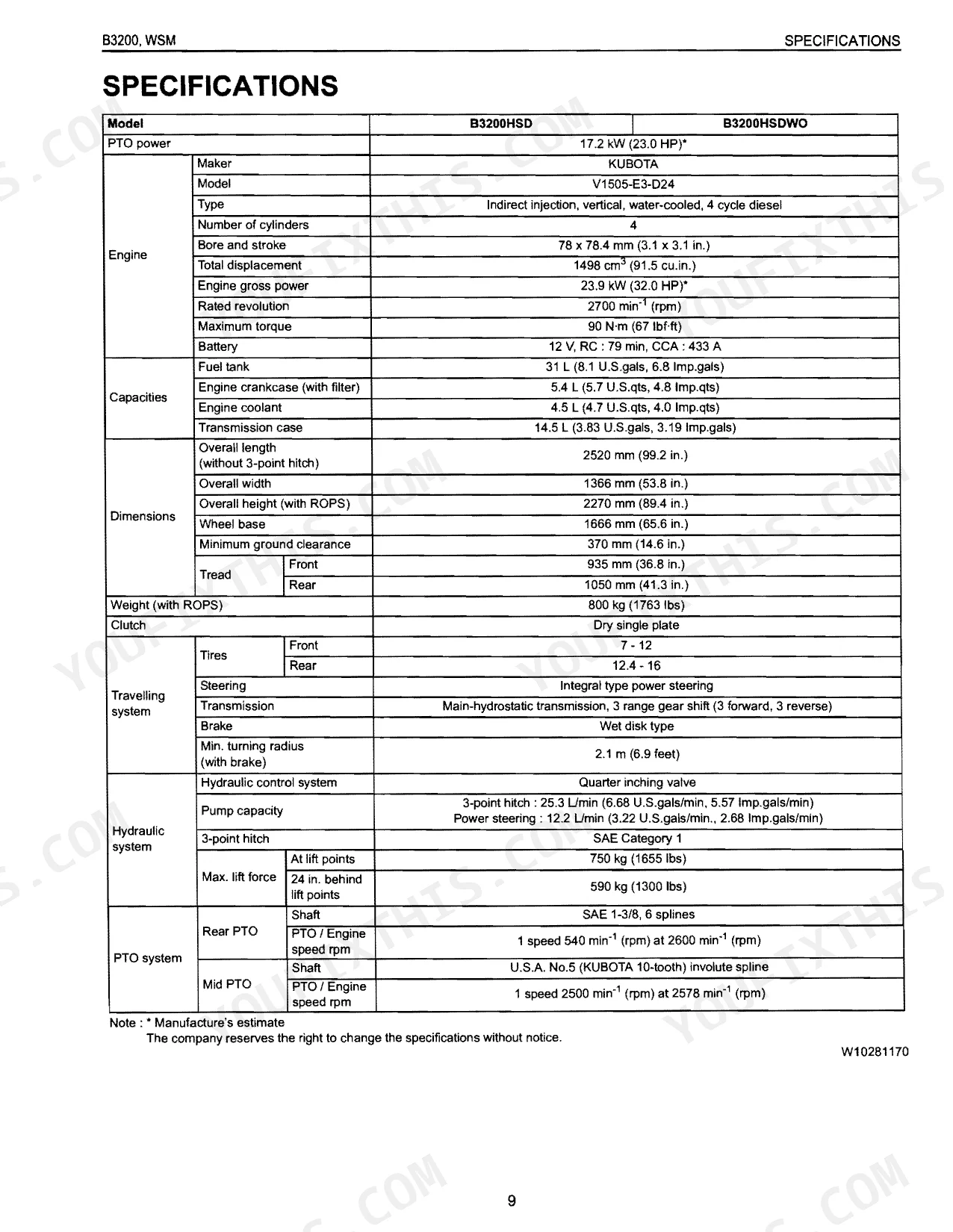

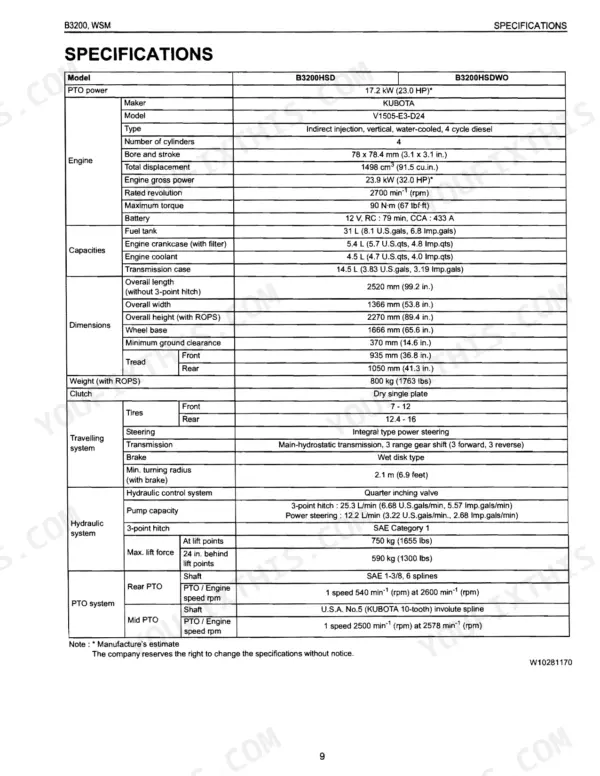

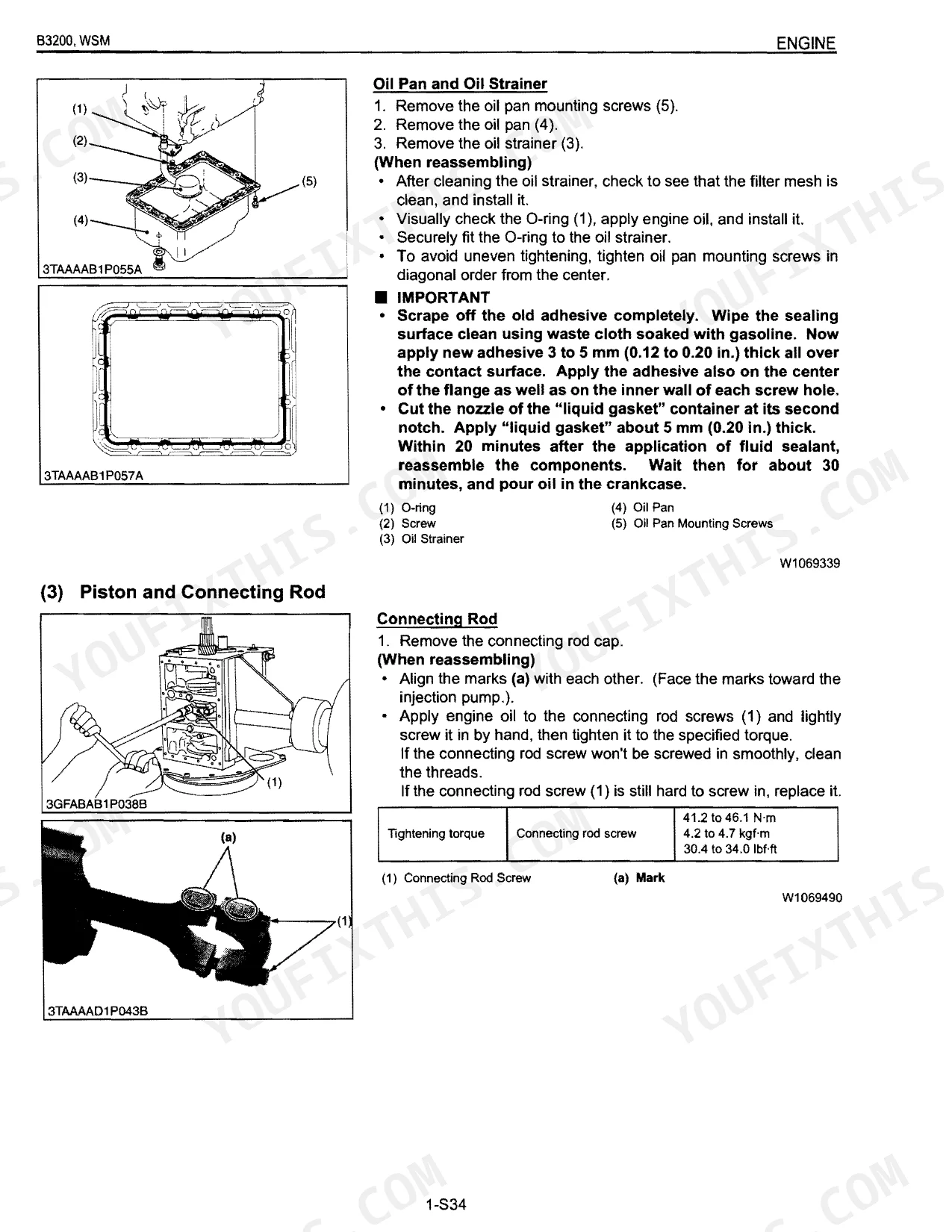

| Specifications | - | PTO Power, Engine, Capacities, Dimensions, Weight (with ROPS), Clutch, Tires, Steering |
| Travelling Speeds | - | Model B3200, Tire Size (Rear), Forward, Reverse |
| Dimensions | - | Overall Length, Overall Width, Overall Height, Wheel Base, Minimum Ground Clearance, Front Tread, Rear Tread |
| General | - | Tractor Identification, Model Name and Serial Number, Cylinder Number, General Precautions, Wiring, Battery, Fuse, Connector |
| Engine Servicing | - | Tractor Section, Engine Section, Preparation |
| Clutch Mechanism | - | Linkage Mechanism, Operation, Clutch Engaged, Clutch Disengaged |
| Clutch Servicing | - | Preparation |
| Transmission Mechanism | - | Power Train for Travelling System, Hydrostatic Transmission, Power Train for PTO Gear, Rear PTO Section, Mid-PTO Section |
| Transmission Servicing | - | Checking. Disassembling and Servicing, Preparation |
| Rear Axle Mechanism | - | Rear Axles, Differential Gears |
| Rear Axle Servicing | - | Rear Axle Case, Rear Axle Shaft, Differential Lock Shift Fork, Differential Lock Clutch, Ball Bearing |
| Brakes Mechanism | - | Linkage, Operation, During Braking |
| Brakes Servicing | - | Brake Pedal, Rear Axle Case, Rear Wheel, Fender, Differential Lock Shift Fork, Differential Lock Clutch, 57T Gear, Brake Assembly |
| Front Axle Mechanism | - | Power Transmission, Differential System |
| Front Axle Servicing | - | Front Axle, Front Wheel, Drag Link, Tie-Rod, Axle Bracket, Bevel Gear Case, Front Gear Case, Bevel Gear Case Gears |
| Steering Mechanism | - | Steering Linkage, Power Steering, Hydraulic Circuit for Power Steering System |
| Steering Servicing | - | Preparation |

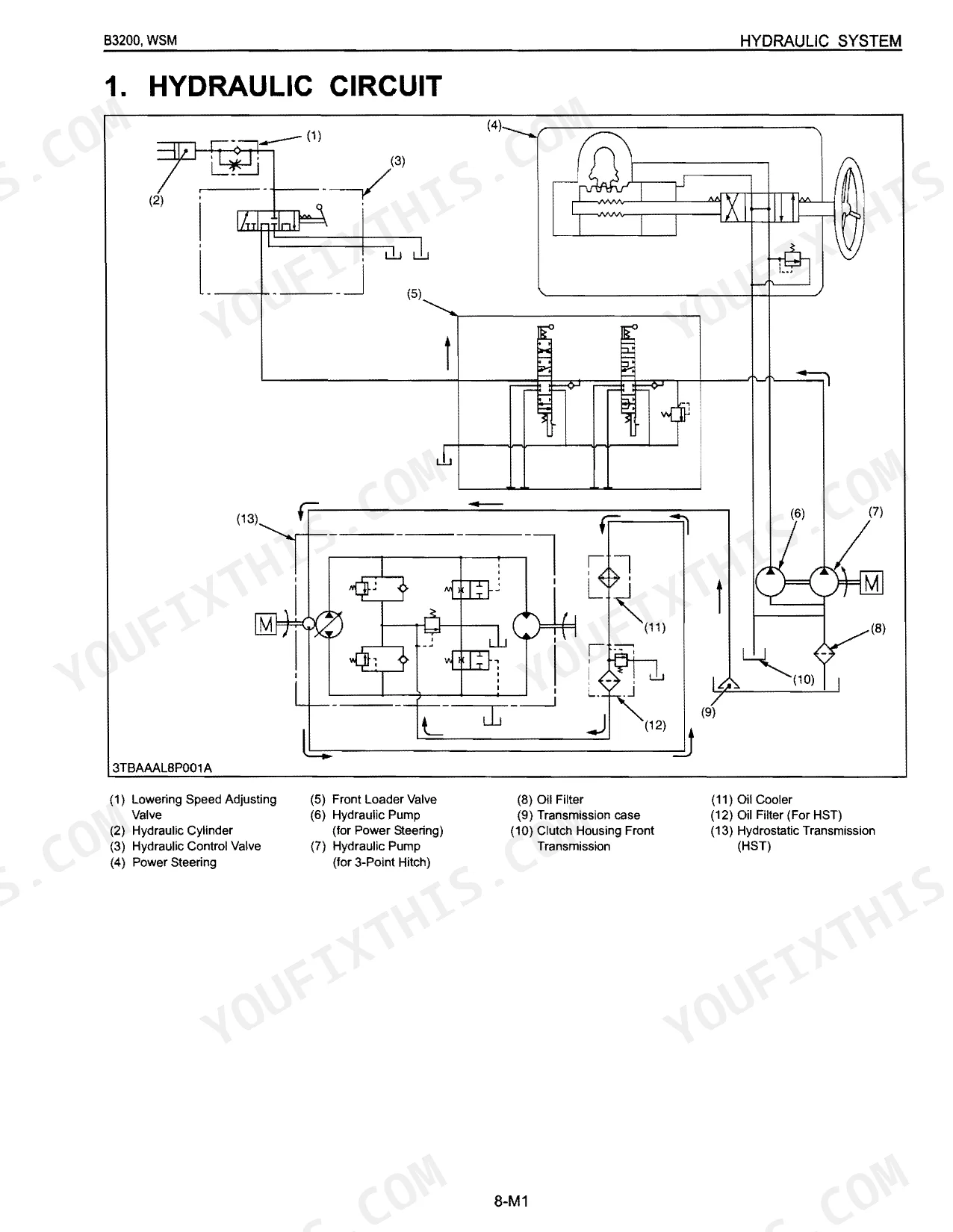

| Hydraulic System Mechanism | - | Hydraulic Circuit, Hydraulic Pump, Control Valve Assembly, Front Loader Control Valve (If Equipped), 3-Point Hitch Control Valve, Relief Valve, 3-Point Hitch Hydraulic System, Feedback Linkage |
| Hydraulic System Servicing | - | Preparation |
| Electrical System Mechanism | - | Wiring Diagram, Engine Starting System and Stopping System, Opc System Circuit, Controller, Safety Switch and Engine Condition, Lighting System, Head Light, Turn Signal Light |
| Electrical System Servicing | - | Battery, Main Switch, Key Stop Solenoid Relay, Glow Plug, Safety Switch, Starter, Opc Controller, AC Dynamo |
Quick Reference Specifications

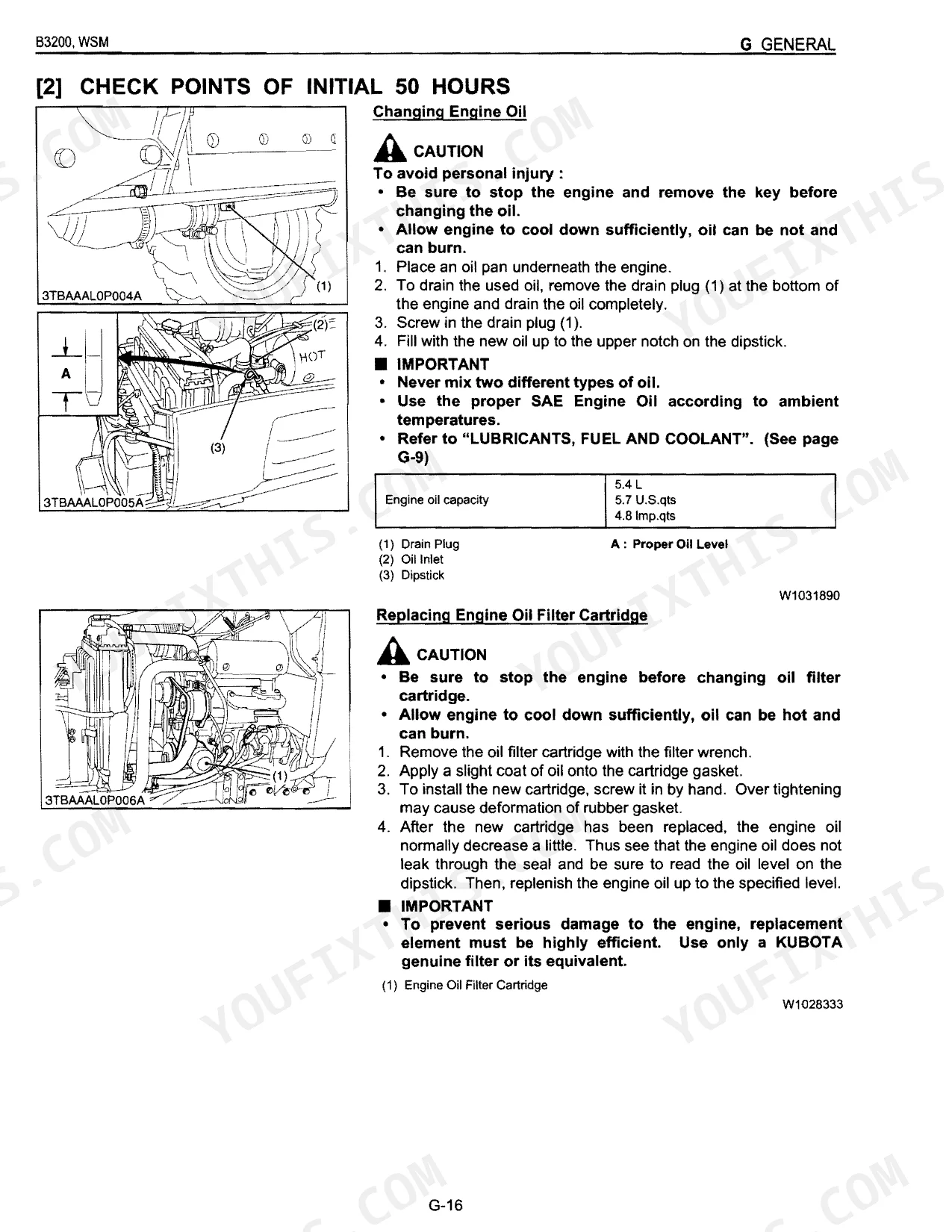

| Specification | Value | Page |
|---|---|---|
| Hydraulic oil filter replacement interval | Initial 50 hours, then periodically | p. 27 |
| Engine oil filter replacement interval | Initial 50 hours, then every year or every 6 times of cleaning | p. 27 |
| Fuel filter element replacement interval | Every 400 hours | p. 44 |
| Air cleaner primary element replacement interval | Once a year or after every six times of cleaning, whichever comes first | p. 39 |
| Coolant capacity (with recovery tank) | 4.5 L | p. 46 |
| Thermostat Valve Opening Temperature (Opened Completely) | 85 °C | p. 78 |
| Starter Commutator O.D. (Allowable Limit) | 27.0 mm | p. 343 |
| Starter Mica Undercut (Allowable Limit) | 0.20 mm | p. 343 |
| Transmission fluid capacity | 14.5 L | p. 23 |
| Piston to Bore (HST) Clearance (Allowable Limit) | 0.04 in. | p. 168 |
| Radiator Water Leakage Test Pressure | 137 kPa | p. 78 |
| Engine gross power | 23.9 kW (32.0 HP) | p. 9 |
Kubota B3200HSD, B3200HSDWO Common Problems This Manual Covers
Hydrostatic drive weak after warm-up
Owners report the HST loses power, jerks, or feels weak once the tractor warms up, often from hydraulic fluid condition, air in the system, charge pump wear, or a restricted filter. The transmission servicing section covers the checks and internal clearances.

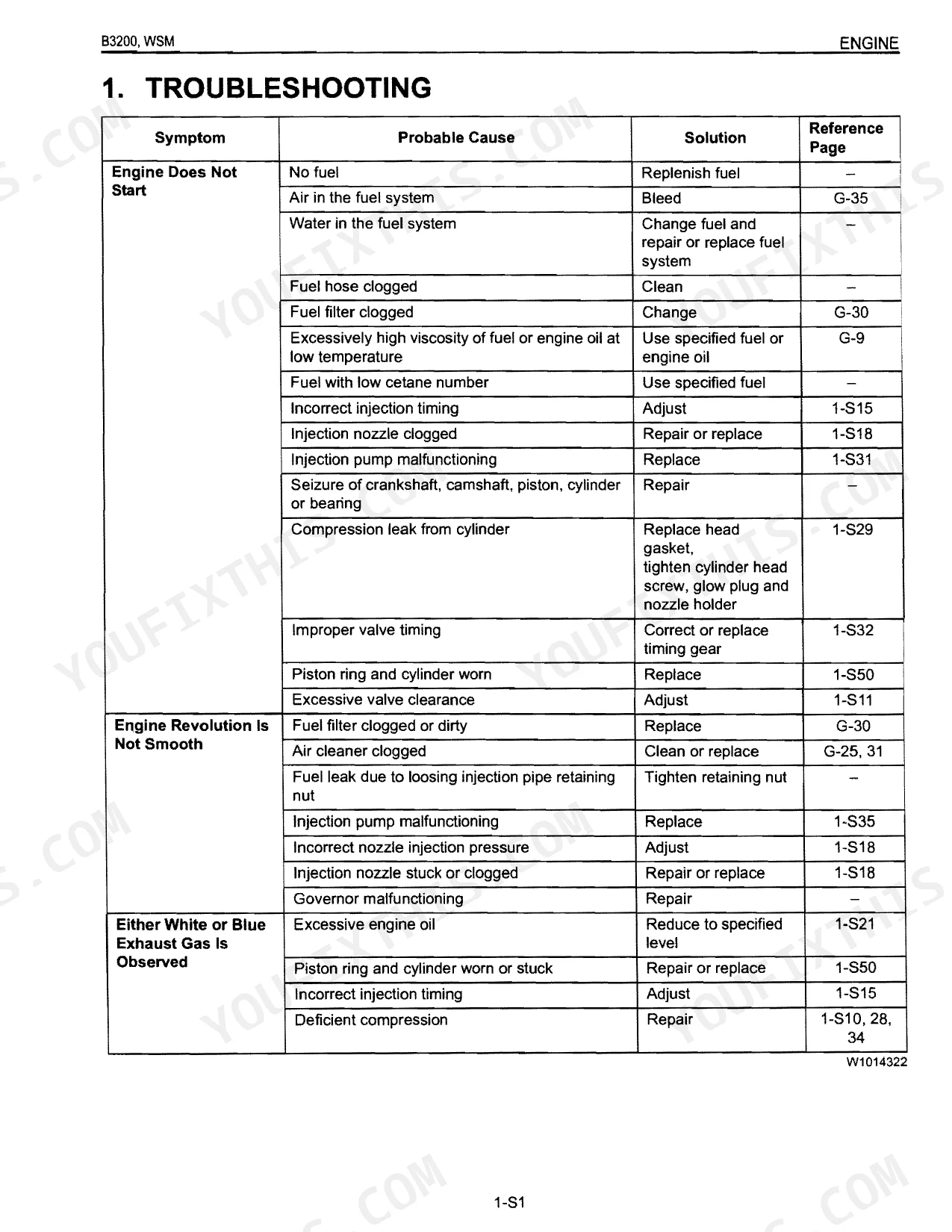

Manual Section: Transmission ServicingNo start or cranks but will not fire
A dead crank or a crank that will not fire can trace to the battery, starter, glow plug preheat, or a safety interlock fault. The electrical system servicing section gives the wiring, switch, and starter checks to isolate it.
Manual Section: Electrical System ServicingEngine overheats or runs hot
Running hotter than normal points to low coolant, a blocked radiator, a fan belt issue, or a thermostat problem. The engine servicing section covers the cooling system checks and thermostat testing.
Manual Section: Engine ServicingThree point hitch weak or slow
A hitch that raises slowly or drifts under load usually means low hydraulic fluid, a clogged filter or suction screen, pump wear, or a relief valve fault. The hydraulic system servicing section covers pressure checks and valve adjustment.
Manual Section: Hydraulic System ServicingPTO slips or clutch drags
PTO that will not engage cleanly or a clutch that drags is often a linkage adjustment or worn engagement components. The clutch servicing section covers pedal free travel, adjustment, and disassembly.
Manual Section: Clutch ServicingSteering heavy or wandering
Heavy or vague power steering can come from low pump delivery, air in the circuit, or worn linkage. The steering servicing section covers the hydraulic circuit checks and adjustment.
Manual Section: Steering ServicingFrequently Asked Questions
Which machines does this manual cover?
It covers the Kubota B3200HSD and B3200HSDWO compact tractors with the V1505-E3-D24 diesel engine. The procedures apply to both variants across the engine, drivetrain, hydraulic, steering, and electrical systems.
Does it include torque specs and clearances?

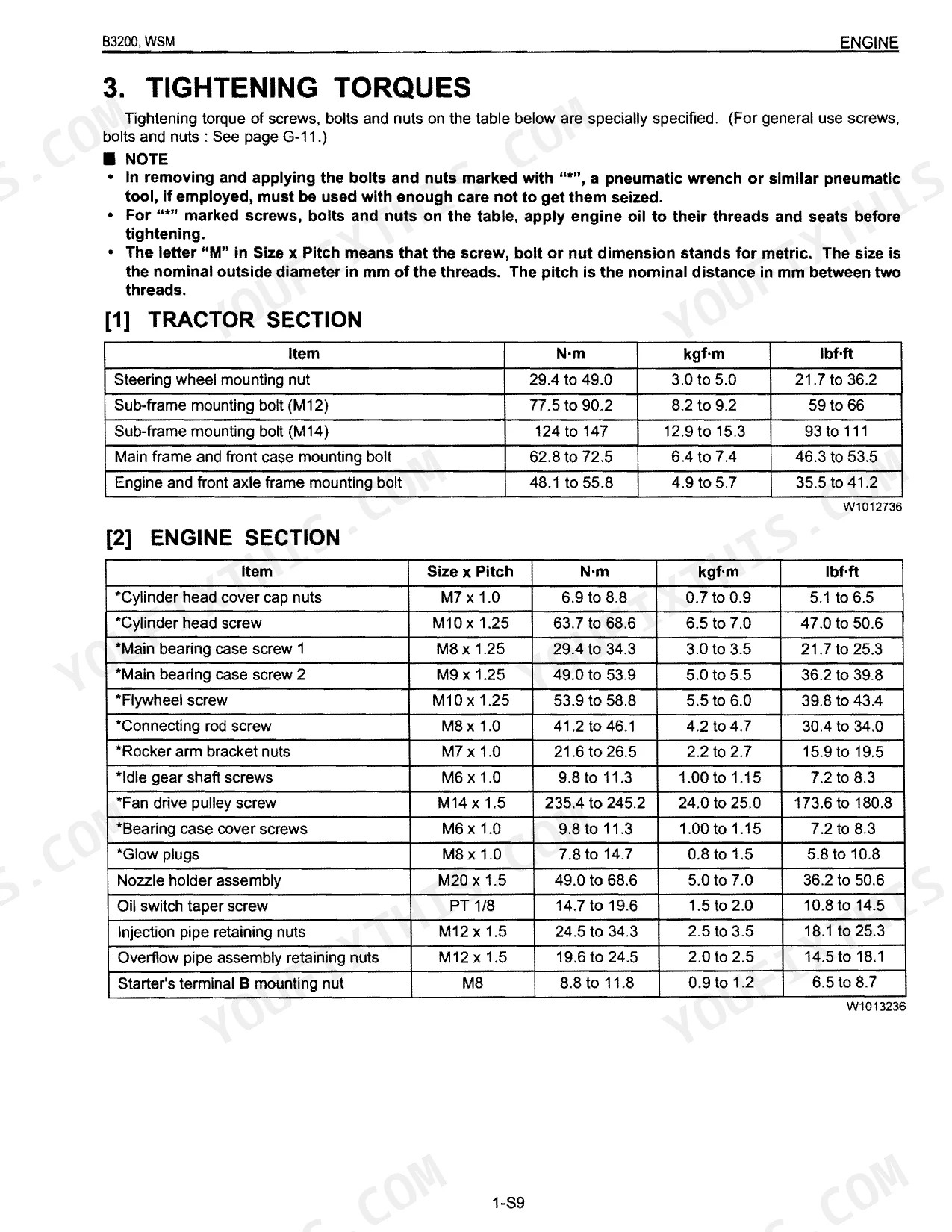

Yes. Each section lists servicing specifications and tightening torques. For example the Engine Servicing section gives the cylinder head screw torque of 63.7 to 68.6 N.m so you can reassemble to factory spec. p. 79
Does it cover a full hydrostatic transmission (HST) rebuild?
Yes. The Transmission Servicing section covers the hydrostatic transmission with disassembly, checks, and allowable limits, including the HST piston to bore clearance limit of 0.04 in., for a complete teardown and reassembly. p. 168
How do I get the manual after buying?
It is an instant download. After checkout you receive the PDF file to save and keep, with no waiting for a physical shipment.
How quickly can I access this manual after buying?
It's a 367-page searchable PDF ready to download the moment you buy. Open it on any device, including your phone right at the machine. Nothing ships, nothing to wait for.
Can I print specific sections of this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Can I trace circuits with this Kubota B3200HSD manual?

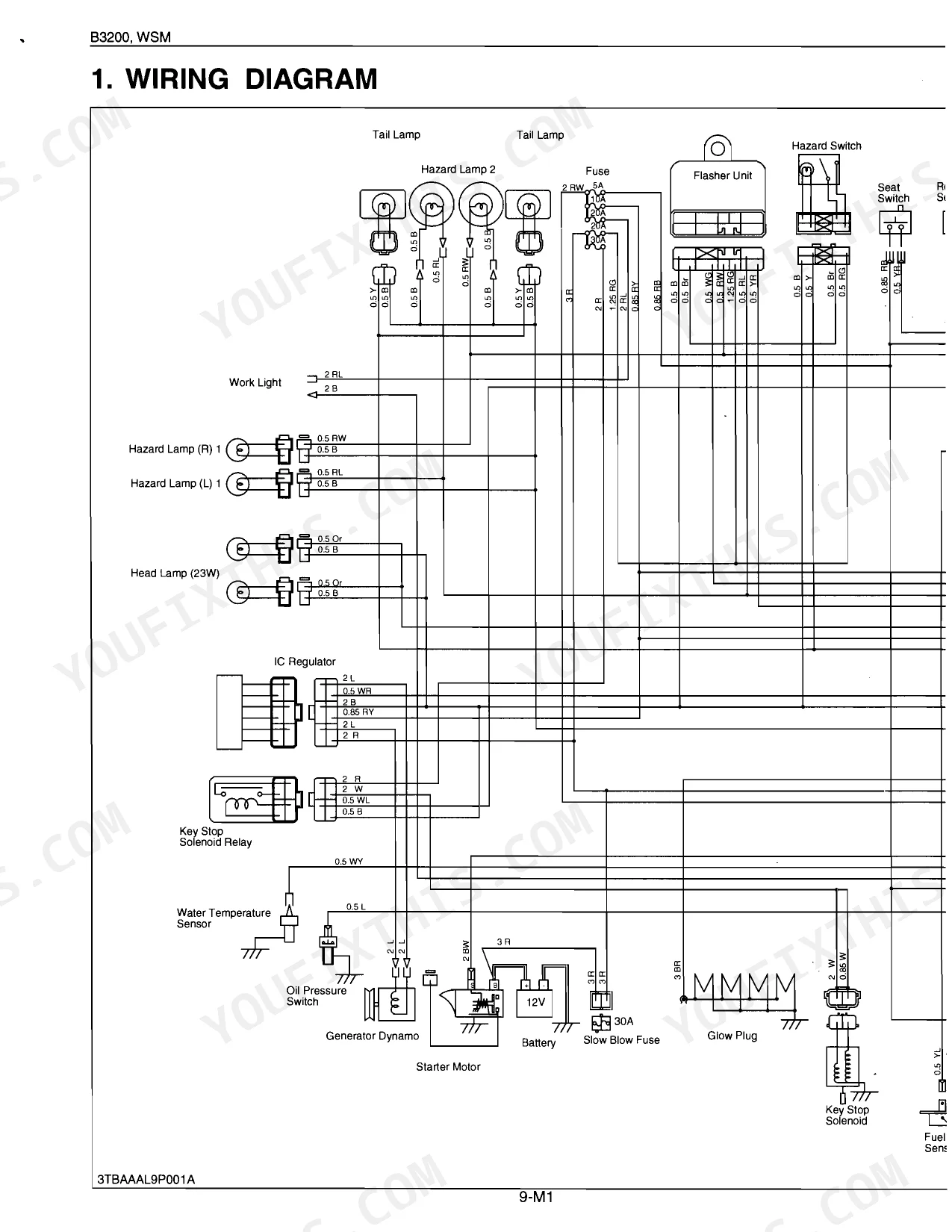

Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
