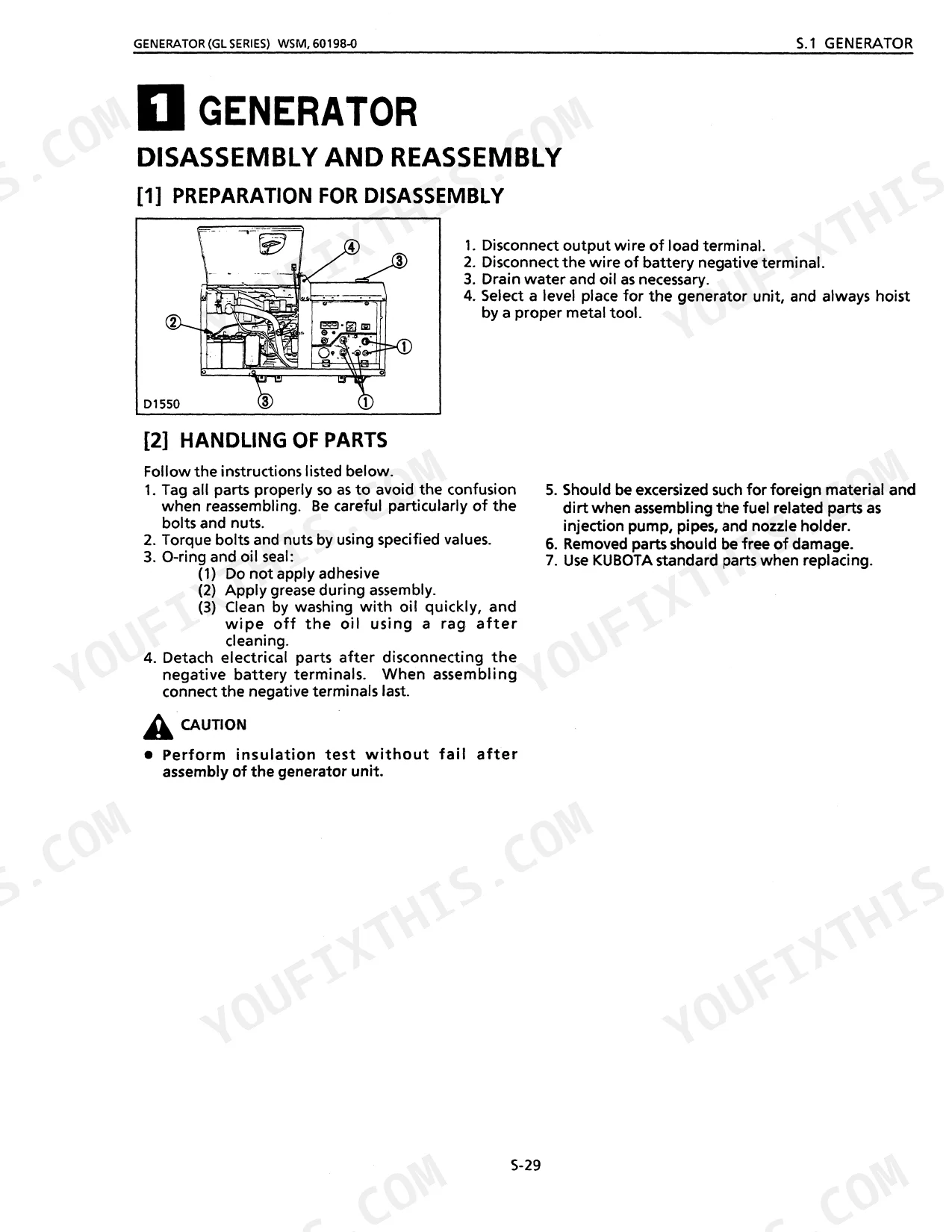

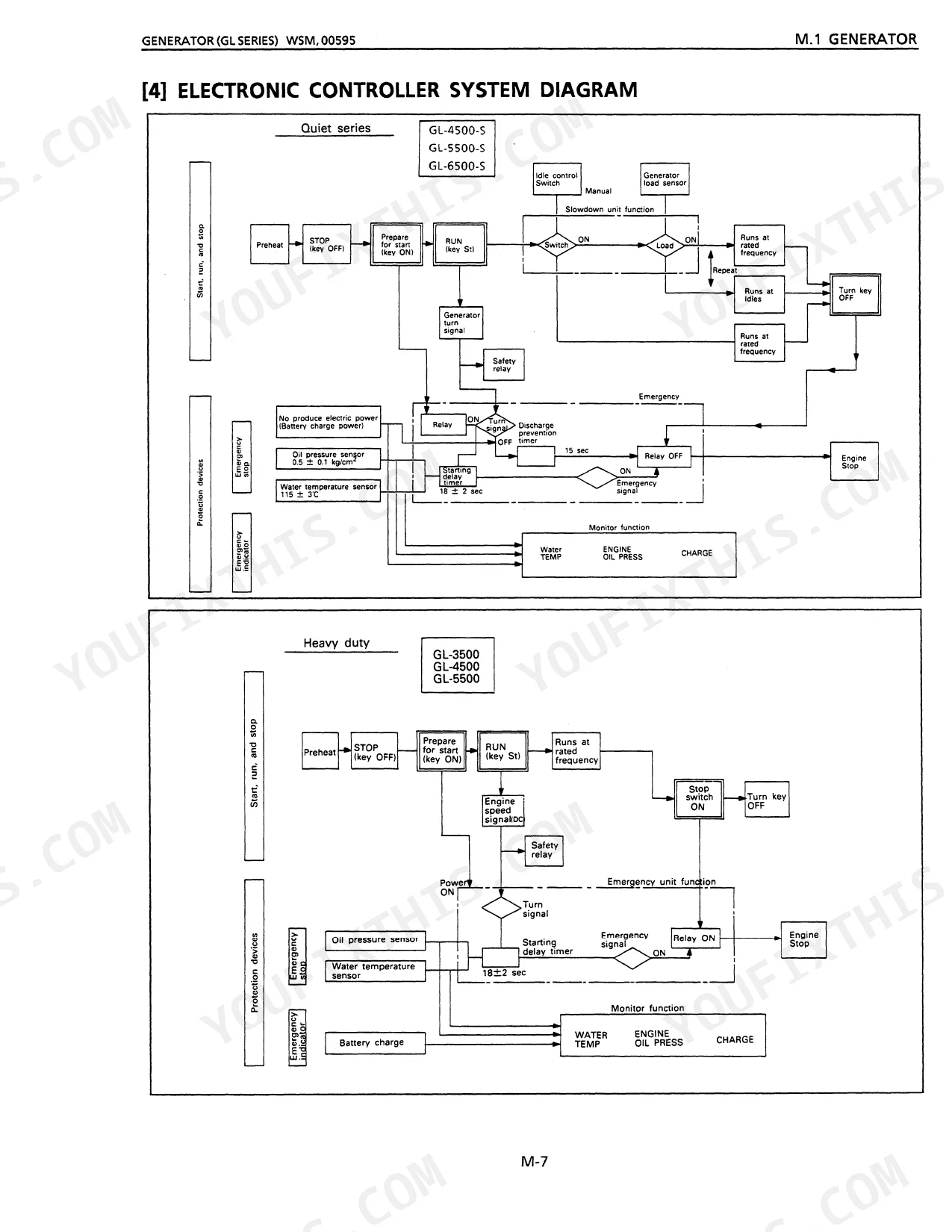

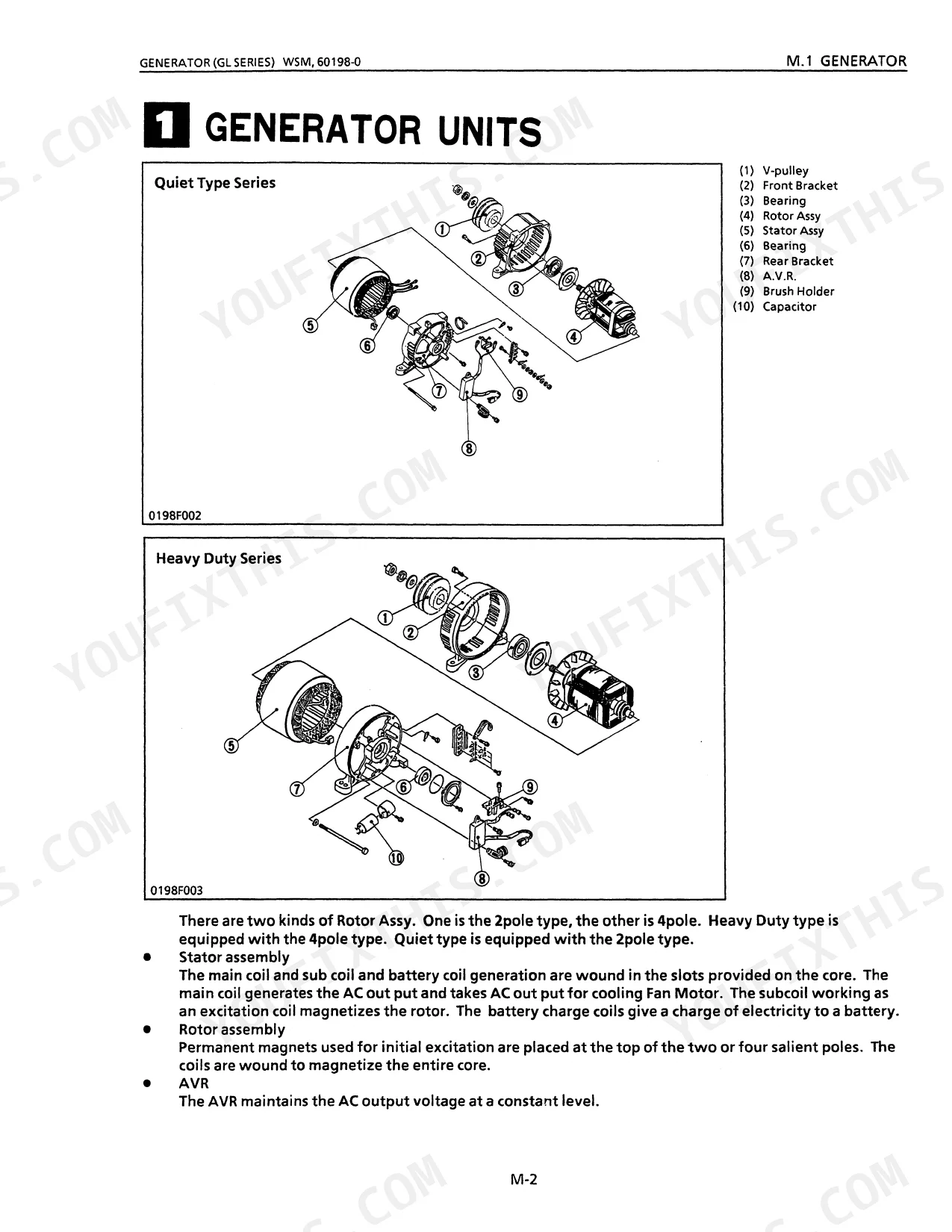

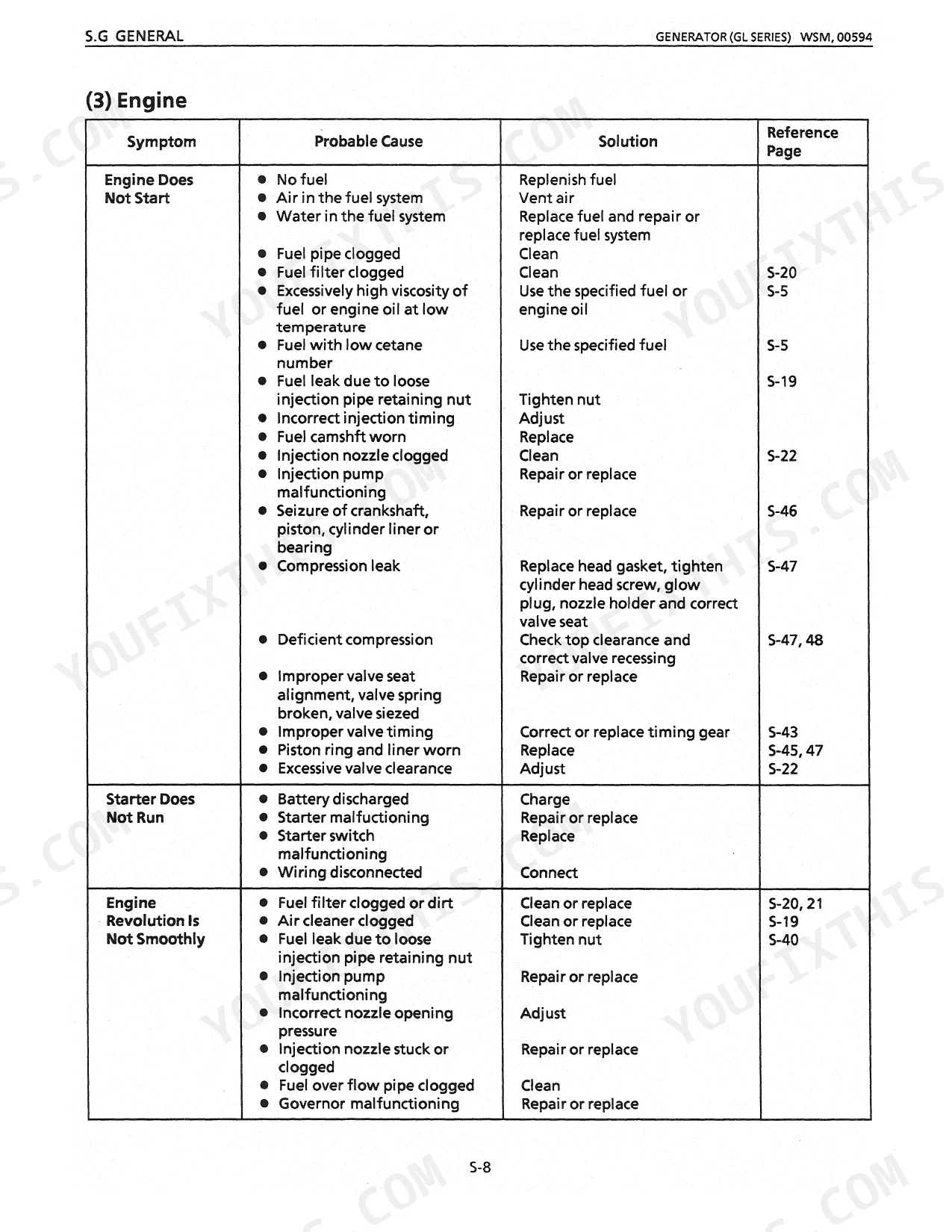

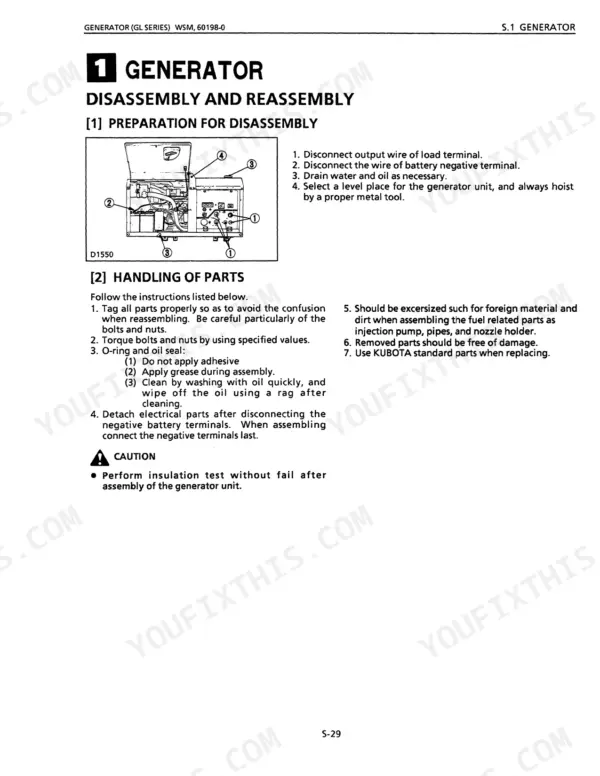

One 80-page factory reference handles all six variants: GL3500, GL4500, GL4500-S, GL5500, GL5500-S, and GL6500-S. It is the same Kubota Workshop Manual (OEM #97897-00595) the company's own technicians worked from. Wiring diagrams cover the Quiet Type and Heavy Duty series, while a separate electronic controller diagram traces the full AVR excitation and bias current paths. Exploded views span the generator and engine assemblies, 20 pages of disassembly and reassembly steps carry special tool callouts, and three pages of troubleshooting line up generator, engine, and electrical faults side by side. Cylinder head bolts torque to 39.2 to 44.1 N-m, the flywheel nut to 196 to 215.6 N-m. Maintenance intervals run from the air cleaner every 75 hours out to fuel filter replacement at 1000 hours. ZB400, ZB500, and ZB600 engine specs are all in here, so chasing GL3500 numbers across forum threads is over.
What's Inside This Kubota GL3500–GL6500 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Cover Page | 1-3 | WSM Logo, Workshop Manual, Diesel Generator, GL Series, Kubota |
| Safety Instructions | 4-7 | - |

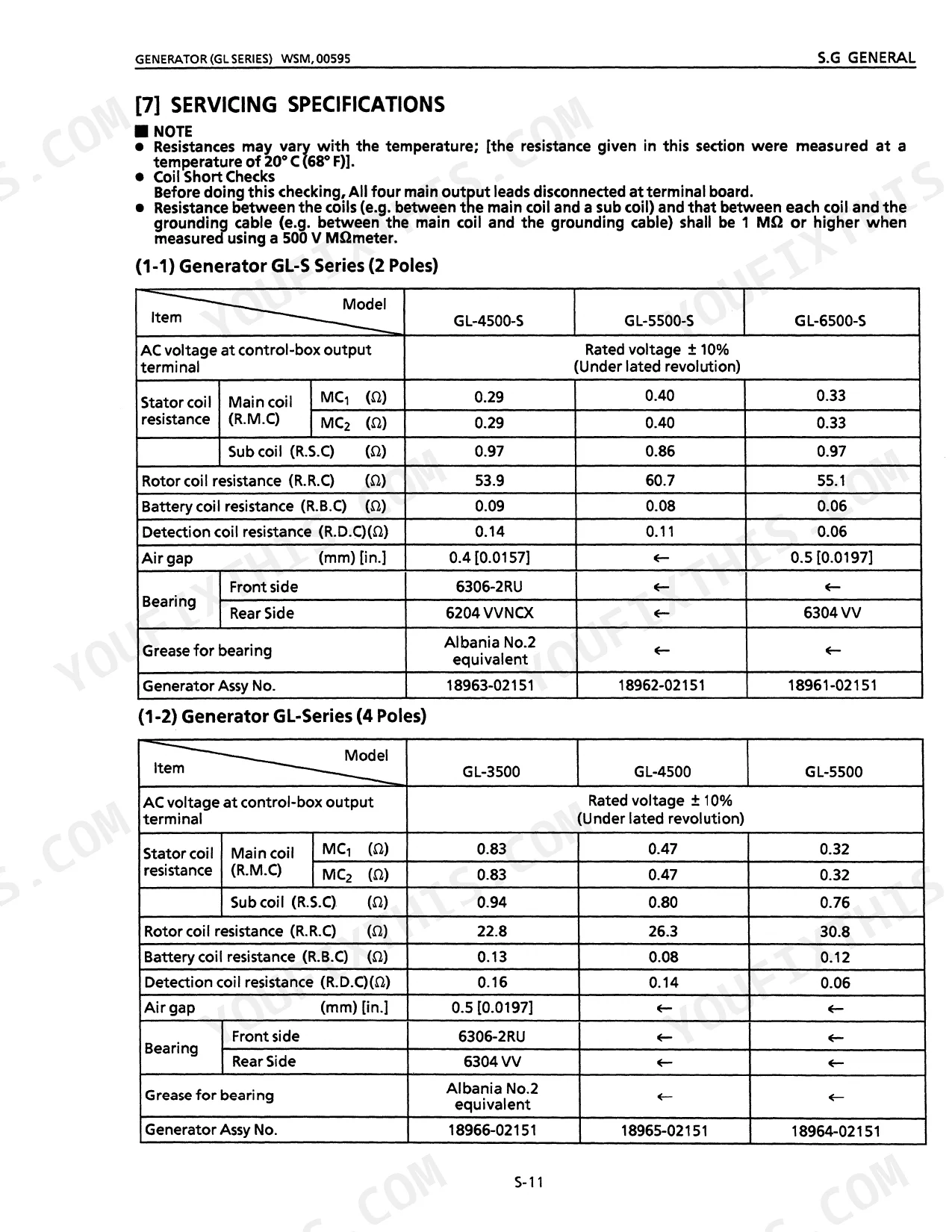

| Specifications | 8-10 | Generator GL-S Series (2 Poles), Engine Zb400-Gl-S, Zb500-Gl-S, Zb600-Gl-S, Generator GL Series (4 Poles), Engine Zb400-Gl, Zb500-Gl, Zb600-Gl |
| Mechanism | 11-22 | F Feature, Generator Units (Quiet Type Series, Heavy Duty Series, Stator Assembly, Rotor Assembly, Avr), Avr (Bias Current Path, Excitation Current Path From The Sub Coil To Rotor) |
| Back Cover | 80 | Kubota Tractor Corporation, Corporate Office, Western Division, Central Division, Northern Division, Southeast Division, Printed In U.S.A., June 2002 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| GL3500, GL4500-S | ||

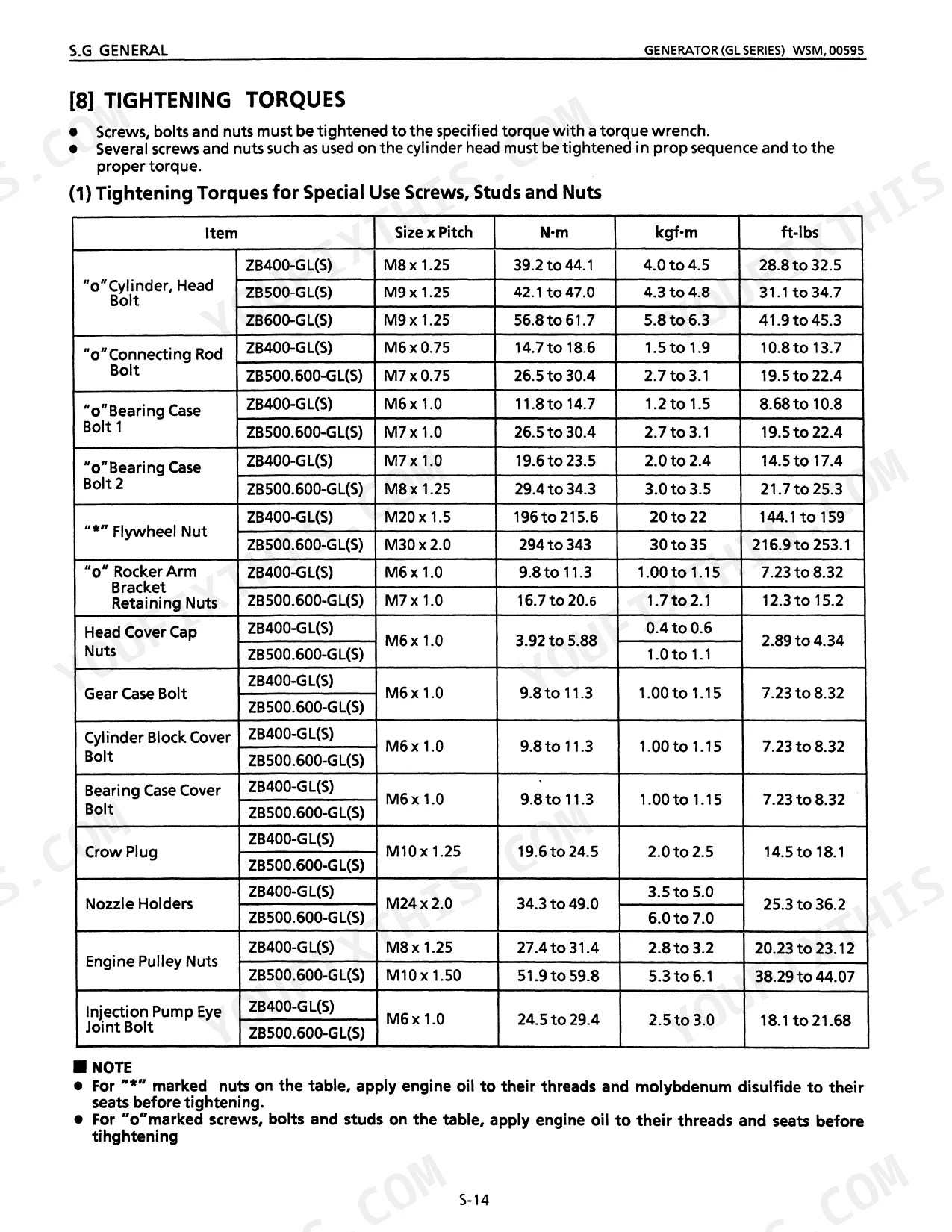

| Cylinder, Head Bolt torque | 39.2 to 44.1 N-m (4.0 to 4.5 kgf-m, 28.8 to 32.5 ft-lbs) | p. 38 |
| Connecting Rod Bolt torque | 14.7 to 18.6 N-m (1.5 to 1.9 kgf-m, 10.8 to 13.7 ft-lbs) | p. 38 |
| All Models | ||
| Fuel filter cleaning interval | Every 150 hours | p. 40 |
| Fuel filter changing interval | Every 1000 hours | p. 40 |
| Air cleaner cleaning interval | Every 75 hours | p. 40 |
| Compressed air pressure for cleaning air cleaner element | under 686 kPa (7 kgf/cm2, 99 psi) | p. 43 |
| Solenoid coil resistance (Normal) | Approx. 2.0 Ω | p. 58 |
| Solenoid coil resistance (Defective) | Approx. 0.5 Ω | p. 58 |
| Water Pump Link-Belt checking interval | Every 200 hours | p. 40 |
| Generator V-Belt checking interval | Every 200 hours | p. 40 |
| GL4500-S | ||
| Battery model | 36B20R(S) | p. 8 |
| Battery capacity 20 HR | 12V-35AH | p. 8 |
Kubota GL3500–GL6500 Series Common Problems This Manual Covers
GL5500 diesel cranks over but won't catch after months parked in storage
Confirm the fuel shutoff valve is fully open and the tank holds fresh, uncontaminated diesel. Bleed air from the fuel lines before you crank. The filter element is due for cleaning every 150 hours (page 40); if it shows holes or tears, swap it out right away. Then work through the starting troubleshooting chart.
Manual Section: Engine Starting and Smooth Running TroubleshootingNo AC voltage at any receptacle or wildly unstable power output under load p. 58
Reset the receptacle-panel circuit breaker first if it has tripped. With a multimeter at 20°C (68°F), measure solenoid coil resistance: a good coil reads about 2.0 Ω, a failed one about 0.5 Ω (page 58). If that checks out, trace the AVR excitation circuit on the wiring diagram on page 14.
Manual Section: AC Receptacle and Circuit Breaker Continuity CheckEngine overheats and shuts down on hot days running at normal load p. 34
Check the coolant level first; per-model capacity figures sit on page 28. Clear any dust packed into the radiator net and fins. Make sure the cooling fan motor spins, it's a single-phase 100V, 90W brushless AC unit (page 18). The overheating diagnostic chart on page 34 lists the rest of the probable causes.
Manual Section: Engine Overheating and Battery Discharge TroubleshootingHeavy black exhaust smoke, rough idle, noticeable power loss under load
Pull the air cleaner element and look it over; it needs cleaning every 75 hours. Blow it out with compressed air held under 686 kPa (99 psi) so the media doesn't tear (page 43). If airflow is fine, test injector nozzle opening pressure against the factory spec of 13.73 to 14.71 MPa (1991 to 2133 psi) on page 46.
Manual Section: Engine Performance and Fluid Issues TroubleshootingBattery won't hold charge, slow cranking, or starter fails to engage p. 34
Inspect the battery electrolyte level every 75 hours, as the maintenance schedule on page 40 calls for. Scrub any corrosion off the terminals before you write off the battery. The starter solenoid coil should read about 2.0 Ω at 20°C (68°F); near 0.5 Ω, replace it (page 58). GL3500 and GL4500 take a 12V-35AH battery, the GL5500 a 12V-45AH.
Manual Section: Engine Overheating and Battery Discharge TroubleshootingFrequently Asked Questions
How do I reset a Kubota GL6500S generator after a fault?
After a fault, unplug every appliance and start the engine before resetting the Ground Fault Circuit Interrupter (GFCI) receptacle. Turn power ON at the circuit breaker, then depress the "TEST" button (2); the "RESET" button (3) should pop out with a click. Now press the "RESET" button (3) firmly into the GFCI unit until you hear it click and it sits flush with the "TEST" button (2). If it won't reset, replace the receptacle.
What do Kubota GL6500S error codes mean?
Rather than numbered codes, the GL6500S relies on an "Easy Checker" panel whose indicator lamps flag trouble. The lamps track cooling water temperature, lubricant pressure, and battery charge. So there are no numerical error codes to look up; the warning lamps do that job.
What are the torque specs for Kubota GL series engine head bolts?
Head bolt torque on the GL series depends on the engine. The ZB400-GL(S) takes 39.2 to 44.1 N-m (28.8 to 32.5 ft-lbs), the ZB500-GL(S) 42.1 to 47.0 N-m (31.1 to 34.7 ft-lbs), and the ZB600-GL(S) 56.8 to 61.7 N-m (41.9 to 45.3 ft-lbs).
How do I reset the idle control on a Kubota GL6500S?
There is no reset procedure for the idle control. Instead, the manual gives a continuity test that covers the GL-4500-S, GL-5500-S, and GL-6500-S models. With the switch set to "ON", continuity should read "OFF"; set to "OFF", continuity should read "ON". It confirms the switch works rather than resetting anything.
What do I get after purchasing this Kubota GL3500–GL6500 Series manual?
The download is instant: the complete 80-page searchable Workshop Manual lands the moment your payment clears. Open it on a laptop, tablet, or phone right at the machine.
Can I print specific sections of this Kubota GL3500–GL6500 Series manual?
Print whatever you need: single pages, full chapters, or the whole manual. The PDF carries no restrictions.
Are electrical wiring diagrams included in this Kubota GL3500–GL6500 Series?
Yes. Full electrical wiring diagrams, wire routing, and connector pinouts are all in this Kubota GL3500 to GL6500 Series Workshop Manual.
