Kubota built the KX016-4 and KX018-4 to run a certain way, and this 100-page Operator Manual (OEM #RG158-8193-1) keeps them there. Seven pages of safety procedures walk through pre-operation checks, slope parking, and load limits, while a full instrument panel breakdown decodes every warning lamp and LCD message. The maintenance section runs 10 pages, with interval schedules that span 50-hour oil changes through 3,000-hour injection pump checks, backed by troubleshooting charts for engine, hydraulic, and drive system faults. Concrete numbers are here too: set fan belt deflection to 8 mm, torque the track tensioner grease nipple to 72-80 ft-lbs, and fill the engine to 3.6 L with the filter before startup. When the machine is down, search by keyword or bookmark, open it on your phone, and get back to digging.
What's Inside This Kubota KX016-4, KX018-4 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Abbreviation List | - | - |
| General Symbols | - | Safety Alert Symbol, Warning Lamp Fuel Level Too Low, System Lamp, Warning Lamp Engine Oil Pressure, Warning Lamp Battery Charge, Warning Lamp Auto Idle Lamp, Indicator Lamp Glow |
| Foreword | - | - |
| Safe Operation | - | Before Operation, Operating the Excavator, After Operation, Safe Loading and Transport of the Excavator, Danger, Warning and Caution Labels, Care of Danger |
| Dealer Service | - | Serial numbers, Engine serial number, Model identification |

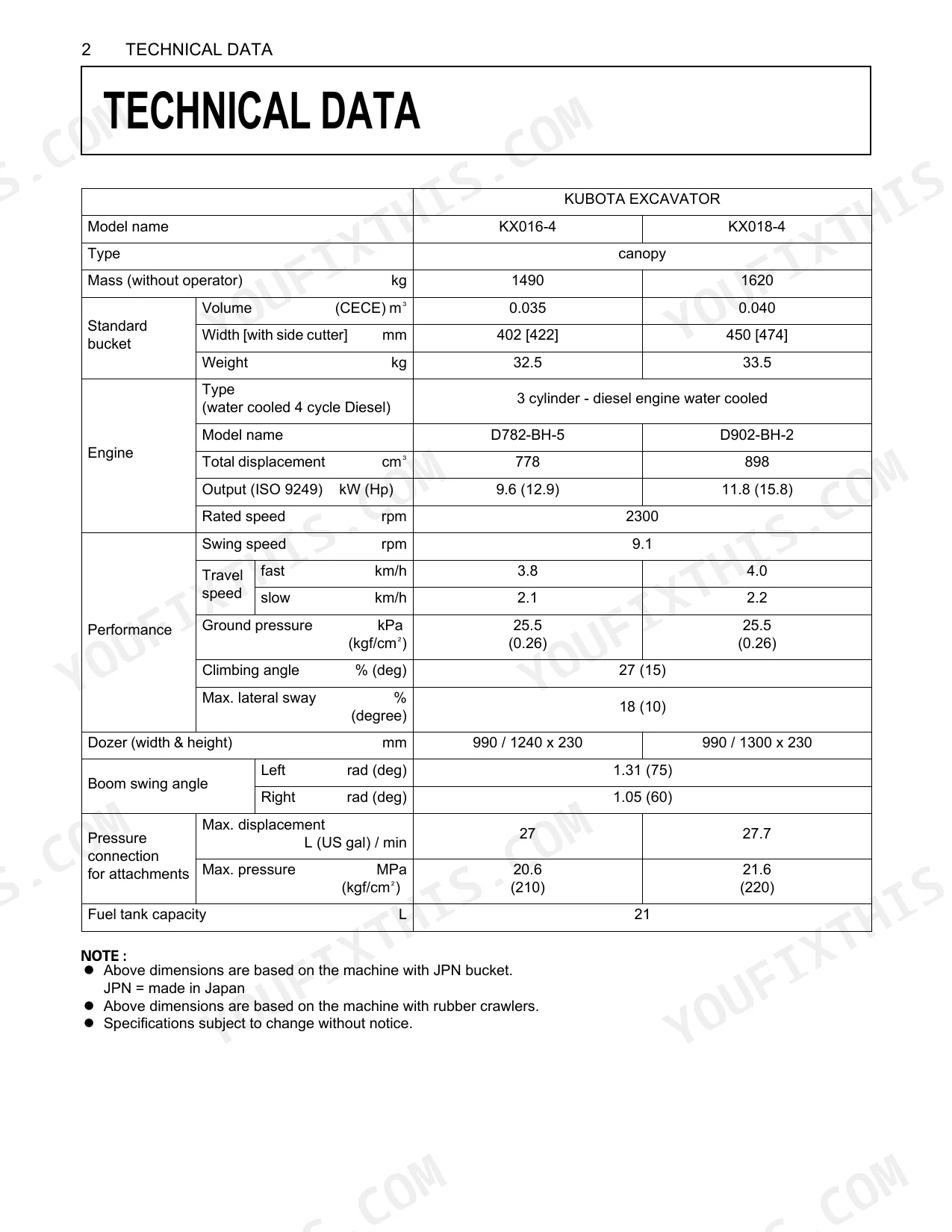

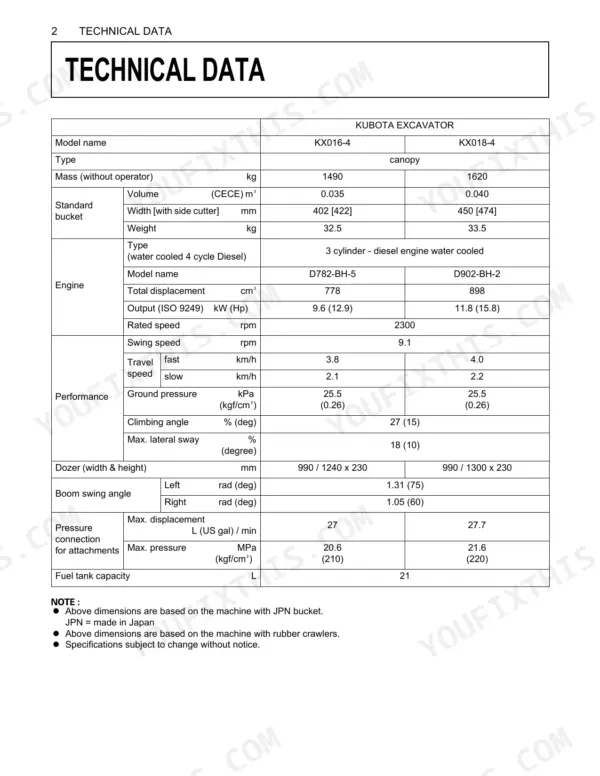

| Technical Data | - | Model name, Mass, Engine specifications, Performance, Dozer dimensions, Fuel tank capacity |
| Description of Machine Parts | - | Arm, Bucket cylinder, Dozer blade, Boom, Canopy, Drive sprocket |

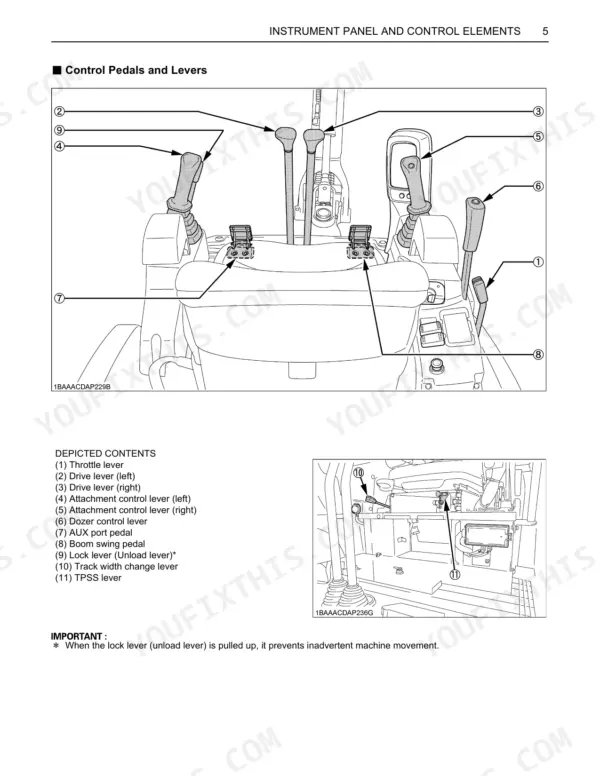

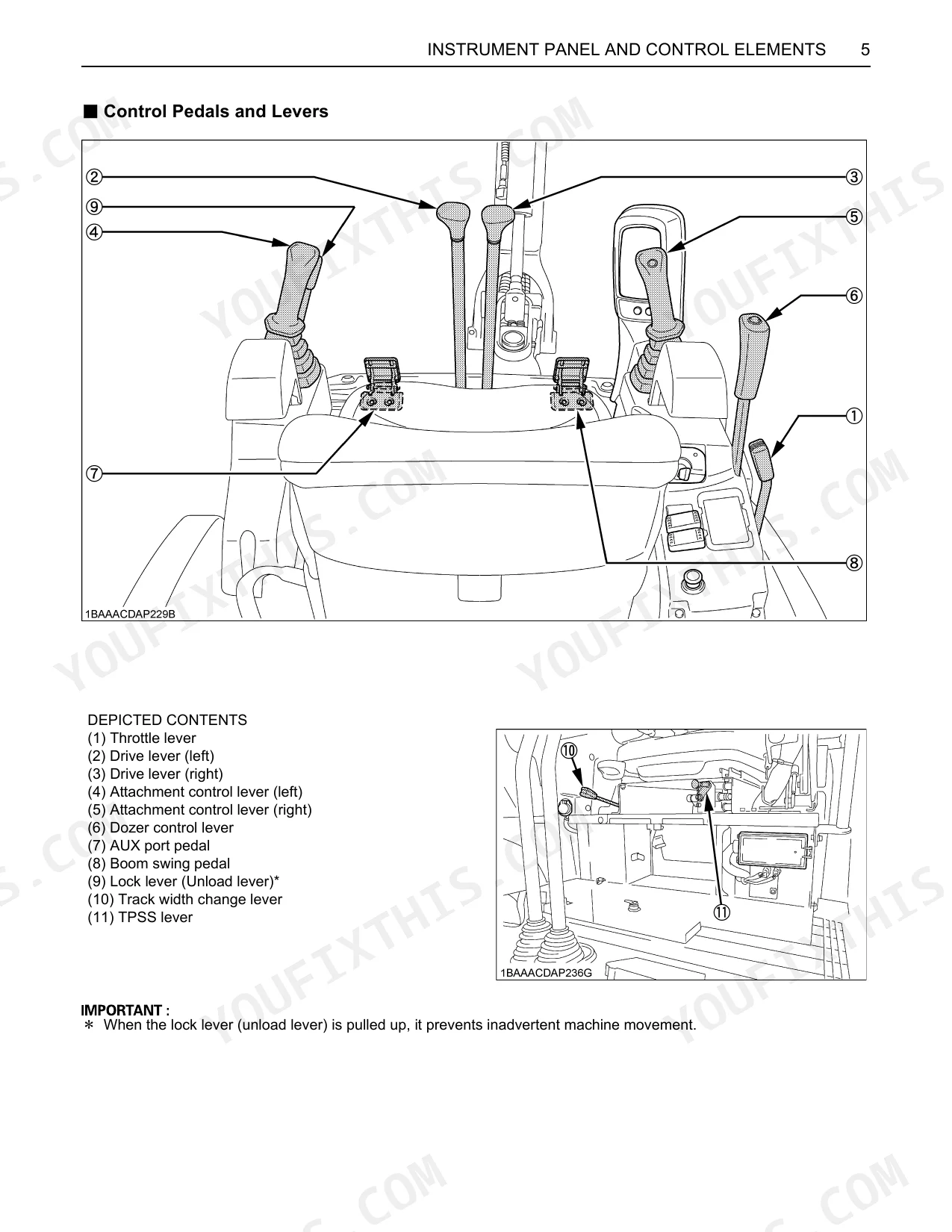

| Instrument Panel and Control Elements | - | Switches, Control Pedals and Levers, Instrument Panel, Speed indicator lamp, Warning lamps, LCD display |
| Checks Before Start | - | Daily Checks, Working Light Switch, Lock lever, Visual damage, Fluid levels |

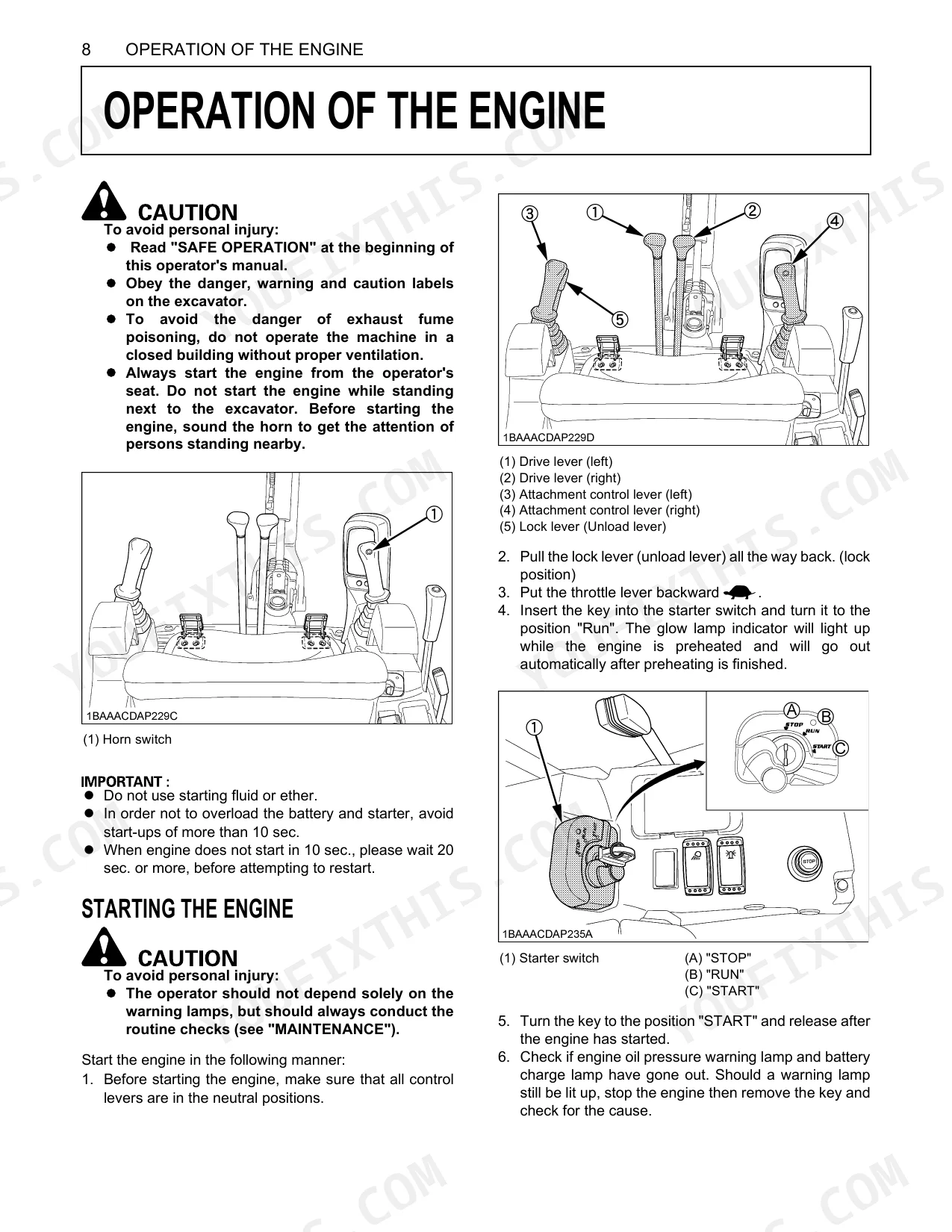

| Operation of the Engine | - | Starting the Engine (Display Selector Switch, Setting the Clock, Battery Charge Lamp, Engine Oil Pressure Warning Lamp, Glow Lamp, LCD Display for Normal Operation, Coolant Temperature Gauge, Hour-Meter, Engine Tachometer, LCD Display for Warning, Warning Lamp, Overheat Warning, Checkpoints after Starting the Engine) |
| Excavator Operation | - | Running-In of the New Excavator (Do not Work with Full Engine Rpm's or Full Loads during the First 50 Working Hours, Oil Change in the Run-In Stage) |

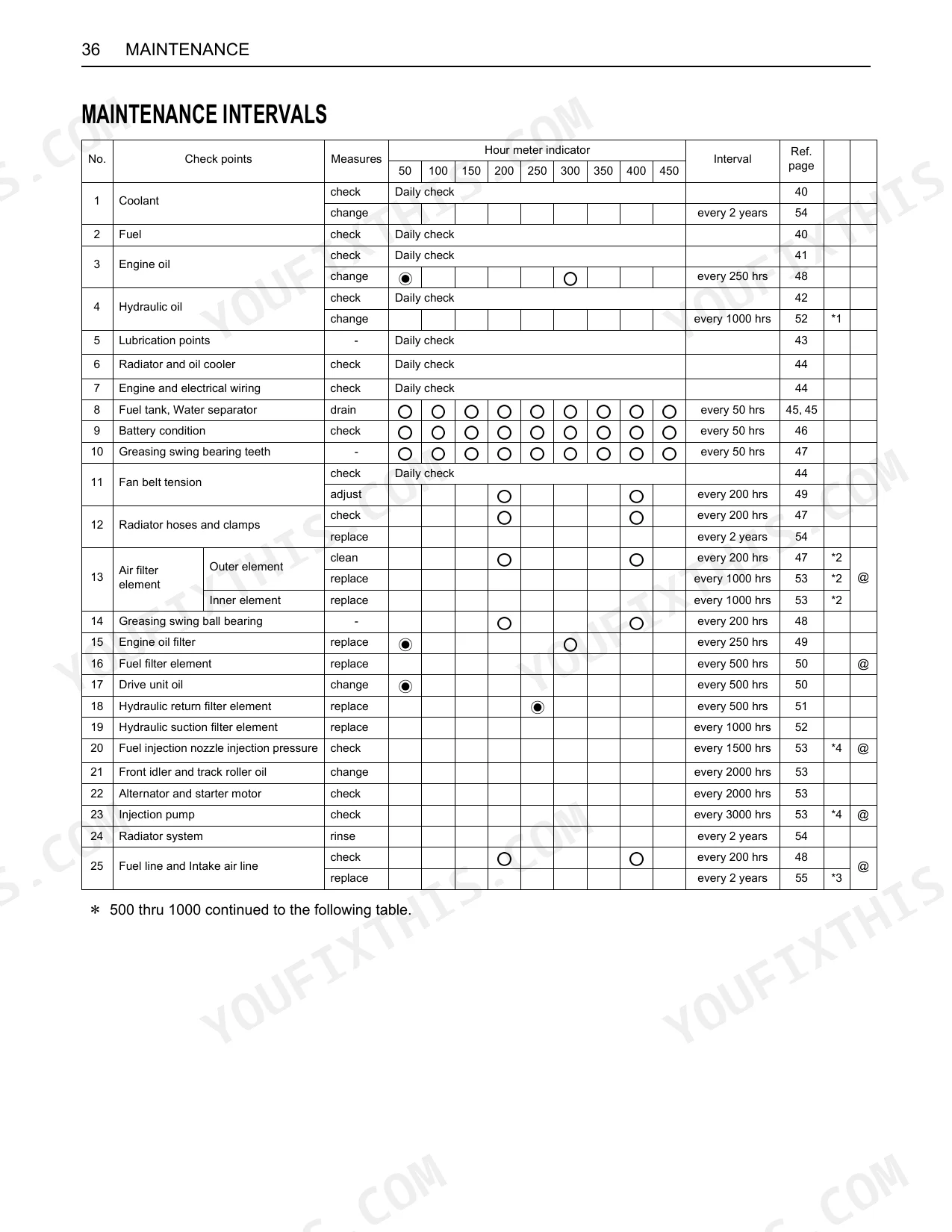

| Maintenance | - | Maintenance Intervals |
| Other Adjustments and Replacements | - | Purging Fuel System, Tracks, Rubber Tracks, Special Information When Using Rubber Tracks, Changing The Bucket, Fuses, Replacing Fuses, Fuse Capacities And Circuits |

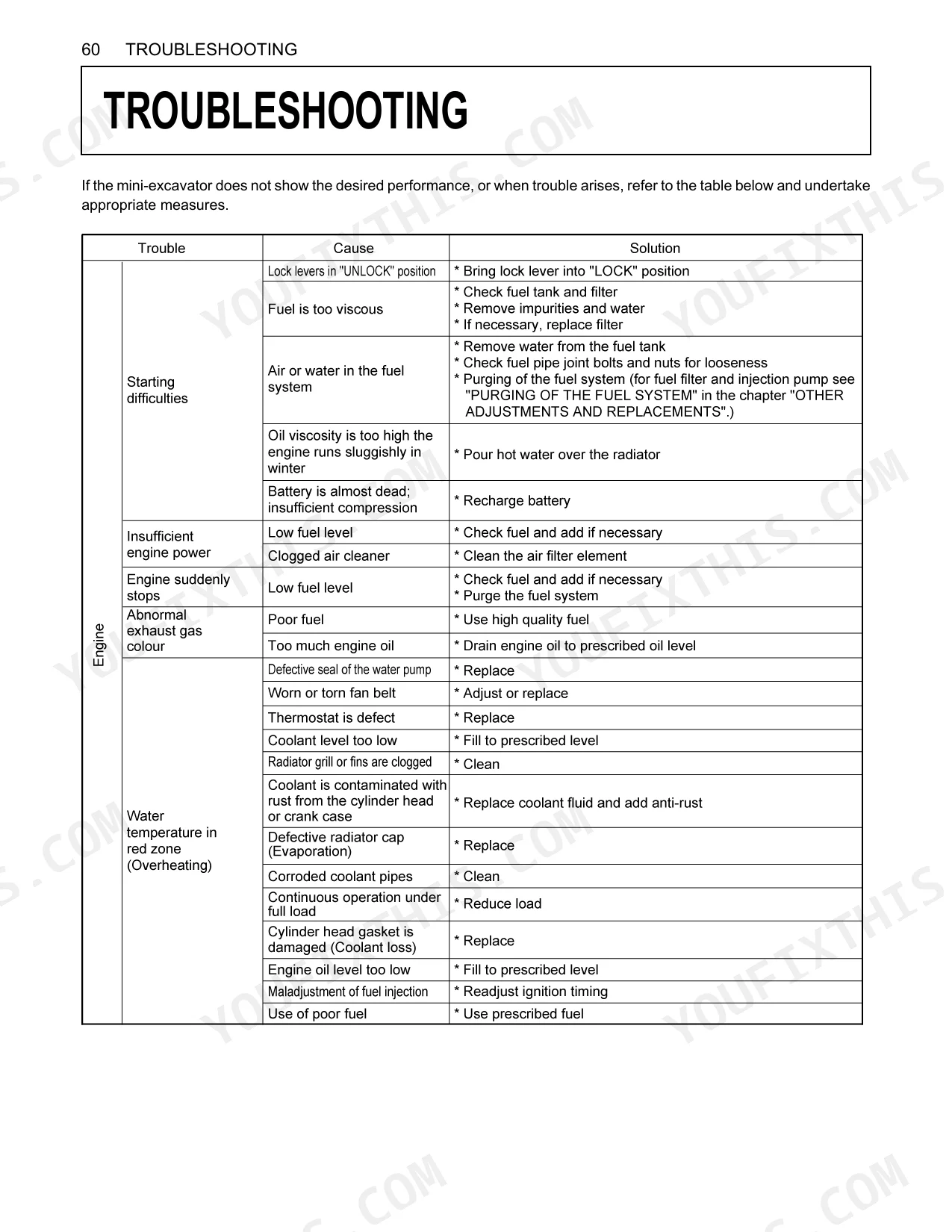

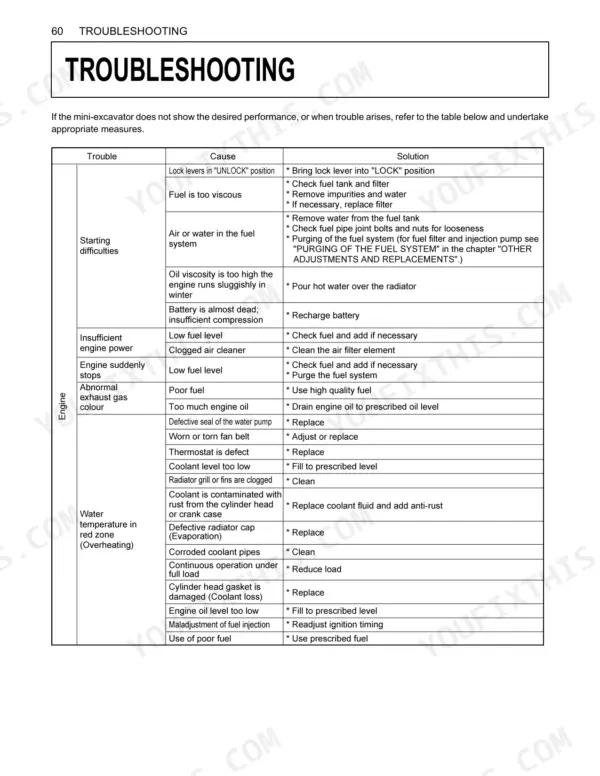

| Troubleshooting | - | Engine problems, Hydraulic system issues, Drive system problems, I.C.S. Navigation Messages, Service hour meter |
| Operation Under Cold Weather Conditions | - | Preparation for Operation, Procedure After Done Work, Mixing ratio between water and anti-freeze |
| Long Storage | - | Storage procedures, Periodic replacement of important component parts, Fuel and hydraulic hose inspection |
| Recommended Oils | - | Engine oil, Gear oil, Hydraulic oil, Grease, Fuel types |
| Appendices | - | Main Dimensions, Lifting Capacity, Working Range |
| Specifications | - | Engine, Dimensions, Hydraulic system, Drive system, Swing system, Blade, Fluid capacities |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Track tensioner grease nipple tightening torque | 1000 to 1100 kgf-cm (72 to 80 ft-lbs) | p. 57 |
| Engine Rated Speed | 2300 rpm | p. 24 |
| Fuel Tank Capacity | 21 L | p. 24 |
| Fan Belt Tension Deflection | 8 mm (0.3 in.) | p. 49 |
| Engine Oil Volume (with filter) | 3.6 L | p. 70 |
| Drive Unit Gear Oil Volume | approx. 0.33 L | p. 72 |
| Hydraulic Oil Change Interval (Normal Excavator Work) | every 1000 Hrs | p. 73 |
| Hydraulic Tank Volume | 14.2 L | p. 74 |
| Total Hydraulic Oil Volume | 27 L | p. 74 |
| Min. Ground Clearance | 160 mm | p. 100 |
| KX016-4 | ||
| Counter Weight | 10 kg | p. 94 |
| KX018-4 | ||
| Counter Weight | 60 kg | p. 94 |
Kubota KX016-4, KX018-4 Common Problems This Manual Covers
Engine cranks but won't start on the KX016-4/KX018-4; the safety lockout or lock lever (unload lever) may be engaged p. 30
Raise the lock lever fully to the locked position before you turn the key, then make sure the rear kill switch is reset. Confirm fuel sits above MIN on the gauge; the tank holds 21 L. In cold weather, if the glow lamp doesn't light briefly before cranking, wait for it to cycle off first. Work through the full starting checklist on page 30 before suspecting the battery or fuel.
Manual Section: Operation of the EngineAll hydraulic functions move slower than normal, tracks and attachments sluggish across the board p. 83
Check hydraulic oil level first: the tank holds 14.2 L and the system holds 27 L total. Keep the lock lever fully lowered to the unlocked position while you work. Give the machine 5 minutes of low-RPM warm-up before full cycles, especially below 10 C. If the level is right and the machine is warm, trace hoses and fittings for leaks using the checklist on page 83.
Manual Section: TroubleshootingWarning lamp or I.C.S. message appears on the LCD display during or after startup p. 84
Stop work until you've identified the message. Match the exact warning code against the I.C.S. message list on page 84 and follow the action it gives. For oil pressure or charging warnings, shut down at once and check engine oil level (3.6 L with filter) and the battery connections. For temperature warnings, look at coolant level and clear any debris blocking the radiator.
Manual Section: TroubleshootingMachine pulls left or right during travel, tracks do not drive straight p. 83
Verify both drive levers are pushed equally and that neither track is packed with mud or debris that drags. Compare track tension side to side: slack or over-tight tracks both pull the machine off line. Make sure the lock lever is fully down and the drive system isn't in a partial-lockout state. The drive deviation checklist is on page 83.
Manual Section: TroubleshootingExhaust color is black or blue smoke, or muffler joints appear loose during daily walkaround p. 29
Inspect the exhaust joints and muffler mounting during your daily walkaround; repair loose or missing fasteners before you run the machine. Blue smoke means excess engine oil, so check the level against the correct mark (capacity 3.6 L with filter). Black smoke usually points to a clogged air cleaner element. The daily list is on page 29, and service frequency is on page 58.
Manual Section: Checks Before StartUnstable machine or tipping risk when lifting material or traveling on slopes p. 9
Never exceed the rated lifting capacity in the table on page 93. Keep the dozer blade lowered and pointing downhill when you work on grades, and travel with the attachment low, within 300 mm of the ground. Avoid sudden steering or sharp lever inputs while a load hangs. The full slope and lifting rules are on page 9.
Manual Section: Safe OperationFrequently Asked Questions
Why won’t my Kubota KX016-4 / KX018-4 start?
A few things stall a start: lock levers left in the "UNLOCK" position, fuel that's too viscous, air or water in the fuel system, thick oil in winter, or a battery that's dead or low on compression. Fixes match the cause: move the lock lever to "LOCK", check and purge the fuel system, pour hot water over the radiator when the oil is too viscous, or recharge the battery.
What error codes or warning lights appear on a Kubota KX016-4 / KX018-4 and how do I clear them?
The LCD display shows error codes and warning messages. "E: 001", for instance, flags a CAN system error and means you should contact your KUBOTA dealer right away. "E: 015" signals an overheat: idle the engine to cool it down, clean the radiator, and check the coolant.
How to check Kubota KX018-4 error codes
Error codes and warning messages show up on the instrument panel's LCD display. The "KUBOTA I.C.S. NAVIGATION LIST OF MESSAGES" table on page 84 lays out each display, the problem behind it, and the recommended fix.
What do I get after purchasing this Kubota KX016-4, KX018-4 manual?
The full 100-page searchable Operator Manual downloads instantly once payment clears. Open it on a laptop, tablet, or phone right there in the shop.
Am I able to print pages from this Kubota KX016-4, KX018-4 manual?
Yes. Print as many copies as you want, with no restrictions. Plenty of mechanics print just the section they need and carry it onto the shop floor.
