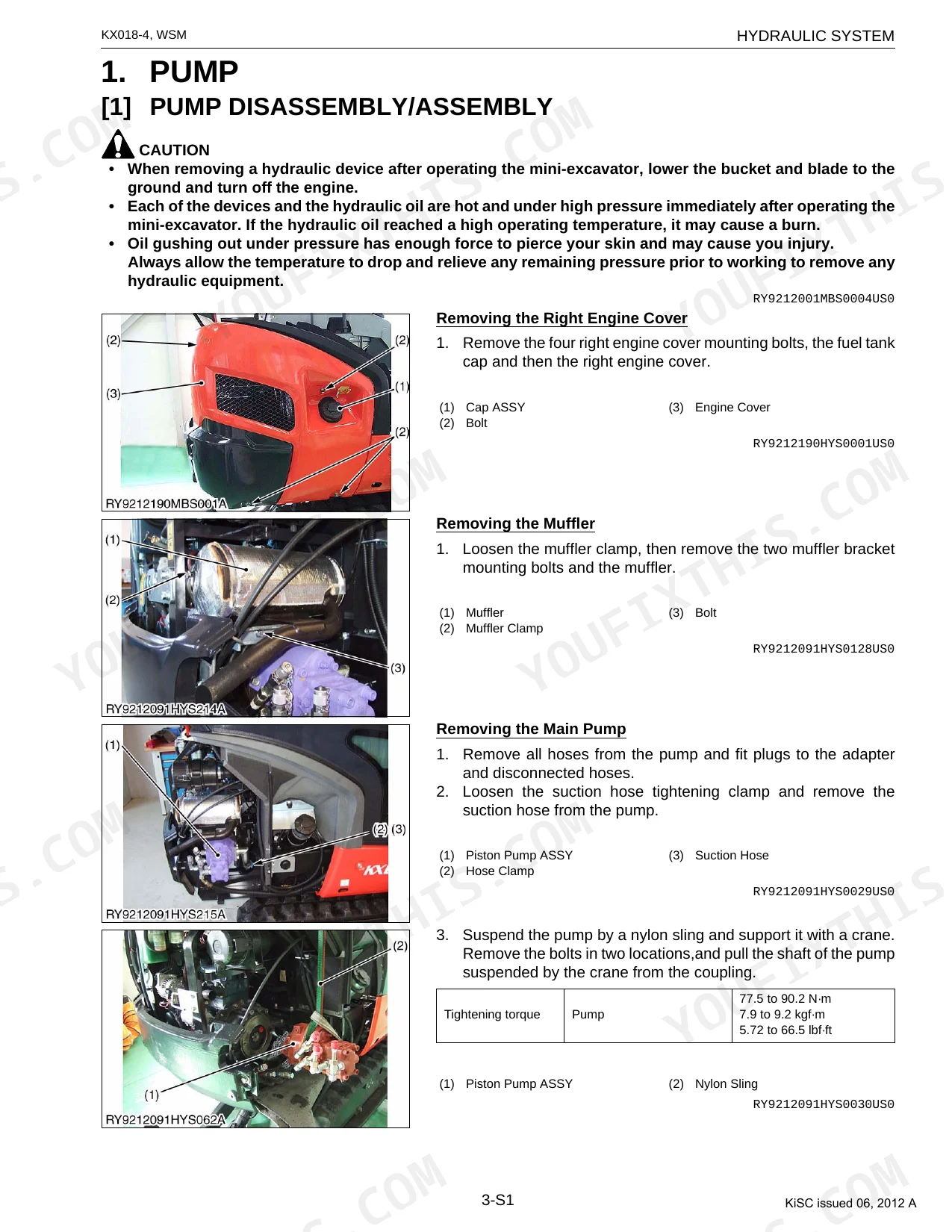

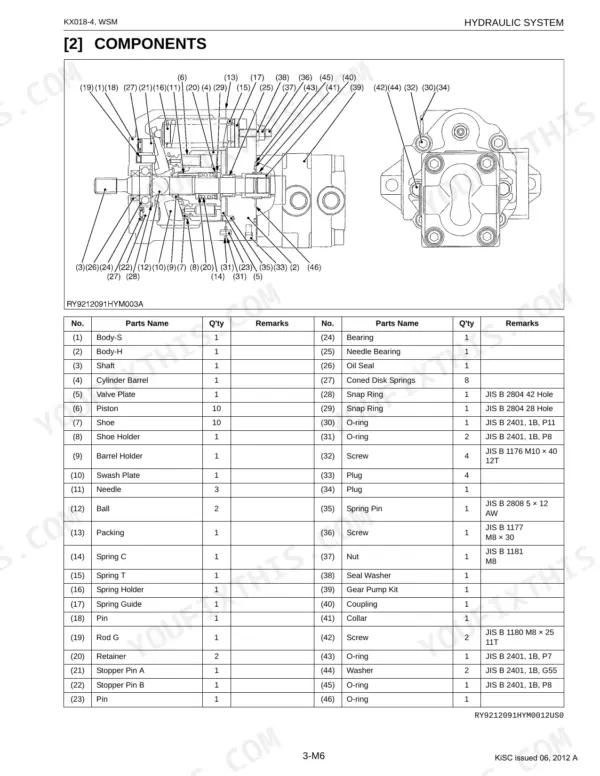

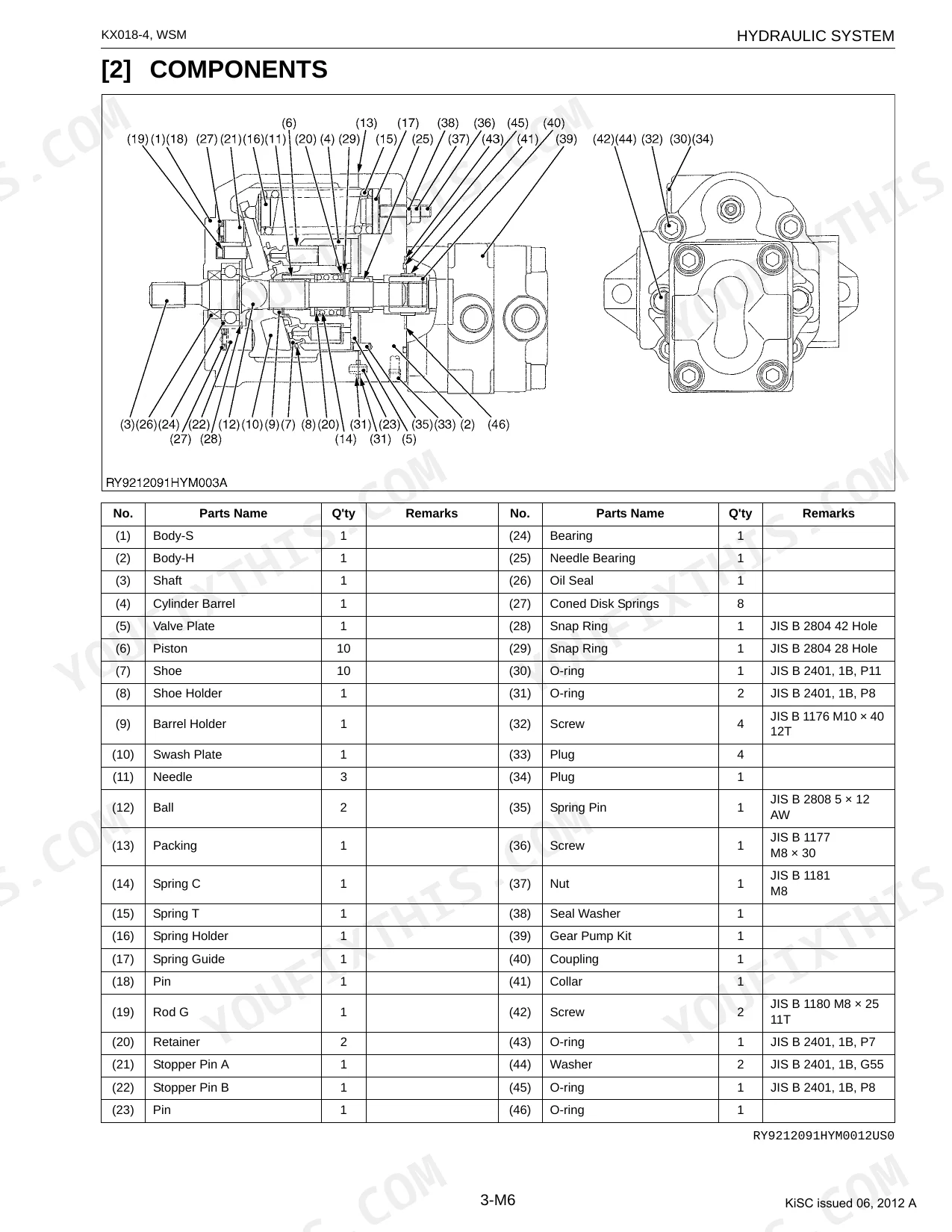

Running the KX016-4 or KX018-4 and need real factory numbers? OEM #RY911-21920 is the official Kubota Workshop Manual for both mini-excavators, 349 pages of it. It maps the full hydraulic circuit (pump, control valve, swivel motor, travel motor, and all six cylinder assemblies), walks through 90 pages of step-by-step procedures, and lays out exploded views. Wiring diagrams, power distribution charts, and a named error-code index are here too, covering faults like E:020 (lever lock), E:001 (CAN communication), and E:025 (over-voltage). Before you order a part, set fuel injection pressure to 13.73 MPa, torque M6 hardware to 7.9 to 9.3 N·m, and confirm the lever lock solenoid reads 12 Ω. Bookmarked by section and keyword-searchable, so the spec you need surfaces in about 30 seconds.
What's Inside This Kubota KX018-4 Manual
| System | Pages | Key Topics |
|---|---|---|
| Information | 4-18 | - |
| General | 19-52 | Machine Indentification, Engine Indentification (Model and Engine Serial Number) |
| Machine Body | 53-85 | Front Equipment (Bucket Installation and Removal, Attachment and Removal, Blade Removal and Mounting) |
| Engine | 86-91 | Engine Specifications, Performance Curve (D902-E3-Bh-3, D902-Bh-2), Dimensions (Component Layout) |

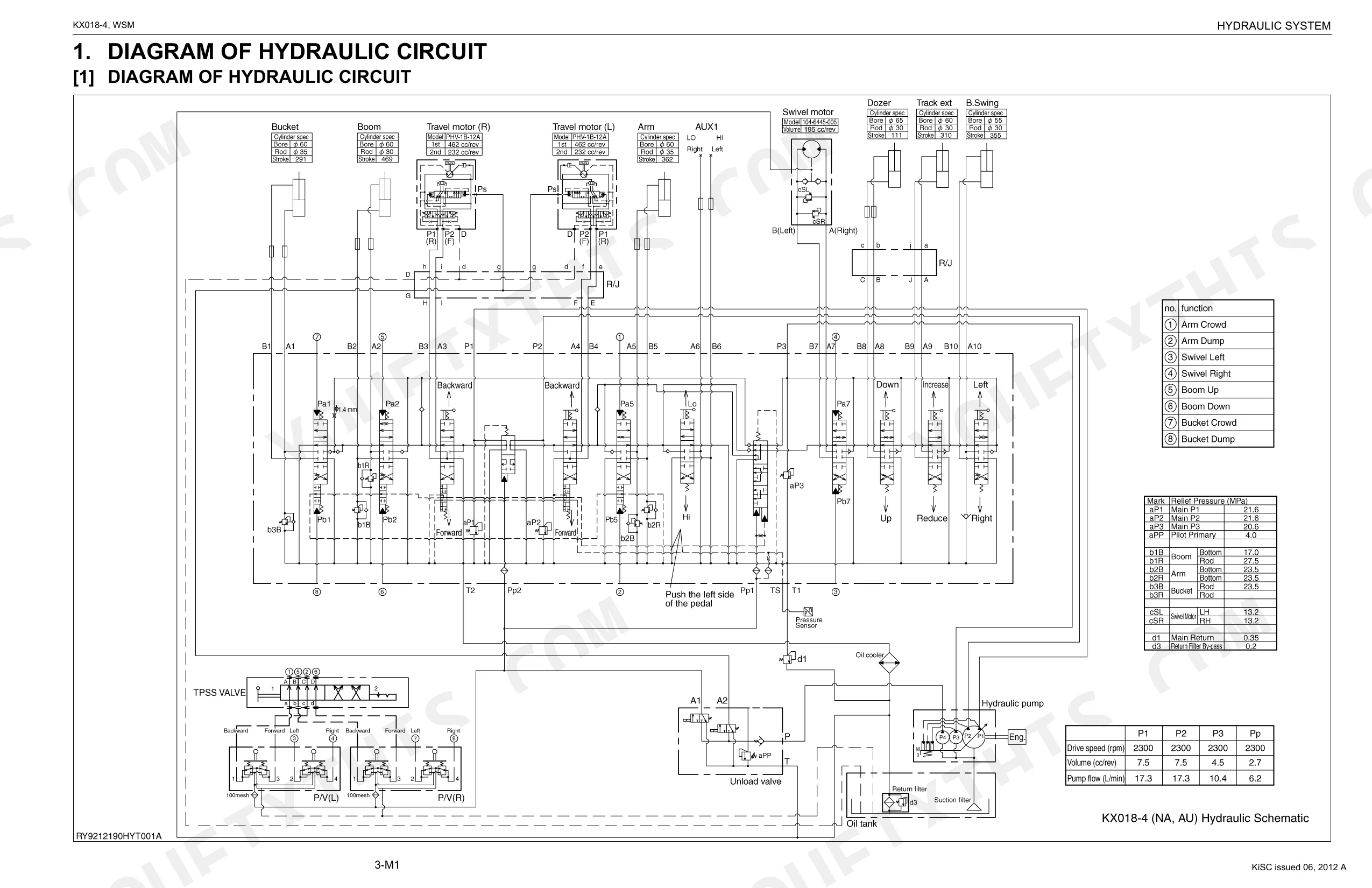

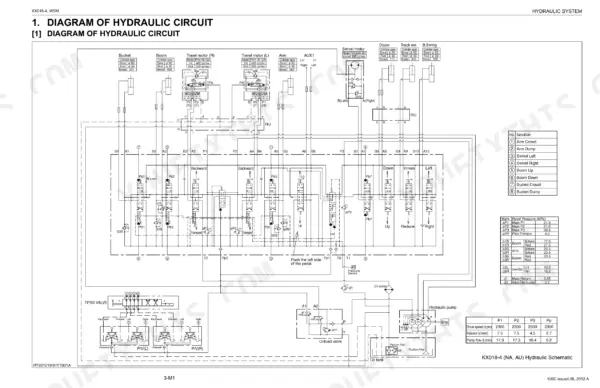

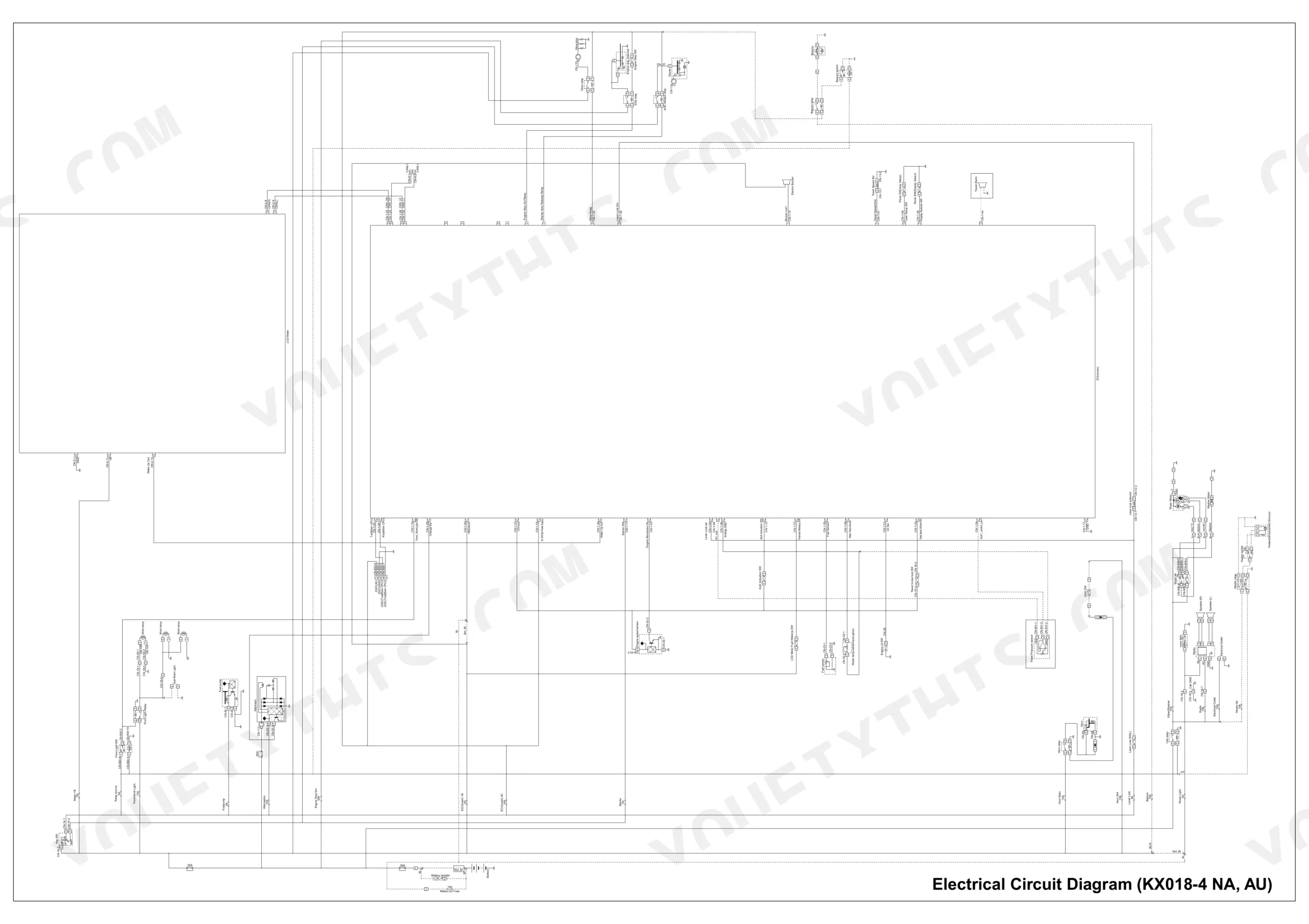

| Hydraulic System | 92-239 | Diagram of Hydraulic Circuit, Hydraulic Device Layout, Pump (Specifications, Components, Function and Structure, Operating Principles, Horsepower Control Mechanism) |
| Electrical System | 240-328 | Electronic Equipment Layout |
| Cabin | 329-346 | Cabin Removal and Mounting, Heater Removal and Installation |
| Electrical Wiring Diagram (KX018-4 NA, AU) | 347 | Overall Wiring Diagram, Component Connections, Circuit Paths |
| Electrical Circuit Diagram (KX018-4 NA, AU) | 348-349 | Overall Circuit Diagram, Electrical Components, Power Distribution |

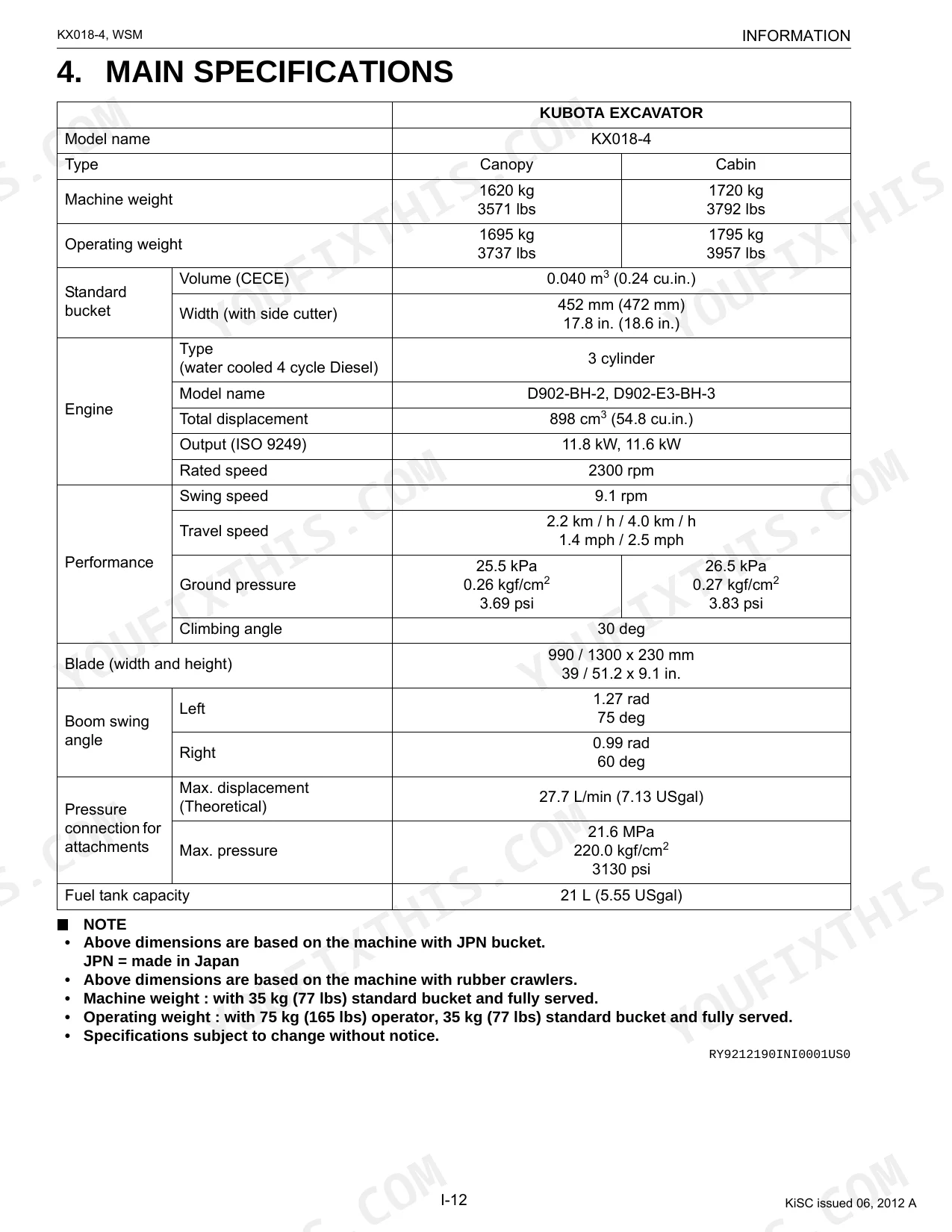

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| General Use Nuts and Bolts (M6, No-grade or 4T) Torque | 7.9 to 9.3 N·m | p. 31 |
| Lever Lock Solenoid Resistance | 12 Ω ± 10 % | p. 309 |
| Engine Stop Solenoid Holding Coil Resistance | 22.2 Ω | p. 262 |
| Fuel Filter Cartridge Replacement Interval | every 500 hrs | p. 36 |
| Fuel Injection Pressure | 13.73 MPa | p. 88 |
| Hydraulic Return Filter Element Replacement Interval | every 500 hrs | p. 36 |
| Hydraulic Suction Filter Element Replacement Interval | every 1000 hrs | p. 36 |
| Air Filter Outer Element Replacement Interval | every 1000 hrs | p. 35 |
| Hydraulic Hose Fittings Torque (DN 4 - 1/8, M12 x 1.5) | 15 to 20 N·m | p. 32 |
| Hose Clamp Screw Torque (10-16) | 2.5 to 3.5 N·m | p. 33 |
| Machine weight (Canopy type) | 1620 kg | p. 17 |
| Engine Total displacement | 898 cm³ | p. 17 |
Kubota KX018-4 Common Problems This Manual Covers
Kubota KX018-4 engine cranks normally but won't start, no codes on display
Measure the lever lock solenoid first; resistance should read 12 Ω ± 10% (page 309). Then test the engine stop solenoid holding coil for 22.2 Ω (page 262). Cross-reference both circuits in the wiring diagram on page 347. Swap the fuel filter if hours are at or past 500 (page 36).
Manual Section: Engine Start-Up TroubleshootingBoom, bucket, and travel all move slowly or feel weak under load

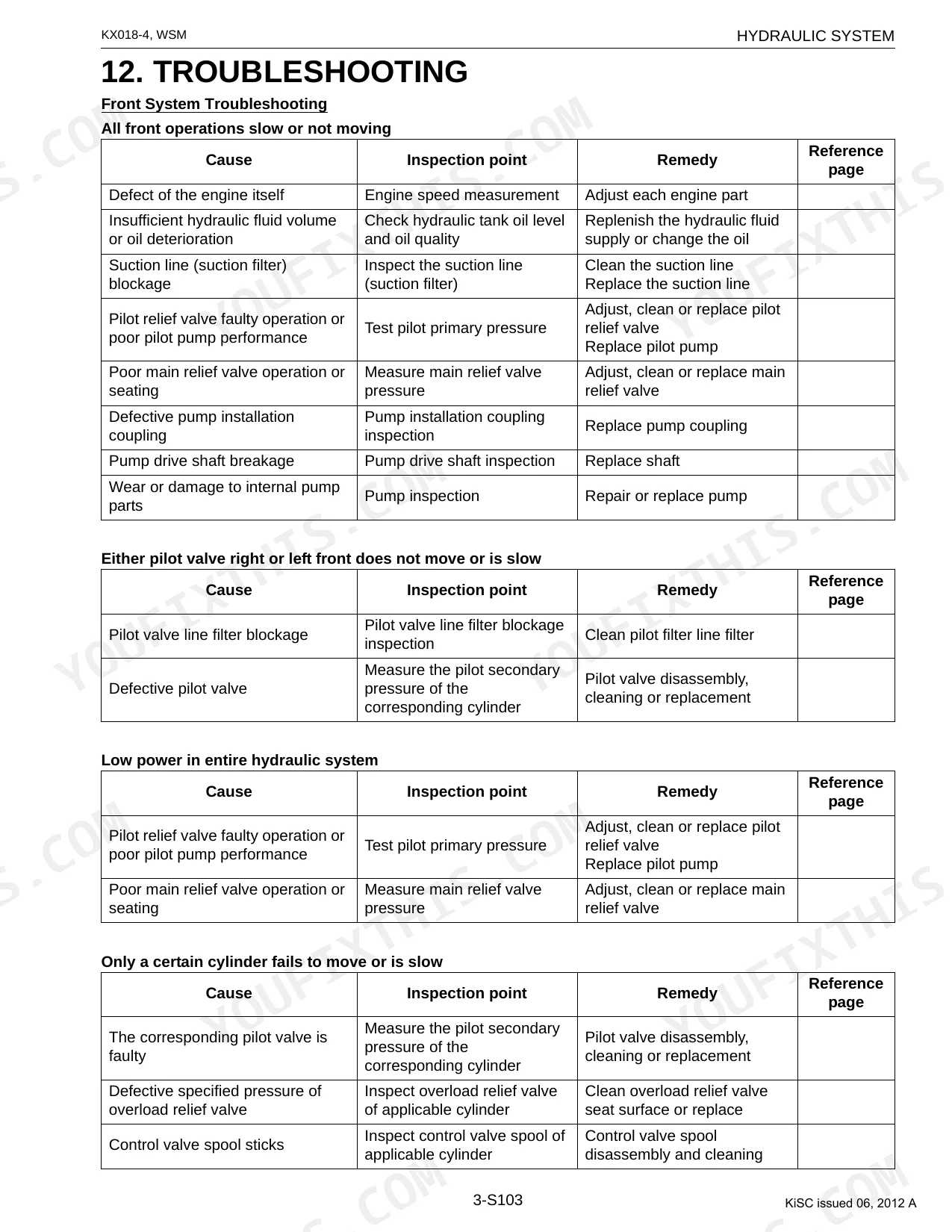

Confirm hydraulic fluid level first; total system capacity is 28 L (page 34). Inspect the return filter, due at 500 hours, and the suction filter, due at 1000 hours (page 36). Work through the low-flow troubleshooting chart. Verify pump performance at the rated engine speed of 2300 rpm (page 88).
Manual Section: Hydraulic System Troubleshooting (General)Engine starts then dies or idles rough, gray smoke on cold mornings
Inspect the air filter outer element; replacement interval is 1000 hours (page 35). Bleed the fuel circuit by cracking the fitting at the injection pump and cycling the key. Verify fuel injection pressure is 13.73 MPa (page 88). If smoke lingers after warm-up, test the engine stop solenoid coil for 22.2 Ω (page 262).
Manual Section: Engine Start-Up TroubleshootingIdle speed won't settle, engine surges or stalls when backing off throttle
Bleed any air from the fuel system; check all connections from the 21 L tank to the injection pump (page 34). Replace the fuel filter cartridge if past 500 hours (page 36). Adjust idle to hold steady at 2300 rpm under load (page 88). Test injector pressure at 13.73 MPa if surging continues.
Manual Section: Engine Start-Up TroubleshootingHydraulic hose fitting leaks after service work, oil pooling under the front end
Examine fitting threads and sealing faces before reinstalling. Torque DN 4 M12 × 1.5 hose fittings to 15 to 20 N·m (page 32); larger fittings in this hose class run 50 to 55 N·m. Set hose clamp screws to 2.5 to 3.5 N·m (page 33). Run the machine at rated engine speed to confirm no seepage.
Manual Section: Hydraulic SystemFrequently Asked Questions
How do I reset the service indicator on a Kubota KX018-4?
To reset the service indicator, open the periodic inspection item display screen. With the inspection complete, select YES, then press and hold SW2 to confirm. The buzzer beeps several times, the inspection item clears, and the display returns to normal mode. Choose NO and confirm instead, and the item stays on screen.
How do I reset the hydraulic safety lock or kill switch on a Kubota KX018-4?
The manual covers checking the lever lock switch and solenoid, but lists no specific 'reset' procedure for the safety lock itself. Replace the lever lock solenoid if it tests faulty; the spec is 12 Ω ± 10 % resistance.
What does the warning light or error code mean on a Kubota KX018-4?
The LCD shows a list of messages and error codes. For example, 'E: 014' means 'Oil pressure too low,' and the preliminary measure is to 'Stop the engine immediately. The engine may have developed a fault.' 'E: 016' flags 'Charging system error,' with the preliminary measure: 'Check the V-belt. When the V-belt is OK, let the engine run until the indicator goes out.'
How do I clear fault codes on a Kubota KX018-4?

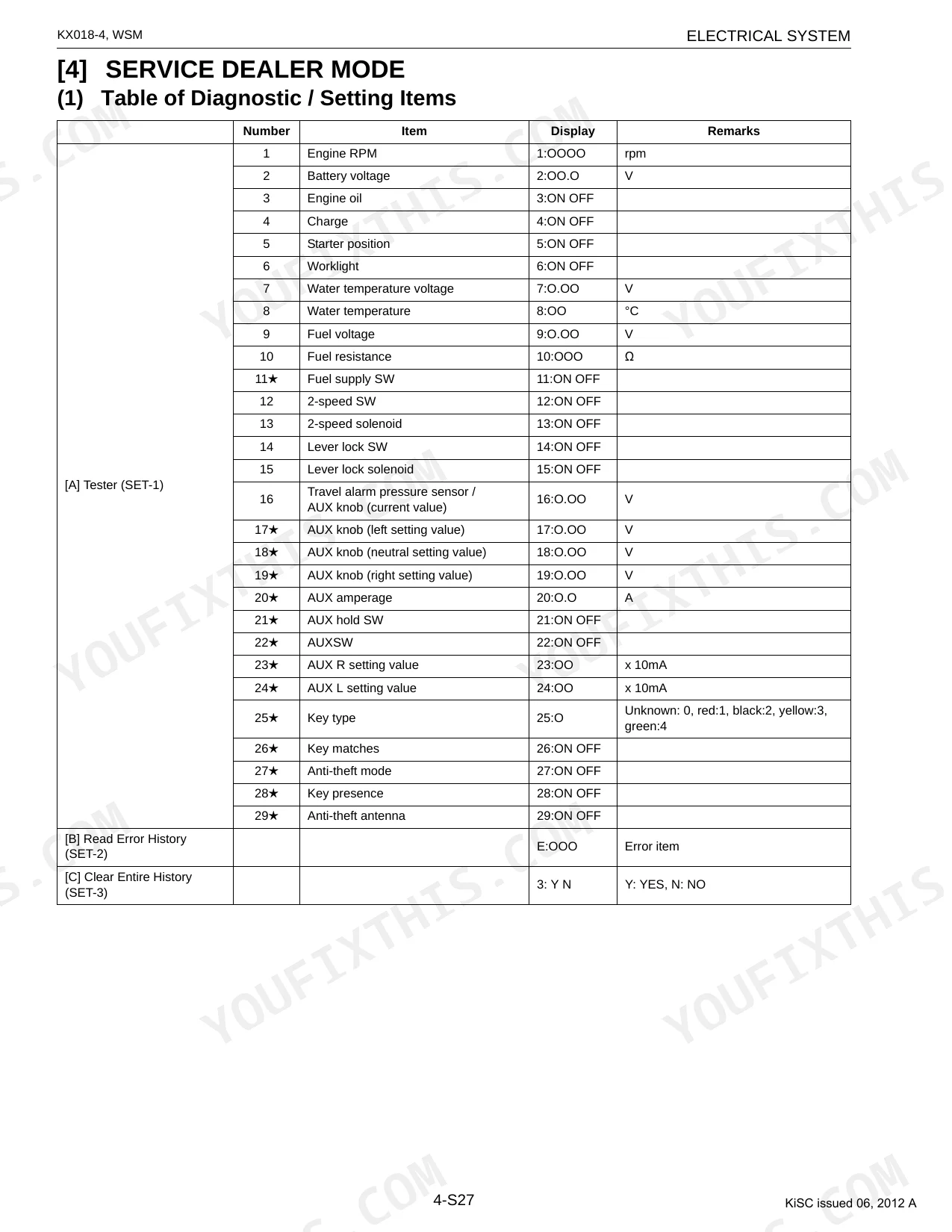

To clear fault codes, fix the underlying problem first. Then select 'Clear Error History' (SET-3) and clear it. Read the error history again to confirm nothing remains. Press and hold SW2 to lock in the choice; the buzzer beeps three times.
What format is this Kubota KX018-4 manual in?
Immediate download of the complete 349-page searchable Service Manual. Open it on any device, laptop at your desk or phone in the field.
Can I print this Kubota KX018-4 manual?
Yes. The PDF carries no DRM restrictions, so print any page or section you need for the shop. Works with any standard printer.
Does this Kubota KX018-4 Service Manual cover the hydraulic system?
Yes, this Kubota KX018-4 Service Manual includes hydraulic system diagrams, circuit schematics, and component specifications.
Document Quality
This document is a high-quality native digital PDF, allowing you to search and copy all text effortlessly. The main body text is crisp and easy to read throughout. Diagrams and illustrations are a mix of sharp vector graphics and clear raster images, with labels generally readable. Some highly detailed wiring diagrams, however, appear less sharp when magnified. All pages are clean and free from scan artifacts or skewed content, and there are no notable blank pages.
