Part of the Kubota Repair Manuals.
This factory Kubota Service Manual covers the L2050 compact diesel tractor and its L2050DT four-wheel-drive supplement, built around the three-cylinder D1102-AE engine. Across 316 pages it combines a Mechanism section that explains how each system is designed with detailed servicing procedures.Coverage includes the engine, dry single-plate clutch, eight-forward two-reverse gear transmission, rear and front axles, wet-disc brakes, recirculating-ball steering, the hydraulic pump and control valve, and the electrical system with its wiring diagram. Factory specifications, tightening torques, and allowable limits are given throughout.Use this PDF to work through hard starting, overheating, clutch or transmission trouble, weak hydraulics, or an electrical no-crank on your own. It downloads instantly and every page prints cleanly, so the procedures and specs are ready whenever you are at the tractor.
What's Inside This Kubota L2050 Manual
| System | Pages | Key Topics |
|---|---|---|

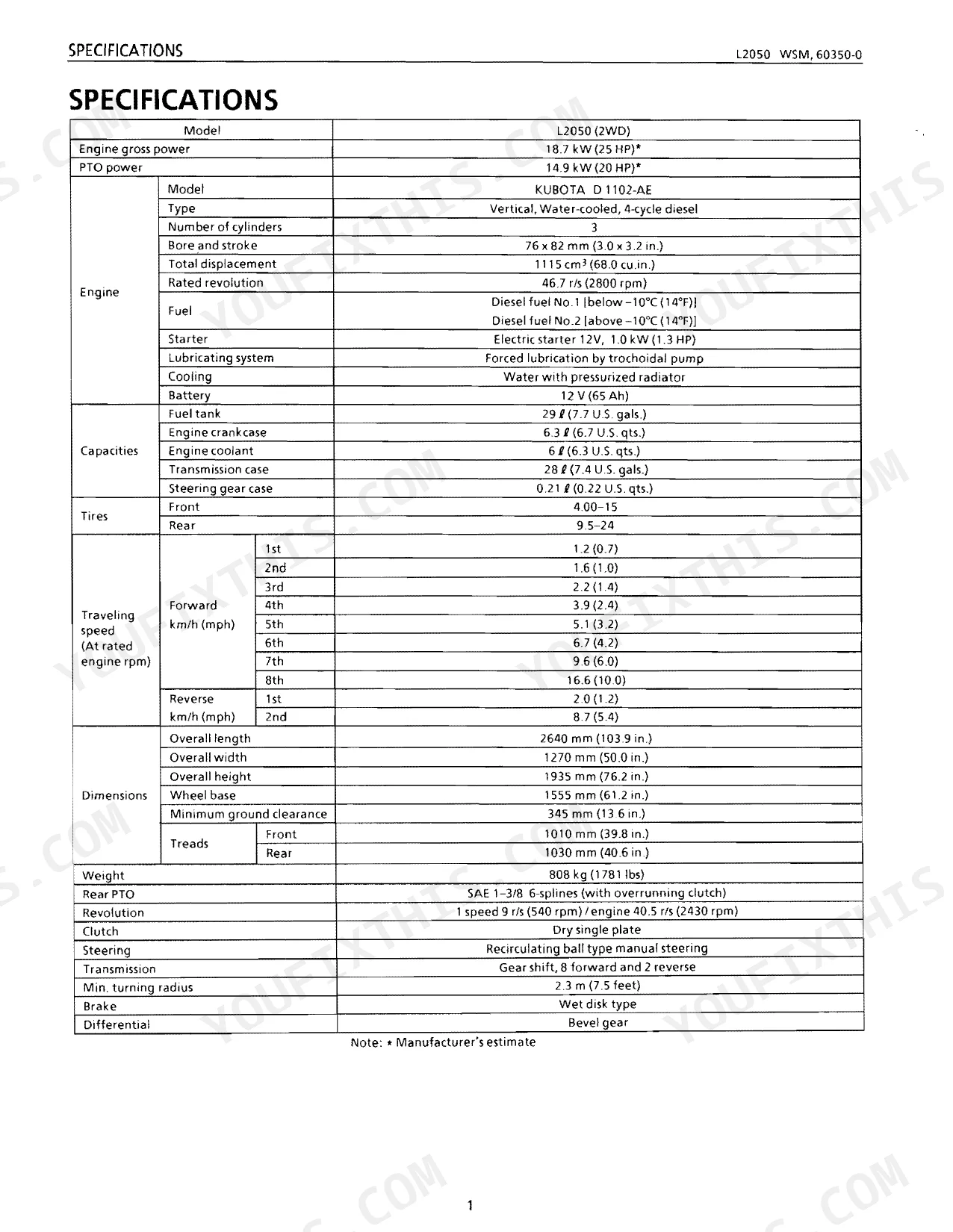

| Specifications | 1-3 | L2050 Engine Gross Power, L2050 PTO Power, L2050 Traveling Speeds, Dimensions, Weight |
| Mechanism | 4-66 | Features, Vertical, Water-Cooled, 3-Cylinder Diesel Engine, 8-Forward, 2-Reverse Speed Transmission, Front PTO, Rear PTO |
| General | 67-90 | Tractor Identification, General Precautions, Lubricants, Tightening Torques (General Use Screws, Bolts and Nuts), Maintenance Check List, Check and Maintenance, Check Points of Initial 35 Hours |
| Separation of the Tractor | 91-100 | Draining Oil and Coolant, Separating Front Axle, Separating Engine, Separating Clutch Housing, Separating Rear Axle Case and Brake Case, Separating Hydraulic Cylinder Block, Separating Transmission Case |
| Engine | 101-138 | Engine Body, Lubricating System, Cooling System, Fuel System |
| Clutch | 139-144 | Clutch Pedal, Clutch Disc, Pressure Plate, Release Fork, Clutch Release Bearing, Pilot Bearing, Clutch Lever, Clutch Pedal Shaft |

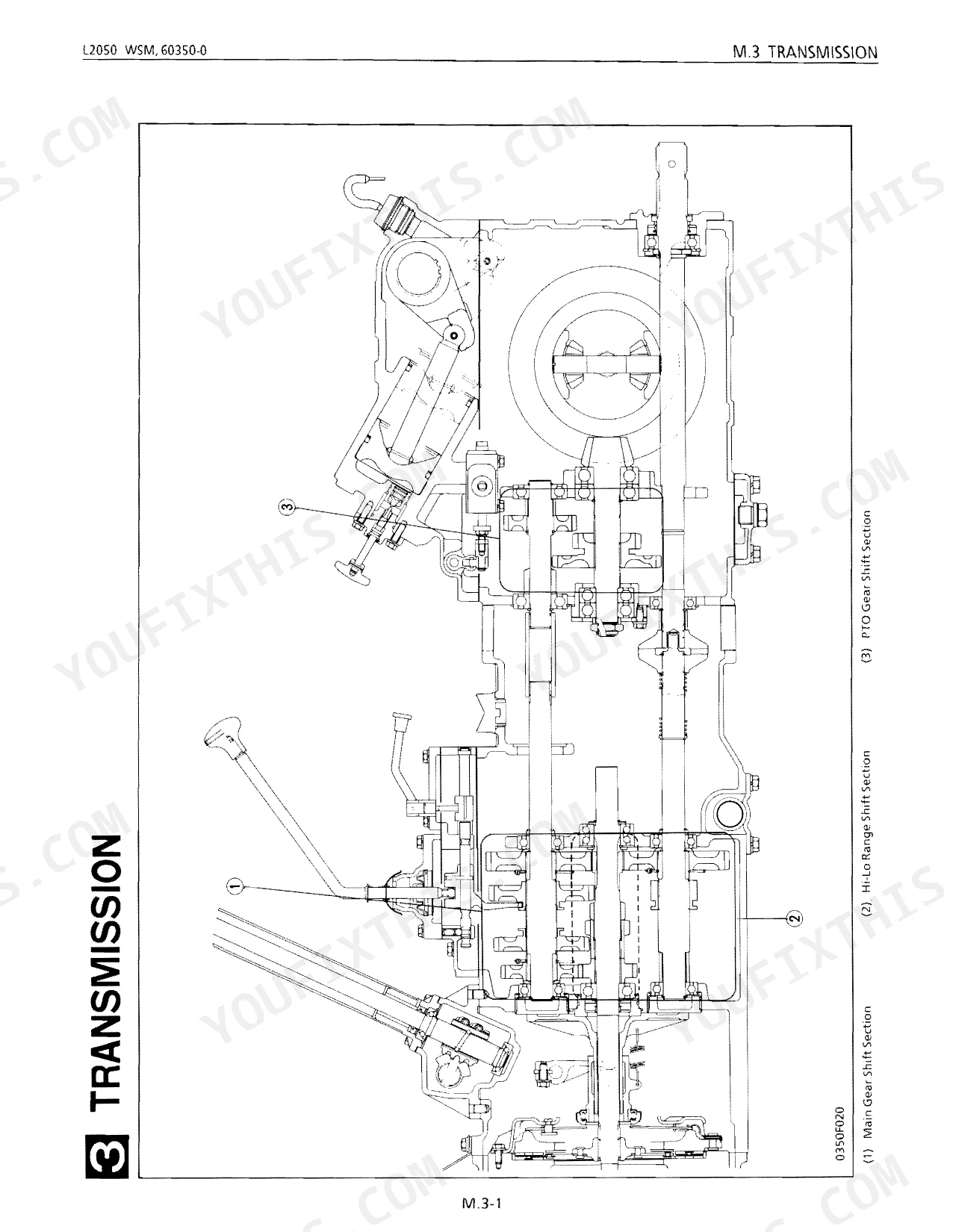

| Transmission | 145-156 | Clutch Housing Case, Transmission Case |
| Rear Axle | 157-162 | Differential Gear |
| Brakes | 163-168 | Brake Pedal, Brake Pedal Shaft, Brake Pedal Bushing, Cam Plate, Brake Cam, Brake Disc |
| Front Axle | 169-174 | Front Wheel, Front Wheel Hub, Knuckle Shaft, Knuckle Arm, Tie-Rod End |
| Steering | 175-178 | Steering Wheel, Tie-Rod End, Pitman Arm, Sector Shaft, Steering Column, Steering Shaft, Ball Nut Assembly, Thrust Ball Bearing |
| Hydraulic | 179-190 | Hydraulic Pump, Control Valve, Relief Valve, Cylinder Safety Valve, Hydraulic Cylinder |
| Electrical | 191-216 | Battery, Starting System, Charging System, Lighting System |
| Front Loader BF400S | 217-244 | BF400S Specifications, Operating Dimensions, Oil Flow Mechanism, Loader Check and Maintenance, Loader Control Valve, Lift and Bucket Cylinders |
| Mower | 245-262 | Mower Specifications, Adjusting Connecting Rod, Front PTO Coupling Shaft, Mower Gear Box, Blade and Belt Servicing |
| Supplement, L2050DT (4WD) | 263-316 | L2050DT Engine Gross Power, L2050DT PTO Power, L2050DT Traveling Speeds, Front Axle Drive, 4WD Dimensions |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder head screws and nuts | 88.3 to 92.2 N·m | p. 110 |
| Clutch Pedal Free play | 20 to 30 mm | p. 140 |
| Inner Rotor to Outer Rotor Clearance | 0.10 to 0.16 mm | p. 108 |
| Fuse blown | 10A | p. 192 |
| Fan Belt Tension | 7 mm | p. 108 |
| Commutator O.D. | 29.9 to 30.0 mm | p. 193 |
| Brake Pedal Free Play | 30 to 40 mm | p. 163 |
| Radiator Water Tightness | Water tightness at specified pressure 88 kPa | p. 108 |
| Thermostat Valve Opening Temperature At Begining | 80.5° to 83.5°C | p. 109 |
| Engine gross power | 18.7 kW (25 HP) | p. 1 |
| Fuel tank capacity | 29 L (7.7 U.S. gals.) | p. 1 |
| Engine crankcase capacity | 6.3 L (6.7 U.S. qts.) | p. 1 |
Kubota L2050 Common Problems This Manual Covers
Engine overheating
Repeated overheating usually traces to low coolant, clogged radiator passages, a fan or drive problem, or a failed thermostat. The engine section covers the cooling system and its thermostat and radiator specs.
Manual Section: Sect 1 Engine p. 101Clutch slip or loss of drive
A slipping clutch or loss of drive commonly means a worn clutch disc, pressure plate, or misadjusted pedal free play. The clutch section covers the disc, pressure plate, release hub, and pedal adjustment.
Manual Section: Sect 2 Clutch p. 139Transmission slipping or weak pull
Weak pulling power or gear trouble points to the transmission gearing or shift mechanism. The transmission section covers the clutch housing case, transmission case, and main and range gear shifts.
Manual Section: Sect 3 Transmission p. 145Slow or weak hydraulics
Hydraulics that lift slowly or feel weak can come from low fluid, pump wear, internal leakage, or a control valve fault. The hydraulic section covers the pump, control valve, relief valve, and cylinder.
Manual Section: Sect 8 Hydraulic p. 179No-crank or intermittent starting
A no-crank or intermittent start often stems from wiring, switches, the battery, or the starter and charging circuit. The electrical section includes the wiring diagram and starting and charging systems.
Manual Section: Sect 9 Electrical p. 191Weak or uneven braking
Weak or uneven brakes usually mean worn discs or adjustment issues on the wet-disc brakes. The brakes section covers the brake disc, cam plate, brake cam, and pedal adjustment.
Manual Section: Sect 5 Brakes p. 163Frequently Asked Questions
Which tractor does this manual cover?
It covers the Kubota L2050 (2WD) compact tractor with the D1102-AE diesel engine, and includes the L2050DT four-wheel-drive supplement. p. 1
Are wiring diagrams included?

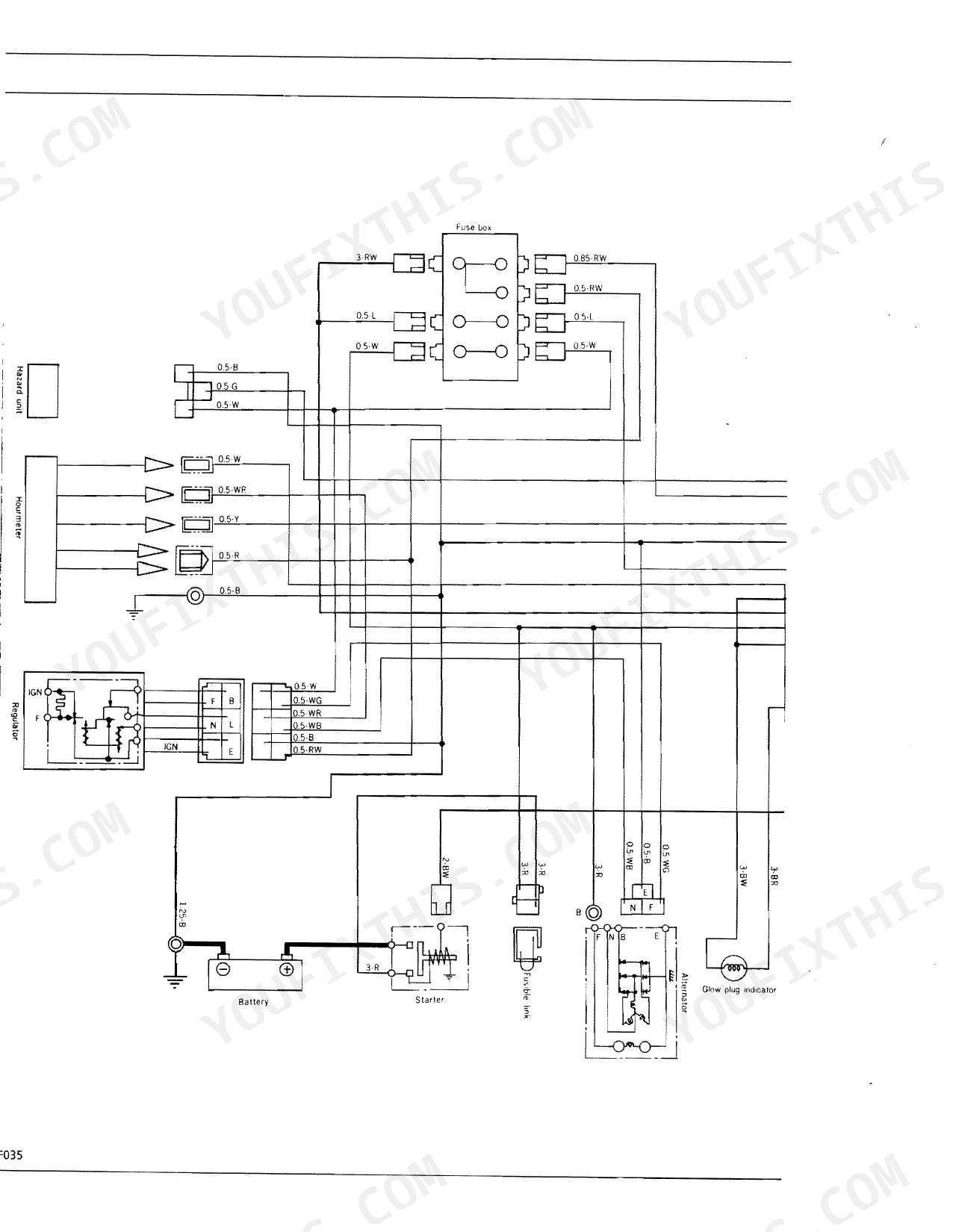

Yes. The Sect 9 Electrical section includes the wiring diagram along with the battery, starting, charging, and lighting systems. p. 43
Does it list torque specifications like head bolts?

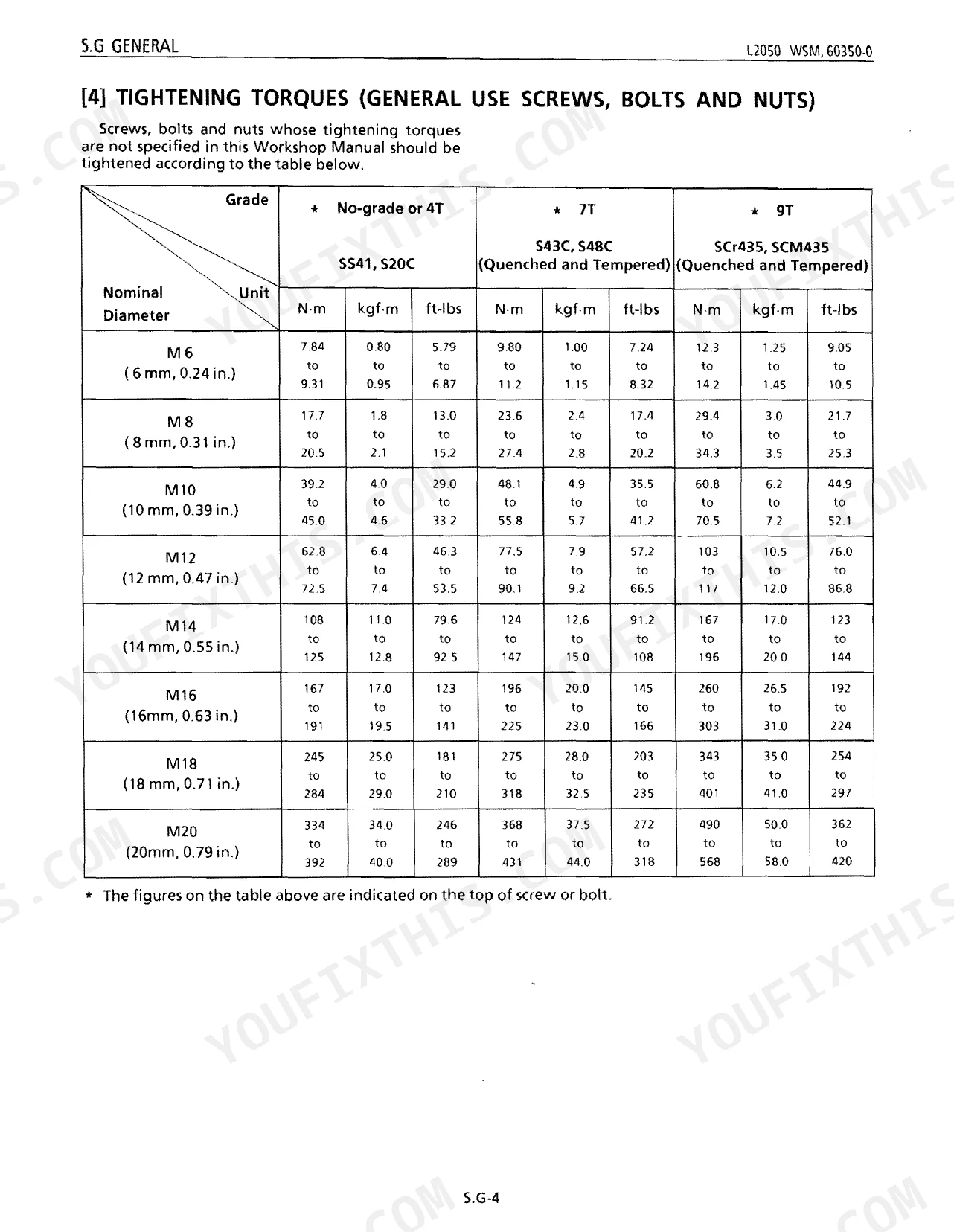

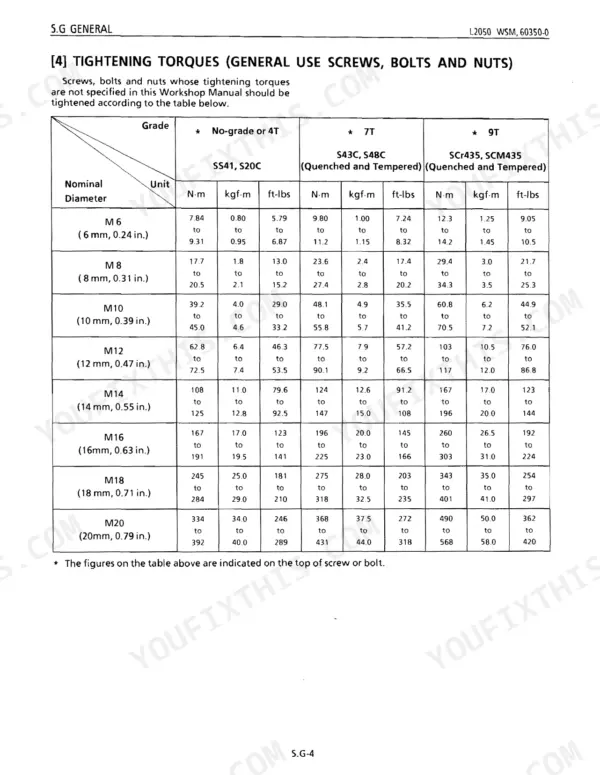

Yes. The General section provides the tightening torque tables used across the tractor, and further torque values appear in each servicing section. p. 70
Does it cover the hydraulic system?
Yes. The Sect 8 Hydraulic section covers the hydraulic pump, control valve, relief valve, cylinder safety valve, and hydraulic cylinder. p. 179
How quickly can I access this manual after buying?
A 316-page service manual in searchable PDF, available the moment checkout completes. Open it on a computer, tablet, or phone with no shipping wait.
Can I print specific sections of this Service Manual?
Yes. There's no DRM or copy protection, so you can print the whole manual or just the pages you need on any home or office printer.
Does this Kubota L2050 manual include hydraulic schematics?

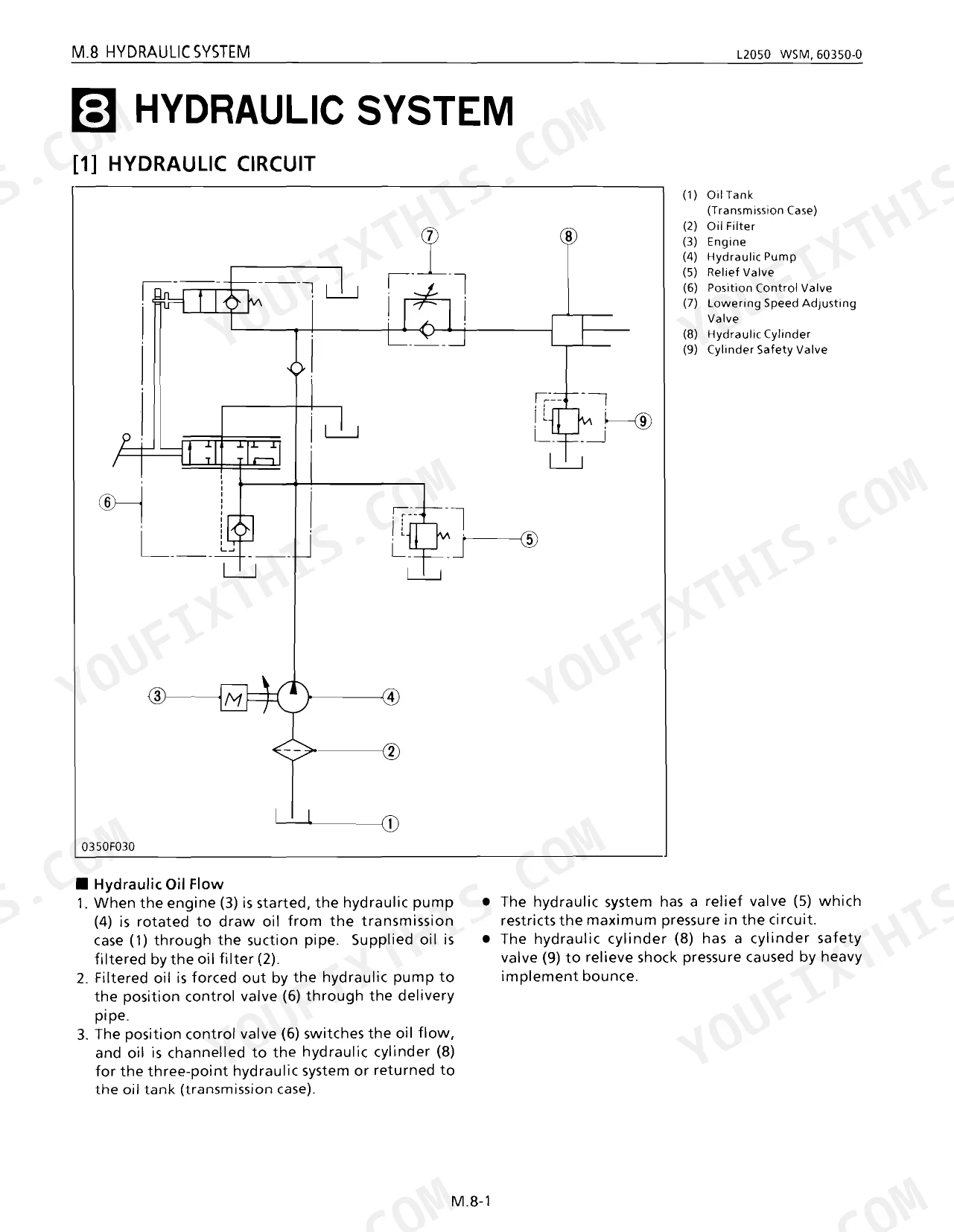

Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the Kubota L2050. p. 33
