This Kubota L210 Service Manual runs 124 pages and was built for one job: tearing down and rebuilding every system on the L210, L200, L15, L20, and L27 without guessing. It opens with the Kubota Z 1100-A engine (fuel system, lubrication system, performance curves), then runs 50 pages of step-by-step tractor work across the front axle, steering, clutch, transmission, differential, brakes, hydraulics, and electrical. The electrical section carries a full wiring diagram down to the dynamo, starter, regulator, and glow plug; the hydraulic section traces the entire pump-valve-cylinder circuit. Set implement pressure to exactly 1420 lb/in² (100 kg/cm²), and torque the Z 1100-A cylinder head to 148-155 ft-lb before first start. When the machine is down, you want the factory figure, not a forum guess. Bookmarks let you search any spec by keyword and pull it up at the bench.
What's Inside This Kubota L210 Manual

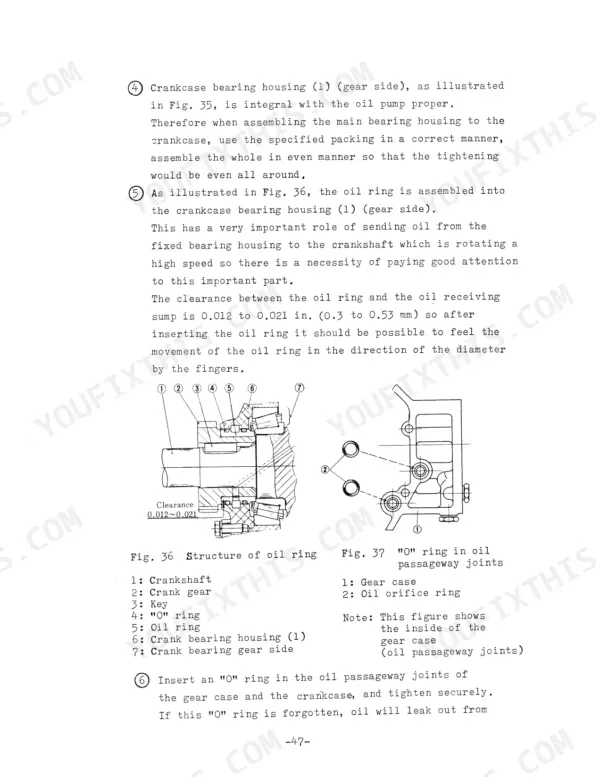

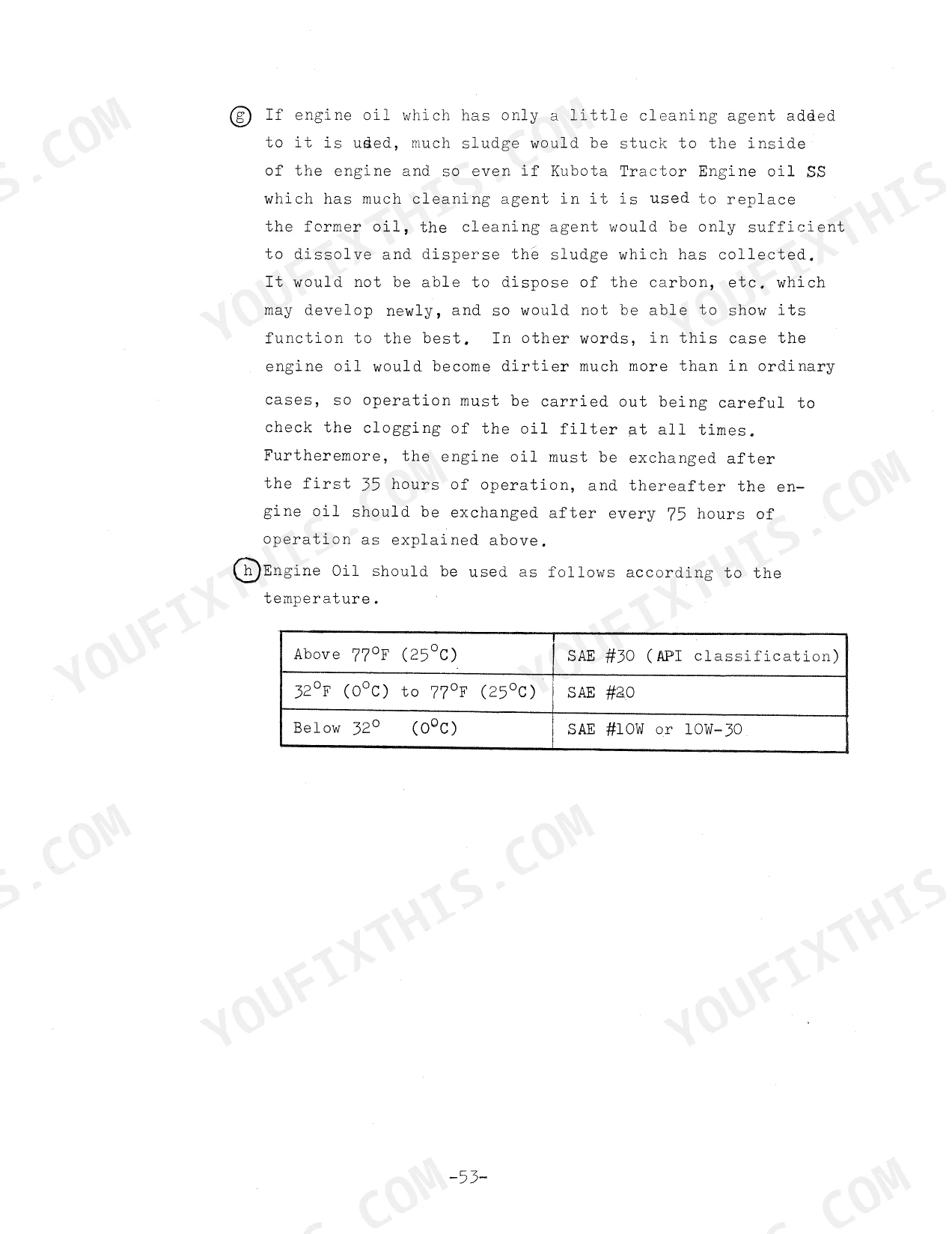

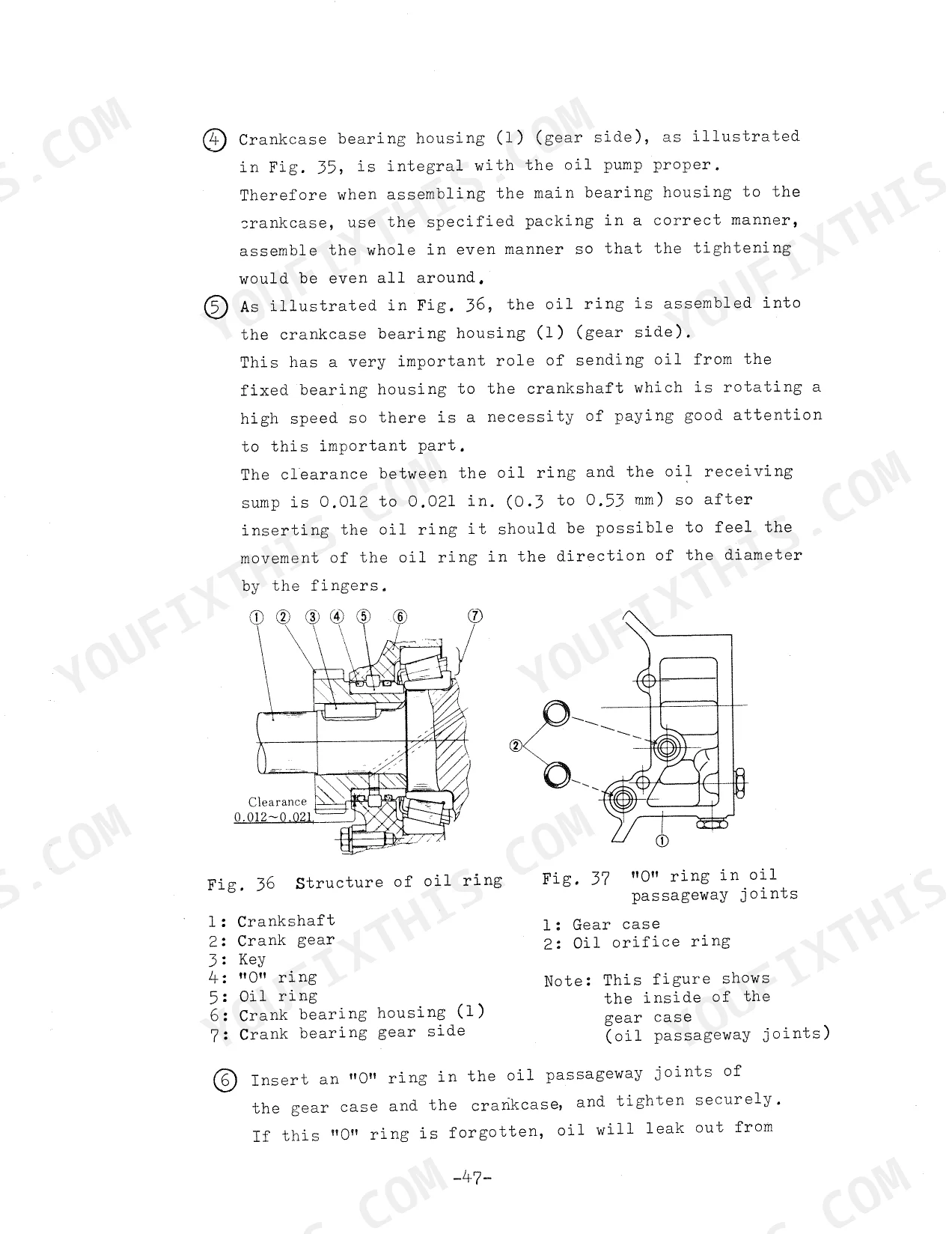

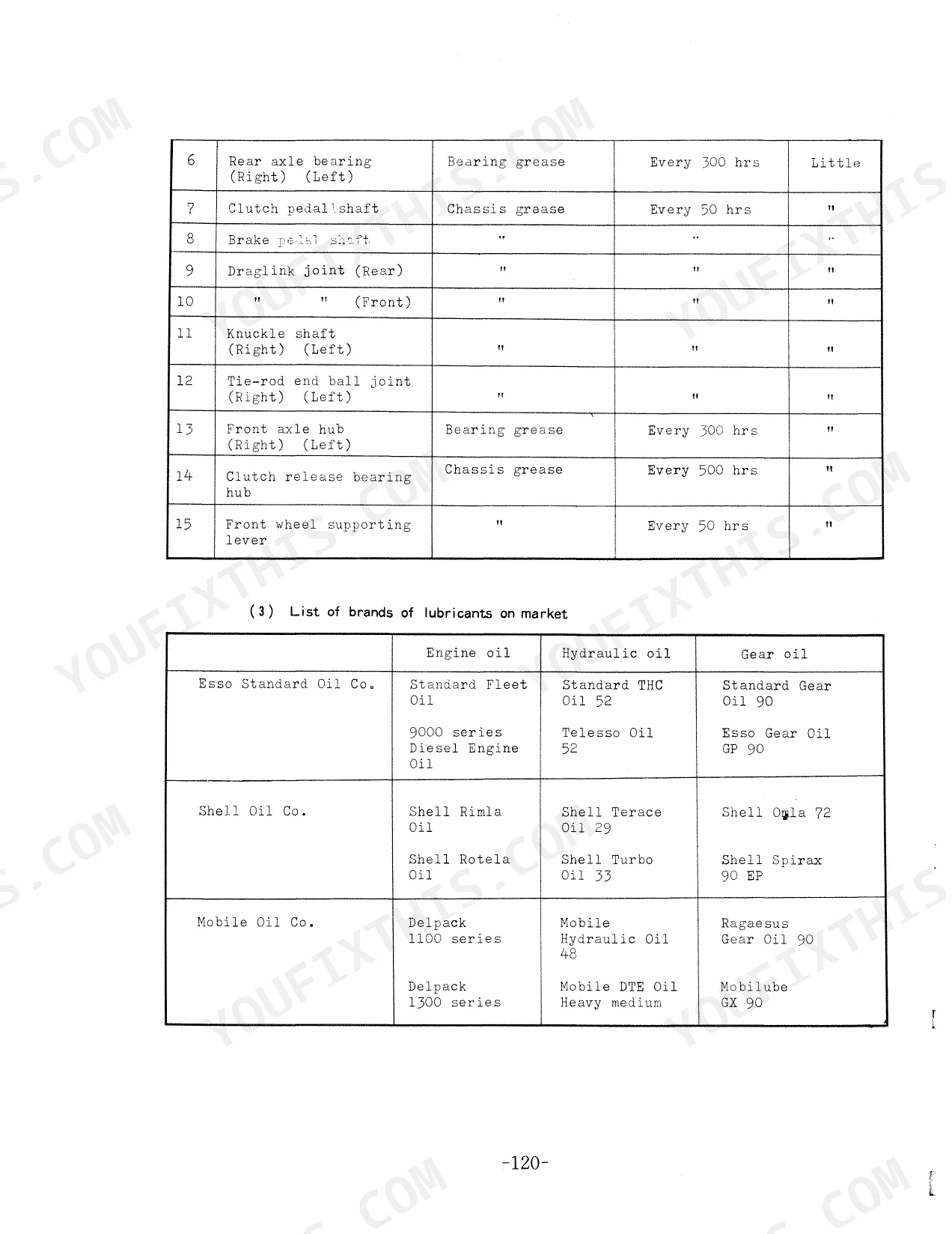

| System | Pages | Key Topics |
|---|---|---|
| Main Specifications | 6-10 | Specifications of KUBOTA Z 1100-A Engine, Specifications of Tractor - Dimensions, Specifications of Tractor - Speeds, Specifications of Tractor - Front Wheel Alignment |
| Features | 11-17 | Features of KUBOTA Z 1100-A Engine (Newly Designed and Highly Efficient Engine, Ample Output, Outstanding Economical Performance, Very Satisfactory Durability, Starts Easily on Snowy Day, Operation is Very Easy, Comfortable to Operate) |
| Engine | 18-53 | Characteristics of KUBOTA Z 1100-A Engine (Performance Curve, Fuel Consumption Curve), Details of Engine Structure and Precautions in Handling (Fuel System, Lubrication System) |
| Tractor | 54-108 | Front axle (Inner structure and name of parts, Disassembly and assembly, Checks and maintenance, Front wheel alignment, Tread) |
| Reference Charts | 109-124 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic system set pressure (for implement lifting device) | 1420 lb/in² (100 kg/cm²) | p. 9 |
| Cylinder head nut (1) torque | 148-155 ft-lb. (20.5-21.5 m-kg) | p. 114 |
| Cylinder head nut (2) torque | 36-43.5 ft-lb. (5-6 m-kg) | p. 114 |
| Starter motor nominal output | 0.9 KW | p. 98 |
| Battery capacity | 12 V 80 AH | p. 7 |
| Fuel filter cleaning interval | every 100 hours | p. 19 |
| Fuel filter element washing interval | every 300 hours | p. 19 |
| Hydraulic oil type | #140 turbine oil | p. 119 |
| Hydraulic oil initial exchange interval | Initially after 100 hours | p. 119 |
| Brake drum inner diameter (standard) | 5.5" (140mm) | p. 117 |
| Brake drum inner diameter (limit of use) | 5.6" (142mm) | p. 117 |
| Clutch pedal play | 0.79 - 0.90" (20 - 23) | p. 117 |
Kubota L210 Common Problems This Manual Covers
Kubota L210 won't crank or turns over slowly, starter motor draws no current p. 98
Test the battery first: capacity is 12V 80AH, and any reading under load below 10.5V means replace it. Inspect the cables and terminals for corrosion before condemning the starter. Rated at 0.9 KW (page 98), the starter should come out for a bench test if it spins without engaging or draws no current. Trace the full starting circuit against the wiring diagram.
Manual Section: Electrical Equipment - Troubles of Switch SystemHydraulic lift raises slowly or won't hold position, implement drops under load p. 94

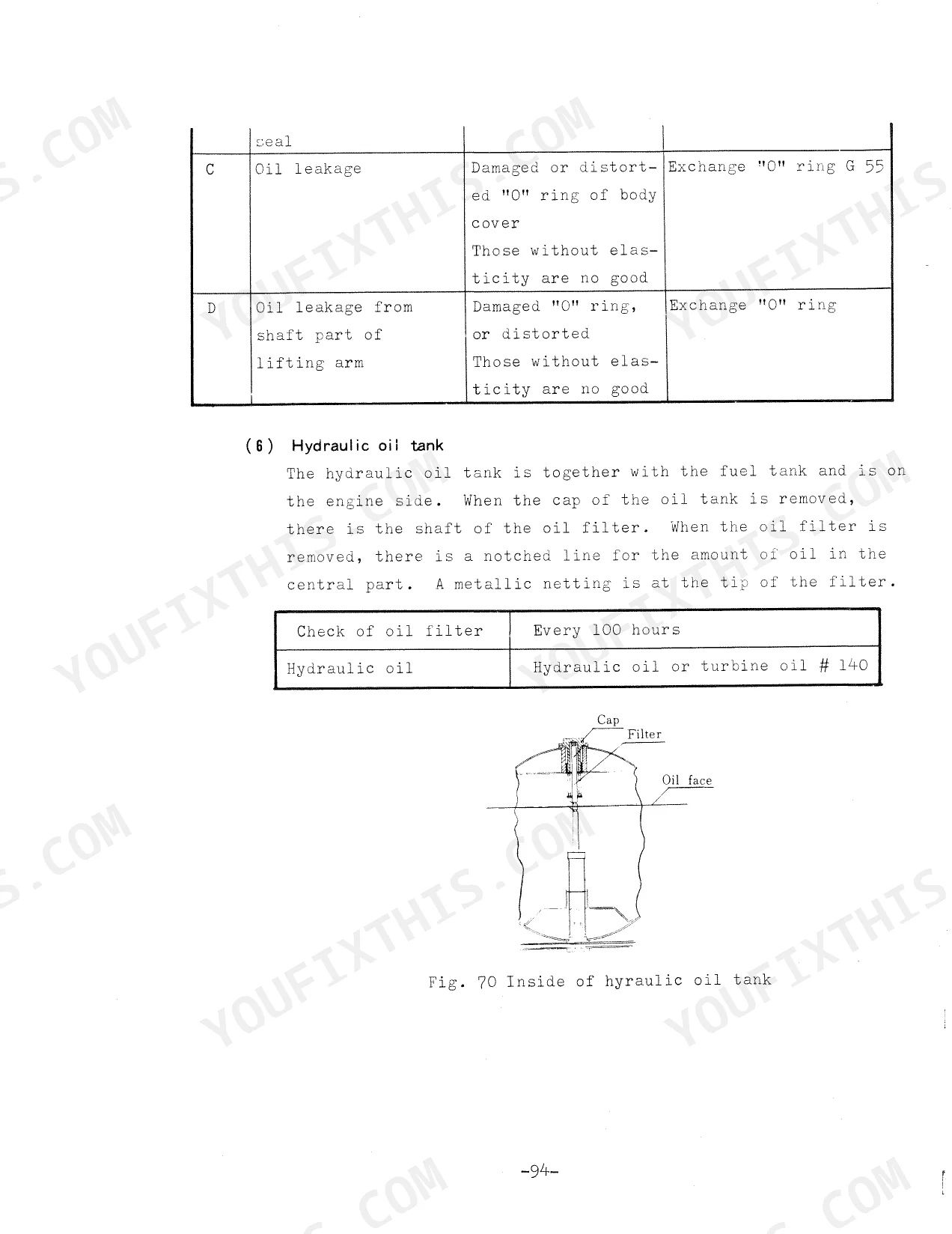

Check hydraulic oil level and condition first. The system runs #140 turbine oil in a 7.4 qt. (7 liter) tank, changed every 300 hours and initially after the first 100 hours (page 119). Inspect the filter every 100 hours (page 94). If the oil is good, verify set pressure at 1420 lb/in² (100 kg/cm²) per page 10. Low pressure points to pump wear or internal valve seat leakage.

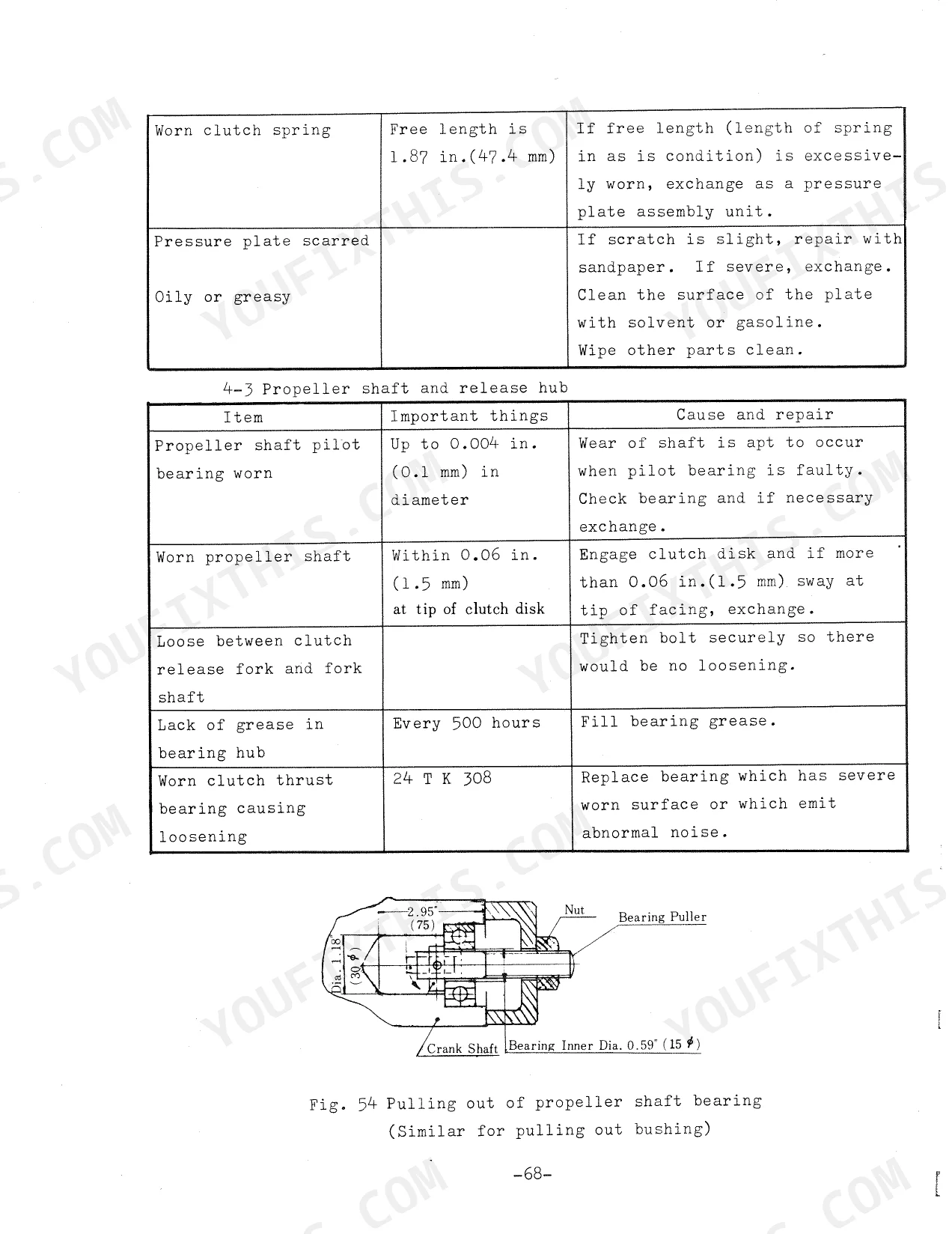

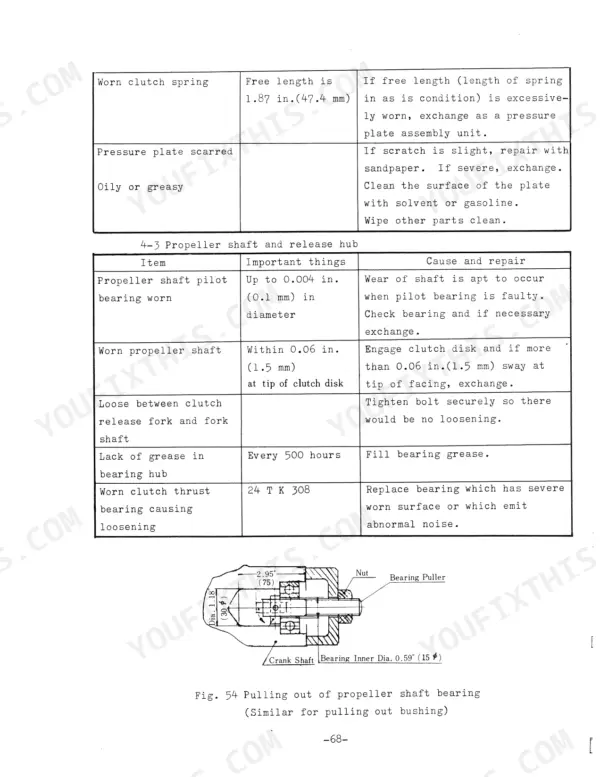

Manual Section: Hydraulic Control Valve Checks and MaintenanceClutch slips under load or won't fully disengage, grinding noise during gear changes
Measure clutch pedal free play first: spec is 0.79-0.90 in. (20-23mm) per page 117. Outside that range, adjust the linkage before pulling the clutch apart. If play is correct but slipping continues, check assembled disk thickness: standard is 0.31-0.33 in. (7.9-8.5mm), and spline play limit is 0.012 in. (0.3mm). Find the disassembly and repair steps.
Manual Section: Clutch Troubles and RepairsBrakes feel spongy or won't hold on hills, tractor rolls after pedal release p. 117
Adjust the pedal linkage first: standard pedal play is 2.0 in. (50mm) per page 117. Check brake lining thickness next; minimum is 0.12 in. (3mm) before replacement. Measure drum inner diameter too: standard is 5.5 in. (140mm), discard limit is 5.6 in. (142mm), both on page 117. Look for oil contamination on the shoes, and confirm the cam contact sits even across the full lining surface.
Manual Section: Brake System Checks and MaintenanceGears grind or shift hard, transmission jumps out of engagement during field work p. 54
Inspect the transmission oil level and look for leaks around the case seams and drain plugs; the maintenance schedule is on page 119. With the engine off and the clutch properly adjusted, work each gear by hand to feel for smooth engagement. If grinding persists during shifts, confirm clutch pedal play is 0.79-0.90 in. (20-23mm) per page 117 before pulling the transmission. Bearing wear limits and gear clearance specs begin on page 73.
Manual Section: Transmission Checks and MaintenanceEngine runs rough or loses power, black smoke from exhaust at load p. 31
Clean the fuel filter every 100 hours; wash the filter element every 300 hours (page 19). Verify injection pressure at 1990 psi (140 kg/cm²) per page 6. Low pressure points to a clogged or worn injector nozzle. Also check valve clearance on a cold engine: 0.008-0.010 in. (0.2-0.25mm) per page 31, adjusting both intake and exhaust with a feeler gauge before suspecting internal wear.
Manual Section: EngineFrequently Asked Questions
What are the torque specs for Kubota L210 head bolts, wheel bolts, or engine bolts?
Cylinder head nut (1) M14 P 1.5 torques to 148-155 ft-lb (20.5-21.5 m-kg), and cylinder head nut (2) M10 P 1.25 to 36-43.5 ft-lb (5-6 m-kg). Wheel set bolts call for 108-130 ft-lb (1500-1800 kg-cm) (page 122). Rod bolts run 45-47 ft-lb (6.2-6.5 m-kg), and flywheel set bolts 79-86 ft-lb (11-12 m-kg).
How do I adjust the clutch or transmission on a Kubota L210?
For the clutch, set the difference in height of the three release levers to less than 0.012 in. (0.3 mm). Pedal play should come to 0.79 - 0.90 in. (20 - 23 mm) (page 117), set with the adjusting bolt and the clutch lever connecting rod. The manual gives no separate adjustment procedure for the transmission itself.
What are the replacement specifications for starter motor?
The starter motor (cell-starter) carries code number 15021-65011 (Nippon Denso make). It is a magnetic switch type with over-running clutch, nominal voltage 12 V, nominal output 0.9 KW, series motor type, and clockwise rotation (when seen from pinion side).
What are the replacement specifications for battery?
The battery is a 12 V 80 AH capacity unit, rated on a 20-hour discharge rate and identified as Type N 70 Z. The maintenance chart confirms the same 12V 80AH figure.
How will I receive this Kubota L210 Service Manual?
Instant PDF download. The full 124-page searchable Service Manual is available right after payment. Open it on a laptop, tablet, or phone out in the shop.
Am I able to print pages from this Kubota L210 manual?
None at all. The PDF is DRM-free, so print whatever sections you need for the shop. Standard letter or A4 paper works.
Document Quality
This is a scanned document, so you will find the text is image-only and not searchable or copyable. The text quality is consistently crisp and easy to read across all pages. Diagrams and illustrations are raster images, but they are clear with legible labels, despite some minor faintness or skew on a few. Pages are generally clean with minimal scan artifacts, and there is one blank page at the end.
