This is the factory Kubota Operator's Manual (publication 35260-19717), 54 pages covering the L235, L235DT, L275, and L275DT compact tractors. It covers both two-wheel-drive and DT four-wheel-drive versions, built with the Kubota D1102-A and D1302-A diesel engines.Inside are the safe-operation rules, full specifications, implement limitations, new-tractor break-in guidance, the instrument panel and controls, three-point hitch and drawbar, wheels and tread settings, operating instructions, the maintenance schedule, check-and-maintenance procedures, adjustments, troubleshooting, long-term storage, and the wiring diagram.Use it to operate the tractor correctly, follow the right service intervals, bleed the fuel line, set fan-belt and clutch adjustments, torque the wheel bolts, and trace an electrical fault with the included wiring diagram. Delivered as a downloadable PDF you can read on any device or print.
What's Inside This Kubota L235–L275 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| For Safe Operation | - | Fuel Supply and Starting Engine, Operation, Loading and Unloading, Traveling, Operating with Implement, Other Operating Cautions |
| Servicing of Tractor | - | Identification Plate, Tractor Serial Number, Engine Serial Number |

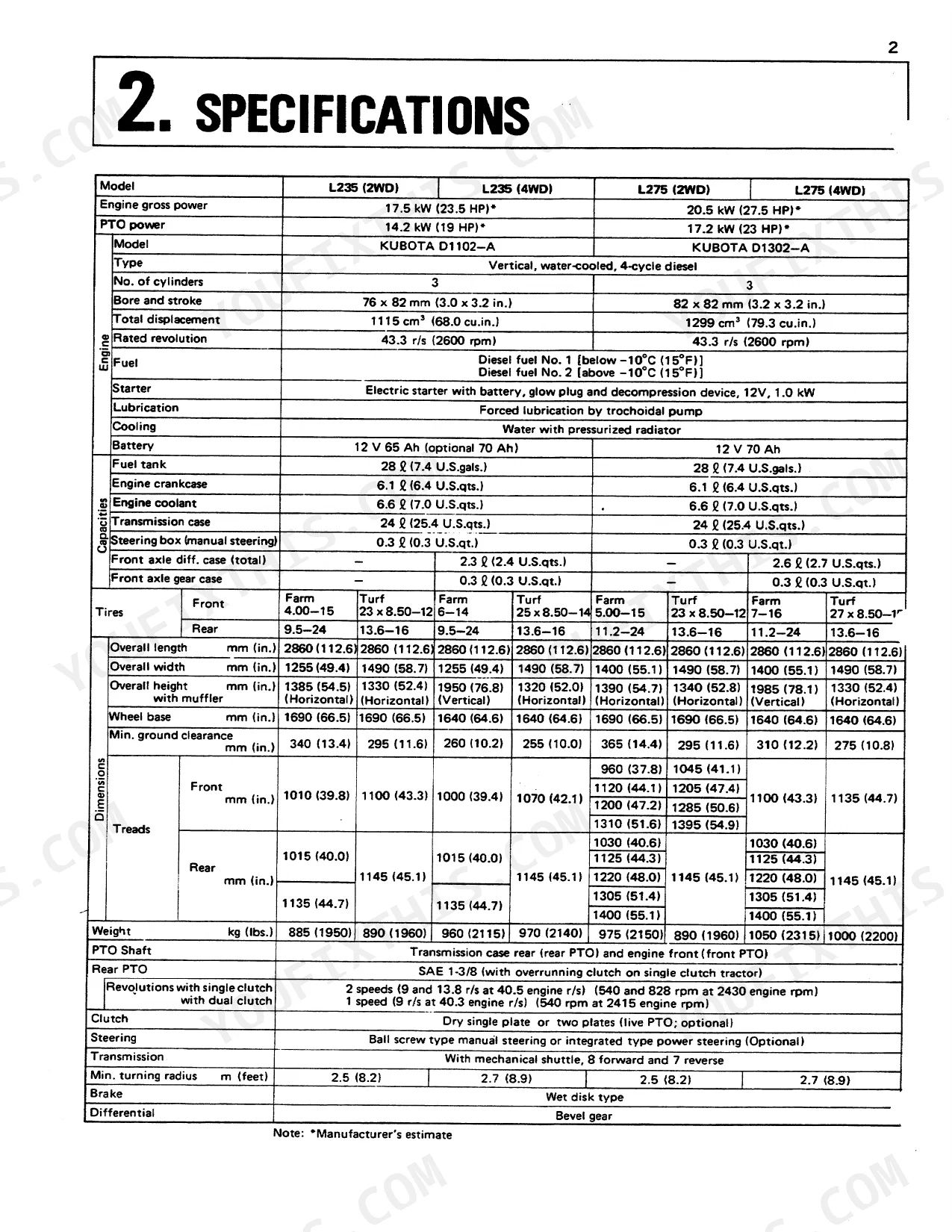

| Specifications | - | Model, Engine Gross Power, PTO Power, Engine, Capacities, Dimensions, Weight, PTO Shaft |
| Specifications of Implement Limitations | - | Implement Limitations, Tread with Farm Tires, Lower Link End Max. Loading Weight |
| Handling New Tractor | - | Operating Precautions for First 100 Hours, Changing Lubricating Oil for New Tractors, Read for Safe Operation |

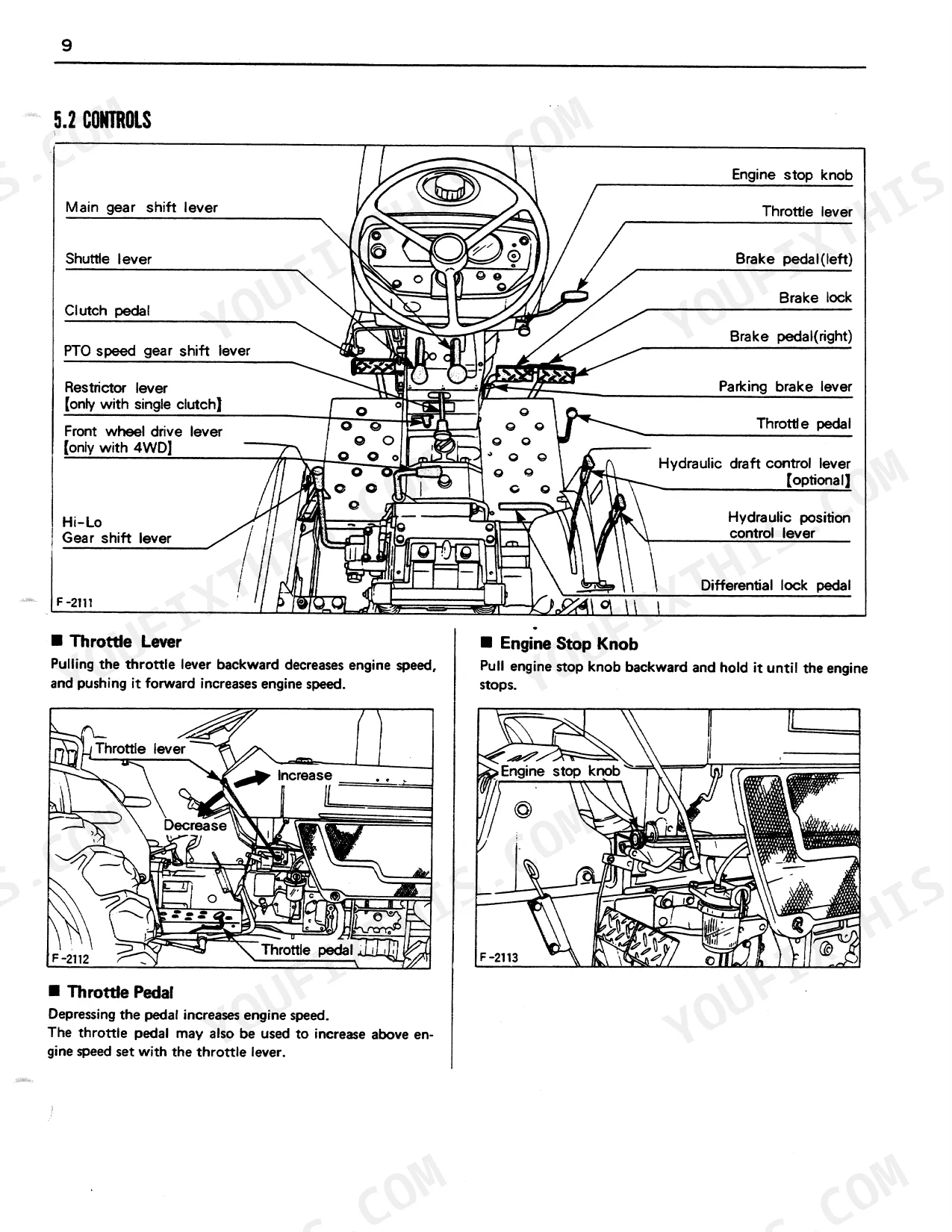

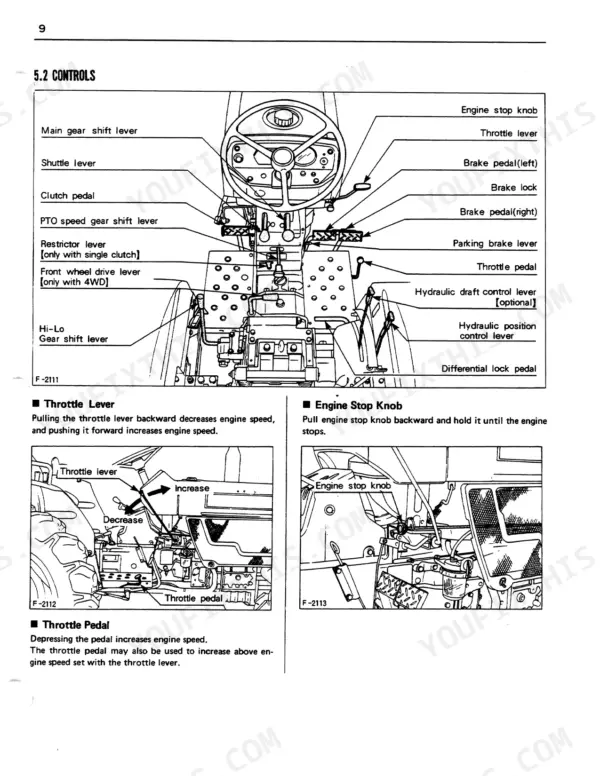

| Instrument Panel and Controls | - | Switches, Key Switch, Light Switch, Hazard Lamp Switch, Glow Plug Indicator, Horn Button, Hour Meter, Engine Oil Pressure Lamp |
| Three-Point Hitch & Drawbar | - | Top Link, Lifting Rod, Check Chains |
| Wheels, Tires and Tread | - | Tread (L235), Tread (L275), Tires |

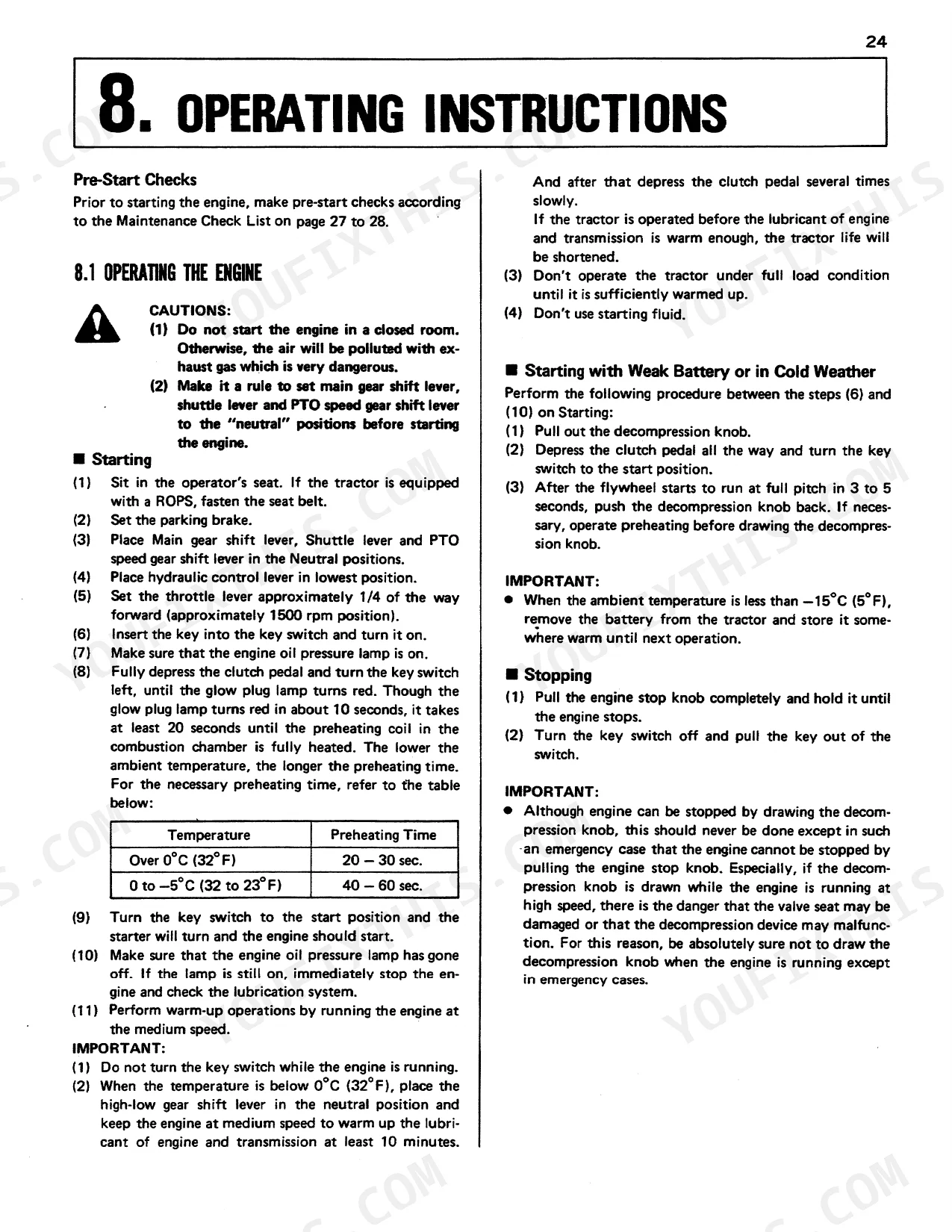

| Operating Instructions | - | Operating the Engine, Starting, Starting with Weak Battery or in Cold Weather, Stopping, Operating the Tractor, Parking, Pulling, Check During Driving |

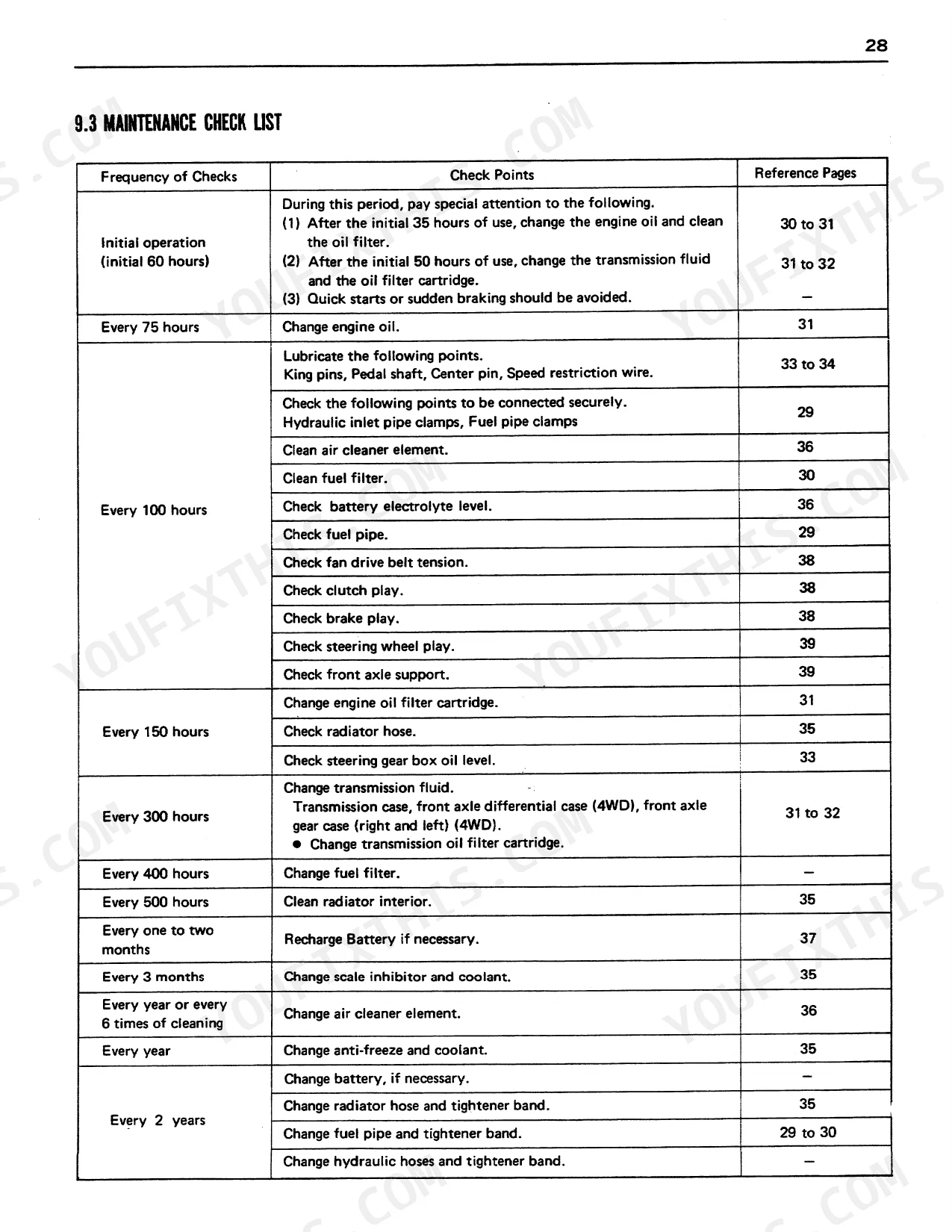

| Maintenance | - | Daily Check, Lubricants, Maintenance Check List, Initial Operation, Every 75 Hours, Every 100 Hours, Every 150 Hours, Every 300 Hours |
| Check and Maintenance | - | Fuel, Checking and Refueling, Bleeding the Fuel Line, Checking Fuel Pipe, Engine Oil, Oil Level Check and Replenishment, Cleaning the Fuel Filter Pot, Engine Oil Change |
| Adjustments | - | Fan Drive Belt Tention, Clutch, Brake, Steering Wheel, Front Axle Support, Speed Restriction Wire |

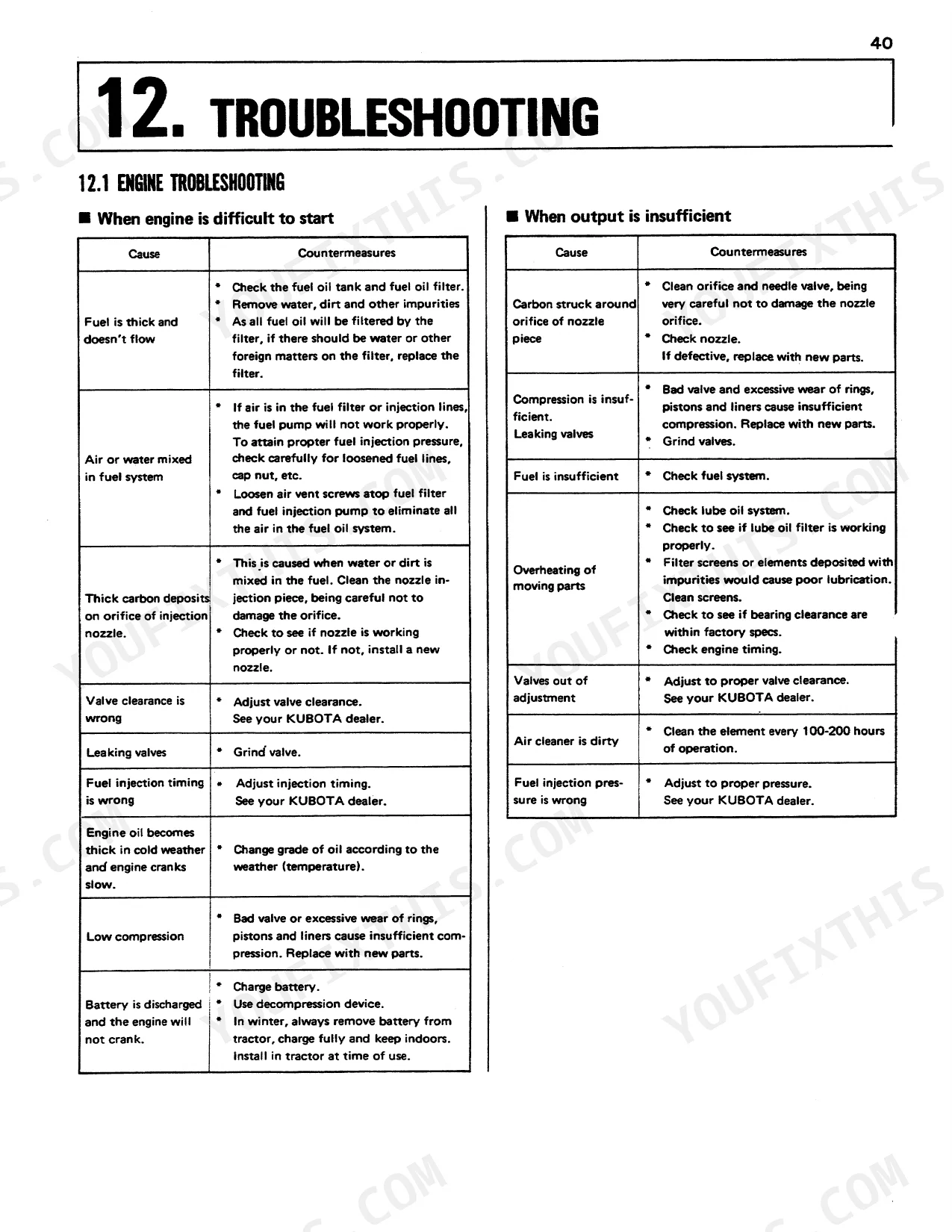

| Troubleshooting | - | Engine Troubleshooting, When Engine Is Difficult to Start, When Output Is Insufficient, Tractor Troubleshooting, When Color of Exhaust Is Specially Bad, When Engine Suddenly Stops |
| Long-Term Storage | - | Storage Procedures, Clutch Pedal Lock for Storage, Cleaning the Tractor |
| Wiring Diagram | - | Color of Wire Harness, Publication Information, Safety Information |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Front wheel bolt torque | 20-23 kgf·m (145-165 ft-lbs.) | p. 25 |
| Transmission oil filter cartridge change interval | every 300 service hours | p. 38 |
| Transmission oil filter efficiency | 10 µm filter | p. 38 |
| Fuel filter cleaning interval | approx. 100 hours | p. 36 |
| Air cleaner element cleaning interval (normal conditions) | once a week | p. 42 |
| Air cleaner element replacement interval | once yearly or every time the air cleaner is rinsed with water (6 times a year) | p. 42 |
| Radiator interior cleaning interval | every 500 service hours | p. 34 |
| Radiator net and core cleaning interval | Daily or every 5 hours of operation | p. 41 |
| Fan drive belt tension (deflection) | approx. 10 mm (0.4 in.) | p. 44 |
| Fan drive belt tension (finger pressure) | 98 N (10 kgf, 22 lbs.) | p. 44 |
| L235 | ||
| Battery capacity | 12 V 65 Ah (optional 70 Ah) | p. 8 |
| L275 | ||
| Battery capacity | 12 V 70 Ah | p. 8 |
Kubota L235–L275 Series Common Problems This Manual Covers
Weak or slow hydraulic lift
L235 and L275 owners often report slow or low-capacity loader lift. Common causes are low hydraulic oil, a clogged suction or filter screen, or air in the system. The troubleshooting section helps isolate the cause before pump work.
Manual Section: Troubleshooting p. 46Hard starting with air in the fuel line
A tractor that cranks but will not fire, especially after sitting, frequently has air or restriction in the fuel line. The check-and-maintenance section covers bleeding the fuel line and cleaning the fuel filter pot.
Manual Section: Check and Maintenance p. 35Overheating from a clogged radiator
Temperature rise under load usually comes from a dirty radiator screen or core or a restricted air cleaner. The maintenance procedures cover cleaning the radiator net and core and servicing the air cleaner element.
Manual Section: Check and Maintenance p. 35Charging light on or weak charging
A lit charge indicator or weak charging points to the alternator, battery, or cable connections. The troubleshooting section guides you to the charging-system checks.
Manual Section: Troubleshooting p. 46Clutch or brake pedal out of adjustment
Clutch drag or a brake that does not hold usually needs the pedal free play reset. The adjustments section covers the clutch, brake, and steering settings.
Manual Section: Adjustments p. 44Fan belt slips or squeals
A glazed or loose fan drive belt causes squeal and poor charging or cooling. The adjustments section gives the correct belt deflection of about 10 mm under finger pressure.
Manual Section: Adjustments p. 44Frequently Asked Questions
Which models and engines does this manual cover?
It is the operator's manual for the Kubota L235, L235DT, L275, and L275DT tractors, publication 35260-19717, 54 pages. The DT versions are four-wheel drive, using the D1102-A and D1302-A diesel engines.
Does it include torque specifications?
Yes. The wheels and tread section lists the rear wheel bolt torque at 20 to 23 kgf-m (145 to 165 ft-lbs) and the front wheel bolt torque at 9 to 11 kgf-m (65 to 80 ft-lbs). p. 25
Is a wiring diagram included?
Yes. The manual ends with a wiring diagram section covering the wire harness colors, so you can trace lights, charging, and starting circuits. p. 50
Is this an operator manual or a repair manual?
It is the operator's manual, covering operation, specifications, the maintenance schedule, adjustments, and troubleshooting. It is not a full workshop overhaul manual.
Is this Kubota L235–L275 Series Operator Manual a digital download?
Yes, it's an instant PDF download. The full 54-page searchable Operator Manual lands in your hands right after payment, ready to open on a laptop, tablet, or phone in the shop.
Can I print specific sections of this Kubota L235–L275 Series Operator Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
