Every procedure here points at one outcome: bringing your compact tractor back to factory spec. The hydraulic section maps the full circuit, tracing fluid through the position control valve, flow priority valve, and relief valve, while the wiring diagrams follow the starting, charging, and lighting systems from glow plug to alternator. The engine chapter runs 75 pages on its own, covering the cylinder head, fuel injection pump, governor, and lubricating circuit. Cylinder head bolts torque to 93.1–98.0 N-m; front wheel lug nuts land at exactly 137 N-m before the front axle goes back together. With your machine sidelined, you want the factory number, not a forum guess. Section bookmarks drop you straight into transmission, brakes, or steering without scrolling, and it opens on any device so you can read it at the bench.
What's Inside This Kubota L2600, L3000 Manual
| System | Pages | Key Topics |
|---|---|---|

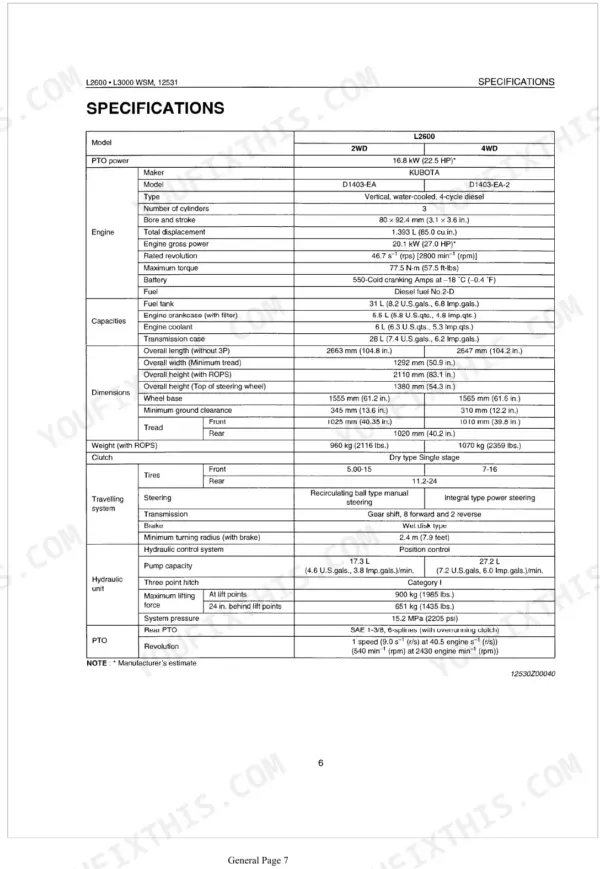

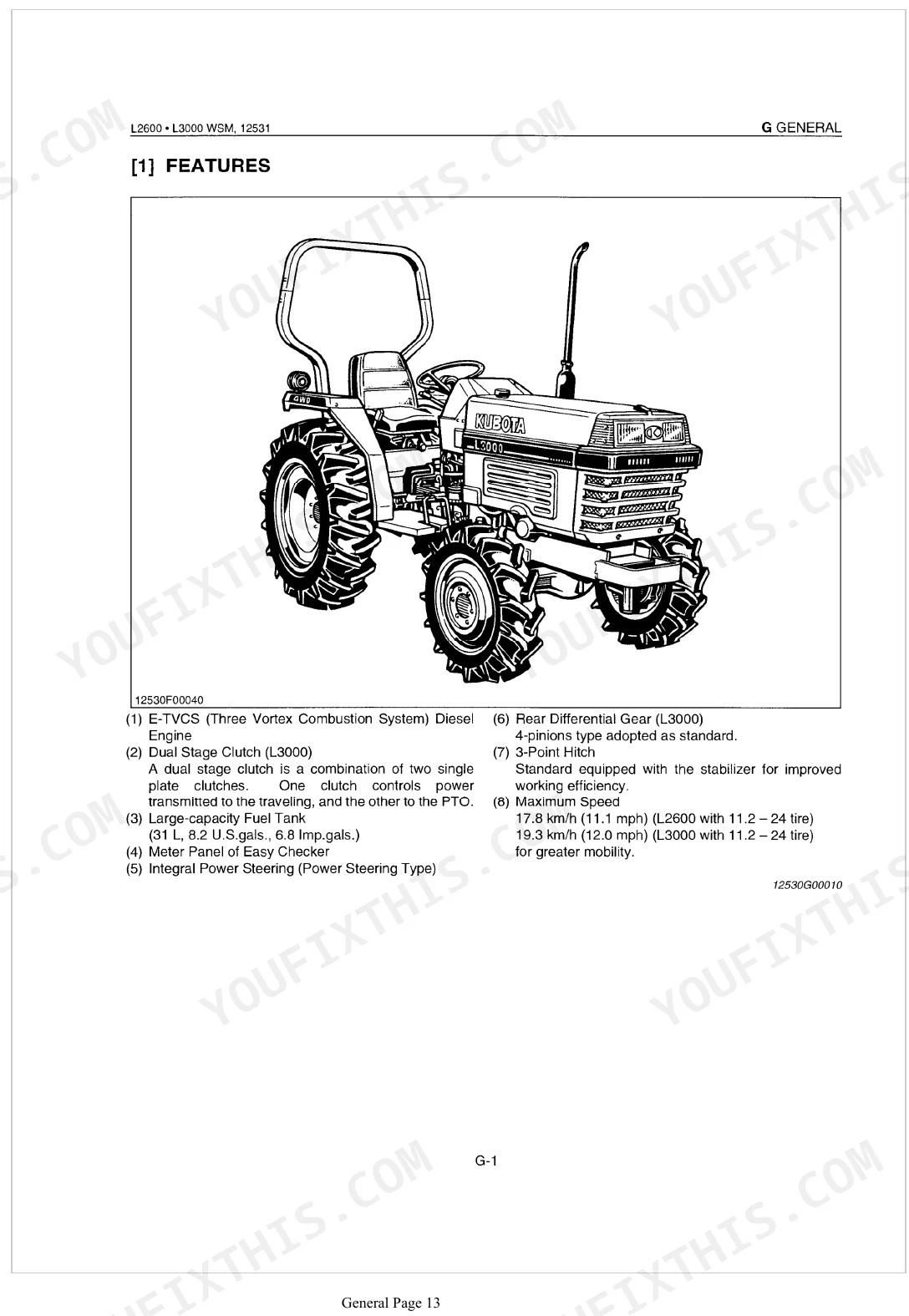

| Specifications | 7-9 | L2600 Model Specifications, PTO Power, Engine, Capacities, Weight With ROPS, Clutch, Travelling System, Hydraulic Unit |
| General | 10-58 | Tractor Identification, Tractor Identification Plate, Tractor Serial Number, Engine Serial Number, Hour Meter, Wiring, Battery |
| Engine | 59-133 | Engine Body, Cylinder Block, Cylinder Head, Crankshaft, Piston And Piston Rings, Connecting Rod, Camshaft, Fuel Camshaft |
| Clutch | 134-153 | Dry Type, Single Plate Clutch L2600, Dual Stage Clutch L3000, Clutch Engaged, Clutch Disengaged, Travelling Clutch Disengaged, PTO Clutch Engaged, Checking |
| Transmission | 154-206 | Main Gear Shift Section, Hi-Lo Range Gear Shift Section, PTO Gear Section, Four Wheel Drive Section (4WD), Differential Gear Section, Travelling System, Front Wheel Drive Section (4WD), PTO System |
| Rear Axle | 207-216 | Rear Axle Structure, Checking, Disassembling And Servicing, Separating Rear Axle Case From Brake Case, Disassembling Rear Axle, Draining Transmission Fluid, Rear Wheel, ROPS |
| Brakes | 217-232 | Features Of Wet Disc Brakes, Fade, During Braking, Checking, Disassembling And Servicing, Brake Pedal, Brake Case, Brake Pedal Free Play |
| Front Axle | 233-265 | 2WD Type, 4WD Type, Front Wheel Alignment, Camber, Kingpin Angle, Caster, Toe-in, Checking |
| Steering | 266-292 | Steering Linkage, Manual Steering, Power Steering, Hydraulic Circuit For Power Steering, Power Steering Body, Oil Flow |
| Hydraulic System | 293-326 | Hydraulic Circuit, Hydraulic Pump, Oil Strainer, Position Control Valve, Relief Valve, Hydraulic Cylinder, Linkage Mechanism, Flow Priority Valve (Power Steering Type) |
| Electrical System | 327-372 | Wiring Diagram, Electrical Circuit, Starting System, Starter, Glow Plug, Charging System, Alternator, IC Regulator |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

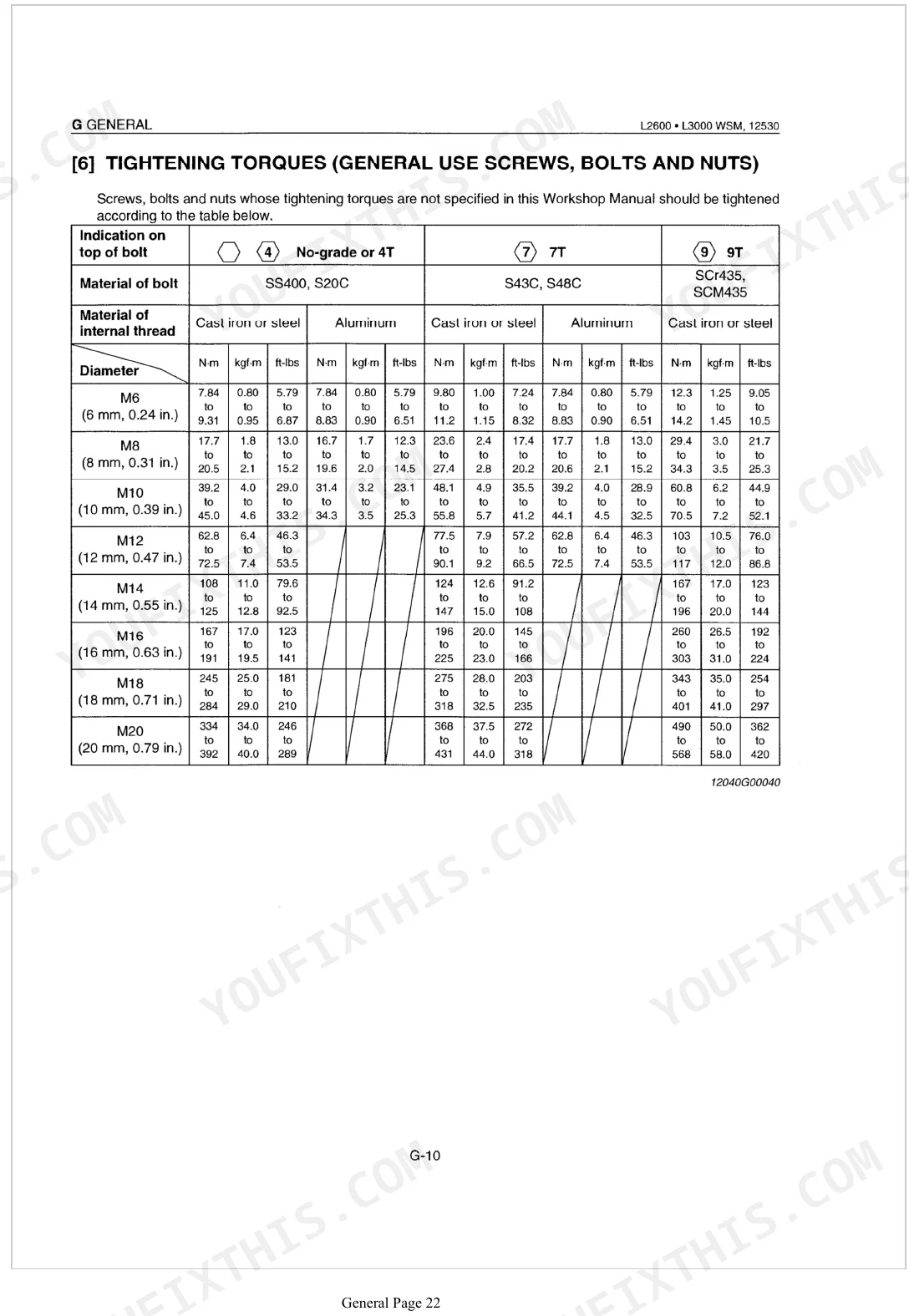

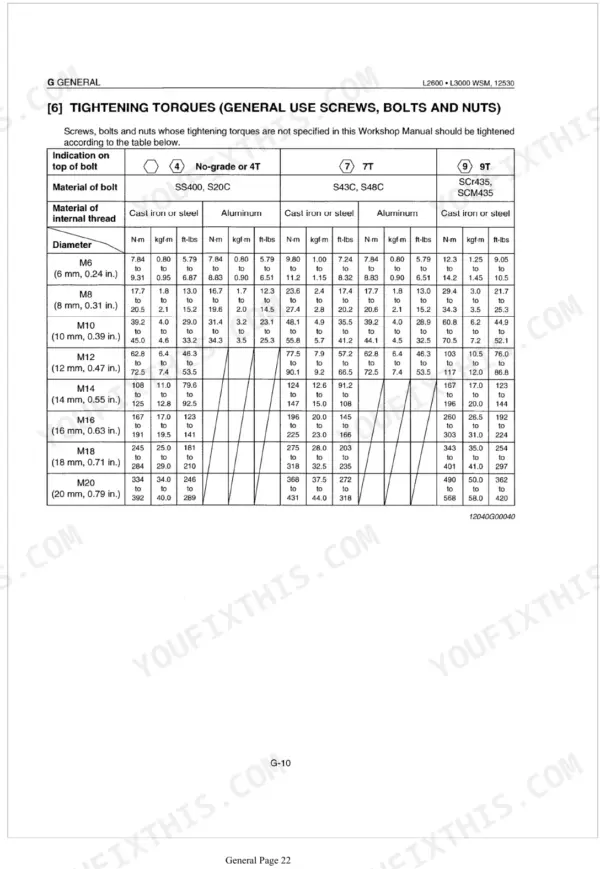

| Tightening Torques (General Use Screws, Bolts and Nuts) - M6 (No-grade or 4T) | 7.84 to 9.31 N-m | p. 22 |
| Tightening Torques (Engine) - Cylinder head bolt | 93.1 to 98.0 N-m | p. 89 |
| Tightening Torques (Clutch) - Lock nut | 15.7 to 21.6 N-m | p. 144 |
| Tightening Torques (Front Axle) - Front wheel mounting screw and nut or lug nut | 137 N-m | p. 245 |
| Front Axle Middle Boss to Front Axle Bracket Bushing (Front) - Clearance (Factory spec) | 0.000 to 0.177 mm | p. 242 |
| Front Axle Middle Boss to Front Axle Bracket Bushing (Front) - Clearance (Allowable limit) | 0.3 mm | p. 242 |
| Steering Wheel - Play (Factory Specification) | 20 to 50 mm | p. 280 |
| Drag Link End and Tie-rod - Play (Allowable Limit) | 0.3 mm | p. 280 |

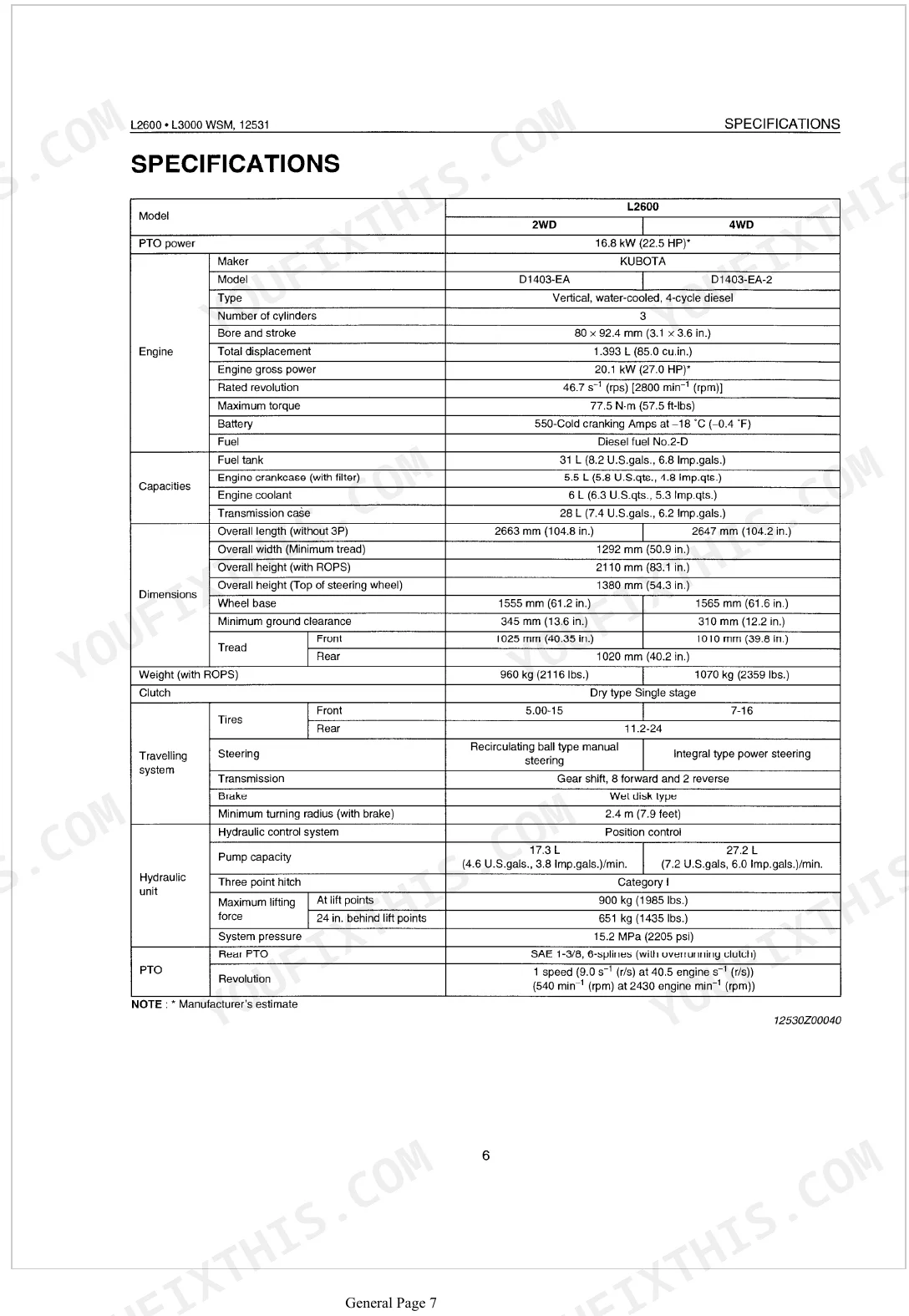

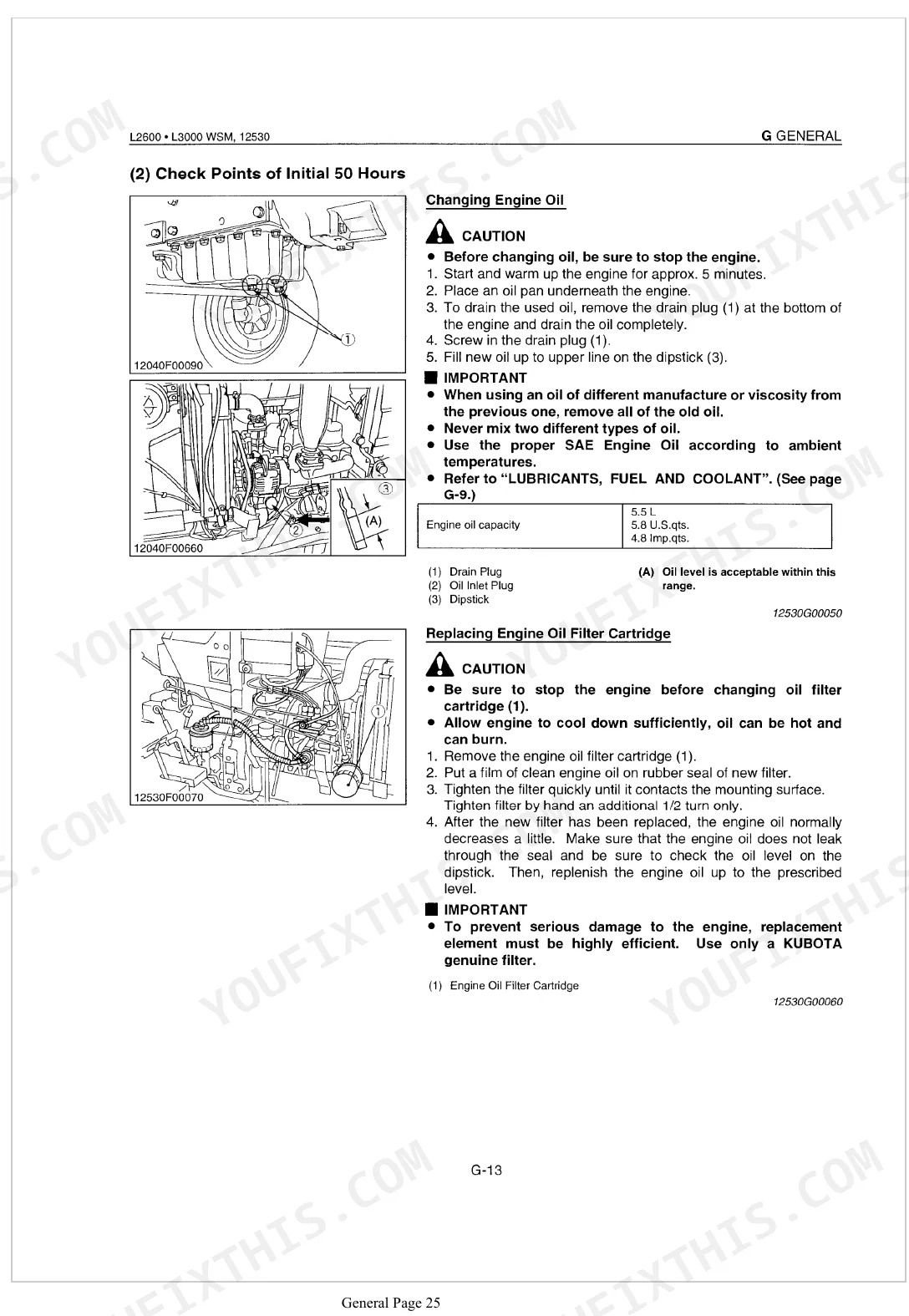

| Engine Crankcase (with filter) Capacity | 5.5 L | p. 7 |
| Cooling System Capacity | 6 L | p. 7 |
| Transmission Case Capacity | 28 L | p. 7 |
| Hydraulic System Pressure | 15.2 MPa (2205 psi) | p. 7 |
Kubota L2600, L3000 Common Problems This Manual Covers
Kubota L3000 4WD lever engages but front wheels quit pulling or only pull intermittently p. 233
Check the 4WD engagement linkage at the front axle for binding or missing snap rings. Inspect front axle bushing clearances; factory spec is 0.000 to 0.177 mm (page 242), and anything over 0.3 mm requires replacement. After any disassembly, torque the spiral bevel gear mounting screws to 123-130 N-m and front wheel lug nuts to 137 N-m (page 245).
Manual Section: Front AxleSteering column bolts back out during use, excessive play develops at the wheel p. 266
Verify steering wheel play: factory spec is 20 to 50 mm measured at the rim (page 280). If the column is loose, torque the steering wheel mounting nut to 29.4-49.0 N-m and the pitman arm nut to 118-157 N-m (page 282). Recheck play after tightening and inspect drag link ends; allowable limit is 0.3 mm of play.
Manual Section: SteeringEngine cranks slowly or won't fire in cold weather, glow plugs not heating fully

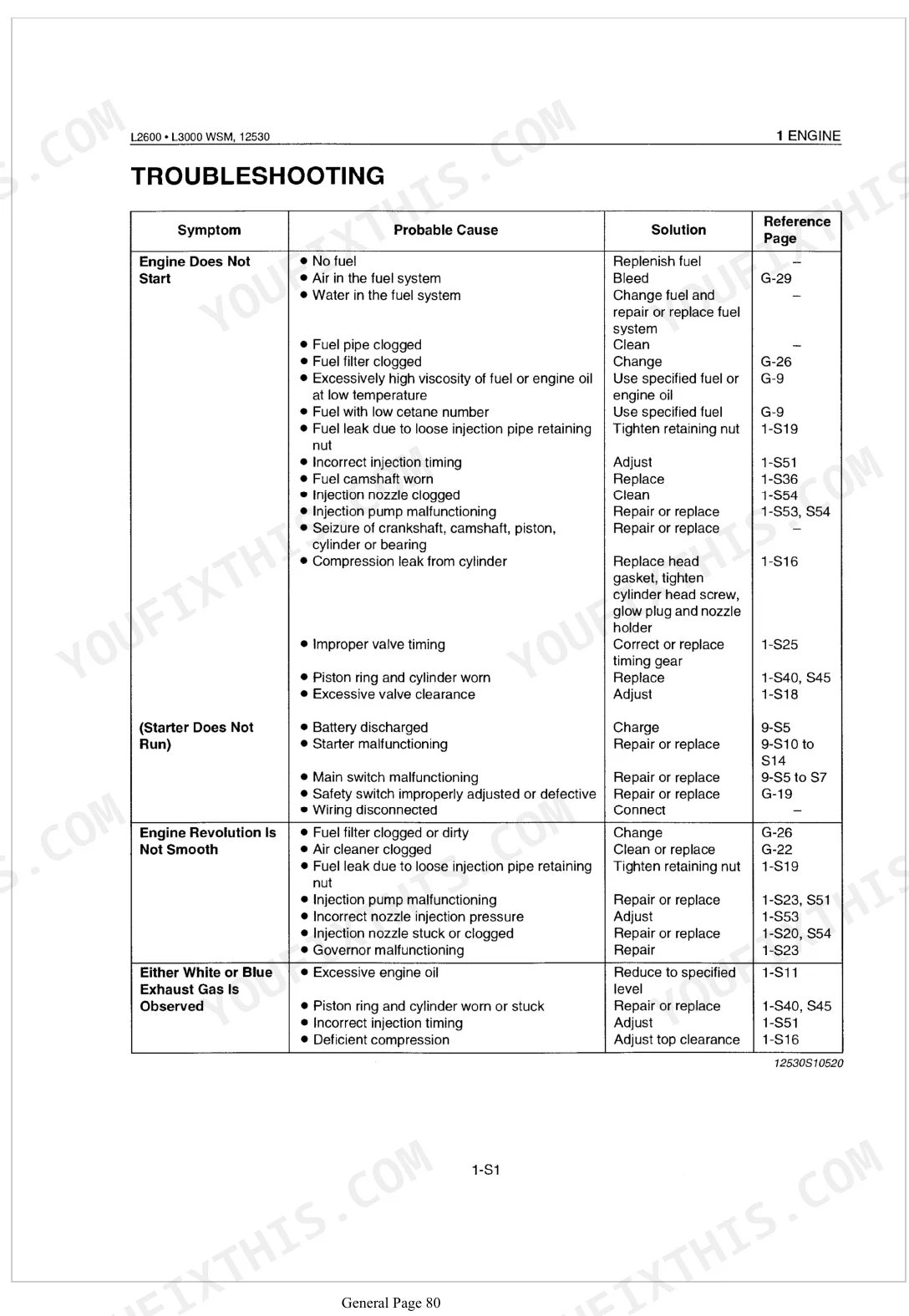

Test each glow plug for resistance before condemning the starting system. Check compression: factory spec is 3.53 to 3.72 MPa (page 83); low compression on a cold engine points to worn rings or valves. Verify injection pressure is 13.7 to 14.7 MPa (page 88), then work through the no-start sequence in the troubleshooting chart.
Manual Section: EngineThree-point hitch lifts slowly or won't raise implements to full height under load p. 293

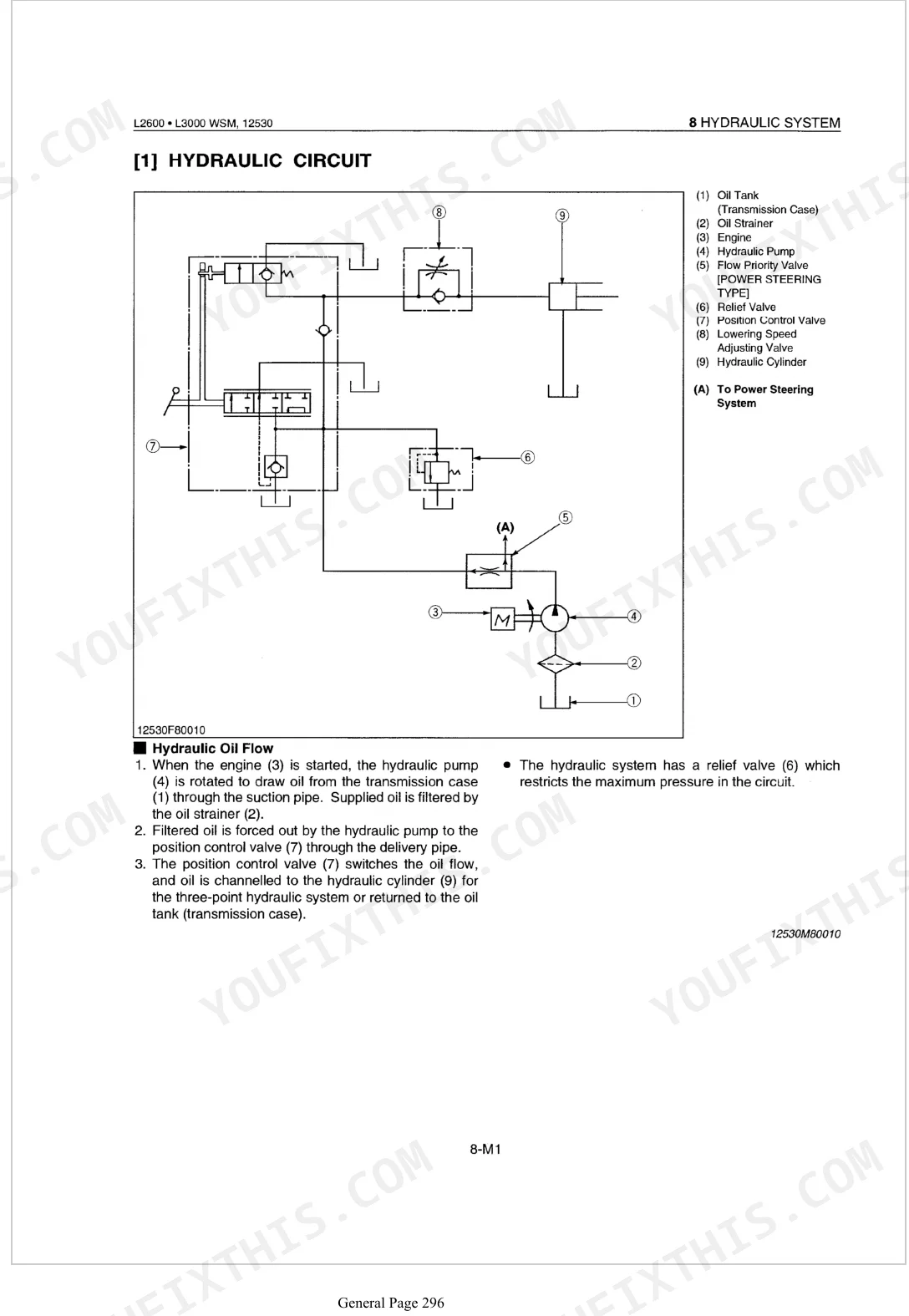

Measure system pressure after confirming the hydraulic fluid level: spec is 15.2 MPa (2205 psi) per page 7. Clear the oil strainer of debris before suspecting pump wear. If pressure stays low once the strainer is clean, examine the relief valve for sticking or incorrect adjustment. Study the hydraulic circuit diagram on page 296 before pulling any components.
Manual Section: Hydraulic SystemClutch slips under load or chatters on engagement, pedal feels soft or grabby p. 134
Inspect disc material and check for oil contamination from a leaking rear main seal before adjusting. Oil-soaked discs won't recover with adjustment alone; clean the entire housing before reassembly. Torque clutch mounting screws and reamer screws to 23.5-27.5 N-m (page 144) after any internal work. Page 134 walks through disassembly for both clutch designs used in this series.
Manual Section: ClutchFrequently Asked Questions
What are the torque specs for a Kubota L2600 engine or flywheel?
On the Kubota L2600, the flywheel screw torques to 98.0 to 107.8 N-m (10.0 to 11.0 kgf-m, 72.3 to 79.5 ft-lbs). Cylinder head bolts take 93.1 to 98.0 N-m (9.5 to 10.0 kgf-m, 68.7 to 72.3 ft-lbs), and connecting rod screws 44.1 to 49.0 N-m (4.5 to 5.0 kgf-m, 32.5 to 36.2 ft-lbs).
What are the torque specs for a Kubota L3000 head bolts or wheel bolts?
Cylinder head bolts on the L3000 run 93.1 to 98.0 N-m (9.5 to 10.0 kgf-m, 68.7 to 72.3 ft-lbs). Rear wheel mounting screws and nuts call for 197 to 226 N-m (20 to 23 kgf-m, 145 to 166 ft-lbs).
What are the replacement specifications for front axle drive components?
Replace the bushing or front axle case once clearance between the front axle middle boss and front axle bracket bushing passes its allowable limit of 0.3 mm (0.012 in.). The knuckle shaft to bushing clearance has its own ceiling at 0.4 mm (0.016 in.), beyond which replacement is necessary. On 4WD models, swap the faulty parts if differential pinion shaft to pinion clearance exceeds 0.25 mm (0.0098 in.).
What are the replacement specifications for steering column bolts and mounting hardware?
Torque the steering wheel mounting nut to 29.4 to 49.0 N-m (3.0 to 5.0 kgf-m, 21.7 to 36.2 ft-lbs) and the steering gear box mounting screw to 48.1 to 55.8 N-m (4.9 to 5.7 kgf-m, 35.5 to 41.2 ft-lbs). Initial turning torque for the steering shaft (without bushing and seal) sits at 0.25 to 0.44 N-m (0.025 to 0.045 kgf-m, 0.181 to 0.326 ft-lbs).
What do I get after purchasing this Kubota L2600, L3000 manual?
This is a 372-page searchable PDF ready for immediate download. It works on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print this Kubota L2600, L3000 manual?
Yes. The PDF carries no DRM restrictions, so you can print any page or section you need for your shop. Works with any standard printer.
Does this Kubota L2600, L3000 manual include wiring diagrams?

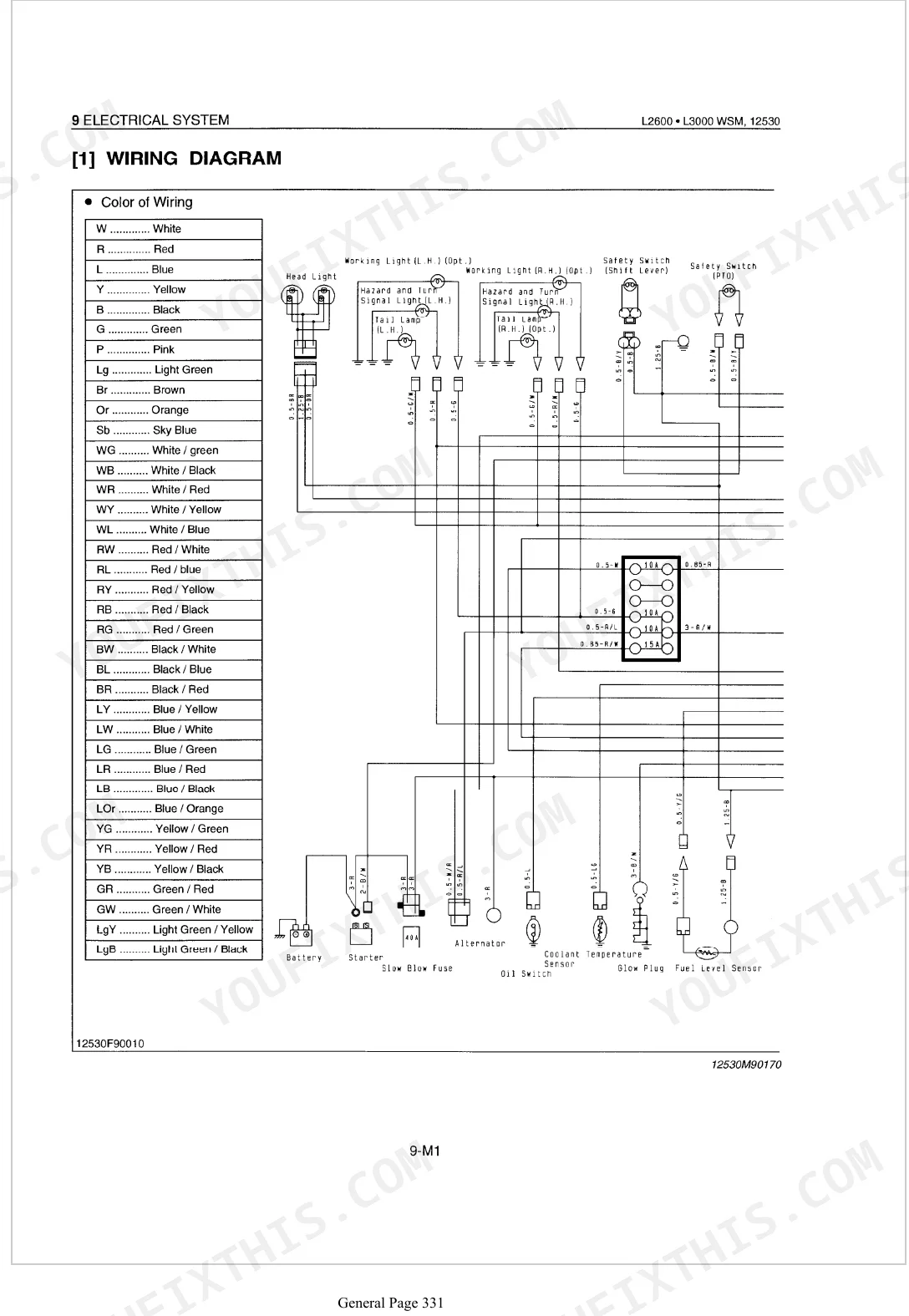

Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Kubota L2600, L3000.
