Kubota built the BX23S to work with three factory attachments, and this OEM shop manual (#9Y111-16500) documents all four machines in one 511-page file: the tractor, the LA340 front loader, the BT603 backhoe, and the RCK54D and RCK60D mower decks. Hydraulic schematics trace fluid circuits through every implement. Wiring diagrams carry full connector charts, wire color codes, and OPC timer circuit detail. Troubleshooting tables and procedures walk through the HST and transaxle, front axle alignment, steering controller, mower lift, and loader valve sequencing. Need to snug the LA340 main frame mounting bolt (M14)? It torques to 115 N⋅m (85 lbf⋅ft), and every M6 through M14 fastener spec sits alongside it. Skip the forum hunt. Bookmarks jump straight to any chapter, and keyword search pulls the number you need in seconds.
What's Inside This Kubota BX23S Package Manual

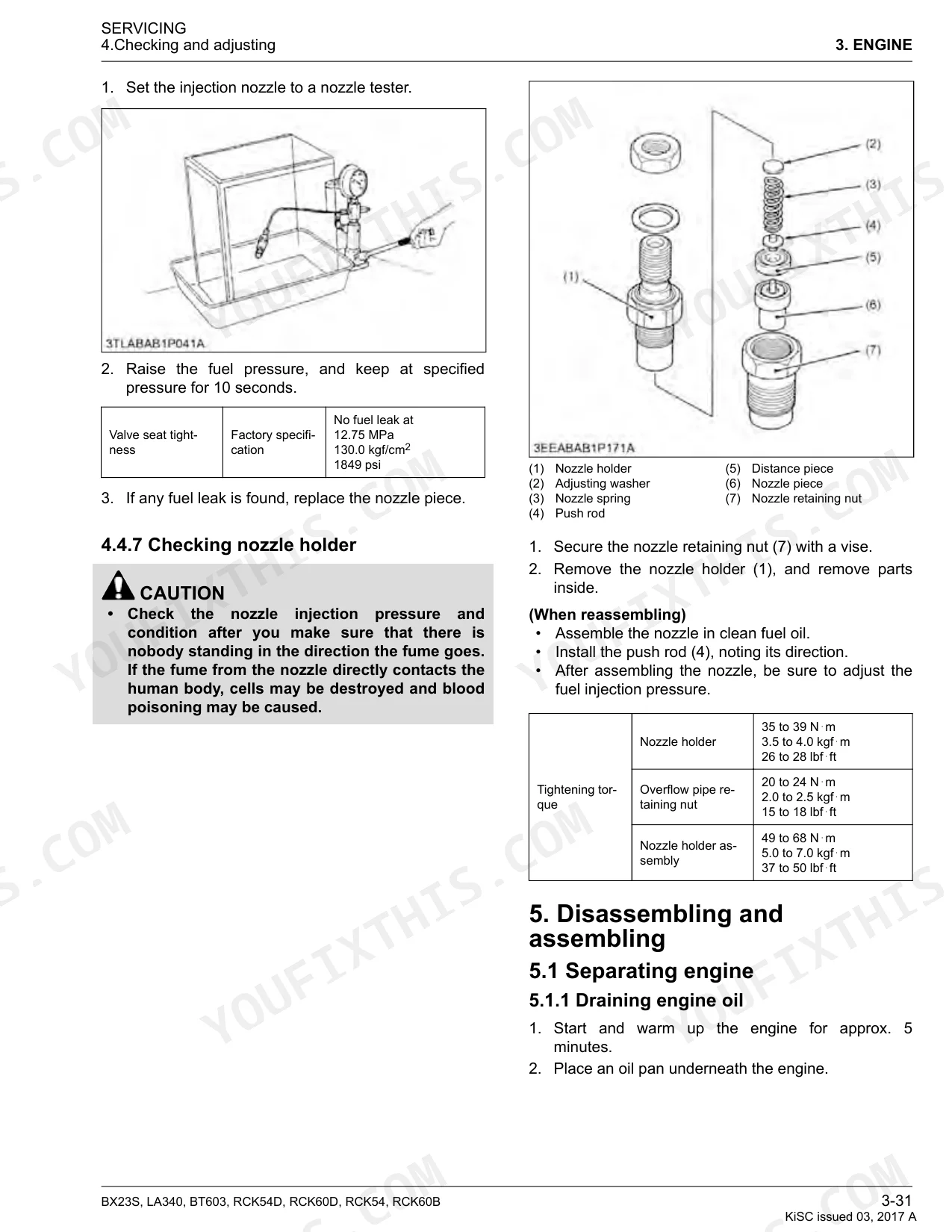

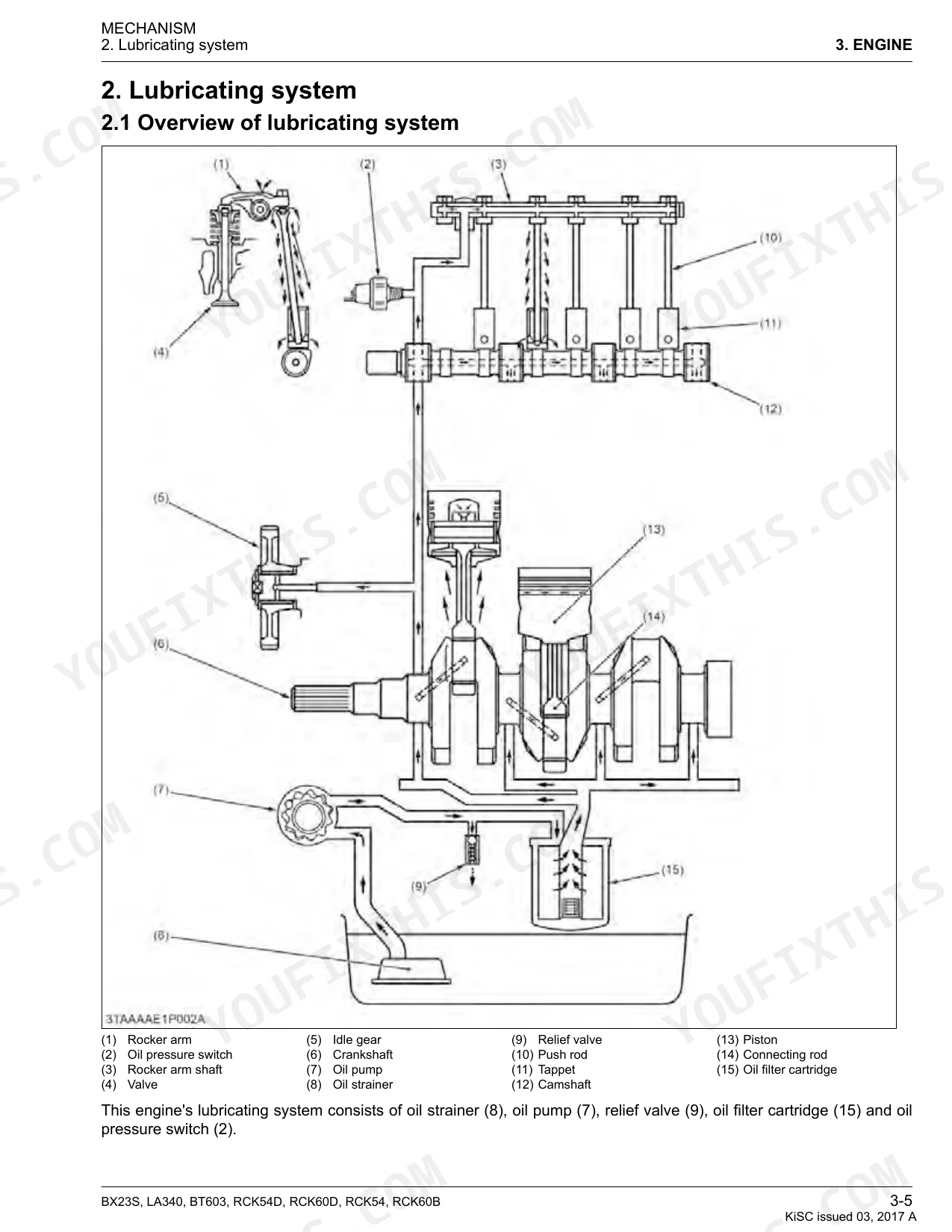

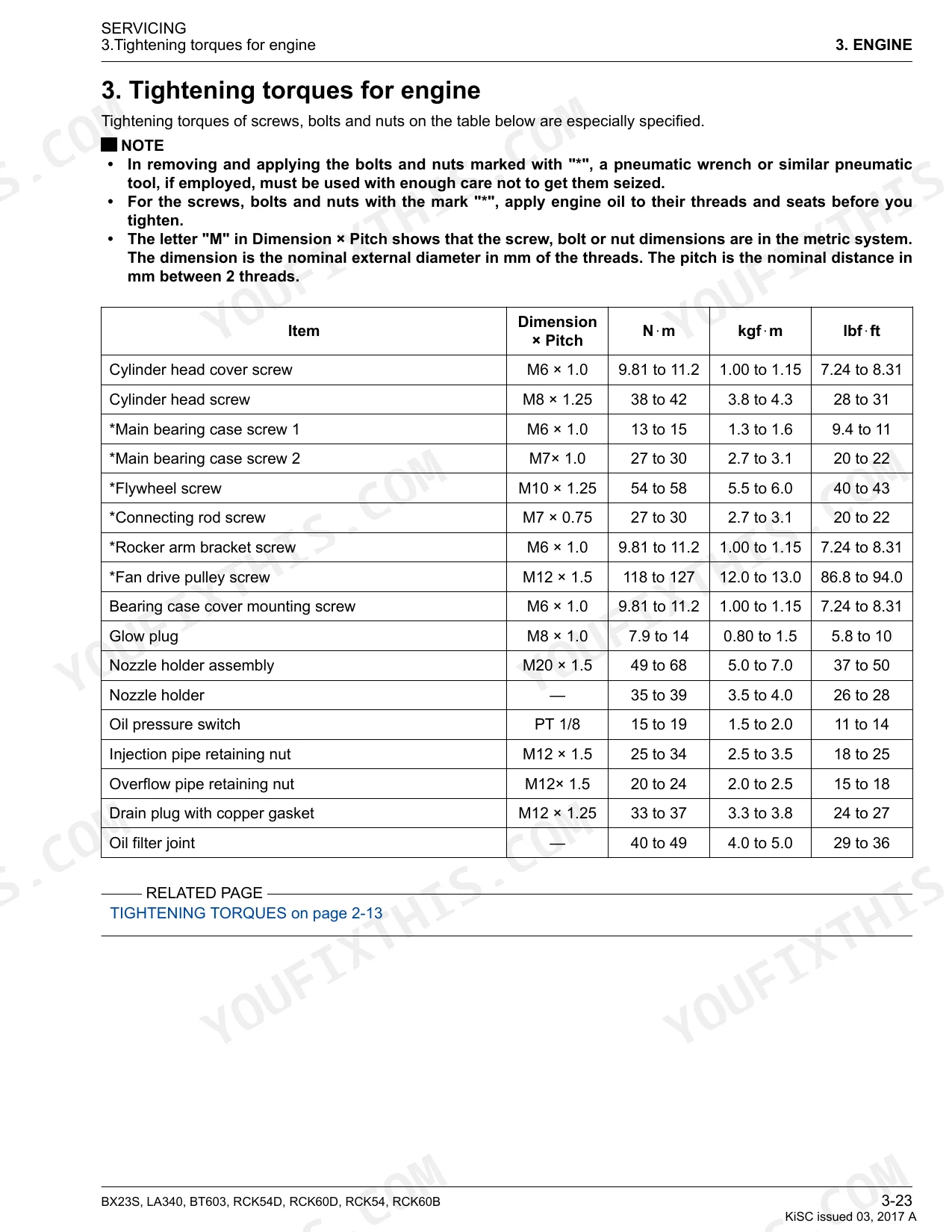

| System | Pages | Key Topics |
|---|---|---|
| Information | - | Safety First, Before You Start Service, Operate Safely, High Pressure Spray, Hot Exhaust, Exhaust Filter Cleaning, Fire Prevention |
| General | - | Tractor / Mower / Loader / Backhoe Identification, Serial Number and Hour Meter, Cylinder Number, Lubricants, Fuel and Coolant |
| Engine | - | Engine Body, Cylinder Block, Closed Breather, Half-Floating Head Cover, Piston and Piston Ring, Connecting Rod |
| Transaxle | - | Traveling System, Hydrostatic Transmission (HST), Oil Flow, Neutral / Forward Position |
| Front Axle | - | Front Wheel Alignment, Camber, Kingpin Angle, Caster, Toe-In, Troubleshooting |
| Steering | - | Steering System, Hydraulic Circuit, Steering Controller, Control Valve, Metering Device |

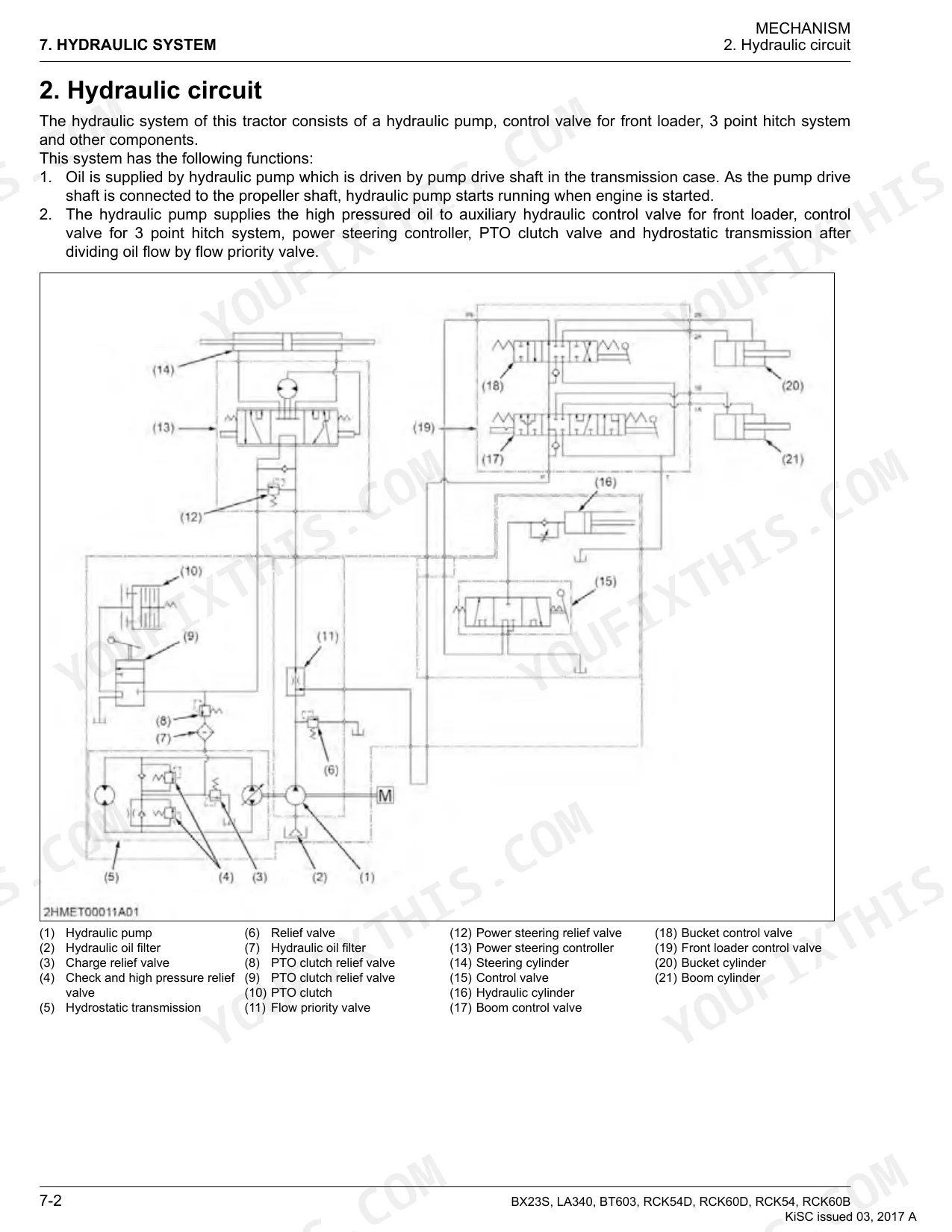

| Hydraulic System | - | Hydraulic Circuit, Hydraulic Pump, Control Valve |

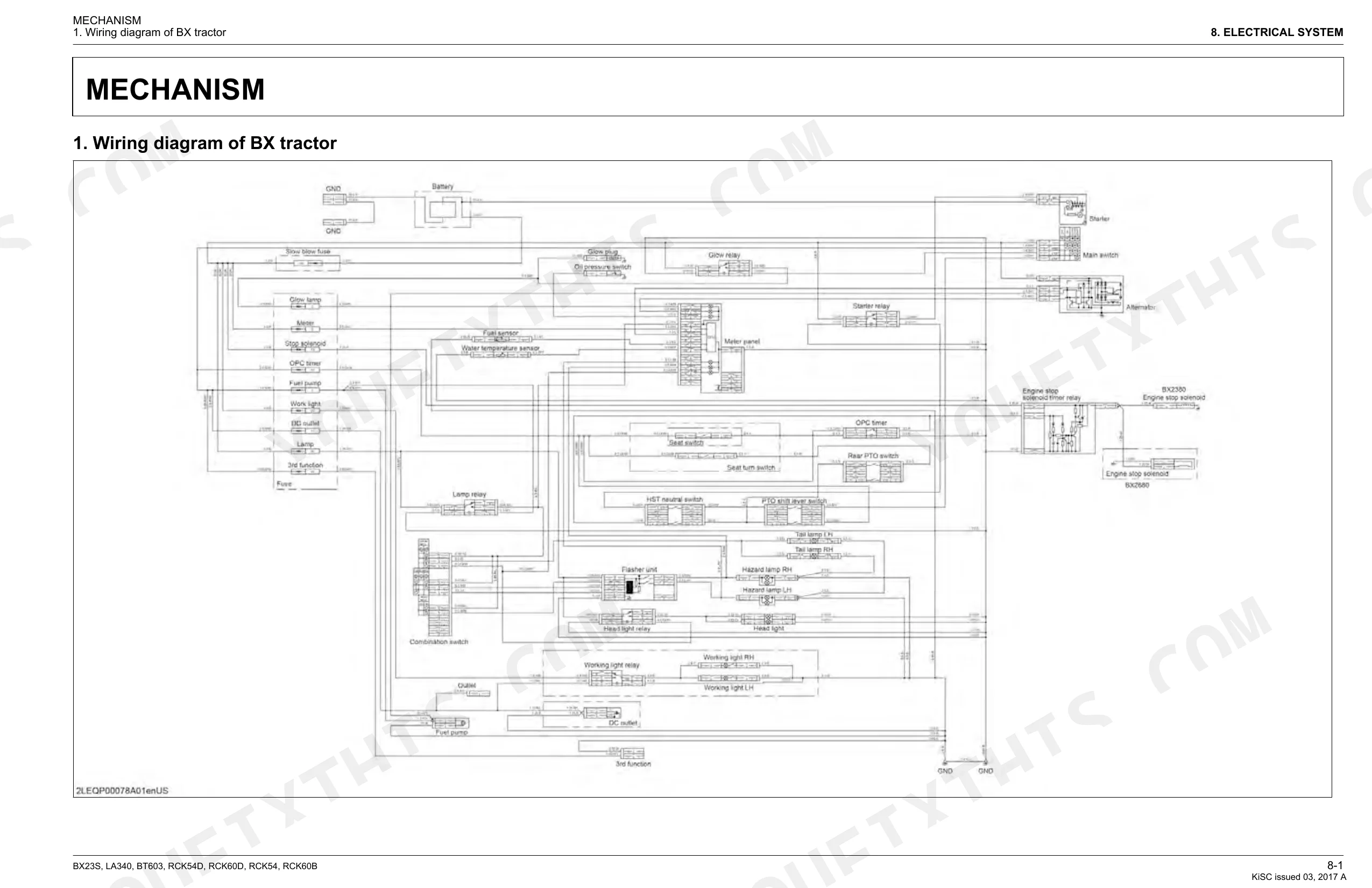

| Electrical System | - | Wiring Diagram, Electrical Connector Chart, Reading Circuit Diagrams, Wire Color, Unit Symbol, Connector Layout |
| Mower | - | Power Transmission, Lifting Mechanism, Troubleshooting, Servicing Specifications, Tightening Torques, Setup and Assembly (RCK54D / RCK60D) |
| Front Loader | - | Hydraulic Circuit, Control Lever, Boom and Bucket Cylinders, Cylinder Specifications, One-Touch Front Loader |
| Backhoe | - | Hydraulic Circuit, Backhoe Control Valve (Inlet / Control / Outlet Sections) |
Every system also includes mechanism.

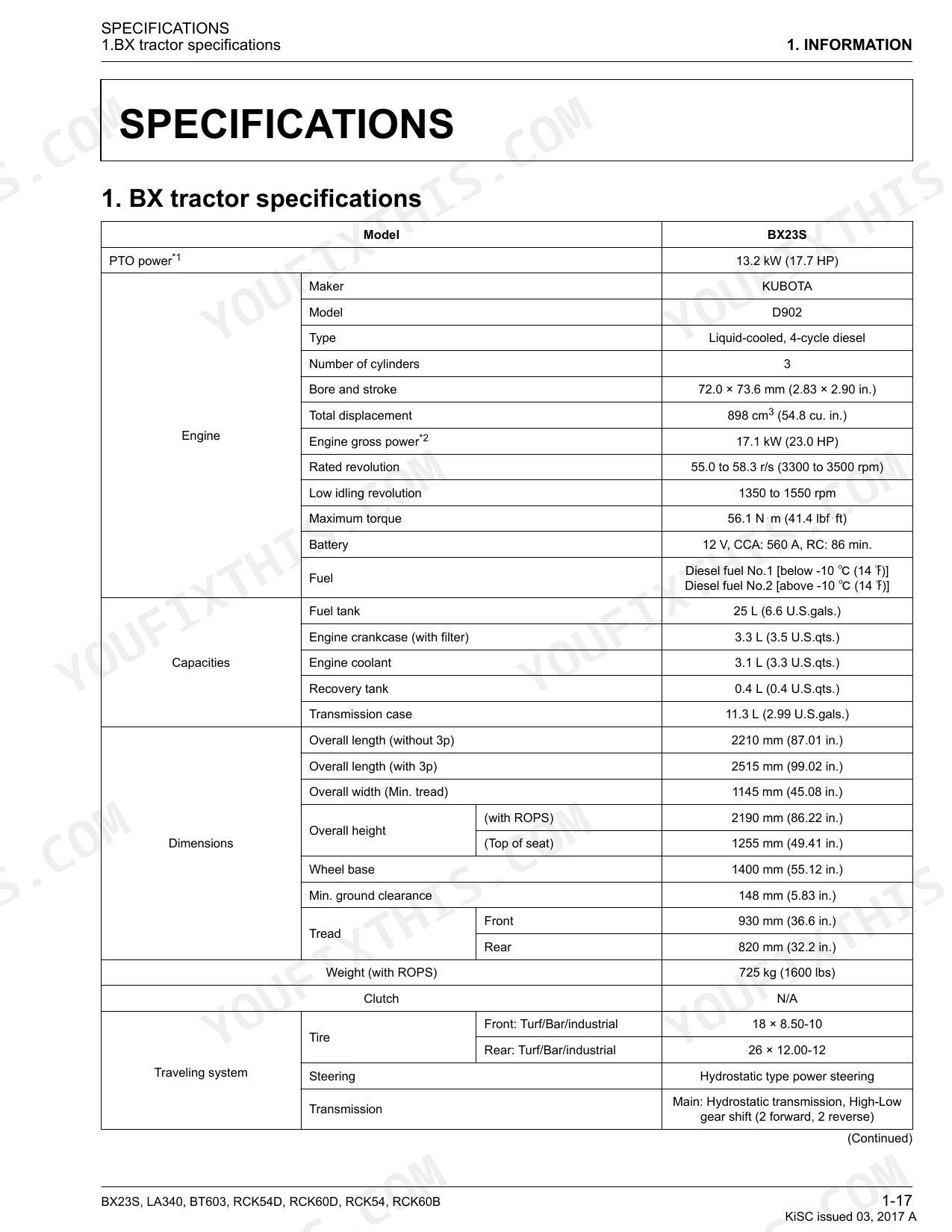

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Main frame mounting bolt (M14) torque | 115 N⋅m, 11.7 kgf⋅m, 85 lbf⋅ft | p. 435 |
| General use screws, bolts and nuts (M6 Ordinariness) | 7.9 to 9.3 N⋅m, 0.80 to 0.95 kgf⋅m, 5.8 to 6.8 lbf⋅ft | p. 65 |
| Seat switch continuity (When switch is not pushed / when operator leaves the seat) | Infinity | p. 381 |
| Seat switch continuity (When switch is pushed / when operator sits on the seat) | 0 Ω | p. 381 |
| HST neutral switch continuity (Plunger is pushed into the switch body) | 0 Ω | p. 380 |
| HST neutral switch continuity (Plunger is released) | Infinity | p. 380 |
| Transmission oil filter replacement interval | every 200 Hr | p. 69 |
| Transmission oil filter tightening (after contact) | an additional 1/2 turn only | p. 78 |
| Transmission oil type | KUBOTA SUPER UDT-2 fluid or Regular UDT | p. 60 |
| HST fan mounting screw torque | 9.8 to 11 N⋅m, 1.0 to 1.2 kgf⋅m, 7.3 to 8.6 lbf⋅ft | p. 220 |
Kubota BX23S Package Common Problems This Manual Covers
Kubota BX23S starts fine but tractor won't move forward or reverse, HST pedal unresponsive
Check the seat switch: unoccupied it reads infinity, seated it reads 0 Ω (page 381). Verify the HST neutral switch plunger also reads 0 Ω when pressed (page 380). Confirm transmission fluid is filled with KUBOTA SUPER UDT-2 (page 60) and replace the filter if it exceeds 200 hours of service (page 69).
Manual Section: Troubleshooting for transaxleHydraulic fluid leaking at loader manifold fittings, oil pooling under front of tractor
Inspect all loader manifold fittings and hose connections for looseness before assuming seal failure. Torque main frame mounting bolts (M14) to 115 N·m (85 lbf·ft) per page 435. Check boom cylinder rod seals for scoring or swelling. If the manifold block face leaks, remove and replace the O-ring face seal fittings; do not overtighten steel flare connections.
Manual Section: Troubleshooting for front loaderEngine loses power and bogs down while mowing, RPM drops under load
Clean the radiator screen and air intake first; clogged screens cause most power-loss complaints. Check the fuel filter and drain the sediment bowl for water contamination. If airflow and fuel are clean, measure compression: factory spec is 3.53 to 4.02 MPa (page 144). Below spec points to worn rings or valves, not a mower deck overload.

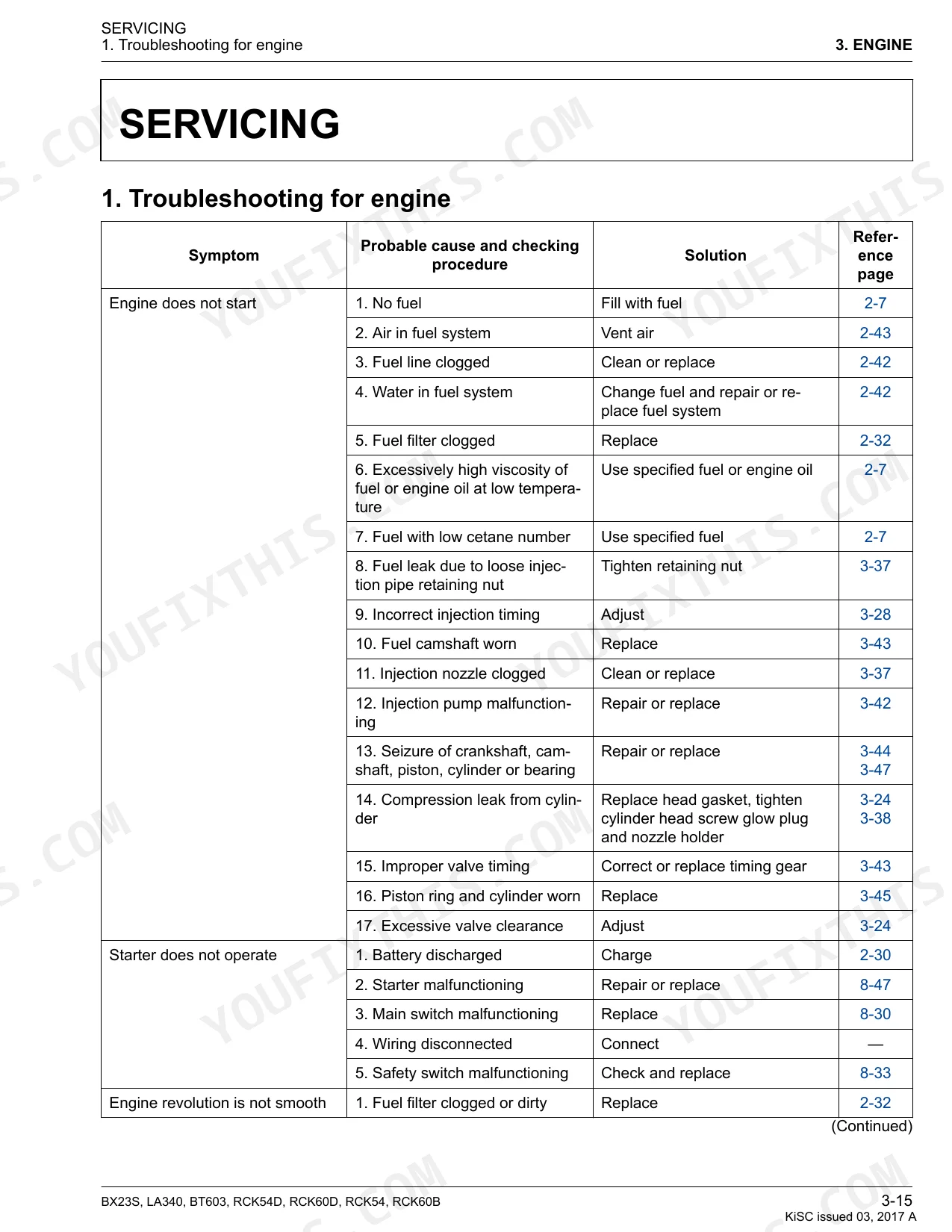

Manual Section: Troubleshooting for engineEngine cranks but will not fire, no-start condition with all dash lights working
Test the seat switch with a multimeter: it must read 0 Ω when an operator sits down and infinity when unoccupied (page 381). Do the same for the HST neutral switch plunger (page 380). If both switches pass, pull and inspect fuses in the fuse block and check for corroded or loose connectors at each interlock harness plug.
Manual Section: Troubleshooting for electrical systemOil leaking from front wheel hub or front axle, puddle forming after parked overnight
Remove the front wheel (torque screws to 149 to 179 N⋅m on reinstall, page 65) and inspect the front gear case cover oil seal. When installing the replacement seal, orient the lip exactly as shown in the diagram on page 268. Replace the bevel pinion shaft lock nut and oil seal together per page 269; never reuse them.
Manual Section: Troubleshooting for front axleTransmission whines and overheats while mowing heavy grass or in debris-filled conditions
Shut down immediately if oil temperature is high; debris packed around the HST cooling fan is the first thing to clear. Inspect fan blades for damage and torque mounting screws to 9.8 to 11 N⋅m (page 220). Verify transmission oil level and fill with KUBOTA SUPER UDT-2 if low; replace the filter past 200 hours (page 69).
Manual Section: Troubleshooting for transaxleFrequently Asked Questions
What are the torque specs for Kubota BX23S loader and mower deck bolts?
Mower blade screws torque to 102.9 to 117.6 N⋅m (10.5 to 12.0 kgf⋅m, 75.9 to 86.8 lbf⋅ft). The front loader main frame mounting bolt (M14) takes 115 N⋅m (11.7 kgf⋅m, 85 lbf⋅ft). p. 415
How do I reset the mower deck on a Kubota BX23S?
Start by adjusting all anti-scalp rollers to the F position so 4.5 holes (X) show. Next, unlock the lever (1) to raise the rear anti-scalp roller. Page 412 covers cutting-height adjustment in detail. p. 407
What is the correct procedure to install the RCK54D/RCK60D deck?
To install the mower, start the engine, engage 4WD, set the range gear shift lever to LOW, and release the parking brake. Drive over the ramp of the mower along the guide (1), keeping the front tire side touching the guide rod. After the tractor is over the mower, stop the engine, ensure the frame link is connected, and set the parking brake. Then, lock the rear lock (2). p. 410
What do I get after purchasing this Kubota BX23S & variants manual?
This is a 511-page searchable PDF ready for immediate download. It works on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print this Kubota BX23S & variants manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are there wiring harness diagrams in this Kubota BX23S & variants manual?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Kubota BX23S & variants.
