This is the operator's manual for the Kubota BX23S sub-compact tractor package, covering the LA340 and LA340S front loaders and the BT603 backhoe built around Kubota's D902 diesel engine. Across 165 pages it walks owners through safe operation, daily and pre-operation checks, and every control on the tractor, loader, and backhoe.You get the full specification tables, service intervals, and step-by-step maintenance for the engine, hydrostatic transmission, cooling system, and battery, plus torque values for the wheels and for the loader and backhoe mounting hardware. Sections on operating the loader and backhoe explain filling and dumping the bucket, digging, and the hydraulic pressure relief procedure used when attaching or removing the loader.Whether you service the machine yourself or hand it to a mechanic, this PDF gives you the factory reference for keeping the BX23S, LA340, LA340S, and BT603 running correctly.
What's Inside This Kubota BX23S, LA340, LA340S, BT603 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Front Matter | 1-10 | Abbreviation List, Universal Symbols, Foreword, Safety First, Contents |
| Safe Operation | 11-28 | Tractor Safety, ROPS, Before Operating, Operating Tractor, Parking, PTO Safety, 3-Point Hitch Safety, Servicing, Loader Safety, Backhoe Safety, Warning Labels, Smv Emblem |
| Identification & Servicing | 29-30 | Serial Numbers, Tractor Identification Plate, Engine Serial Number, Loader and Backhoe Serial Numbers, Warranty, D902 Engine |

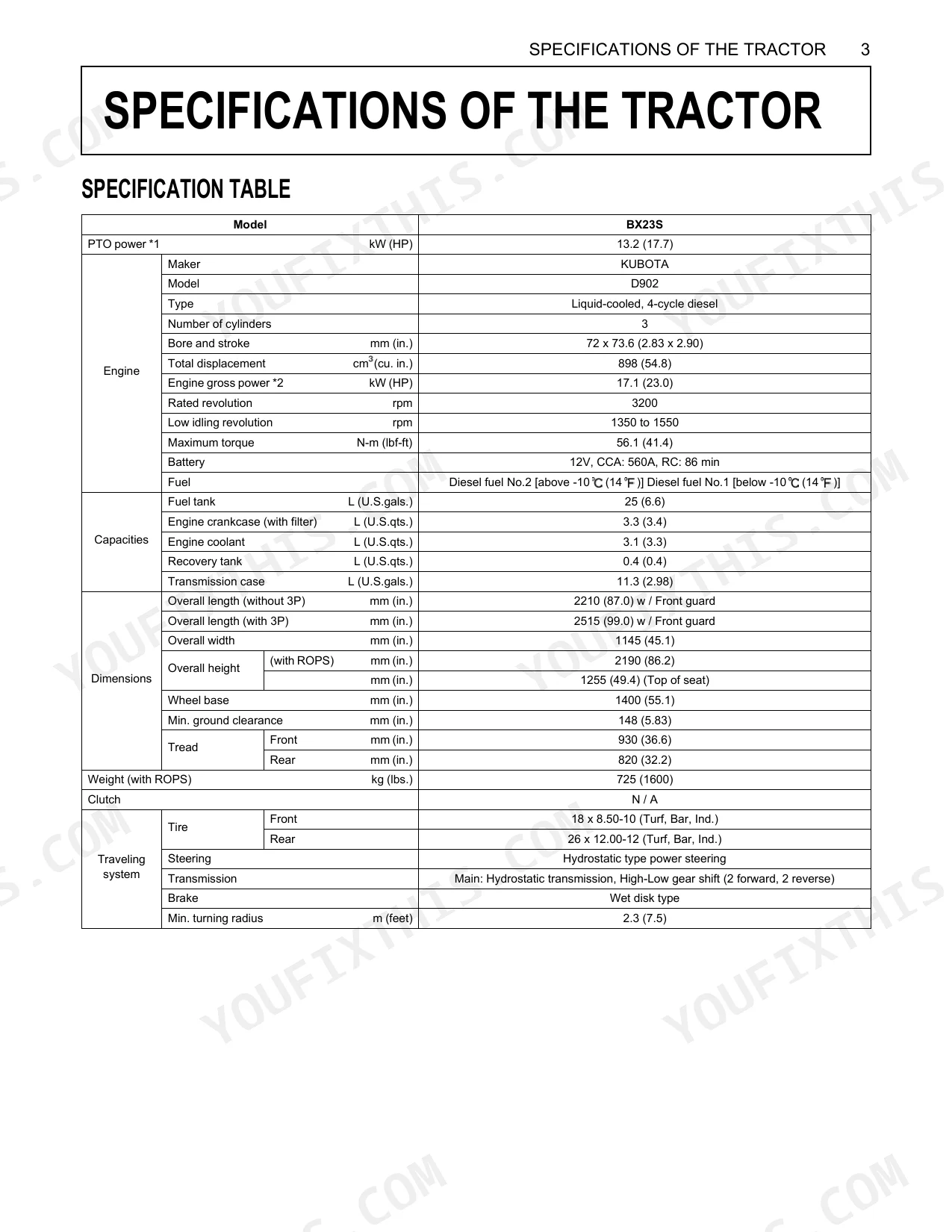

| Tractor Specifications | 31-32 | Engine Specs, Capacities, Dimensions, Hydraulic Unit, PTO, Traveling Speeds, HST Transmission, 4WD |
| Loader & Backhoe Specifications | 33-42 | Loader Specifications LA340/LA340S, Bucket Specifications, Lift Capacity, Backhoe Specifications BT603, Dimensions, Lift Capacity per Sae J31, Implement Limitations |

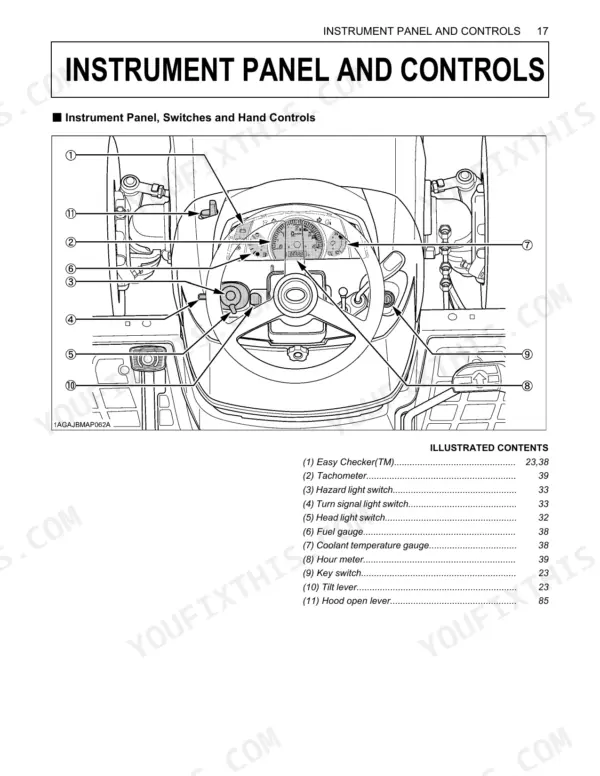

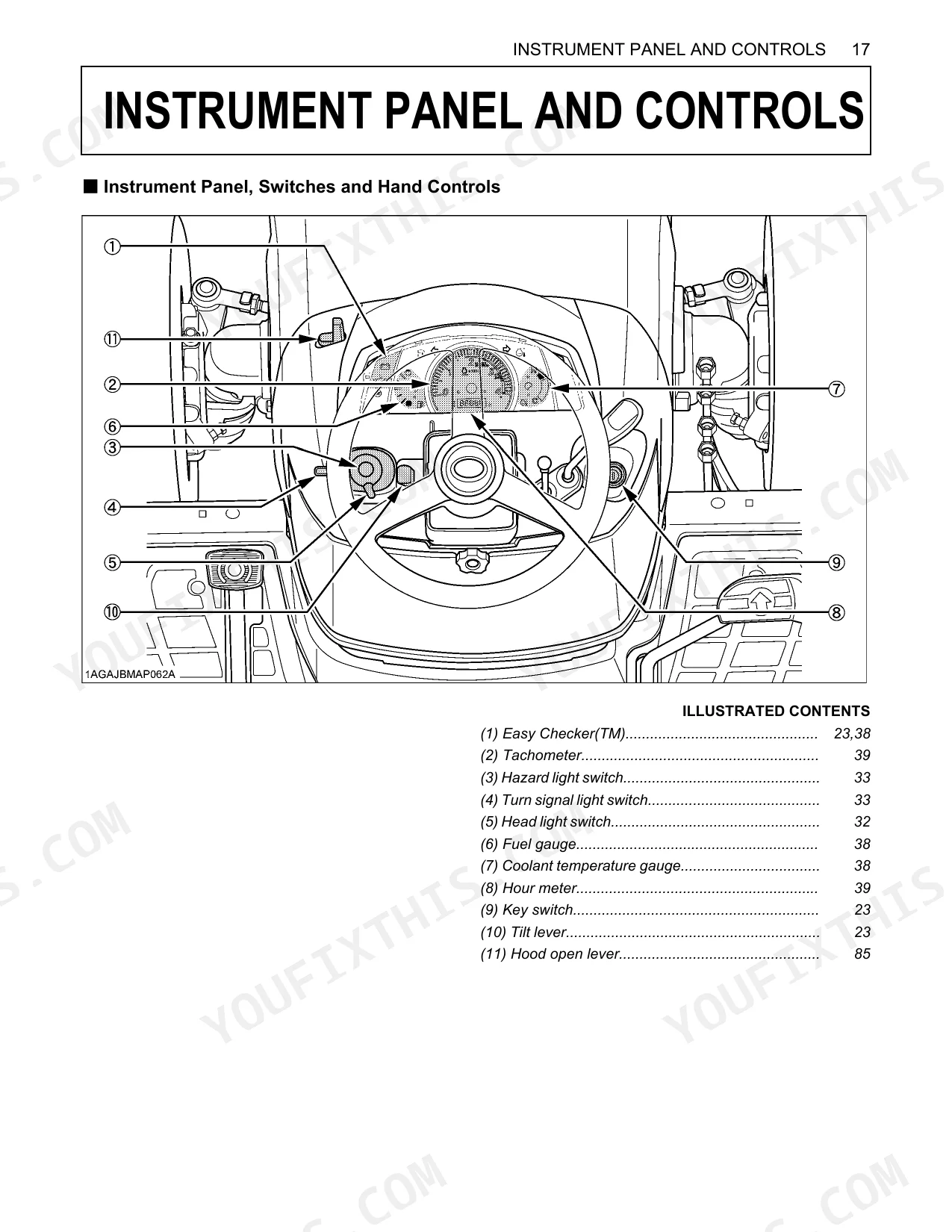

| Instrument Panel, Controls & Pre-Operation Checks | 43-56 | Instrument Panel and Controls, Daily Check, Pre-Operation Checks, Lubrication, Transmission Fluid, Tire Inflation, Bleeding Hydraulic System, Operator Seat, Ballast |

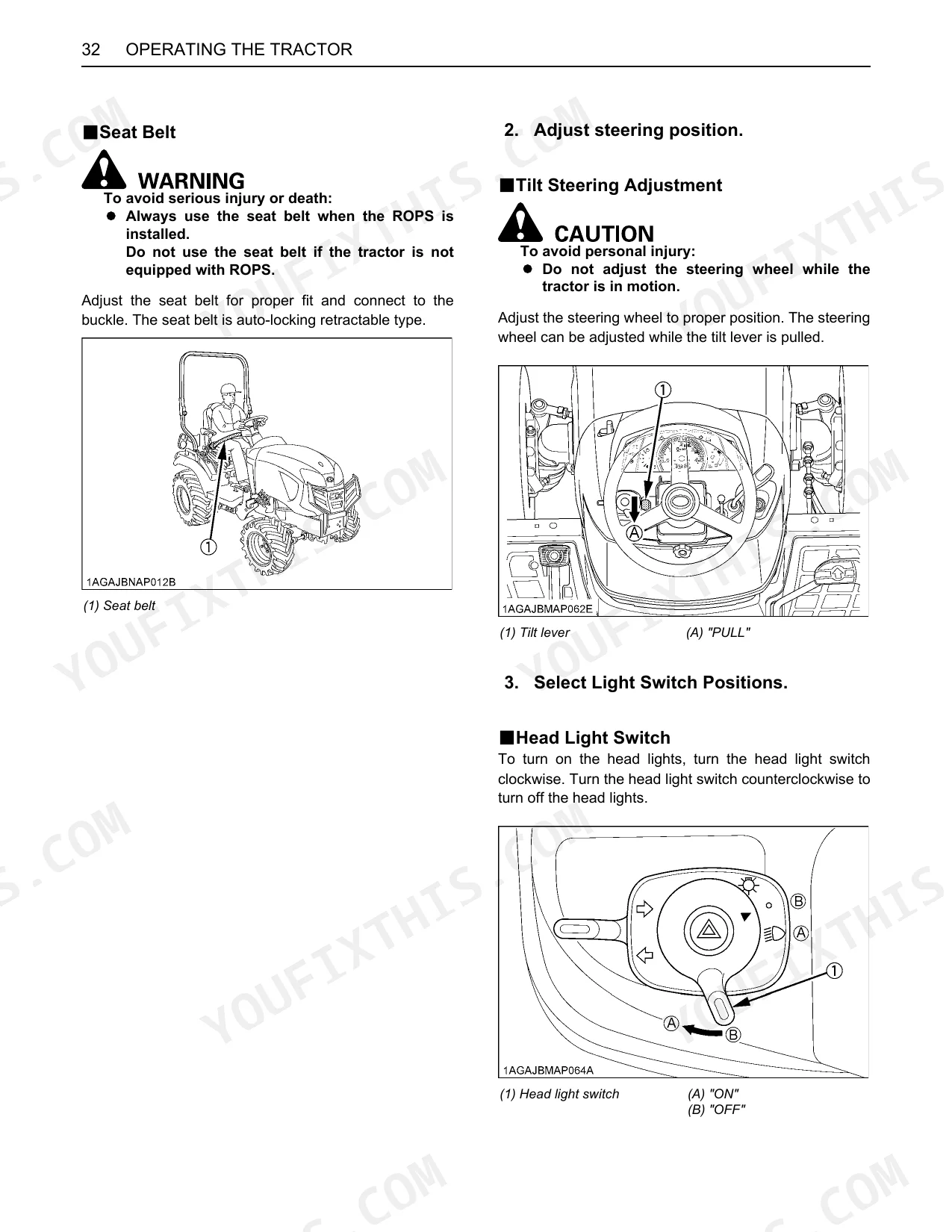

| Operating the Engine & Tractor | 57-72 | Starting Engine, Cold Weather Starting, Block Heater, Stopping Engine, Jump Starting, Foldable ROPS, Seat Belt, Tilt Steering, Lights, Range Gear Shift Hi-Lo, 4WD Lever, Hand Accelerator, Parking Brake, Speed Control Pedal, Differential Lock |
| PTO, 3-Point Hitch, Drawbar & Hydraulic Unit | 73-87 | PTO Operation, PTO Levers, Stationary PTO, 3-Point Hitch, Attaching Implements, Top Link, Check Chains, Drawbar, Hydraulic Control, Auxiliary Hydraulics, Wheels, Ballast, Wheel Tread |
| Operating the Loader | 88-100 | Filling Bucket, Lifting and Carrying Load, Dumping, Float Control, Loading Trucks, Backfilling, Valve Lock, Bucket Level Indicator, Quick Coupler, Front Remote Hydraulic Control, Pallet Fork, Snow Blade |
| Operating the Backhoe | 101-106 | Backhoe Controls, Boom Swing Lever, Dipperstick and Bucket Lever, Stabilizer Controls, General Operation, Straight Wall Digging, Transporting, Trailer Transporting |

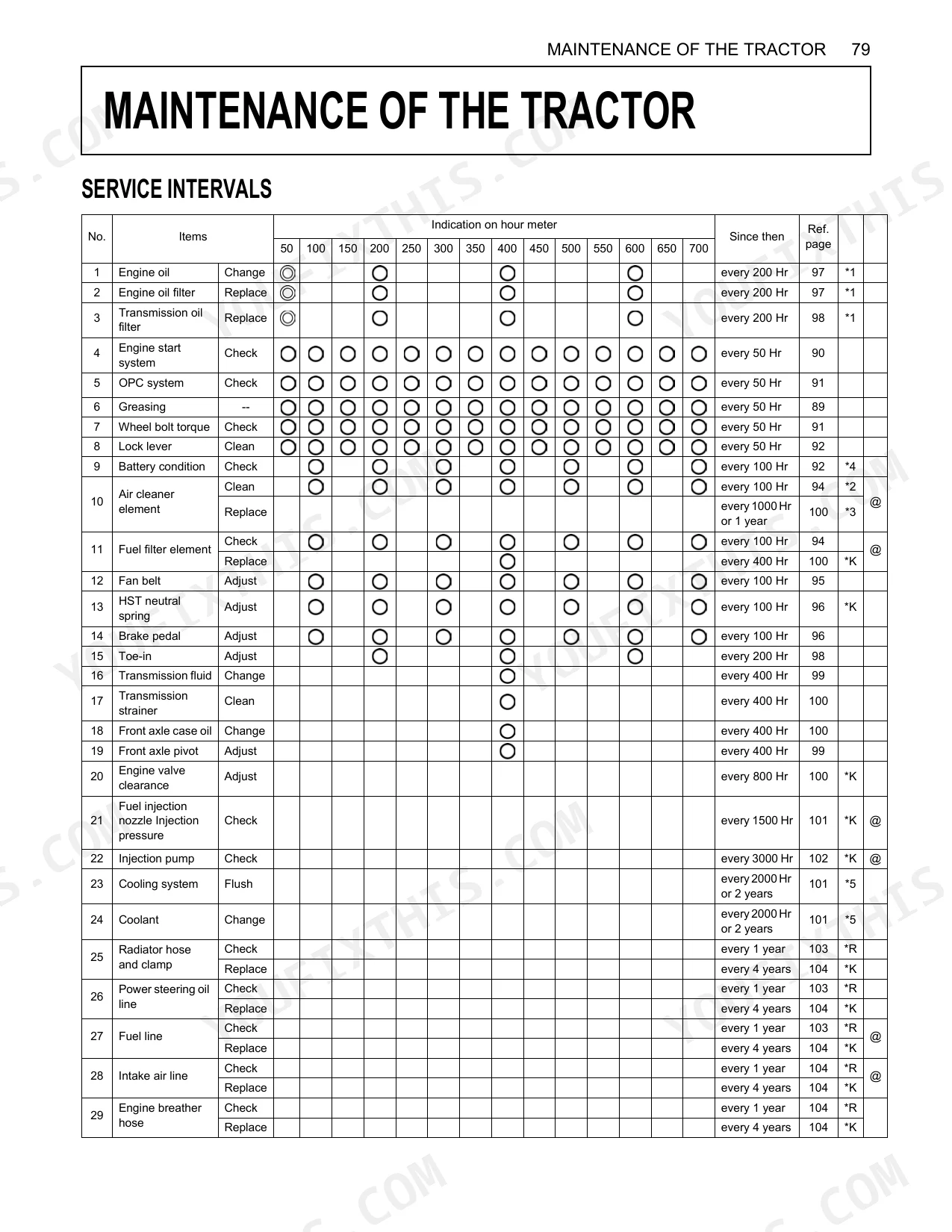

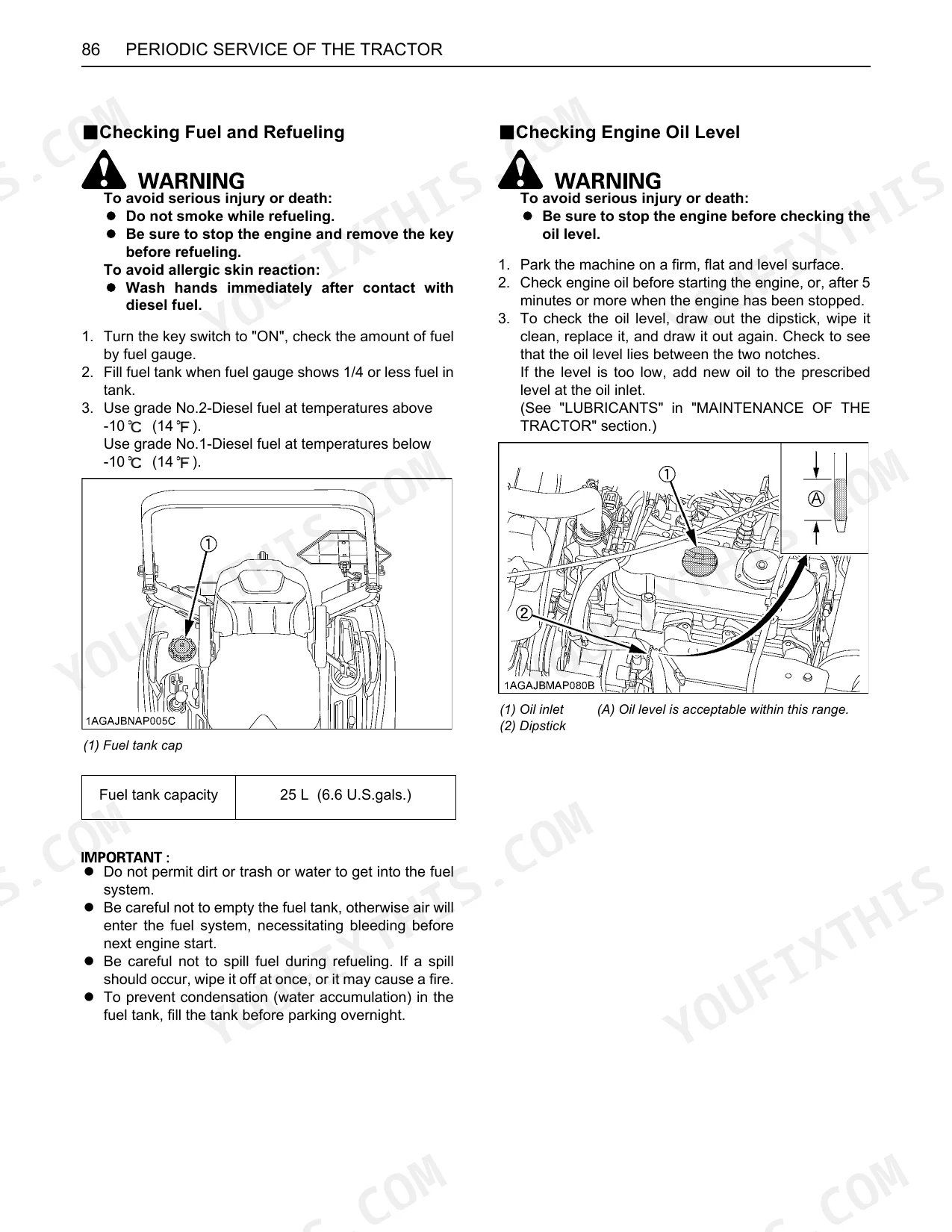

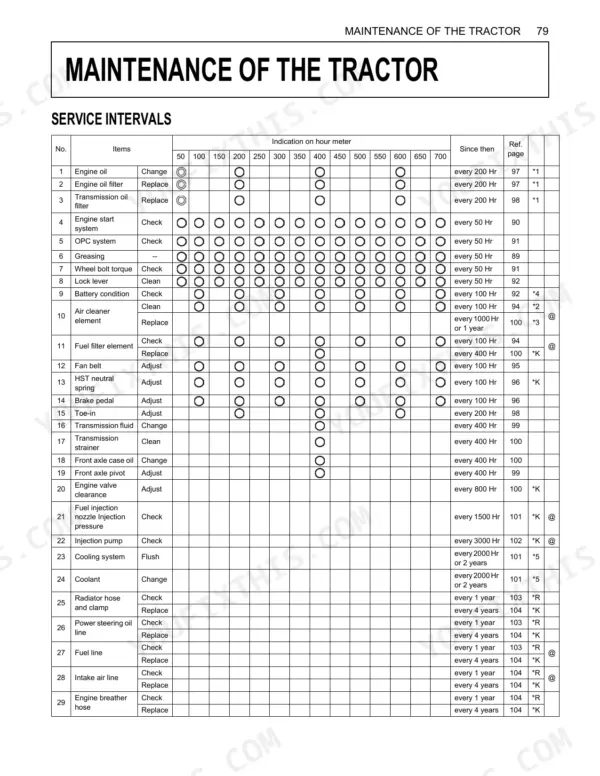

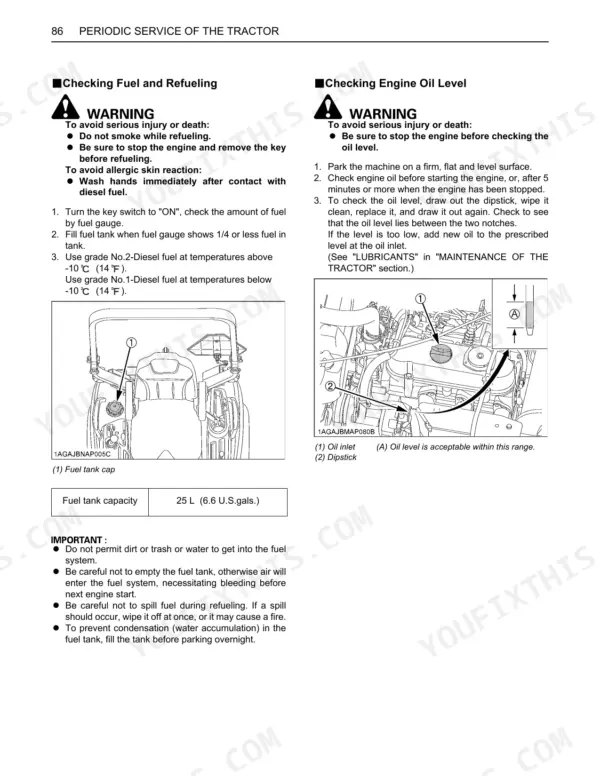

| Maintenance | 107-140 | Service Intervals, Lubricants Fuel Coolant, Biodiesel Bdf, Daily Check, Engine Oil, Transmission Fluid, Coolant, Radiator Screen, Easy Checker, 50/100/200/400/800/1000/2000/3000-Hour Service, Battery, Air Cleaner, Fuel Filter, Fan Belt, Front Axle Oil, Valve Clearance, Bleeding Fuel System, Fuse, Loader and Backhoe Lubrication, Bucket Teeth, Torque Specifications |
| Storage, Removal, Troubleshooting & Options | 141-165 | Tractor Storage, Removing and Reinstalling Loader, Removing and Reinstalling Backhoe, Engine Troubleshooting, Options, Turf Tires, Block Heater, Rear Work Light, Index |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic pressure relief procedure | 1. Move the key switch to the "RUN" position. 2. Push the front hydraulic valve main switch "ON". 3. Press the activation switch and move the loader lever to left and right several times. 4. Push the front hydraulic valve main switch "OFF". 5. Turn the key switch to the "OFF" position. | p. 95 |
| Front wheel bolt torque | 149.2 to 179.0 N-m (15.2 to 18.3 kgf-m, 110 to 132 lbf-ft) | p. 91 |
| Rear wheel bolt torque | 108.5 to 130.2 N-m (11.1 to 13.3 kgf-m, 80 to 96 lbf-ft) | p. 91 |
| Engine oil filter replacement interval | every 200 Hr | p. 107 |
| Transmission oil filter replacement interval | every 200 Hr | p. 107 |
| Air cleaner element cleaning interval | every 100 Hr | p. 107 |
| Air cleaner element replacement interval | every 1000 Hr or 1 year | p. 107 |
| Fan belt adjustment interval | every 100 Hr | p. 107 |
| Fan belt tension (deflection) | 7 to 9 mm (0.28 to 0.35 in.) | p. 123 |
| Battery condition check interval | every 100 Hr | p. 107 |
| Battery voltage | 12V | p. 120 |
| Grease fittings lubrication interval (general) | every 50 Hr | p. 107 |
Kubota BX23S, LA340, LA340S, BT603 Common Problems This Manual Covers
Engine overheats or loses coolant
The D902 diesel can overheat when the radiator screen and core clog with debris or the coolant runs low. The daily and pre-operation checks in this section cover cleaning the radiator screen and topping the recovery tank before airflow problems build.
Manual Section: Instrument Panel, Controls & Pre-Operation Checks p. 43Weak or noisy hydrostatic transmission
A soft, slow, or noisy HST usually points to low fluid, a clogged HST filter, or overdue service. The maintenance schedule lists the 200-hour HST oil filter change and the transmission fluid checks that keep the drive responsive.
Manual Section: Maintenance p. 107Hard starting or a weak battery
Slow cranking and no-start conditions on the BX23S often trace to a weak battery or corroded terminals. This section covers the battery condition checks, charging, and terminal cleaning that prevent starting trouble.
Manual Section: Maintenance p. 107Loose wheel bolts and hardware
Vibration and shifting implements can come from wheel bolts or mounting hardware that have loosened in service. The maintenance section gives the front and rear wheel bolt torque values and the tightness checks to make on schedule.
Manual Section: Maintenance p. 107Jerky loader or backhoe motion
Binding or jerky loader and backhoe movement often comes from neglected grease points or air in the hydraulics. This section covers filling and dumping the bucket, float control, and the front remote hydraulic controls that the pins and linkages depend on.
Manual Section: Operating the Loader p. 88Safety switch blocks starting
The BX23S will not start unless the seat, PTO, and speed-control safety switches are satisfied. This section explains the starting procedure and the operator controls tied to those interlocks so you can spot a switch that is out of position.
Manual Section: Operating the Engine & Tractor p. 57Frequently Asked Questions
Which machines does this manual cover?
It covers the Kubota BX23S sub-compact tractor together with the LA340 and LA340S front loaders and the BT603 backhoe, all built around the Kubota D902 diesel engine. Specifications for each are included.
Where can I find the torque specifications?
The maintenance section carries the torque values, including the front and rear wheel bolt torque and the loader and backhoe mounting hardware, alongside the service intervals for the machine. p. 107
How do I relieve hydraulic pressure when attaching or removing the loader?
The loader operating section walks through the hydraulic pressure relief procedure using the key switch and the front hydraulic valve, which you follow before connecting or disconnecting the LA340 loader. p. 88
What maintenance intervals does the BX23S need?
The maintenance section lists the 50, 100, 200, 400, 800, 1000, 2000, and 3000-hour service tasks, covering engine oil, filters, the HST filter, greasing, the fan belt, and the battery. p. 107
What format is this manual in?
A 165-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, no shipping wait.
Am I able to print pages from this Kubota BX23S manual?
Yes, print as many copies as you want, there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
