Part of the Kubota Repair Manuals.
This is the Kubota L5450 Service Manual, a 415 page PDF for the L5450 tractor and its F2803-DI five cylinder diesel engine. It runs from the intro and specifications through the mechanism and general sections, then into separation and the numbered service sections for the engine, clutch, transmission, rear axle, brakes, front axle, steering, hydraulic, and electrical systems, and finishes with the Bf1100 front end loader.Each service section leads with detailed troubleshooting charts followed by servicing specifications and tightening torques, so you can pin down a symptom and then repair to factory values. That covers no-start diagnosis, PTO clutch work, transmission and 4WD faults, hydraulic and steering repair, and electrical tracing.Reference figures include engine displacement of 2746 cm3, compression pressure of 2.94 to 3.24 MPa, and a steering relief valve setting of 14.22 to 14.91 MPa. Instant PDF download that prints cleanly.
What's Inside This Kubota L5450 Manual
| System | Pages | Key Topics |
|---|---|---|
| Intro | 1-3 | Specification, Model, Engine, Capacities, Dimensions, Weight, Clutch, Traveling, Hydraulic System, P.T.O., Min. Turning Radius, Traction System |
| Mechanism | 4-145 | Features, Conveniently Located Speed Change Levers, Tilt Steering Wheel, Full Hydrostatic Power Steering, Wide Semi Flat Type Deck, Cartridge Type Hydraulic Oil Filter, 8-Speed Forward, ROPS |
| General | 146-177 | Tractor Identification, Lubricants, Tightening Torques |

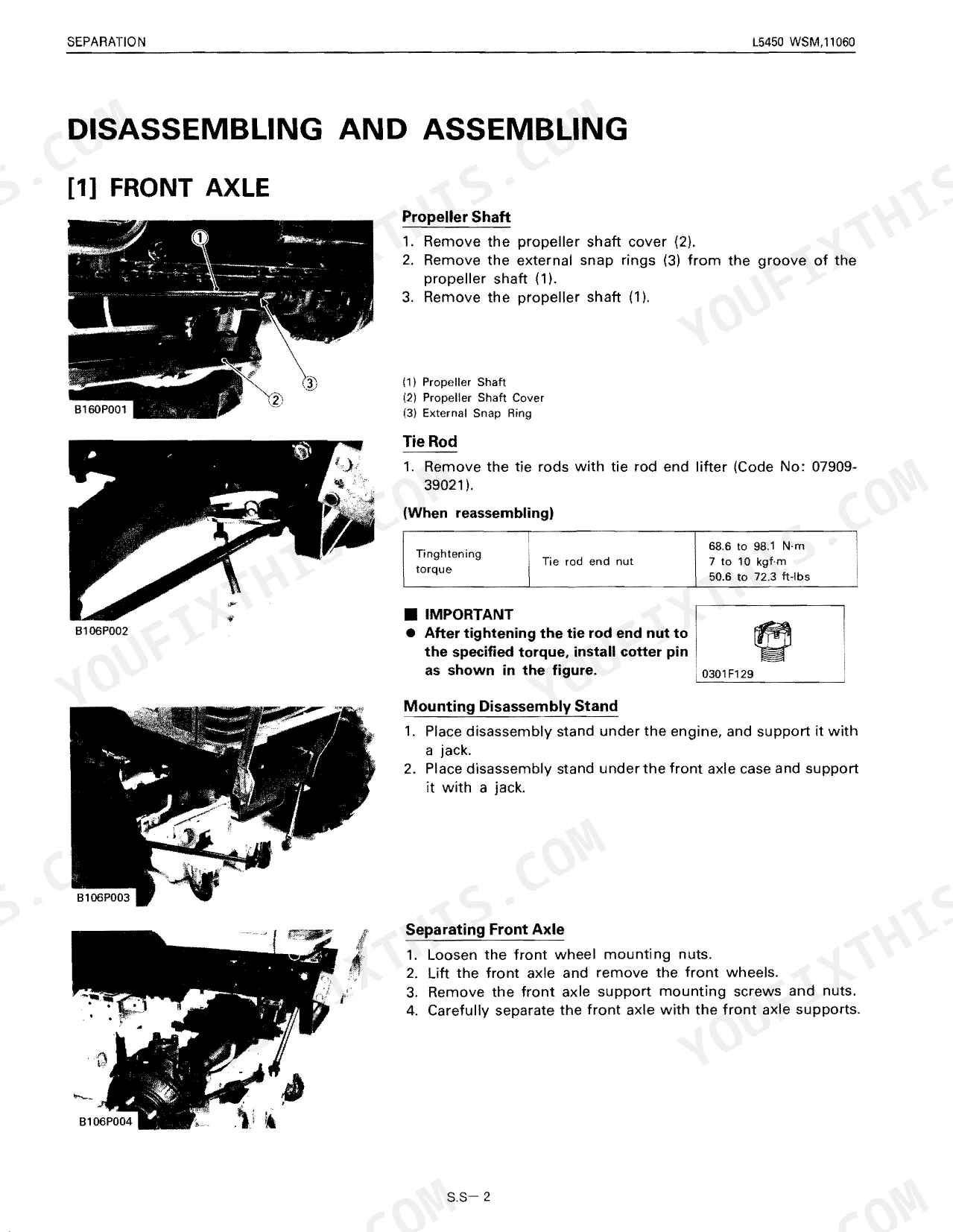

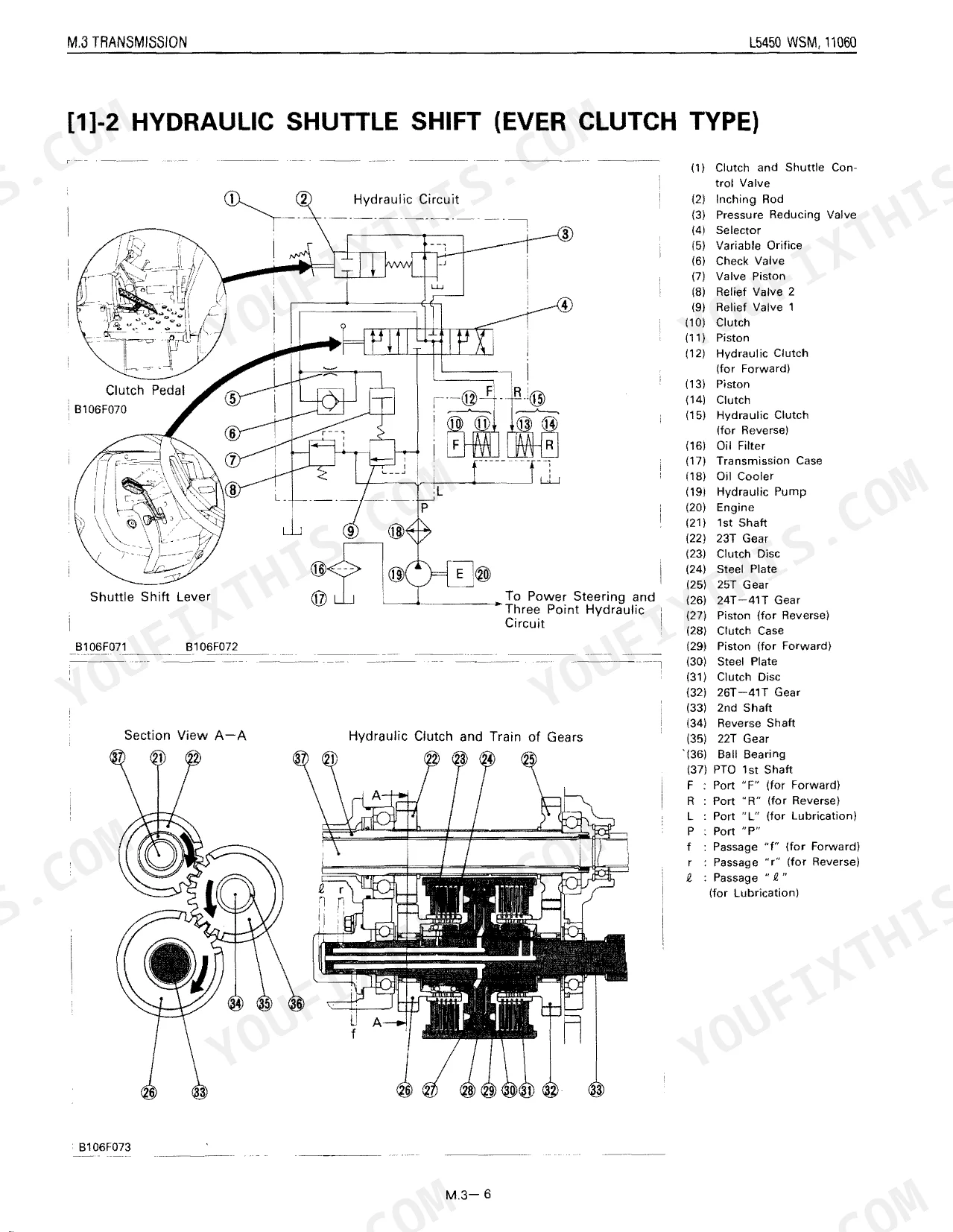

| Seperation | 178-193 | Tightening Torques, Front Axle, Engine |
| Sect 1 Engine | 194-241 | Trouble-Shooting (Engine Does Not Start, Starter Does Not Run, Engine Revolution Is Not Smoothly, Either White or Blue Exhaust Gas Is Observed, Either Black or Dark Gray Exhaust Gas Is Observed, Deficient Output, Excessive Lubricant Oil Consumption, Fuel Mixed in to Lubricant Oil, Water Mixed in to Lubricant Oil, Low Oil Pressure, High Oil Pressure, Engine Overheated, Battery Quickly Discharge) |
| Sect 2 Clutch | 242-253 | Trouble-Shooting (Dry Type, Dual Clutch, Clutch Drags, Clutch Slips, Chattering, Rattle During Running, Clutch Squeaks, Vibration, Ever Clutch & Dry Type Single Plate PTO Clutch) |
| Sect 3 Transmission | 254-279 | Trouble-Shooting (Excessive Transmission Noise, Gear Slip Out of Mesh, Hard Shifting, Gears Clash When Shifting, Differential Lock CAN Not Be Set, Differential Lock Pedal Does Not Return, Tractor Does Not Travel Normally When Operating Shuttle Shift Lever [Hydraulic Shuttle Type], Tractor Does Not Travel Normally When Operating Shuttle Shift Lever [Ever Clutch Type]) |
| Sect 4 Rear Axle | 280-289 | Trouble-Shooting, Servicing Specifications (Differential Gear, Rear Axle Case), Tightening Torques (Differential Gear |
| Sect 5 Brakes | 290-295 | Brake Pedal, Brake Disc, Plate, Cam Plate, Cam Plate and Ball, Brake Cam, Brake Cam Lever |
| Sect 6 Front Axle | 296-315 | Front Wheels, Tie-Rod, Front Axle Case, Bevel Gear Case, Front Axle, Oil Seal, Bevel Gear, Support Shaft |
| Sect 7 Steering | 316-321 | Power Steering Hydraulic Pump, Steering Unit |
| Sect 8 Hydraulic | 322-343 | Trouble-Shooting, Servicing Specifications (Three Point Hydraulic Pump, Relief Valve), Tightening Torques |
| Sect 9 Electrical | 344-385 | Trouble-Shooting (All Electrical Equipments Do Not Operate, Fuse Blown Frequently, Battery, Battery Discharges Too Quickly, Strting System, Starter Motor Does Not Operate, Engine Key-Switch Shut-Off System, Engine Does Not Stop When Main Switch Is Turned Off, Engine Does Not Start, Charging System, Charging Lamps Do Not Light When Main Switch Is Turned on, Charging Lamps Do Not Go Off When Engine Is Running, Lighting System, Headlight Does Not Light, Illumination Light Does Not Light, Tail Light Does Not Light, Hazard Light Does Not Light, Hazard Indicator Lamp Does Not Light, Hazard Light Does Not Flicker, Easy Checker, Hydraulic Oil Filter Clogging Lamp Lights Up, Hydraulic Oil Filter Clogged Lamp Does Not Light When Oil Filter Clogged, Fuel Limit Indicator Lamp Lights Up, Fuel Limit Indicator Lamp Does Not Light When Fuel Tank Is Empty, Oil Pressure Lamp Lights Up When Engine Is Running, Oil Pressure Lamp Does Not Light When Main Switch Is Turned on and Engine Is Not Running, Parking Brake Lamp Does Not Light When Parking Brake Lever Pull Up) |
| Bf1100 Front End Loader | 386-415 | Specification, Performance Ratings, Operating Dimensions, Hydraulic Block |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Head screws and nuts torque | 88.3 to 93.2 N·m (9.0 to 9.5 kgf·m, 65.1 to 68.7 ft-lbs) | p. 205 |
| Clutch Disc Spline Boss to PTO 1st Shaft Backlash | 2.0 mm (0.79 in.) | p. 244 |
| Clutch Lever Shaft to Clutch Lever Bushing (PTO) Clearance | 0.050 to 0.152 mm (0.00197 to 0.00598 in.) | p. 244 |
| Engine Total Displacement | 2746 cm³ | p. 1 |
| Maximum Torque (Net) | 185 N·m | p. 1 |
| Engine Crankcase Oil Capacity | 8 L | p. 1 |
| Compression Pressure | 2.94 to 3.24 MPa | p. 198 |
| Radiator Cap Opening Pressure | 88 to 59 kPa | p. 204 |
| Clutch Disc Spline Boss to 1st Shaft Backlash | 2.0 mm | p. 244 |
| Brake Pedal Free Play | 25 to 35 mm | p. 290 |
| Front Wheel Alignment Toe-in | 2 to 8 mm | p. 297 |
| Steering Relief Valve Setting Pressure | 14.22 to 14.91 MPa | p. 317 |
Kubota L5450 Common Problems This Manual Covers

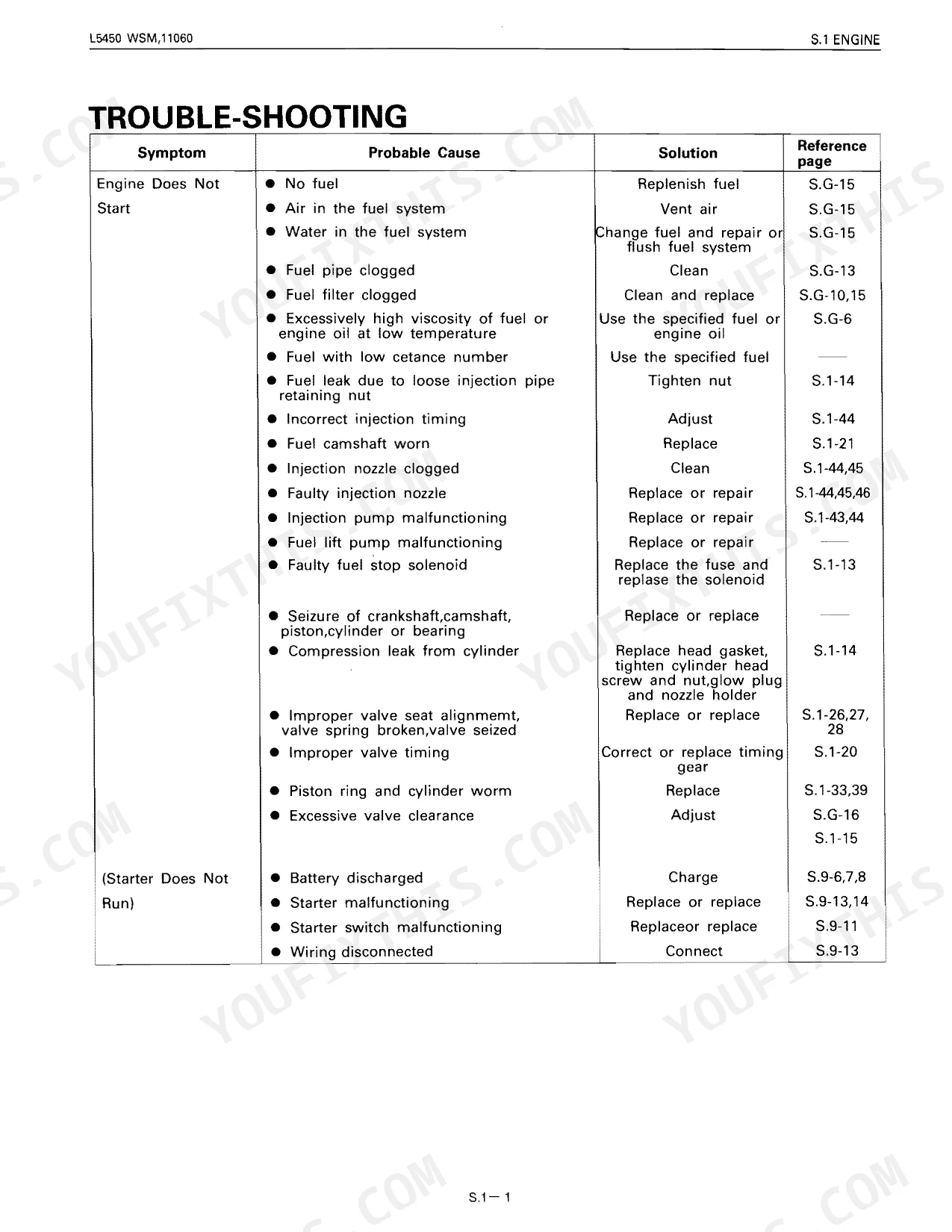

Engine cranks but will not start
A no-start on the L5450 often traces to a restricted fuel pickup in the tank, a clogged supply path, or air entering through vent lines. The engine section leads with a full no-start troubleshooting chart.
Manual Section: Sect 1 Engine p. 194PTO not engaging
The PTO may fail to engage because of a worn clutch or linkage. The clutch section covers the PTO clutch components, including free play of 35 to 40 mm and the release lever height specifications.
Manual Section: Sect 2 Clutch p. 242Hard shifting or gears slipping out
Excessive noise, hard shifting, or gears jumping out of mesh are common transmission complaints. The transmission section provides troubleshooting for both the manual and hydraulic shuttle types.
Manual Section: Sect 3 Transmission p. 2544WD front drive not working
Front drive faults can require splitting the tractor ahead of the 4WD lever for access. The front axle section covers the axle, bevel gear, and differential service so you can plan the repair.
Manual Section: Sect 6 Front Axle p. 296Weak three-point hydraulic lift
Slow or weak lift points to the hydraulic pump or relief valve. The hydraulic section covers troubleshooting and specifications, including pump delivery above 40.2 L/min and the cylinder safety valve at 20.60 to 21.56 MPa.
Manual Section: Sect 8 Hydraulic p. 322Charging or warning lamp faults
Charging lamps that stay on, easy checker warnings, or a filter clogging lamp that will not respond are covered in the electrical troubleshooting. The section walks the charging, lighting, and indicator circuits step by step.
Manual Section: Sect 9 Electrical p. 344Frequently Asked Questions
Which tractor does this manual cover?
It is the service manual for the Kubota L5450 tractor, a 415 page document covering the machine from engine and clutch through transmission, axles, brakes, steering, hydraulics, and electrical systems.
What engine does it cover?

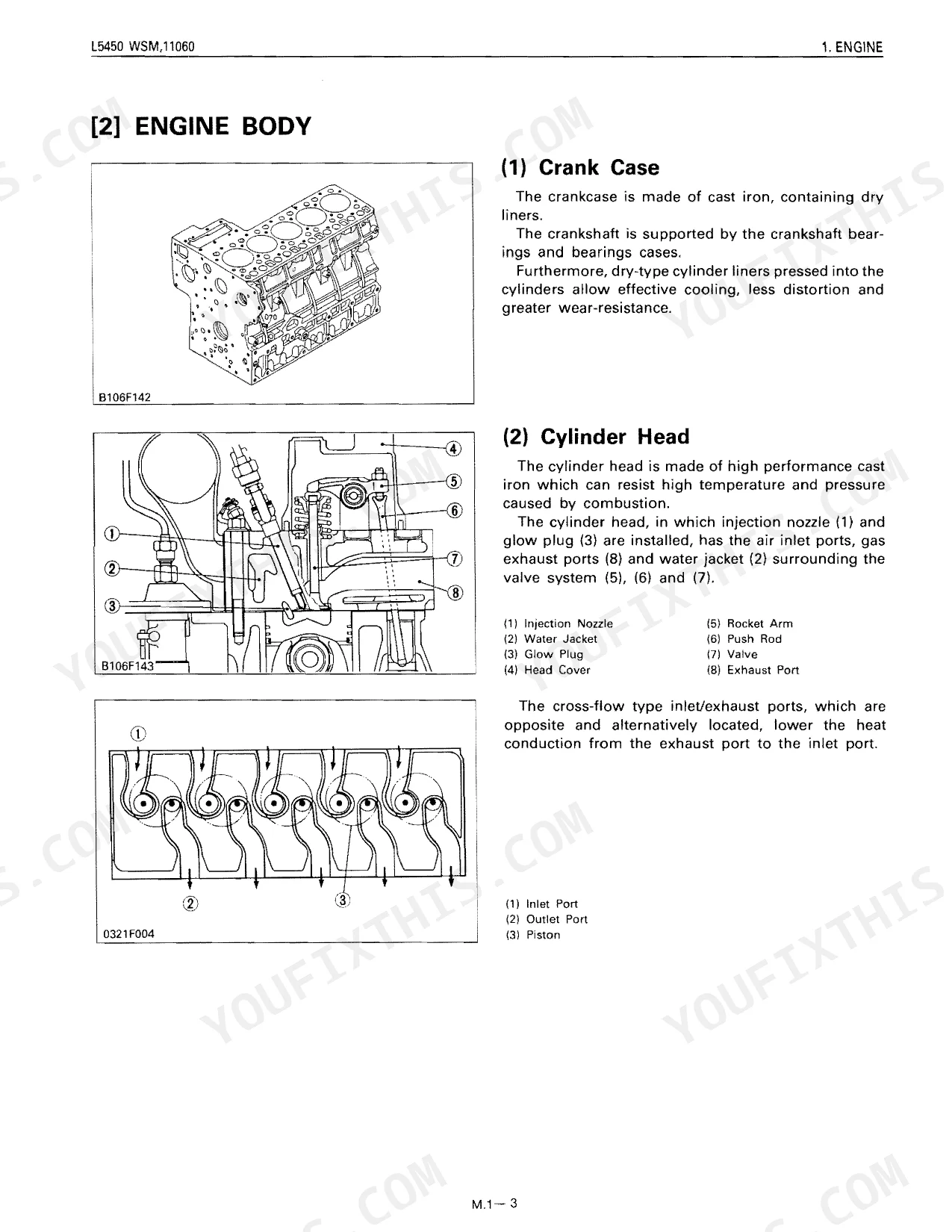

The L5450 mounts the F2803-DI, a vertical water cooled five cylinder diesel with a Bosch K type injection pump. The engine section covers its troubleshooting, servicing specifications, and compression pressure of 2.94 to 3.24 MPa. p. 194
Does it include the front end loader?
Yes. The final section covers the Bf1100 front end loader, including its specification, performance ratings, operating dimensions, and hydraulic block. p. 386

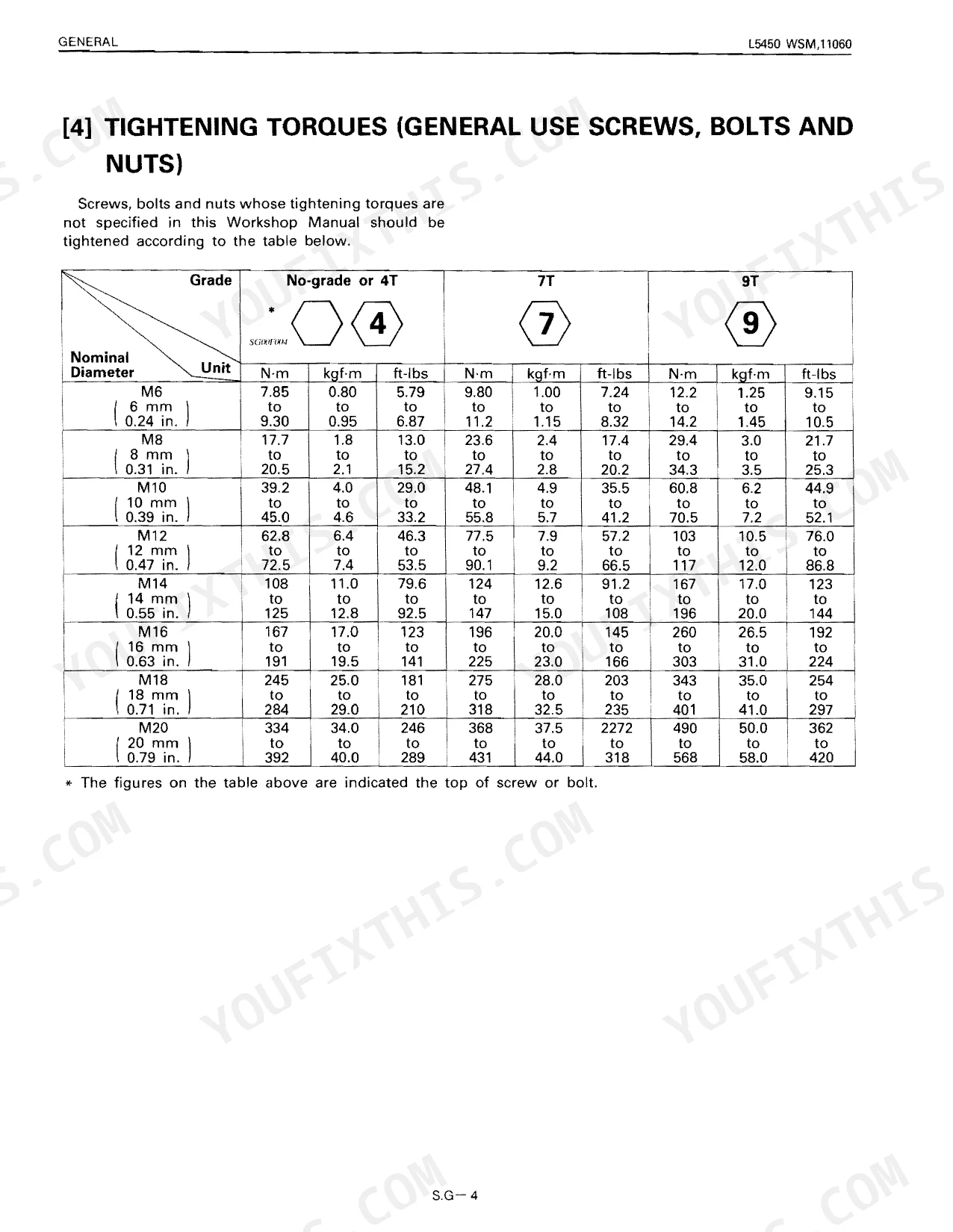

Does it list tightening torques?
Yes. The general section covers tightening torques for general use screws, bolts, and nuts, and each service section adds its own torque tables, such as head screws and nuts at 88.3 to 93.2 N-m. p. 146
What do I get after purchasing this Kubota L5450 manual?
You download the full 415-page searchable Service Manual right after checkout. Open it on whatever's handy: laptop at the desk, phone out in the field.
Can I print this manual?
Yes. Print as many copies as you like; there are no restrictions. Plenty of mechanics run off just the section they need and carry it out to the shop floor.

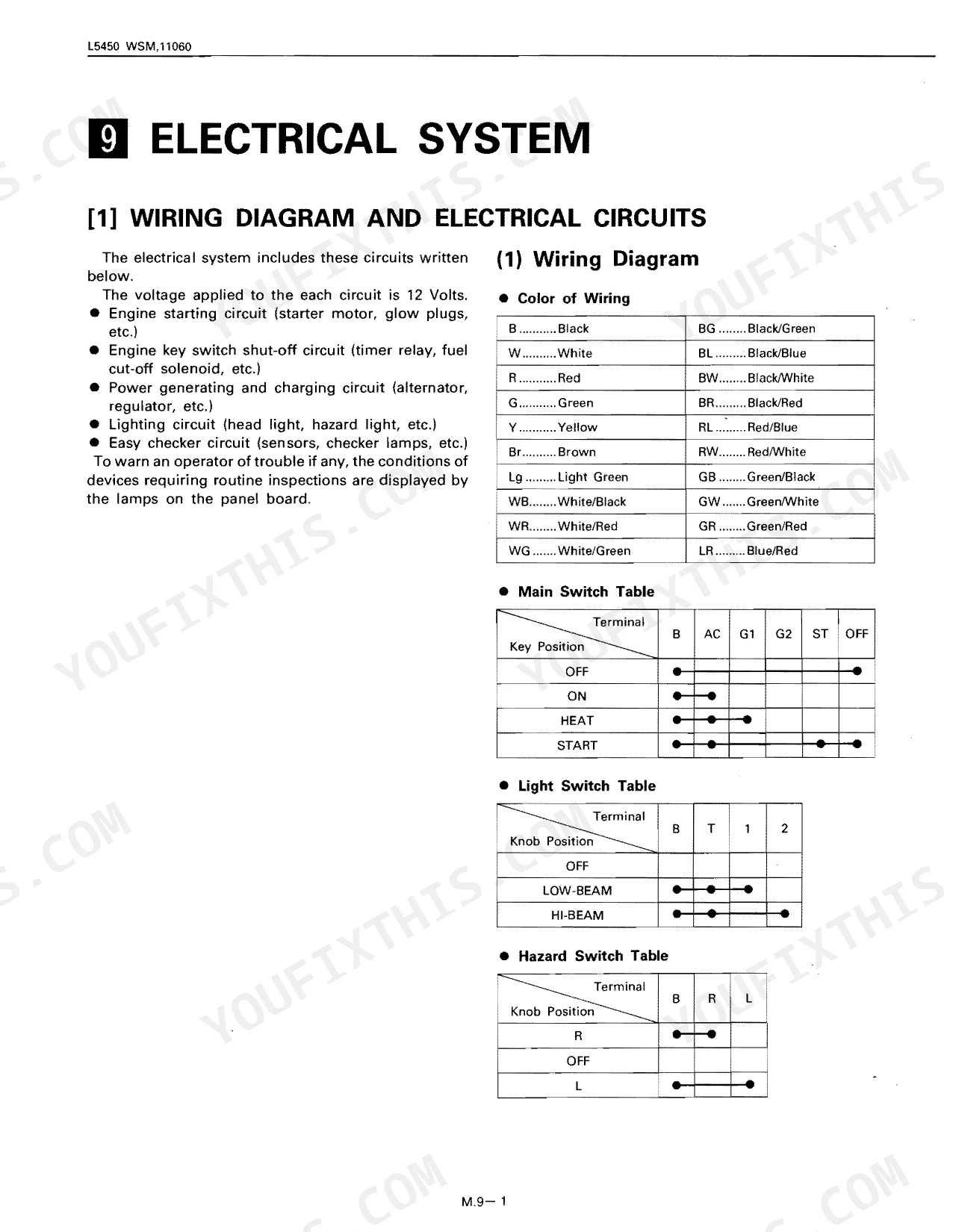

Does this Service Manual have electrical diagrams?
It does. The manual carries full electrical wiring diagrams, wire routing, and connector pinouts for the L5450.
