This Kubota Workshop Manual covers the OC60-E2 and OC95-E2 oil-cooled single-cylinder diesel engines across 106 pages. It is organized in three parts, General, Mechanism, and Servicing, so you can move from engine identification and maintenance intervals through to full disassembly and rebuild.Inside you get factory servicing specifications, tightening torques, troubleshooting charts, and step by step checking, disassembling, and assembling procedures. Whether you are setting valve clearance, testing nozzle injection pressure, or measuring piston ring gap and crankshaft clearances, the values and methods come straight from Kubota.Owners and independent mechanics use it to service the fuel, lubricating, cooling, and electrical systems correctly, keeping the E2 engine running instead of guessing at a repair.
What's Inside This Kubota OC60-E2, OC95-E2 Manual

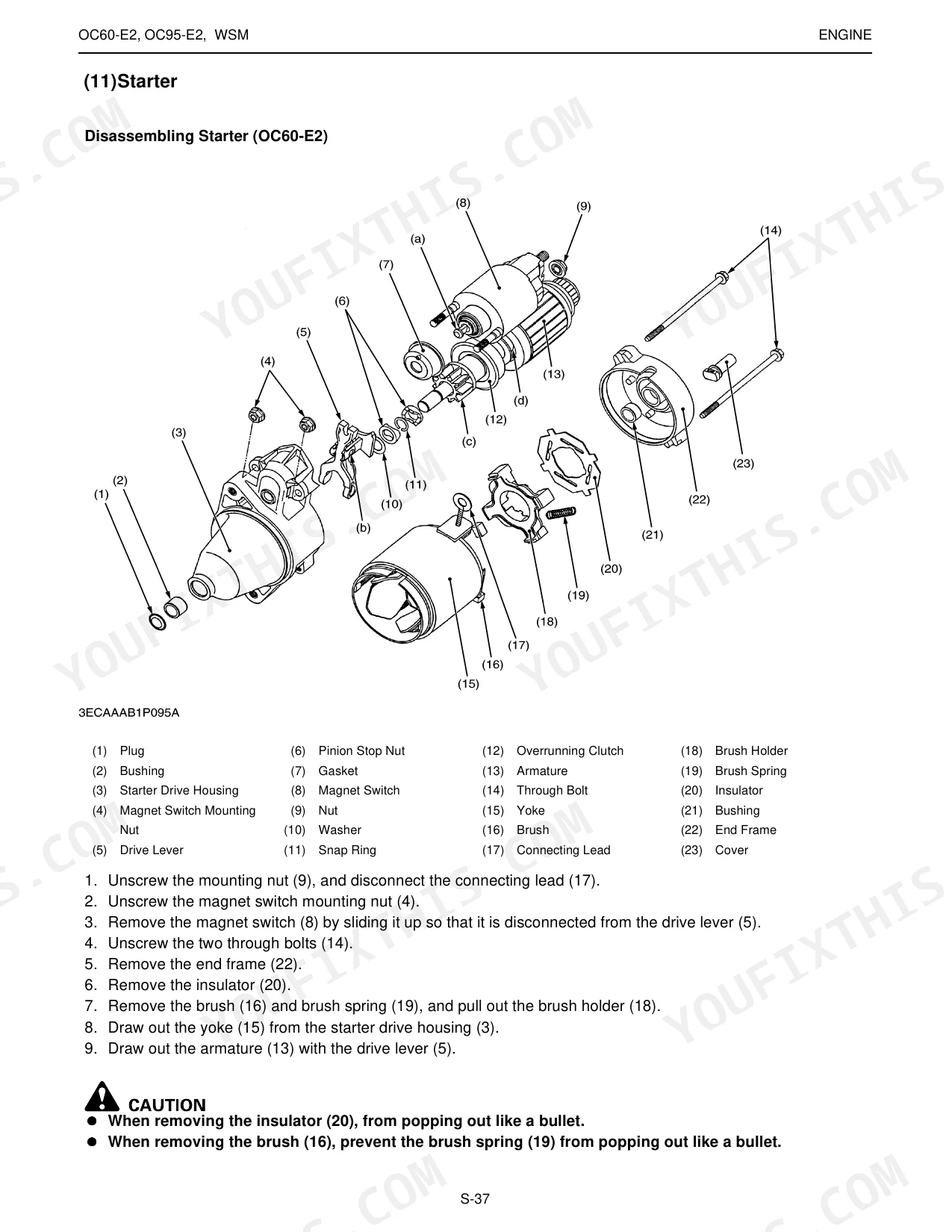

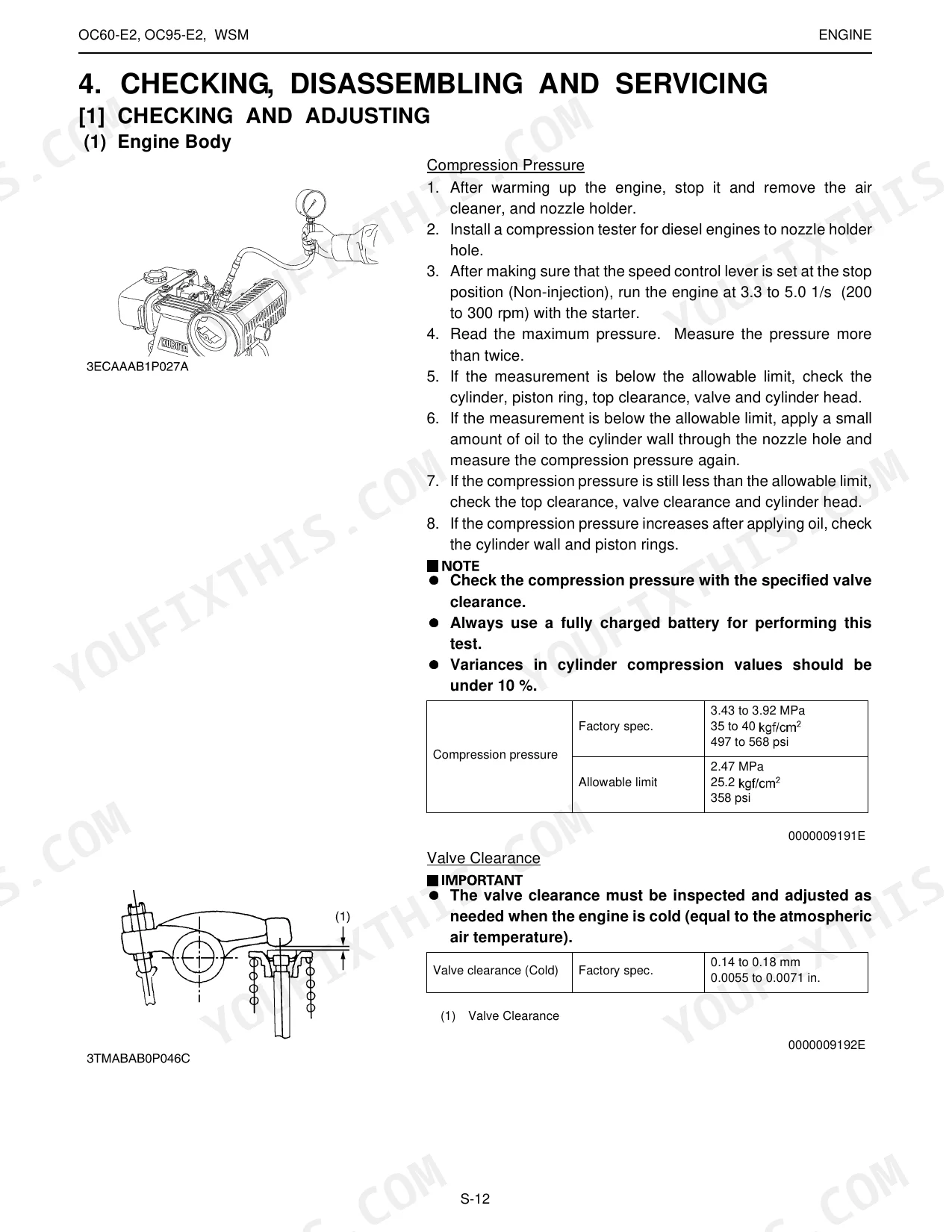

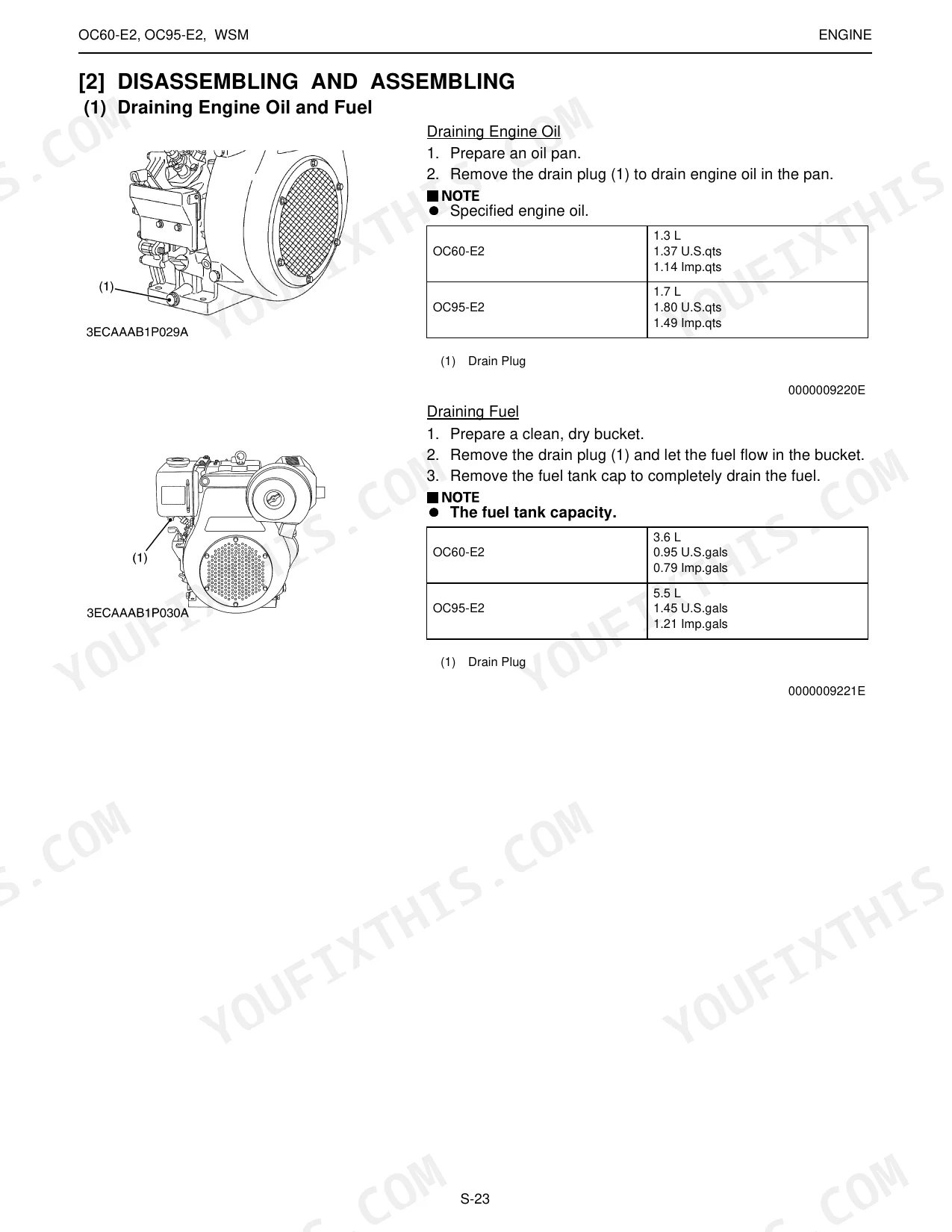

| System | Pages | Key Topics |
|---|---|---|
| General Information | 2-5 | Manual Overview, Safety Precautions, Engine Identification, E2 Engine Features, Lubricants and Fuel Types |
| Maintenance Schedule | 20 | Daily Checks, 25-Hour Checks, 100-Hour Checks, 500-Hour Checks, 800-Hour Checks, 1500-Hour Checks, Annual Checks, Biennial Checks |
| Check and Maintenance Procedures (General) | 21-25 | Engine Oil Level, Fuel Hose and Clamp Bands, Oil Strainer Cleaning, Air Cleaner Element, Fuel Filter, Valve Clearance, Nozzle Injection Pressure |
| Special Tools | 26-33 | Puller Set, Piston Ring Compressor, Connecting Rod Alignment Tool, Nozzle Tester, Press Gauge, Compression Tester, Oil Seal guides/installers |
| Engine Features & Body Mechanism | 35-37 | Low Noise, Lightweight Design, Fuel Economy, Balancer System, Cylinder Head, Crankcase, Cylinder Liner, Uniaxial Balancer |
| Lubricating System Mechanism | 38-39 | Trochoid Pump, Oil Strainer, Oil Pump Operation, Oil Pressure Switch Function |
| Cooling System Mechanism | 40 | Air-Cooled Cylinder Block, Oil-Cooled Combustion Area, Oil Cooler Design |
| Fuel System Mechanism | 41-48 | Fuel Flow, Injection Pump Elements, Delivery Valve, Injection Nozzle, Fuel Filter, Governor Mechanism (OC60-E2, OC95-E2) |
| Electrical System Mechanism | 49-51 | Starting System, Charging System, Key Switch, Alternator, Regulator, Wiring Diagrams |
| Troubleshooting | 53-55 | Engine No-Start, Rough Revolution, Exhaust Gas Color, Deficient Output, Oil Consumption, Fuel Mixed in Oil, Oil Pressure Issues, Overheating |
| Servicing Specifications | 56-61 | Engine Body Specs, Lubricating System Specs, Fuel System Specs, Electrical System Specs, Clearances, Pressures, Dimensions |
| Tightening Torques | 62-63 | Special Use Screws, General Use Screws, Bolt Grades, N-M, Kgf-M, Ft-Lbs Values |
| Checking and Adjusting Procedures | 64-74 | Compression Pressure, Valve Clearance, Top Clearance, Engine Oil Pressure, Injection Timing, Fuel Tightness, Nozzle Spray, Battery Voltage |
| Disassembling and Assembling Procedures | 75-92 | Draining Fluids, External Components, Cylinder Head, Valves, Injection Pump, Nozzle, Side Cover, Piston |
| Servicing Procedures (Detailed) | 93-105 | Cylinder Head Flatness, Valve Recessing, Valve stem/guide Clearance, Piston Pin Bore, Piston Ring Gap, crankshaft/camshaft Clearances, Oil Pump Clearances |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| OC60-E2 | ||

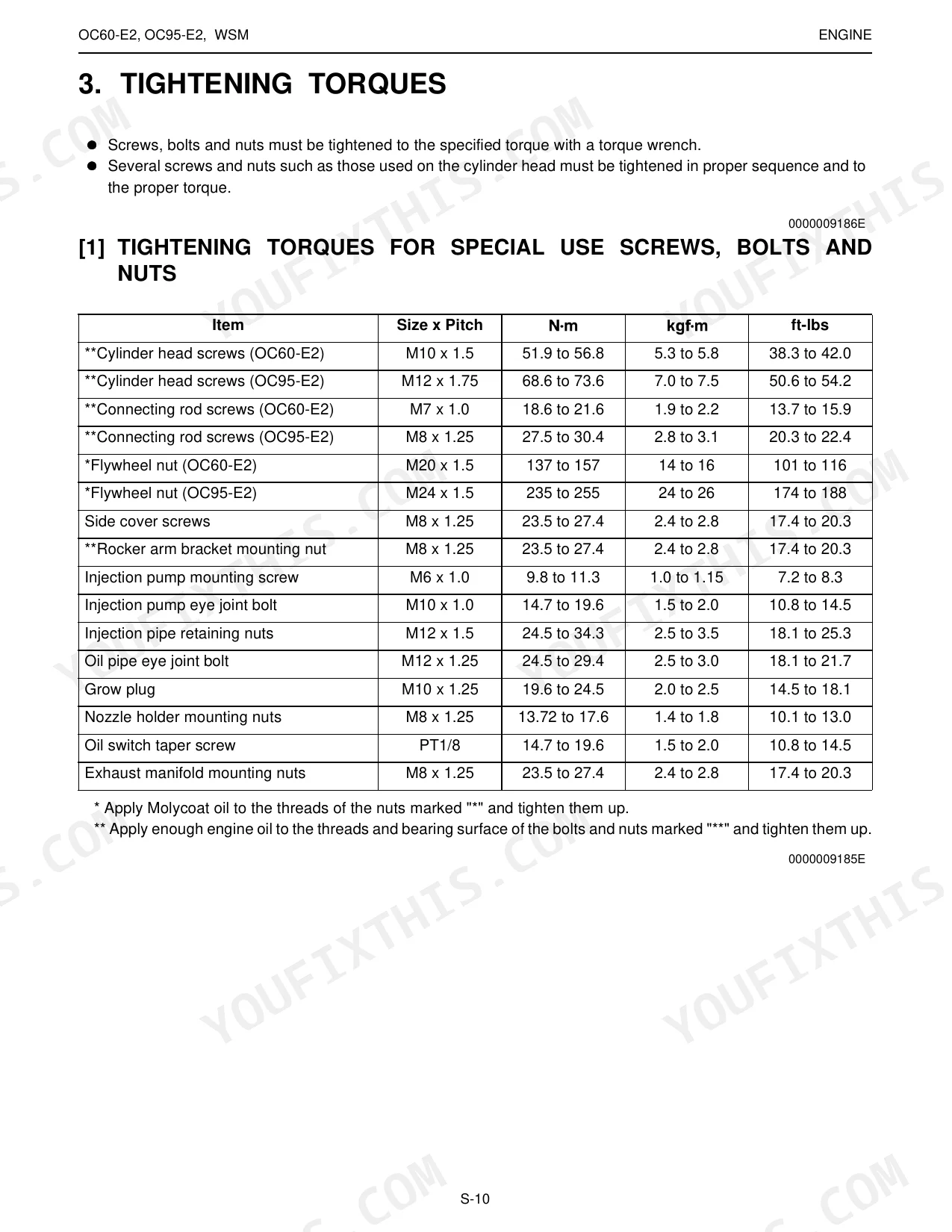

| Cylinder head screws torque | 51.9 to 56.8 N·m (5.3 to 5.8 kgf·m, 38.3 to 42.0 ft-lbs) | p. 62 |
| OC95-E2 | ||
| Cylinder head screws torque | 68.6 to 73.6 N·m (7.0 to 7.5 kgf·m, 50.6 to 54.2 ft-lbs) | p. 62 |
| All Models | ||
| Fuel filter cleaning interval | Every 500h | p. 20 |
| Fuel filter changing interval | Every 800h | p. 20 |
| Oil strainer cleaning interval | Initial 25h, Every 100h | p. 20 |
| Oil strainer replacement condition | If deformed or broken | p. 22 |
| Oil strainer construction | Double wounds stainless steel net (50 meshes) with magnets | p. 38 |
| Nozzle injection pressure (Factory spec) | 13.9 to 14.7 MPa (142 to 150 kgf/cm², 2019 to 2133 psi) | p. 24 |
| Nozzle holder body and nut tightening torque | 97 to 116 N·m (10 to 12 kgf·m, 73 to 88 ft-lbs) | p. 88 |
| Gaskets and O-rings replacement rule | Must be replaced during reassembly | p. 17 |
| Low oil pressure warning lamp threshold | Below 49 kPa (0.5 kgf/cm², 7 psi) | p. 39 |
| Engine oil pressure at idle speed (Factory spec) | 49 kPa or more (0.5 kgf/cm² or more, 7 psi or more) | p. 66 |
Kubota OC60-E2, OC95-E2 Common Problems This Manual Covers
Hard starting after storage
The engine cranks but starts only with excessive cranking, usually from air in the fuel system, a clogged fuel filter, or contaminated fuel. The Fuel System Mechanism section explains injection pump, delivery valve, and nozzle operation so you can trace the fault and bleed correctly.
Manual Section: Fuel System Mechanism p. 41Low oil pressure warning
A low oil pressure lamp or abnormal engine noise points to low oil level, a blocked oil strainer, or lubrication wear. The Lubricating System Mechanism section details the trochoid pump, oil strainer, and oil pressure switch function.
Manual Section: Lubricating System Mechanism p. 38Overheating under load
Power drop and rapid temperature rise on this oil-cooled engine usually trace to restricted airflow or dirty cooling passages. The Cooling System Mechanism section covers the air-cooled cylinder block, oil-cooled combustion area, and oil cooler design.
Manual Section: Cooling System Mechanism p. 40Excessive exhaust smoke and rough idle
Smoke, rough revolution, and lost power point to injection condition, worn injectors, or valve clearance out of specification. The Troubleshooting section maps exhaust gas color and deficient output back to their likely causes.
Manual Section: Troubleshooting p. 53Valve clearance drifts out of spec
Neglected valve clearance affects starting, idle smoothness, and power. The Check and Maintenance Procedures section walks through checking and adjusting valve clearance along with the other scheduled service tasks.
Manual Section: Check and Maintenance Procedures (General) p. 21Clogged fuel filter or oil strainer
Filters and strainers are the most frequently needed consumables, and a blocked element restricts fuel or oil flow. The Check and Maintenance Procedures section covers oil strainer cleaning, fuel filter service, and the related maintenance intervals.
Manual Section: Check and Maintenance Procedures (General) p. 21Frequently Asked Questions
Which engines does this manual cover?
It covers the Kubota OC60-E2 and OC95-E2 oil-cooled single-cylinder diesel engines, including their fuel, lubricating, cooling, and electrical systems, mechanism descriptions, and full servicing procedures across 106 pages.
Does it include tightening torque values?
Yes. The Tightening Torques section lists special use and general use screw values in N-m, kgf-m, and ft-lbs, including the cylinder head screw torques that differ between the OC60-E2 and OC95-E2. p. 62
How do I diagnose an engine that will not start?

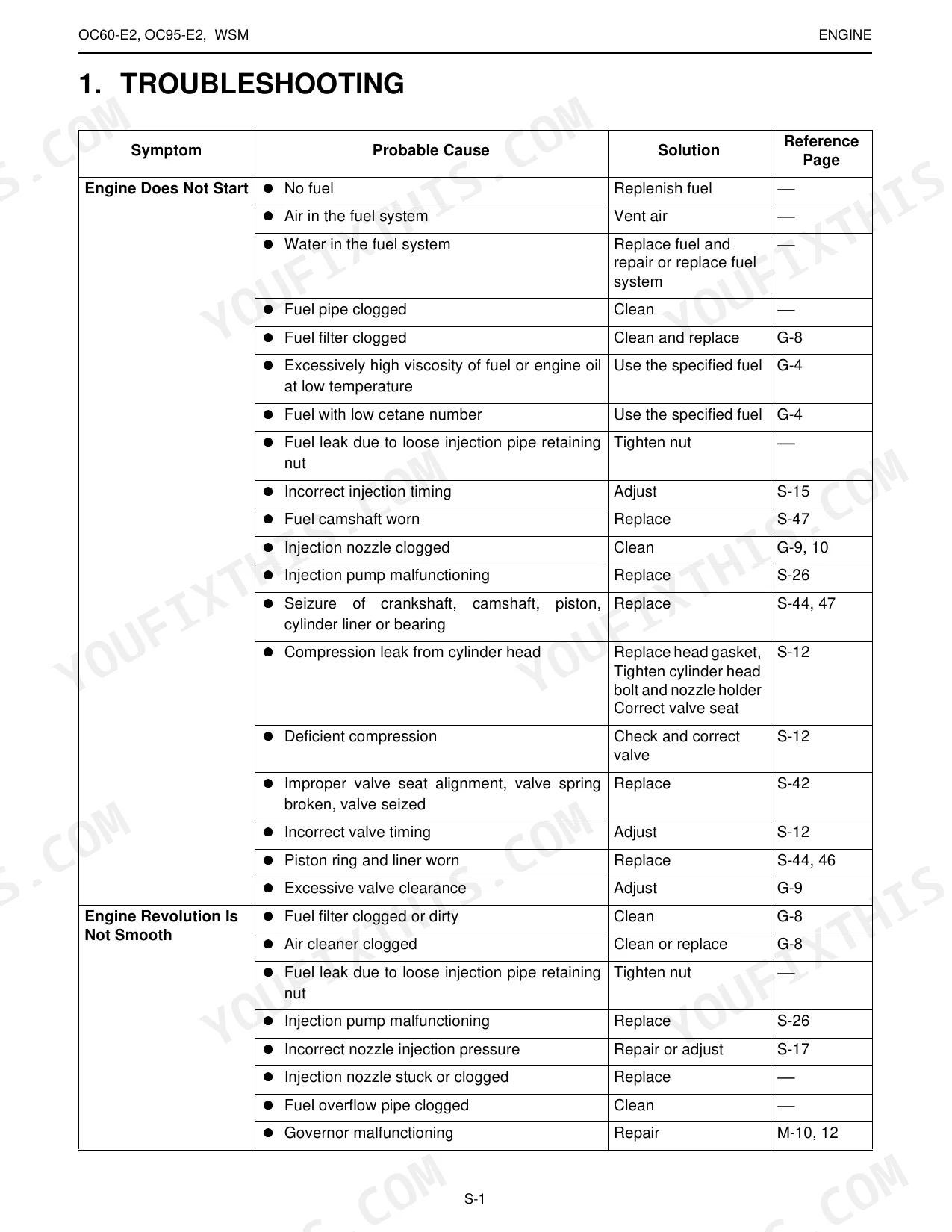

The Troubleshooting section lists no-start symptoms alongside likely causes such as fuel delivery problems and air in the fuel system, then points you to the checking and servicing steps that confirm and fix each one. p. 53
Will this Kubota OC60-E2 Workshop Manual download right away?
You get a 106-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, bring it right to the shop floor.
Can I print this Kubota OC60-E2 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Is the electrical system covered in this Kubota OC60-E2 Workshop Manual?

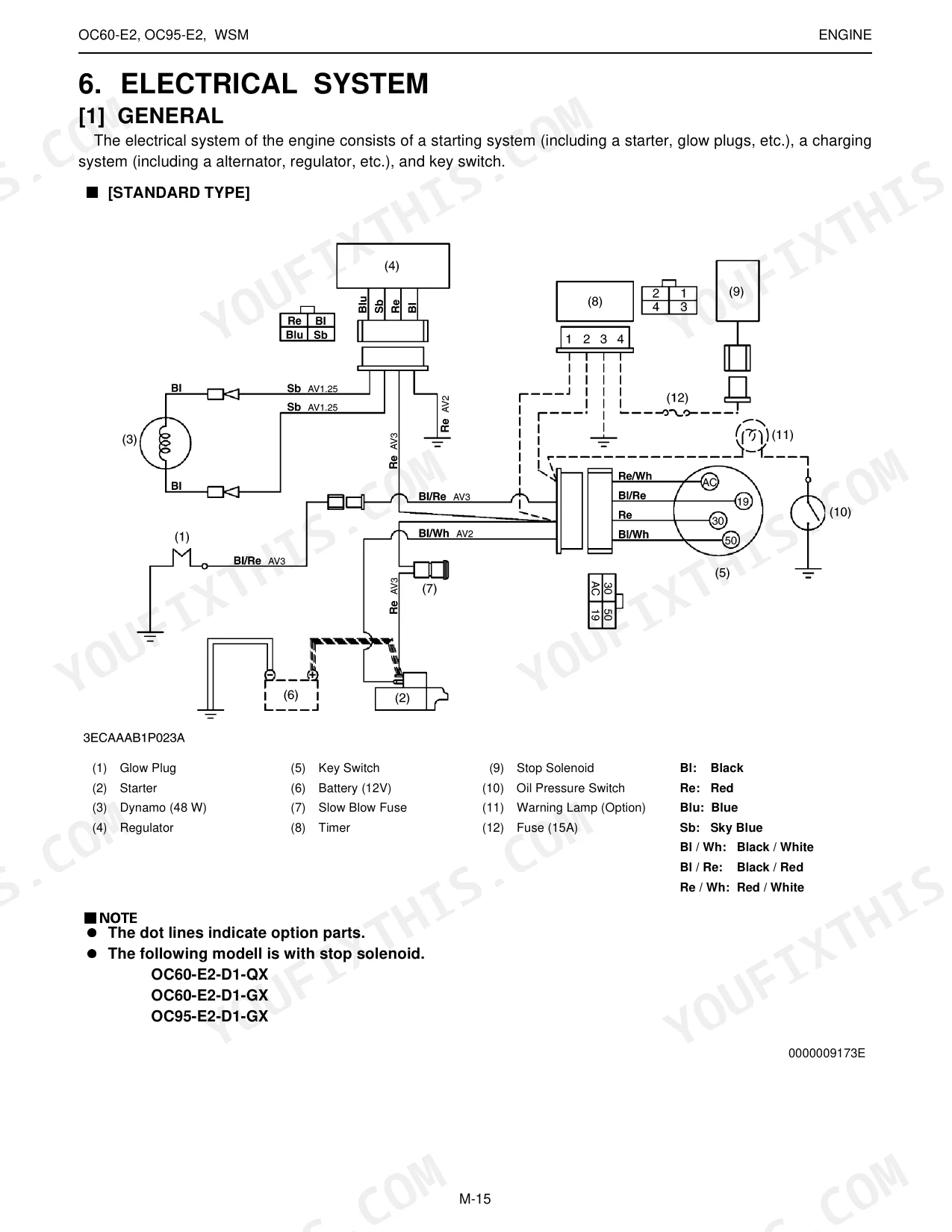

Yes, this Kubota OC60-E2, OC95-E2 Workshop Manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
