Factory troubleshooting and repair procedures for the Kubota M4900, M5700, and M5700HD are fully detailed in this 1,056-page Workshop Manual (OEM #9Y011-12554). The documentation covers every major system, including the engine, clutch, transmission, rear axle, brakes, steering, hydraulics, and electrical components. You will find complete hydraulic schematics tracing the three-point lift circuit, alongside wiring diagrams for the glow control and charging systems. Stop guessing on fluid capacities and torque values. The manual confirms the 8.0 L engine oil capacity, the 7.3 L radiator coolant limit, and specific fastener torques like the 17.7 to 20.5 N-m required for M8 hardware. Because this is a searchable PDF with bookmarks, finding the exact specification takes seconds on any phone, tablet, or computer.
What's Inside This Kubota M4900, M5700, M5700HD Manual

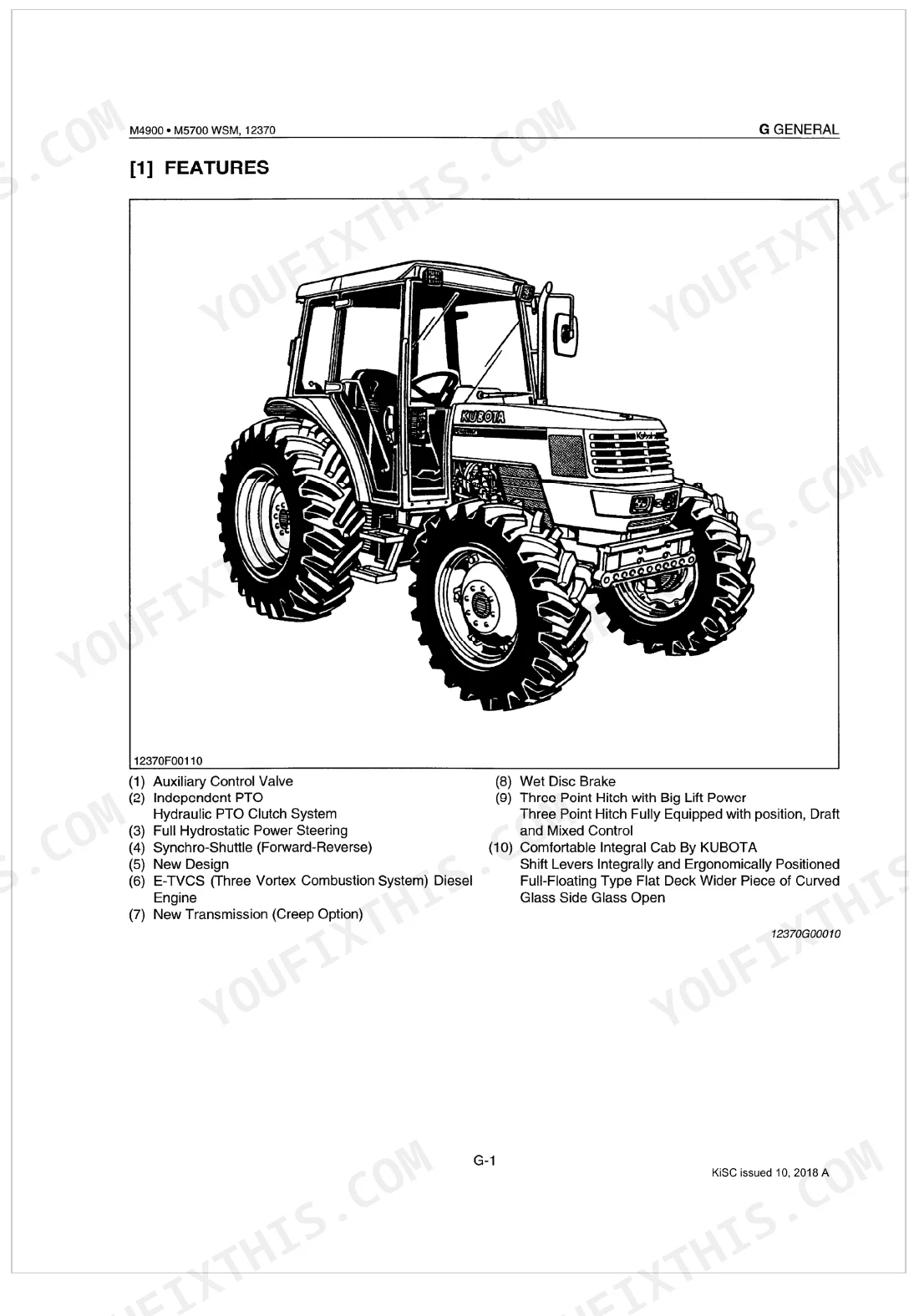

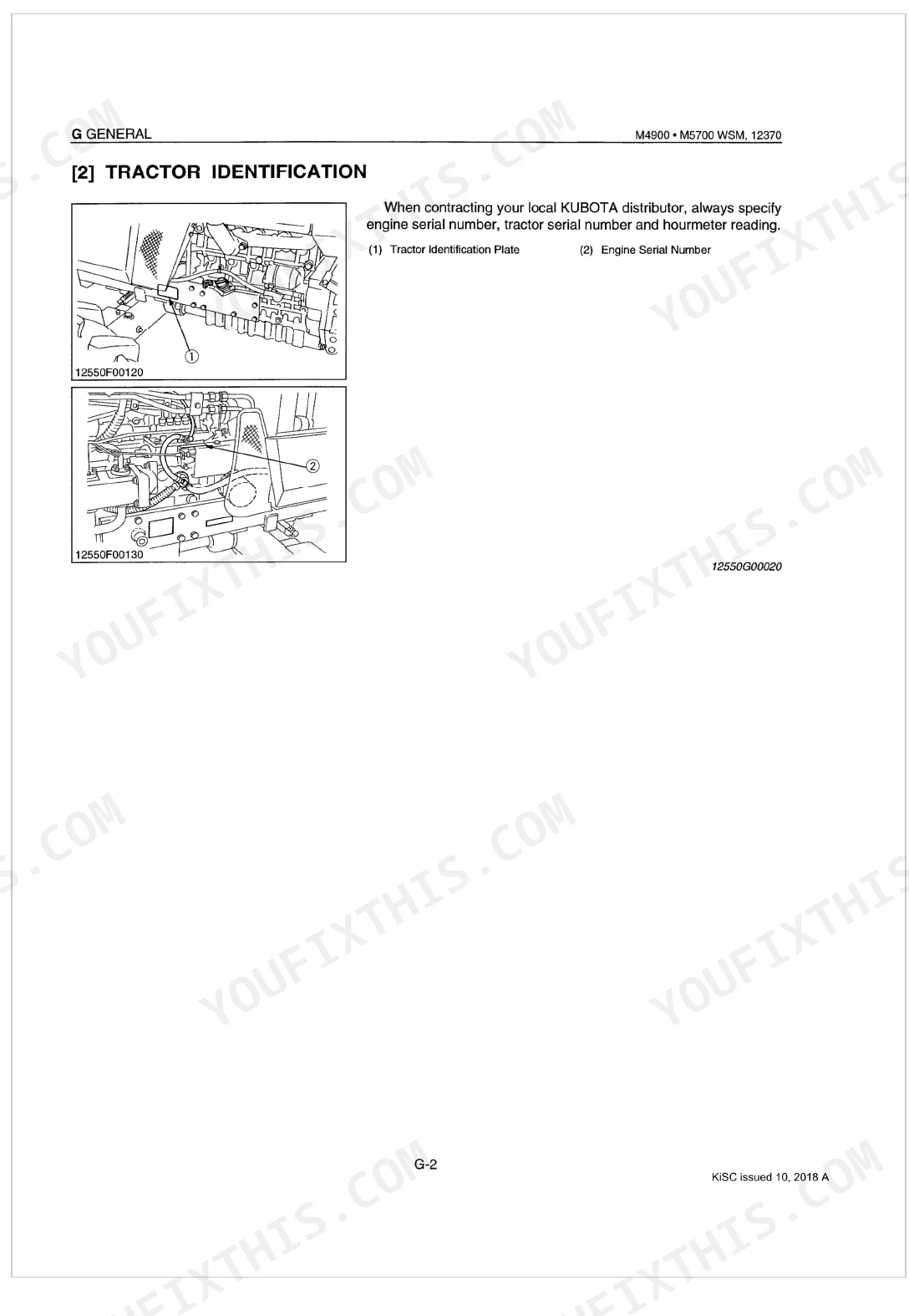

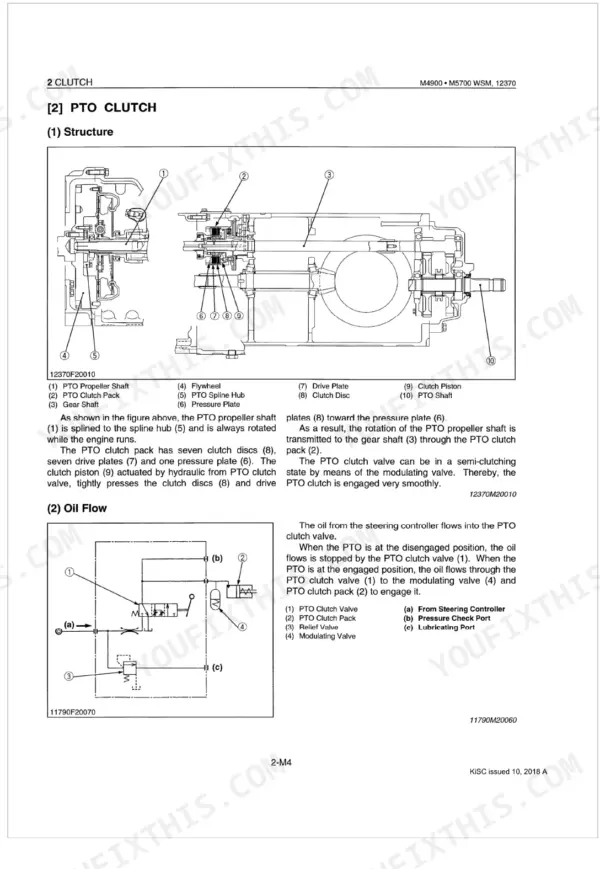

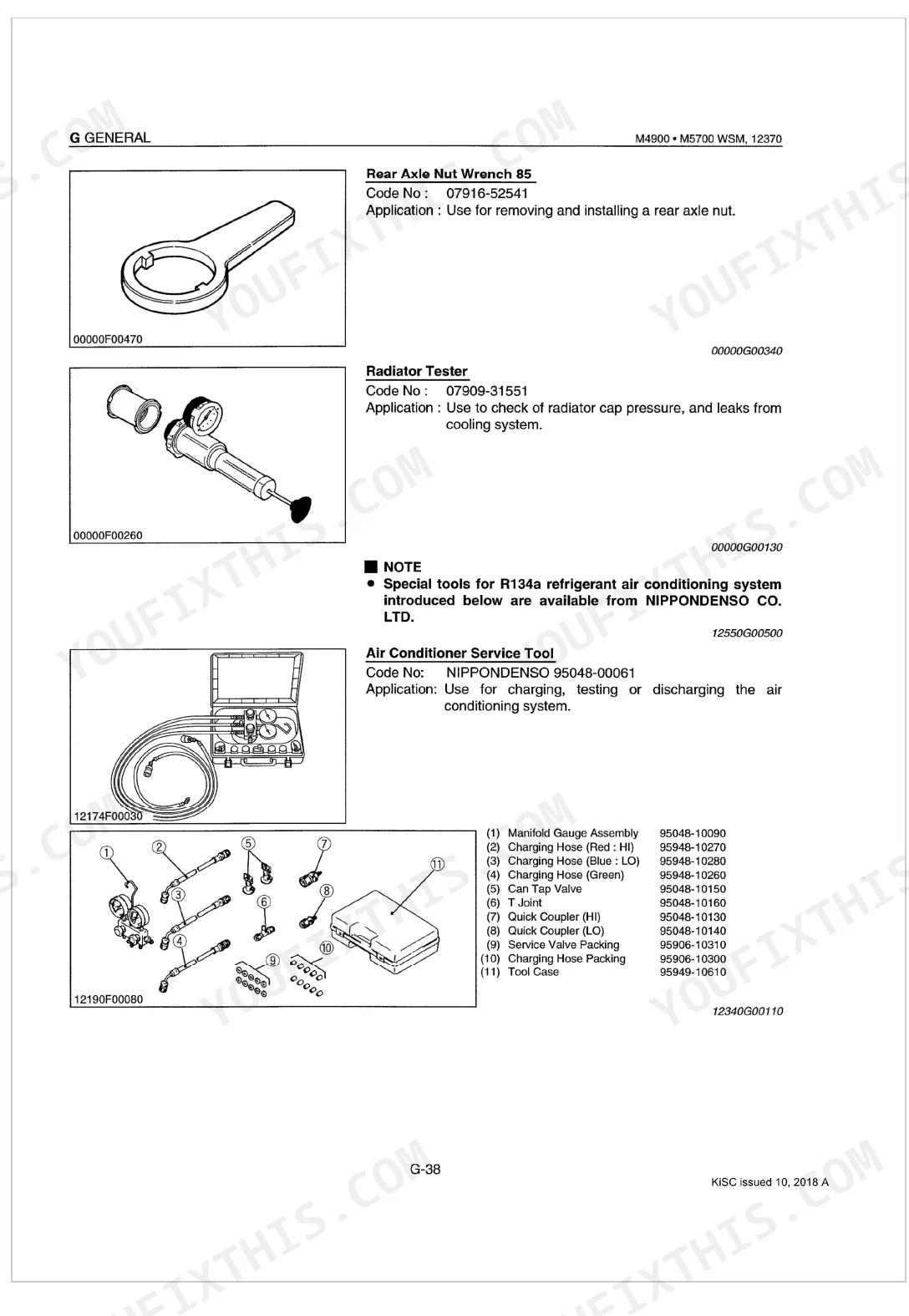

| System | Pages | Key Topics |
|---|---|---|
| General | - | Safety Instructions, Lubricants/Fuel/Coolant, Tightening Torques (General), Daily Check, Special Tools, Tire Pressure |
| Engine (Mechanism) | - | Cylinder Block, Crankshaft, Piston and Piston Rings, Lubricating System, Cooling System, Fuel System |
| Engine (Servicing) | - | Troubleshooting, Servicing Specifications, Cylinder Head, Timing Gears, Crankcase, Fuel System |
| Clutch (Mechanism) | - | Travelling Clutch Features, Travelling Clutch Linkage, PTO Clutch Structure, PTO Clutch Oil Flow, PTO Clutch Valve |
| Clutch (Servicing) | - | Troubleshooting, Servicing Specifications, Clutch Pedal Adjustment, Removing Clutch, PTO Clutch Disassembly |
| Transmission (Mechanism) | - | Shuttle Shift Section, Main Gear Shift Section, Hi-Lo/Creep Shift Section, Four Wheel Drive Section, PTO System, Differential Gear |
| Transmission (Servicing) | - | Troubleshooting, Servicing Specifications, Clutch Housing Disassembly, Transmission Case Disassembly, Shift Fork Clearance |
| Rear Axle (Mechanism) | - | Features, Final Reduction System, Planetary Gear System |
| Rear Axle (Servicing) | - | Troubleshooting, Servicing Specifications, Separating Rear Axle Case, Disassembling Planetary Gear, Backlash Adjustment |
| Brakes (Mechanism) | - | Features, Wet Disc Brakes, Parking Brake, Brake Operation |
| Brakes (Servicing) | - | Troubleshooting, Servicing Specifications, Brake Pedal Free Play, Brake Disc Wear, Cam Plate Flatness |
| Front Axle (Mechanism) | - | 2 Wheel Drive Type, 4 Wheel Drive Type, Front Wheel Alignment, Camber, Kingpin Angle, Toe-in |
| Front Axle (Servicing) | - | Troubleshooting, Servicing Specifications, Toe-in Adjustment, Front Axle Disassembly, Clearance Checks |
| Steering (Mechanism) | - | Steering Linkage, Hydraulic Circuit, Hydraulic Pump Operation, Steering Controller, Metering Device (Gerotor), Steering Cylinder |
| Steering (Servicing) | - | Troubleshooting, Servicing Specifications, Hydraulic Pump Test, Relief Valve Setting, Steering Controller Disassembly, Steering Cylinder Disassembly |
| Hydraulic System (Mechanism) | - | Three Point Hydraulic System, Hydraulic Pump, Position Control Valve, Relief Valve, Hydraulic Cylinder, Auxiliary Control Valve |
| Hydraulic System (Servicing) | - | Troubleshooting, Servicing Specifications, Hydraulic Pump Disassembly, Position Control Linkage Adjustment, Cylinder Safety Valve Disassembly, Hydraulic Arm Shaft Clearance |
| Electrical System (Mechanism) | - | Wiring Diagram, Starter Motor, Glow Control System, Engine Key Switch Shut-Off, Charging System, Lighting System, Easy Checker, Gauges |
| Electrical System (Servicing) | - | Troubleshooting, Servicing Specifications, Battery Check, Starter Motor Disassembly, Alternator Servicing, Lighting System Checks, Hazard Switch Continuity, Fuel Level Sensor |
| Cabin (Servicing) | - | Troubleshooting, Servicing Specifications, Refrigerant Cycle Precautions, Manifold Gauge Use, Discharging/Evacuating/Charging, Compressor Check, Air Conditioner Unit Removal |

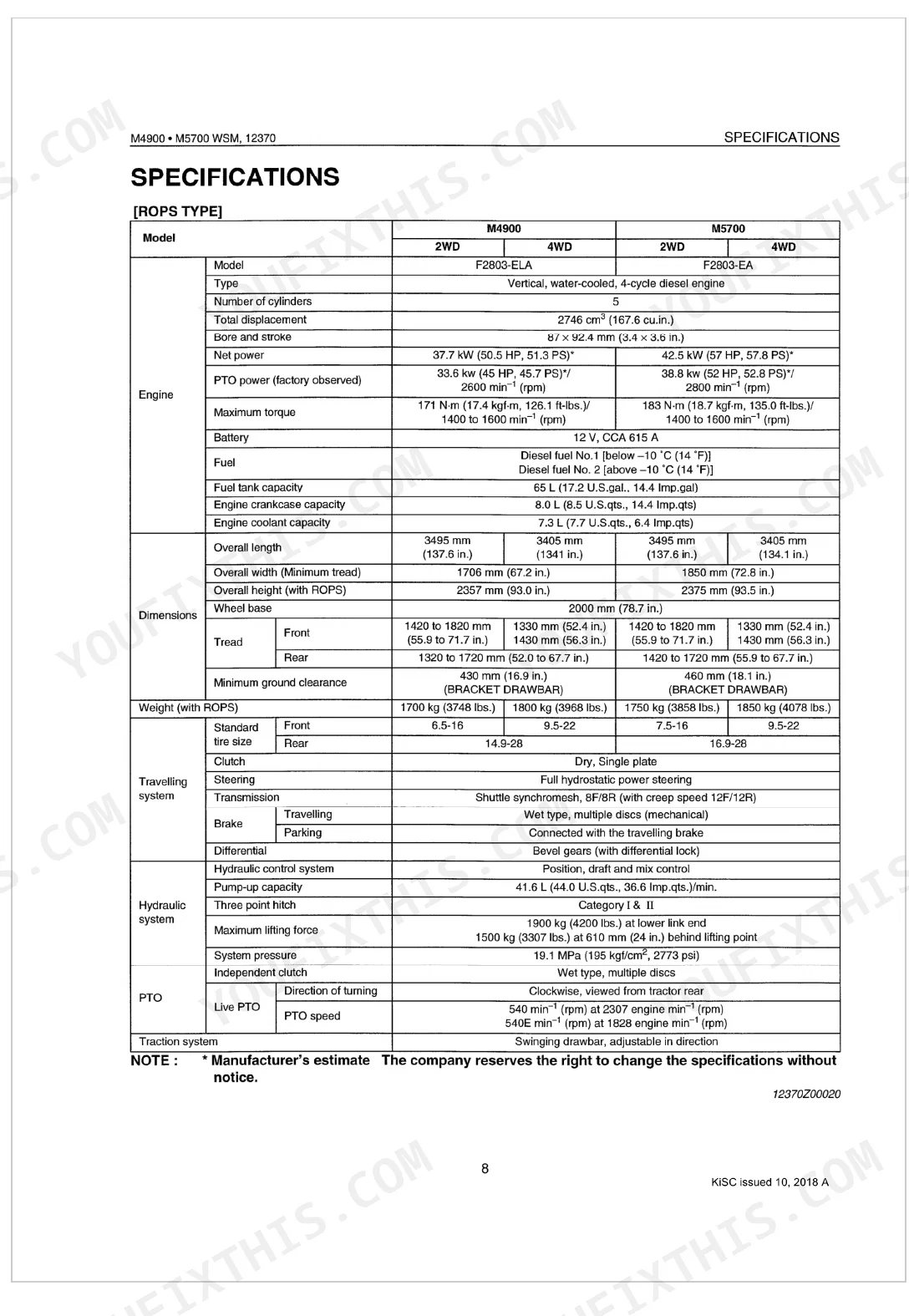

Quick Reference Specifications

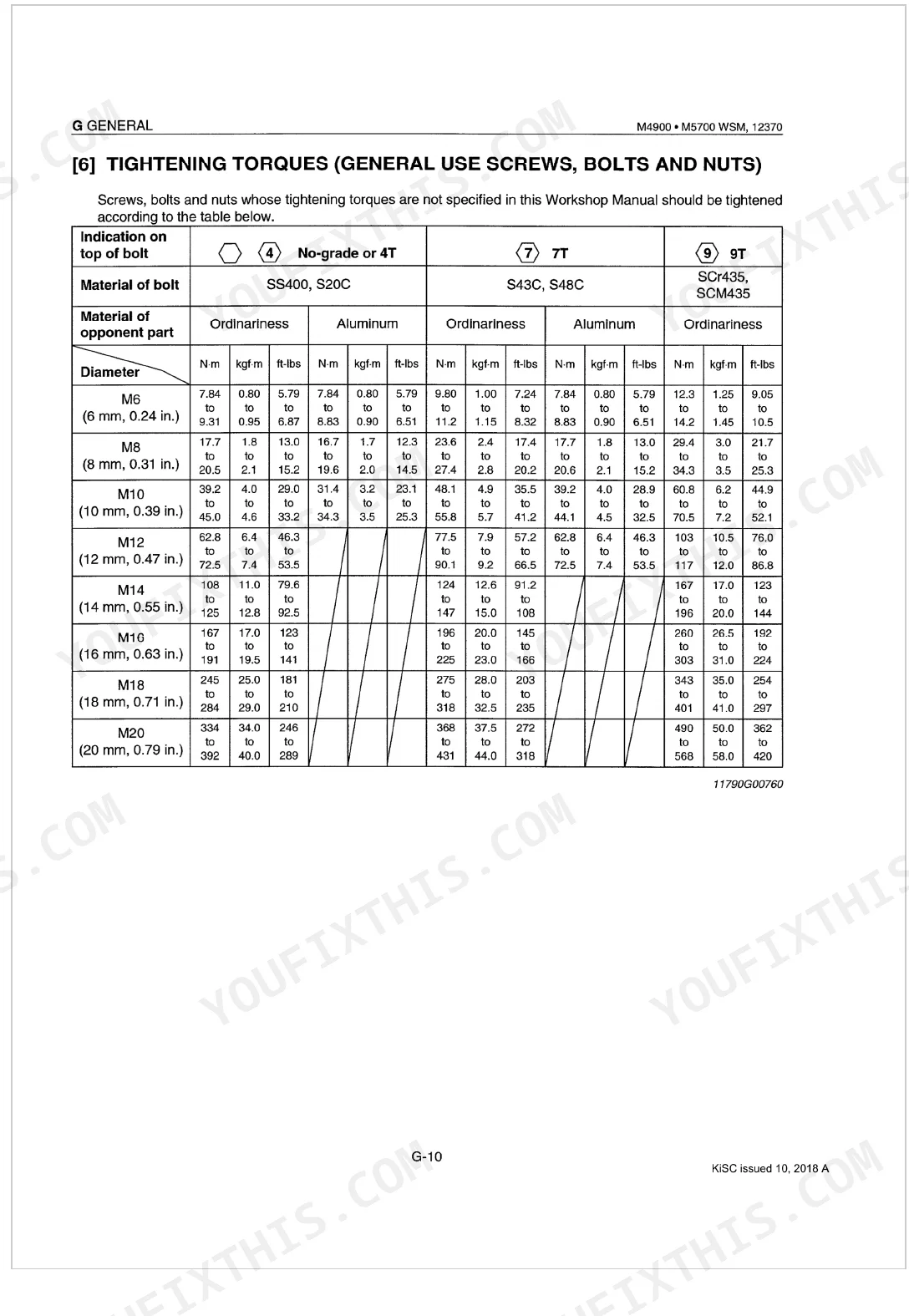

| Specification | Value | Page |
|---|---|---|
| Tightening torque for M6 (6 mm, 0.24 in.) SS400, S20C screws/bolts/nuts | 7.84 to 9.31 N-m (0.80 to 0.95 kgf-m, 5.79 to 6.87 ft-lbs) | p. 27 |
| Tightening torque for M8 (8 mm, 0.31 in.) SS400, S20C screws/bolts/nuts | 17.7 to 20.5 N-m (1.8 to 2.1 kgf-m, 13.0 to 15.2 ft-lbs) | p. 27 |
| Engine Oil Capacity | 8.0 L | p. 26 |
| Fuel Tank Capacity (ROPS) | 65 L | p. 26 |
| Coolant Capacity (Radiator) | 7.3 L | p. 26 |
| Cylinder Head Screw Torque | 93.1 to 98.0 N-m | p. 28 |
| Rear Wheel Mounting Nut Torque | 260 to 304 N-m | p. 33 |
| Clutch Pedal Free Play | 35 to 45 mm | p. 32 |
| Engine Valve Clearance (Cold) | 0.18 to 0.22 mm | p. 22 |
| Fan Belt Tension (Deflection) | 7 to 9 mm | p. 36 |
| PTO Clutch Valve Relief Pressure | 2.45 to 2.55 MPa | p. 175 |
| Front Axle Toe-in (2WD) | 1 to 5 mm | p. 38 |
Kubota M4900, M5700, M5700HD Common Problems This Manual Covers
Kubota M4900, M5700, and M5700HD rough idle, low power, and loud engine knocking under heavy load. p. 22
Remove the valve cover and measure the cold engine valve clearance. Adjust the clearance to 0.18 to 0.22 mm as shown on page 22. Inspect the feeler gauge for slight drag. Torque the locknuts and replace the gasket before reassembly.

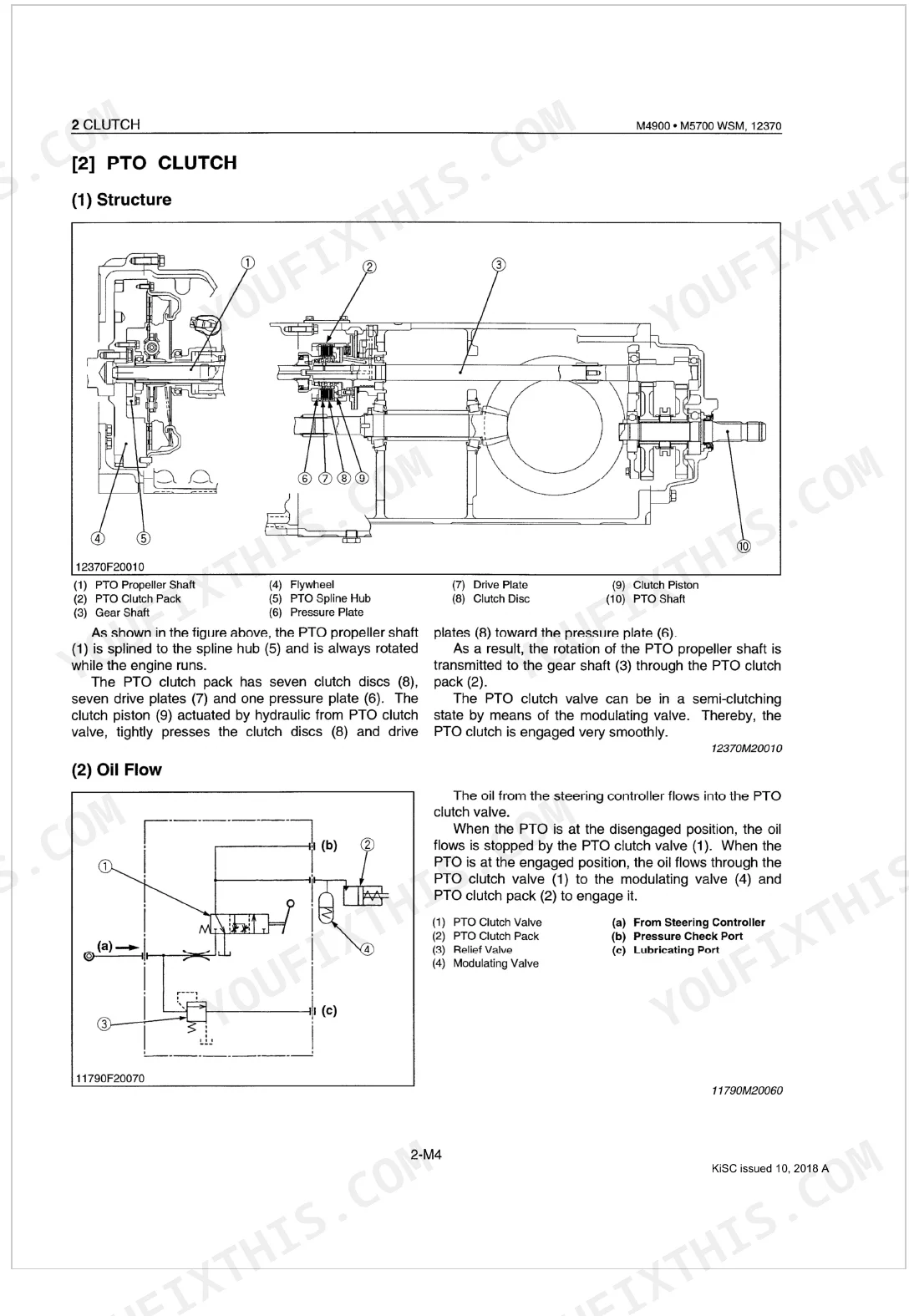

Manual Section: Engine TroubleshootingPTO shaft stops rotating under heavy load or PTO clutch slips during operation. p. 175
Connect a pressure gauge to the test port to measure the PTO clutch valve relief pressure. Verify the reading falls between 2.45 and 2.55 MPa as specified on page 175. Adjust the shims in the relief valve if the pressure is out of spec.
Manual Section: Clutch TroubleshootingCabin air conditioning blows warm air or noisy compressor squeals upon engagement. p. 454
Inspect the air conditioner drive belt for glazing or excessive wear. Press the center of the belt and measure the deflection. Adjust the tensioner bracket on page 454 until the belt tension deflection measures exactly 10 to 12 mm. Replace the belt if frayed.
Manual Section: Cabin Air Conditioning TroubleshootingExcessive or unusual noise from the rear housing and loud clanking while turning. p. 242
Jack up the rear end and inspect the wheel hubs for play. Tighten the rear wheel mounting nuts to 260 to 304 N-m as detailed on page 33. If noise persists, check the rear axle nut torque on page 242 and verify it holds at 539 to 637 N-m.
Manual Section: Rear Axle TroubleshootingTractor gears clash during operation, hard shifting, or clutch drags when depressed. p. 32
Measure the travel distance at the pedal pad. Loosen the locknut on the clutch rod and turn the turnbuckle to set the clutch pedal free play to 35 to 45 mm. Secure the locknut and test shift engagement per the procedure on page 32.
Manual Section: Clutch TroubleshootingFrequently Asked Questions

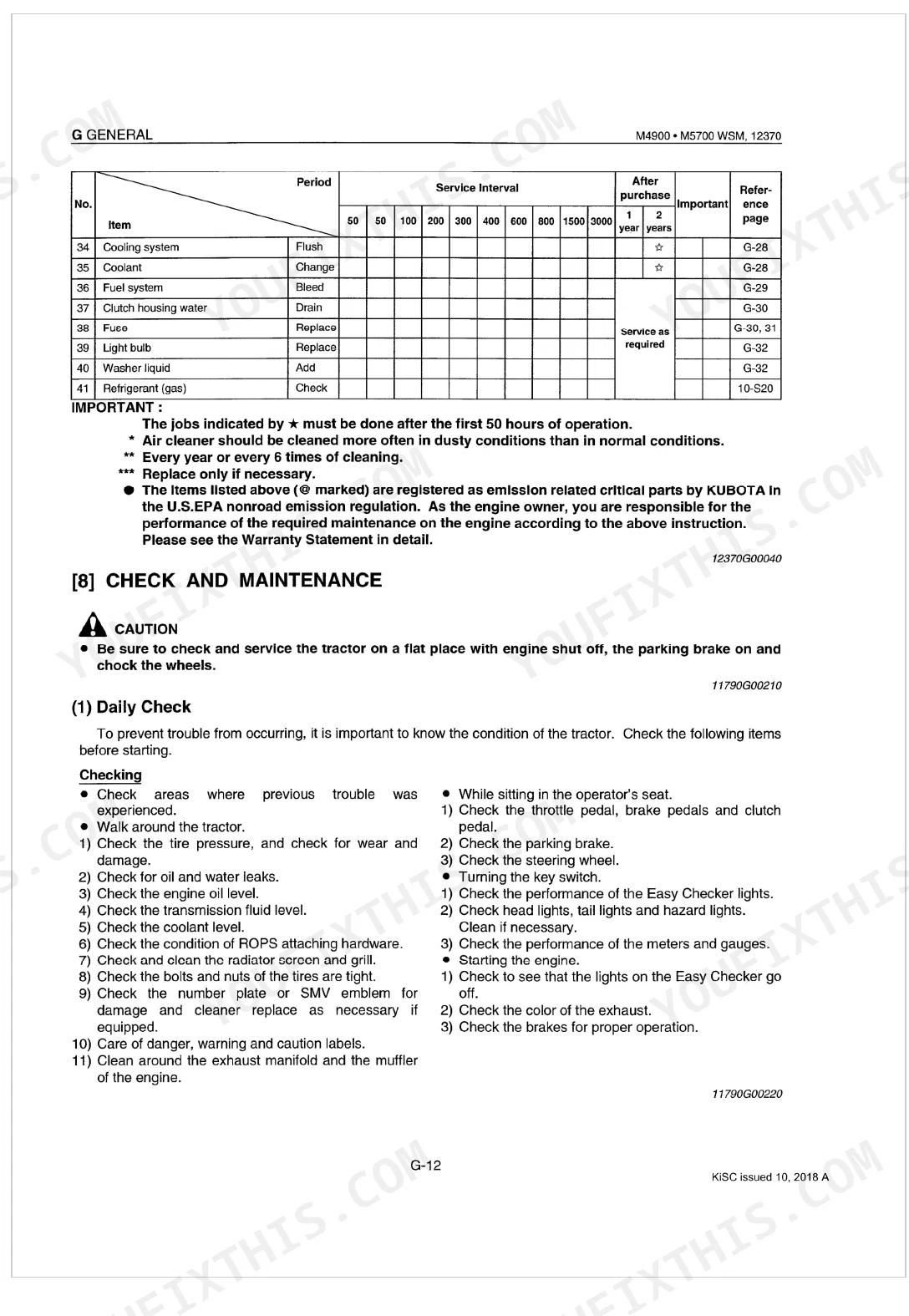

What are the recommended service intervals?
The manual provides a detailed service interval table for various components. For instance, engine oil should be changed initially at 50 hours and then every 200 hours. The hydraulic oil filter should be replaced every 200 hours, and the fan belt tension should be adjusted every 200 hours. Daily checks include tire pressure, fluid levels, and brake function.
What fluids and capacities does this machine require?
The machine requires Diesel fuel No.1 or No.2, with a capacity of 65 L (17.2 U.S. gals). The engine crankcase needs 8.0 L (8.5 U.S. qts) of API Service Classification CC or CD engine oil. The transmission case requires 40.0 L (42.3 U.S. qts) of KUBOTA SUPER UDT fluid. The coolant capacity for the radiator is 7.3 L (7.7 U.S. qts) of fresh clean water with anti-freeze.
How to troubleshoot engine won't start?
If the engine won't start, common causes include no fuel (replenish fuel, see page G-29), air in the fuel system (bleed the system, see page G-29), or improper valve timing (correct or replace timing gear, see page 1-S32). Other issues could be a clogged fuel pipe or filter, excessively high viscosity oil, or a malfunctioning injection pump.
What are the hydraulic system specifications?
The hydraulic system has a pump-up capacity of 41.6 L (44.0 U.S.qts., 36.6 Imp.qts.)/min. The system pressure is 19.1 MPa (195 kgf/cm², 2773 psi). The maximum lifting force at the lower link end is 1900 kg (4200 lbs.).
How quickly can I access this Kubota M4900, M5700, M5700HD manual after buying?
A 1056-page Workshop Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, no shipping wait.
Is this Kubota M4900, M5700, M5700HD Workshop Manual printable?
None at all, the PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Does this Kubota M4900, M5700, M5700HD manual cover the hydraulic system?
Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the Kubota M4900, M5700, M5700HD.
Document Quality
This document is a scanned PDF with an optical character recognition (OCR) layer, allowing you to search and copy text throughout. The text quality is generally crisp and readable, with the OCR layer enhancing clarity. Diagrams and illustrations are raster images, mostly clear, though some smaller labels might require zooming. Pages are clean with no significant scan artifacts, stains, or skewed content. Be aware that pages 15, 16, 73, and 74 are largely blank with only section titles.
