This is the Kubota operator manual for the M5700, M6800, M8200, and M9000 tractors, 103 pages covering all four models in one book. It gives the owner the manufacturer procedures for safe operation, daily and periodic servicing, and the controls and hydraulics that run these machines.Inside you get the specification tables with per-model displacement, fuel, oil, and coolant figures, traveling speeds, instrument panel layout, engine starting and stopping, PTO and three-point hitch operation, hydraulic unit control, tire and ballast setup, and cab operation. The maintenance chapters set service intervals and the periodic service section walks through each inspection.Owners and mechanics of the M5700, M6800, M8200, or M9000 use this PDF to confirm the correct operating sequence, torque values, fluid capacities, and service schedule, plus a troubleshooting chart for common engine faults.
What's Inside This Kubota M5700–M9000 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|

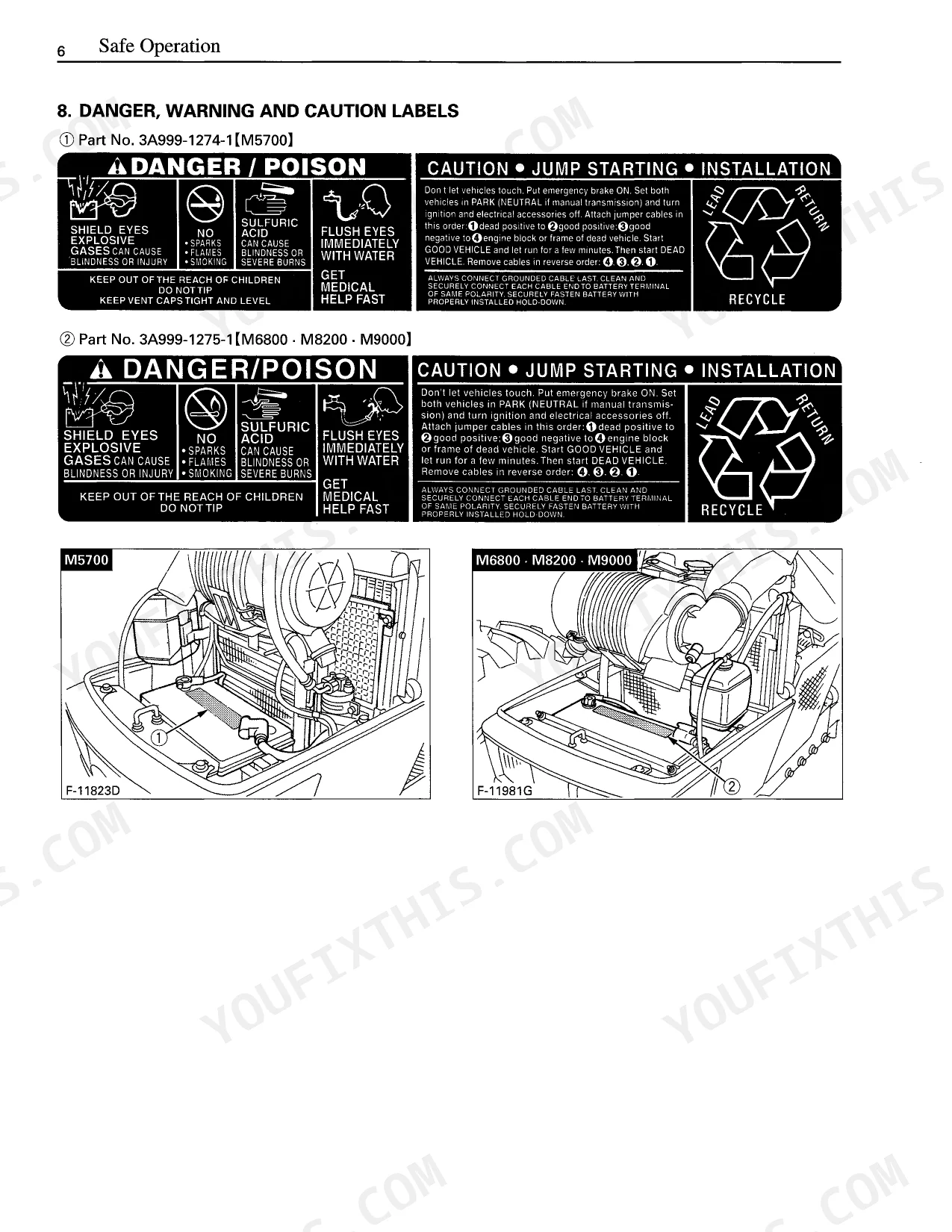

| A Safe Operation | 7-10 | Before Operating the Tractor, Parking the Tractor, Operating the PTO, Using 3-Point Hitch, Servicing the Tractor, Danger, Warning and Caution Labels |
| Servicing of Tractor | 11 | Tractor Identification Plate, Tractor Serial Number, Cab Identification Plate, Cab Serial Number, Engine Serial Number |

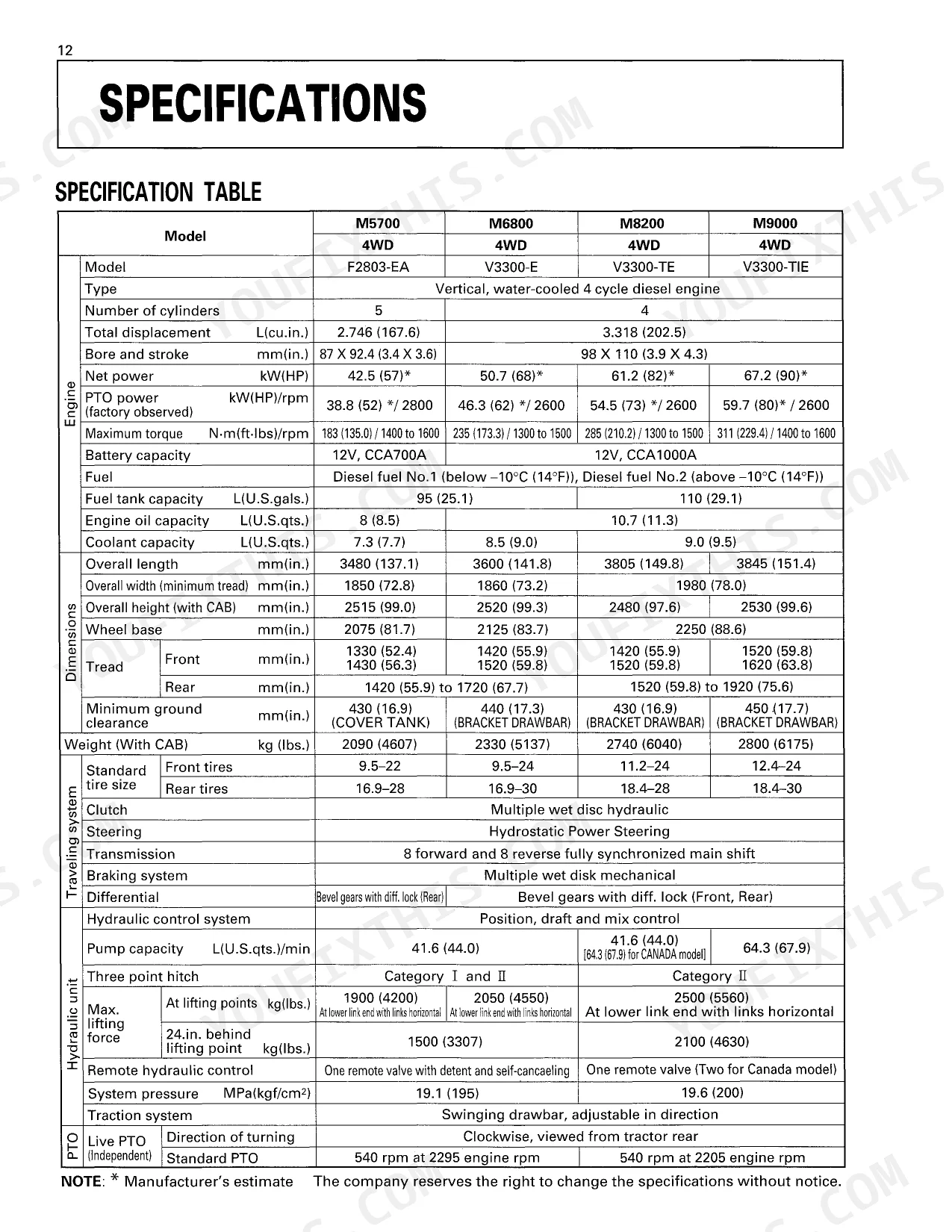

| Specifications | 12-14 | Specification Table, Traveling Speeds, M5700-M6800 Traveling Speeds, M8200-M9000 Traveling Speeds |

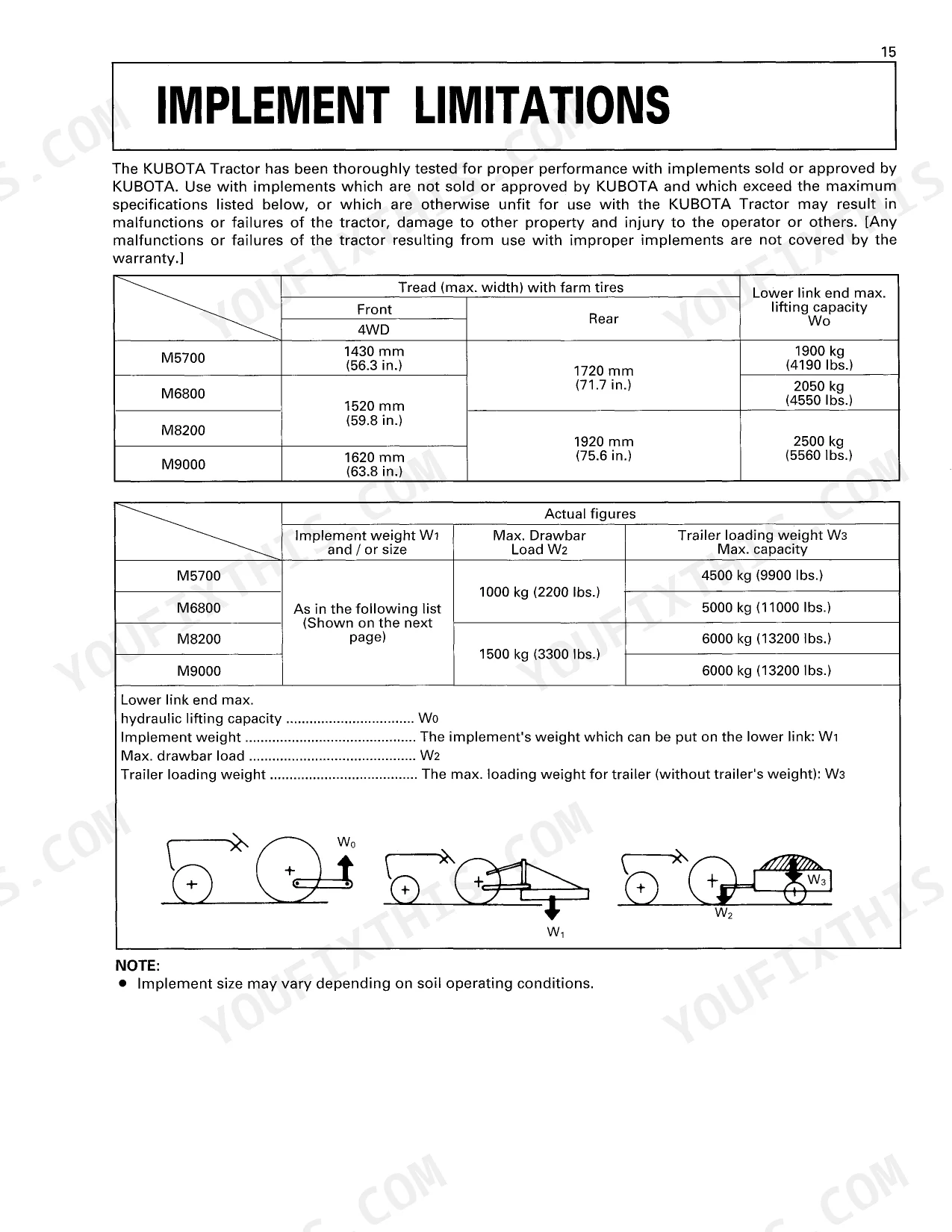

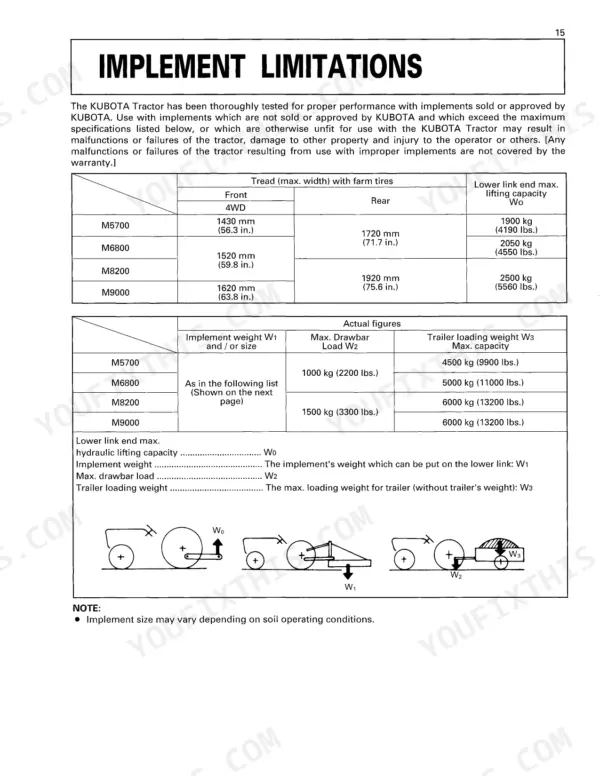

| Implement Limitations | 15-16 | Tread with Farm Tires, Actual Figures, Implement Specifications |
| Instrument Panel and Controls | 17-18 | Fuel Gauge, Easy Checker™, Head Light Switch, Hourmeter / Tachometer, Key Switch, Engine-Emergency Stop Knob |
| Pre-Operation Check | 19 | Daily Check, Check Item, Walk Around Inspection, Checking and Refueling |
| Operating the Engine | 20-24 | Starting the Engine, Stopping the Engine, Warming Up, Jump Starting |
| Operating the Tractor | 25-36 | Operating New Tractor, Starting |
| PTO | 37-38 | PTO Operation, PTO Clutch Control Lever, RPM PTO Shaft, PTO Shaft Cover and Shaft Cap, PTO Shaft Interchanging Procedure |
| Three-Point Hitch & Drawbar | 39-43 | 3-Point Hitch, Make Preparations for Attaching Implement (Category: I & Ii M5700-M6800, Ii M8200-M9000) |
| Hydraulic Unit | 44-49 | 2-Point Hitch Control System, Remote Hydraulic Control System, 3-Point Hitch Control System (Position Control, Draft Control, Mixed Control) |
| Tires, Wheels and Ballast | 50-53 | Tires (Inflation Pressure), Wheel Adjustment (Front Wheels), Rear Wheels, Ballast (Front Ballast, Front End Weights, Rear Ballast, Cast Iron Disk, Rear Wheel Weights) |

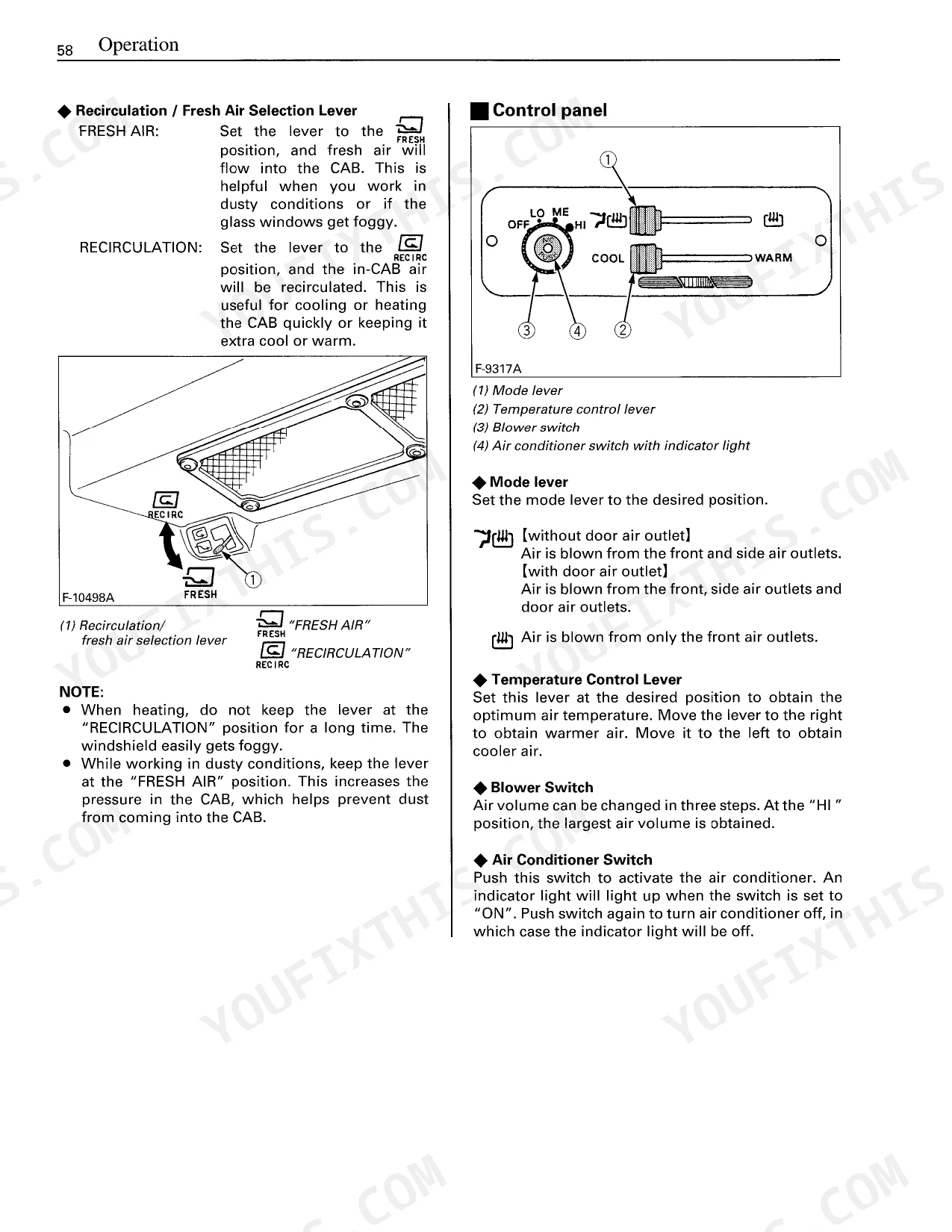

| Cab Operation | 54-62 | Door and Window (Locking and Unlocking the Door, Opening the Door, Rear Window), Side Window, Work Light (Switch, Front Work Light, Rear Work Light), Dome Light |
| Maintenance | 63-65 | Service Intervals, Common Items, Lubricants, Lubricants Table |
| Periodic Service | 66-95 | How to Open the Hood, Daily Check (Walk Around Inspection, Checking and Refueling), Checking Water Separator, Checking Engine Oil Level, Checking Transmission Fluid Level |
| Storage | 96 | Tractor Storage, Removing the Tractor, From Storage |
| Troubleshooting | 97 | Engine Troubleshooting, No Fuel Flow, Air or Water in the Fuel System, Engine Is Difficult to Start or Won't Start |
| Options | 98-103 | Work Light, Rear Wiper, Radio with Cassette Player, Trailer Electrical Outlet, For Operating Remote Lighting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| M6800, M8200, M9000 | ||
| Wheel nut torque | 260 to 304 N·m (192 to 224 ft·lbs) | p. 72 |
| Total displacement | 3.196 L | p. 12 |
| Engine Oil Capacity | 8.5 L | p. 12 |
| All Models | ||
| Fuel filter replacement interval | Replace every 400 Hr | p. 63 |
| Hydraulic oil filter replacement interval | Replace every 200 Hr | p. 64 |
| Air cleaner primary element cleaning interval | Clean every 100 Hr | p. 63 |
| Air cleaner primary element replacement interval | Replace every 1 year | p. 63 |
| Coolant Capacity | 10.7 L | p. 12 |
| M5700 | ||
| Total displacement | 2.746 L | p. 12 |
| Engine Oil Capacity | 7.3 L | p. 12 |
| M5700, M6800 | ||
| Fuel Tank Capacity | 95 L | p. 12 |
| M8200, M9000 | ||
| Fuel Tank Capacity | 110 L | p. 12 |
Kubota M5700–M9000 Series Common Problems This Manual Covers
Engine cranks but will not start
Low fuel, a weak battery, air in the fuel system, or a clogged fuel filter leave the engine turning over without firing. The troubleshooting section covers no fuel flow and air or water in the fuel system.
Manual Section: Troubleshooting p. 97Hydraulics feel weak or slow
Low hydraulic fluid, a clogged filter, or air in the system makes the three-point hitch and remote functions sluggish. The hydraulic unit section covers position, draft, and mixed control and the remote hydraulic system.
Manual Section: Hydraulic Unit p. 44Overheating during work
Low coolant, dirty radiator fins, or a loose fan belt drives the coolant temperature up under load. The periodic service section covers checking the coolant, water separator, and related items on schedule.
Manual Section: Periodic Service p. 66Loss of power under load
A dirty air filter or clogged fuel filter starves the engine and cuts power when working hard. The maintenance section sets the cleaning and replacement intervals for the air and fuel filters.
Manual Section: Maintenance p. 63Rough shifting or driveline noise
Low or dirty transmission fluid and a misadjusted shift linkage cause grinding and hard shifts. The operating the tractor section covers the range, main, and hydraulic-shuttle shift levers and correct clutch use.
Manual Section: Operating the Tractor p. 25PTO does not engage or disengage cleanly
Incorrect lever position or shaft setup keeps the PTO from responding as expected. The PTO section covers the clutch control lever, shaft speeds, and the shaft interchanging procedure.
Manual Section: PTO p. 37Frequently Asked Questions
Which tractors does this manual cover?
It covers the Kubota M5700, M6800, M8200, and M9000 tractors in a single operator manual, with per-model specifications where they differ.
What is the wheel nut torque?
The manual gives wheel bolt torque of 168 to 196 N-m for the M5700 and 260 to 304 N-m (192 to 224 ft-lbs) for the M6800, M8200, and M9000. p. 50
How often should filters be serviced?
The maintenance section replaces the fuel filter every 400 hours and the hydraulic oil filter every 200 hours, and cleans the air cleaner primary element every 100 hours. p. 63
Are the fluid capacities different between models?
Yes. The specifications section lists per-model figures, such as fuel tank capacity of 95 L on the M5700 and M6800 and 110 L on the M8200 and M9000, plus engine oil and coolant capacities. p. 12
How will I receive this Kubota M5700–M9000 Series Operator Manual?
Immediate download of the complete 103-page searchable Operator Manual. Open it on any device: laptop at your desk or phone out in the field.
Are there any print restrictions on this Kubota M5700–M9000 Series manual?
None at all. The PDF is DRM-free, so print whatever sections you need for the shop. Standard letter or A4 paper works fine.
