Five tractors share this 34-page operator manual PDF: the M4900, M5700, M6800S, M8200, and M9000, with every daily check, control function, and scheduled service interval pulled straight from Kubota engineering. It maps the instrument panel controls, foldable ROPS procedures, engine startup and shutdown, and jump-starting steps, plus 11 pages of safety warnings written for these five models. Fifteen operating procedures cover PTO engagement, three-point hitch setup, remote hydraulic controls, drawbar limits, tire pressure, wheel adjustment, and ballast. The service schedule runs from daily walk-arounds through every 3,000-hour interval. Rear wheel bolts (2WD) on the M4900 and M5700 call for 168 to 196 N·m [124 to 145 ft.lbs.]; the 4WD front axle bolts on the M6800S, M8200, and M9000 tighten to 260 to 304 N·m [192 to 224 ft.lbs.]. Bookmark any section and keep it open on your phone before you touch the first grease fitting.
What's Inside This Kubota M4900–M9000 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|

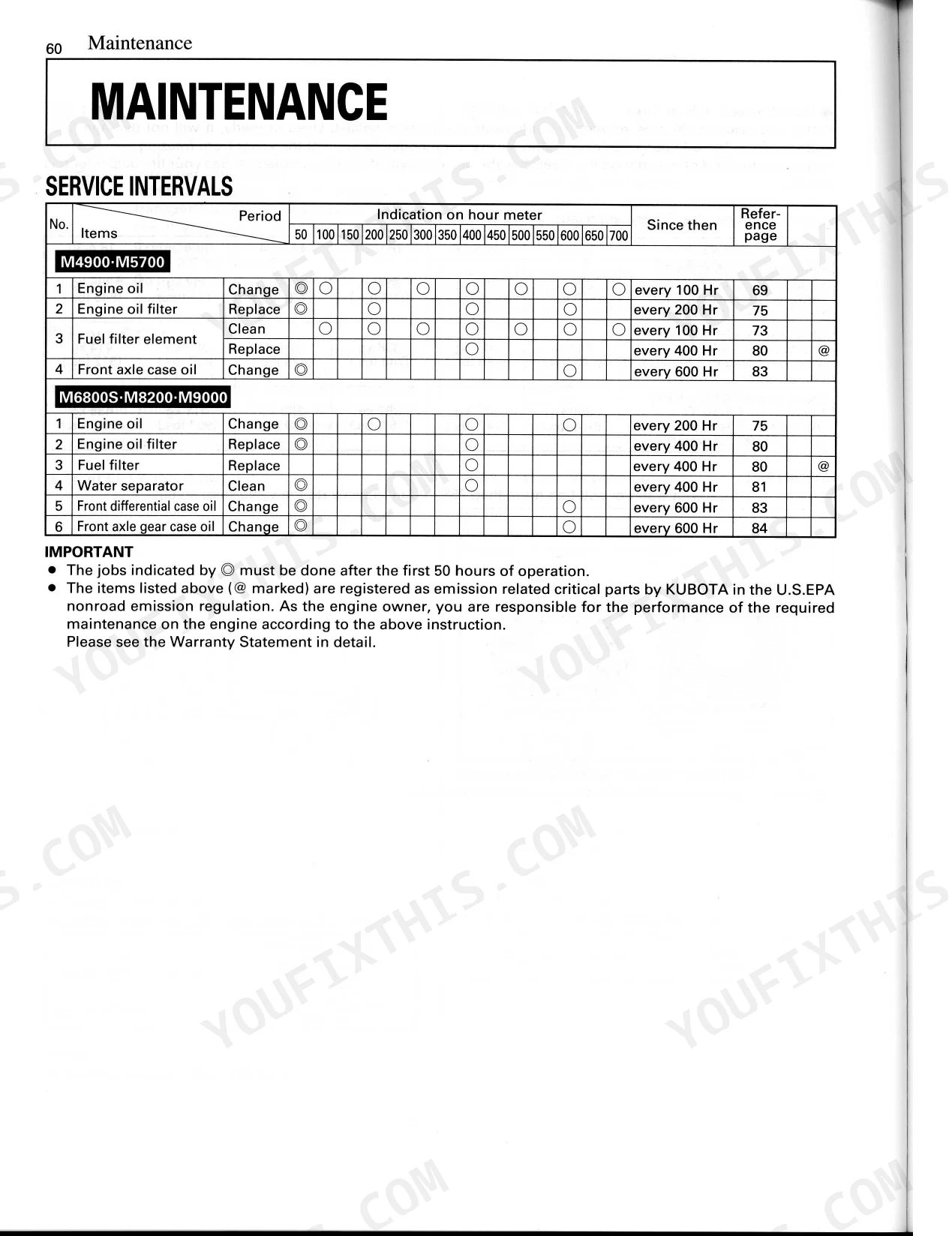

| Maintenance | 3-5 | Service Intervals (M4900-M5700, M6800S-M8200-M9000), Important, Common Items, Lubricants, Note |
| Specifications | 34 | Specification Table M4900-M5700, Engine, Dimensions, Traveling System, Hydraulic Unit, PTO, Note |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| M4900, M5700 | ||
| Wheel bolt torque (2WD) | 168 to 196 N·m (17.1 to 20.0 kgf·m) [124 to 145 ft.lbs.] | p. 12 |
| Wheel bolt torque (4WD) | 260 to 304 N·m (26.5 to 31 kgf·m) [192 to 224 ft.lbs.] | p. 12 |
| Fuel filter element replacement interval | every 100 Hr | p. 3 |
| Engine Oil Capacity (with filter) | 8 L (8.5 U.S.qts.) | p. 5 |
| M6800S, M8200, M9000 | ||
| Front axle wheel bolt torque (4WD) | 260 to 304 N·m (26.5 to 31 kgf·m) [192 to 224 ft.lbs.] | p. 12 |
| Fuel filter replacement interval | every 400 Hr | p. 3 |
| Water separator cleaning interval | every 400 Hr | p. 3 |
| Engine Oil Capacity (with filter) | 10.7 L (11.3 U.S.qts.) | p. 5 |
| All Models | ||
| Hydraulic oil filter replacement interval | every 300 Hr | p. 4 |
| M4900, M5700, M6800S | ||
| Fuel Tank Capacity | 65 L (17.2 U.S.gals.) | p. 5 |
| M8200, M9000 | ||
| Fuel Tank Capacity | 90 L (23.8 U.S.gals.) | p. 5 |
| M4900, M5700, M6800S, M8200, M9000 | ||
| Wheel Bolt Torque (2WD) | 168 to 196 N·m (124 to 145 ft·lbs) | p. 12 |
Kubota M4900–M9000 Series Common Problems This Manual Covers
Kubota M4900 hard starting, loss of power, surging, or stalling after a fuel filter service p. 3
Bleed the air from the fuel lines before anything else. Confirm the fuel filter element was changed at its 100 Hr interval (page 3). Fill the tank to 65 L (17.2 U.S.gals.) and open the bleeder valve to prime the system.

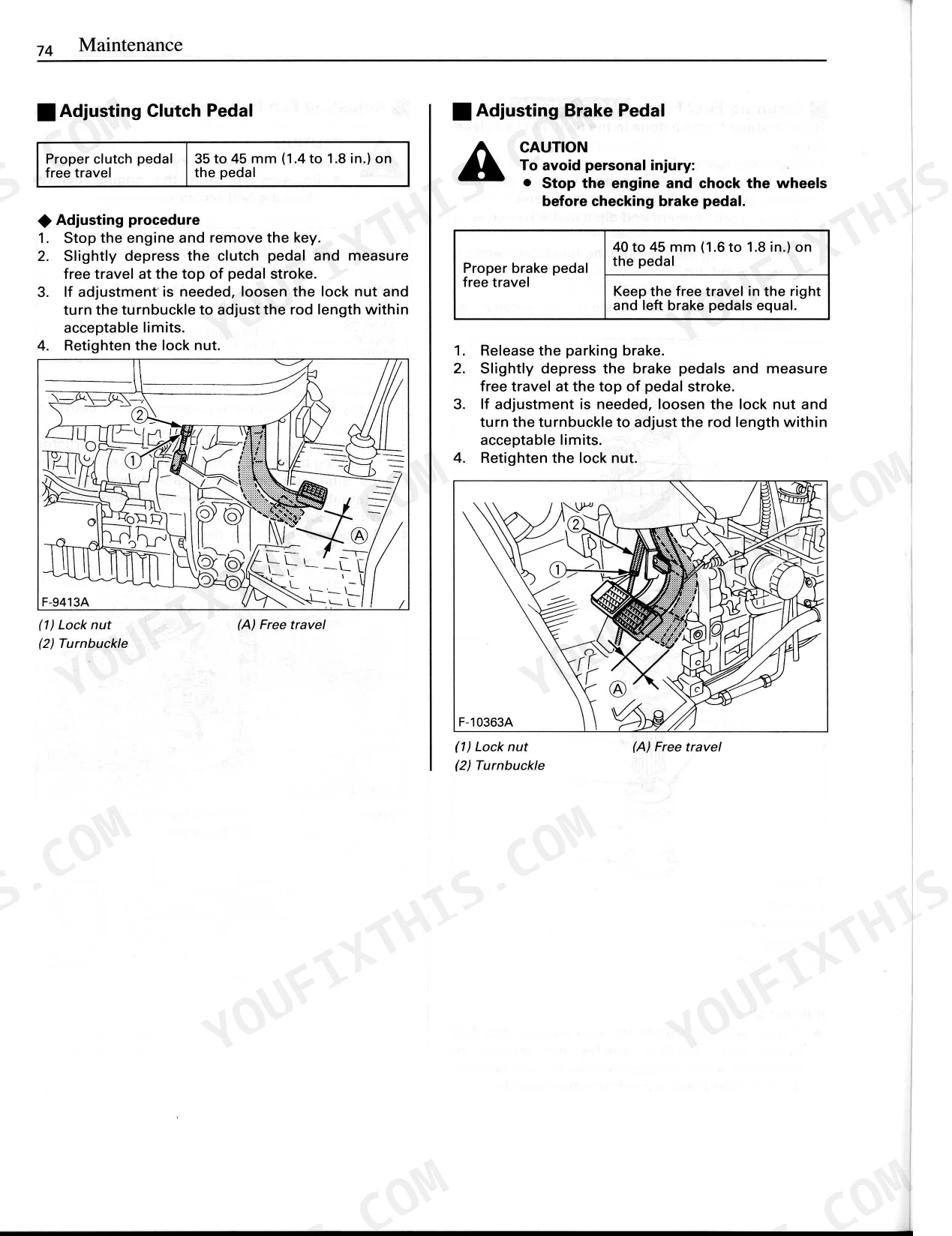

Manual Section: MaintenanceTractor gear engagement is difficult or grinding when shifting into forward or reverse p. 17
Check the clutch pedal free travel against the operator controls layout on page 17. Adjust the linkage until you get 35 to 45 mm (1.4 to 1.8 in.) of play, then confirm the shuttle shift lever switch moves smoothly.
Manual Section: Adjusting Clutch PedalHydraulic shuttle squeal in neutral, weak loader response, or sudden loss of implement lift p. 4
Swap out the hydraulic oil filter first. Hold to the 300 Hr replacement interval listed on page 4. Then check the fluid level and top off, since a starved system is what causes the shuttle squeal and sluggish loader.
Manual Section: MaintenanceFront tires showing excessive inner tread wear or steering wanders while driving straight p. 20
Measure the front-wheel toe-in and bring it to 2 to 8 mm (0.08 to 0.31 in.) per page 20. Lock it by torquing the tie-rod nut to 167 to 196 N·m (123.3 to 144.6 ft·lbs), shown on page 21.
Manual Section: Adjusting Toe-inFrequently Asked Questions
What is the procedure to bleed fuel on a Kubota M4900/M5700/M6800S/M8200/M9000?
For M4900 and M5700 models, fill the fuel tank, open the fuel cock, then start the engine and run it for about 30 seconds before stopping. For M6800S, M8200, and M9000 models, after filling the tank and opening the fuel cock, open the air vent cock on the fuel injection pump and pump the fuel pump knob until pulsation is felt. Then start the engine with the hand throttle at maximum speed, reset to mid-speed (around 1500 rpm), accelerate to purge remaining air, and close the air vent cock.
What are the fuel filter replacement intervals for the Kubota M4900-M9000 Series?
On the M4900 and M5700, the fuel filter element is replaced every 100 hours (page 3). On the M6800S, M8200, and M9000, the fuel filter is replaced every 400 hours. After replacing, bleed the fuel system as described in the service manual.
What is the clutch pedal free travel specification on the Kubota M4900-M9000 Series?
Adjust the clutch pedal linkage until you get 35 to 45 mm (1.4 to 1.8 in.) of free travel, as detailed on page 17. Confirm the shuttle shift lever switch moves smoothly after adjustment.
What is the front-wheel toe-in specification on the Kubota M4900-M9000 Series?
Set front-wheel toe-in to 2 to 8 mm (0.08 to 0.31 in.) per page 20. Lock the adjustment by torquing the tie-rod nut to 167 to 196 N·m (123.3 to 144.6 ft·lbs) as shown on page 21.
What format is this manual in?
A 34-page searchable PDF, ready to download the moment you check out. It works on any device, so you can pull it up on your phone right under the hood. No shipping, no waiting.
Can I print this manual?
The PDF is DRM-free, so print whatever sections you want to carry out to the shop. Standard letter or A4 paper works fine.
