Part of the Kubota Repair Manuals.
This is the Kubota factory service manual for the M95S-ROPS, M105S-ROPS, and M105SDSL tractors, built around the V3800-DI-T and V3800-DI-TI diesel engines. Its 545 pages cover the engine, the traveling and PTO clutch, the transmission, the front and rear axles, the brakes, the power steering, the hydraulic system with the three-point hitch, and the full electrical system with wiring diagrams. A supplemental section adds the M105SDSL specifications and procedures.For each system you get mechanism descriptions, servicing specifications, tightening torques, troubleshooting charts, and disassembly and reassembly steps. That lets you check valve clearance, set the cylinder head torque, service the hydraulic shuttle, or trace a charging or operator-presence control fault. It is a downloadable, printable PDF matched to these three ROPS and SDSL tractor models.
What's Inside This Kubota M95S-ROPS, M105S-ROPS, M105SDSL Manual
| System | Pages | Key Topics |
|---|---|---|
| Traveling Speeds | 9-12 | Model, Tire Size (Rear), Transmission Type, Shuttle Shift Lever, Range Gear Shift Lever, Main Gear Shift Lever |

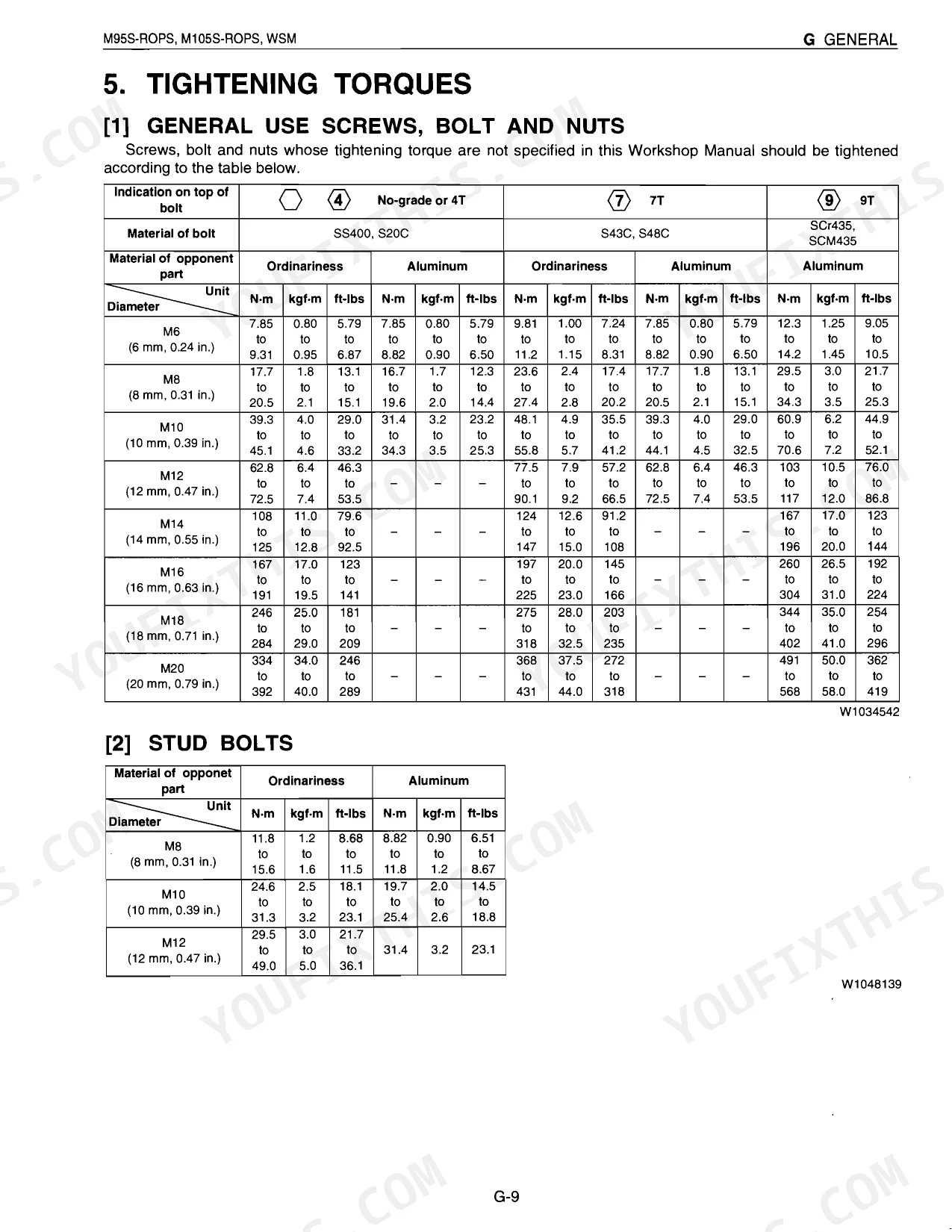

| General | 15-90 | Tractor Identification, General Precautions, Handling Precautions for Electrical Parts and Wiring, Lubricants, Fuel and Coolant, Tightening Torques, Check and Maintenance |

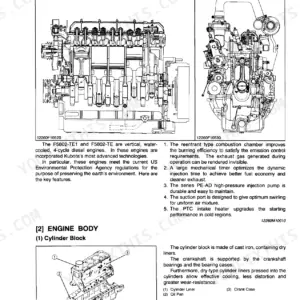

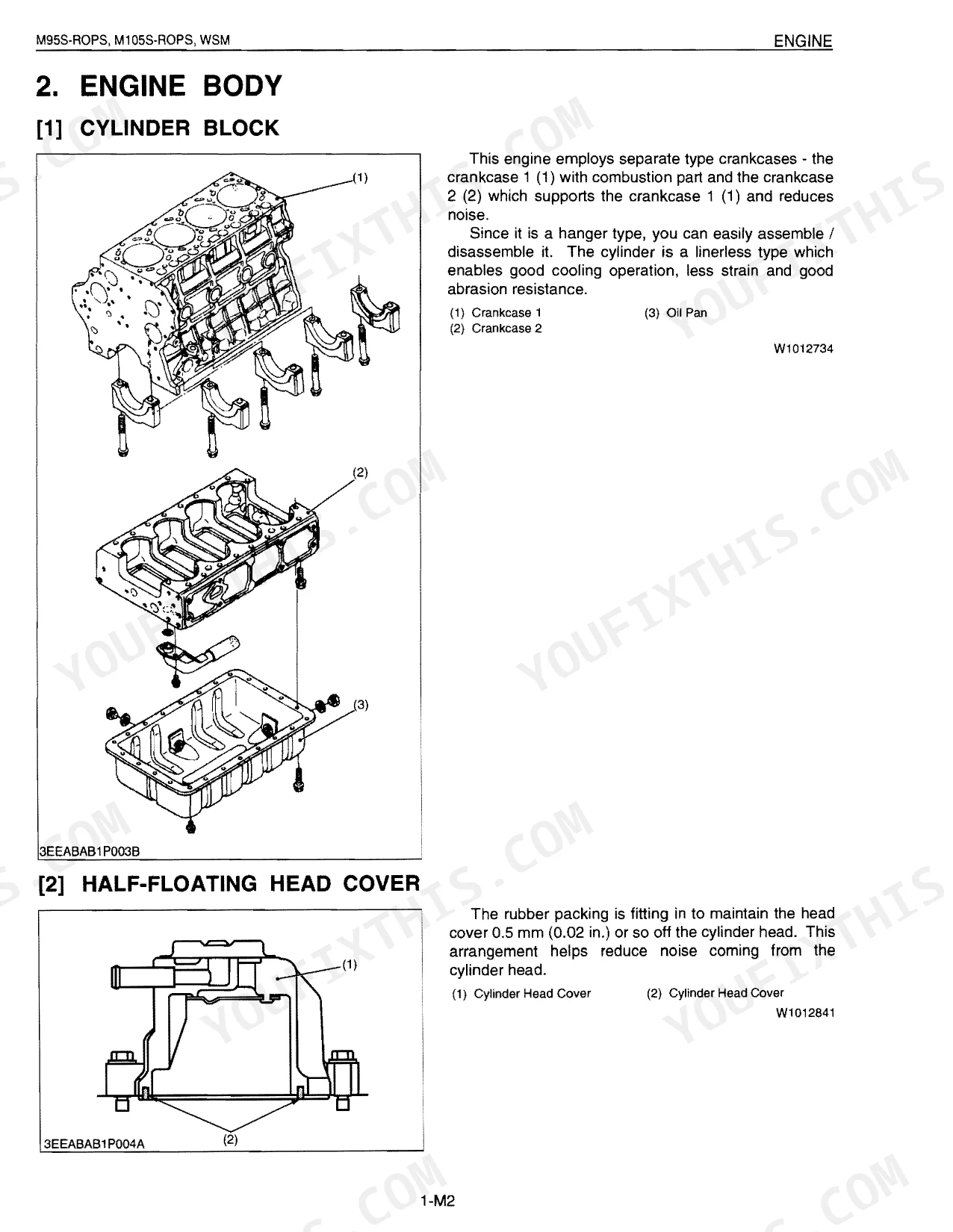

| Engine | 91-180 | Feature, Engine Body, Lubricating System, Cooling System, Fuel System, Intake System |
| Clutch | 181-210 | Traveling Clutch, PTO Clutch, Damper Disc, Shuttle Clutch Valve, Gear Pump, Pump Base, PTO Valve, PTO Clutch Pack |
| Transmission | 211-281 | Structure, Gear Shift Mechanism, Power Train for Traveling Gear, Power Train for PTO System, Troubleshooting, Servicing Specifications |
| Rear Axle | 282-297 | Planetary Gear, Rear Axle Nut, Rear Axle Cover, ROPS Upper Frame, Rear Wheel, 3-Points Hitch, Fuel Tank |
| Brakes | 298-321 | Brake Pedal, Brake Piston, Brake Disc, Plate, Master Cylinder Return Spring, Equalizer Spring, Parking Brake Lever, Brake Pad |
| Front Axle | 322-353 | Front Wheel, Bracket Bushing, Knuckle Shaft, Bevel Gear, Differential Case, Planetary Gear, Thrust Collar |
| Steering | 354-363 | Hydraulic Pump, Steering Controller, Steering Cylinder, Gerotor, Control Valve, Relief Valve |

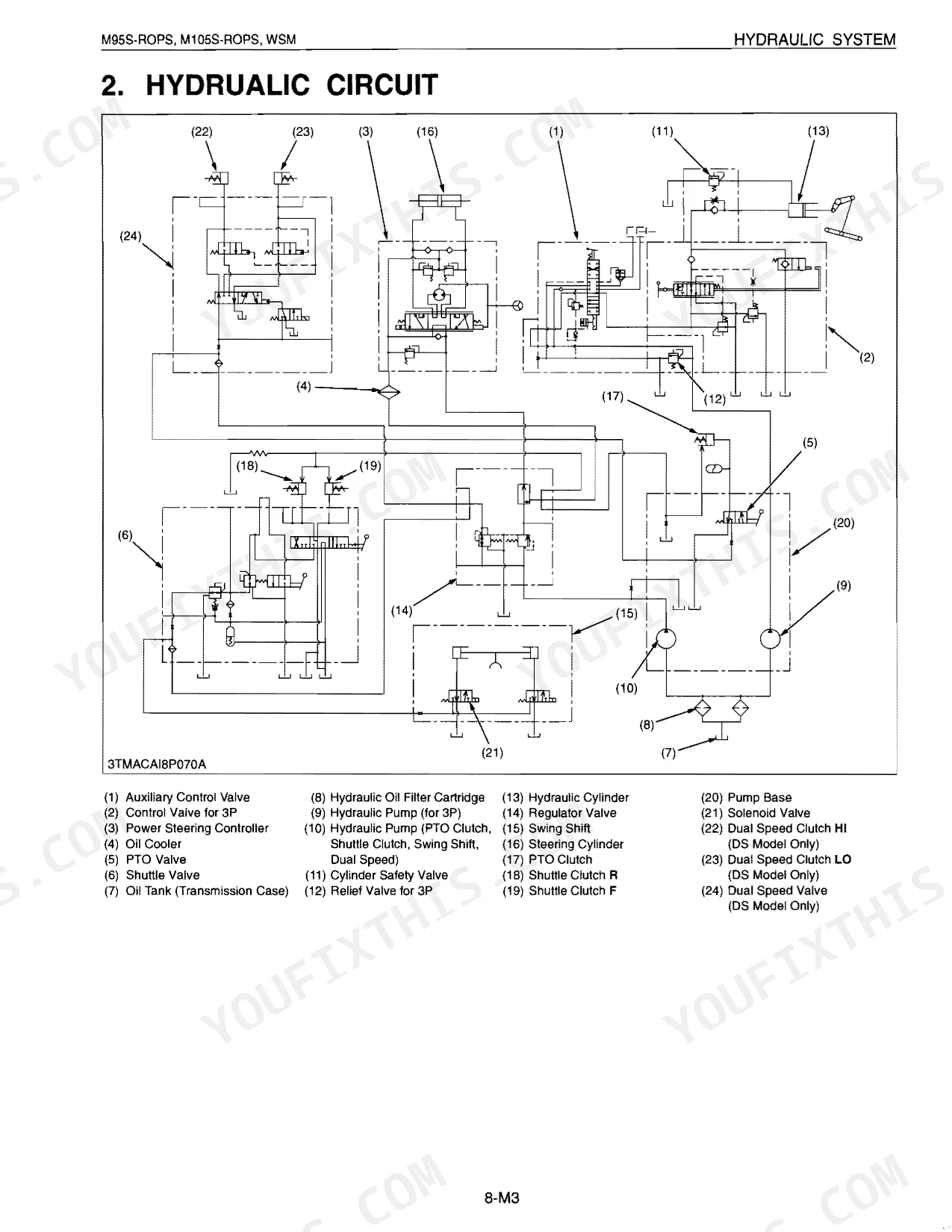

| Hydraulic | 364-427 | Hydraulic Pump, Hydraulic Shuttle Valve, Regulator Valve, PTO Clutch, Dual Speed Valve, Three-Point Hitch System |

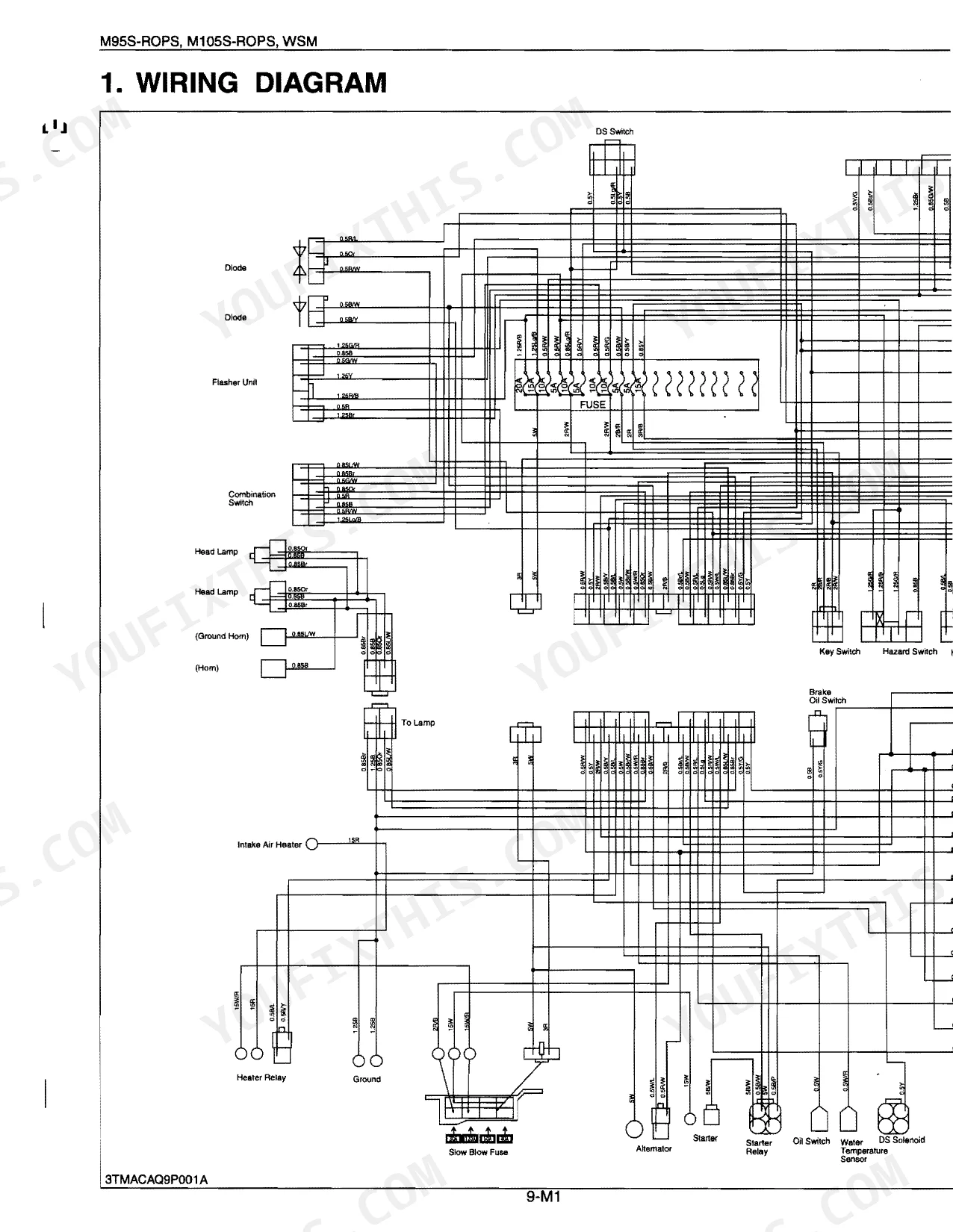

| Electrical | 428-496 | Wiring Diagram, Starting System, Charging System, Opc (Operator Presence Control), Lighting System, Easy Checker |
Quick Reference Specifications

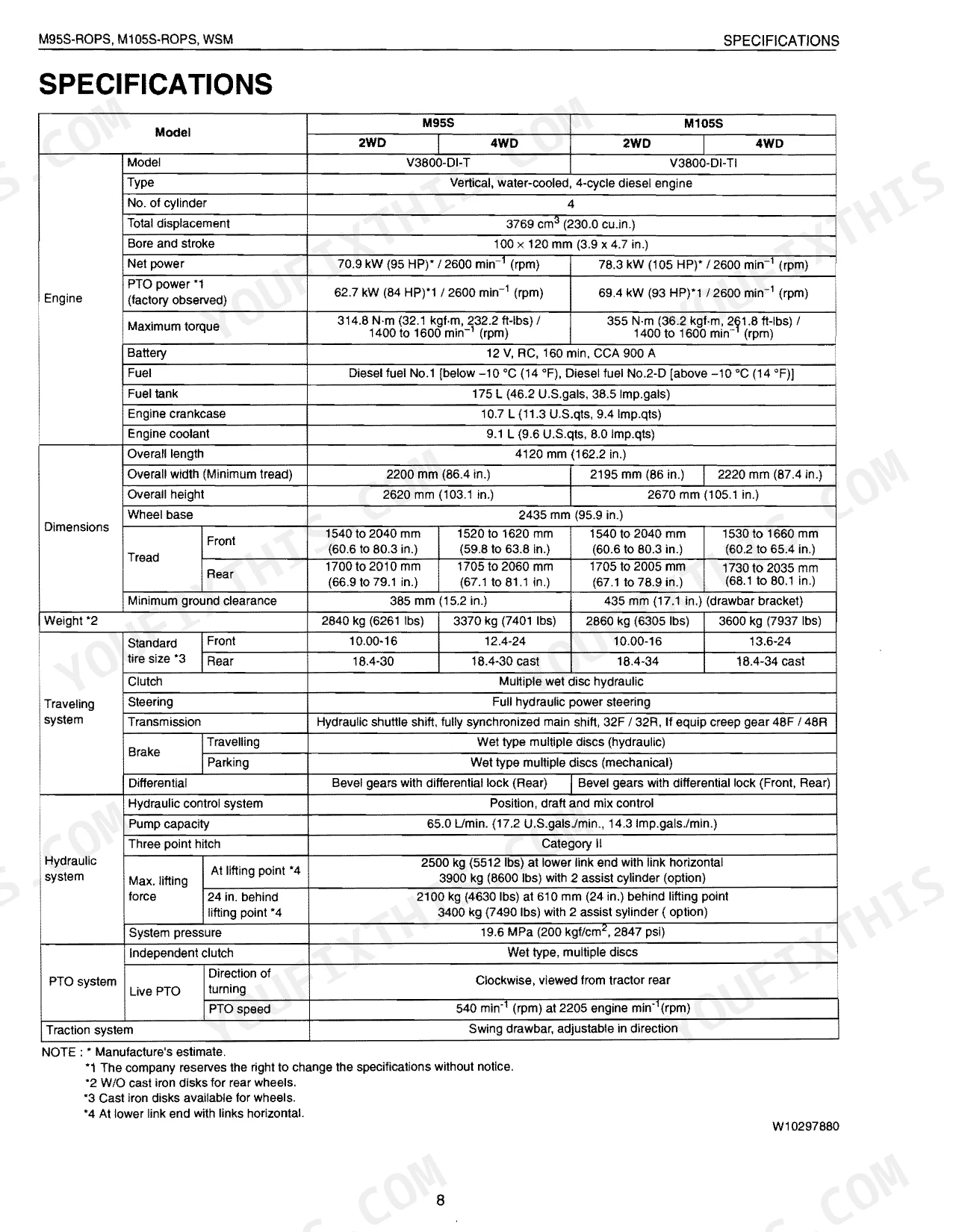

| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Front wheel mounting nut (2WD) | 168 to 196 N·m | p. 34 |
| Front wheel mounting nut (4WD) | 260 to 303 N·m | p. 331 |

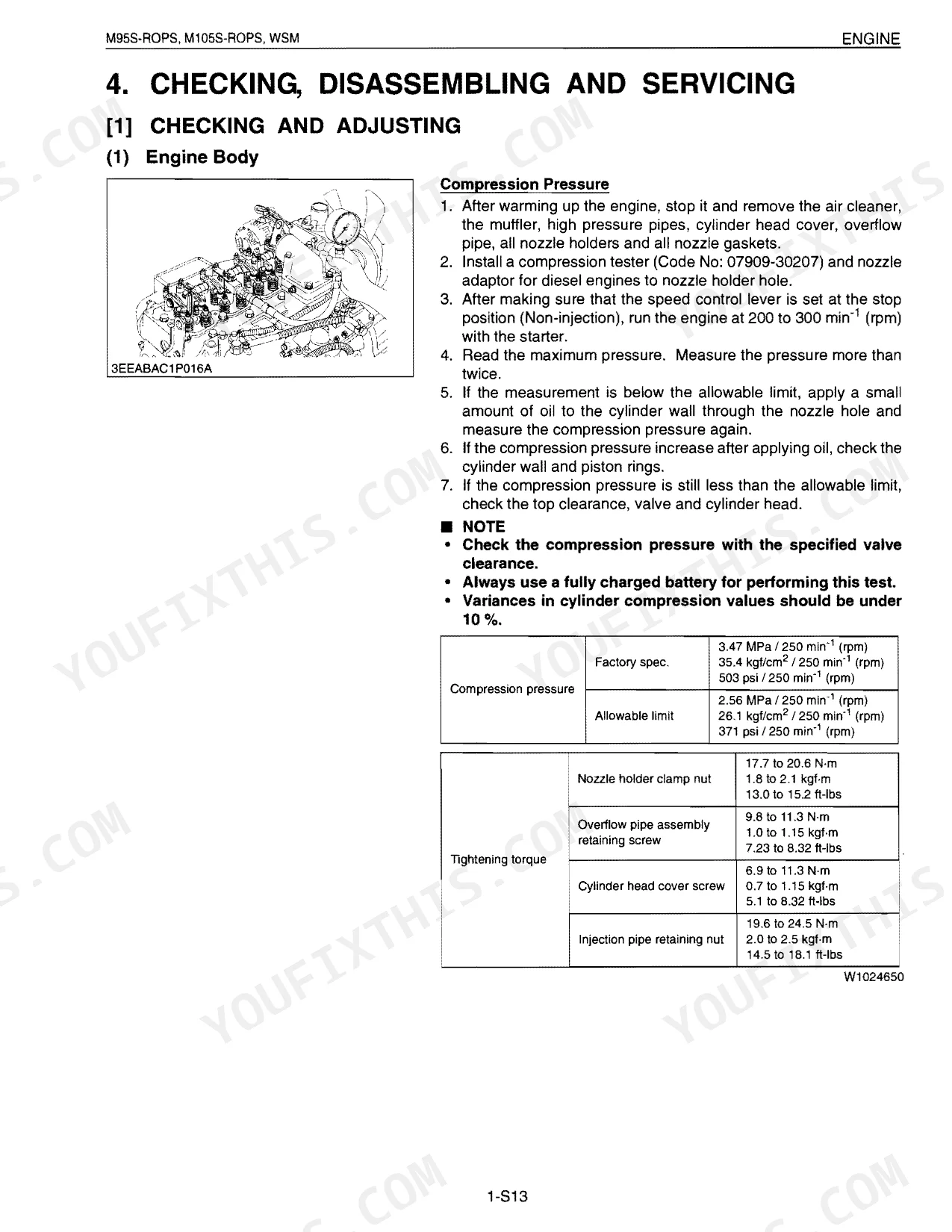

| Cylinder head screw | 98.1 to 107.9 N·m | p. 119 |
| Cylinder head cover screw | 6.9 to 11.3 N·m | p. 119 |
| Total displacement | 3769 cm3 | p. 8 |
| Engine crankcase capacity | 10.7 L | p. 8 |
| Engine coolant capacity | 9.1 L | p. 8 |
| Hydraulic pump capacity | 65.0 L/min | p. 8 |
| Hydraulic system pressure | 19.6 MPa | p. 8 |
| Cylinder Head Surface Flatness | 0.05 mm | p. 113 |
| M95S | ||
| M95S Net power | 70.9 kW | p. 8 |
| M105S | ||
| M105S Net power | 78.3 kW | p. 8 |
Kubota M95S-ROPS, M105S-ROPS, M105SDSL Common Problems This Manual Covers

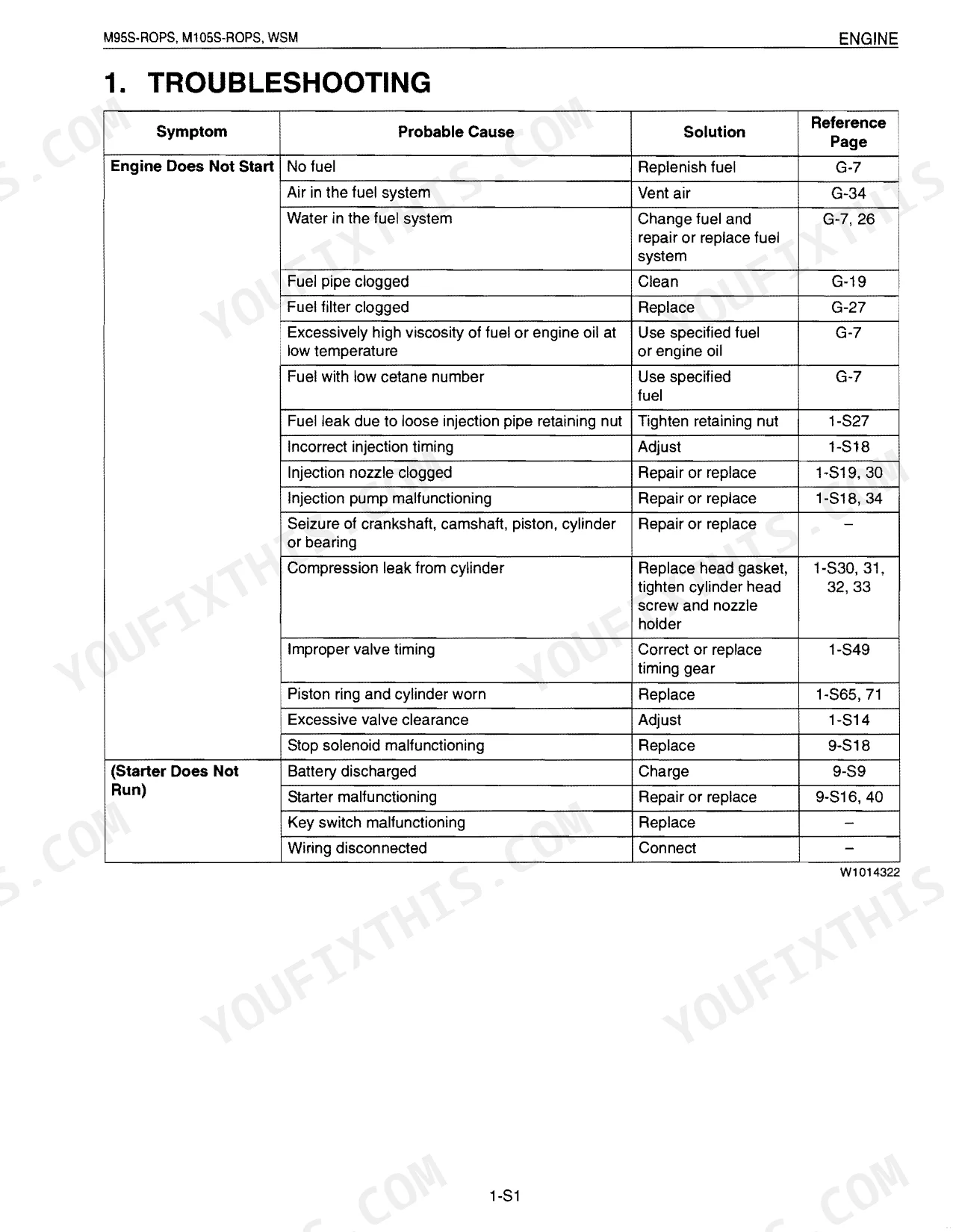

Air in fuel system after service
Air trapped in the fuel lines after a filter change causes hard starting and rough running until the system is primed. The Engine section covers the fuel system and its servicing.
Manual Section: Engine p. 91Clutch drag or wrong pedal free travel
A dragging clutch or difficulty engaging gears often comes down to incorrect pedal free travel, which should stay below 15 mm. The Clutch section covers the traveling and PTO clutch and their adjustment.
Manual Section: Clutch p. 181Weak three-point hitch or slow lift
Slow or weak implement lift points to the hydraulic pump, shuttle valve, or three-point hitch circuit. The Hydraulic section covers the pump, regulator valve, and three-point hitch system.
Manual Section: Hydraulic p. 364Heavy power steering
A heavy or unresponsive steering wheel usually traces to the hydraulic pump, steering controller, or relief valve. The Steering section covers the controller, cylinder, and gerotor.
Manual Section: Steering p. 354Uneven or weak braking
Weak or uneven braking points to worn components or air in the system. The Brakes section provides troubleshooting, servicing specifications, and disassembly steps.
Manual Section: Brakes p. 298No-start or charging fault
A no-start or a battery that will not hold charge can stem from the starting or charging system, or the operator presence control. The Electrical section includes the wiring diagram and these systems.
Manual Section: Electrical p. 428Rough shuttle or transmission shifting
Difficult or noisy shifting points to the gear shift mechanism or power train. The Transmission section covers the structure, gear shift mechanism, and troubleshooting.
Manual Section: Transmission p. 211Frequently Asked Questions
Which tractors does this manual cover?
It is the Kubota service manual for the M95S-ROPS, M105S-ROPS, and M105SDSL tractors with the V3800-DI-T and V3800-DI-TI diesel engines, across 545 pages including an M105SDSL supplemental section.
Does it give the cylinder head bolt torque?
Yes. The Engine section lists servicing specifications and tightening torques, including the cylinder head screw at 98.1 to 107.9 N·m. p. 91
Does it list wheel nut torque?
Yes. The General section covers tightening torques, including the rear wheel mounting nut at 343 to 401 N·m and the 2WD front wheel nut at 168 to 196 N·m. p. 15
How is the manual delivered?
It is an instant download. You receive the PDF file right after checkout to keep, with nothing shipped.
How will I receive this Service Manual?
This is a 545-page searchable PDF, ready to download right away. It opens on any device, so you can pull it up on your phone under the hood. No shipping, no waiting.
Am I free to print this Kubota M95S-ROPS Service Manual?
Yes. Print as many copies as you want, with no restrictions. Plenty of mechanics print just the section they need and carry it onto the shop floor.
Can I find hydraulic circuit diagrams in this Kubota M95S-ROPS manual?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
