This is the Kubota L3130, L3430, L3830, L4330, L4630 and L5030 tractor Service Manual (publication 97897-13050), a 682-page PDF covering the full L30 series of compact utility tractors. It documents the mechanism and the servicing of every system on the machine and includes a supplement for the Oceania-spec tractors.System coverage runs from the diesel engine and clutch through the transmission, rear axle, brakes, front axle and power steering, into the hydraulic and three-point hitch system, the electrical system with ROPS and cabin wiring diagrams, and the cab air conditioning. A separate 4WD front axle section and a full color wiring diagram section round it out.Use it to set servicing specifications and torques, adjust clutch and brake pedal free travel, service the hydraulics, trace faults on the wiring diagram, and rebuild the 4WD front axle. It is a downloadable, printable PDF for shop or field use.
What's Inside This Kubota L3130–L5030 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Instructions | 3-9 | Operating Safety Precautions and Warning Decal Locations |
| Specifications | 10-21 | L3130 Specifications, L3430 Specifications, L3830 Specifications, L4330 Specifications, L4630 Specifications, L5030 Specifications, Travelling Speeds [Manual Transmission Type] |
| General | 22-91 | Tractor Identification (Model Name and Serial Numbers, Cylinder Number), Handling Precautions for Electrical Parts and Wiring (Battery, Fuse, Connector, Handling of Circuit Tester) |

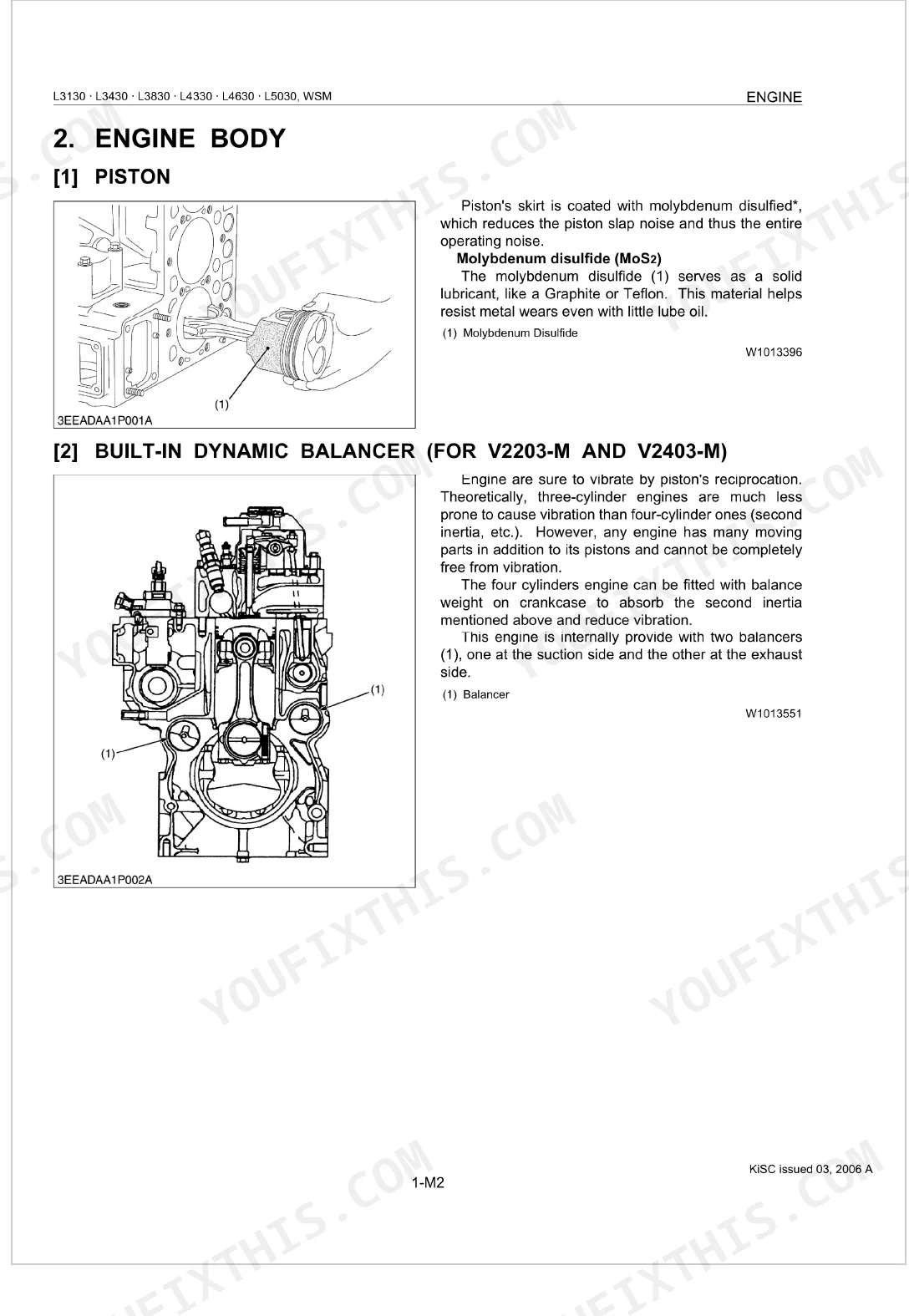

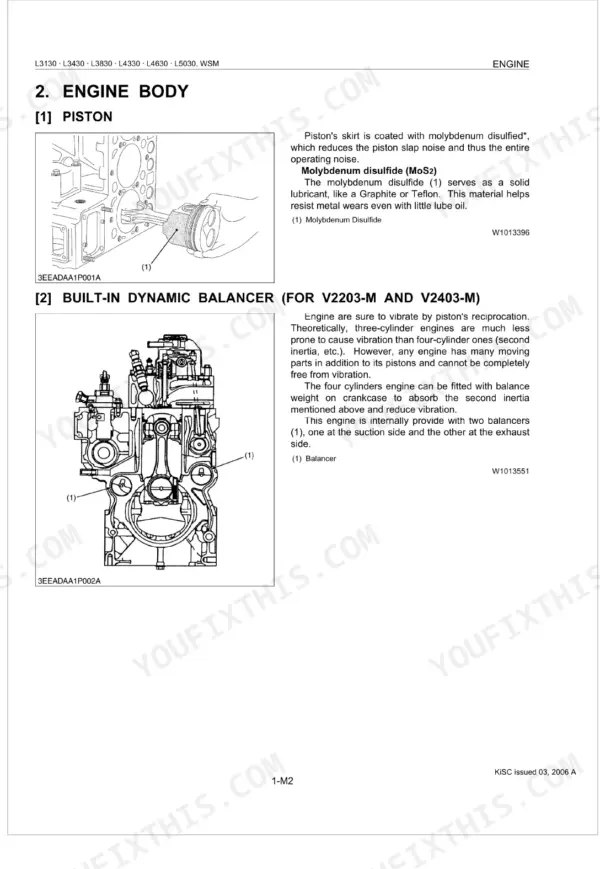

| Engine | 92-170 | Features, Engine Body (Piston, Built-In Dynamic Balancer, Half-Floating Head Cover), Cooling System (Bottom Bypass System), Fuel System, Lubricating System |
| Clutch | 171-190 | Clutch Pedal, Clutch Disc, Pressure Plate, Diaphragm Spring, Clutch Holder, Clutch Lever, Thrust Ball Bearing |

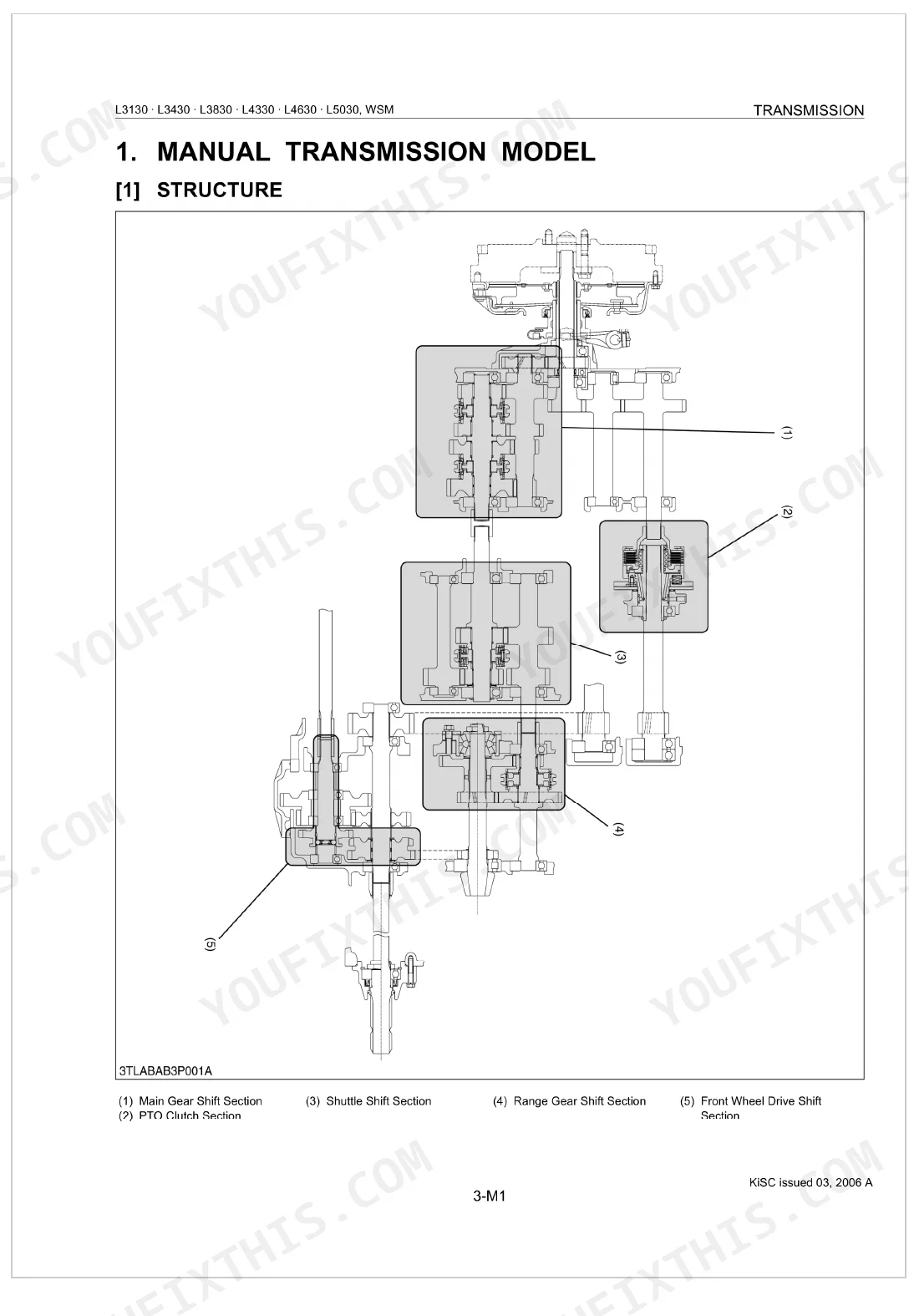

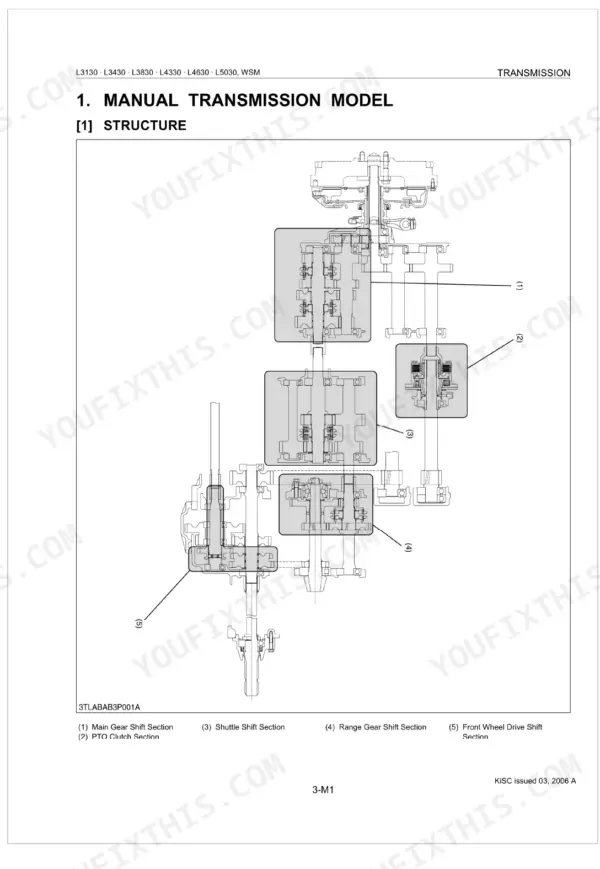

| Transmission | 191-355 | Manual Transmission Model (Structure, Power Train for Traveling Gear, Shift Linkage Mechanism) |
| Rear Axle | 356-366 | Differential Gear Shaft, Brake Case, Brake Disc, Differential Pinion, Ring Gear, Final Gear, Differential Lock Shifter |
| Brakes | 367-382 | Brake Pedal, Brake Case |
| Front Axle | 383-413 | Propeller Shaft, Power Steering Hoses, Steering Cylinder, Tie-Rods, Bevel Gear Case, Front Gear Case, Axle Flange |
| Steering | 414-444 | Structure, Hydraulic Circuit, Hydraulic Pump, Steering Controller (Control Valve, Metering Device, Relief Valve, Oil Flow), Steering Cylinder |
| Hydraulic System | 445-485 | Structure (Manual Transmission and Glide Shift Transmission, Hydrostatic Transmission), Hydraulic Circuit (Manual Transmission, Glide Shift Transmission |

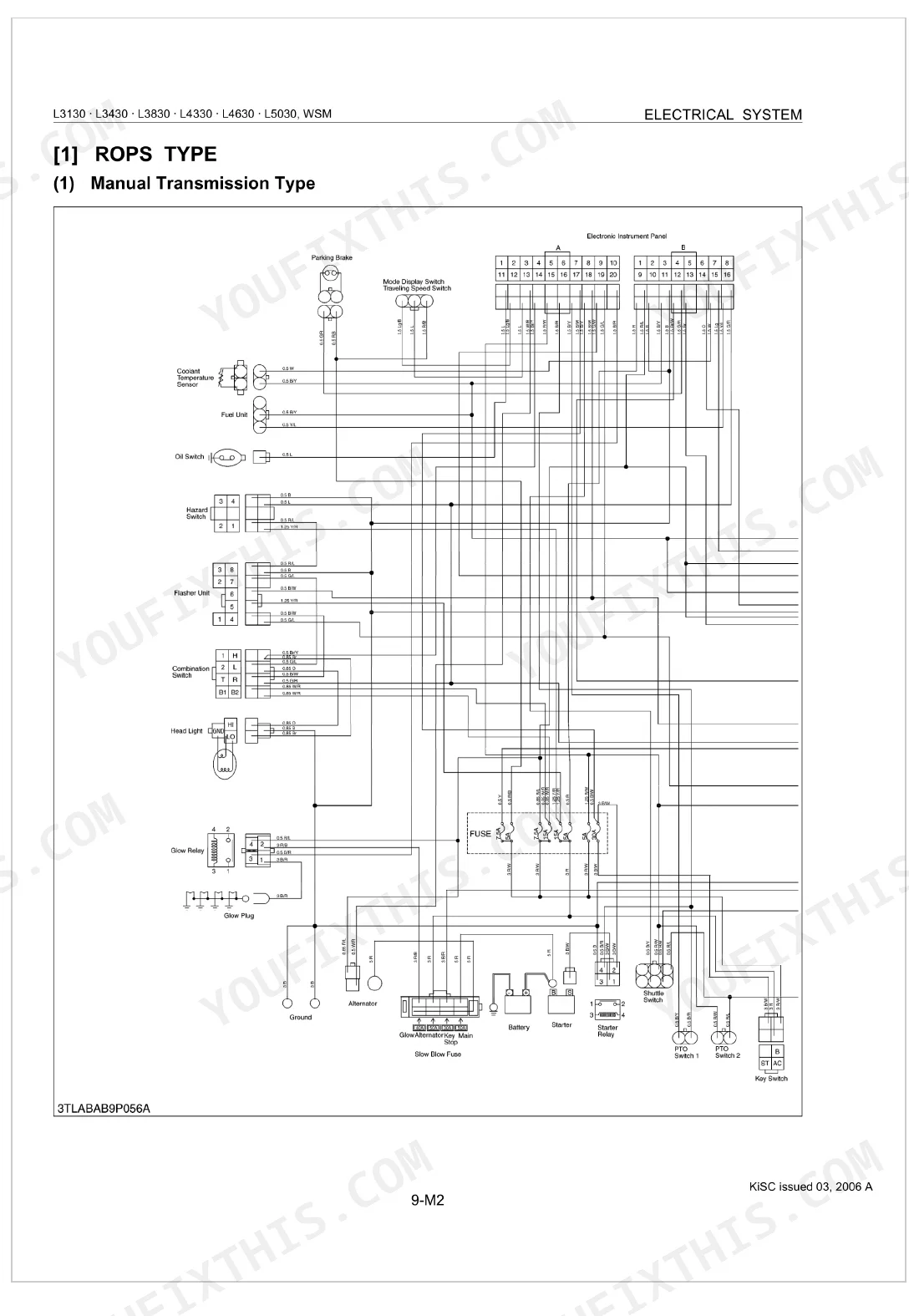

| Electrical System | 486-582 | Wiring Diagram (ROPS Type, Cabin Type), Electronic Control Panel (System Outline and Electrical Circuit, Construction and Function of Components, Control System) |

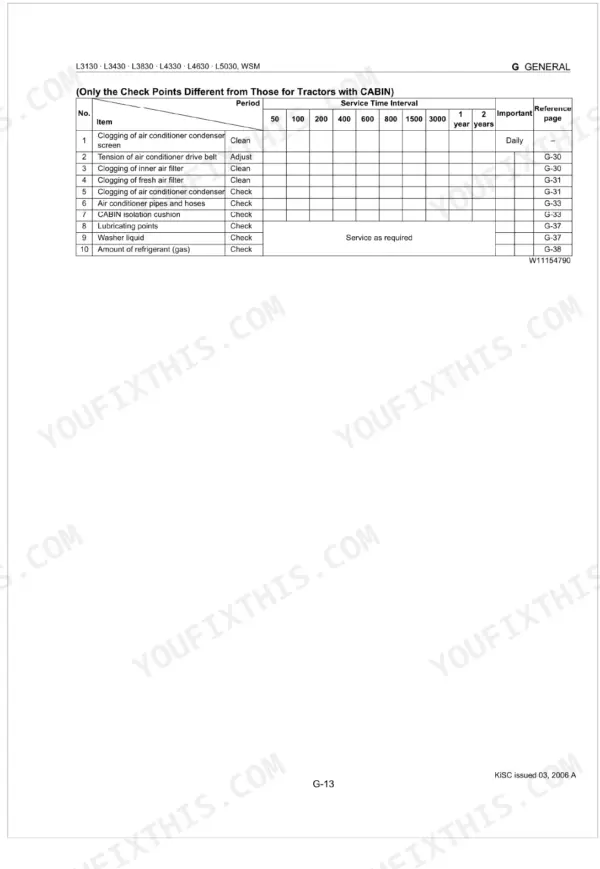

| Cabin | 583-638 | Air Conditioner System (Outline of Air Conditioning System, System Control, Electrical System), Servicing Specifications, Tightening Torques |
| Supplement | 639-646 | Main Specifications of L30 Series Tractors for Oceania, L3130 Specifications, L3430 Specifications, L3830 Specifications, L4330 Specifications, L4630 Specifications |
| A6 Front Axle | 647-671 | 4WD Type, 4WD Type (for L5030), 4WD Type (Continued), Toe-In, Axial Sway of Front Wheel, Adjusting Front Axle Pivot (4WD), Front Wheel Steering Angle (for L5030) |
| A9 Electrical System | 672-682 | Wiring Diagram (Color of Wiring), ROPS Type (Mechanical Transmission Model), HST Model, Cabin Type (Body Harness), Cabin Harness |
Quick Reference Specifications

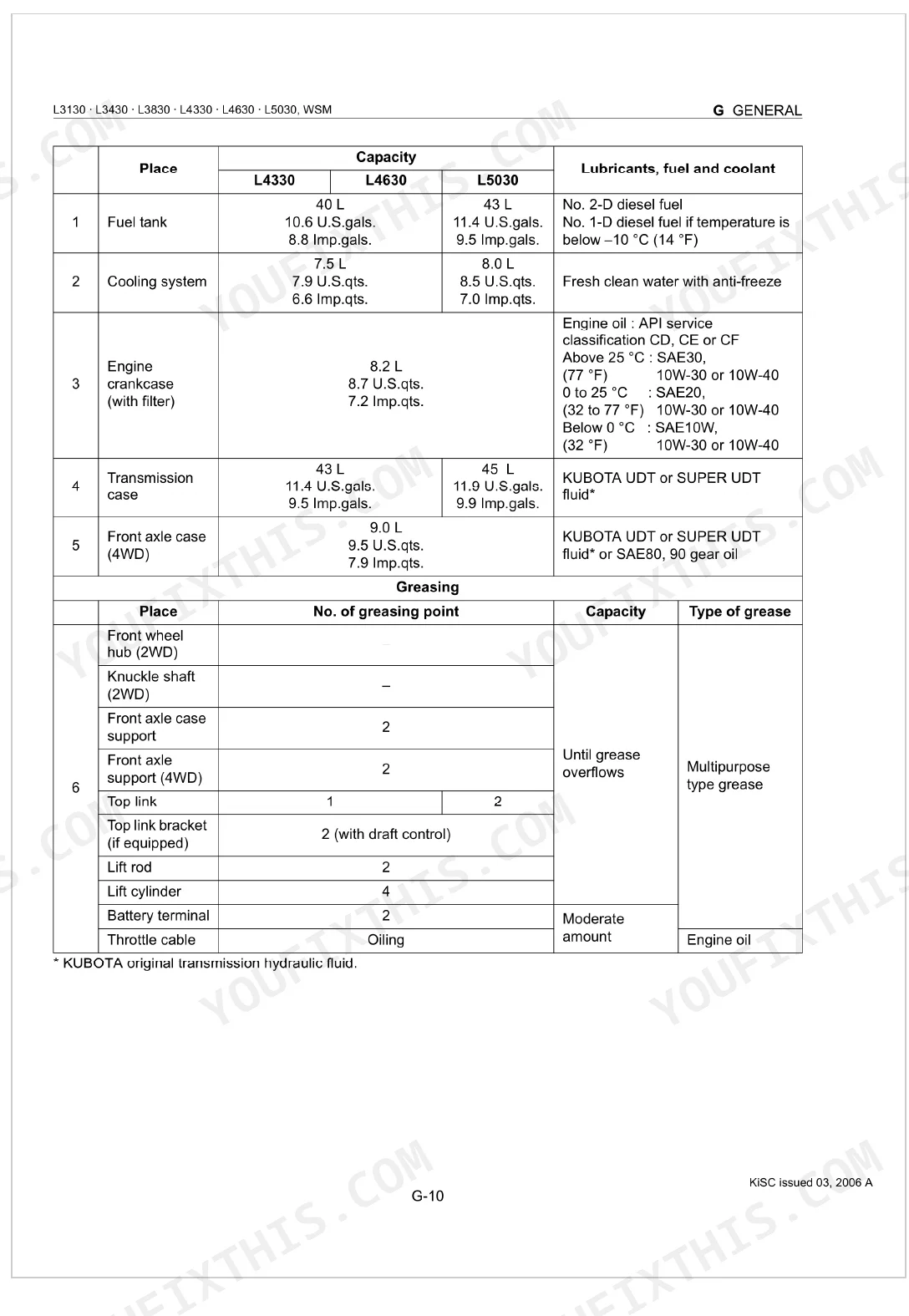

| Specification | Value | Page |
|---|---|---|
| L3130, L3430 | ||
| Engine crankcase capacity (with filter) | 5.7 L (6.0 U.S.qts., 5.0 Imp.qts.) | p. 32 |
| Transmission case capacity | 42 L (11.1 U.S.gals., 9.2 Imp.gals.) | p. 32 |
| L3830 | ||
| Engine crankcase capacity (with filter) | 6.7 L (7.1 U.S.qts., 5.9 Imp.qts.) | p. 32 |
| L3130, L3430 (ROPS) | ||
| Engine coolant capacity | 6.0 L (6.3 U.S.qts., 5.3 Imp.qts.) | p. 32 |
| L3430 (CABIN) | ||
| Engine coolant capacity | 7.2 L (7.6 U.S.qts., 6.3 Imp.qts.) | p. 57 |
| L3830, L4330, L4630 | ||
| Transmission case capacity | 43 L (11.4 U.S.gals., 9.5 Imp.gals.) | p. 32 |
| L3130, L3430, L3830 | ||
| Front axle case oil capacity (4WD) | 6.5 L (6.9 U.S.qts., 5.7 Imp.qts.) | p. 32 |
| L4330, L4630, L5030 | ||
| Front axle case oil capacity (4WD) | 9.0 L (9.5 U.S.qts., 7.9 Imp.qts.) | p. 33 |
| All Models | ||
| Fuel tank capacity | 40 L (10.6 U.S.gals., 8.8 Imp.gals.) | p. 32 |

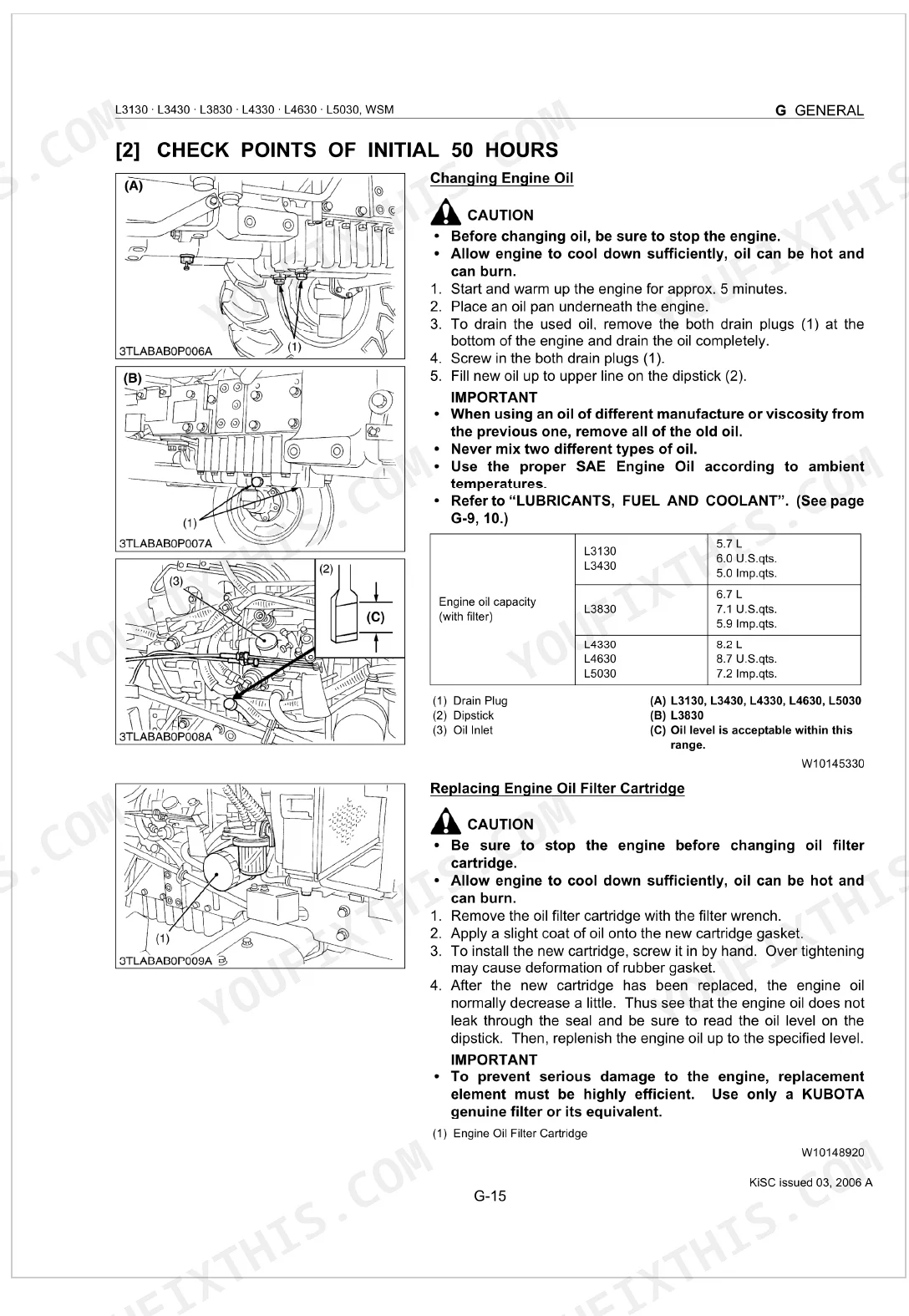

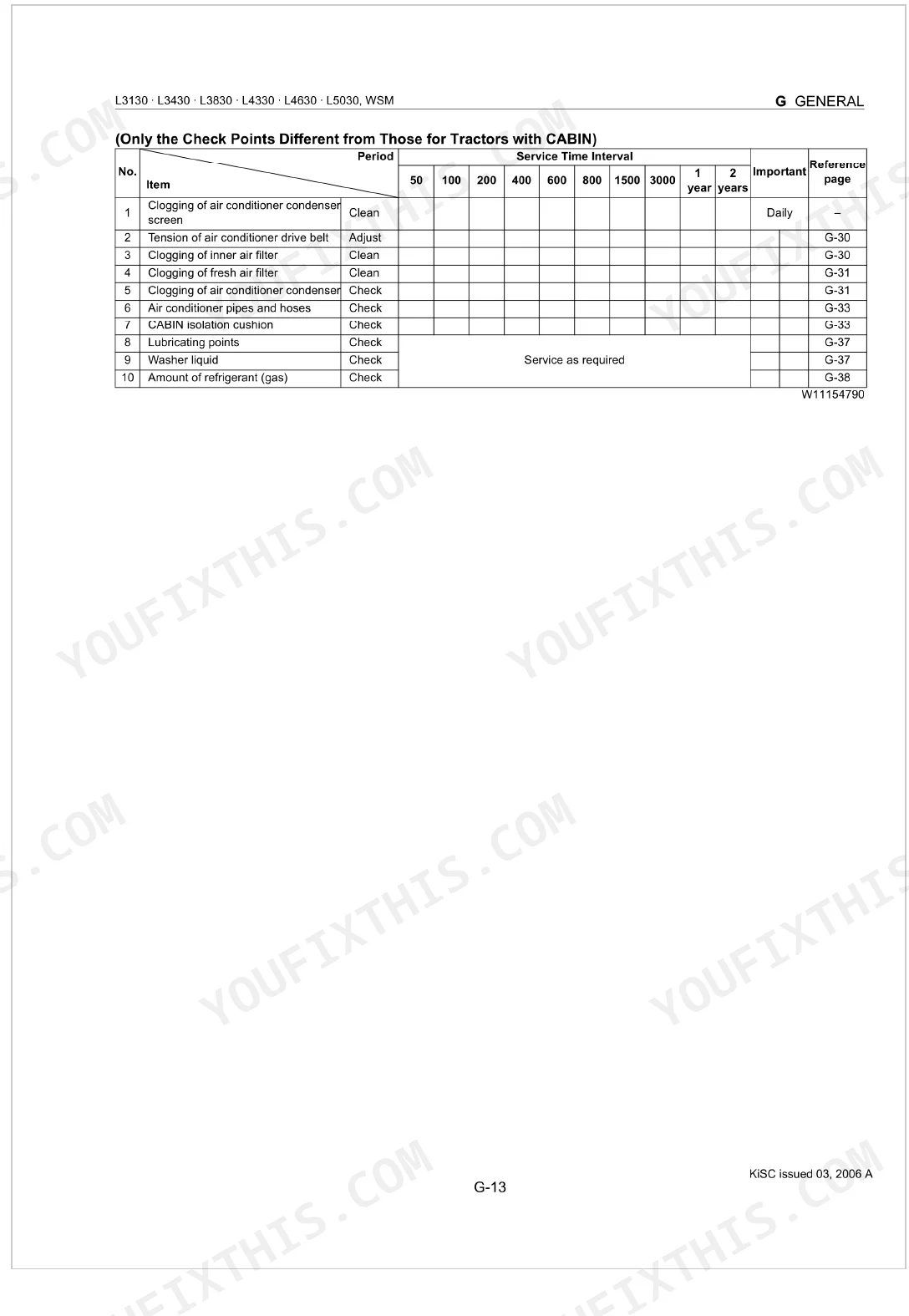

| Engine oil change interval | 50 Hours | p. 35 |
| Engine oil filter cartridge replacement interval | 50 Hours | p. 35 |
| Hydraulic oil filter cartridge replacement interval | 200 Hours | p. 35 |
Kubota L3130–L5030 Series Common Problems This Manual Covers
Clutch slipping or wrong pedal free travel
A clutch that slips or drags usually has a worn disc or incorrect pedal free travel. The Clutch section gives the free travel spec plus the checking, adjusting and disassembly procedures for these tractors.
Manual Section: Clutch p. 171Hard or heavy steering
Steering that feels heavy or wanders points to the hydraulic pump, the steering controller or the relief valve. The Steering section covers the hydraulic circuit, the control valve, metering device and steering cylinder.
Manual Section: Steering p. 414Three-point hitch lifts slowly or not at all
Weak hitch lift on the manual, glide shift or HST models is usually a hydraulic pressure or valve fault. The Hydraulic System section covers the structure and hydraulic circuit for each transmission type.
Manual Section: Hydraulic System p. 445Weak brakes or wrong pedal free travel
Uneven or spongy braking often comes from incorrect pedal free travel or worn brake parts. The Brakes section gives the free travel spec and the pedal and brake case servicing steps.
Manual Section: Brakes p. 367Hard starting or engine overheating
Difficult starting, low power or overheating calls for work in the fuel, cooling and lubricating systems. The Engine section covers the engine body, the bottom bypass cooling system, the fuel system and lubrication.
Manual Section: Engine p. 924WD front axle noise or play
Growling or slop from the front end on 4WD models points to worn gears or bearings in the front axle. The Front Axle section provides the troubleshooting, servicing specifications, checking and disassembly steps.
Manual Section: Front Axle p. 383Cab air conditioning not cooling
Weak cab cooling usually means a low refrigerant charge or a compressor clutch out of adjustment. The Cabin section covers the air conditioning system, system control and the compressor magnet clutch air-gap.
Manual Section: Cabin p. 583Frequently Asked Questions
Which tractors does this manual cover?
It covers the Kubota L3130, L3430, L3830, L4330, L4630 and L5030 compact utility tractors, in ROPS and cabin, manual, glide shift and HST configurations.
Does it include the wiring diagrams?
Yes. The Electrical System section holds the wiring diagrams for both ROPS and cabin types, plus the electronic control panel circuit and its component functions. p. 486
Are tightening torques and service specs included?

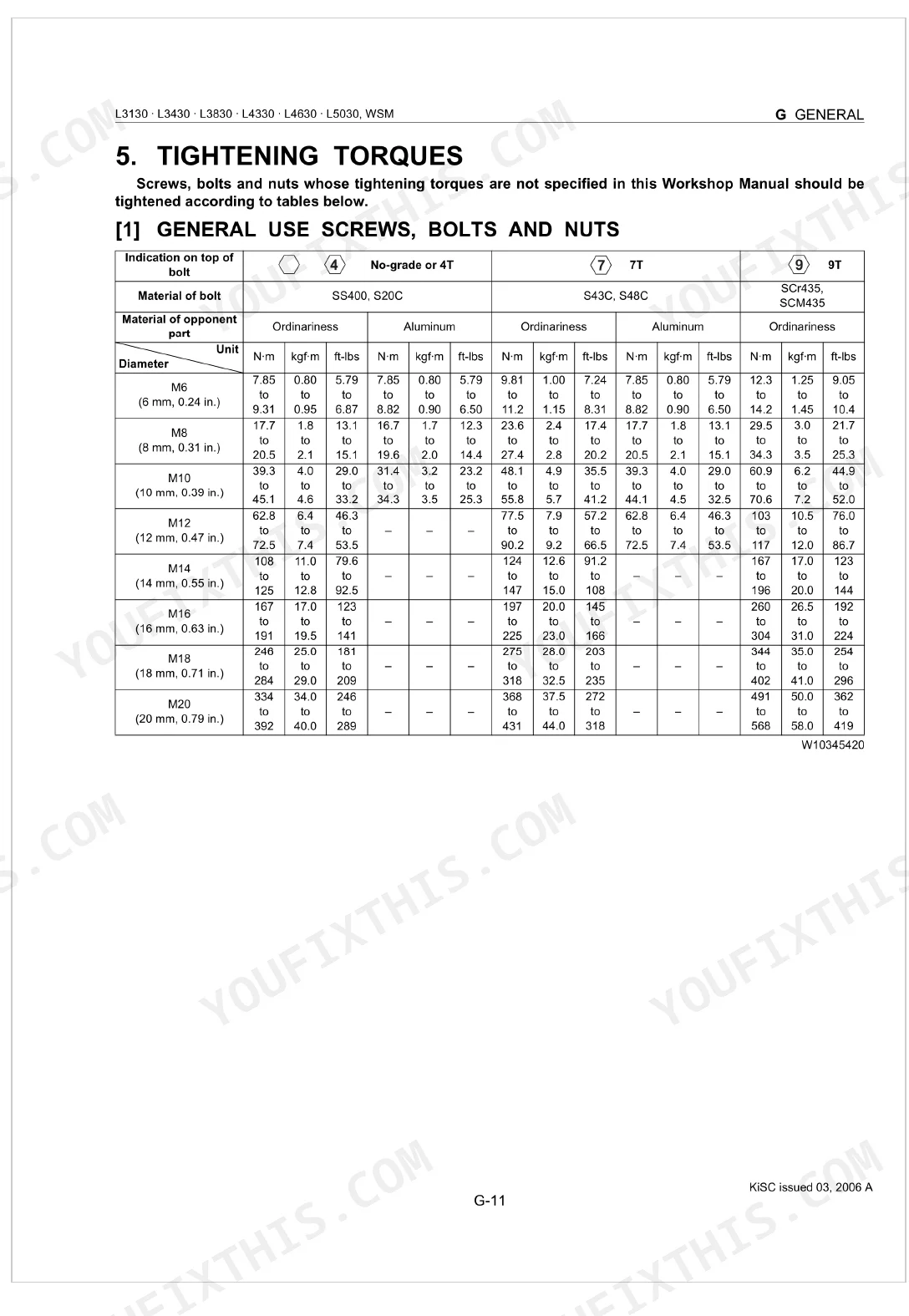

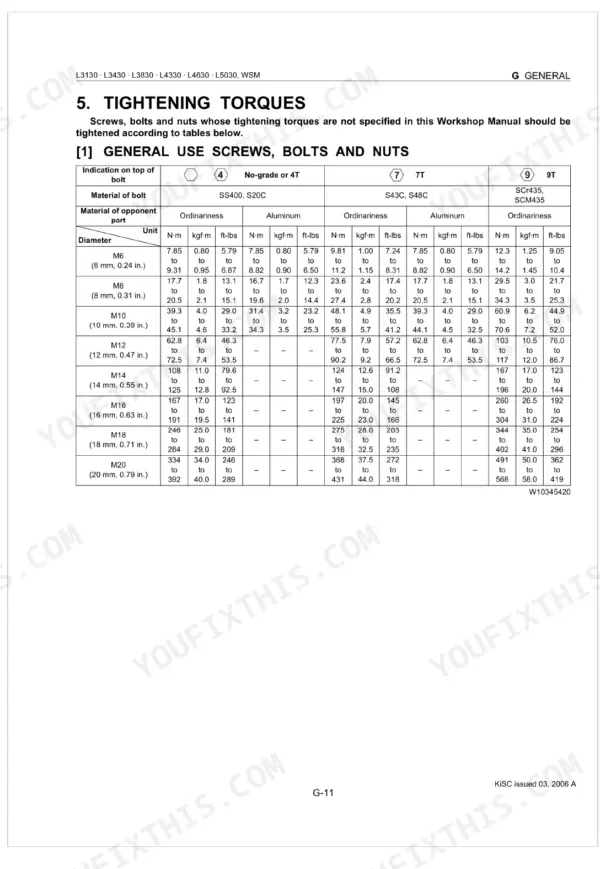

Yes. The General section carries the lubricant, fuel and tightening torque tables, and each system chapter lists its own servicing specifications, such as cylinder head and rear wheel torque. p. 22
Does it cover the 4WD front axle?
Yes. The Front Axle section covers the standard front axle, and a separate 4WD front axle supplement adds the 4WD structure, servicing specs and tightening torques. p. 383
How quickly can I access this Kubota L3130–L5030 Series manual after buying?
A 682-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, no shipping wait.
Are there any print restrictions on this Kubota L3130–L5030 Series manual?
Yes, print as many copies as you want, there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Are there wiring harness diagrams in this Kubota L3130–L5030 Series manual?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
