Set the deck level or service the drive by the book instead of by feel. This Kubota t1880, t2080, t2380 workshop manual pdf (OEM #9Y111-01106) runs 585 pages of factory procedure for your machine. Inside are the full KRA system electrical circuits, detailed power transmission breakdowns, and hydraulic schematics covering the hydrostatic transaxle and charge pump. Step-by-step troubleshooting walks through heavy brakes, dragging mower belts, and engine surging, backed by exact torque tables. Confirm the Kohler crankcase is filled to its model spec - 1.5 L on the T1880, 1.6 to 1.8 L on the T2080/T2380 - and the hydrostatic transmission case to 2.75 L before testing. With the mower down and the grass still growing, load the bookmarked file on your garage tablet and get it right the first time.
What's Inside This Kubota T1880, T2080, T2380 Manual

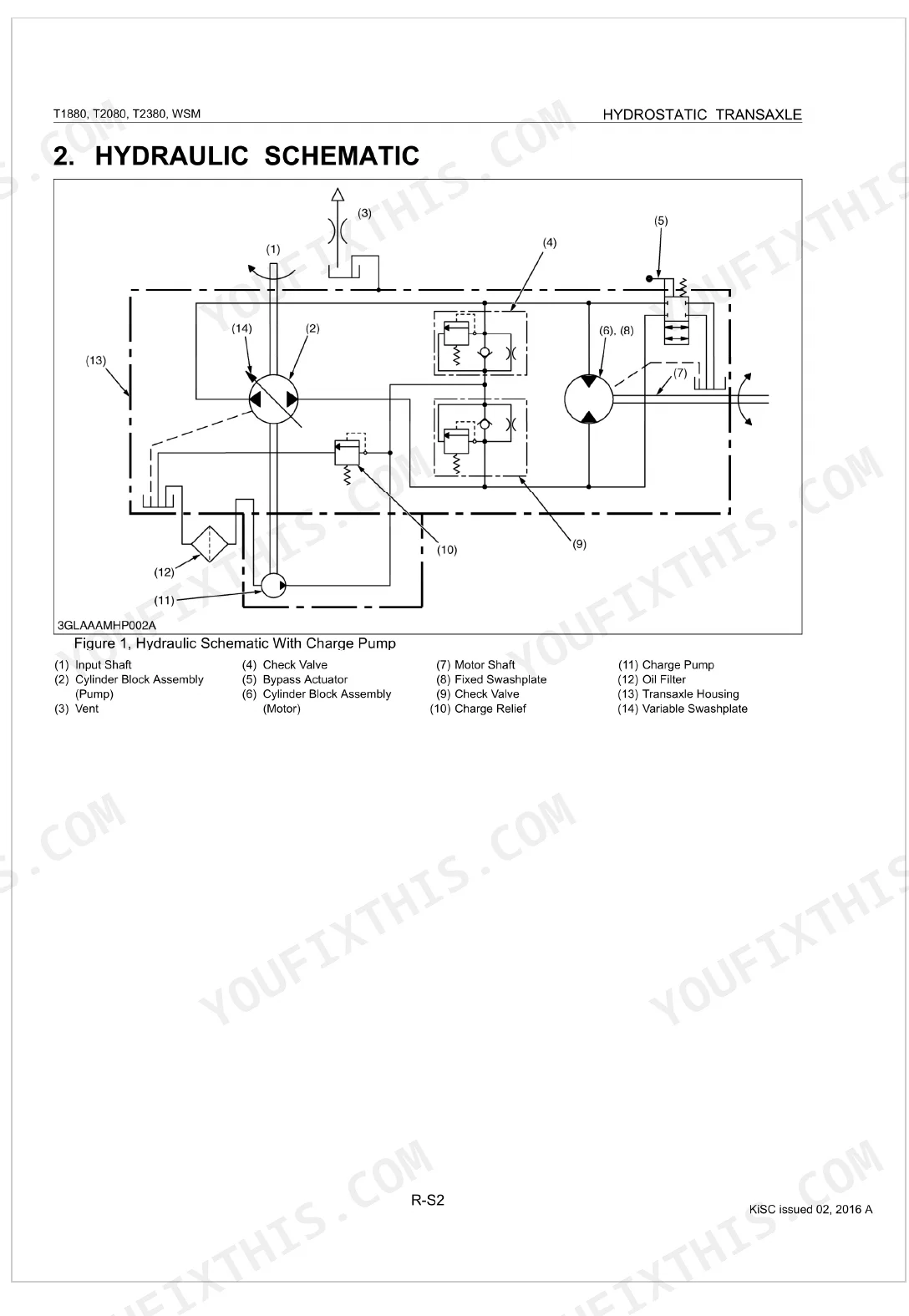

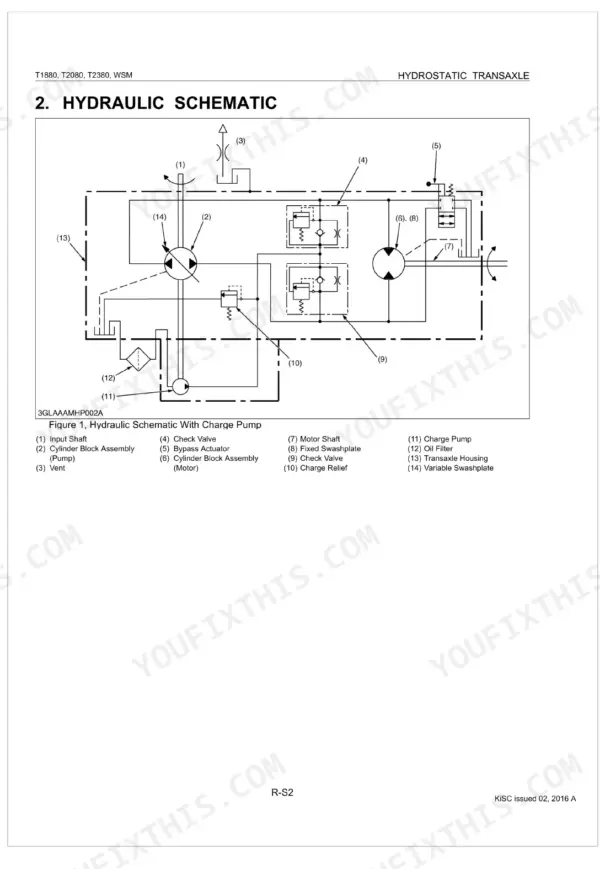

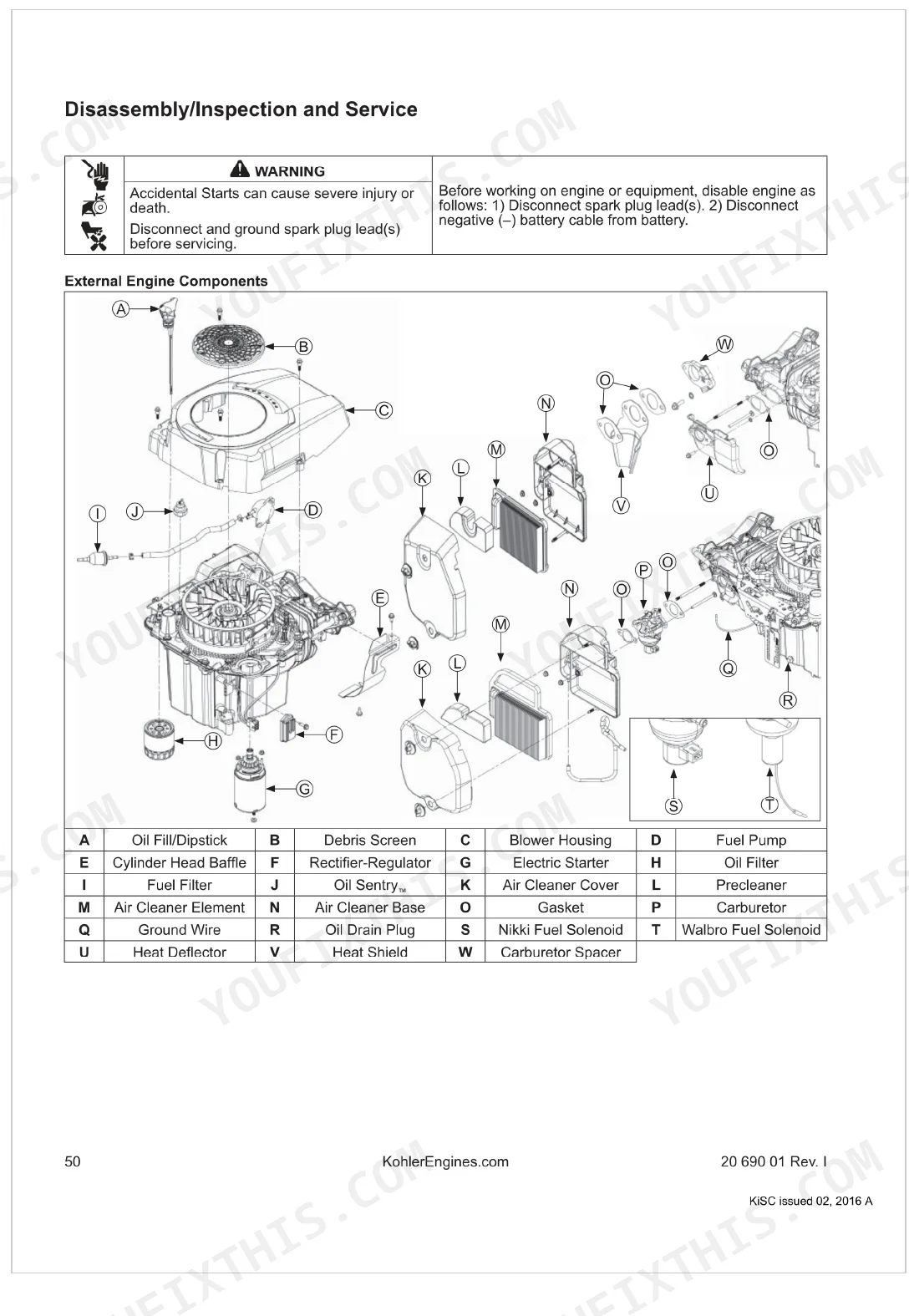

| System | Pages | Key Topics |
|---|---|---|
| Record of Revisions | 3 | - |
| Safety First | 4-7 | - |
| Safety Decals | 8-10 | - |
| Dimensions | 13 | Overall Length, Overall Width, Overall Height, Wheel Base, Tread, Weight |
| General | 14-63 | Identification (Serial Number, Cylinder Number), Handling Precautions for Electrical Parts and Wiring (Battery, Fuse, Connector, Handling of Circuit Tester), Lubricants and Fuel |
| Engine | 64-85 | Mechanism (Structure, Evaporative Emission Control System), Structure (T1880, T2080, T2380) |
| Hydrostatic Transaxle | 86-98 | Mechanism (Structure), Structure (Figure 1, Hydraulic Schematic with Charge Pump) |
| Brakes | 99-107 | Insufficient Braking Force, Brake Drags, Heavy Brakes |
| Front Axle | 108-116 | Front Wheels, Drag Link, Front Wheel, Muffler, Front Axle Assembly |
| Steering | 117-134 | Steering Wheel, Steering Bearing, Steering Shaft, Sector Gear, Drag Link, Battery, Hood (Bonnet), PTO Lever |
| Fender and Lift System | 135-143 | Troubleshooting, Tightening Torques, Checking, Disassembling and Servicing (Checking and Adjusting, Disassembling and Assembling, Separating Fender, Lift Linkage, Gas Spring) |
| PTO System | 144-154 | Belt Drive, PTO Tension Arm and HST Tension Arm |
| Electrical System | 155-175 | Mechanism, Wiring Diagram, T2080, T2380, Kra (Kubota Reverse Awareness) System, Kra System Electrical Circuit, Servicing, Troubleshooting |
| Mower | 176-195 | Mechanism (Power Transmission, Mower Blades), Power Transmission (to the Mower, Blades to), Mower Blades |
| Engine 1 | 196-292 | Safety and General Information (Safety Precautions, Engine Identification Numbers, Oil Recommendations, Fuel Recommendations, Periodic Maintenance, Storage, Specifications) |
| Kohler Courage SV470-SV620 Service Manual | 293-368 | Safety, Maintenance, Specifications, Tools and Aids, Troubleshooting, Air Cleaner/Intake, Fuel System, Governor System |
| Engine 2 | 369-476 | Safety and General Information (Safety Precautions, Engine Identification Numbers, Oil Recommendations, Fuel Recommendations, Periodic Maintenance Instructions, Storage, Specifications) |
| Kohler 7000 Series KT715-KT745 Service Manual | 477-584 | Safety, Maintenance, Specifications, Tools and Aids, Troubleshooting, Air Cleaner/Intake, Fuel System, Governor System |
| Editor Information | 585 | Editor, Kubota Corporation, Printed in Japan |

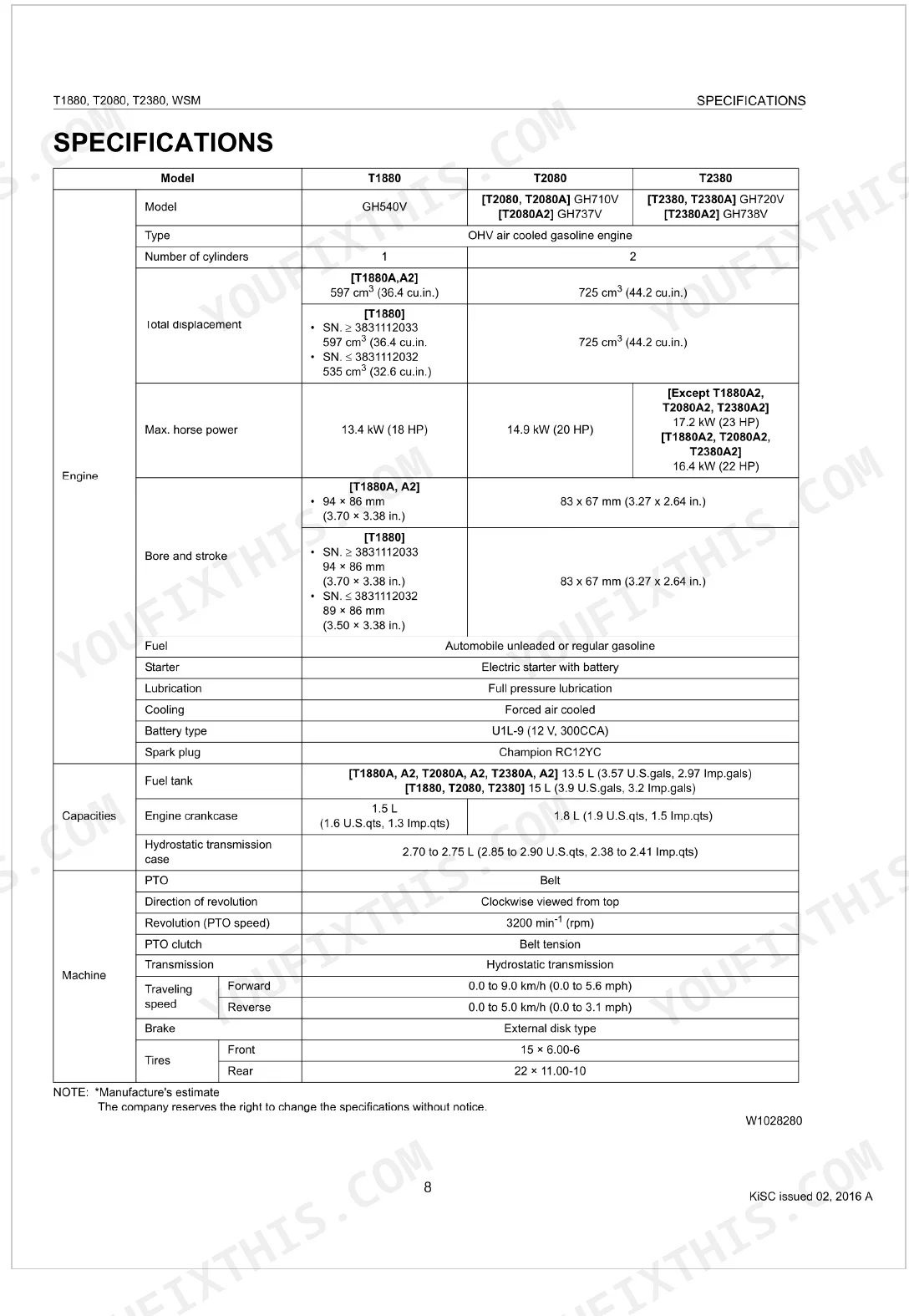

Quick Reference Specifications

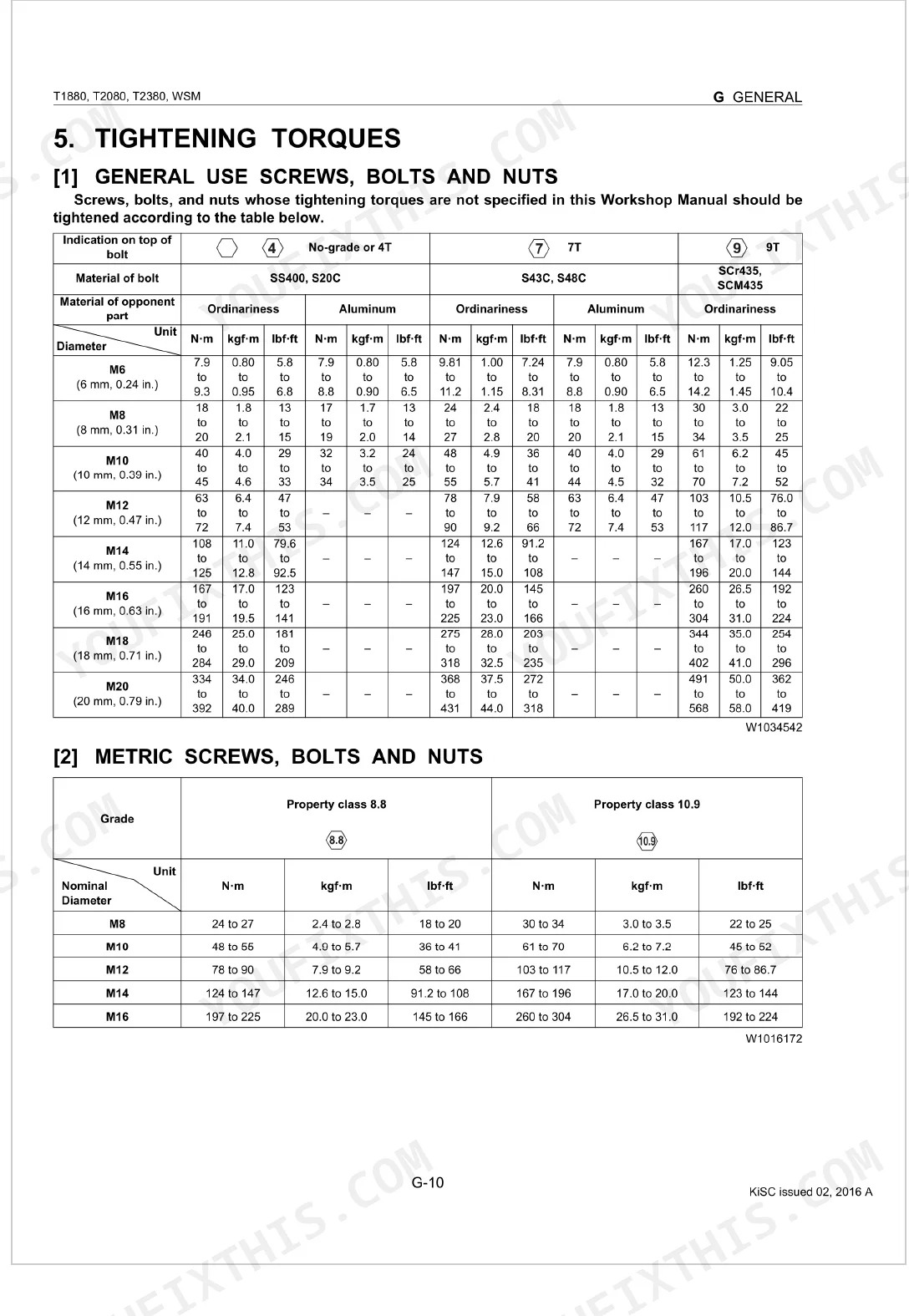

| Specification | Value | Page |
|---|---|---|
| T1880 | ||
| Engine crankcase capacity | 1.5 L (1.6 U.S.qts, 1.3 Imp.qts) | p. 11 |
| T2080, T2380 | ||
| Engine crankcase capacity | 1.8 L (1.9 U.S.qts, 1.5 Imp.qts) | p. 11 |
| T1880, T1880A, T1880A2 | ||
| Total displacement | 597 cm³ | p. 11 |
| T2080 | ||
| Max. horse power | 14.9 kW (20 HP) | p. 11 |
| All Models | ||
| Hydrostatic transmission case capacity | 2.70 to 2.75 L | p. 11 |
| PTO speed | 3200 min-1 (rpm) | p. 11 |
| Front tire pressure | 100 kPa (14 psi) | p. 31 |
| Blade tightening torque | 103 to 117 N·m | p. 35 |
| Spark plug gap | 0.76 mm (0.030 in.) | p. 46 |
| Battery Voltage | More than 12 V | p. 168 |
| Transaxle fluid drain plug torque | 1.70 N·m (0.17 kgf·m) | p. 57 |
| Engine mounting nut torque | 24 to 27 N·m | p. 75 |
Kubota T1880, T2080, T2380 Common Problems This Manual Covers
Engine will not crank, or cranks slowly, when the key is turned p. 168
Start at the battery terminals: clean off any corrosion, then measure voltage on page 168 and confirm it reads more than 12 V. Trace the wiring diagram on page 157 for broken connections, and recharge the battery if it falls below spec.
Manual Section: Electrical System Troubleshooting (General)Hydrostatic transaxle leaks oil under the case, or drives in one direction only p. 57
Inspect the transmission housing for cracks or damaged seals. Drain the fluid and torque the transaxle fluid drain plug to 1.70 N·m (0.17 kgf·m) per page 57. Refill the hydrostatic transmission case with 2.70 to 2.75 L of fresh fluid.
Manual Section: Hydrostatic Transaxle TroubleshootingMower belt slips, or the blade won't spin when the PTO switch is engaged p. 35

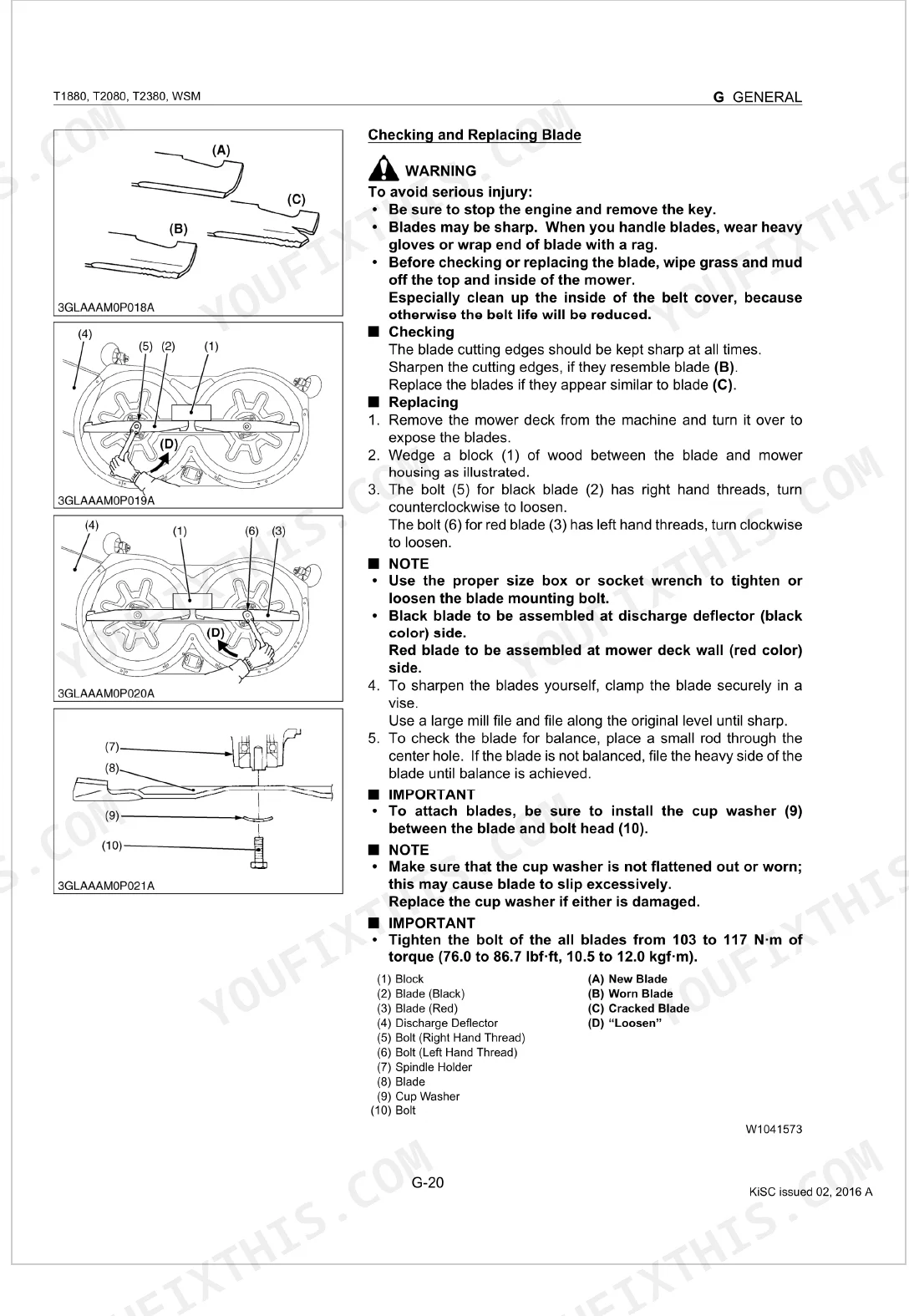

Pull the mower deck covers and check the drive belt for heavy wear or glazing. Inspect the blade hardware on page 35 and tighten the blade bolt to 103 to 117 N·m. Swap in a new belt and make sure the PTO tension arm swings freely.
Manual Section: Mower TroubleshootingFront wheels wander left or right, and the steering feels stiff during operation p. 31
Set the front tire pressure to 100 kPa (14 psi) as shown on page 31. Check the steering linkage for bent tie rods or loose joints. Grease the king pins and check toe-in alignment to stop the wandering.
Manual Section: Front Axle TroubleshootingFrequently Asked Questions
What are the recommended service intervals?
Daily, check the fuel level, oil level, and air cleaner before starting. Every 25 hours, service the precleaner element. At 100 hours or annually, replace the air cleaner element, change the oil and filter, swap the fuel filter, and check all fasteners. Valve lash gets checked every 200 hours, and the spark plug is replaced every 500 hours.
What fluids and capacities does this machine require?
The T1880 crankcase holds 1.5 L of API SG, SH, SJ or higher oil (SAE 5W-20/30 below 0°C, SAE 10W-30 above). For the hydrostatic transmission case, use 2.70 to 2.75 L of API SL SAE 20W-50. Fuel tanks run from 13.5 L to 15 L and take automobile unleaded or regular gasoline rated 87 octane or higher.
How to troubleshoot engine won't start?

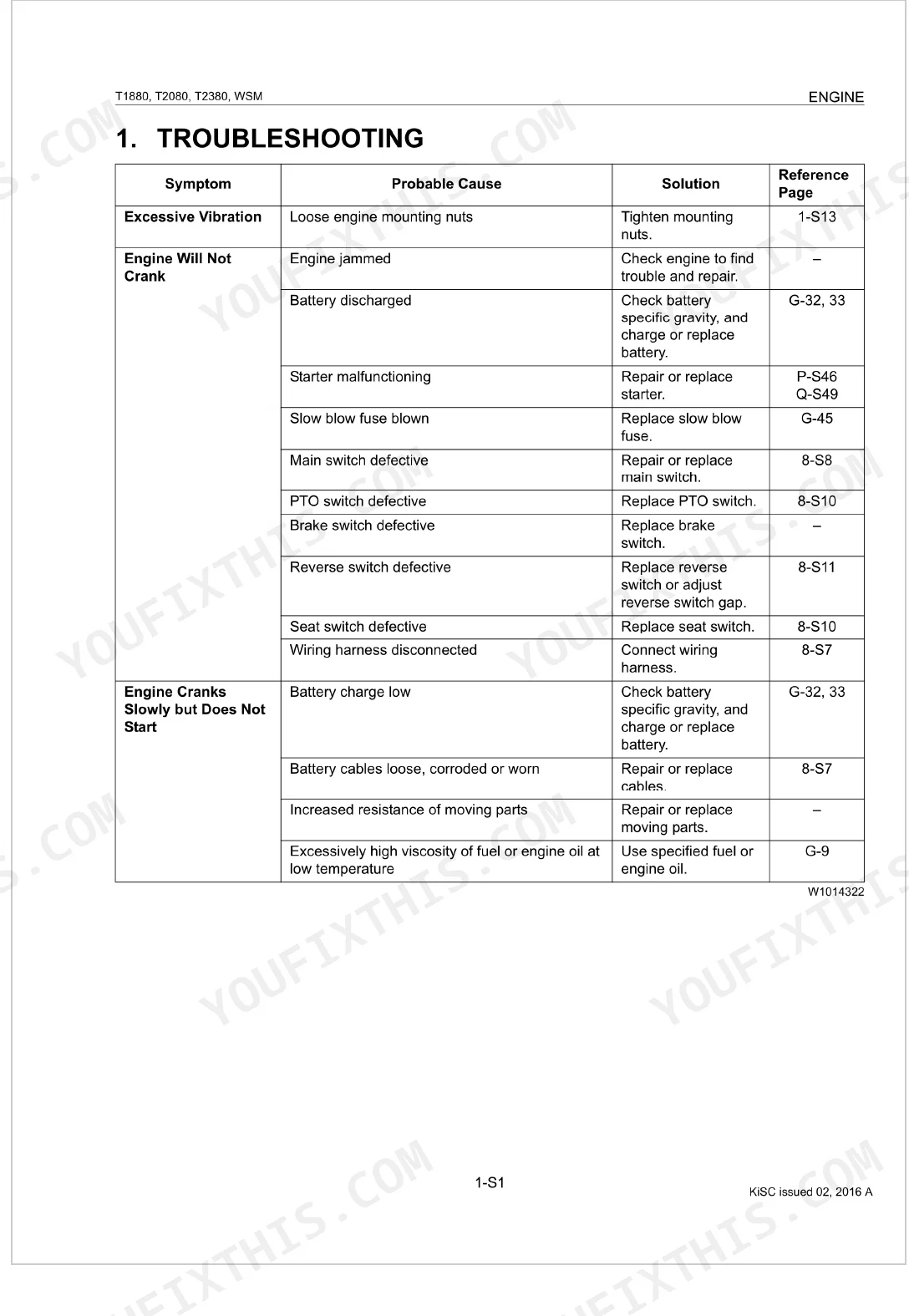

When the engine won't crank, the usual suspects are a discharged or defective battery, a faulty starter, or a blown slow blow fuse (G-45). Also check the main switch (8-S8), the PTO switch setting (8-S10), and the wiring harness (8-S7). If it cranks slowly, look at a low battery charge (G-32, 33) or fuel and oil that are too thick in the cold (G-9).
What are the hydraulic system specifications?
Overall reduction on the hydrostatic transaxle is 27.49:1. Input speeds run 3600 rpm at maximum hi-idle and 1800 rpm minimum. Output torque measures 445 lbf·ft (603 N·m) intermittent and 230 lbf·ft (312 N·m) continuous. The axle shaft diameter is 1.00 in. (25.4 mm), and the unit weighs 42 lbs (19 kg).
How quickly can I access this Kubota T1880, T2080, T2380 manual after buying?
A 585-page Workshop Manual in searchable PDF, ready to download the moment checkout completes. Open it on a computer, tablet, or phone with no shipping wait.
Are there any print restrictions on this Kubota T1880, T2080, T2380 manual?
Yes. The PDF carries no DRM, so you can print any page or section you need for the shop. It works with any standard printer.
Are electrical wiring diagrams included in this Kubota T1880, T2080, T2380?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector identification for the Kubota T1880, T2080, T2380.
