This is the Kubota LA534A-AU front loader workshop manual, publication 9Y111-11440, a 69-page PDF with a full text layer. It covers the LA534A-AU loader that mounts to compact Kubota tractors such as the B2650, taking you from loader identification and lubricants through the control valve, the optional 3rd function valve, and the spill guard system.The Servicing section carries the material you actually turn a wrench with: troubleshooting charts, servicing specifications, tightening torques, and step-by-step removal of the loader from the tractor. You get boom and bucket cylinder torque figures, pin and bore clearances, and hydraulic fitting torques so a repair can be checked against factory numbers.Buyers get an instant PDF download that reads on a phone, tablet, or shop computer and prints clean for the bench, whether you are diagnosing a hydraulic fault or reassembling a cylinder.
What's Inside This Kubota LA534A-AU Manual
| System | Pages | Key Topics |
|---|---|---|
| Information | 3-12 | - |
| General | 13-22 | Loader Identification, Lubricants, Tightening Torques (Stud Bolts, American Standard Screws, Bolts and Nuts with Unc or Unf Threads, Plugs, Hydraulic Fittings) |

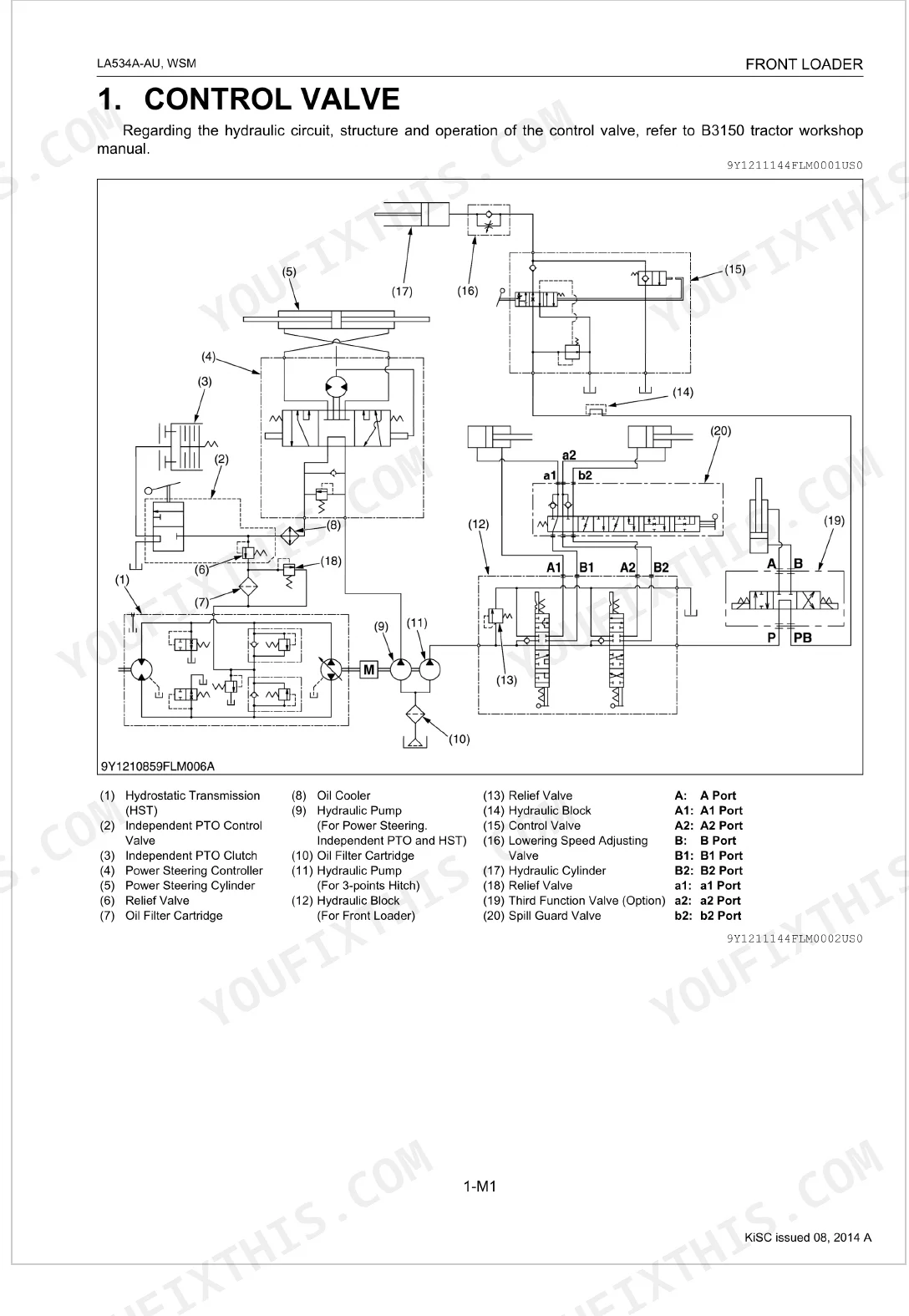

| Mechanism | 23-42 | Control Valve, 3rd. Function Valve (Hydraulic Circuit, Solenoid Valve Operation, Electrical Diagram) |
| Servicing | 43-69 | 3rd. Function Solenoid Valve, Spill Guard Linkage, Bucket, Boom, Hydraulic Cylinder, Boom Lock, Side Frame, Front Guard |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Main frame mounting bolt (M14) torque | 150 N·m | p. 55 |
| Main frame mounting bolt (M12) torque | 80 N·m | p. 55 |
| Front guard mounting bolt and nut torque | 147 N·m | p. 55 |
| Boom cylinder head mounting torque | 200 to 230 N·m | p. 55 |

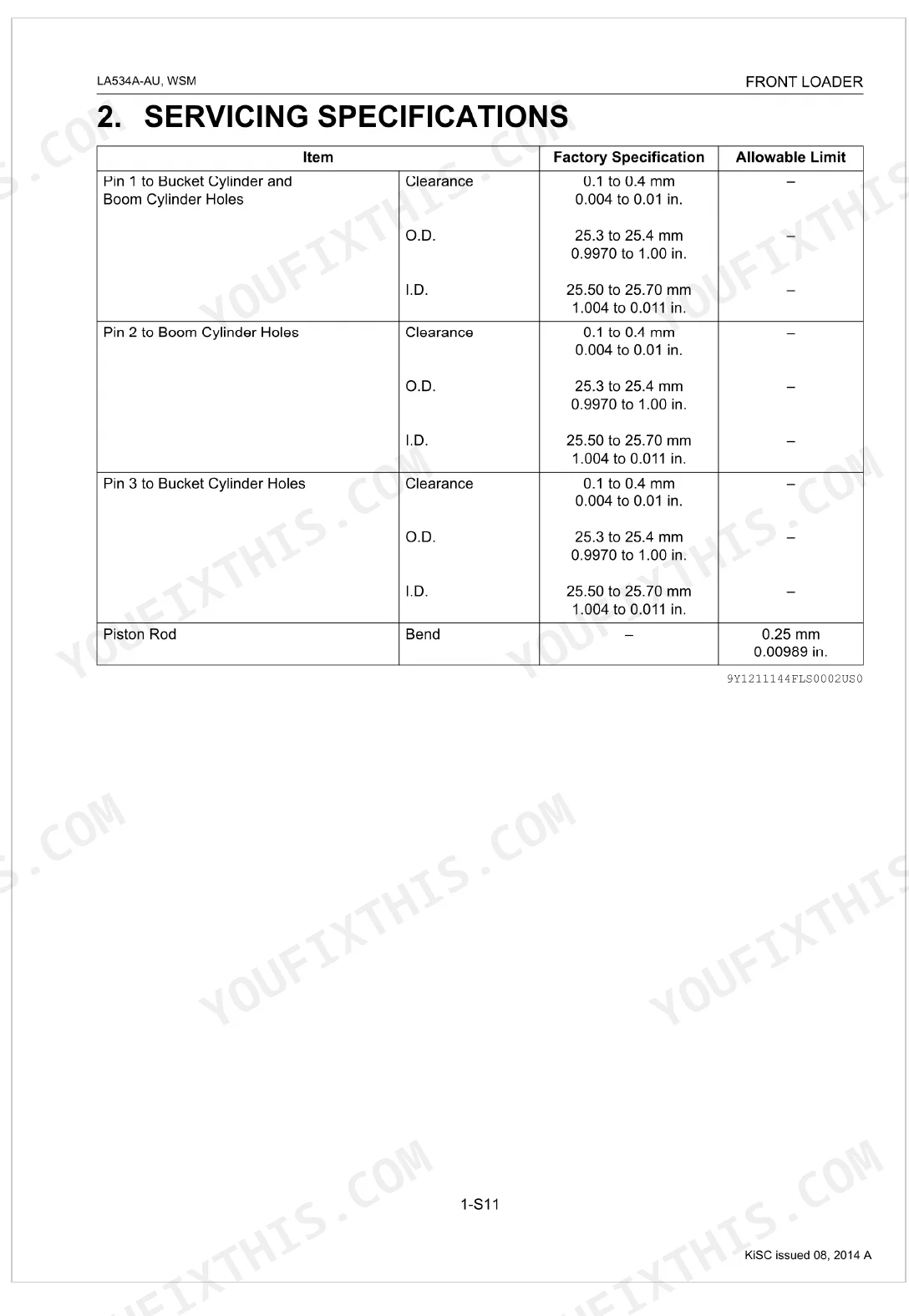

| Pin 1 to Bucket Cylinder and Boom Cylinder Holes clearance | 0.1 to 0.4 mm | p. 54 |
| Pin 2 to Boom Cylinder Holes clearance | 0.1 to 0.4 mm | p. 54 |
| Spill guard valve mounting screw (M8) torque | 24 to 27 N·m | p. 55 |
| 3rd. Function Solenoid Valve resistance (1 Terminal - 2 Terminal) | Approx. 4.8 Ω | p. 58 |
| Hose fitting, Flare nut (UNF) 9/16 torque | 22 to 25 N·m | p. 19 |
| Hose fitting, Flare nut (UNF) 3/4 torque | 36 to 40 N·m | p. 19 |
| ON - OFF Switch resistance (RB terminal - YR terminal, ON position) | 0 Ω | p. 59 |
| ON - OFF Switch resistance (RB terminal - YR terminal, OFF position) | Infinity | p. 59 |
Kubota LA534A-AU Common Problems This Manual Covers
Loader hydraulics stop responding or move erratically
Owners report the loader freezing or jerking, often from a hydraulic fluid problem, a loose connection, or a fault in the control valve circuit. The Servicing troubleshooting charts walk the checks in order.

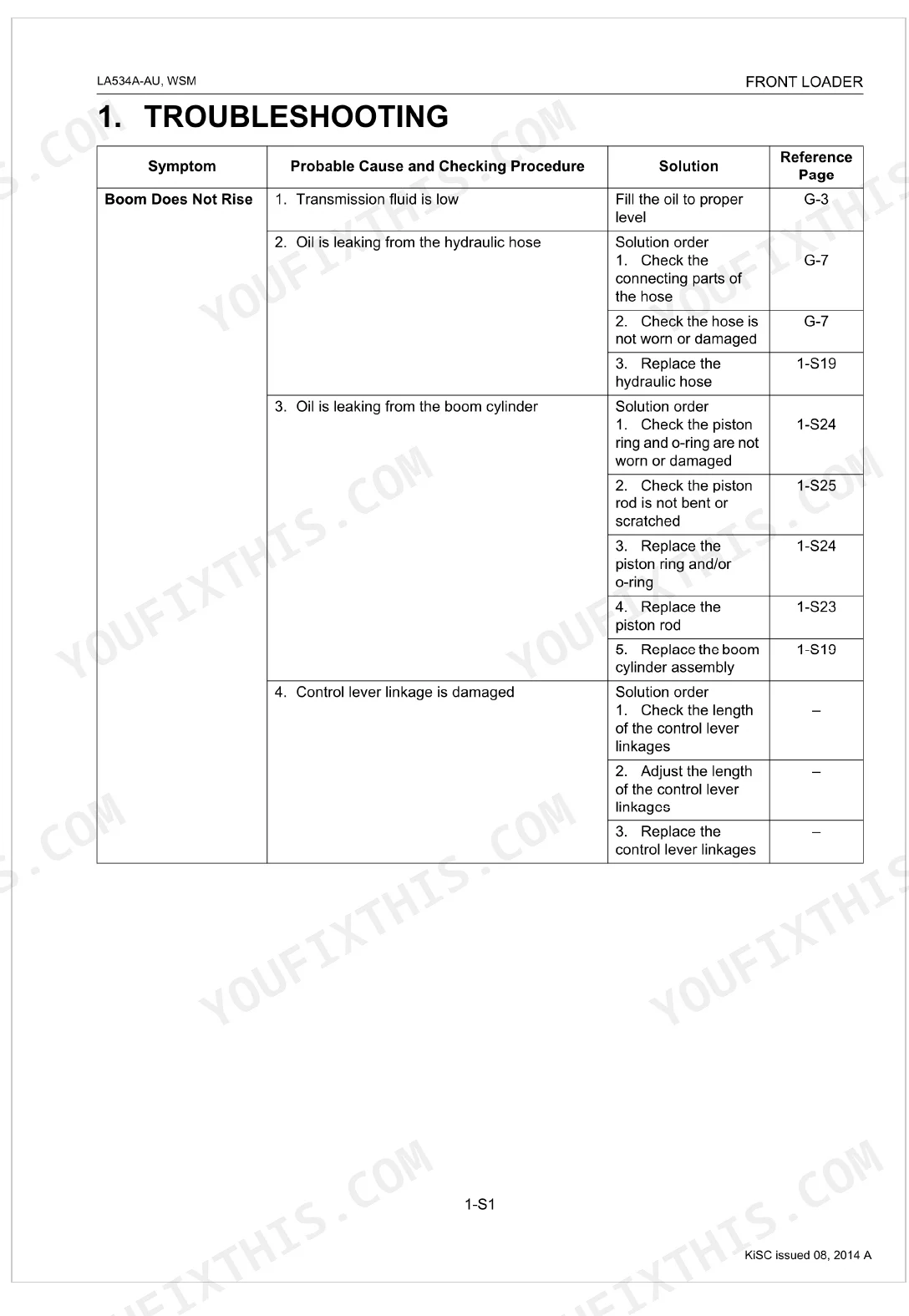

Manual Section: Troubleshooting p. 44Weak lifting power or slow cycle speed
Slow raising and poor lift usually trace to low oil, worn hydraulic parts, or air in the system. The Control Valve coverage in the Mechanism section explains valve operation so you can isolate the cause.
Manual Section: Control Valve p. 25Loader drifts down under load
A loader that will not hold position points to internal cylinder leakage or seal failure. Checking and adjusting cylinder clearances against the servicing figures confirms whether the cylinder needs rebuilding.
Manual Section: Checking, Adjusting, Disassembling And Servicing p. 583rd function valve or solenoid faults
The optional 3rd function valve can misbehave when the solenoid or its wiring is at fault. The manual documents the hydraulic circuit, solenoid valve operation, and the electrical diagram for this option.
Manual Section: 3rd. Function Valve (Option) p. 26Mounting bolts working loose

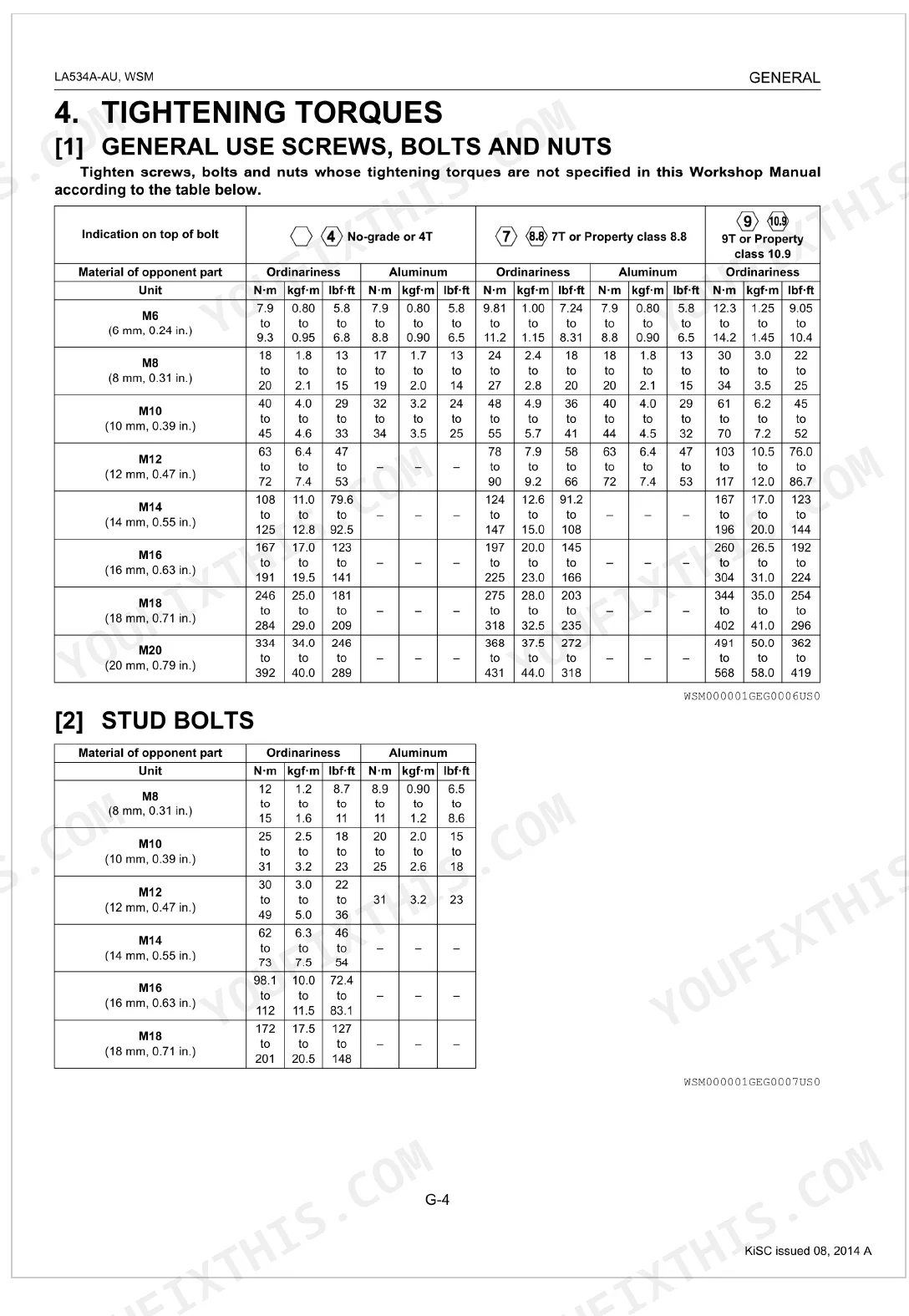

Vibration can loosen the main frame and cylinder hardware over time. The Tightening Torques table gives the main frame and boom cylinder figures so fasteners go back to spec.

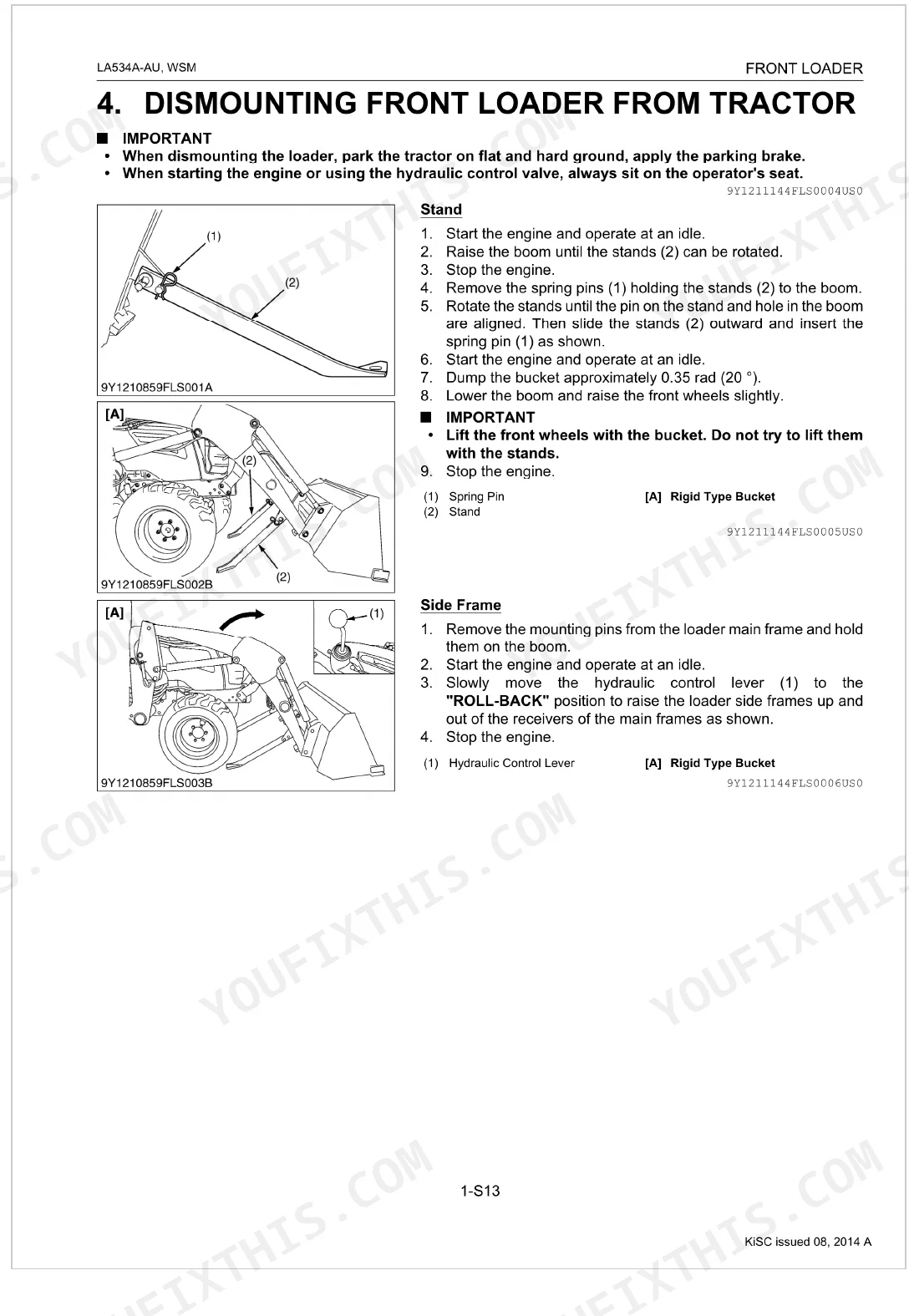

Manual Section: Tightening Torques p. 55Removing the loader from the tractor
Detaching the loader for service or transport can bind or go wrong without the correct sequence. The dismounting procedure covers safe stands, hydraulic release, and the order of disconnection.
Manual Section: Dismounting Front Loader From Tractor p. 56Frequently Asked Questions
Which loader does this manual cover?
It covers the Kubota LA534A-AU front loader, publication number 9Y111-11440. It is a workshop manual, so it focuses on repair, servicing, and specifications rather than day-to-day operation.
What are the main frame mounting bolt torques?
The Tightening Torques table lists the M14 main frame bolt at 150 N·m and the boom cylinder head mounting at 200 to 230 N·m, along with the other loader fasteners. p. 55
Does it explain removing the loader from the tractor?
Yes. The Servicing section includes a dismounting procedure covering how to support, release, and disconnect the loader before it is separated from the tractor. p. 56
Can it help me diagnose a hydraulic fault?
Yes. The troubleshooting charts in the Servicing section map symptoms such as no response, slow lift, or drift to likely causes in the fluid, wiring, and control valve circuit. p. 44
Is this Kubota LA534A-AU Workshop Manual a digital download?
Yes. It is a 69-page searchable PDF that downloads instantly after checkout. Open it on a laptop, tablet, or phone and keep it with you on the shop floor.
Can I print this manual?
Yes, print as many copies as you need; there are no restrictions. Plenty of mechanics just print the one section they're working from and take it to the bench.
Does this Kubota LA534A-AU Workshop Manual cover the hydraulic system?
Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the Kubota LA534A-AU.
