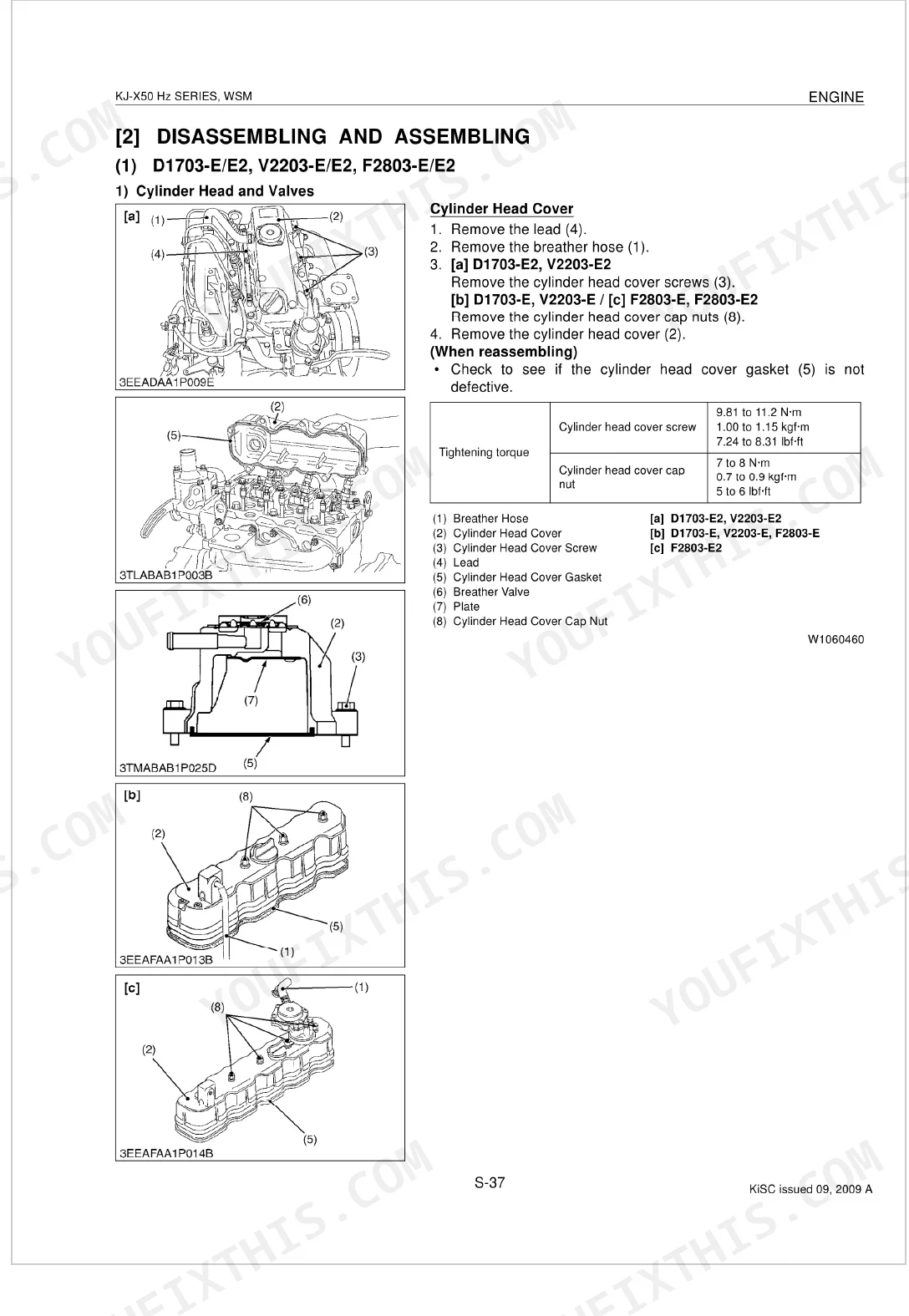

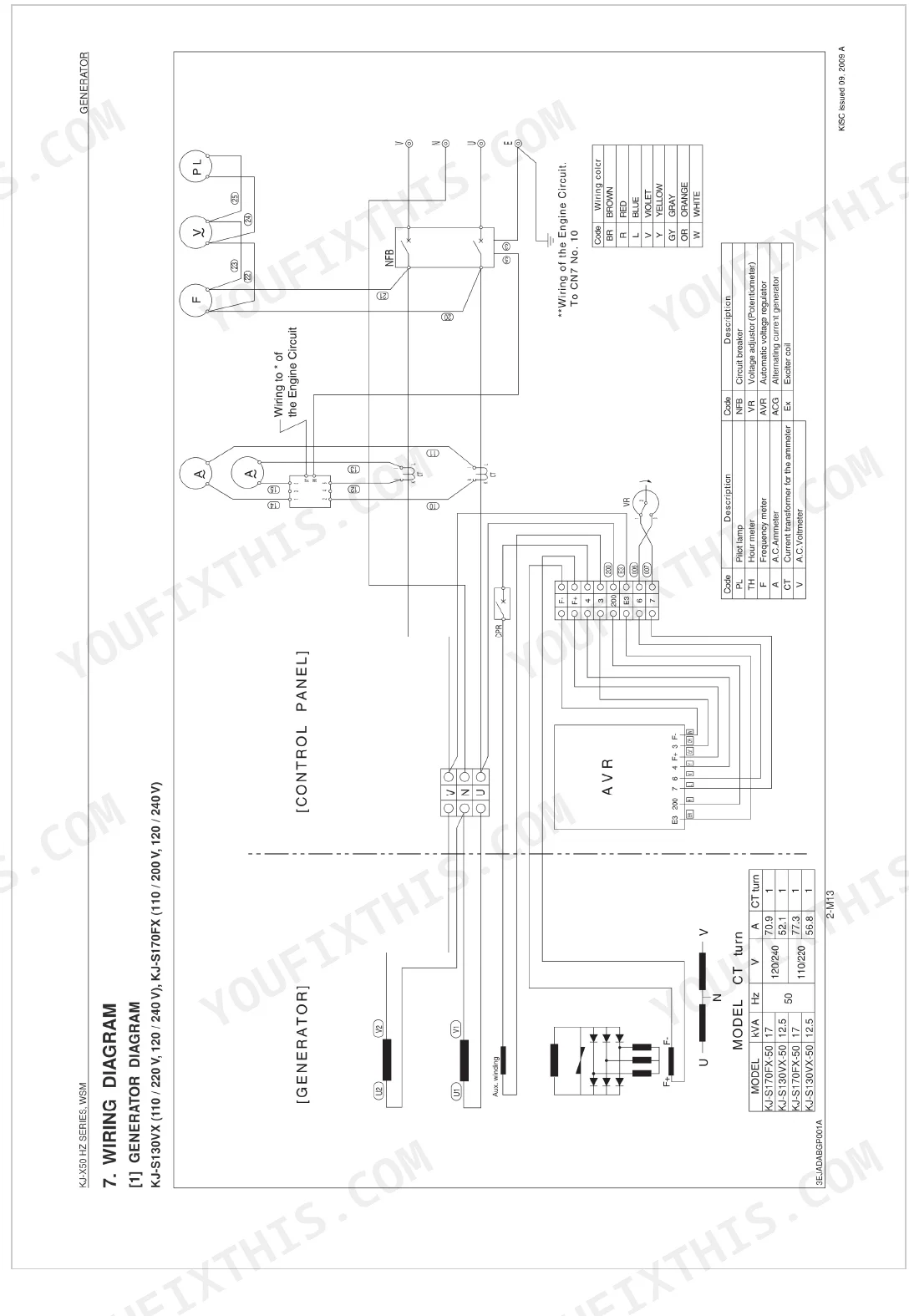

Six pages of engine troubleshooting anchor this Kubota KJ Workshop Manual (OEM #9Y011-01832), spanning four powerplants: the D1703-E/E2, V2203-E/E2, F2803-E/E2, and V3300-E2BG. Another 75 pages walk through exploded views with full disassembly and reassembly steps, and a dedicated AVR wiring section maps both the generator and engine circuit diagrams. The maintenance schedule runs from daily checks out to the 3,000-hour mark: oil filter at 250 hours, air cleaner element at 500 hours or every 6th cleaning. Rotor mounting screws torque to 18 to 21 N·m. When your KJ-T230FX won't hold voltage or your KJ-S130VX needs a factory-spec rebuild, the answer sits in one searchable 216-page file instead of three scattered references. Coverage extends to AUS variants through the KJ-T300-AUS. Download it, bookmark the section you need, and put the set back online.
What's Inside This Kubota KJ-S130VX & variants Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 16-61 | Generator Identification, Engine Identification (Model Name and Engine Serial Number, Cylinder Number), Lubricants, Fuel and Coolant |

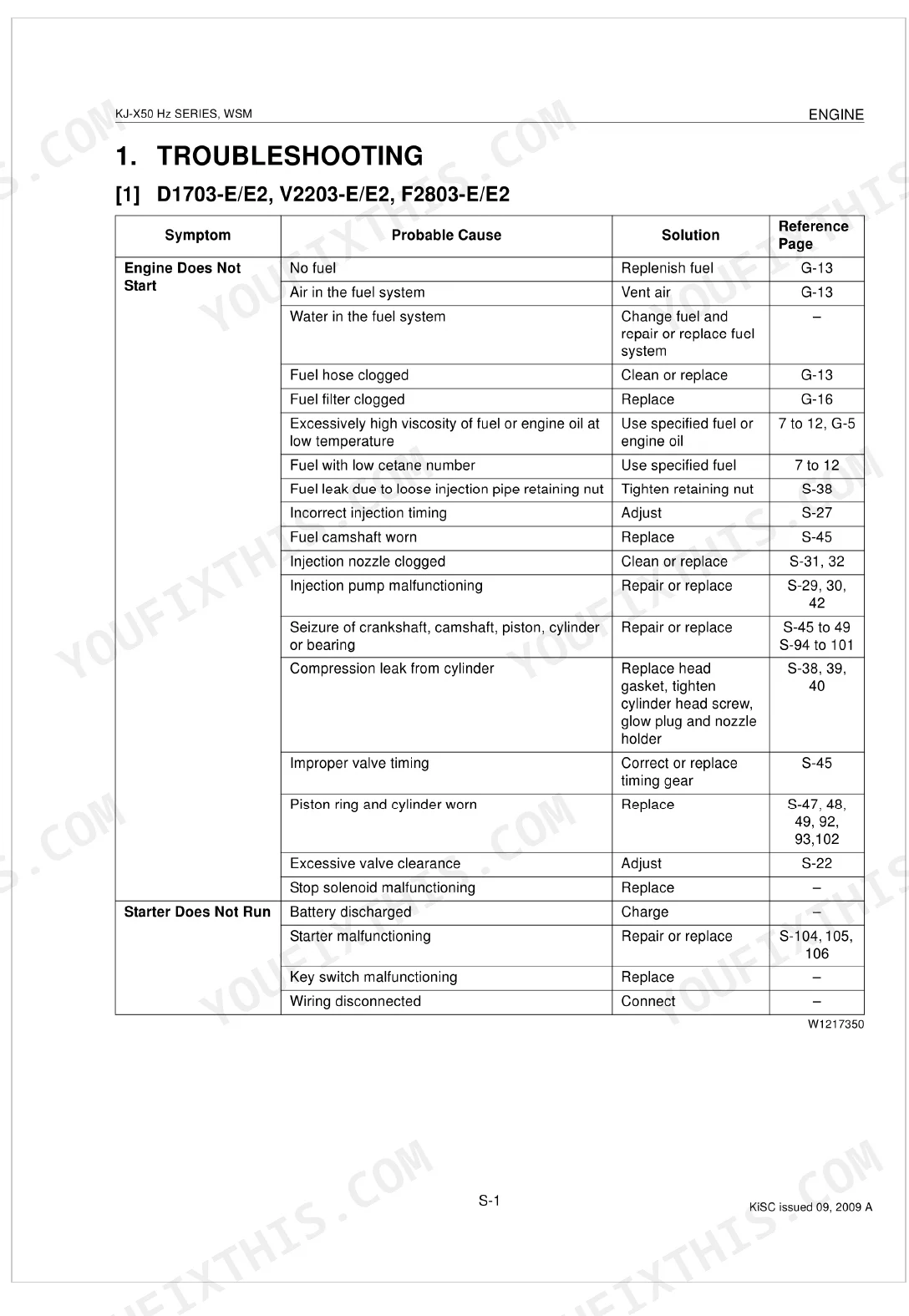

| Engine | 62-171 | Troubleshooting (D1703-E/E2, V2203-E/E2, F2803-E/E2, V3300-E2Bg), Servicing Specifications (D1703-E/E2 |
| Generator | 172-216 | Generating Method (Principle of Operation), Structure (Stator, Exciter, Rotor, Avr) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

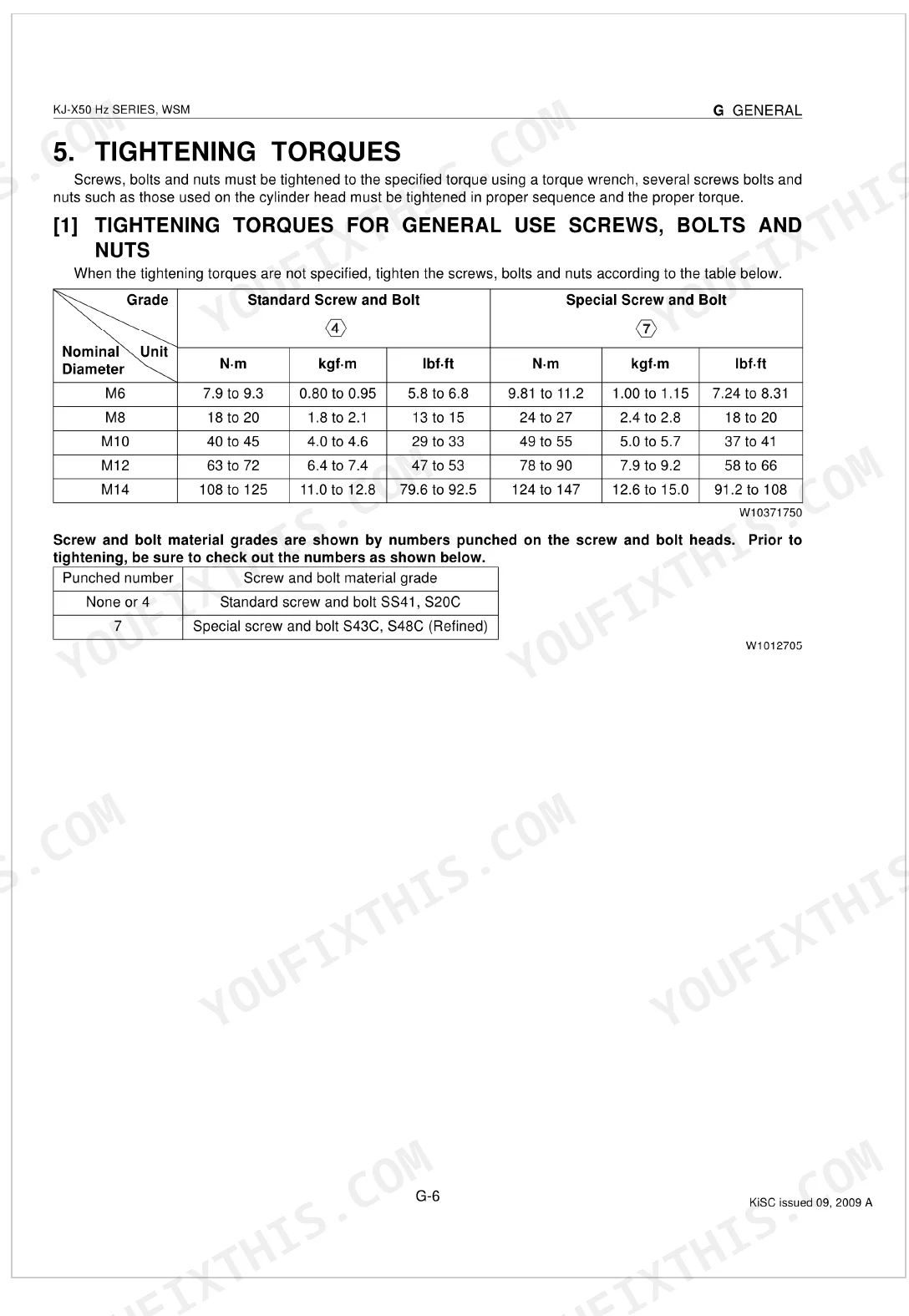

| General use screws, bolts and nuts (M6, Grade 4) | 7.9 to 9.3 N·m | p. 23 |
| Rotor mounting screw | 18 to 21 N·m | p. 205 |
| Air cleaner element cleaning interval | Every 100 hours | p. 24 |
| Air cleaner element replacement interval | Every 1000 hours or once a year | p. 24 |
| Oil filter cartridge replacement interval | Every 500 hours | p. 24 |
| Fuel filter cartridge replacement interval | Every 500 hours | p. 33 |
| Battery check interval | Every 100 hours | p. 24 |
| Battery replacement interval | Every 1000 hours | p. 46 |
| Coolant replacement interval | Every 2 years | p. 44 |
| D1703-E/E2, V2203-E/E2, F2803-E/E2 | ||
| Starter Commutator O.D. (Allowable Limit) | 29.0 mm | p. 75 |
| Starter Mica Undercut (Allowable Limit) | 0.2 mm | p. 75 |
| KJ-S130VX, KJ-S130VX-AUS | ||

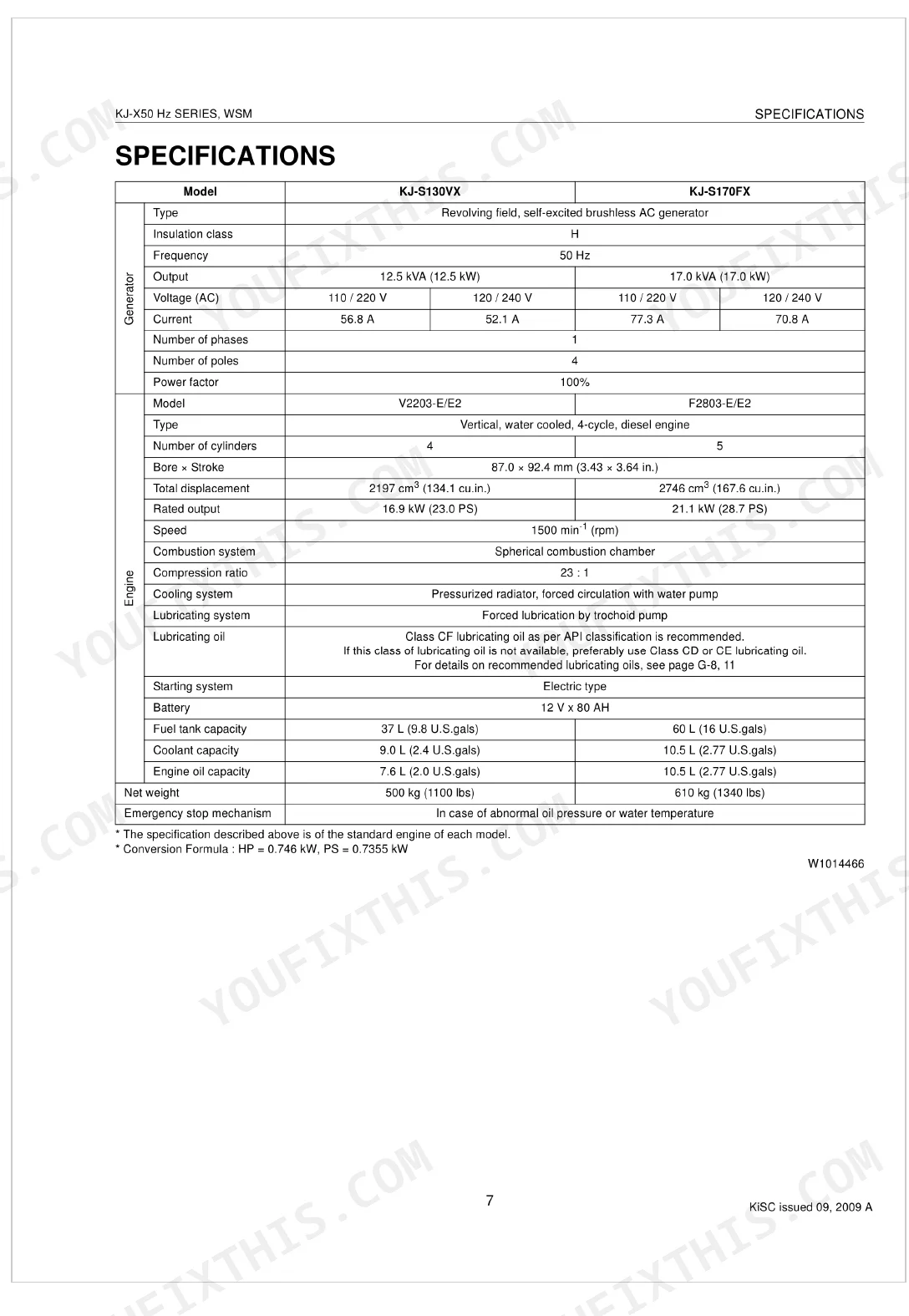

| Coolant capacity | 9.0 L | p. 22 |
Kubota KJ-S130VX & variants Common Problems This Manual Covers
Hard starting, slow cranking, or no crank at all in cold weather p. 96
Test battery specific gravity with a hydrometer before anything else. A fully charged cell reads 1.260 Sp. Gr. (page 96); below 1.200 means charge it or swap it out. Schedule a battery check every 100 hours and replacement at 1000 hours (page 46). If the motor sounds sluggish on crank, confirm starter terminal B nut torque at 5.9 to 11.1 N·m (page 82).
Manual Section: Engine Circuit TroubleshootingEngine shuts down automatically mid-operation, oil pressure warning illuminates on the panel p. 87
Pull the dipstick and read the oil level first. Normal pressure at rated speed is 300 to 440 kPa; idle drops to a 98 kPa minimum (page 87). The oil pressure switch should show infinite resistance above 98 kPa (page 208). Swap the oil filter cartridge every 250 hours, and match the lubricant grade to the ambient temperature range listed in the General section.
Manual Section: Engine Troubleshooting (D1703-E/E2, V2203-E/E2, F2803-E/E2)Air cleaner element clogged, engine bogs down under load, black smoke from exhaust p. 24

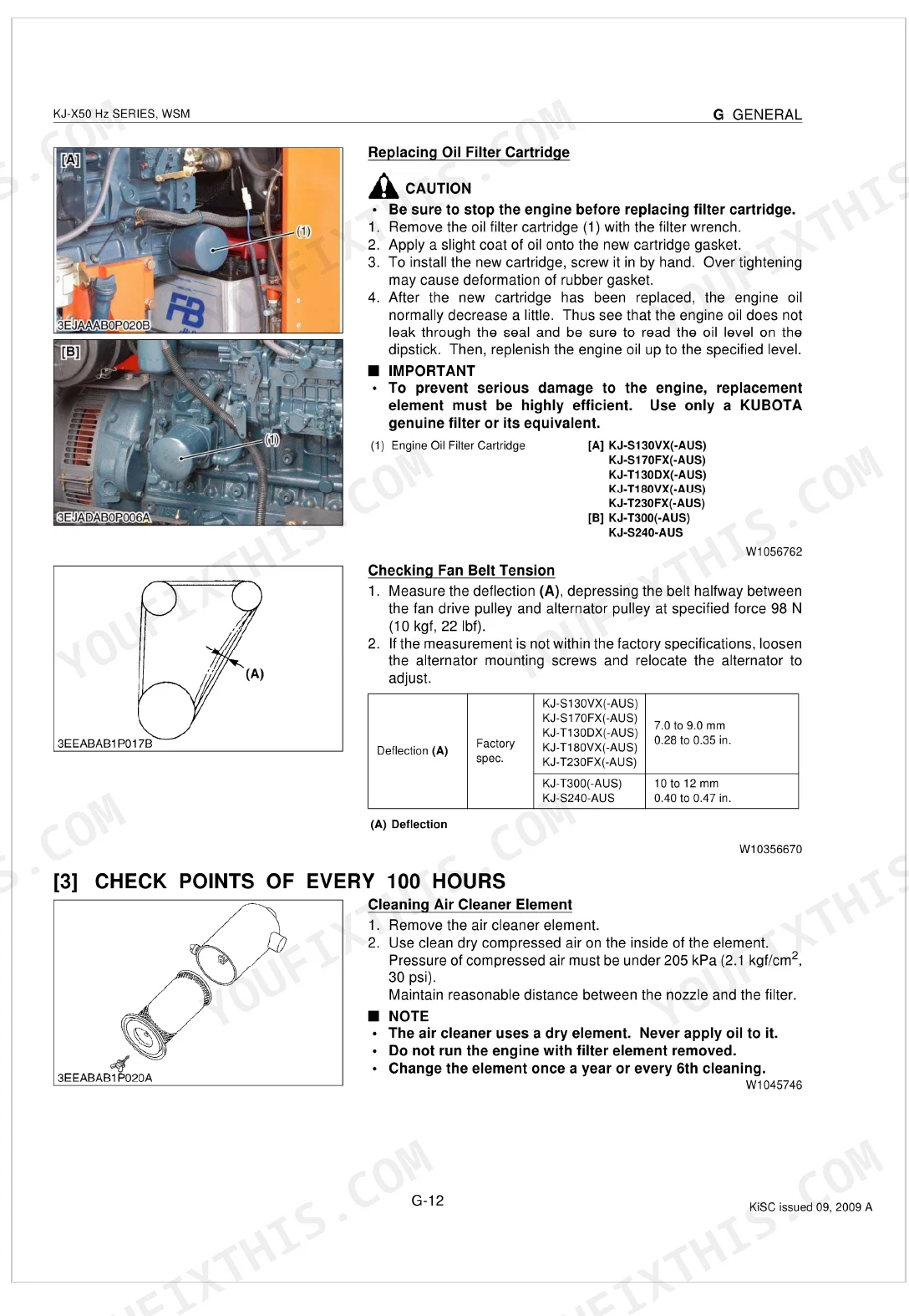

Remove the air cleaner element and inspect it: clean every 100 hours, replace every 500 hours or once a year, whichever comes first, plus after every 6th cleaning regardless of hours (page 24). Tap out the dust or wash with mild soapy water, then let it dry fully before refitting. Renew the intake air line every 2 years. A choked intake starves combustion and pushes exhaust smoke up under load.
Manual Section: GeneralEngine overheats repeatedly under sustained load, high-temp alarm trips and shuts the set down p. 74
Top off the coolant, then clear debris from the radiator fins. Fan belt deflection should sit at 7.0 to 9.0 mm under 98 N (page 34) on KJ-S130VX through KJ-T230FX sets; KJ-T300 and KJ-S240-AUS call for 10 to 12 mm. On the D1703, V2203, and F2803 engines, the thermostat starts opening at 69.5 to 72.5 °C (page 74). Replace coolant every 2000 hours or 2 years (page 44).
Manual Section: Engine Troubleshooting (D1703-E/E2, V2203-E/E2, F2803-E/E2)Generator runs at rated speed but produces no output voltage at startup p. 203
Measure the air gap between rotor and stator; it must hold 1.4 mm (page 203). Go through the AVR wiring for loose terminals or corrosion. If the rotor came out recently, torque its mounting screws to 18 to 21 N·m (page 205). Make sure the engine reaches rated speed before condemning the alternator: low RPM alone yields no usable output voltage no matter how healthy the alternator is.
Manual Section: Generator Troubleshooting: Voltage FaultsFrequently Asked Questions
What are the replacement specifications for air cleaner element?
Pull the used element out first, then fit a new air cleaner element in its place. One caution: the air cleaner uses a dry element, so oil should never be applied to it. And never run the engine while the filter element is removed.
What are the replacement specifications for oil filter?
Spin off the old cartridge with a filter wrench. Coat the new cartridge's gasket with a light film of oil, then thread it on by hand without overtightening. Once it's seated, check the engine oil level, top it up if needed, and watch that no oil leaks past the seal. Fit only a KUBOTA genuine filter or its equivalent; a substandard one risks serious engine damage.
How will I receive this Kubota KJ-S130VX & variants Workshop Manual?
It's a 216-page searchable PDF, ready to download the moment checkout completes. Open it on a computer, tablet, or phone. No shipping, no waiting.
Are there any print restrictions on this Kubota KJ-S130VX & variants manual?
None at all. The PDF ships DRM-free, so print whatever sections you want to carry out to the shop. Standard letter or A4 paper both work fine.
Are there wiring harness diagrams in this Kubota KJ-S130VX & variants manual?
Yes. The manual maps every electrical circuit, harness routing path, and connector pinout for the Kubota KJ-S130VX and its variants.
