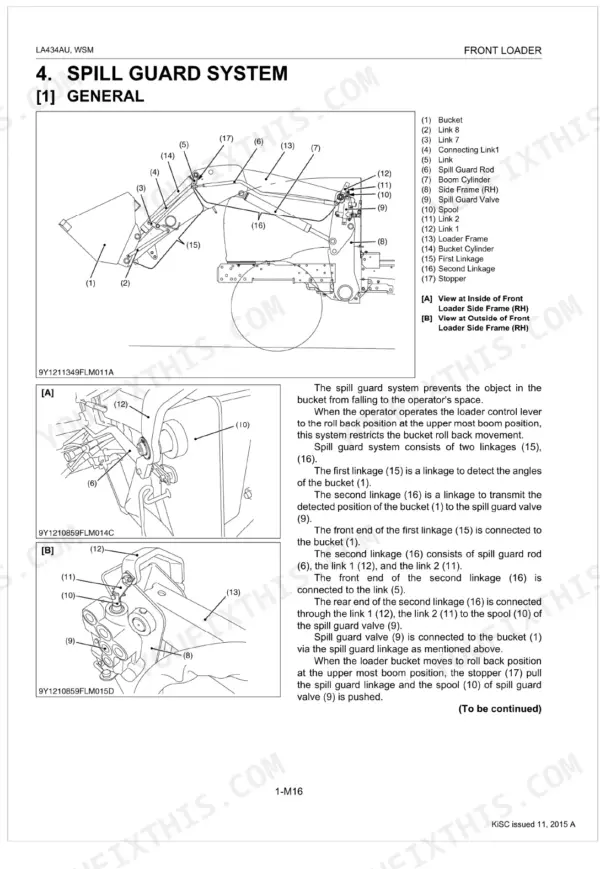

Hydraulic circuit diagnosis, control valve teardown, and getting your Spill Guard system back to factory condition: that is the focus across the manual's 77 pages. This is the Kubota LA434AU Front Loader Workshop Manual, OEM #9Y111-13490. Expect hydraulic circuit schematics with full fluid routing for the front loader, the 3rd Function Valve's electrical diagram and solenoid valve operation, and 19 pages of hydraulic mechanism coverage. Torque tables run from M6 general fasteners through hydraulic fittings, and maintenance checklists cover daily, 10-hour, and 50-hour service intervals. Set the front loader pipe joint bolt to 48-56 N·m and hold piston seal clearance at 80 μm. When the loader is down, the tractor isn't earning. Everything is bookmarked by section and keyword-searchable, so pull it up on your phone or tablet and check the right number before you touch another fitting.
What's Inside This Kubota LA434AU Manual
| System | Pages | Key Topics |
|---|---|---|
| Information | 3-12 | - |
| General | 13-24 | Loader Identification, Lubricants, Tightening Torques (Stud Bolts, American Standard Screws, Bolts And Nuts With Unc Or Unf Threads, Plugs, Hydraulic Fittings) |

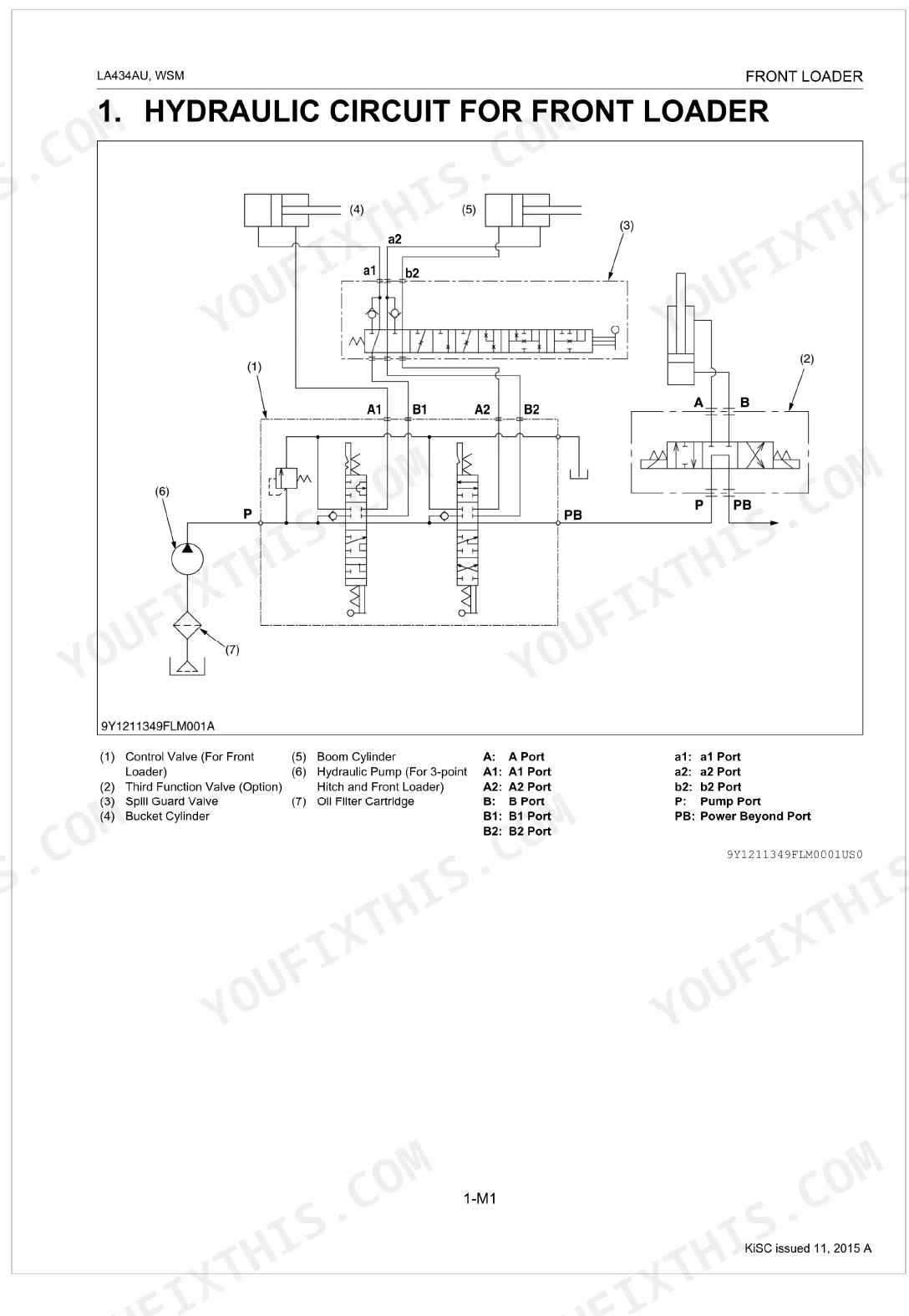

| Mechanism | 25-52 | Hydraulic Circuit For Front Loader, Control Valve (Hydraulic Circuit, Structure, Operation), 3rd. Function Valve (Hydraulic Circuit, Solenoid Valve Operation, Electrical Diagram) |

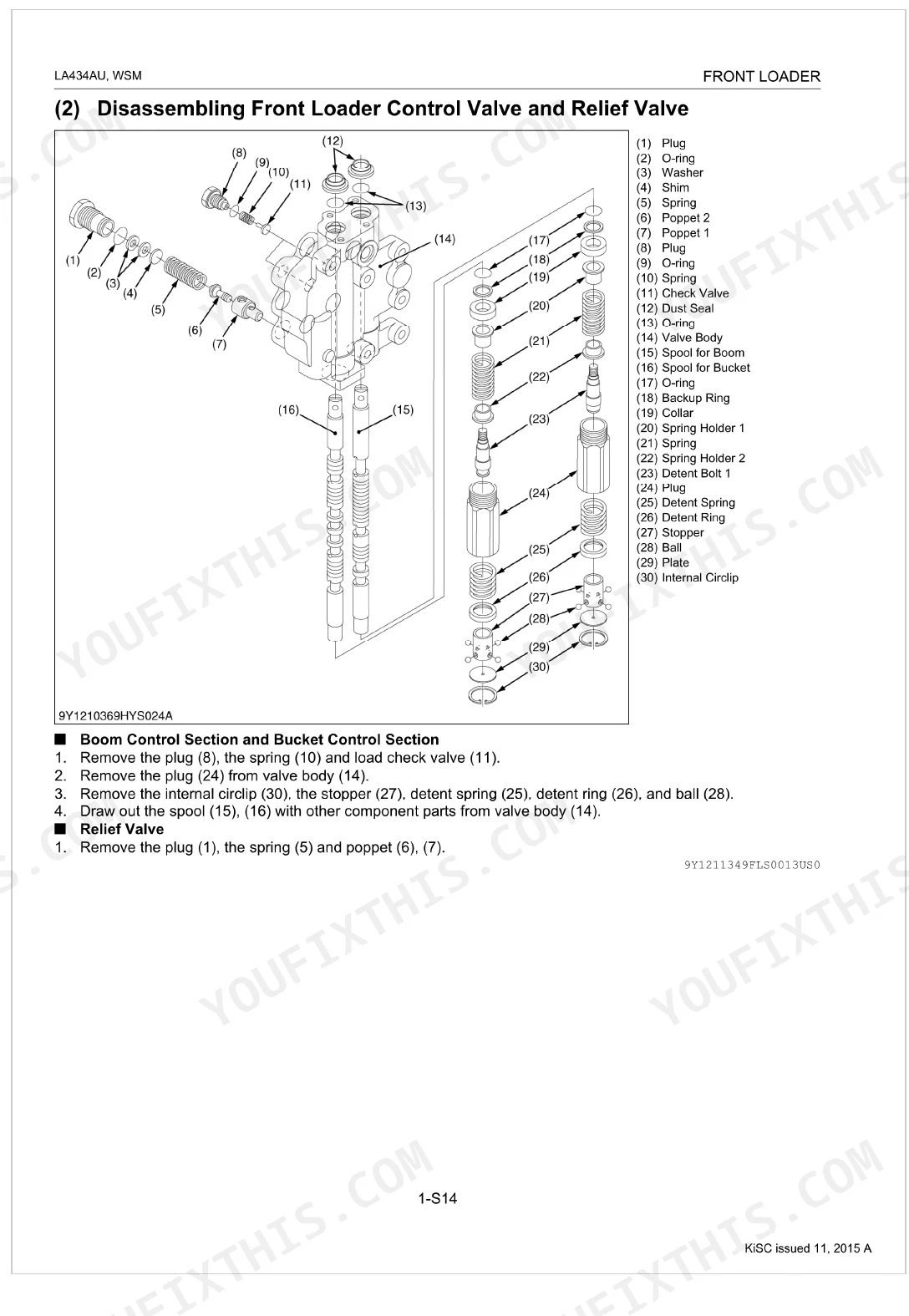

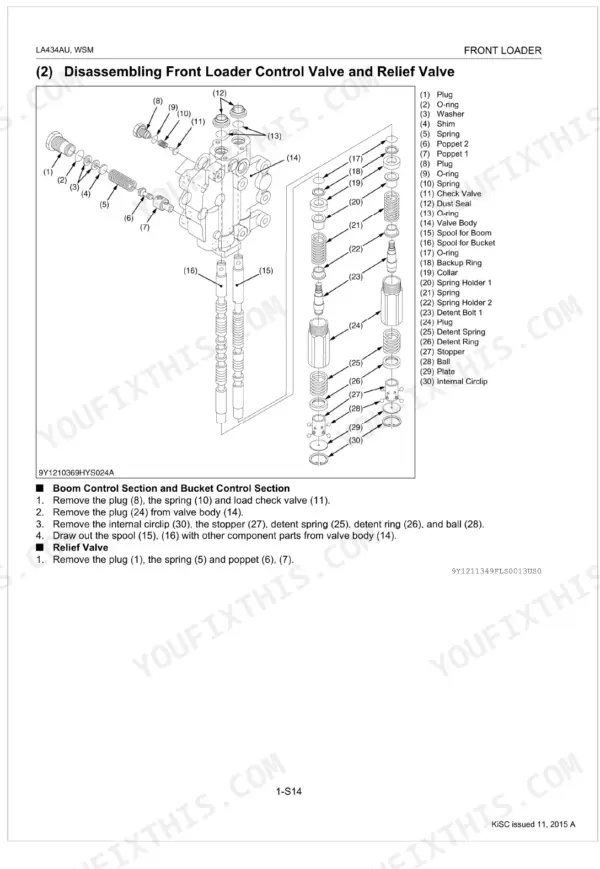

| Servicing | 53-77 | 3rd. Function Solenoid Valve, Spill Guard Linkage, Front Loader Control Valve Assembly, Front Loader Control Valve, Relief Valve, Bucket, Boom, Hydraulic Cylinder |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| General Use Screws, Bolts and Nuts (M6, Ordinariness) | 7.9 to 9.3 N·m | p. 18 |
| Hydraulic hose (8) (9) (10) tightening torque | 36 to 40 N·m | p. 73 |
| Piston Seal Clearance (A) | 80 μm | p. 75 |
| Adjustable elbow, Adapter (O-ring port) (UNF) 9/16 thread size tightening torque | 37 to 44 N·m | p. 20 |

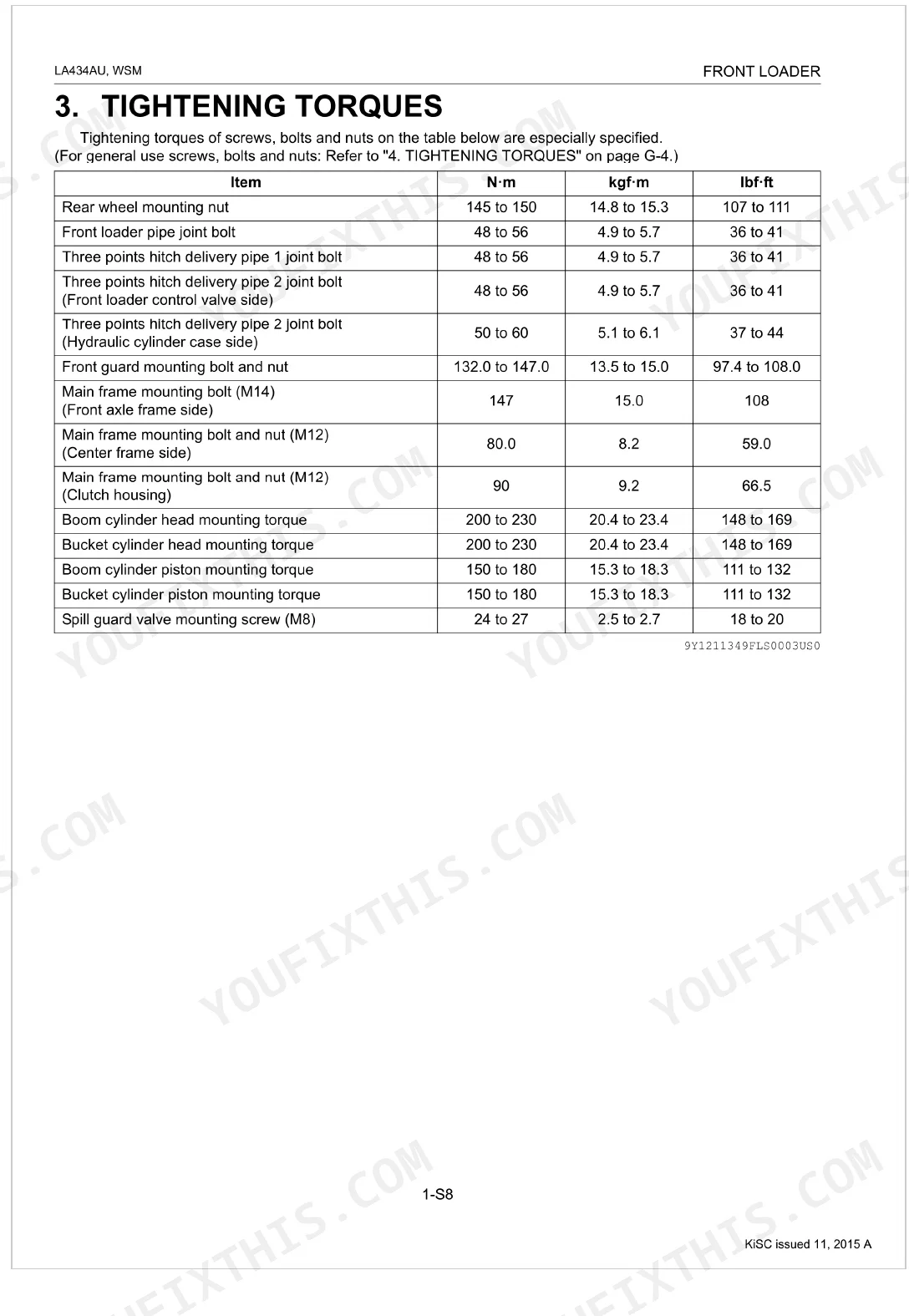

| Front loader pipe joint bolt tightening torque | 48 to 56 N·m | p. 61 |
| Pin 1 to Bucket Cylinder and Boom Cylinder Holes Clearance | 0.1 to 0.4 mm | p. 60 |
| Transmission case Capacity | 15 L | p. 17 |

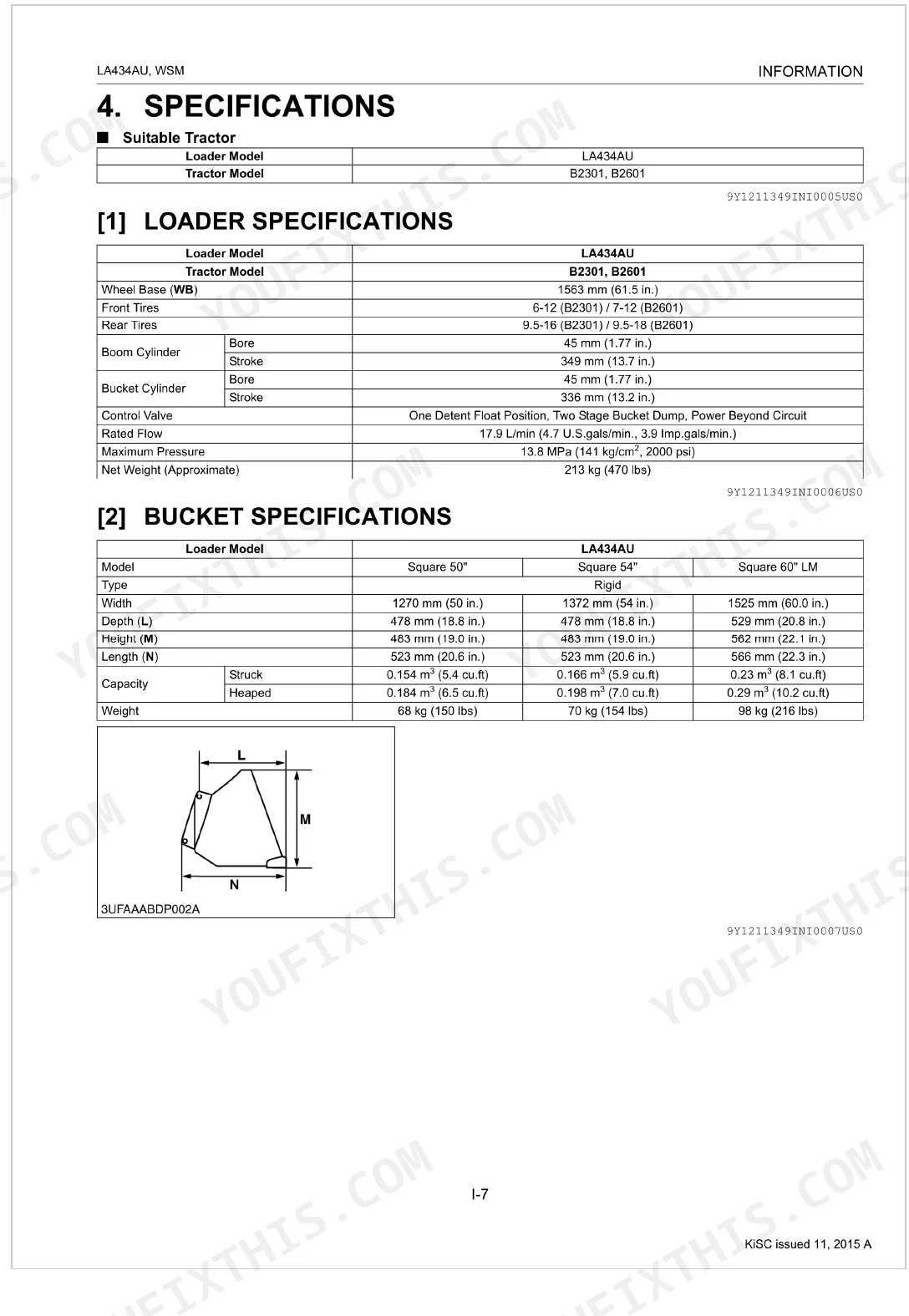

| Hydraulic System Maximum Pressure | 13.8 MPa | p. 11 |
| Loader Net Weight (Approximate) | 213 kg | p. 11 |
| Maximum Lift Height (To bucket pivot pin) | 1995 mm | p. 12 |
| Lift Capacity (500 mm forward, maximum height) | 299 kg | p. 12 |
| Boom Raising Time | 3.7 sec. | p. 12 |
Kubota LA434AU Common Problems This Manual Covers

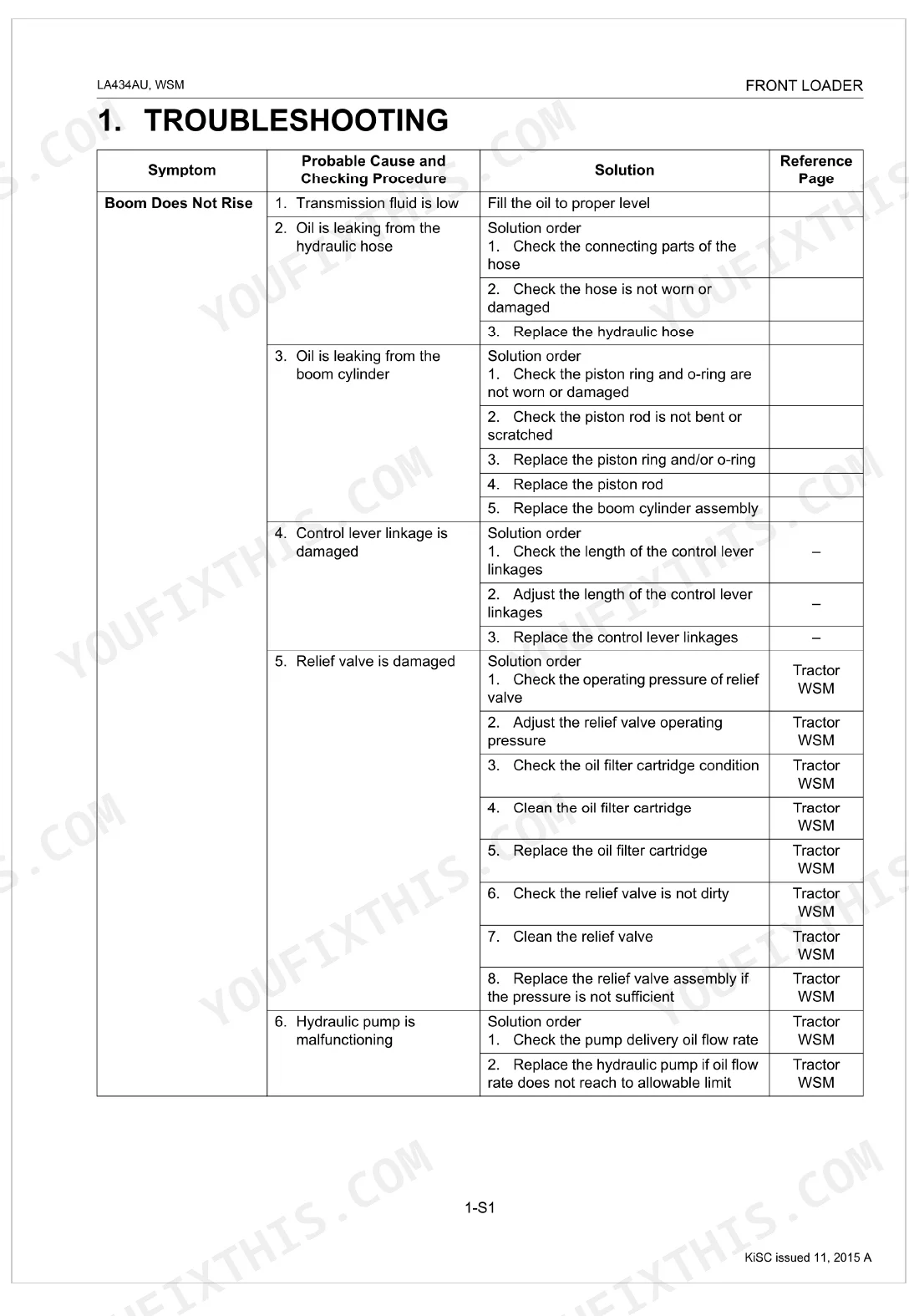

Kubota LA434AU loader functions become extremely slow while still moving up and down under a heavy load p. 54
Check hydraulic fluid levels and bleed air from the system. Inspect the pump and relief valve for damage. Confirm the transmission case holds its 15 L charge as specified on page 17, then verify hydraulic system pressure reaches 13.8 MPa on page 11 before you replace the pump.
Manual Section: Insufficient Boom Speed TroubleshootingHydraulic fluid leaks visible on hoses, fittings, and cylinders after uncoupling and reinstalling the loader p. 61
Inspect all hydraulic lines and fittings for damage. Torque the loader pipe joint bolts to 48 to 56 N-m as shown on page 61. Check hydraulic hoses 8, 9, and 10, tightening them to 36 to 40 N-m on page 73. Replace worn seals if leaks persist.
Manual Section: ServicingBucket movement is weak, jerky, or completely inconsistent when trying to lift heavy material p. 60
Measure the clearance between Pin 1 and the bucket cylinder holes. Verify this clearance stays within 0.1 to 0.4 mm, the range given on page 60. If the movement is still jerky, inspect the cylinder internals and check the piston seal clearance against the 80 μm limit on page 75.

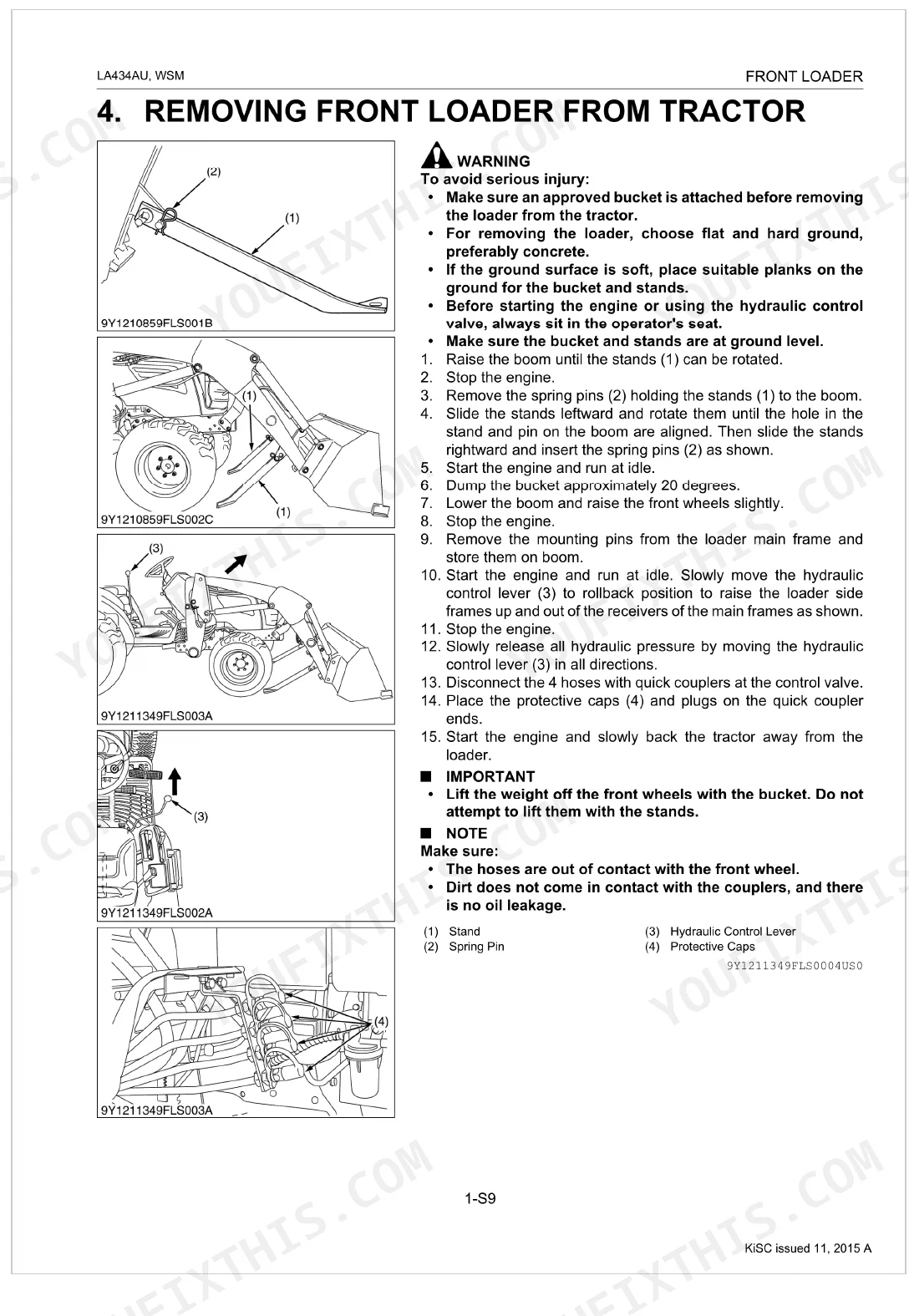

Manual Section: Bucket Does Not Move TroubleshootingBoom will not raise, lower, or respond normally after removing and reinstalling the front loader p. 54
Verify all hydraulic lines connect properly to the control valve. Torque the boom cylinder head mounting bolts to 200 to 230 N-m on page 61. Bleed trapped air from the cylinders, then confirm the boom reaches its 1995 mm maximum lift height on page 12.
Manual Section: Boom Does Not Rise TroubleshootingFrequently Asked Questions
What are the torque specs for Kubota LA434AU mounting bolts?
The manual gives tightening torques for each main frame mounting bolt. Bolts (2) and (6) take 150 N·m (15.1 kgf·m, 110 lbf·ft). Bolts and nuts (3) and (5) call for 90 N·m (9.2 kgf·m, 66.5 lbf·ft), and bolt (4) torques to 80 N·m (8.1 kgf·m, 59 lbf·ft).
How do I adjust a Kubota LA434AU bucket level?

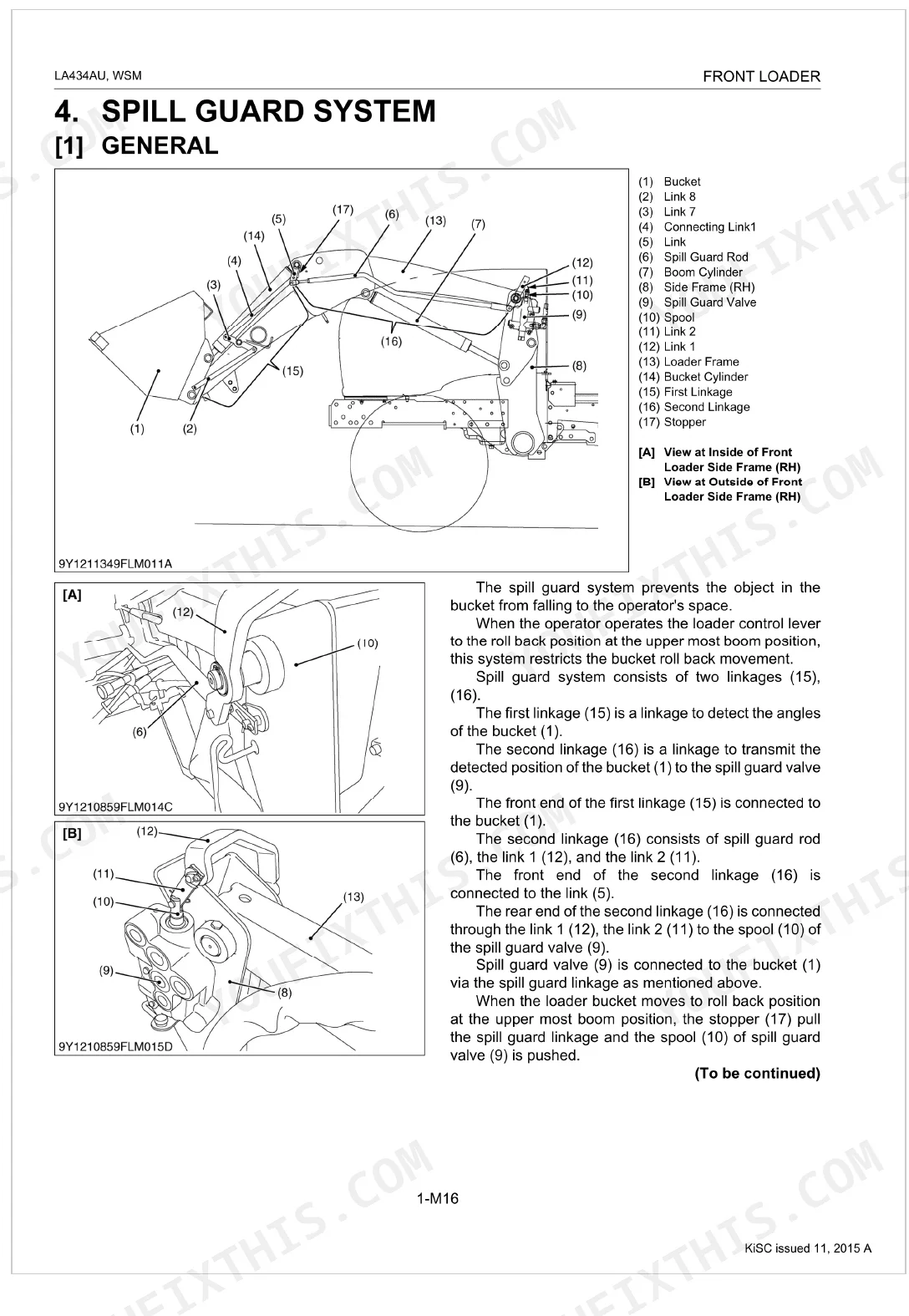

Bucket level, specifically the rollback angle, is set by adjusting the connecting rod length in the Spill Guard linkage. If the bucket rolls back too far, shorten the rod; if it dumps too far, lengthen it. The target length (L) is 957 to 967 mm (37.7 to 38.0 in.).
What format is this Kubota LA434AU manual in?
It is an instant PDF download. The full 77-page searchable Workshop Manual lands in your account right after payment, ready to open on a laptop, tablet, or phone in the shop.
Am I able to print pages from this Kubota LA434AU manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are hydraulic system diagrams in this Kubota LA434AU Workshop Manual?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
Document Quality
This document is a scanned PDF, not a native digital file. You can search the full text and copy content, as an OCR layer has been applied, and the text is crisp and easy to read throughout. All diagrams and illustrations are clear raster images, with labels that are consistently readable. The pages are clean with no noticeable scan artifacts, stains, marks, or skewed content. There are a few blank filler pages that serve as section dividers.
