This Kubota Workshop Manual covers the WG1605-E3 industrial engine in its gasoline, LPG, and natural gas versions. Across 160 pages it documents the engine from the cylinder block up, along with the identification, maintenance, and servicing information needed to keep it running.The Engine section details the cylinder head, crankshaft, pistons, camshaft, and valve train, while the Servicing section carries troubleshooting for gasoline and gaseous fuel, service specifications, and tightening torques. You get exact figures for valve clearance, compression pressure, oil pressure, spark plug gap, and dozens of torque values.It also covers engine identification, the maintenance check list, three way catalyst and emission requirements, and full wiring diagrams for each fuel configuration. Delivered as an instant PDF download, it opens on any device and prints cleanly for shop use.
What's Inside This Kubota WG1605-E3 Manual
| System | Pages | Key Topics |
|---|---|---|
| Workshop Manual | 1-8 | Gasoline, Lpg, Natural Gas Engine, Wg1605-E3, Kubota |
| Information | 9-33 | Safety First (Before You Start Service, Start Safely, Operate Safely, Prevent a Fire, Keep a Good Airflow in the Work Area, Discard Fluids Correctly, Prevent Acid Burns, Prepare for Emergencies) |

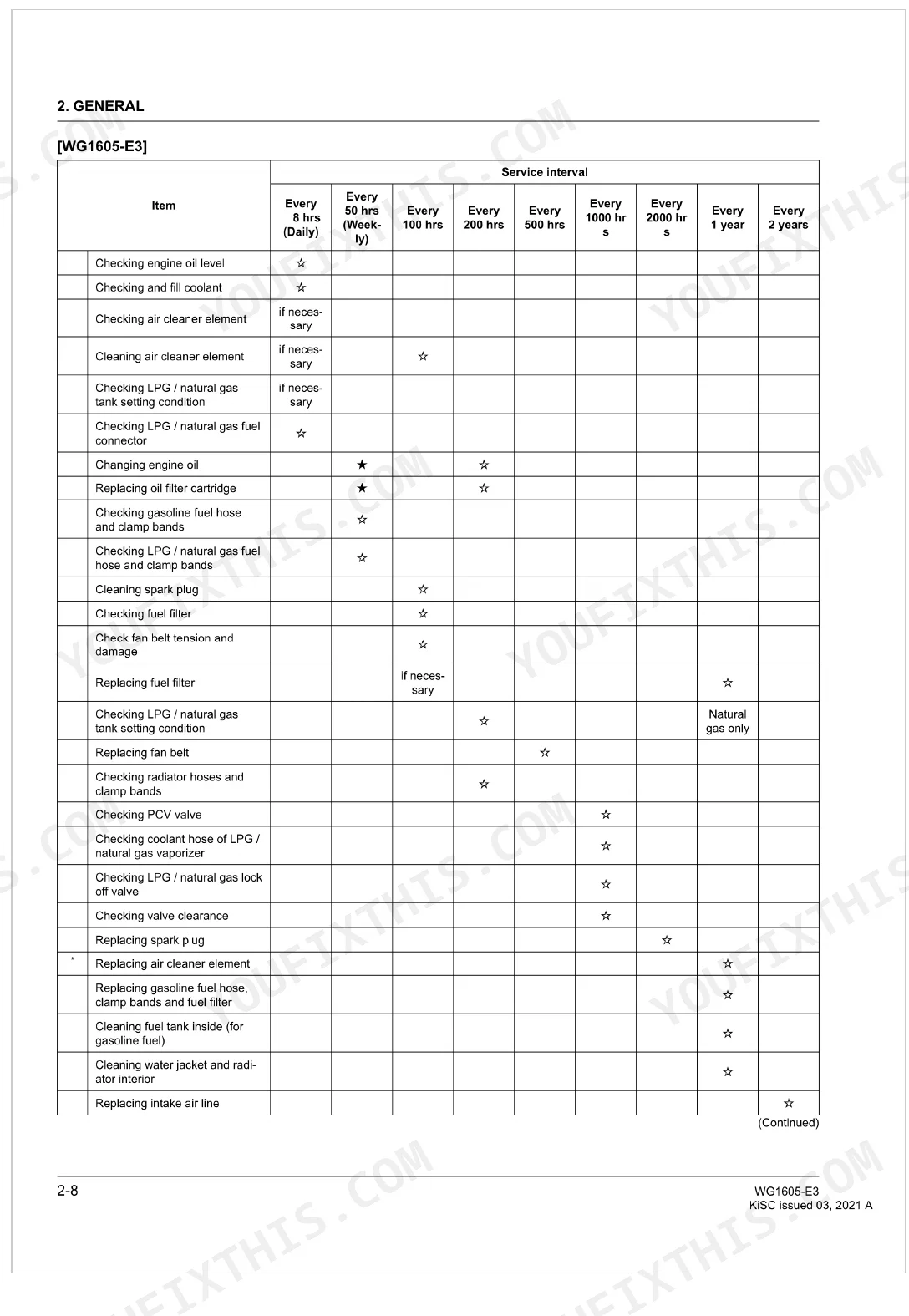

| General | 34-66 | Engine Identification (Engine Model Name, Code Number and Engine Serial Number, Cylinder Number, Catalytic Muffler / Converter), Maintenance Check List |

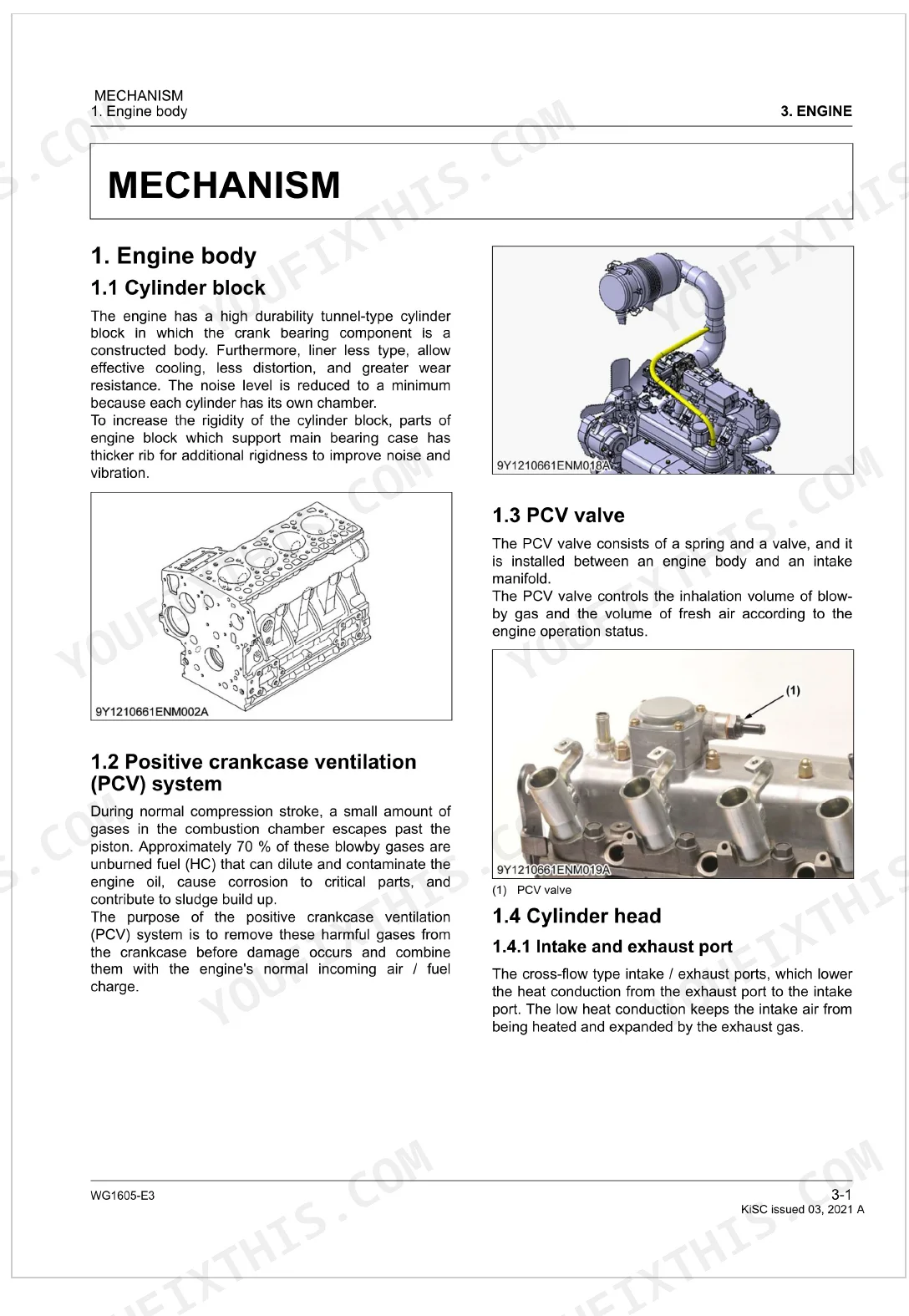

| Engine | 67-91 | Engine Body (Cylinder Block, Positive Crankcase Ventilation System, Pcv Valve, Cylinder Head, Crankshaft, Piston and Piston Ring, Connecting Rod, Camshaft, Gear Shaft, PTO Shaft, Rocker Arm Assembly, Inlet and Exhaust Valves, Flywheel) |

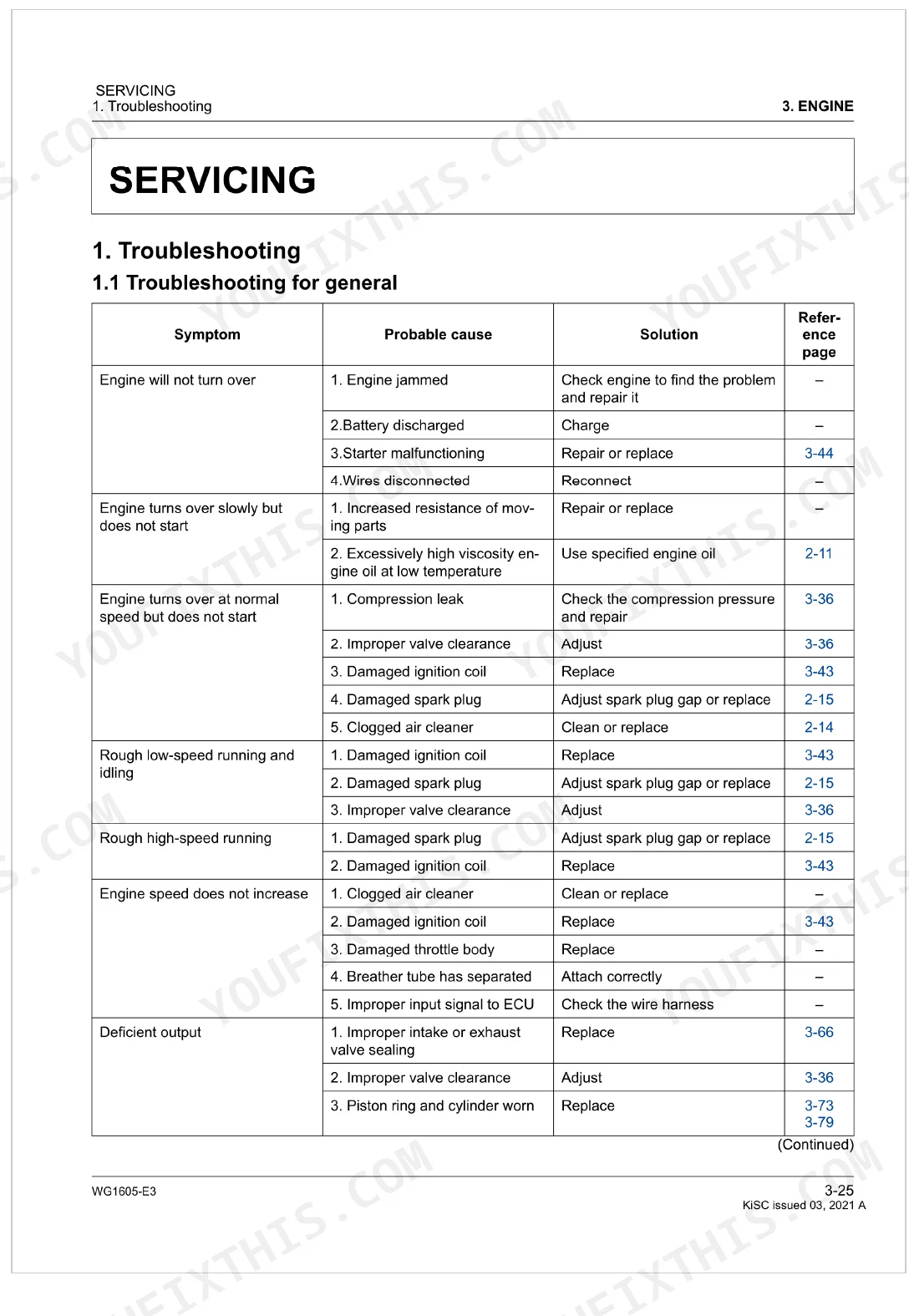

| Troubleshooting | 92-95 | Troubleshooting for Gasoline Fuel, Troubleshooting for Lpg / Natural Gas Fuel |

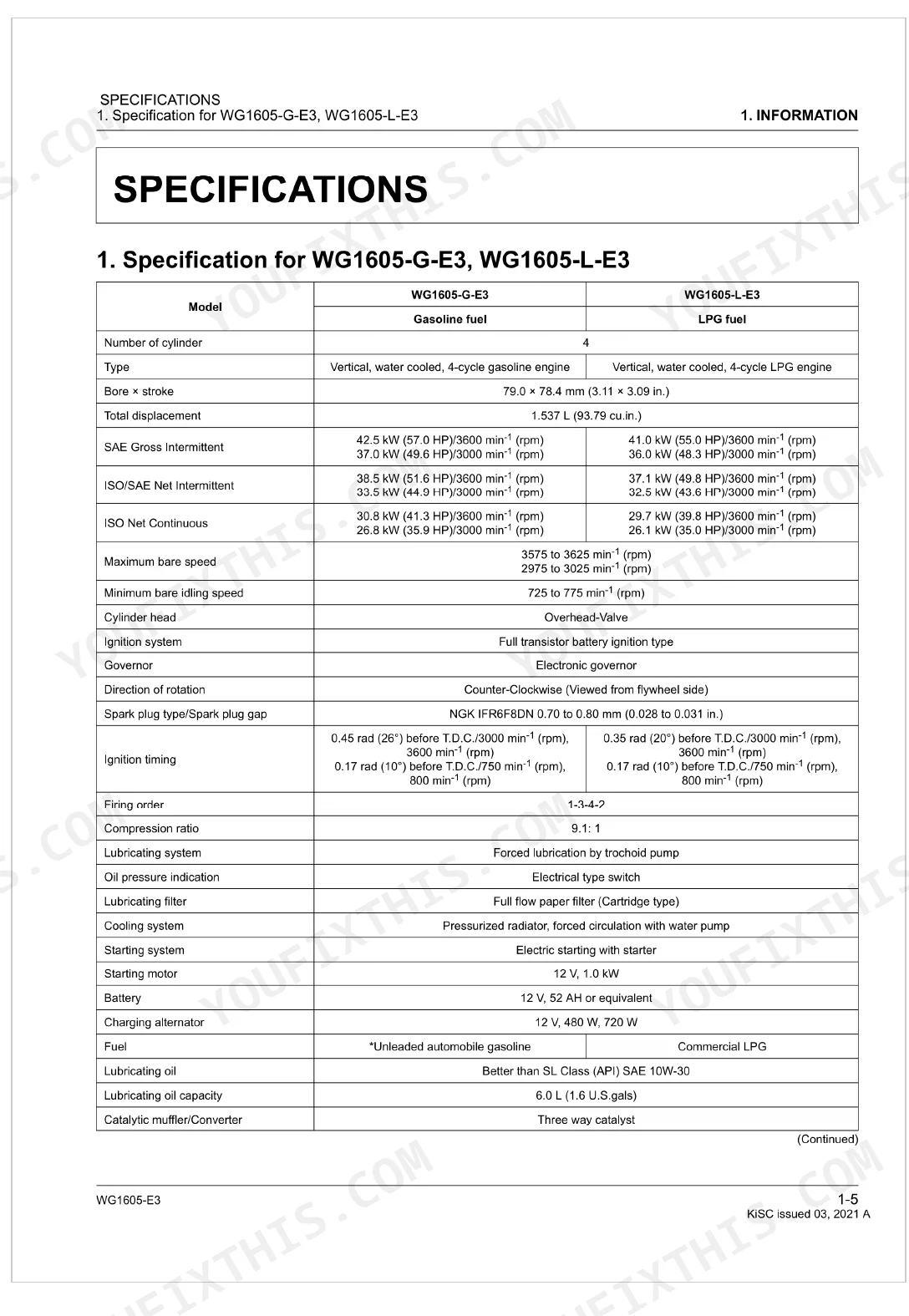

| Service Specifications for Engine | 96-100 | - |

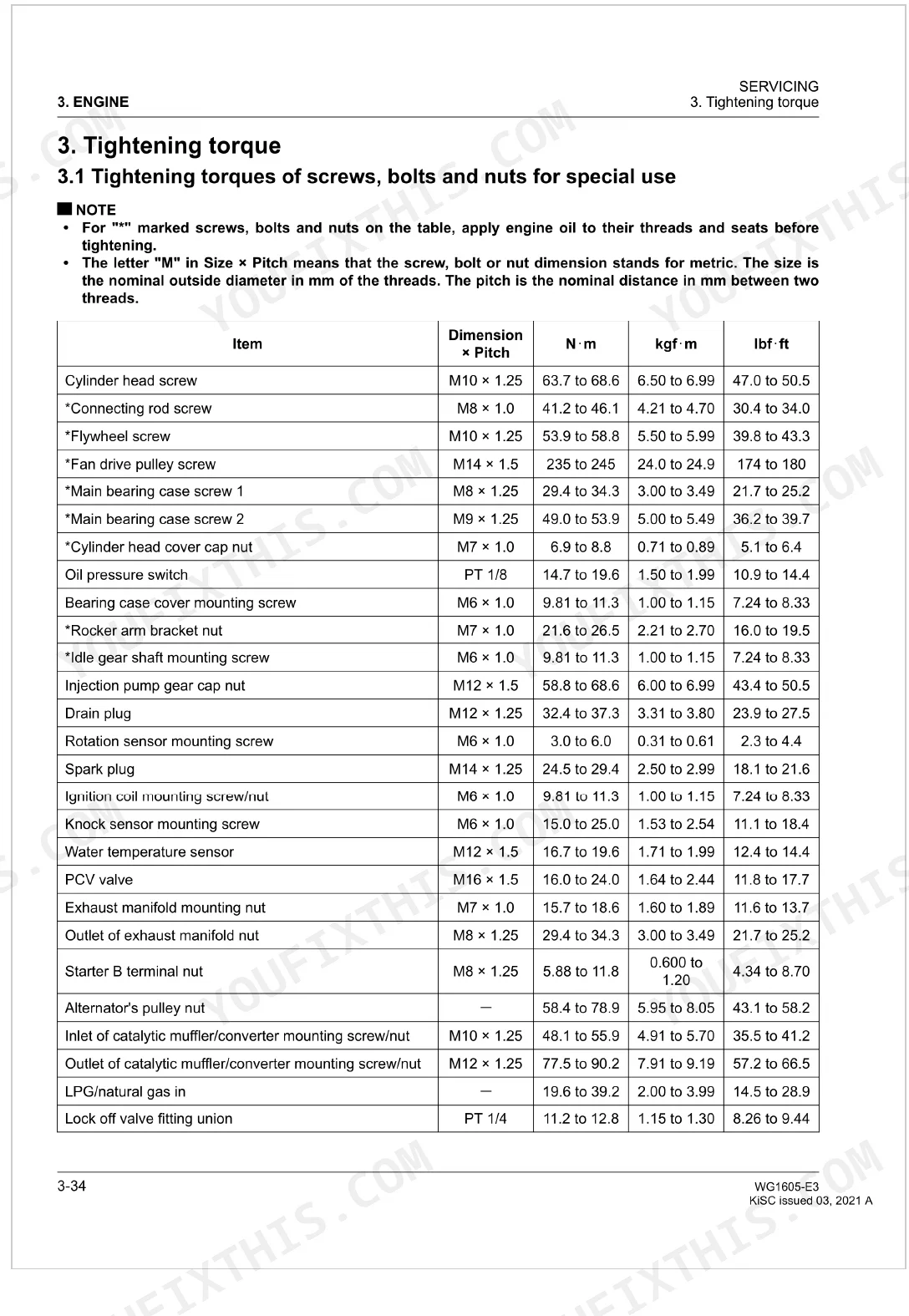

| Tightening Torque | 101-102 | Tightening Torques of Screws, Bolts and Nuts for Special Use, Tightening Torques for General Use Screws, Bolts |

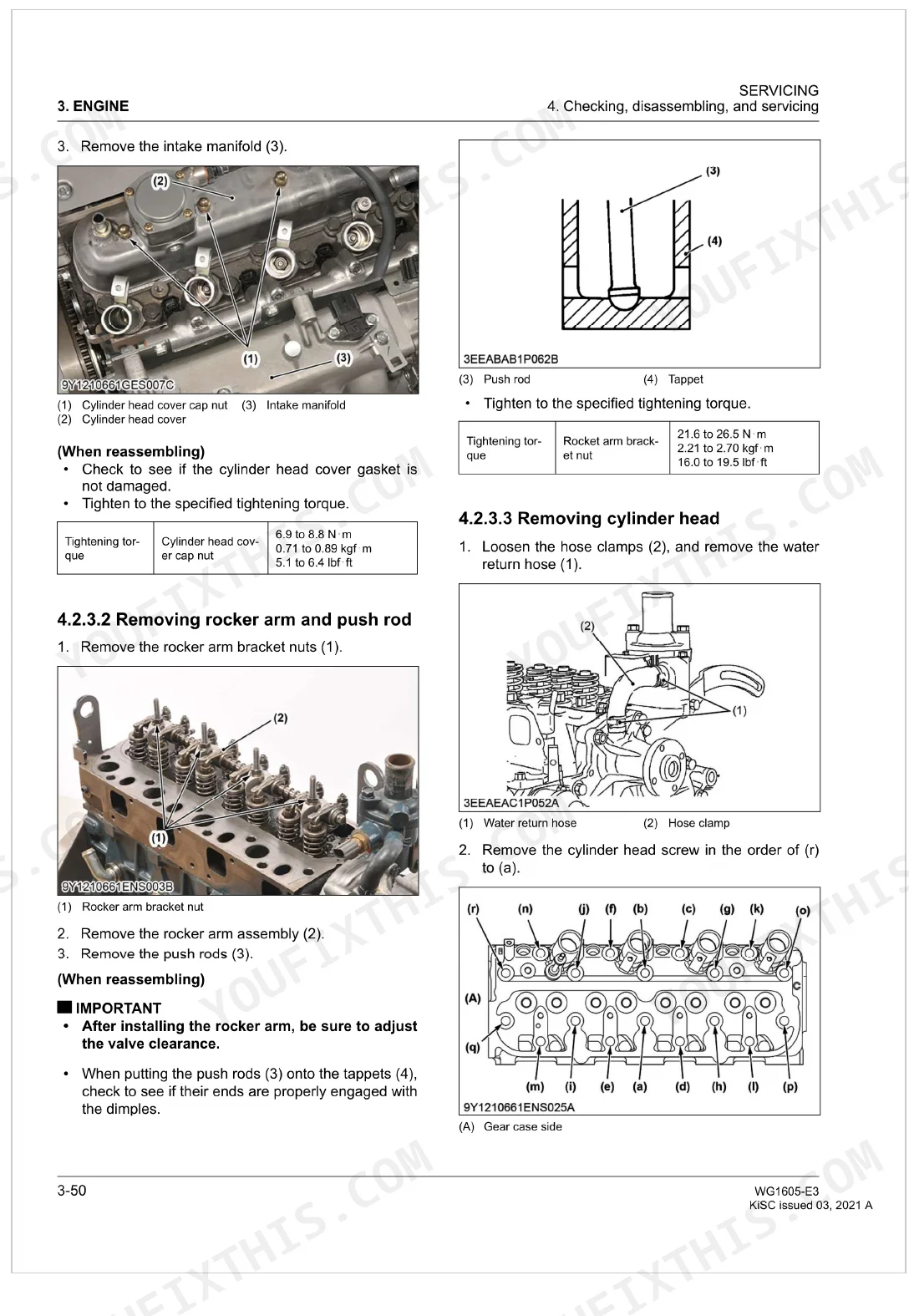

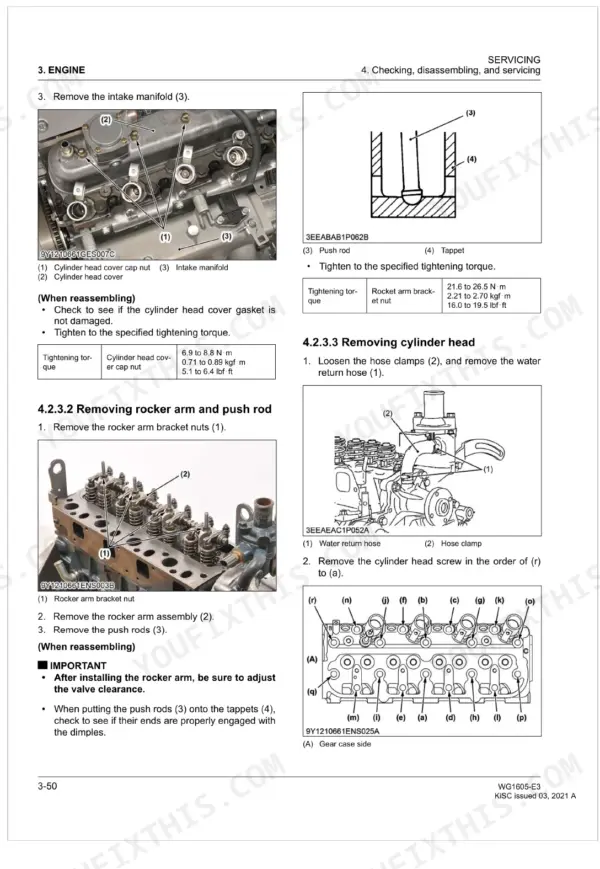

| Checking, Disassembling, and Servicing | 103-160 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder head screw torque | 63.7 to 68.6 N·m | p. 101 |
| Connecting rod screw torque | 41.2 to 46.1 N·m | p. 101 |
| Engine oil capacity | 6.0 L (1.6 U.S.gals) | p. 14 |
| Checking engine oil level | Every 8 hrs (Daily) | p. 42 |
| Checking and fill coolant | Every 8 hrs (Daily) | p. 42 |
| Spark Plug Gap | 0.70 to 0.80 mm | p. 14 |
| Valve Clearance (Cold) | 0.145 to 0.185 mm | p. 96 |
| Compression Pressure | 1.27 MPa (13.0 kgf/cm²) | p. 96 |
| Fan Belt Deflection | 7.0 to 9.0 mm | p. 49 |
| Engine Oil Pressure (At idle speed) | 49 kPa (0.50 kgf/cm²) | p. 99 |
| Thermostat Valve Opening Temperature | 69.5 to 72.5 °C | p. 75 |
| Spark Plug Tightening Torque | 24.5 to 29.4 N·m | p. 101 |
Kubota WG1605-E3 Common Problems This Manual Covers
Hard starting on LPG or natural gas
Gaseous fuel engines can be hard to start when the lock off valve, vaporizer, or ignition is at fault. The Servicing section includes troubleshooting for LPG and natural gas fuel.
Manual Section: Servicing p. 92Low power or rough gasoline running
Worn spark plugs, incorrect valve clearance, or weak compression rob the WG1605-E3 of power. The Servicing section lists valve clearance, compression pressure, and gasoline troubleshooting.
Manual Section: Servicing p. 92Low oil pressure
A worn oil pump or excessive bearing clearance drops oil pressure and risks engine damage. The Servicing section gives the oil pressure specification and the service limits to check against.
Manual Section: Servicing p. 92Overheating
A slack fan belt, a stuck thermostat, or a clogged radiator causes the engine to run hot. The Engine section covers the engine body, and the manual lists fan belt deflection and thermostat opening temperature.
Manual Section: Engine p. 67Oil burning or blue smoke
Worn piston rings, valve stem seals, or cylinder bore wear cause the engine to burn oil. The Engine section details the piston, rings, and cylinder block along with the servicing limits.
Manual Section: Engine p. 67Failed emissions or catalyst fault
These engines rely on a three way catalyst and PCV system that must be intact to meet emission rules. The Information section covers the exhaust emission regulation items and installation instructions.
Manual Section: Information p. 9Frequently Asked Questions
Which engine and fuel types does this cover?
It covers the Kubota WG1605-E3 engine in gasoline, LPG, and natural gas configurations, including the WG1605-G-E3, WG1605-L-E3, WG1605-N-E3, and combined variants.
Does it list torque specifications?
Yes. The Servicing section lists the tightening torques, including the cylinder head screw at 63.7 to 68.6 N·m and the spark plug at 24.5 to 29.4 N·m. p. 92
What is the valve clearance?
The manual specifies the cold valve clearance as 0.145 to 0.185 mm. The Servicing section covers checking and adjusting it along with compression testing. p. 92

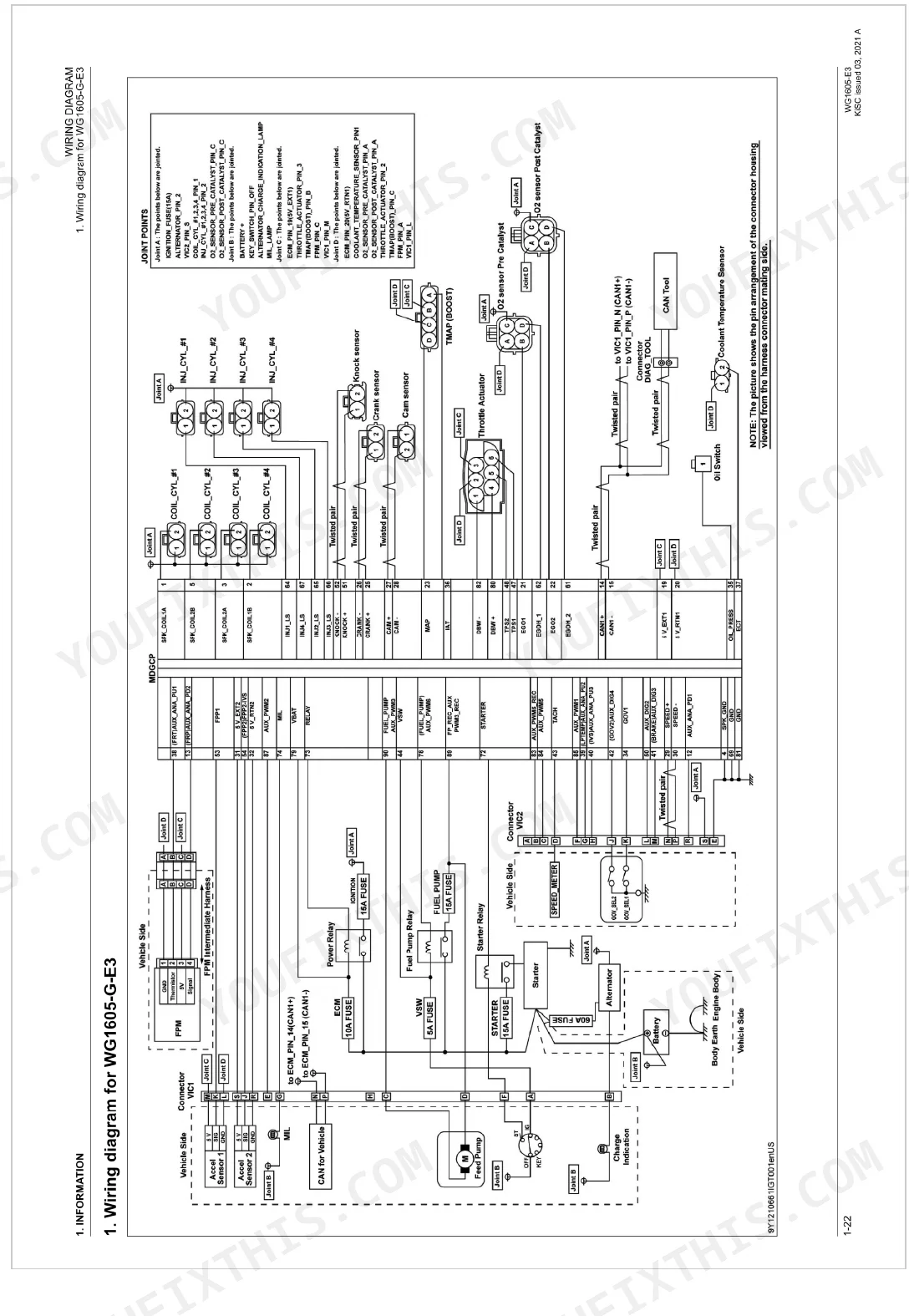

Does it include wiring diagrams?
