This Kubota Workshop Manual covers the 07-E3B series turbocharged diesel engines: the V2607-DI-T-E3B, V3007-DI-T-E3B, and V3307-DI-T-E3B. It is the factory service reference for technicians and owners servicing these four-cylinder engines to correct specifications.Organized into General, Mechanism, and Servicing parts across 195 pages, it explains engine identification, maintenance schedules, and special tools, then details the engine body, lubricating, cooling, and fuel systems, the turbocharger, and the external mechanical EGR system with cooler and valves.The Servicing part carries the working data: troubleshooting charts, servicing specifications, general and special tightening torques, and step-by-step checking, disassembly, and reassembly of the cylinder head, injection pump, pistons, crankshaft, starter, and alternator. With it you can adjust valve clearance, torque head and injector fasteners, and rebuild to factory limits. Downloadable PDF, viewable or printable on any device.
What's Inside This Kubota V2607-DI-T-E3B, V3007-DI-T-E3B, V3307-DI-T-E3B Manual
| System | Pages | Key Topics |
|---|---|---|
| General | - | Engine Identification, General Precautions, Maintenance Check List, Service Interval Check Points, Special Tools |
| Mechanism | - | Feature, Engine Body, Lubricating System, Cooling System, Fuel System, Intake and Exhaust System, EGR System |

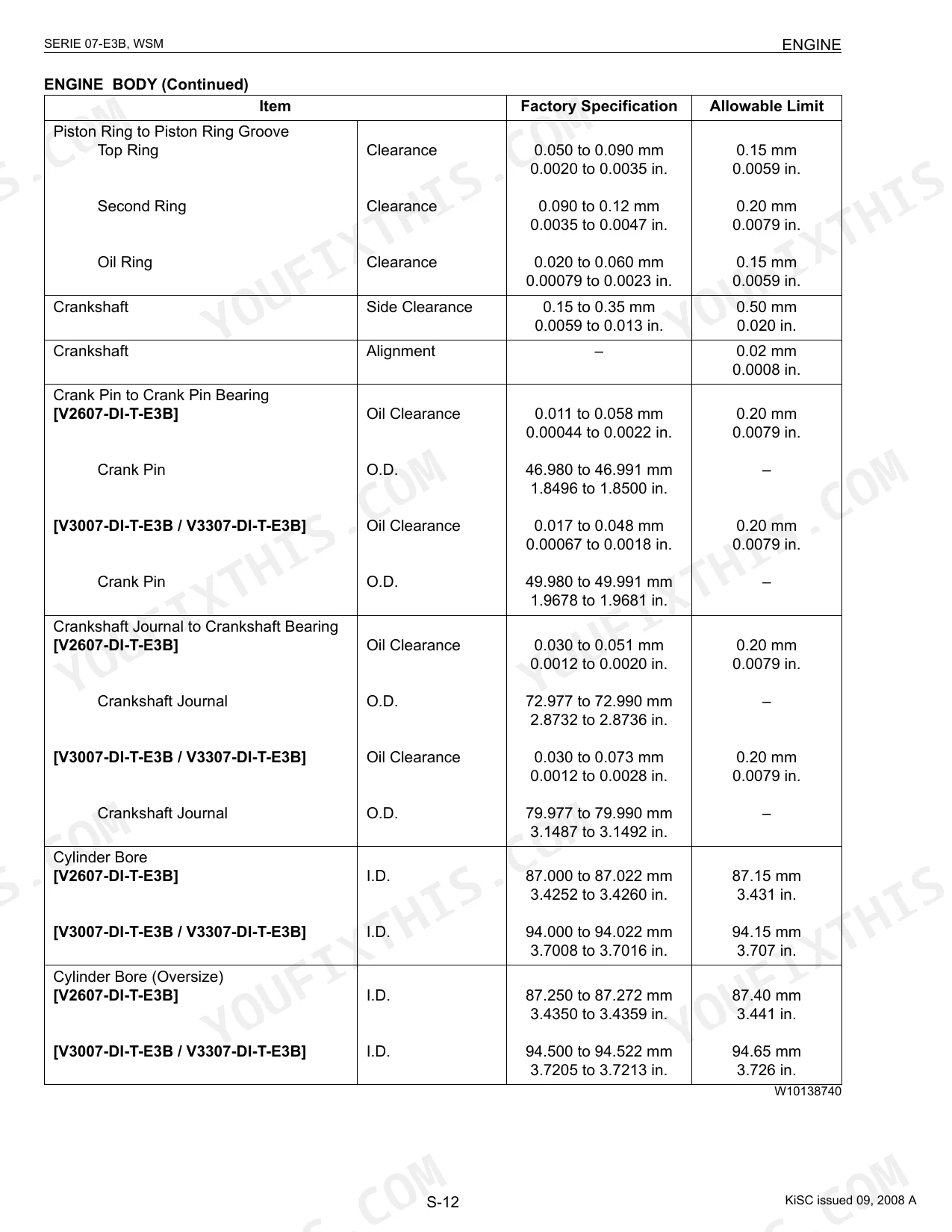

| Servicing | - | Troubleshooting, Servicing Specifications, Tightening Torques, Checking and Adjusting, Disassembling and Assembling |

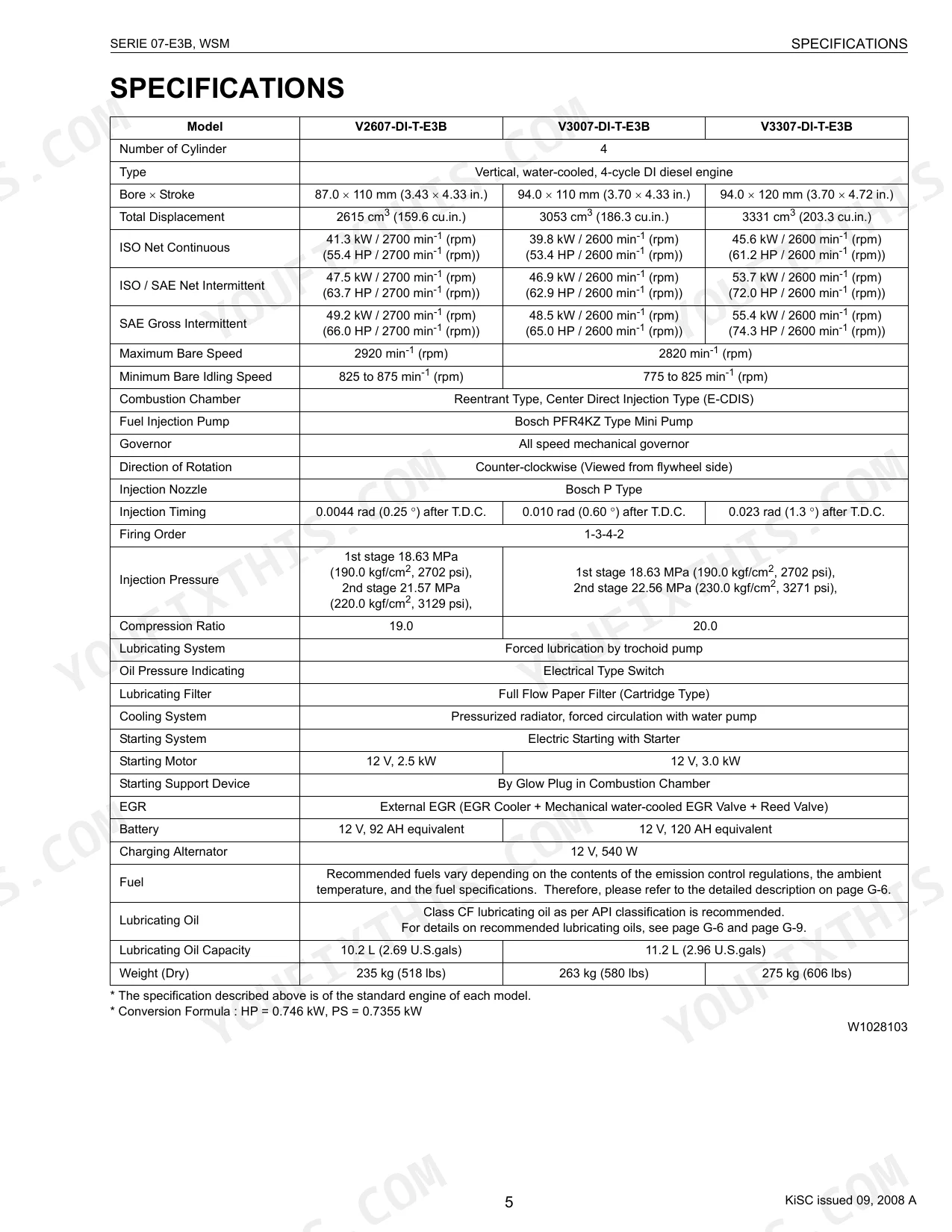

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| V3007-DI-T-E3B / V3307-DI-T-E3B | ||

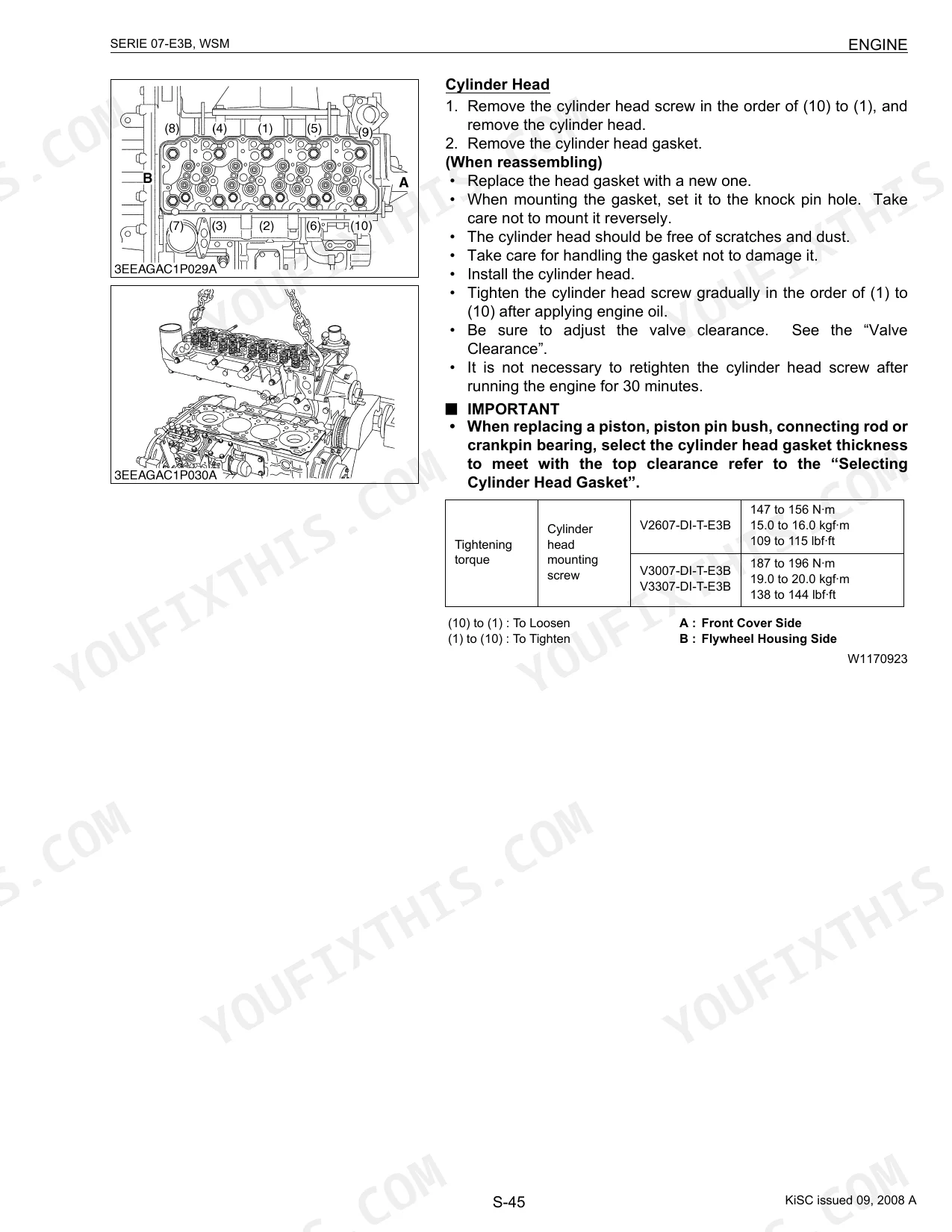

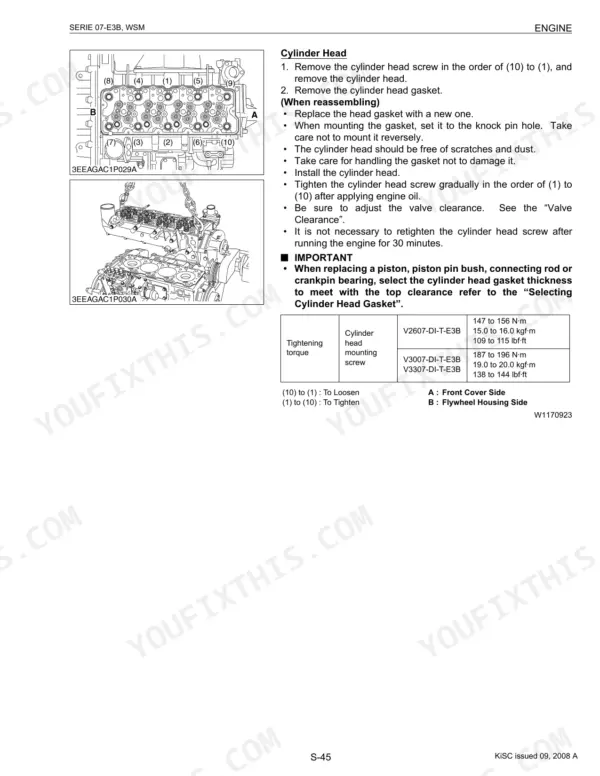

| Cylinder head mounting screw tightening torque | 187 to 196 N·m | p. 133 |

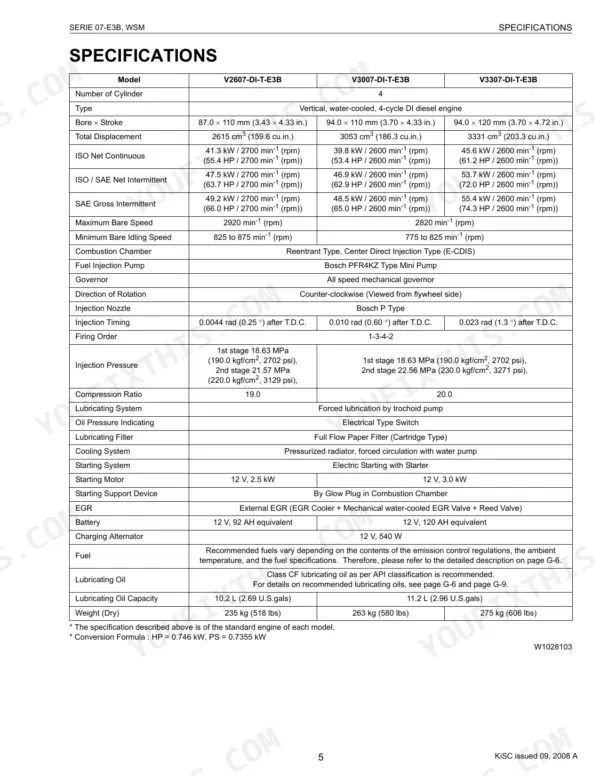

| Battery Capacity | 12 V, 120 AH equivalent | p. 7 |
| V2607-DI-T-E3B | ||
| Cylinder head mounting screw tightening torque | 147 to 156 N·m | p. 133 |
| Injection Pressure (1st stage) | 18.64 to 20.10 MPa | p. 103 |
| Battery Capacity | 12 V, 92 AH equivalent | p. 7 |
| Engine Oil Capacity | 10.2 L | p. 7 |
| All Models | ||
| Valve Clearance (Cold) | 0.13 to 0.17 mm | p. 93 |

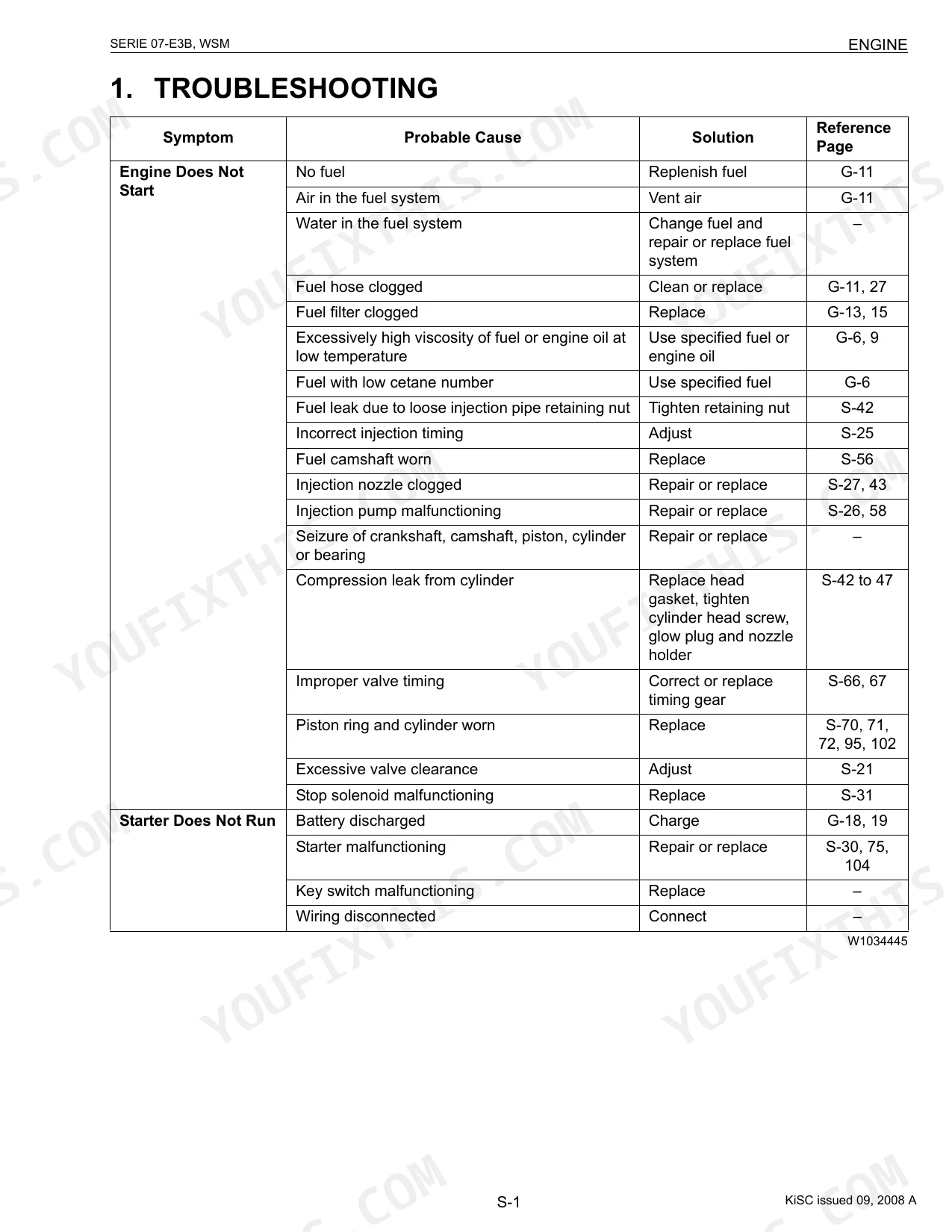

| Troubleshooting for 'Engine Does Not Start' due to 'No fuel' | Replenish fuel | p. 89 |
| Fuel filter cartridge replacement interval | Every 500 hrs | p. 18 |
| Fuel filter (Element type) cleaning interval | Every 250 hrs | p. 18 |
| Air cleaner element replacement interval | Every 1 year | p. 18 |

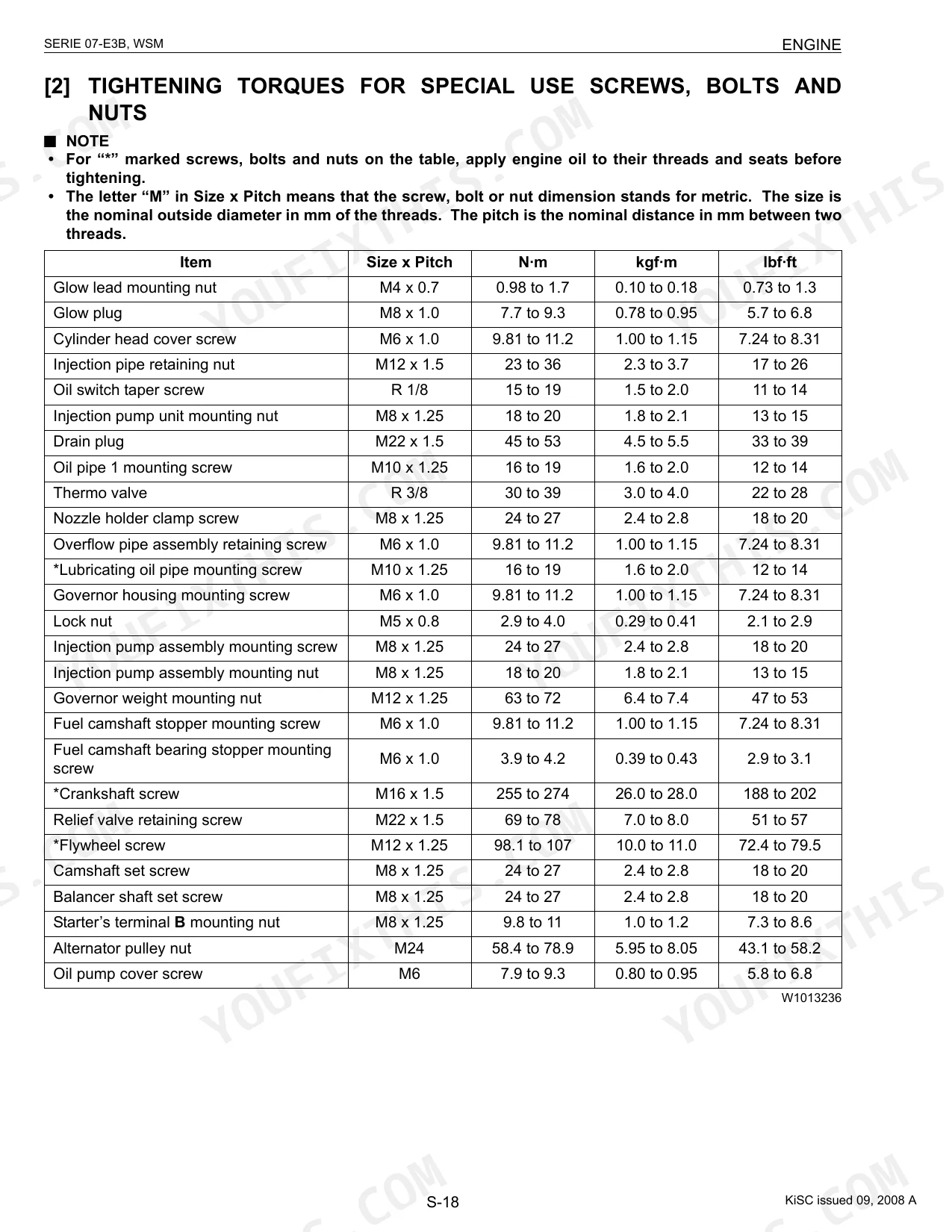

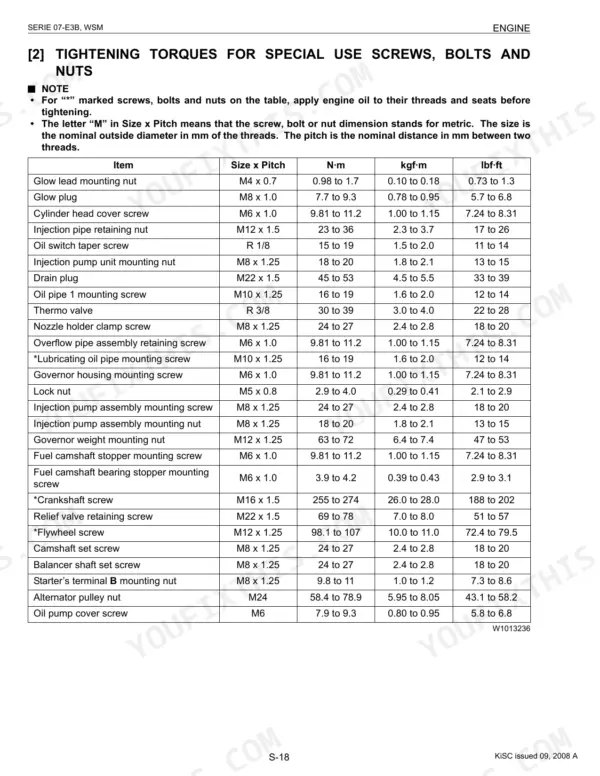

| Nozzle holder clamp screw tightening torque | 24 to 27 N·m | p. 106 |
Kubota V2607-DI-T-E3B, V3007-DI-T-E3B, V3307-DI-T-E3B Common Problems This Manual Covers
No-start or hard-start after sitting
These diesels can fail to start when the fuel filters clog or air enters the fuel system, sometimes with white smoke. The Servicing part opens with troubleshooting charts that walk the no-start condition down to fuel supply and battery checks.
Manual Section: Servicing p. 88Loss of power or bogging under load
Power loss under load is often a clogged air filter, exhaust restriction, or worn injectors. The Servicing part covers troubleshooting and the fuel system checks needed to trace the restriction.
Manual Section: Servicing p. 88Rough idle, misfire, or heavy smoke
Rough idle, misfire, and excessive smoke commonly follow injector leak-back or a failed injector. The Servicing part covers injection pump and nozzle checks along with the injector clamp screw torque.
Manual Section: Servicing p. 88Overheating followed by power reduction
Overheating that leads to reduced power usually points to low coolant, a blocked radiator, or a thermostat or water pump fault. The Servicing part covers cooling system checks and repair to factory limits.
Manual Section: Servicing p. 88Valve clearance drifts out of spec
Valve clearance that drifts over hours can cause noise and poor running. The General part carries the maintenance check list and check-and-maintenance intervals that schedule the valve clearance inspection.
Manual Section: General p. 13Turbocharger and EGR faults

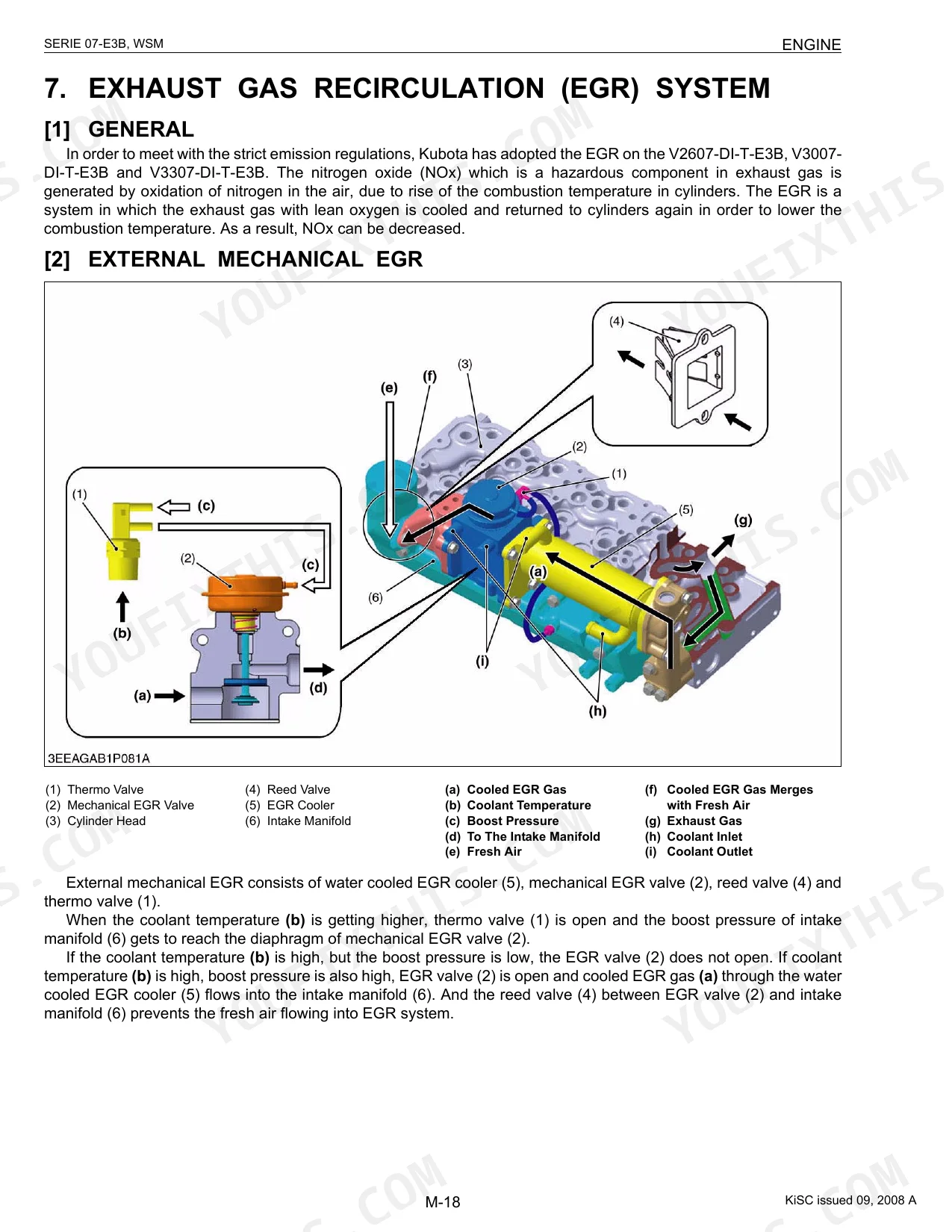

Boost loss, turbo whine changes, or EGR concerns affect these turbo diesels. The Mechanism part explains how the turbocharger and external mechanical EGR system with its cooler, thermo valve, and reed valve work before you troubleshoot them.
Manual Section: Mechanism p. 67Frequently Asked Questions
Which engines does this manual cover?
It covers the Kubota 07-E3B series turbocharged diesel engines: the V2607-DI-T-E3B, V3007-DI-T-E3B, and V3307-DI-T-E3B. All three are four-cylinder, water-cooled, direct-injection diesels.
Does it include head bolt torque specifications?
Yes. The Servicing part lists the cylinder head mounting screw torque, which is 147 to 156 N-m for the V2607-DI-T-E3B and 187 to 196 N-m for the V3007-DI-T-E3B and V3307-DI-T-E3B. p. 88
How often should the engine oil be changed?
The General part lists an initial oil change at 50 hours and a regular interval of 500 hours or 1 year, along with the maintenance check list for other service items. p. 13
What format is this Kubota V2607-DI-T-E3B manual in?
It's a 195-page searchable PDF, ready to download the moment checkout completes. Open it on a laptop, tablet, or phone and bring it straight to the shop floor.
Can I print this Kubota V2607-DI-T-E3B manual?
Yes. The PDF carries no DRM restrictions, so print any page or section your shop needs. It works with any standard printer.
