This is the Kubota workshop (service) manual for the L3010, L3410, L3710, L4310, and L4610 tractors, a 284-page PDF for mechanics doing component-level diagnosis and repair. The tractors use the V1903-AN, V2203-AN, and V2203-EHA diesel engines and were produced from 1988 to 2005.Coverage is organized by system: steering, the hydraulic system, and the electrical system, followed by the cab with its air conditioner, the mid-mount mower, and a dedicated L4610DT four-wheel-drive supplement. Each section includes structure and operation, servicing specifications, troubleshooting, and disassembly and assembly steps.With it you can test hydraulic pump delivery, check the charging and starting circuits, service the cab air conditioner, set front axle toe-in on the L4610DT, and torque fasteners to the listed values. Written for owners and independent shops servicing these L-series tractors.
What's Inside This Kubota L3010–L4610 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Steering | 2-4 | Commutator Ring Inspection, Port Cover Servicing, Drive Link Spacer Replacement, Rotor Set Measurement, Steering Cylinder Checking |

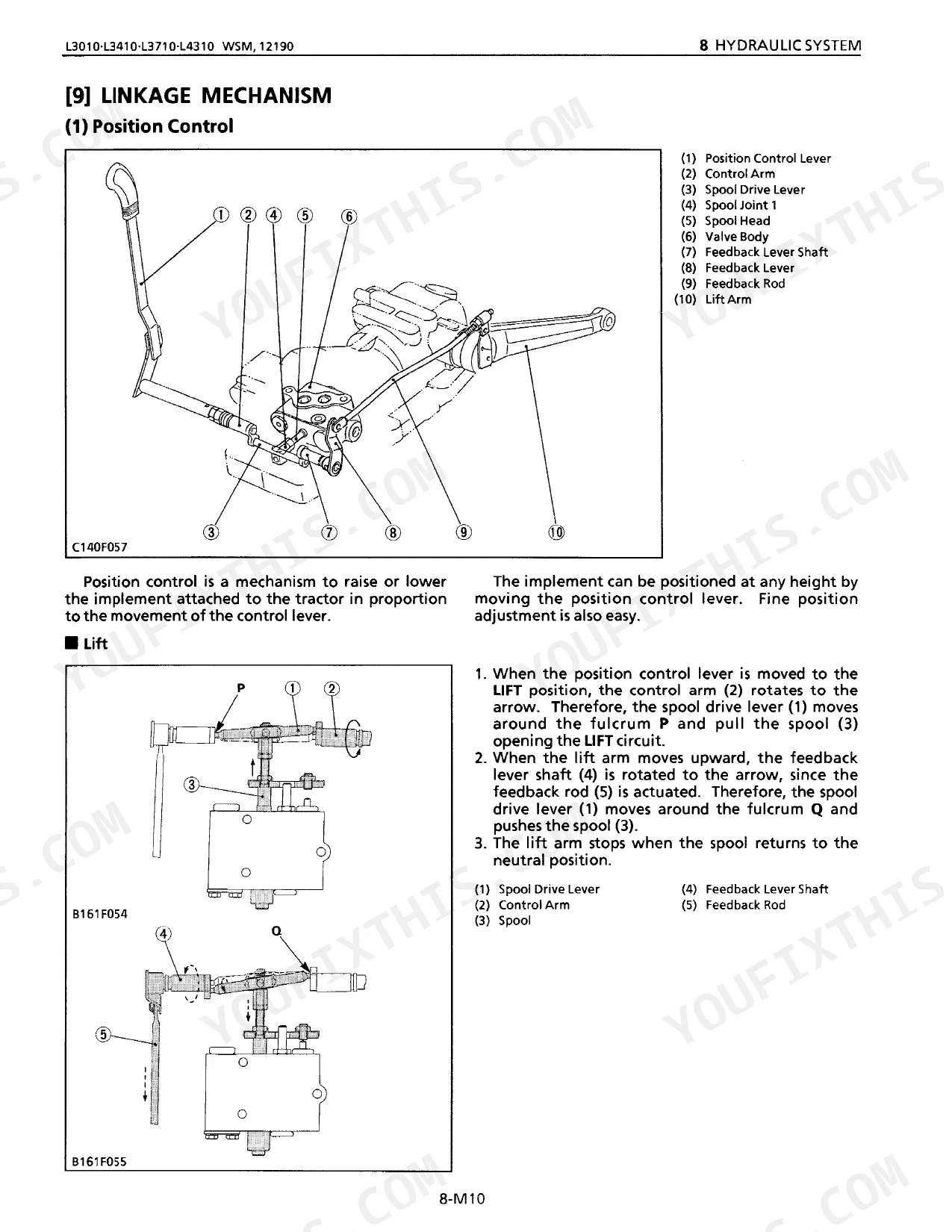

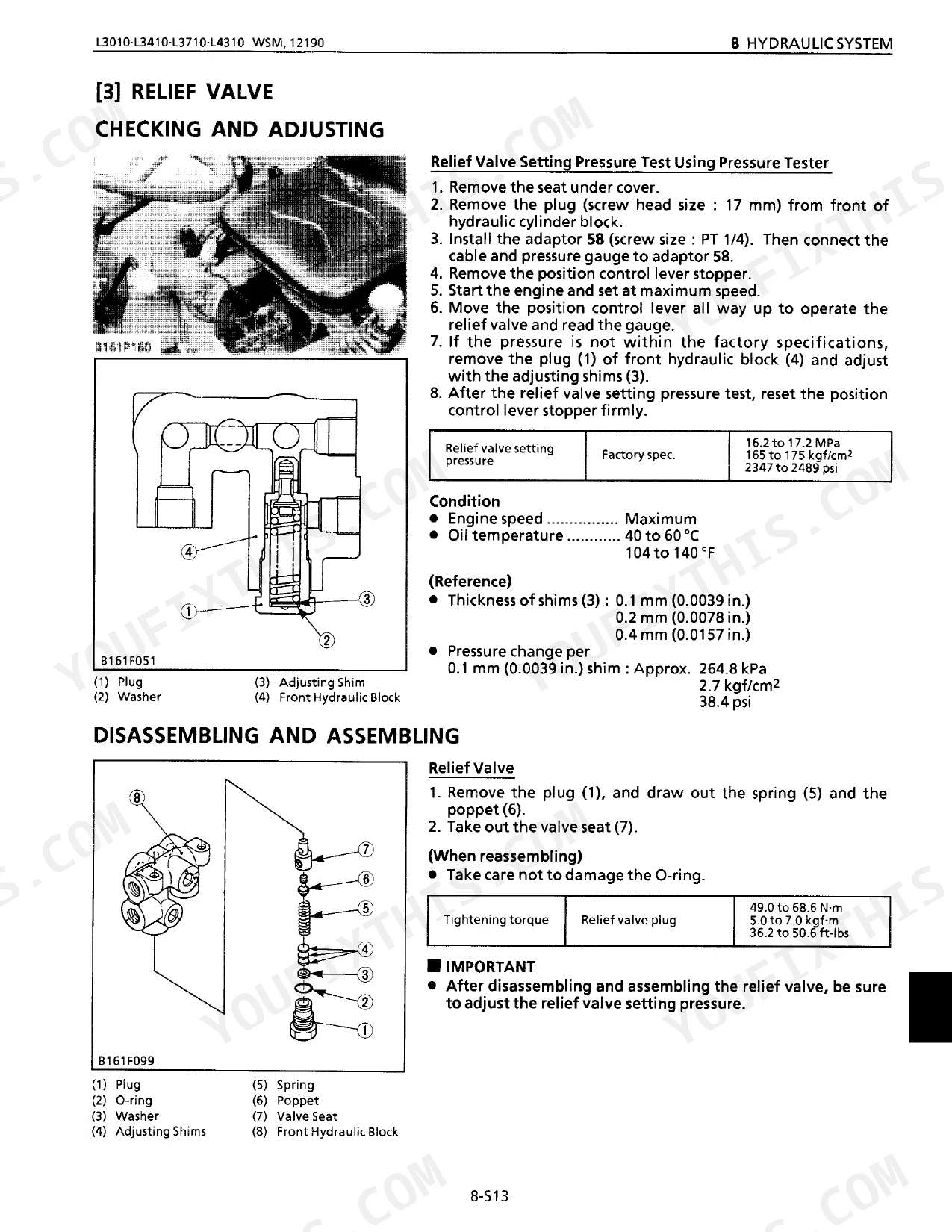

| Hydraulic System | 5-20 | Hydraulic Pump Structure, Position Control Valve Operation, Relief Valve Pressure Settings, Hydraulic Cylinder Components, Linkage Mechanism Adjustment |

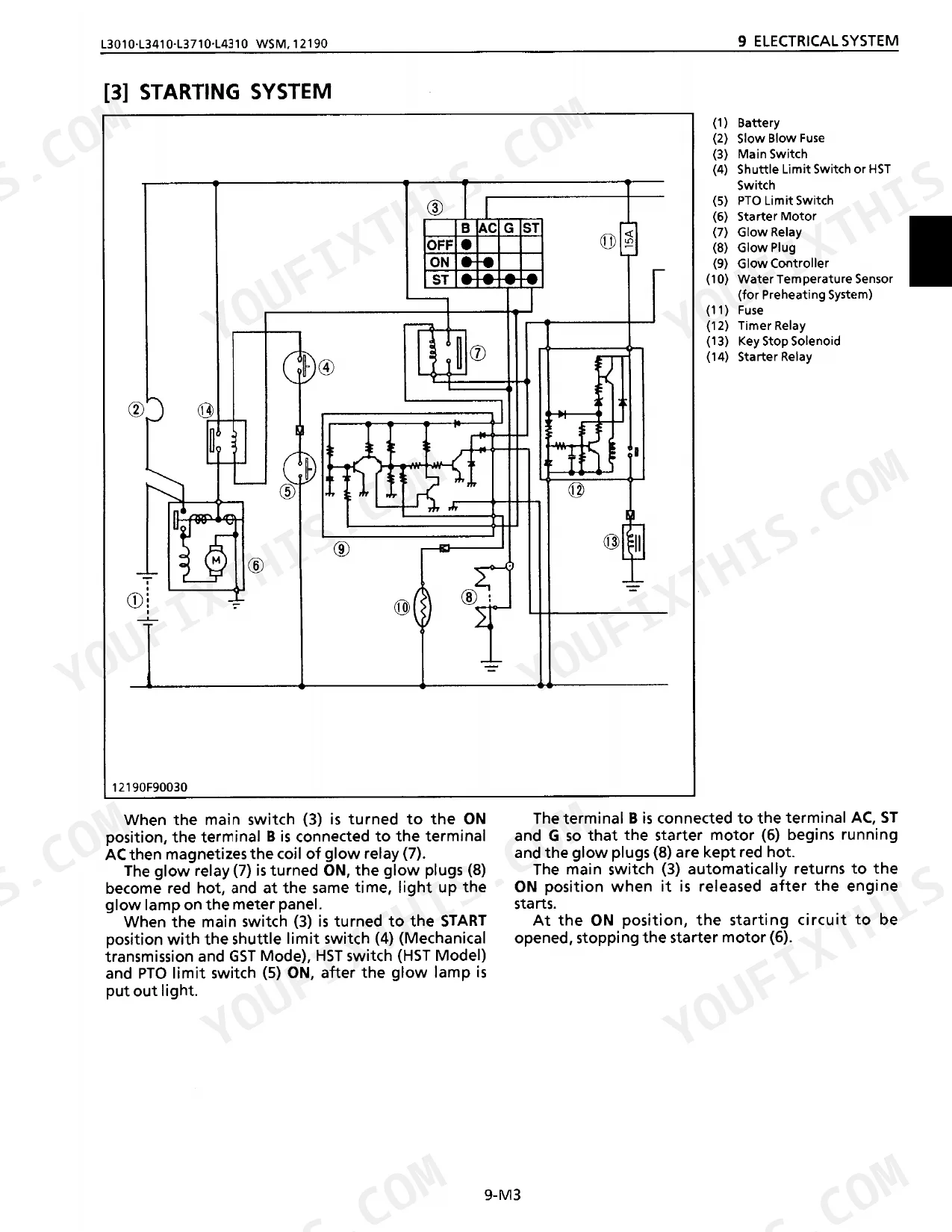

| Electrical System | 21-35 | Wiring Diagram, Starting System Components, Charging System Operation, Lighting System Circuitry, Easy Checker Indicators |
| Cabin (Safety, Specs, General) | 36-54 | Safety Decals, Tractor Specifications, Cooling Water Capacity, Maintenance Check List, Special Tools for AC |
| Cabin (Mechanism) | 55-60 | Air Conditioner System Principles, Refrigerant Cycle, Compressor Operation, Windshield Wiper Mechanism, Electrical Circuit for AC |
| Cabin (Servicing) | 61-69 | AC Troubleshooting, Servicing Specifications, Refrigerant Charging, Disassembling AC Components, Lighting System Checking |
| M Mower (Specifications & Mechanism) | 70-74 | Mower Specifications, Exterior View and Application, Power Transmission, Lifting Mechanism |
| M Mower (Servicing) | 75-80 | General Precautions, Lubricants, Troubleshooting, Tightening Torques, Blade Disassembly |
| A L4610DT(Supplement) General | 81-89 | L4610DT Specifications, Dimensions, Lubricants, Maintenance Check Points, Tire Adjustment |
| A L4610DT(Supplement) Front Axle | 90-97 | 4WD Drive Type Structure, Front Axle Troubleshooting, Servicing Specifications, Toe-In Adjustment, Disassembling Front Axle |
| A L4610DT(Supplement) Steering | 98-102 | Steering Cylinder Structure, Servicing Specifications, Tightening Torques, Relief Valve Checking, Steering Cylinder Disassembly |
| A L4610DT(Supplement) Hydraulic System | 103-105 | Power Steering Hydraulic Pump Specs, Hydraulic Pump Flow Test, Relief Valve Checking, Steering Cylinder Disassembly |
| A L4610DT(Supplement) Electrical System | 106-107 | Starting System Circuit, HST Pedal Switch Checking, Clutch Pedal Switch Checking |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| L3010 | ||
| General use screws and nuts (M6, No-grade or 4T) | 7.85 to 9.32 N-m (5.79 to 6.87 ft-lbs) | p. 53 |
| L3410 | ||
| General use screws and nuts (M6, No-grade or 4T) | 7.85 to 9.32 N-m (5.79 to 6.87 ft-lbs) | p. 53 |
| L3710 | ||
| General use screws and nuts (M6, No-grade or 4T) | 7.85 to 9.32 N-m (5.79 to 6.87 ft-lbs) | p. 53 |
| L4310 | ||
| General use screws and nuts (M6, No-grade or 4T) | 7.85 to 9.32 N-m (5.79 to 6.87 ft-lbs) | p. 53 |
| L4610 | ||
| General use screws and nuts (M6, No-grade or 4T) | 7.85 to 9.32 N-m (5.79 to 6.87 ft-lbs) | p. 117 |
| All Models | ||
| Hydraulic Oil Filter Cartridge Filtration degree | β60 or BETA60 = 2.5 (MIN) | p. 11 |
| Air Conditioner Drive Belt Tension (deflection) | 10 to 12 mm (0.39 to 0.47 in.) at 98 N (10 kgf, 22 lbs) of force | p. 70 |
| A/C Thermostat setting temperature | ON Approx. 1 °C (34 °F), OFF Approx. 4.5 °C (40.1 °F) | p. 100 |
| Hydraulic Cylinder I.D. | 90.000 to 90.050 mm | p. 20 |
| Starter Motor Commutator O.D. | 30.0 mm | p. 34 |
| Alternator Brush Length | 10.5 mm | p. 34 |
| L3010, L3410 | ||
| Hydraulic Pump Delivery at No Pressure | 26.4 L/min | p. 19 |
Kubota L3010–L4610 Series Common Problems This Manual Covers
Weak or slow hydraulic lift
Lift and steering functions go weak or slow when the fluid is low, the filter is clogged, or the pump wears. The hydraulic section covers pump testing and relief valve pressure settings.
Manual Section: 8 Hydraulic System p. 5Hard starting or no charge
Cold hard-starting and dead batteries usually trace to the glow plugs, starter, or charging circuit rather than the engine itself.
Manual Section: 9 Electrical System p. 21Excess steering play
A worn rotor set or steering cylinder causes wander and slop at the wheel. The steering section covers rotor set measurement and cylinder checking.
Manual Section: 7 Steering p. 2Cab air conditioner not cooling
Low refrigerant or a failed compressor leaves the cab warm. The cab servicing section covers refrigerant charging and AC troubleshooting.
Manual Section: 10 CABIN (Servicing) p. 61Mower deck vibration or poor cut
Worn blades or lube-starved spindles cause vibration and uneven cutting. The mower servicing section covers lubricants, tightening torques, and blade work.
Manual Section: M MOWER (Servicing) p. 75Front axle noise or wander on 4WD
Incorrect toe-in or worn front axle parts on the L4610DT cause noise and pulling. The supplement covers toe-in adjustment and front axle servicing.
Manual Section: A L4610DT(Supplement) Front Axle p. 90Frequently Asked Questions
Which tractors and engines does this manual cover?
It covers the Kubota L3010, L3410, L3710, L4310, and L4610 tractors, which use the V1903-AN, V2203-AN, and V2203-EHA diesel engines, produced from 1988 to 2005.
Which systems are documented?
Steering, hydraulic, and electrical systems, plus the cab and its air conditioner, the mid-mount mower, and an L4610DT four-wheel-drive supplement, each with mechanism, specs, troubleshooting, and disassembly.
Does it include torque specifications?
Yes. The cab specifications section lists the general tightening torques, such as M6 no-grade or 4T screws and nuts at 7.85 to 9.32 N-m (5.79 to 6.87 ft-lbs). p. 36
Does it cover the cab air conditioner?
Yes. The cab servicing section covers AC troubleshooting, refrigerant charging, and disassembly of the air conditioner components. p. 61
What do I get after purchasing this Kubota L3010–L4610 Series manual?
Immediate download of the complete 284-page searchable Workshop Manual. Open it on any device, whether that's a laptop at your desk or a phone out in the field.
Am I able to print pages from this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Does this Kubota L3010–L4610 Series Workshop Manual cover the hydraulic system?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
