This is the Kubota workshop manual (WSM) for the LA181 and LA211 front loaders, publication number 97897-17051, a 47-page PDF dated November 2002. It is split into a Mechanism part and a Servicing part for technicians repairing these loaders.The Mechanism part explains the hydraulic circuit and the three-position and four-position bucket control valves. The Servicing part covers identification, lubricants, the maintenance check list, troubleshooting, servicing specifications, tightening torques, dismounting the loader from the tractor, and checking, disassembling, and reassembling the control valve, cylinders, and frames.With it you can diagnose reversed or sluggish loader response, torque hardware and hydraulic fittings to the listed values, rebuild the control valve and boom and bucket cylinders, and confirm specs such as the 12.3 to 12.7 MPa relief valve setting. Written for owners and independent mechanics.
What's Inside This Kubota LA181, LA211 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety First | 3-5 | - |
| Safety Decals | 6 | - |
| Terminology | 7 | Boom, Side Frame, Hydraulic Control Valve, Mounting Pin, Main Frame, Bucket, Bucket Cylinder, Boom Cylinder |
| Operating Dimensions | 9 | Maximum Lifting Height, Clearance with Bucket Dumped, Reach at Maximum Height, Maximum Dump Angle, Reach with Bucket on Ground, Bucket Roll-Back Angle, Digging Depth |
| Performance Ratings(No Load) | 10 | Raise to Full Height, Lowering Time, Attachment Roll-Back Time, Attachment Dump Time |
| Servicing Contents | 30-34 | General (Identification, Lubricants, Maintenance Check List, Check and Maintenance), Troubleshooting, Servicing Specifications |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| General Use Screws, Bolts and Nuts (Metric cap screws, Property class 8.8) M6 | 9.8 to 11.2 N·m | p. 35 |
| General Use Screws, Bolts and Nuts (Metric cap screws, Property class 8.8) M8 | 23.6 to 27.4 N·m | p. 35 |
| Hose fitting and flare nut (9/16) torque | 22 to 25 N·m | p. 35 |
| Hose fitting and flare nut (3/4) torque | 35 to 41 N·m | p. 35 |
| Adjustable elbow and adapter (9/16) torque | 37 to 44 N·m | p. 35 |
| Adjustable elbow and adapter (3/4) torque | 47 to 54 N·m | p. 35 |
| Grease type for grease fittings | Multi-purpose type grease | p. 31 |
| Piston rod bend allowable limit | 0.25 mm | p. 34 |
| O-ring and oil seals replacement | must be replaced during reassembly | p. 31 |

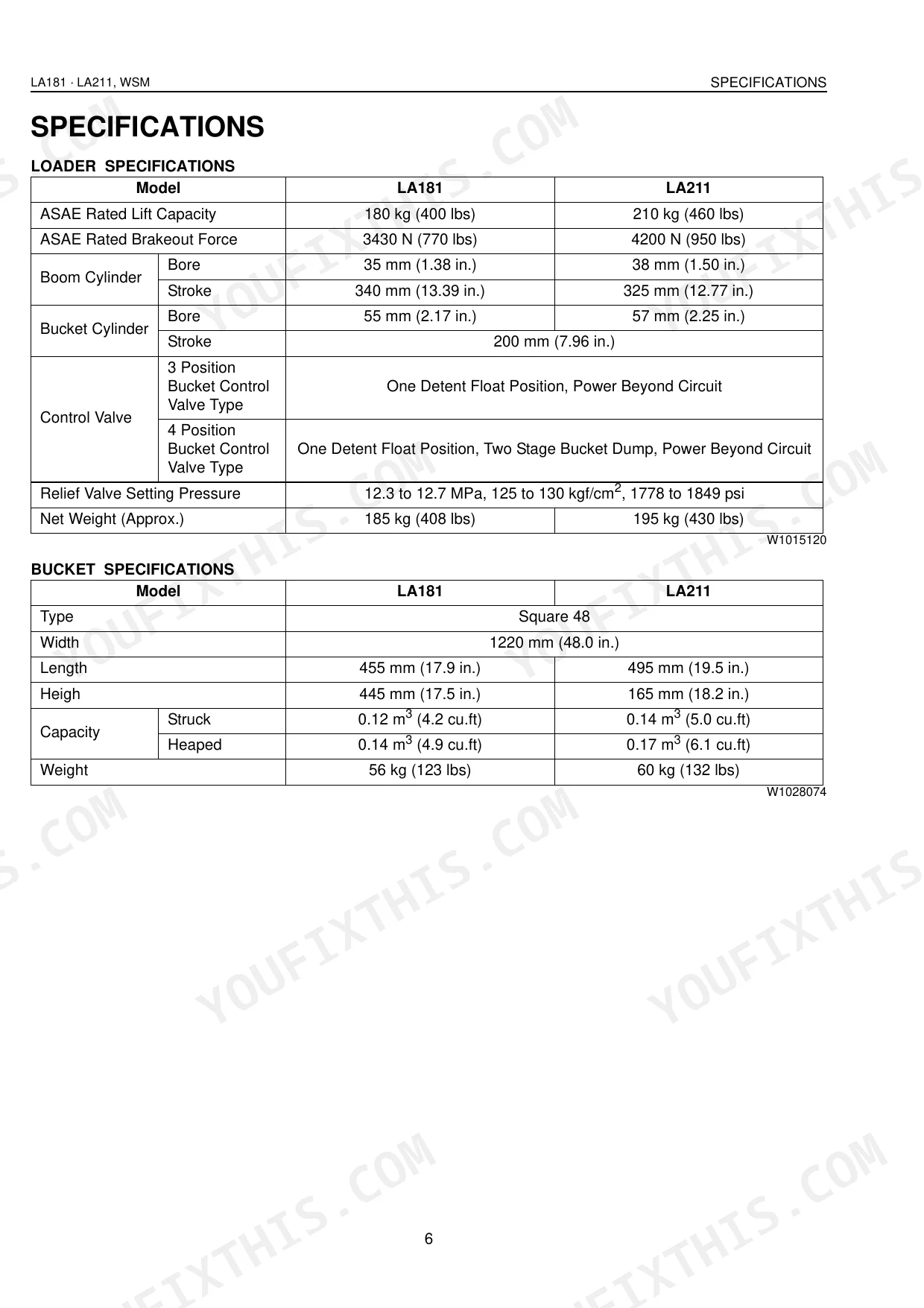

| Relief Valve Setting Pressure | 12.3 to 12.7 MPa | p. 8 |
| Transmission Case Capacity | 10.1 L | p. 31 |
| Metric M6 bolt tightening torque | 9.8 to 11.2 N-m | p. 35 |
Kubota LA181, LA211 Common Problems This Manual Covers
Reversed boom or bucket after reinstall
After dismounting and remounting the loader, the boom or bucket moves opposite the labels because hydraulic lines were reconnected wrong. Relieve pressure and correct the connections.

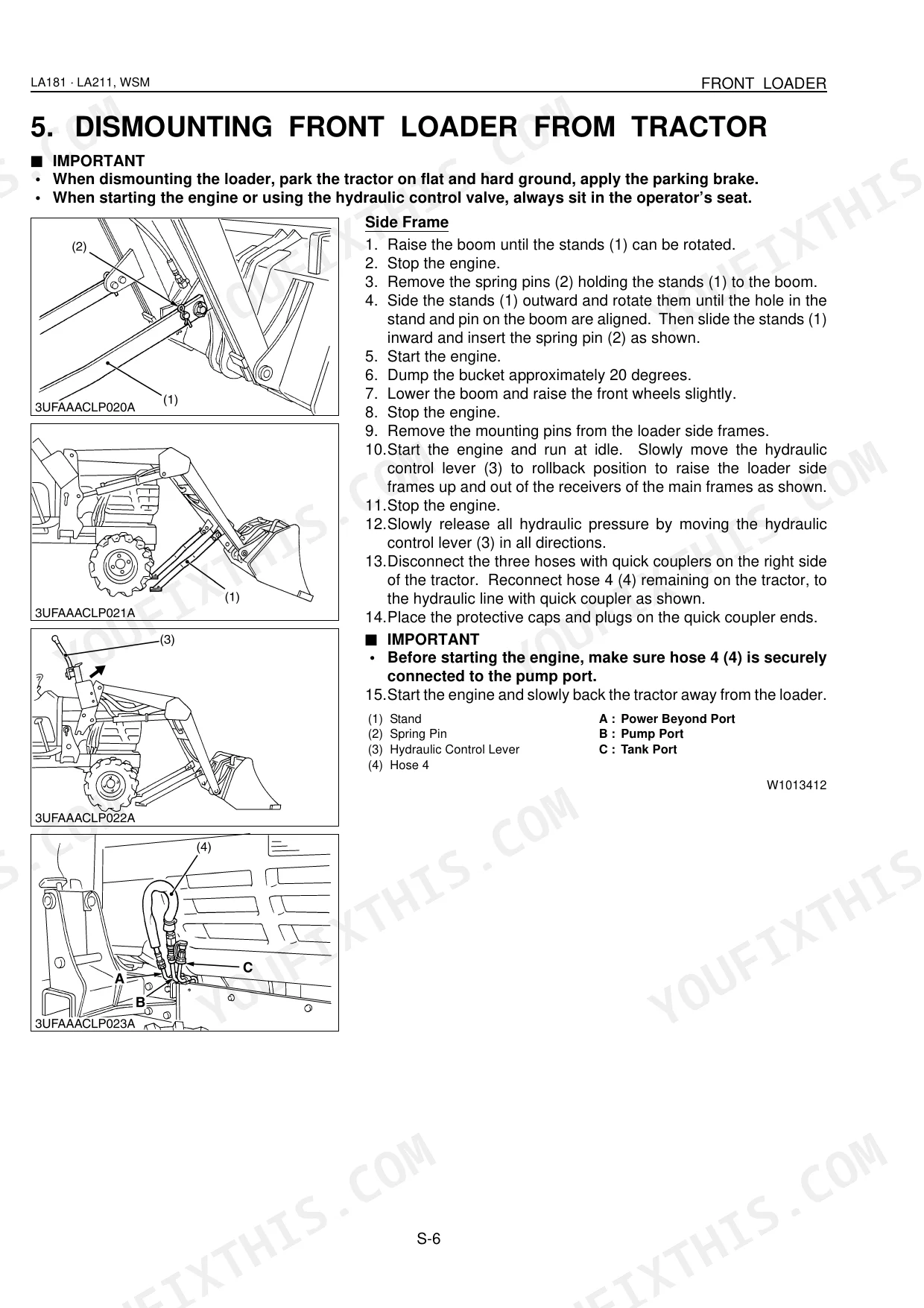

Manual Section: 5.DISMOUNTING FRONT LOADER FROM TRACTOR p. 36Hardware works loose

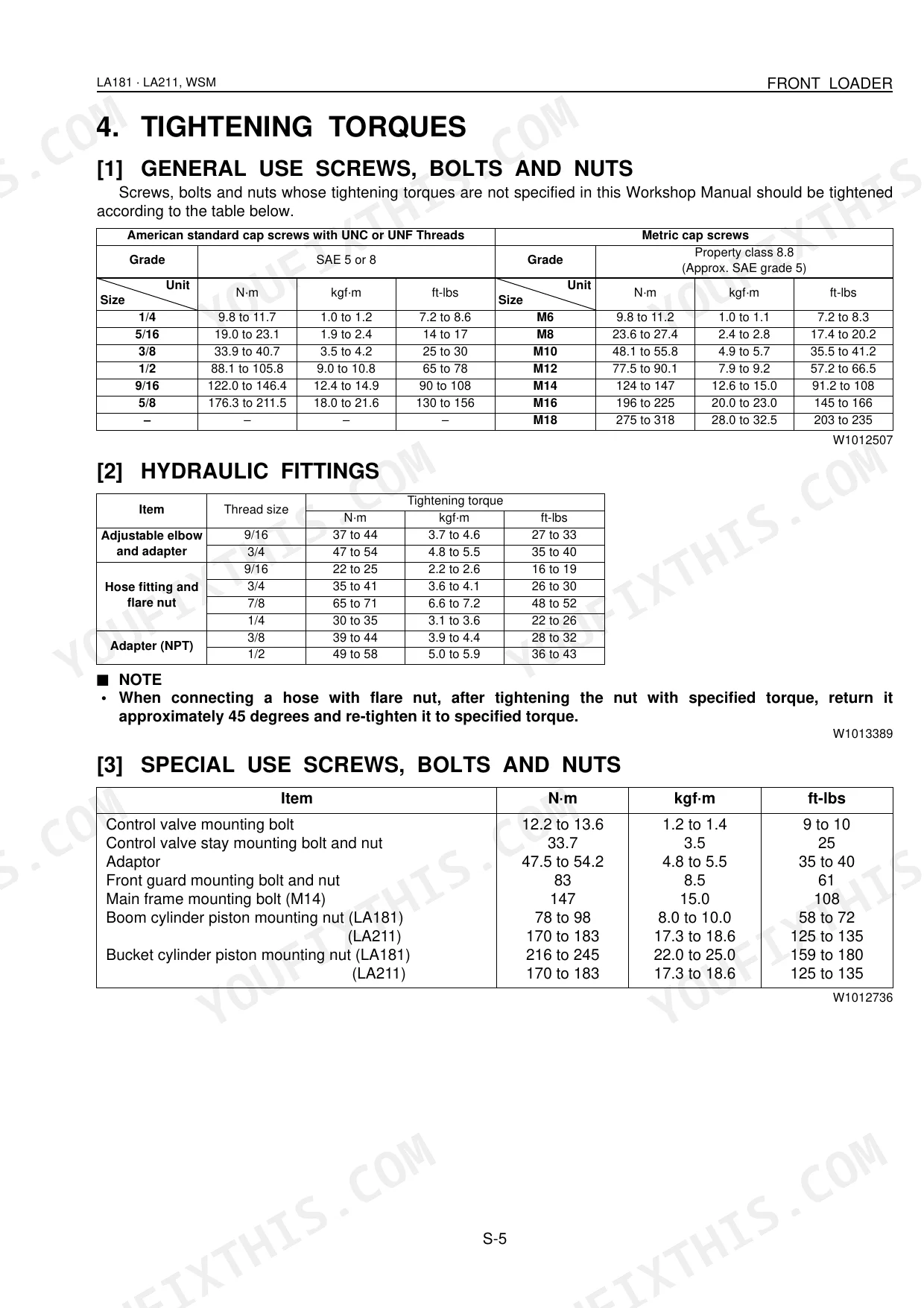

Daily vibration loosens mounting bolts and fittings. Re-torque them to the listed values, such as the M14 main frame bolt at 147 N-m.
Manual Section: 4.TIGHTENING TORQUES p. 35Leaking or worn hydraulic hoses
Cut or aged hoses and loose flare nuts leak oil under pressure. The troubleshooting section helps trace leaks and weak loader action to the hoses and fittings.
Manual Section: 2.TROUBLESHOOTING p. 33Control valve sticking or drift
A worn or contaminated control valve makes the bucket drift or respond poorly. The servicing section covers checking and disassembling the valve.

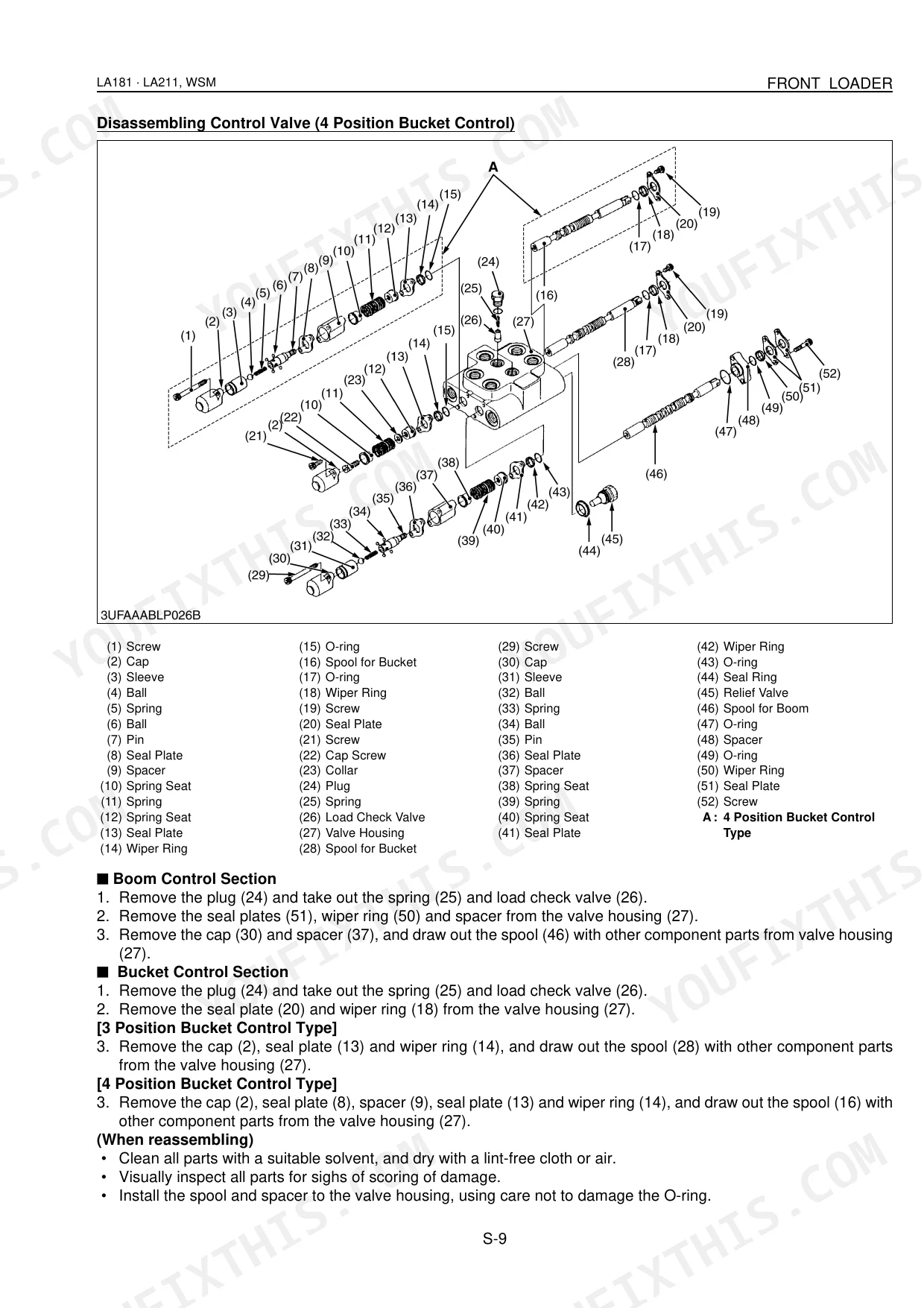

Manual Section: 6.CHECKING, DISASSEMBLING AND SERVICING p. 37Rust on exposed rods and pins
Missed greasing of the cylinder rods and mounting pins leads to rust and wear. The check and maintenance guidance sets the lubrication routine.
Manual Section: Servicing Contents p. 30Bent piston rod or poor lift
A piston rod bent past the 0.25 mm allowable limit binds and weakens lift. The servicing specifications give the limit for inspection.
Manual Section: 3.SERVICING SPECIFICATIONS p. 34Frequently Asked Questions
Which loaders does this manual cover?
It covers the Kubota LA181 and LA211 front loaders, publication number 97897-17051, in one 47-page workshop manual.
Is this a full repair manual?
Yes. It is the factory workshop manual with Mechanism and Servicing parts, including troubleshooting, servicing specifications, and step-by-step disassembly, not just an operator's guide.
Where are the torque specifications?
The Tightening Torques section lists general bolt and hydraulic fitting torques, for example M6 screws at 9.8 to 11.2 N-m and the M14 main frame bolt at 147 N-m. p. 35
What is the relief valve setting pressure?
The Specifications list the relief valve setting pressure at 12.3 to 12.7 MPa (1778 to 1849 psi) for both the LA181 and LA211. p. 8
Will this Kubota LA181 Workshop Manual download right away?
This is a 47-page searchable PDF, ready to download right away. It works on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I free to print this Kubota LA181 Workshop Manual?
Yes. Print as many copies as you want; there are no restrictions. Plenty of mechanics print just the section they need and carry it onto the shop floor.
Does this Kubota LA181 Workshop Manual include the hydraulic layout?

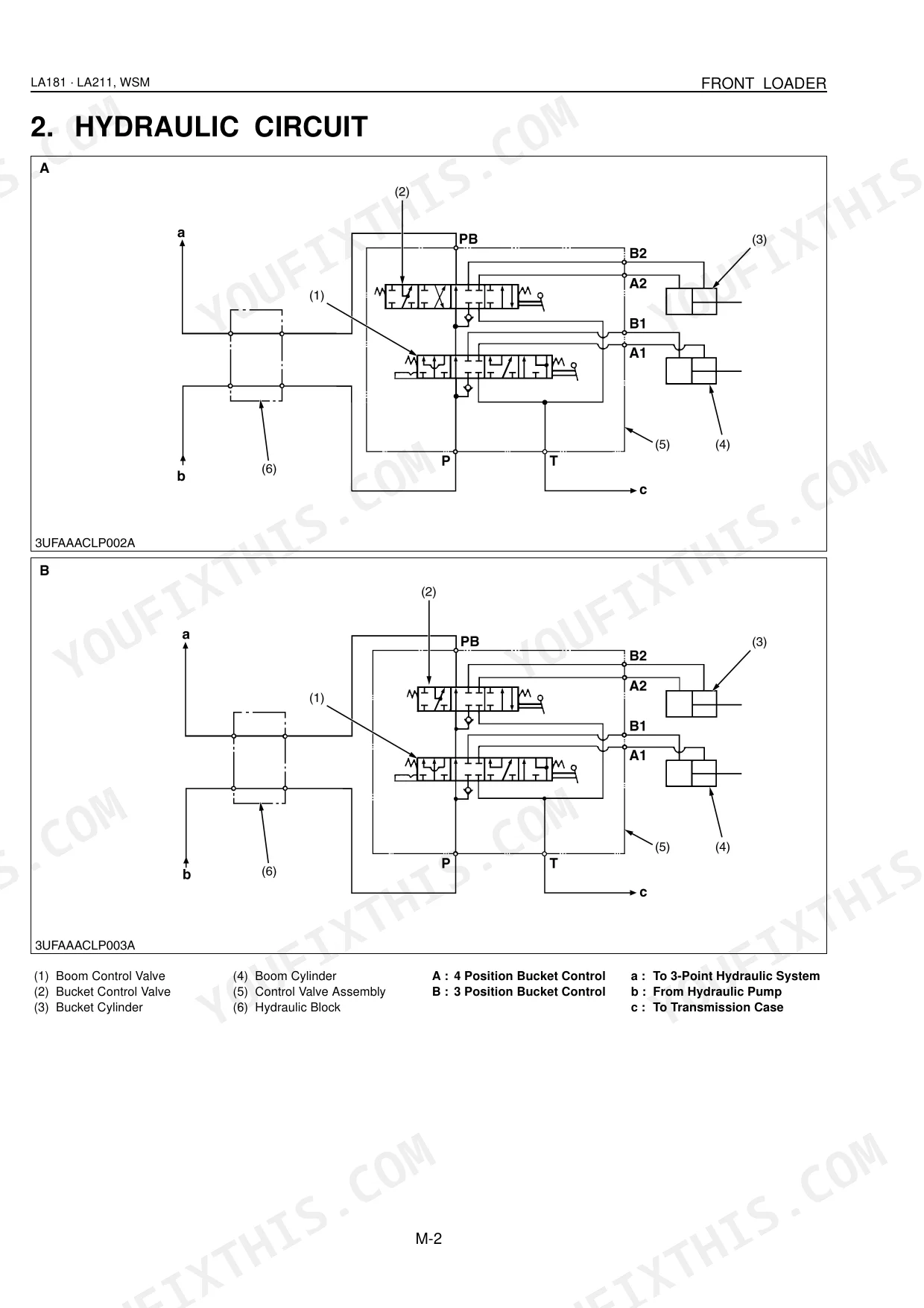

Yes. Complete hydraulic schematics are included, with flow diagrams, valve configurations, and pressure specifications.
