This is the factory Kubota Workshop Manual for the RTV1140CPX utility vehicle, the full 378-page service document (publication 9Y111-02930) covering the D1105-E3-UV diesel engine and the complete machine. It walks through mechanism, servicing, and troubleshooting for every major system on the RTV1140CPX.Inside you get the Information and General sections, then Engine, Transmission (HST), Rear Axle, Brakes, Front Axle, Steering, Hydraulic System, and Electrical System. Each section includes servicing specifications, tightening torques, and step by step disassembly and assembly procedures, plus full wiring diagrams.With this manual an owner or independent mechanic can diagnose a fault, set the correct torque and clearance values, rebuild the hydrostatic transmission or cargo bed hydraulics, and trace an electrical circuit without guessing. It is a searchable PDF download you can keep on a laptop, tablet, or phone in the shop.
What's Inside This Kubota RTV1140CPX Manual
| System | Pages | Key Topics |
|---|---|---|
| I Information | 3-18 | - |
| G General | 19-75 | Product Identification, General Precautions, Handling Precautions for Electrical Parts and Wiring, Lubricants, Fuel and Coolant, Tightening Torques |

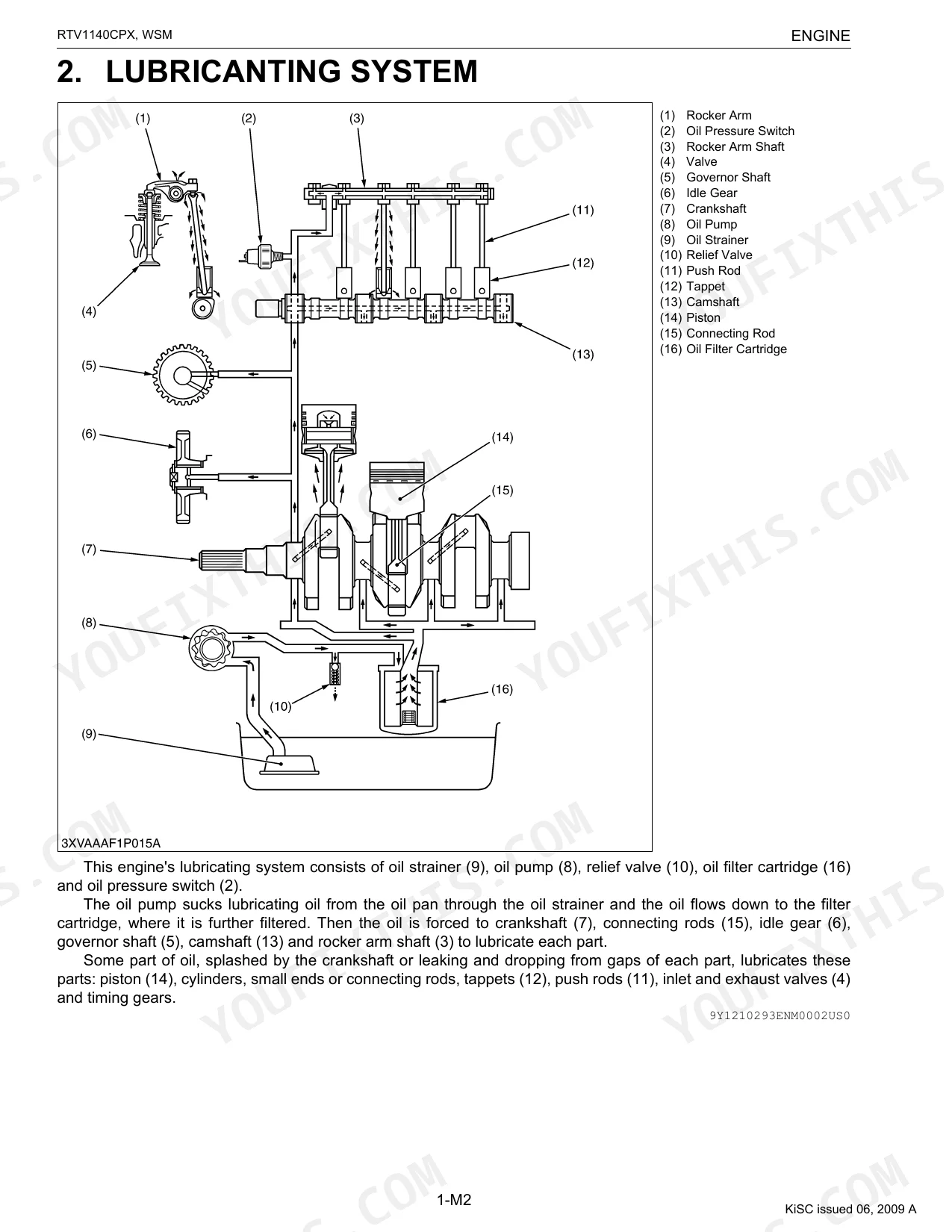

| Engine | 76-136 | Engine Body, Lubricanting System, Cooling System, Fuel System |
| Transmission | 137-213 | Structure, Power Train, Hydrostatic Transmission (HST), Oil Flow, Function of Components, Range Gear Shift Section and Front Wheel Drive Section |
| Rear Axle | 214-225 | - |
| Brakes | 226-252 | General Outline, Knuckle (Front Brake), Rear Brake, Master Cylinder, Brake Oil, Parking Brake |
| Front Axle | 253-281 | - |
| Steering | 282-304 | Structure, Hydraulic Circuit, Steering Controller, Steering Cylinder |
| Hydraulic System | 305-326 | Structure, Hydraulic Cargo Bed Lift, Hydraulic Pump, Relief Valve, Floating with Detent Valve, Hydraulic Cylinder |
| Electrical System | 327-378 | Wiring Diagram, Starting System, Charging System, Lighting System, Cooling System, Gauges |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel tank capacity | 30 L (7.9 U.S.gals, 6.6 Imp.gals) | p. 28 |
| Coolant capacity (with reserve tank) | 5.2 L (5.5 U.S.qts, 4.6 Imp.gals) | p. 28 |
| Engine Displacement | 1.123 L | p. 16 |
| Fuel Capacity | 30 L | p. 16 |
| Tire Pressure (Front/Rear, HDWS/ATV/Turf) | 170 kPa | p. 16 |
| Engine Oil Capacity (with filter exchanged) | 4.1 L | p. 28 |
| Transmission Oil Capacity | 11 L | p. 28 |

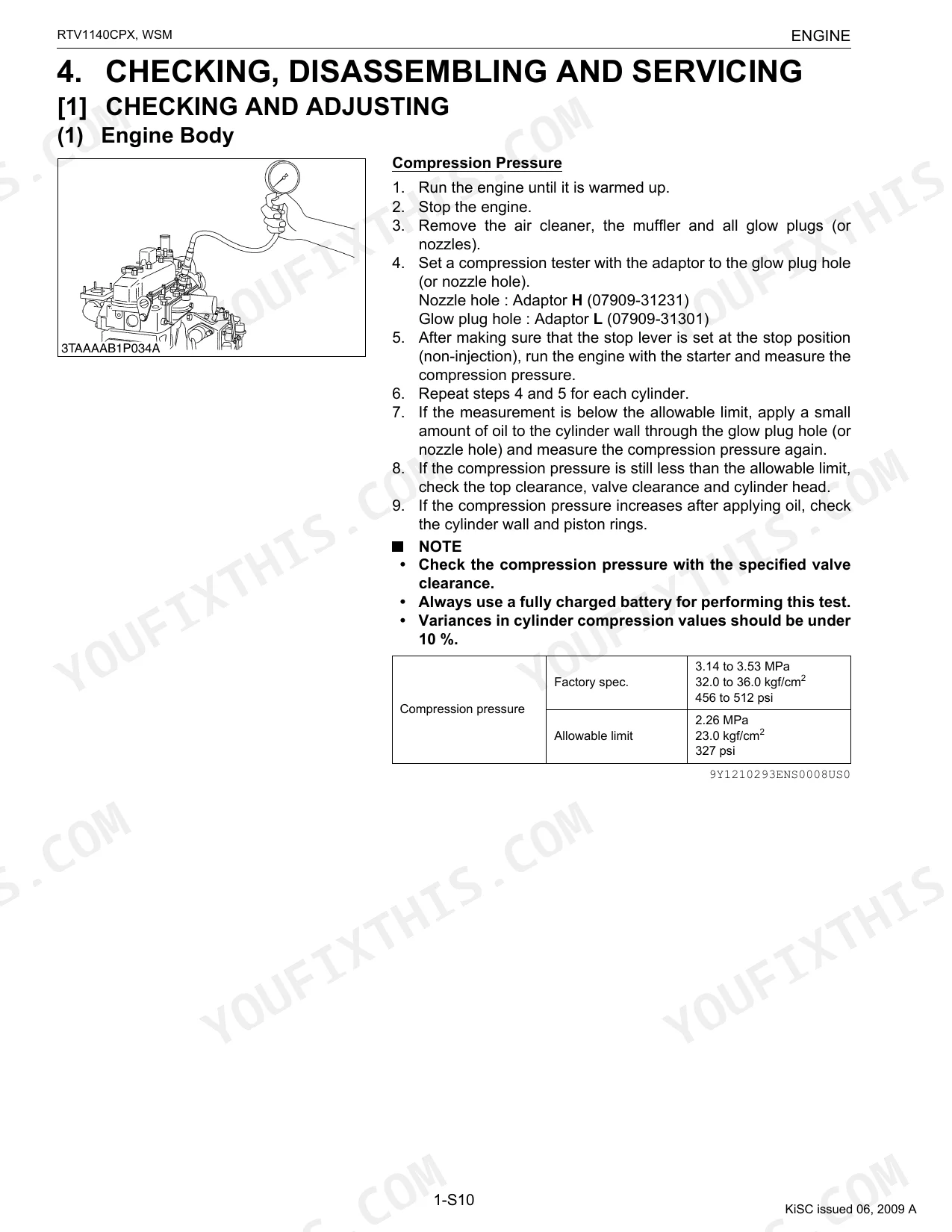

| Engine Compression Pressure (Factory Spec) | 3.14 to 3.53 MPa | p. 86 |
| Engine Valve Clearance (Cold) | 0.145 to 0.185 mm | p. 86 |

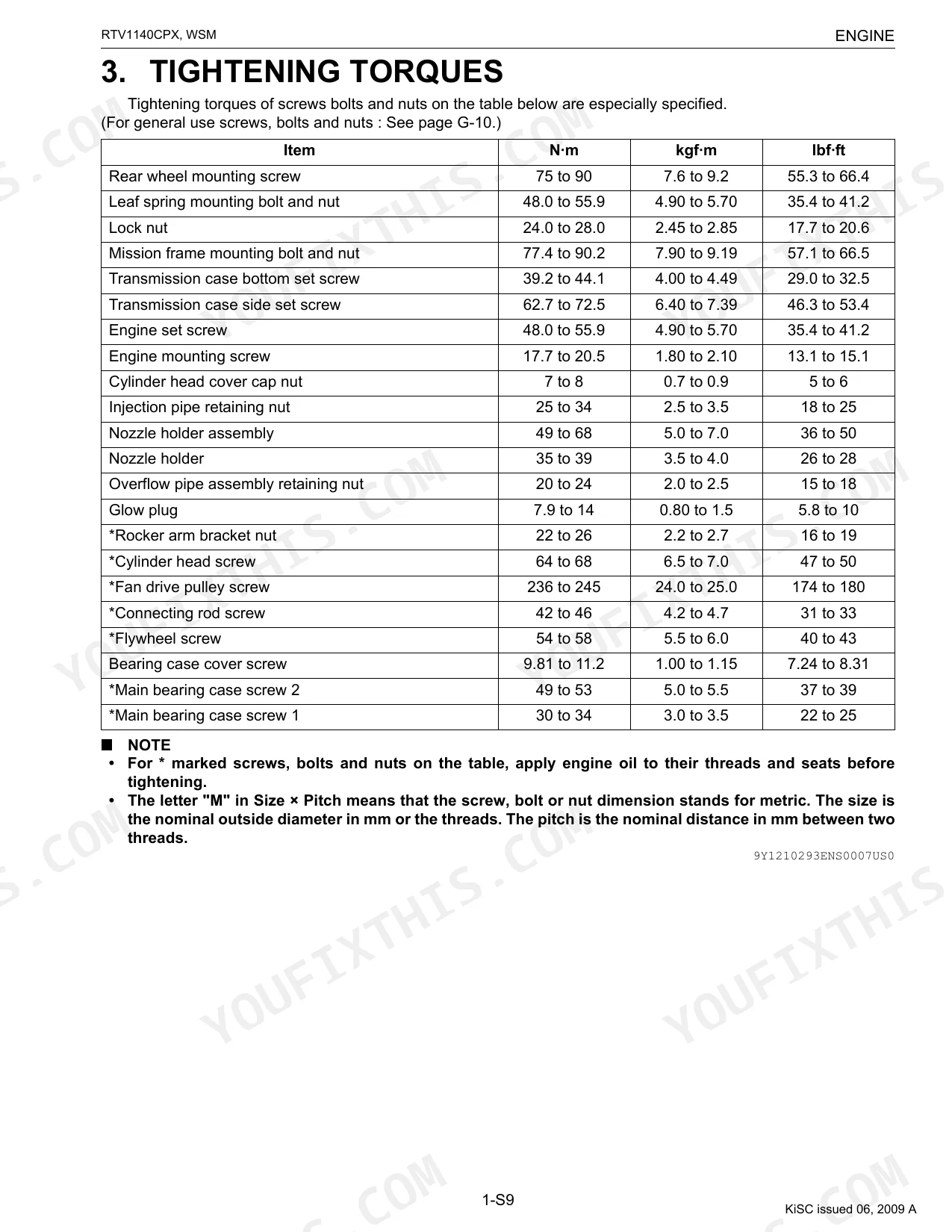

| Rear Wheel Mounting Screw Torque | 75 to 90 N·m | p. 91 |
| Brake Disc Thickness (Factory Spec) | 3.30 to 3.50 mm | p. 236 |
| Steering Relief Valve Operating Pressure | 8.0 to 9.0 MPa | p. 291 |
Kubota RTV1140CPX Common Problems This Manual Covers
HST loses drive or overheats

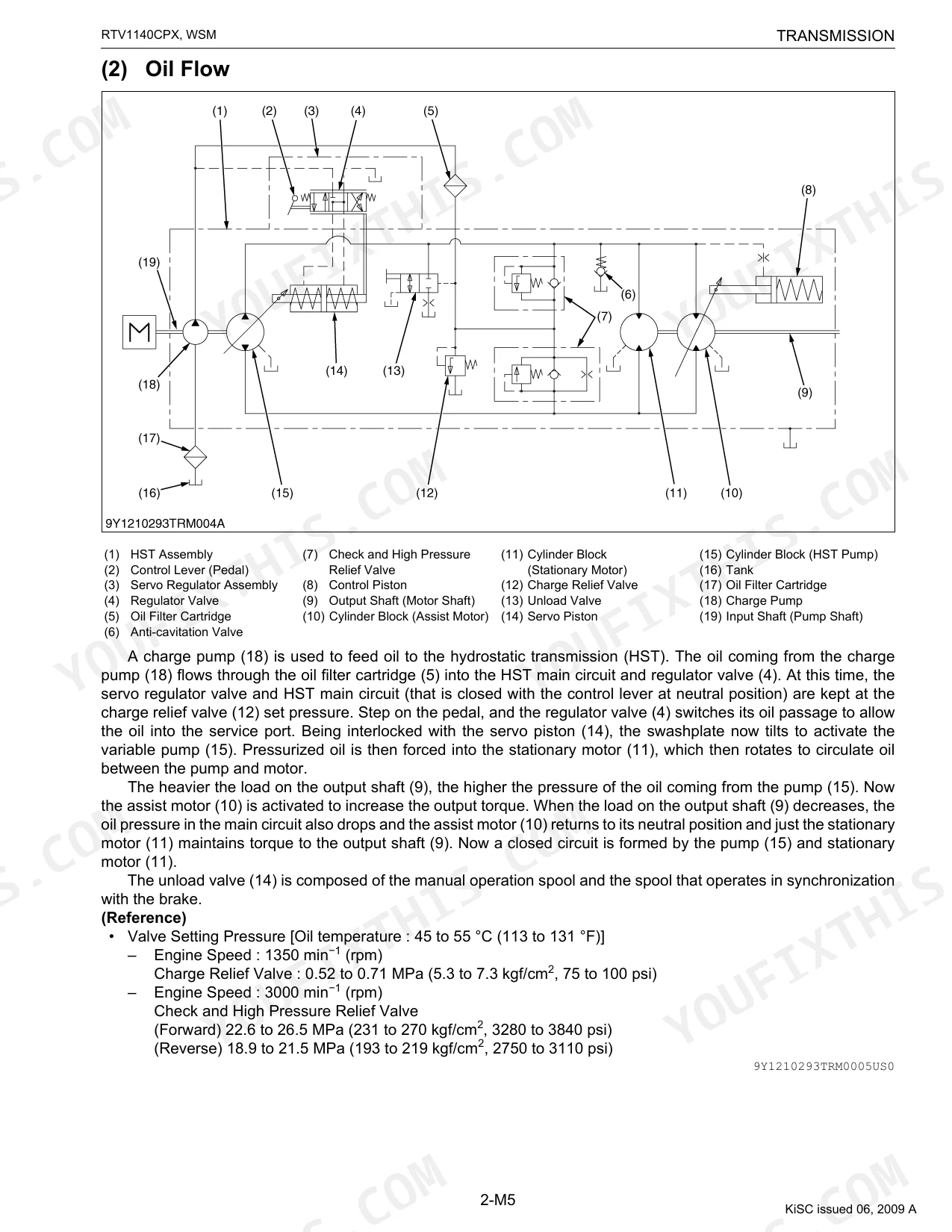

High hour RTV1140CPX vehicles can develop weak forward drive, whining, or slow response as the hydrostatic transmission wears. The Transmission section details oil flow, the HST unit, and the range gear shift and front wheel drive functions so you can check pressures and internal wear.
Manual Section: 2 Transmission p. 137Cargo bed will not lift
A dump bed that raises slowly or drops under load usually points to the hydraulic pump, relief valve, or the lift cylinder. The Hydraulic System section covers the cargo bed lift circuit, pump, relief valve, and cylinder so you can isolate the failing component.
Manual Section: 7 Hydraulic System p. 305Heavy or erratic steering
Hard steering or wander on a power steered RTV points to the steering controller, cylinder, or hydraulic circuit. The Steering section gives the hydraulic circuit layout and the relief valve operating pressure for setting the system correctly.

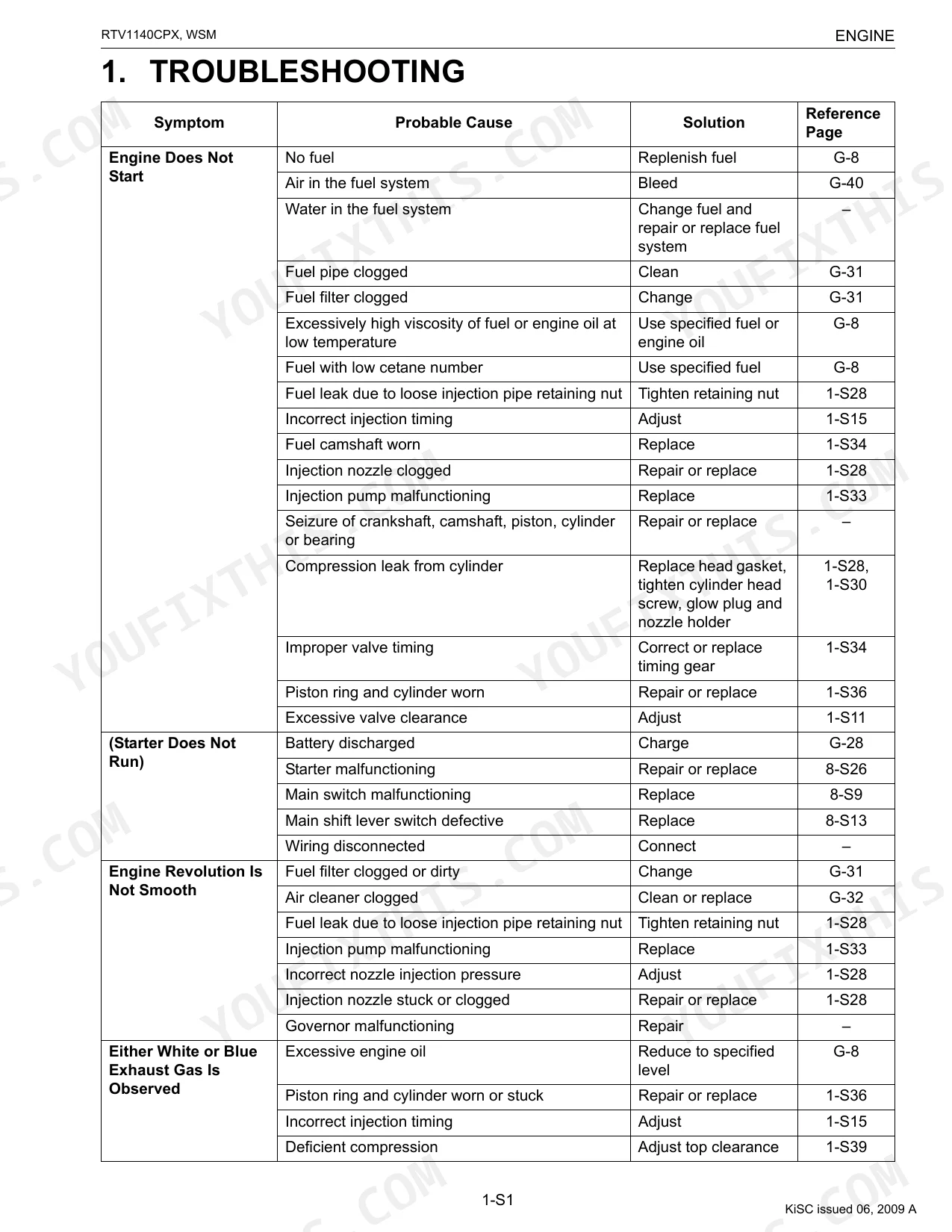

Manual Section: 6 Steering p. 282Hard starting or no start
A diesel that cranks but will not fire, or does not crank at all, is often the starting or charging circuit rather than the engine itself. The Electrical System section carries the wiring diagram, starting system, and charging system so you can test from the battery through the starter.
Manual Section: 8 Electrical System p. 327Engine overheating
Overheating on the D1105-E3-UV traces back to the cooling system, thermostat, or coolant flow. The Engine section covers the engine body, cooling system, and fuel system with the servicing specifications needed to confirm each part is within spec.
Manual Section: 1 Engine p. 76Soft brake pedal or drag
A low pedal, uneven braking, or a wheel that drags points to the master cylinder, brake discs, or parking brake. The Brakes section covers the front knuckle brake, rear brake, master cylinder, and parking brake with the disc thickness factory spec.
Manual Section: 4 Brakes p. 226Frequently Asked Questions
Which machine does this manual cover?
It is the Kubota factory Workshop Manual for the RTV1140CPX utility vehicle, publication number 9Y111-02930. It covers this single model and its D1105-E3-UV diesel engine across all systems.
Does it include the diesel engine service procedures?
Yes. The Engine section covers the engine body, lubricating system, cooling system, and fuel system for the D1105-E3-UV, with servicing specifications such as compression pressure and valve clearance. p. 76
Are wiring diagrams included?

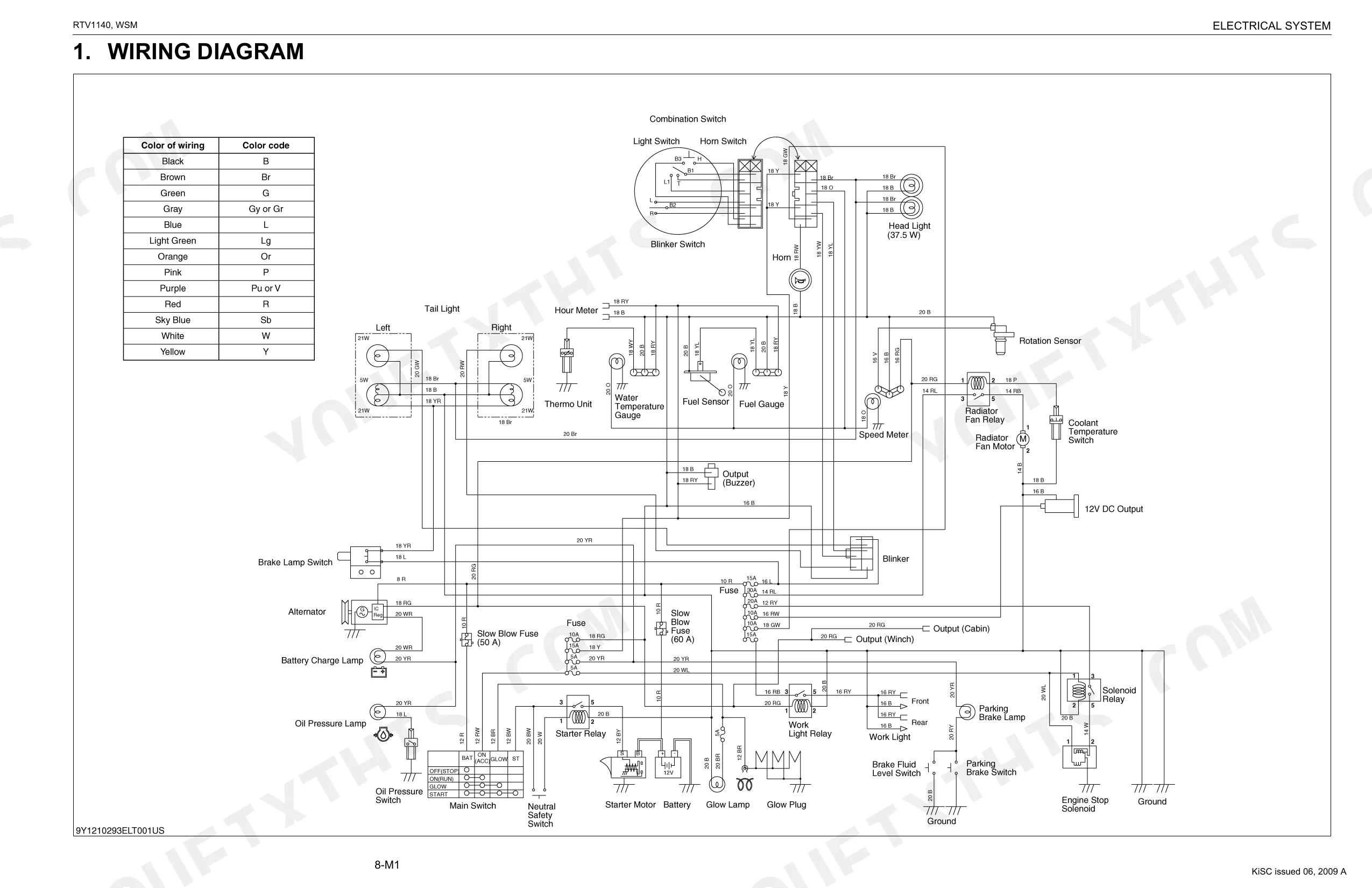

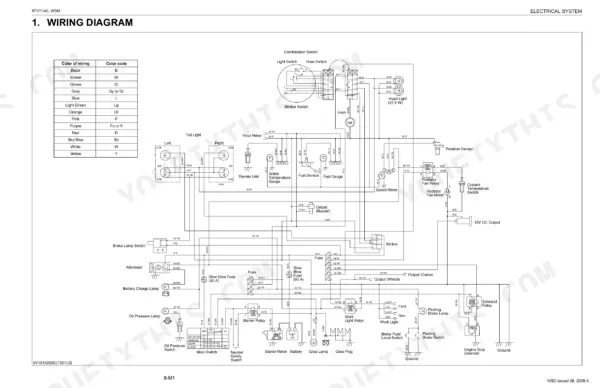

Yes. The Electrical System section contains the full wiring diagram plus the starting, charging, and lighting systems and the gauges, so you can trace circuits and diagnose electrical faults. p. 327
Where are the torque specifications?
General tightening torques are listed in the General section, and each system also gives its own specific torque values, for example the rear wheel mounting screw torque of 75 to 90 N·m. p. 19
How quickly can I access this Kubota RTV1140CPX manual after buying?
Download is immediate: the complete 378-page searchable Service Manual. It opens on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this Kubota RTV1140CPX Service Manual?
No restrictions at all: the PDF is DRM-free. Print whatever sections you want to carry out to the shop. Standard letter or A4 paper works fine.
Can I find wiring schematics in this Kubota RTV1140CPX manual?
Yes, they are included. This manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts.
