Need factory specs for your Kubota BX2350? This 414-page Kubota BX1850/BX2350 Workshop Manual PDF (OEM #9Y011-13553) spans the whole lineup: BX tractor drivetrain, RCK rotary mower decks in three cut widths, and the LA203/LA243 front loader. Hydraulic schematics trace every circuit from the HST transaxle through the steering cylinder and loader control valve. Wiring diagrams map the starting, charging, and lighting systems, backed by 24 pages of troubleshooting charts. Mechanics get 14 pages of torque tables and 132 pages of step-by-step disassembly and rebuild work, plus full HST transaxle coverage down to the differential lock and PTO clutch. Fill the BX2350 crankcase to 3.1L, torque M8 fasteners to 29.5-34.3 N-m, and top the 25L fuel tank before you turn the key. Idle downtime drains your wallet; one bookmark click lands you on the right number.
What's Inside This Kubota BX1850 & variants Manual

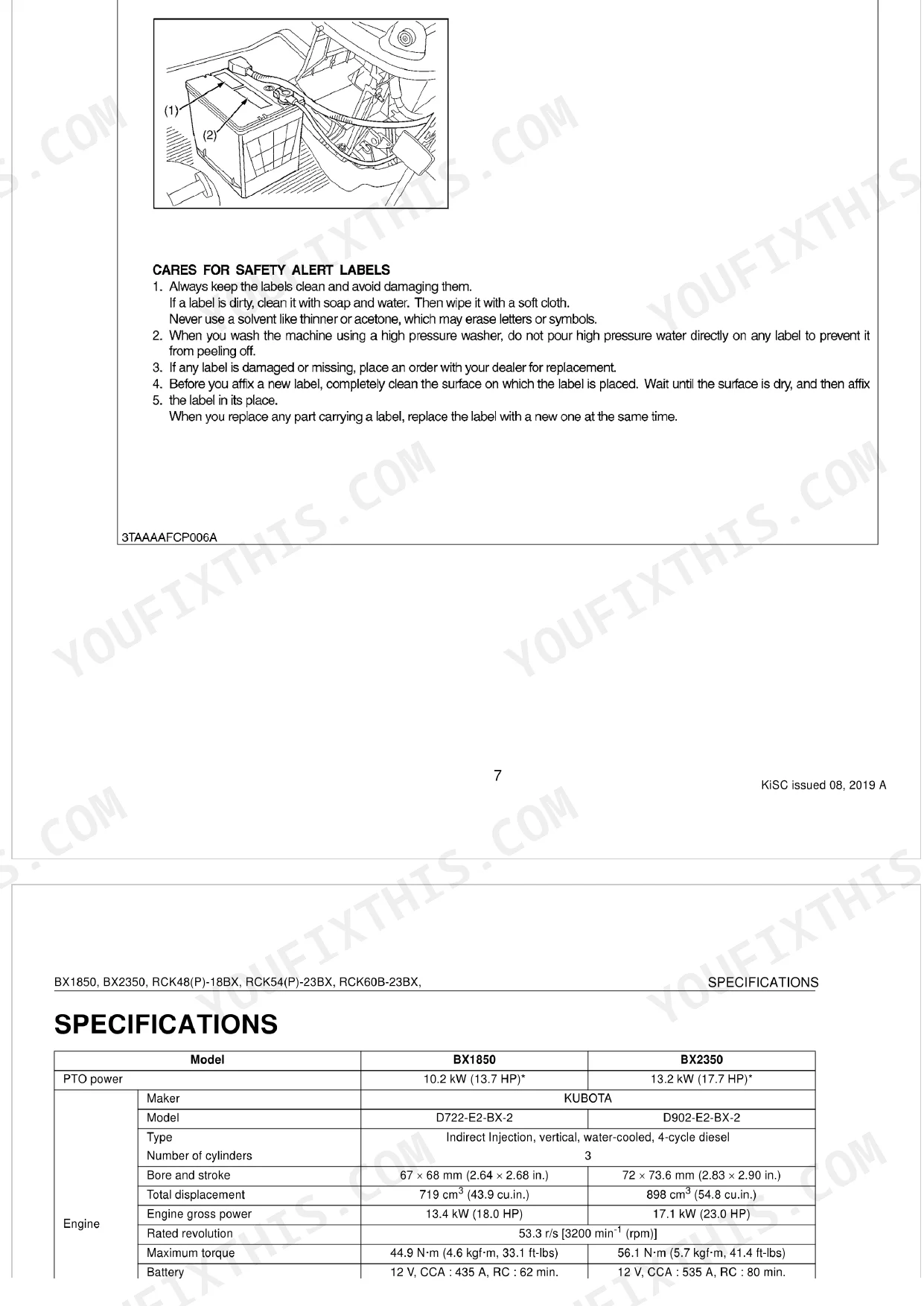

| System | Pages | Key Topics |
|---|---|---|
| Safety Instructions | 4-10 | Safety First, Danger, Warning, Caution, Important, Note, Before Servicing And Repairing, Safety Starting |
| Specifications | 11-14 | Specifications Table (PTO Power, Engine, Capacities, Dimensions, Weight With ROPS, Tires, Travelling System, Hydraulic System, PTO System) |
| General | 15-66 | Tractor Identification, Handling Precautions for Electrical Parts and Wiring (Battery, Fuse, Connector, Handling of Circuit Tester), Lubricants Fuel and Coolant |

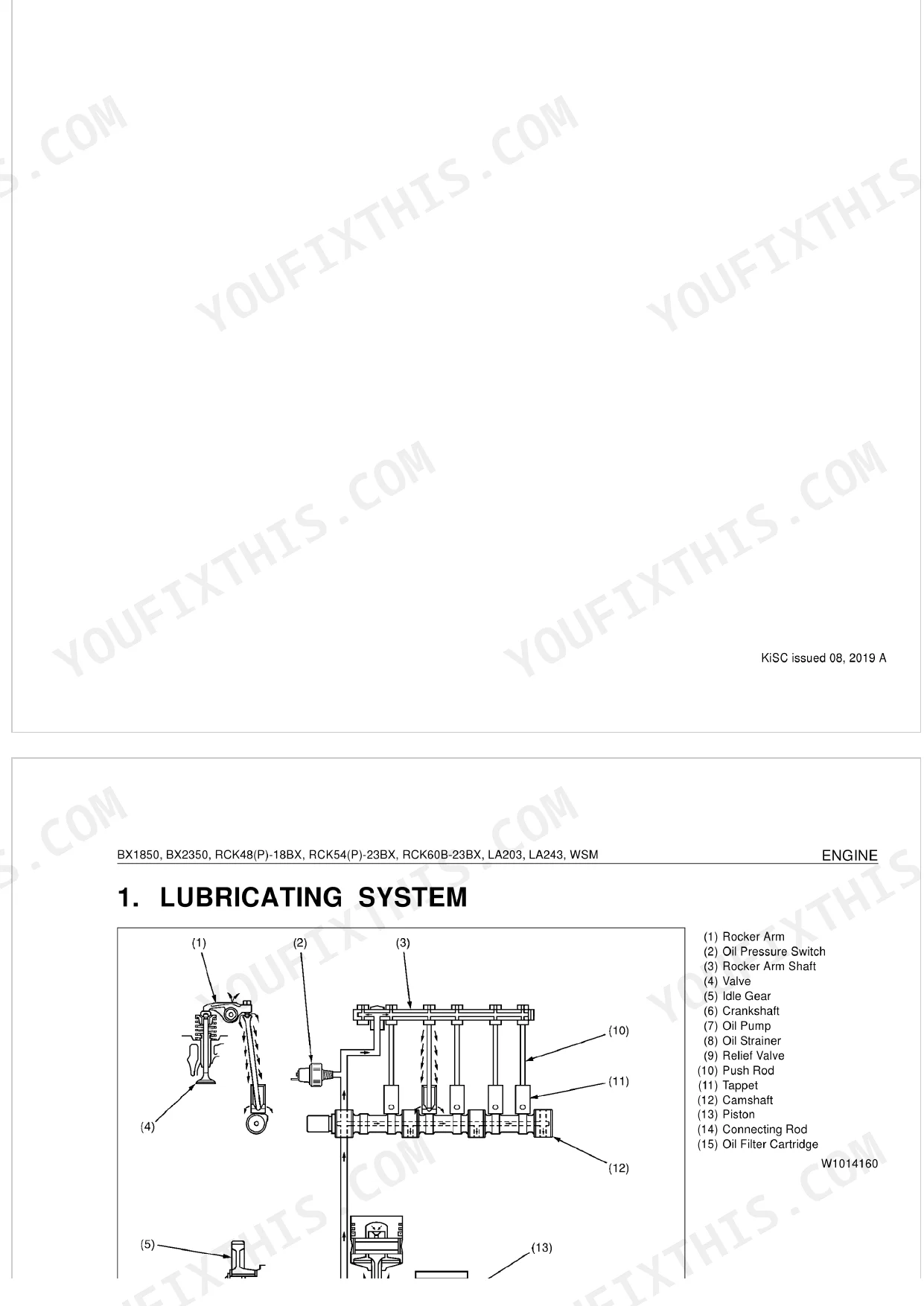

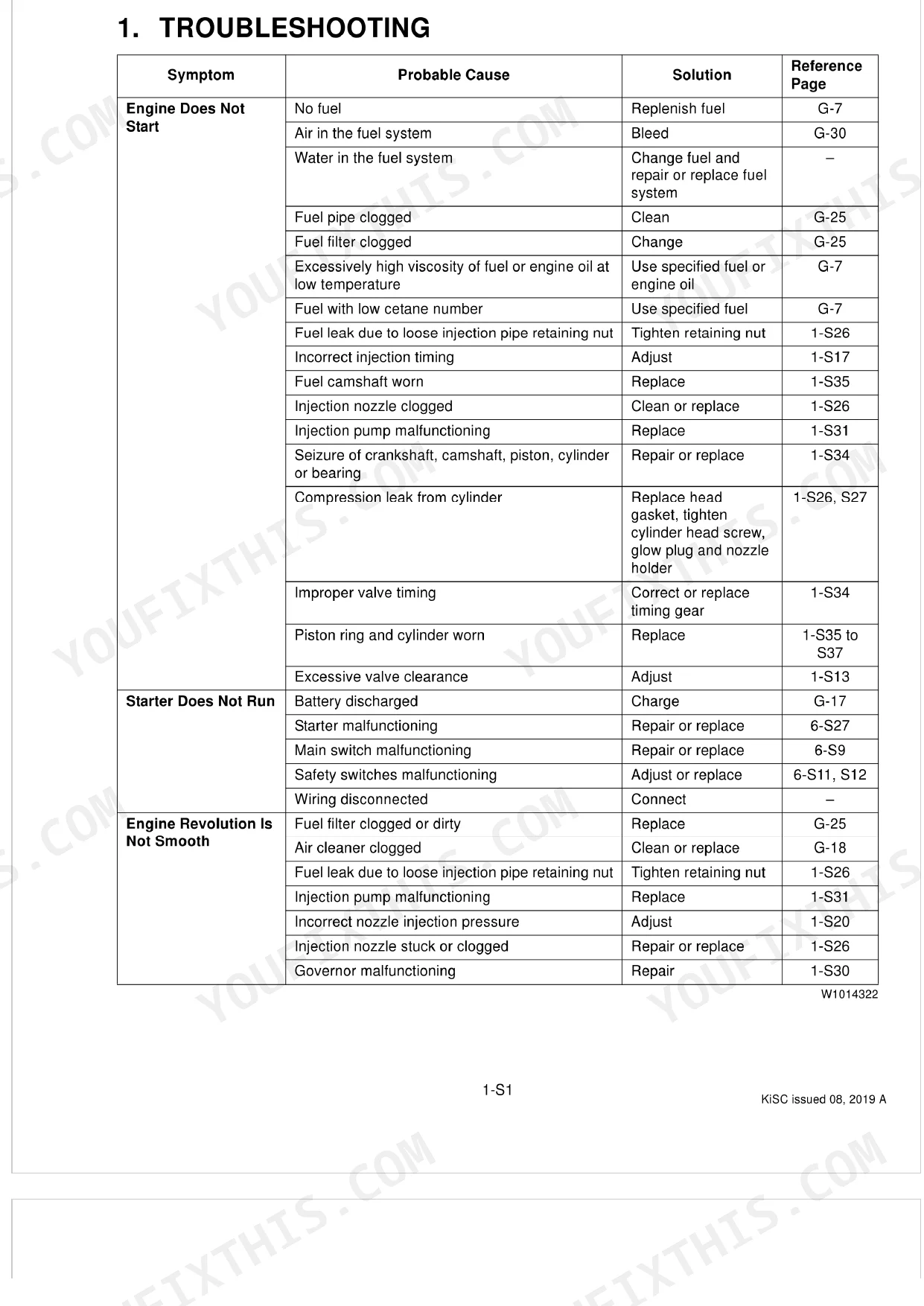

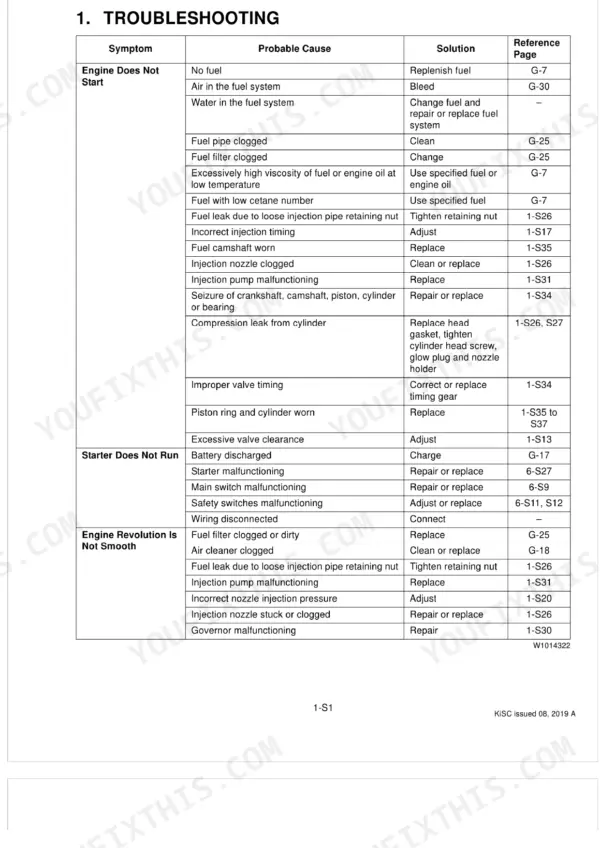

| Engine | 67-137 | Lubricating System, Cooling System, Fuel System, Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling and Servicing |
| Transaxle | 138-211 | Structure |
| Front Axle | 212-238 | Mechanism (Structure, Front Wheel Alignment) |

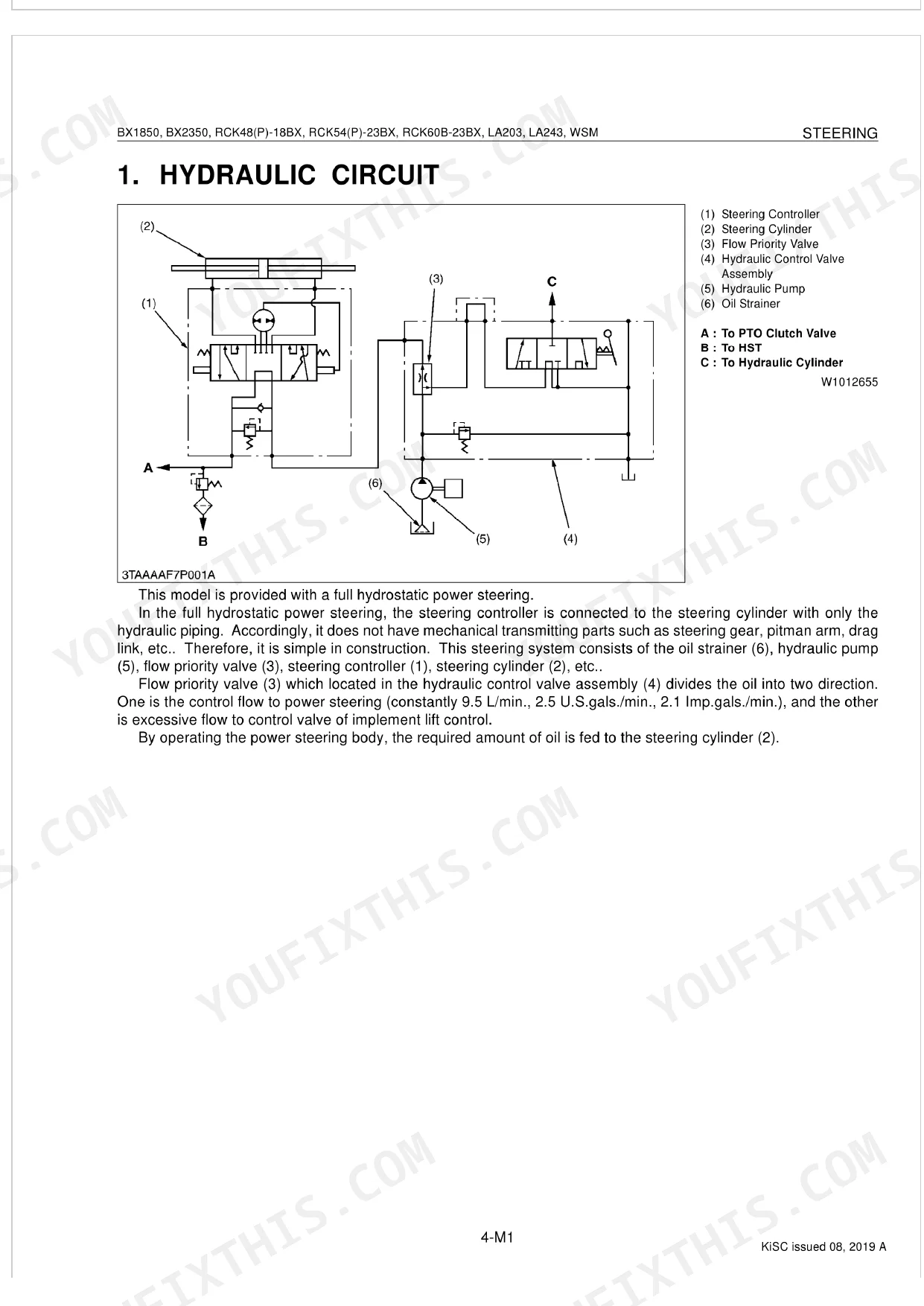

| Steering | 239-256 | Hydraulic Circuit, Steering Controller, Steering Cylinder, Troubleshooting, Servicing Specifications, Tightening Torques, Checking, Disassembling and Servicing |
| Hydraulic System | 257-291 | Hydraulic Circuit, Hydraulic Pump, Control Valve, Flow Priority Valve, Relief Valve, Hydraulic Cylinder, Hydraulic Block Type Outlet, Mower Linkage |

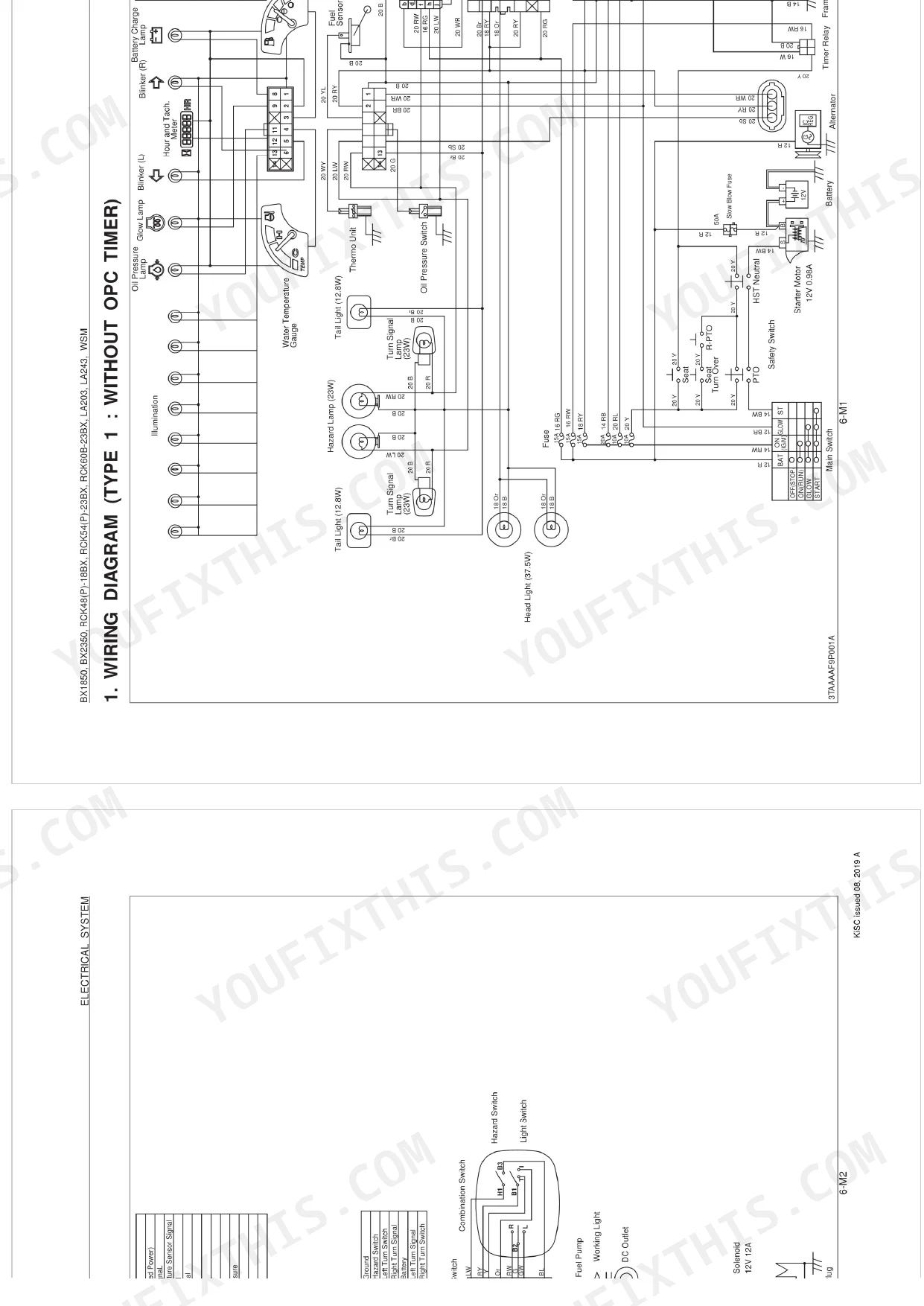

| Electrical System | 292-341 | Wiring Diagram, Starting System (Main Switch Position, Safety Switch, Operator Presence Control), Charging System (Electrical Circuit, IC Regulator), Lighting System |
| Front Loader | 383-414 | Hydraulic Circuit, Control Valve Assembly, Boom Cylinder and Bucket Cylinder, Lubricants, Check and Maintenance, Troubleshooting, Servicing Specifications |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

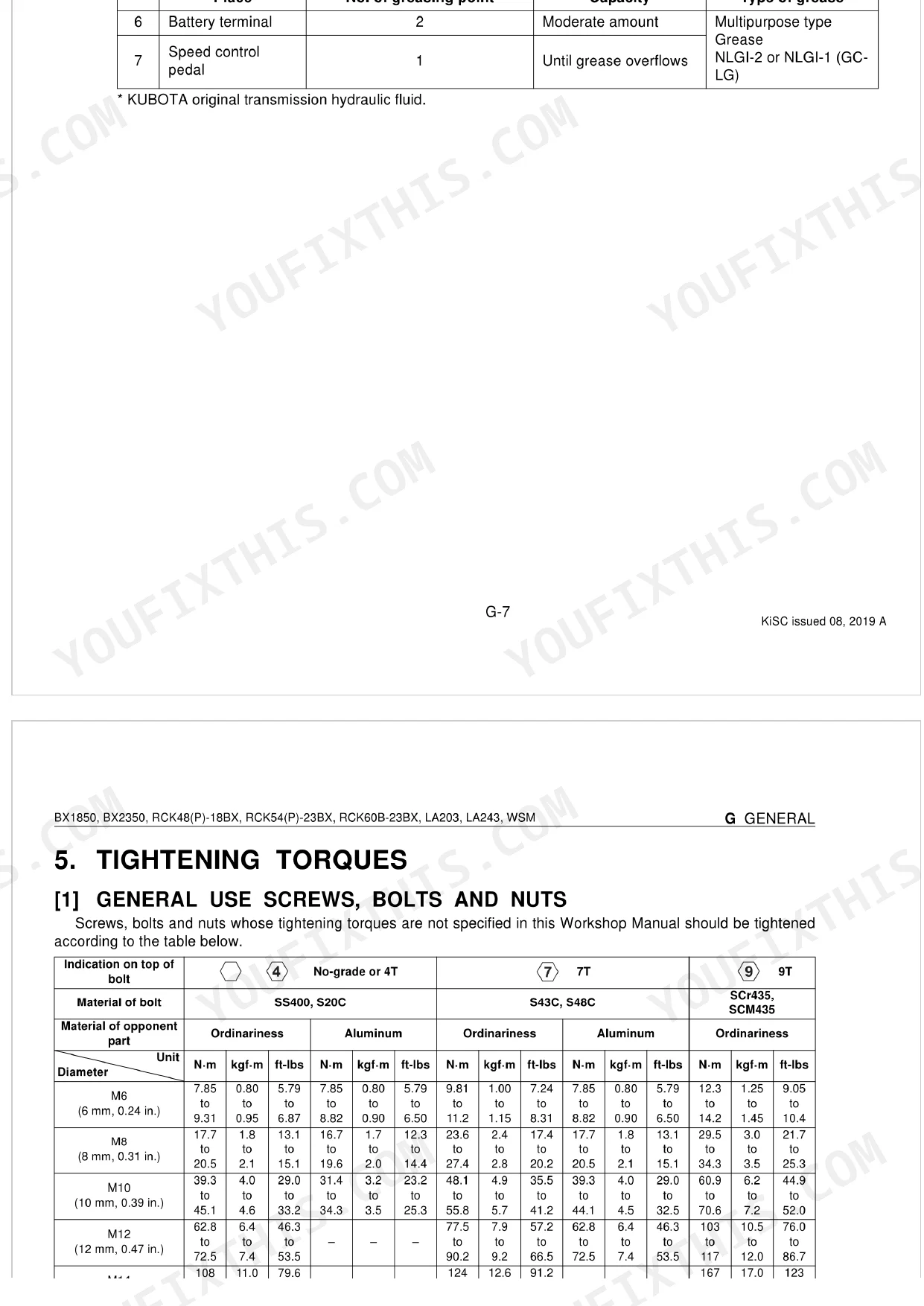

| General Use Screws, Bolts and Nuts - M6 (9T) Torque | 12.3 to 14.2 N-m (1.25 to 1.45 kgf-m, 9.05 to 10.4 ft-lbs) | p. 24 |
| General Use Screws, Bolts and Nuts - M8 (9T) Torque | 29.5 to 34.3 N-m (3.0 to 3.5 kgf-m, 21.7 to 25.3 ft-lbs) | p. 24 |
| Fuel Tank Capacity | 25 L | p. 11 |
| Transmission Fluid Capacity | 11.6 L | p. 11 |
| Engine Valve Clearance (Cold) | 0.145 to 0.185 mm | p. 77 |
| Engine Oil Pressure (At Rated Speed) | 196 to 441 kPa | p. 81 |
| BX1850 | ||
| Engine Oil Capacity | 2.9 L | p. 11 |
| Coolant Capacity (with recovery tank) | 2.9 L | p. 11 |
| Front Axle Case Oil Capacity | 2.3 L | p. 11 |
| BX2350 | ||
| Engine Oil Capacity | 3.1 L | p. 11 |
| Coolant Capacity (with recovery tank) | 3.1 L | p. 11 |
| Front Axle Case Oil Capacity | 4.7 L | p. 11 |
Kubota BX1850 & variants Common Problems This Manual Covers
Kubota BX1850 turns over slowly in cold temperatures or experiences a complete engine no-start
Check the glow plug circuit and battery voltage first. If the engine still refuses to fire, inspect the valve train. Measure the engine valve clearance (cold) and adjust it to 0.145 to 0.185 mm as outlined on page 77. Verify fuel delivery and check cylinder compression.
Manual Section: Engine TroubleshootingFront loader struggles with heavy loads and the bucket boom does not rise
Inspect the hydraulic fluid level using the transaxle dipstick. If low, fill the system to the full 11.6 L transmission fluid capacity detailed on page 11. Clean the suction strainer and test the system relief valve. Replace the main hydraulic pump if pressure fails to build.
Manual Section: Front Loader TroubleshootingTractor struggles to stop safely on steep inclines due to poor braking force
Test the brake linkage for binding or damaged return springs. Adjust the turnbuckle referenced on page 39 until you measure exactly 25 to 35 mm of brake pedal free travel. Lubricate the pivot points and verify the pedals return fully to the top when released.

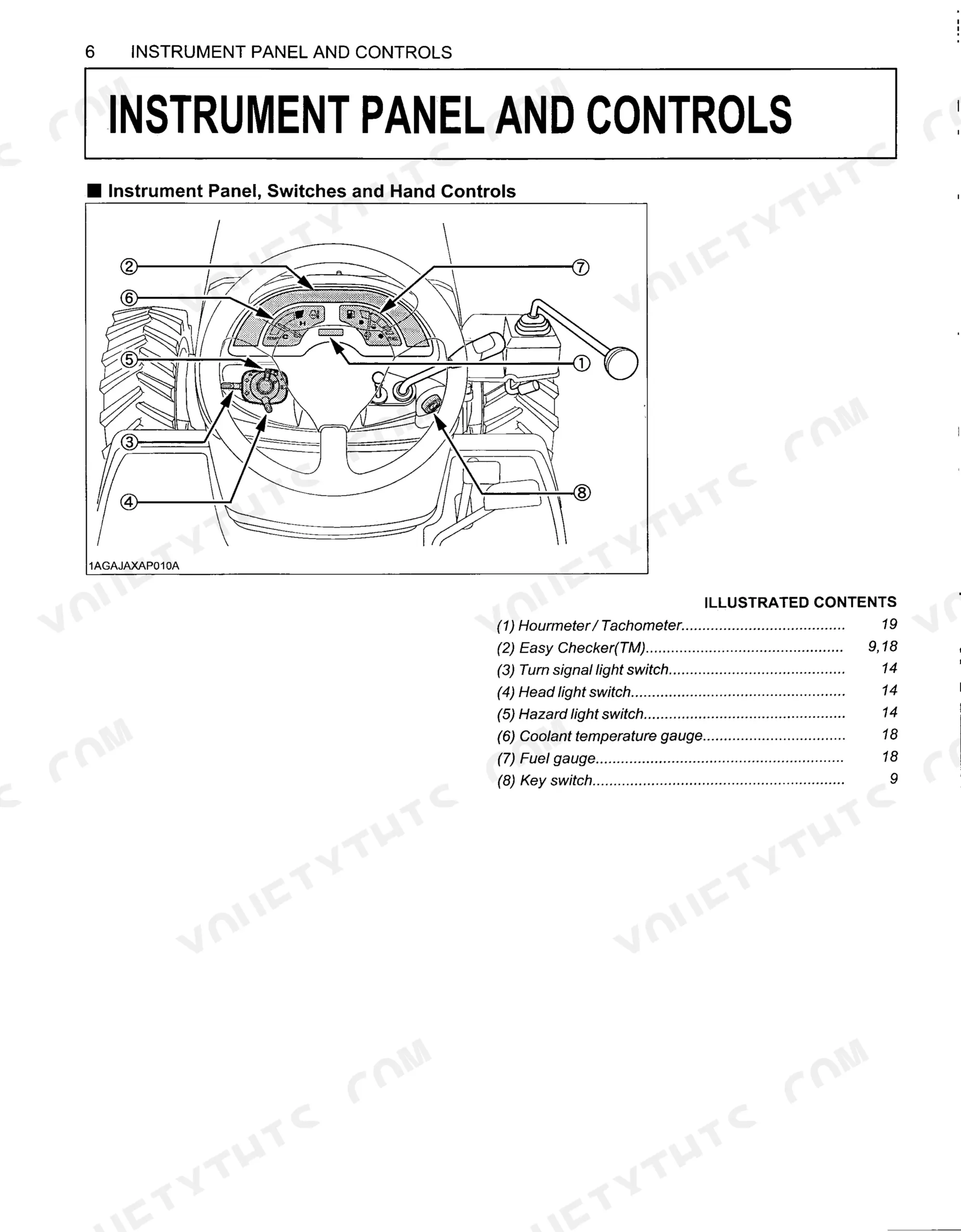

Manual Section: Transaxle TroubleshootingInstrument panel warning indicator illuminates at idle speed or the engine overheated
Connect a mechanical gauge to the pressure switch port. Run the tractor to rated speed and verify the engine oil pressure reads between 196 to 441 kPa as shown on page 81. Inspect the oil pump relief valve for sticking or debris if pressure remains low.
Manual Section: Engine TroubleshootingFrequently Asked Questions
How quickly can I access this Kubota BX1850 & variants manual after buying?
Your download starts the moment payment clears: the full 414-page searchable manual, ready on a desk laptop or a phone out in the field.
Can I print specific sections of this Kubota BX1850 & variants Workshop Manual?
There are no limits. This PDF ships DRM-free, so print whatever sections you want to carry into the shop on standard letter or A4 paper.
Does this Kubota BX1850 & variants Workshop Manual cover the hydraulic system?
Yes. The BX2350 and BX1850 hydraulic diagrams are all here, mapping circuits, valve locations, and component specs across the variants.
Does this manual cover the LA203 and LA243 front loaders?
Yes. The Front Loader section runs from page 383 to 414 and covers both the LA203 and LA243: mounting, hydraulic plumbing, the control valve, and component service for each.
What does it include for the HST transaxle?
The Transaxle section spans pages 138 to 211, walking the HST hydrostatic drive, differential lock, and PTO clutch down to component specs and rebuild steps.

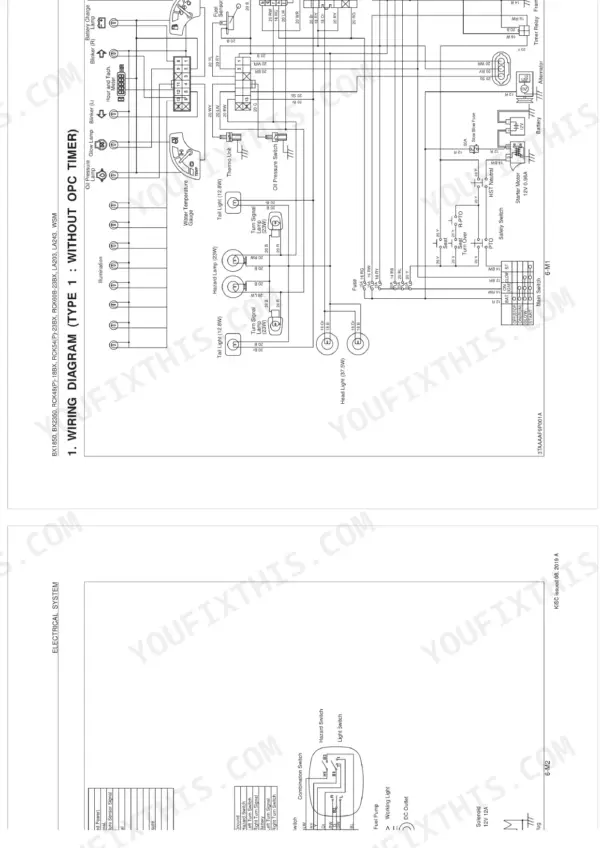

Are wiring diagrams and electrical troubleshooting included?
Yes. The Electrical System section covers pages 292 to 341 with full wiring diagrams plus troubleshooting for the starting, charging, and lighting circuits.
Document Quality
This document is a scanned PDF, but it includes an OCR layer, so you can search and copy the full text. The text throughout is crisp and easy to read, with no blurriness or fading. Diagrams and illustrations are clear raster images, and their labels are consistently readable, though they may pixelate at high zoom levels. The pages are clean with minimal scan artifacts, and there are no notable blank or filler pages in this section. Overall, the quality is good for a scanned manual.
