This Kubota shop manual covers the MX5000 compact utility tractor, powered by the V2403-M-E.A diesel engine rated at 32.8 kW (44 HP). The 316-page PDF is the factory service reference, spanning Safety, Specifications, Travelling Speeds, Dimensions, General, and every mechanical system on the machine.It documents the engine, clutch and PTO, transmission, rear and front axles, brakes, steering, the hydraulic system, and the full electrical system with wiring diagrams. You get tractor identification, tightening torques, fluid capacities, and step-by-step troubleshooting, disassembly, and reassembly procedures.With it an owner or mechanic can trace a PTO or clutch fault, service the diesel, rebuild axle and transmission components, adjust brakes and steering, repair the three-point hydraulic lift, and follow the wiring for charging and lighting faults. The text is selectable and the PDF prints cleanly for use at the tractor.
What's Inside This Kubota MX5000 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Instructions | 3-8 | Safety First, Danger, Warning, Caution, Important, Note, Before Servicing and Repairing, Safety Starting |
| Specifications | 9 | Capacities, Weight and Tires, Travelling System, Hydraulic Unit, PTO Specifications |
| Travelling Speeds | 10 | MX5000 Travelling Speeds Table, Forward Speeds, Reverse Speeds |

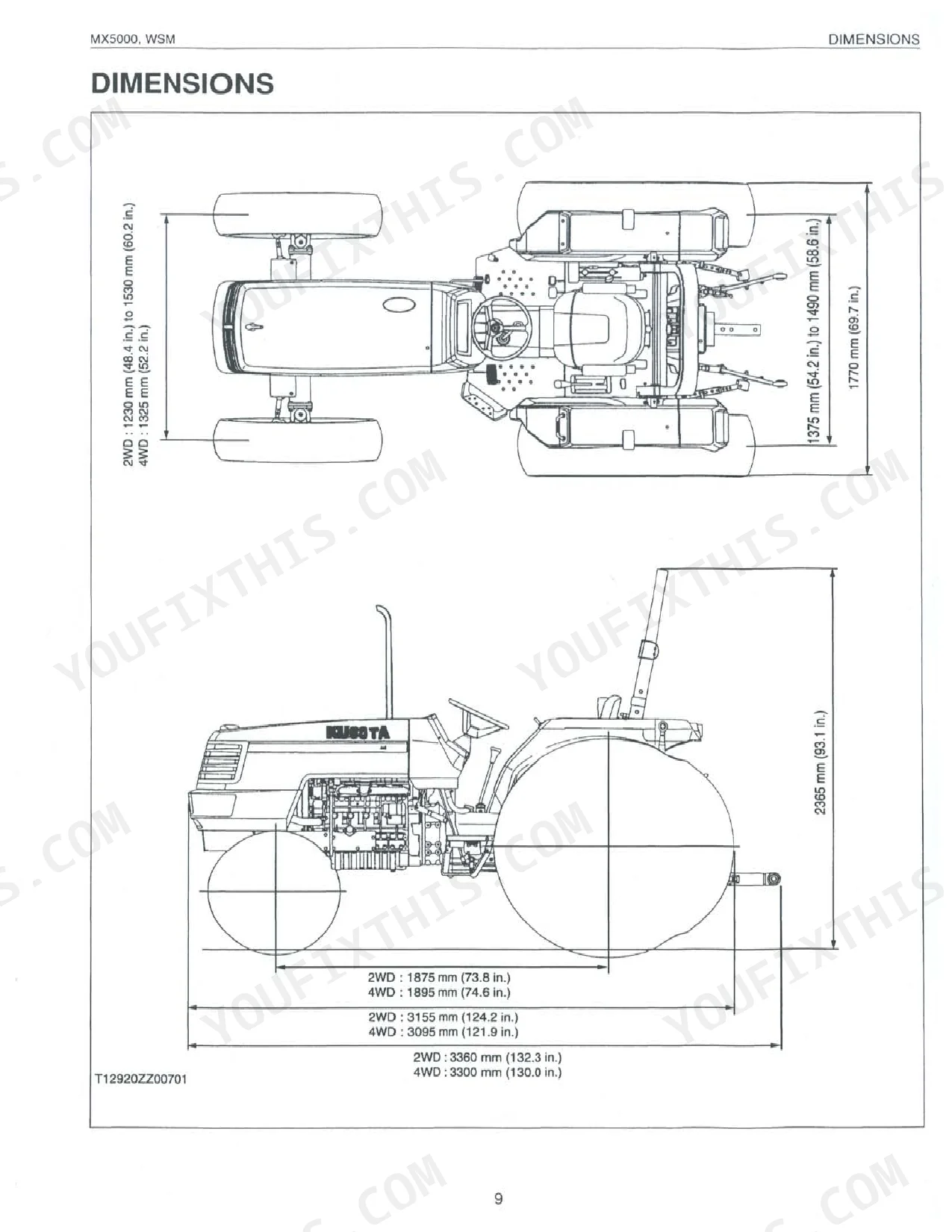

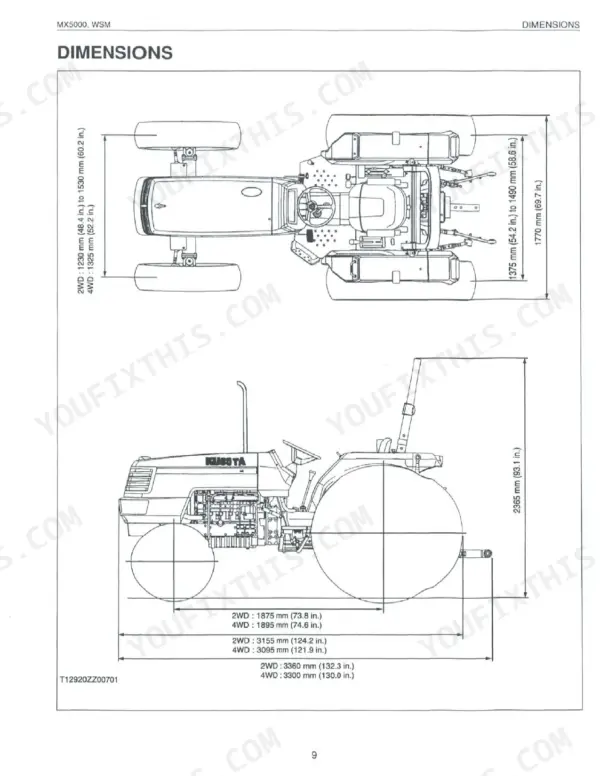

| Dimensions | 11 | Top View Dimensions, Side View Dimensions, Overall Length and Width |
| General | 12-63 | Tractor Identification (Plate, Tractor Serial Number, Engine Serial Number, Hour Meter) |
| Engine | 64-108 | Separating Engine From Tractor, Engine Body |
| Clutch | 109-129 | Travelling Clutch (Linkage Mechanism), PTO Clutch (Shift Linkage, Structure, Lubricating System), Oil Flow (Cooling System), Troubleshooting (Fuel System), Servicing Specifications |
| Transmission | 130-149 | PTO Clutch Valve, Clutch Housing Case and Mid Case, Transmission Case |
| Rear Axle | 150-158 | Clutch Housing Case, Mid Case, Transmission Case, Propeller Shaft, Pedal Frame, Suction Pipe, Hydraulic Block |
| Brakes | 159-168 | Brake Pedal, Brake Case |
| Front Axle | 169-194 | Structure (2WD Type, 4WD Type), Front Wheel Alignment, Troubleshooting, Servicing Specifications, Tightening Torques, Checking |

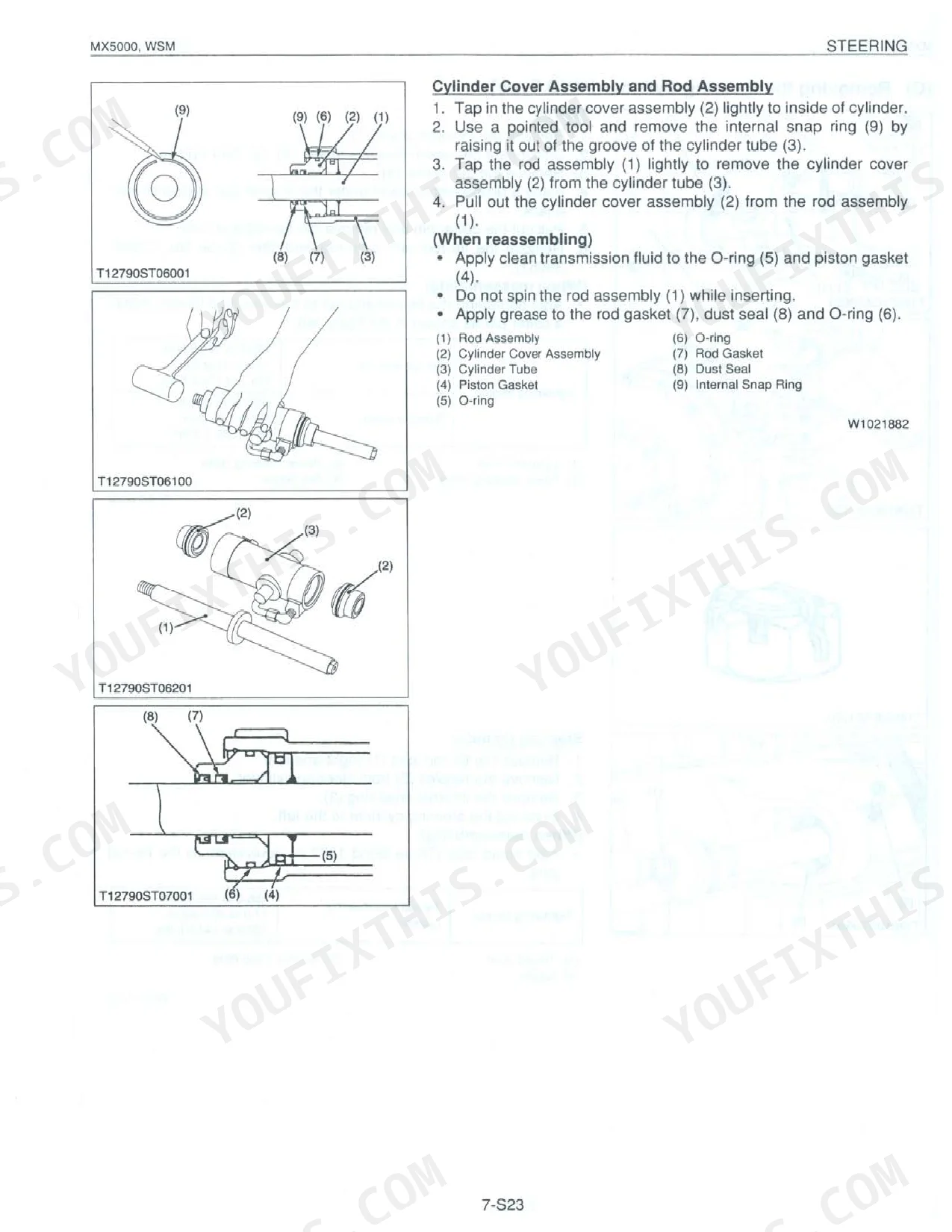

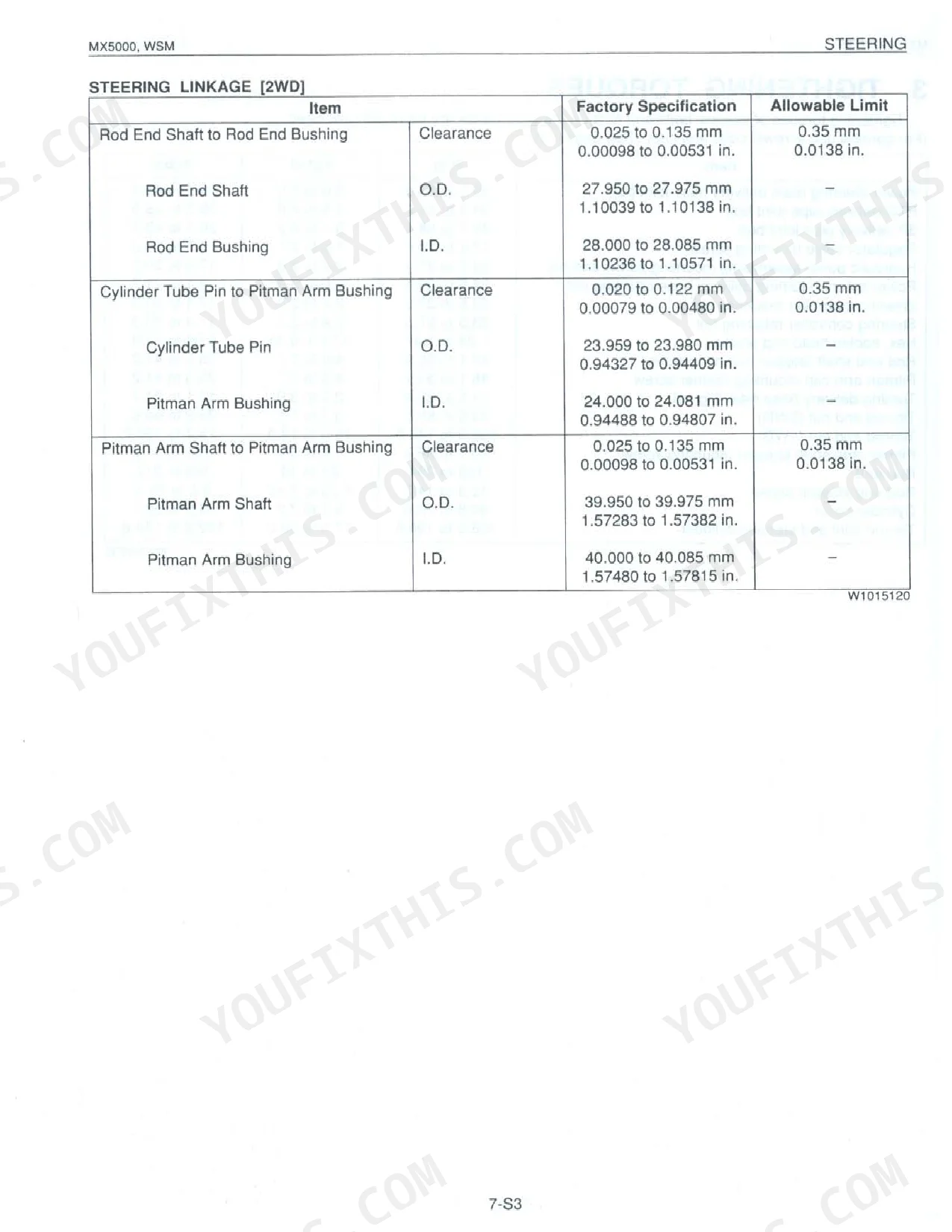

| Steering | 195-227 | Steering Linkage, Steering Cylinder, 2WD Type, 4WD Type, Power Steering Hydraulic Pump, Relief Valve, Steering Controller |
| Hydraulic System | 228-249 | Hydraulic Circuit, Hydraulic Pump, Position Control and Draft Control Linkage, Relief Valve, Cylinder Safety Valve, Hydraulic Cylinder and Position Control Valve |
| Electrical System | 250-316 | Wiring Diagram, Color of Wiring, Battery, Starting System, Charging System, Lighting System, Warning Lamps, Gauges |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

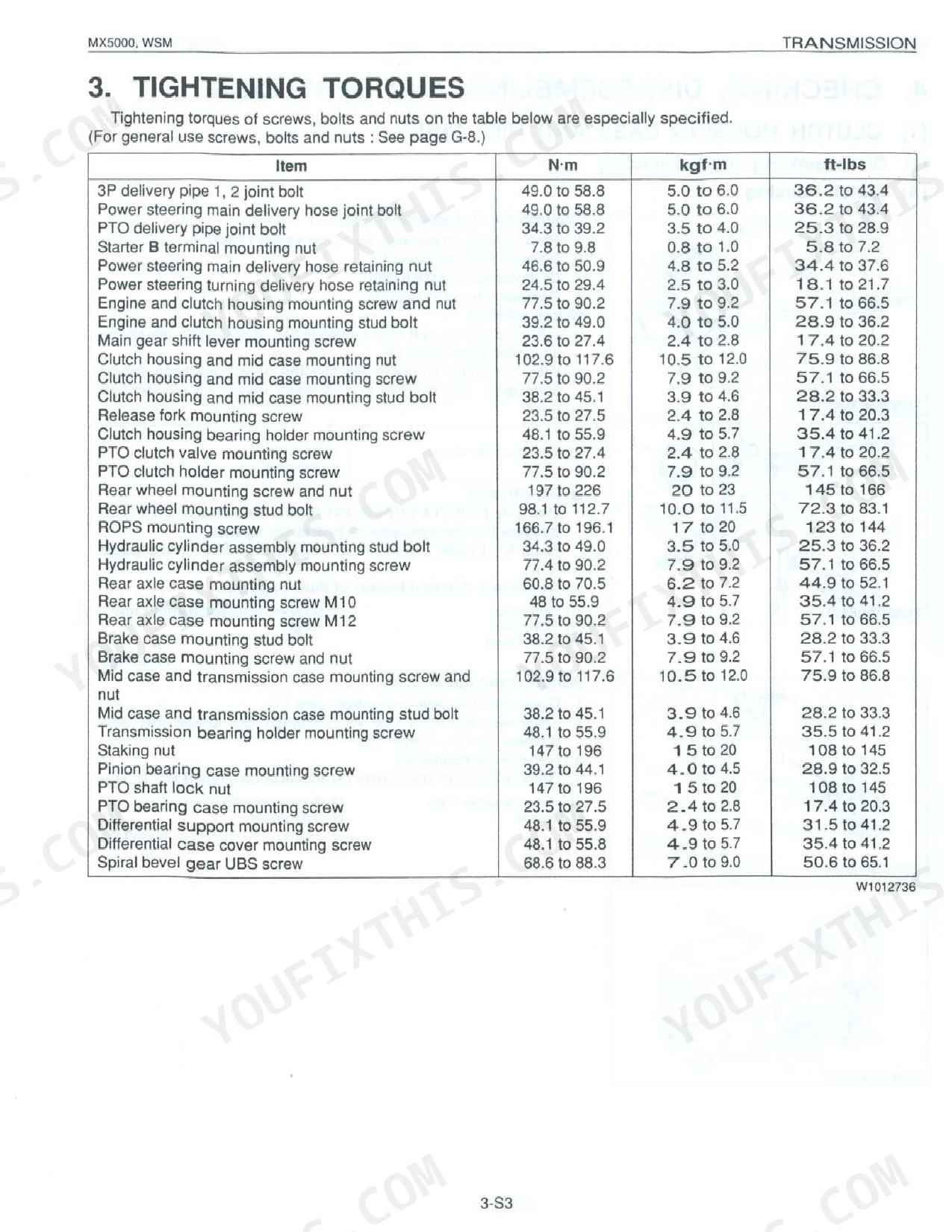

| Tightening Torque (M6, Ordinarness) | 9.80 N·m | p. 21 |

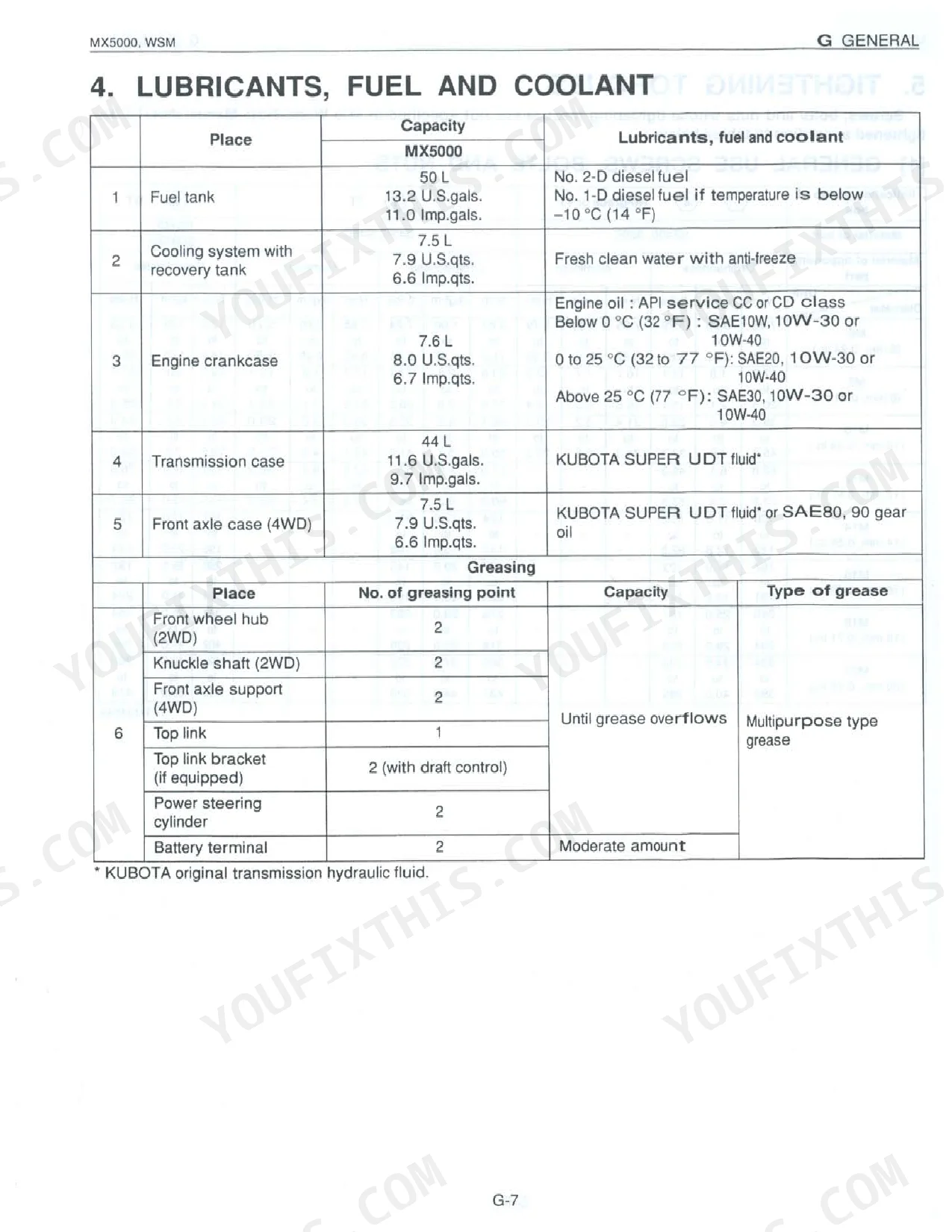

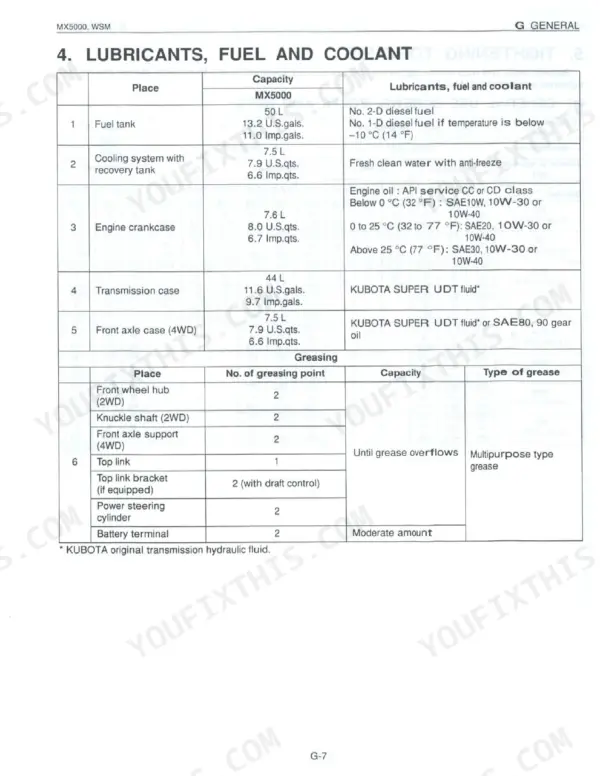

| Fuel Tank Capacity | 50 L | p. 20 |
| Engine Oil Capacity | 7.6 L | p. 20 |

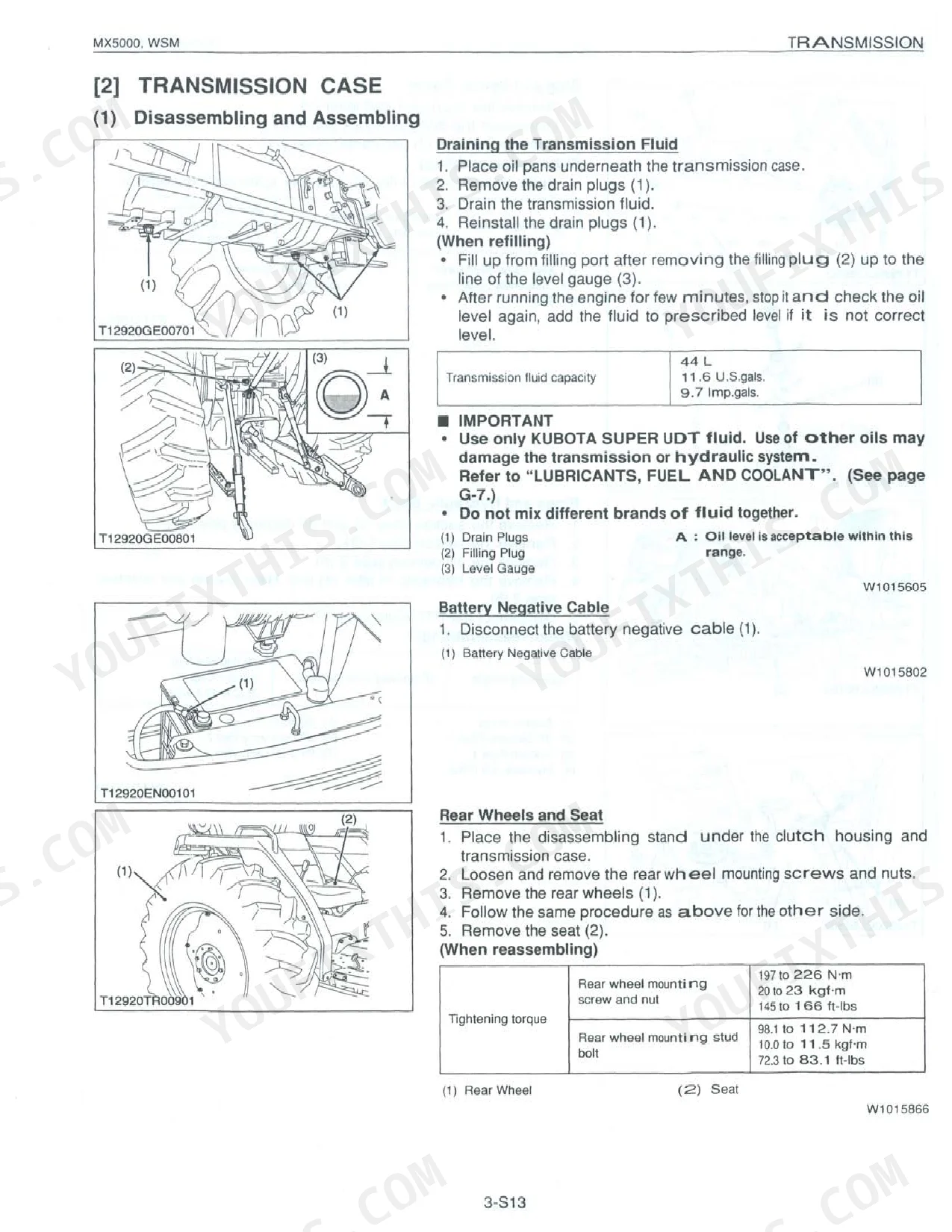

| Transmission Case Capacity | 44 L | p. 20 |
| Engine Net Power | 32.8 kW (44 HP) | p. 9 |
| Cylinder Head Surface Flatness | 0.05 mm | p. 70 |
| Engine Oil Pressure (At Rated Speed) | 294 to 441 kPa | p. 75 |
| Fan Belt Tension | 7.0 to 9.0 mm deflection | p. 75 |
| Injection Nozzle Pressure | 13.73 to 14.71 MPa | p. 75 |
| Front Wheel Mounting Nuts Torque (M10) | 172 N·m | p. 21 |
| Rear Wheel Mounting Nuts Torque (M12) | 215 N·m | p. 21 |
| Clutch Pedal Free Play | 20 to 30 mm | p. 116 |
Kubota MX5000 Common Problems This Manual Covers
PTO not engaging or slipping
A worn PTO clutch or a relief valve off the 2.35 to 2.55 MPa setting causes the PTO to slip or fail to engage. The Clutch section covers the PTO clutch, shift linkage, and its servicing specifications.
Manual Section: Clutch p. 109Weak three-point hitch lift
A tired hydraulic pump, a leaking cylinder, or a control valve fault leaves the three-point hitch slow to lift or unable to hold a load. The Hydraulic System section covers the circuit, structure, and troubleshooting.
Manual Section: Hydraulic System p. 228Hard starting or low power
Low compression, injection faults, or worn engine internals leave the V2403 hard to start and down on power. The Engine section covers troubleshooting, servicing specifications, and disassembly of the engine body.
Manual Section: Engine p. 64Clutch drag and pedal free play
As the travelling clutch wears, pedal free play drifts outside the 20 to 30 mm range and gears grind on shifting. The Clutch section covers linkage adjustment and clutch service.
Manual Section: Clutch p. 109Heavy or wandering steering
Play in the linkage or a worn steering cylinder makes the wheel heavy or the tractor wander. The Steering section covers the linkage, oil flow, and cylinder service for both 2WD and 4WD types.
Manual Section: Steering p. 195Charging and wiring faults
A tractor that will not hold a charge or shows dead lights usually has a charging or wiring fault. The Electrical System section includes the wiring diagram, troubleshooting, and circuit checking.
Manual Section: Electrical System p. 250Frequently Asked Questions
Which model does this manual cover?
It covers the Kubota MX5000 utility tractor with the V2403-M-E.A diesel engine, including the MX5000SU variant. Specifications and dimensions are included in the manual.
Are wiring diagrams included?
Yes. The Electrical System section contains the wiring diagram along with troubleshooting and circuit checking, so you can trace charging, lighting, and starting faults. p. 250
Does it cover the hydraulic and three-point system?
Yes. The Hydraulic System section covers the hydraulic circuit for the three-point system, structure, troubleshooting, and servicing specifications for lift repairs. p. 228
How is the manual delivered?
You download the PDF immediately after purchase. Nothing ships, and the file stays yours to reopen on a computer, tablet, or phone whenever you work on the tractor.
What do I get after purchasing this Kubota MX5000 manual?
This is a 316-page searchable PDF ready for immediate download. It works on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Kubota MX5000 Service Manual printable?
None at all. The PDF is DRM-free, so print whatever sections you need to carry out to the shop. Standard letter or A4 paper works fine.
Does this Kubota MX5000 manual include hydraulic schematics?
Yes. Complete hydraulic schematics with flow diagrams, valve configurations, and pressure specifications are included.
