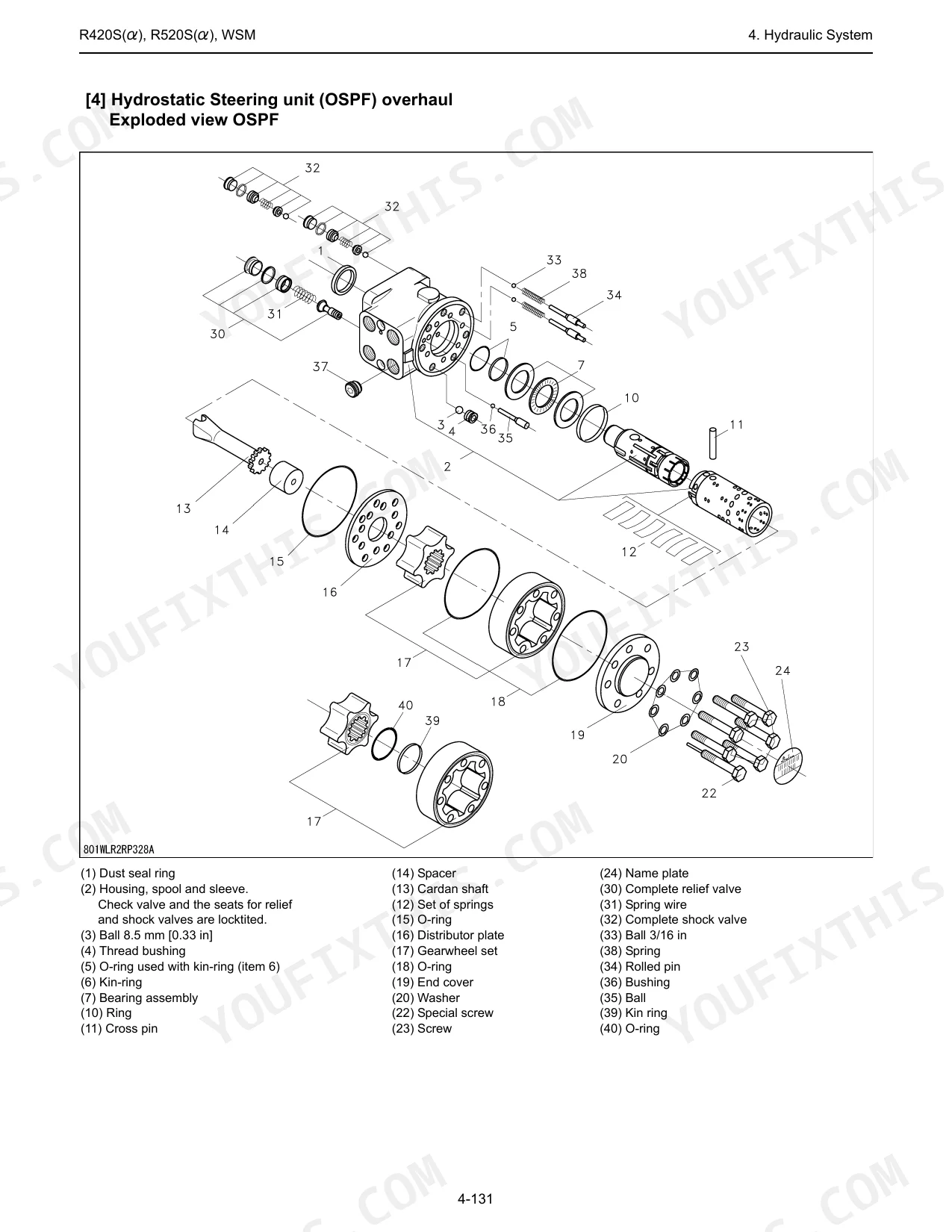

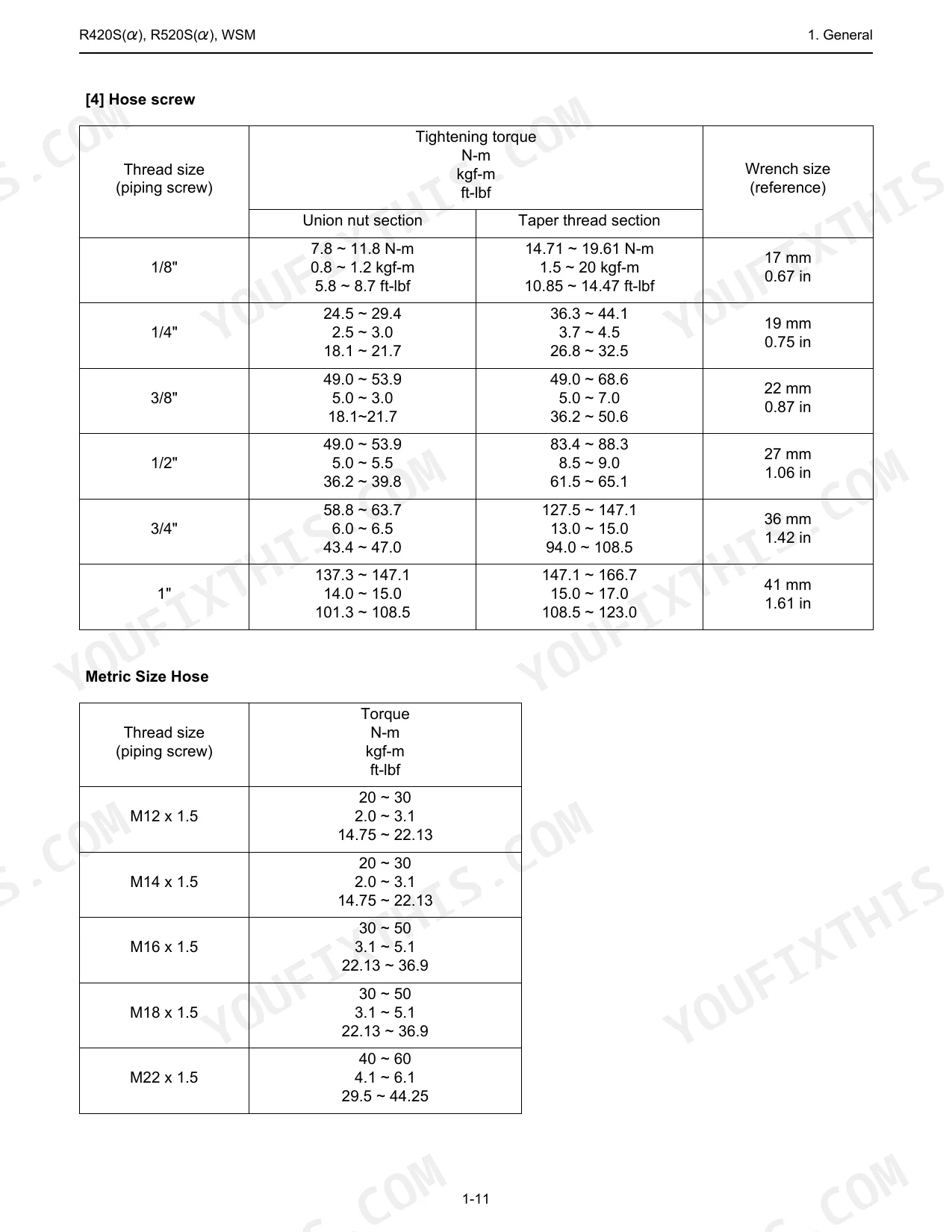

Kubota wrote OEM #97899-60800 for one machine family: the R420S, 520S, R420α, and 520α wheel loaders. The 322 pages include 20 pages of hydraulic schematics with full fluid routing, 22 pages of wiring diagrams across every harness and component, and 50 pages of torque values folded into the factory procedures. Another 60 pages walk through service steps, with exploded views of every major assembly and troubleshooting trees for electrical faults, brake failures, and hydraulic problems across the powertrain. Filling the system takes 60 L (15.9 U.S. gal.) of hydraulic fluid; confirm the R420S engine oil pan at 7.0 L before you crank it. Downtime bills by the hour, so the goal is the right factory number on the first lookup. Bookmarked by section and searchable by keyword, it opens on a tablet right at the machine.
What's Inside This Kubota R420S, 520S, R420α, 520α Manual
| System | Pages | Key Topics |
|---|---|---|
| 1. General | 5-22 | [1] Body and engine identification marks, [2] Safety precautions for servicing, disassembly and reassembly, [3] Important safety process and critical functional process |

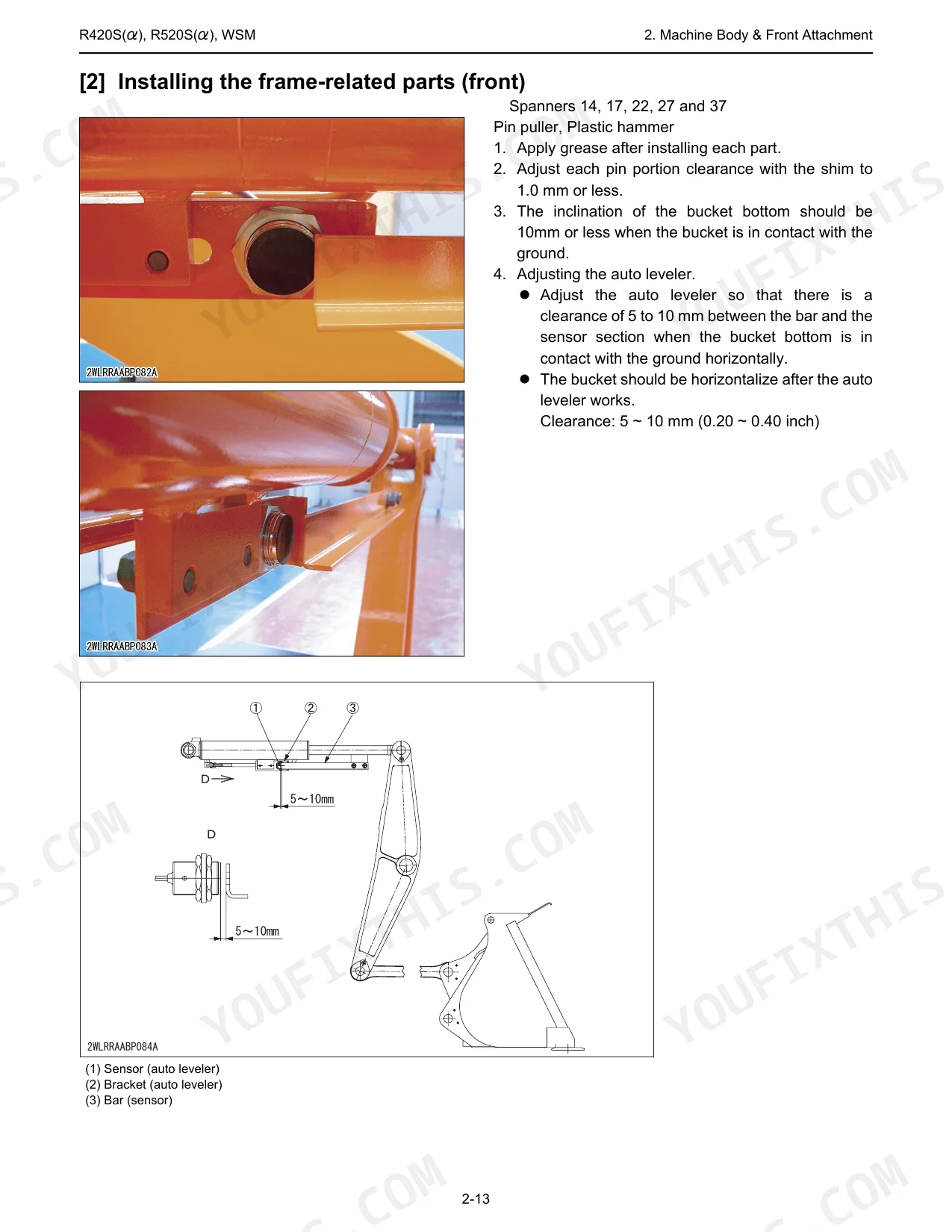

| 2. Machine Body & Front Attachment | 23-55 | Specifications (Machine Specifications, Main Specification: EU-version), Installing the frame-related parts, Center pin, Rear frame, center pin |
| 3. Engine | 56-70 | [1] Specifications, [2] Engine assy dismounting, [3] Engine accessories |
| 4. Hydraulic System | 71-234 | [1] Troubleshooting, [2] Specifications, [3] Testing, [4] Servicing |
| 5. Brake System and power train | 235-261 | [1] Brake system, [2] Power train |

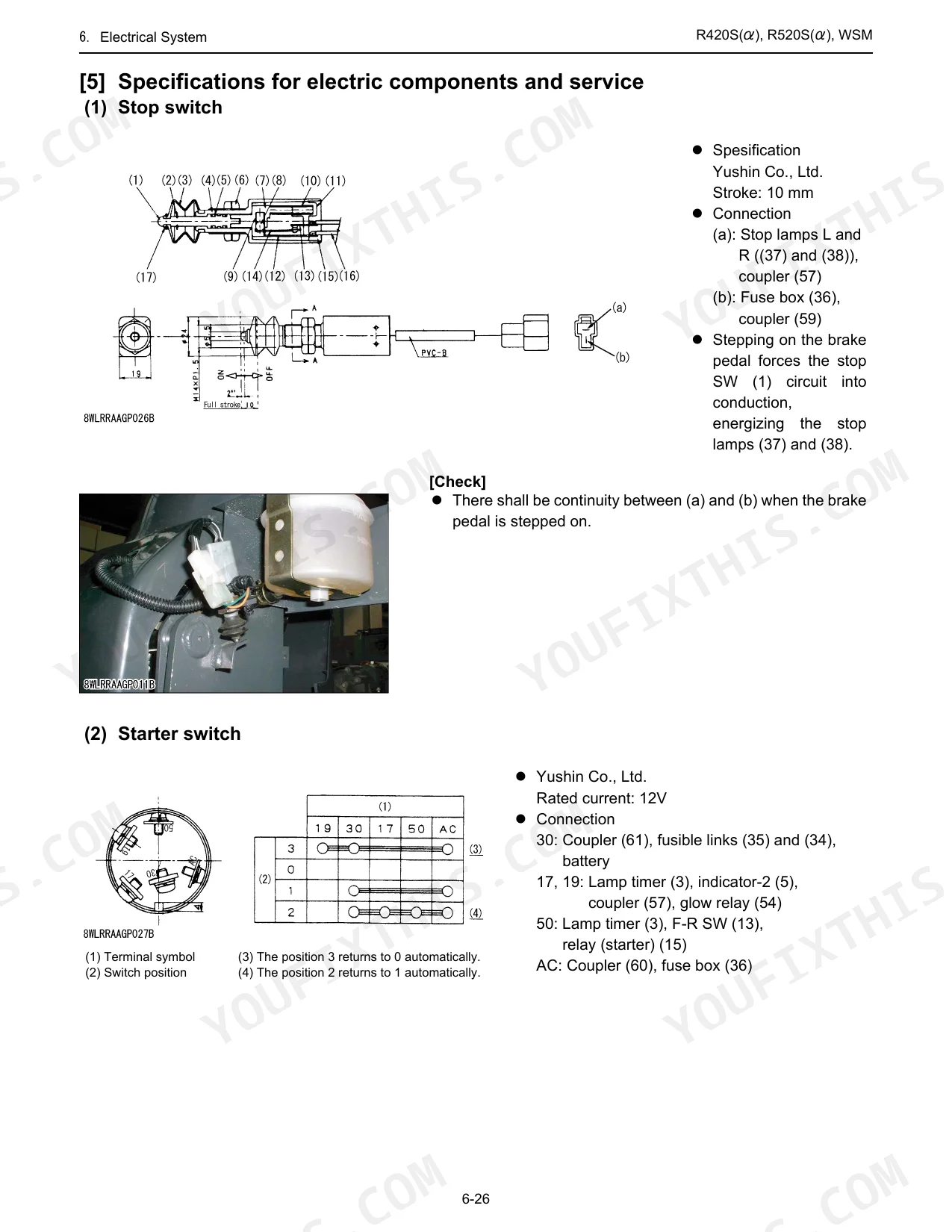

| 6. Electrical System | 262-322 | [1] Testing, [2] Troubleshooting, [3] Specifications, [4] Wire harness installation, [5] Specifications for electric components and service |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

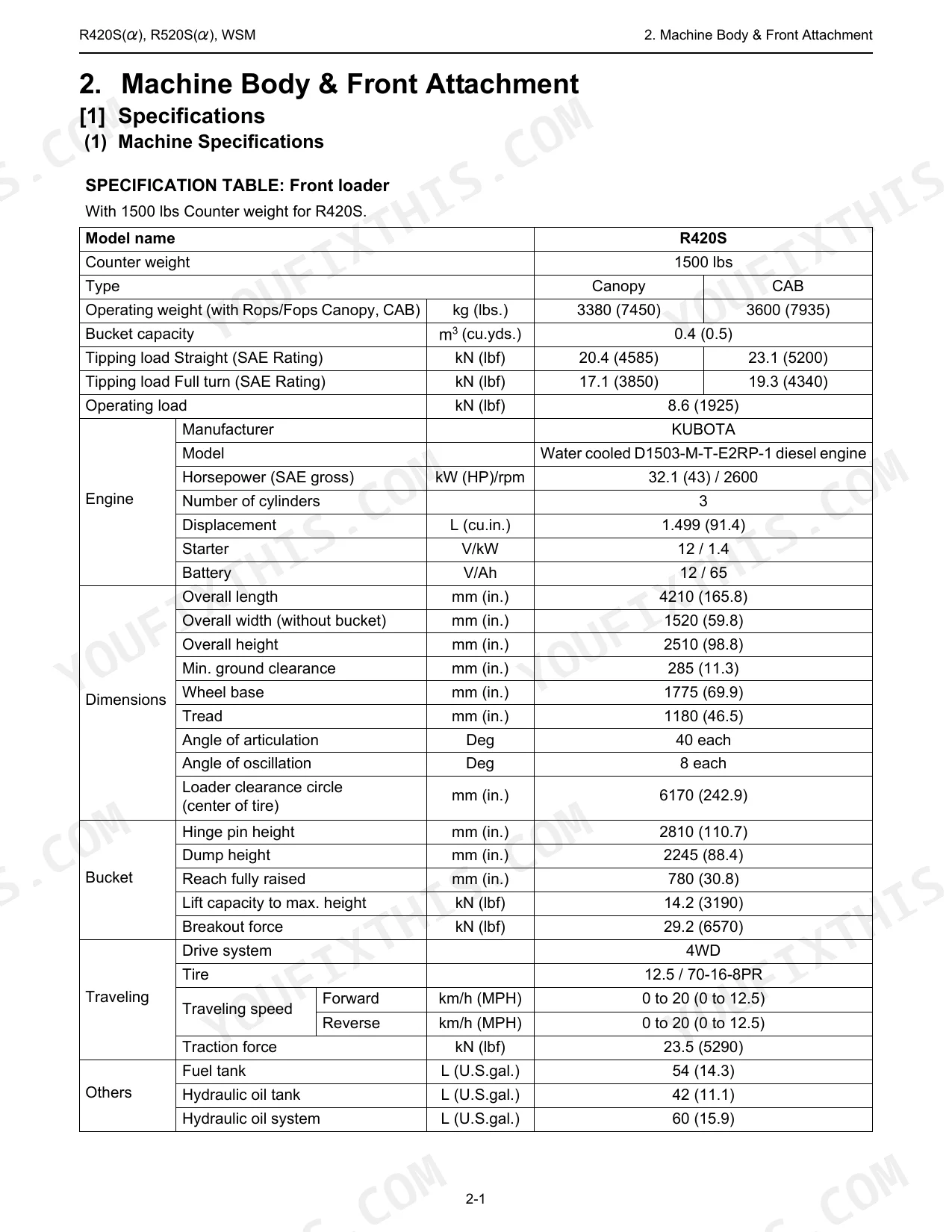

| Fuel tank capacity | 54 L (14.3 U.S.gal.) | p. 23 |
| Hydraulic oil tank capacity | 42 L (11.1 U.S.gal.) | p. 23 |
| Hydraulic oil total system capacity | 60 L (15.9 US gal) | p. 12 |
| Wheel hub bolts tightening torque | 275 to 314 N-m (203 to 231 ft-lb) | p. 20 |
| M6 bolt tightening torque (S40C, S45C) | 9.8 ~ 11.3 N-m | p. 18 |
| Parking Valve Max. pressure | 4.9 MPa (711 psi) | p. 83 |
| R420S | ||
| Engine oil pan capacity | 7.0 L (1.8 US gal) | p. 12 |
| Front tire pressure | 0.26 ± 0.01 MPa (36.9 ± 1.4 psi) | p. 20 |
| R520S | ||
| Engine oil pan capacity | 9.5 L (2.5 US gal) | p. 12 |
| Front tire pressure | 0.22 ± 0.01 MPa (31.2 ± 1.4 psi) | p. 20 |
| R420Sα | ||
| LST Pump Operating pressure (at bench) | 36.8 MPa (5334 psi) | p. 81 |
| R520Sα | ||
| LST Pump Operating pressure (at bench) | 41.2 MPa (5974 psi) | p. 81 |
Kubota R420S, 520S, R420α, 520α Common Problems This Manual Covers

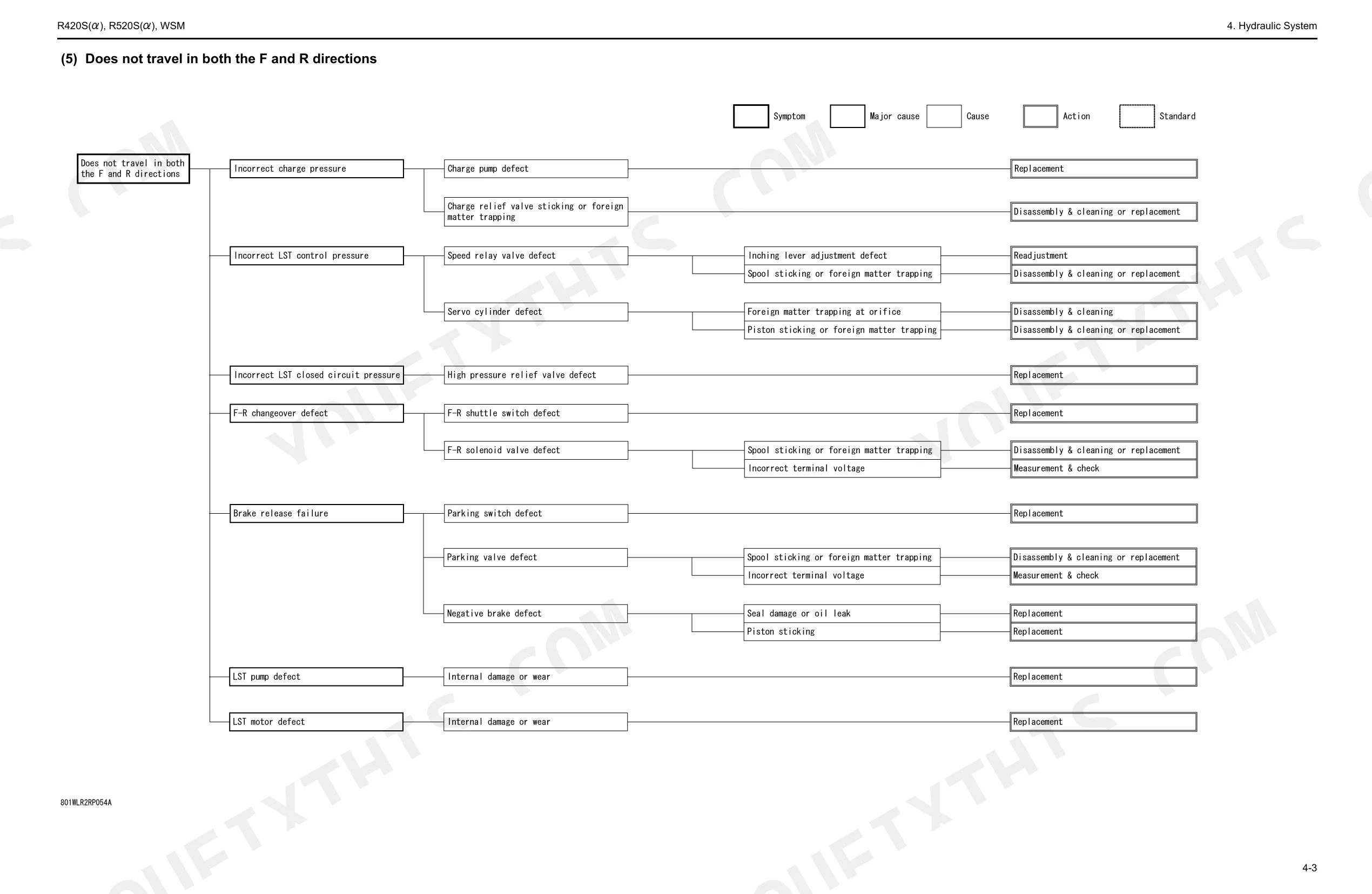

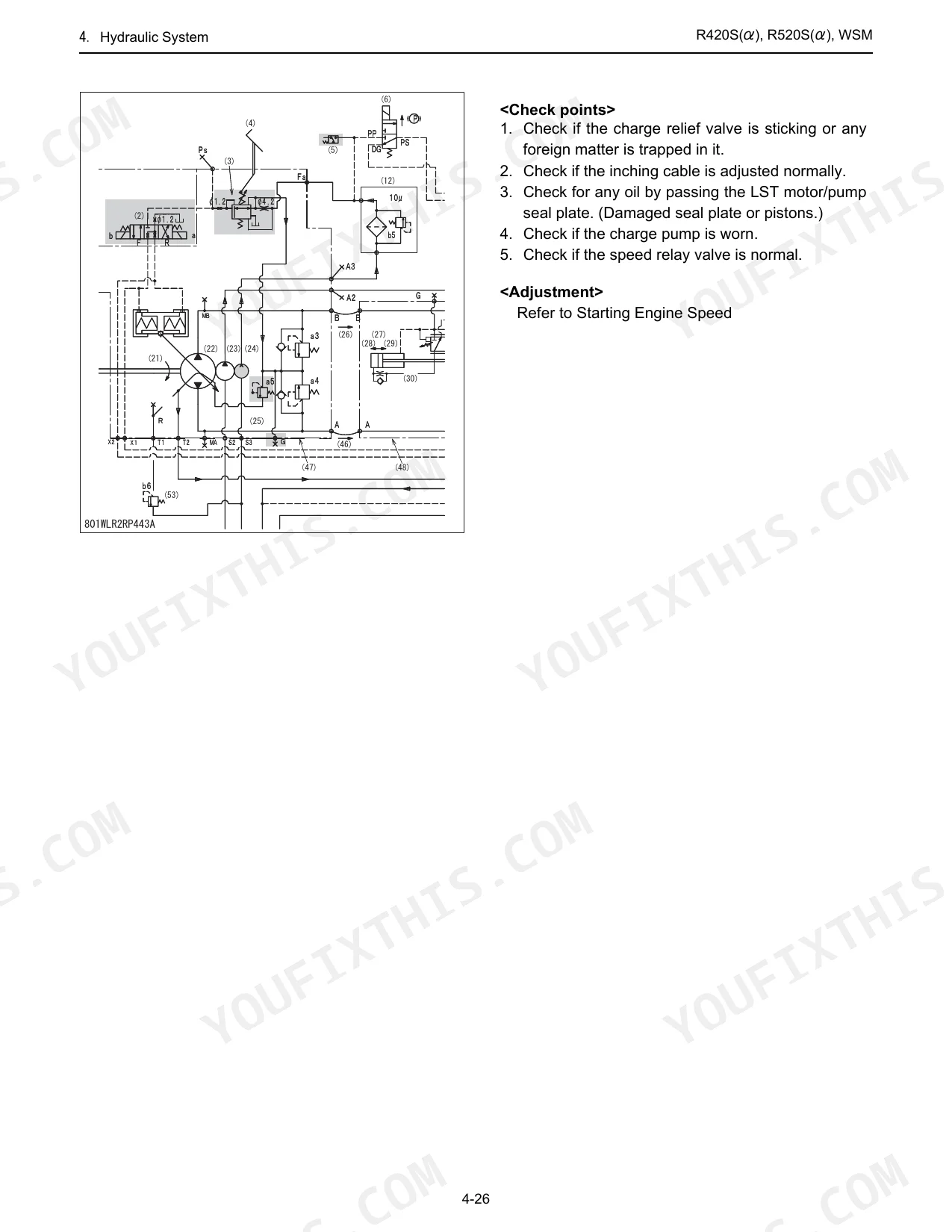

Kubota R420Sα wheel loader hydrostatic transmission hesitates under load and does not travel in both directions p. 81
Test the LST pump operating pressure. Connect your gauge and verify the bench pressure reaches 36.8 MPa (5334 psi) as specified on page 81. If pressure drops below spec, check the relief valves and inspect the charge pump for severe internal wear.
Manual Section: Hydraulic System Troubleshooting (Travel/Traction)Abnormal popping noise from the front axle during heavy bucket loads and steering wheel slippage p. 20
Inspect the front axle assembly and verify the wheel hub bolts are secure. Torque the hub bolts to 275 to 314 N-m (203 to 231 ft-lb) according to the specifications on page 20. Drain the front differential and check for metal shavings.
Manual Section: Power Train Servicing (Axles & Differential)Front loader arms experience weak lifting capacity or severe cylinder fall during material handling p. 25
Check the total hydraulic oil system capacity on page 25. Drain the reservoir and refill with exactly 60 L of fresh hydraulic fluid for the R420α model. Inspect the main relief valve for debris and test the front main relief pressure against factory limits.
Manual Section: Hydraulic System Troubleshooting (General)Machine feels sluggish during acceleration and parking brake drags or fails to release completely p. 83
Measure the parking valve maximum pressure. Connect a gauge to the test port and ensure the system maintains 4.9 MPa (711 psi) as outlined on page 83. If the pressure falls short, remove the parking valve assembly and inspect the internal springs for fatigue.

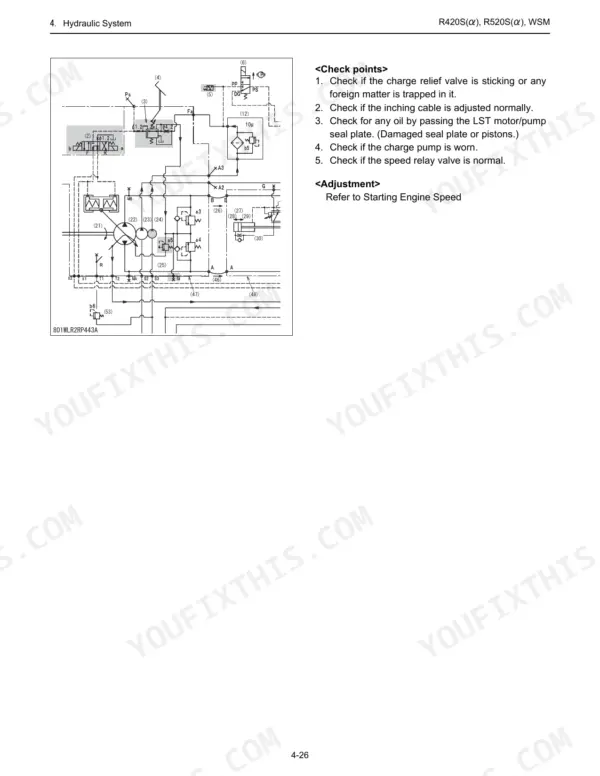

Manual Section: Brake System ServicingHydrostatic drive system whines at high idle and machine experiences extremely slow traveling speed p. 86
Read the charge pump pressure at 2600 rpm. Verify the gauge shows 4.41 ± 0.3 MPa (640 ± 43 psi) on page 86 for the R420Sα. If the pressure is low, remove the charge pump and inspect the gerotor gears for scoring.
Manual Section: Hydraulic System Diagnostics (Pressure/Flow Measurement)Frequently Asked Questions
What are the recommended service intervals?
The interval chart stacks up by hours. Check the battery liquid level every 50 hours, change the engine oil and its filter cartridge every 200 hours, and clean the air cleaner element every 500 hours. Replace fuel lines every two years. Inspect and swap radiator hoses and bands twice a year, in spring and autumn. Check the electrical circuits for damage and loose clamps every 3000 hours.
What fluids and capacities does this machine require?
Fluid grades and capacities vary by tank. The fuel tank holds 54 L (14.3 U.S. gal.) of diesel. The R420S engine oil pan takes 7.0 L (1.8 U.S. gal.) of SAE 10W-30(CD); the R520S takes 9.5 L (2.5 U.S. gal.). Each differential case, front and rear, needs 3.0 L (0.8 U.S. gal.) of SAE 80W gear oil. Total hydraulic capacity is 60 L (15.9 U.S. gal.) on the R420S and 60 L (16.4 U.S. gal.) on the R520S, running SAE 10W30 or equivalent.
How to troubleshoot engine won't start?
Start with engine cranking speed: slow cranking points to a faulty battery from insufficient charge, poor terminal contact, or poor grounding. If the starter runs but the engine doesn't turn over, suspect a faulty starter, a slipping over-running clutch, or worn bearings. No meshing sound from the pinion and ring gear means worn components or excessive pinion gap. A pinion that shifts repeatedly points to a faulty magnet switch.
What are the hydraulic system specifications?
Specs break out by pump. The R420S LST pump runs 0 ~ 28 cm³/rev displacement and 76.8 L/min max oil delivery at 36.8 MPa (5334 psi). The R420S main pump runs 16.2 cm³/rev and 42.12 L/min, with steering pressure at 17.2 MPa (2489 psi). The charge pump runs 6.5 cm³/rev at 3.4 MPa (498 psi). The hydraulic tank holds 54 L (14.27 usgal) of SAE 10W30 or equivalent.
How will I receive this Kubota R420S, 520S, R420α, 520α Service Manual?
This is a 322-page searchable PDF ready for immediate download. It works on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this Kubota R420S, 520S, R420α, 520α manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are there wiring harness diagrams in this Kubota R420S, 520S, R420α, 520α?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Kubota R420S, 520S, R420α, 520α.
Document Quality
This is a native digital PDF document, so you can search the full text and copy content from every page. The text is consistently crisp and easy to read throughout. Diagrams and illustrations are a mix of sharp line drawings and clear raster images, with all labels remaining readable. The pages are clean, showing no scan artifacts, stains, marks, or skewed content. There are no notable blank or filler pages present.
