Part of the Kubota Repair Manuals.
This is the Kubota Shop Manual for the ME8200 and ME9000 tractors, a 546 page factory service document. It runs from general identification and maintenance through the full teardown and servicing of every major system on the machine.Inside you get the complete repair chain: the engine and engine servicing, the travelling and PTO clutch, the transmission and its shuttle, main and auxiliary shift sections, the rear axle, brakes, front axle, full hydrostatic power steering, the hydraulic system with its trailer brake and PTO clutch valves, the electrical system, and the cabin air conditioning. Each system carries troubleshooting, servicing specifications, tightening torques and checking procedures.With this PDF you can trace a fault to the right section, set torques and clearances to Kubota figures, and rebuild an assembly yourself instead of guessing. It is a searchable download you can print or keep on a phone, tablet or laptop right in the shop.
What's Inside This Kubota ME8200, ME9000 Manual

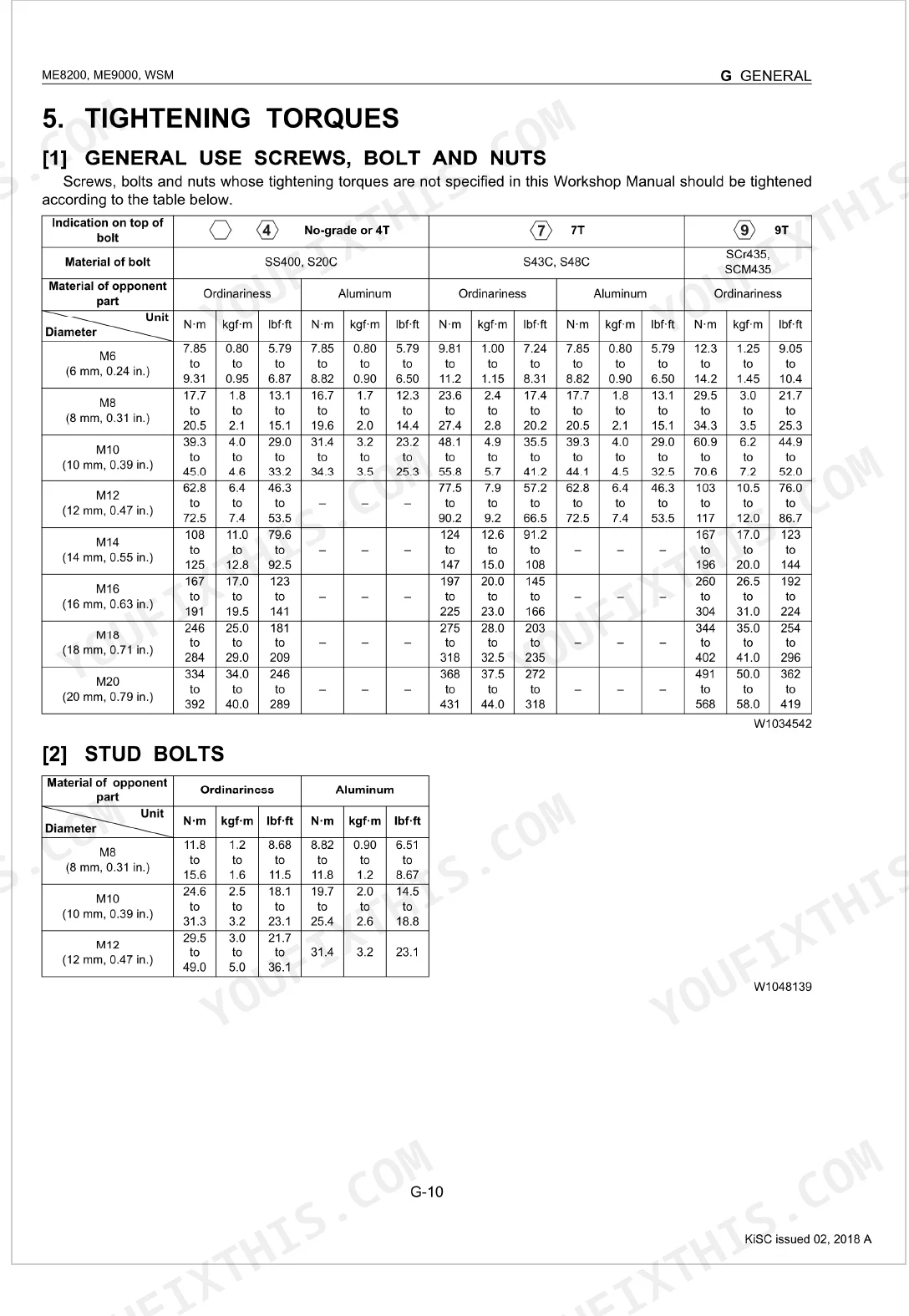

| System | Pages | Key Topics |
|---|---|---|
| General | 19-94 | Tractor Identification, Handling Precautions for Electrical Parts and Wiring (Battery, Fuse, Connector, Handling of Circuit Tester), Lubricants, Fuel and Coolant |

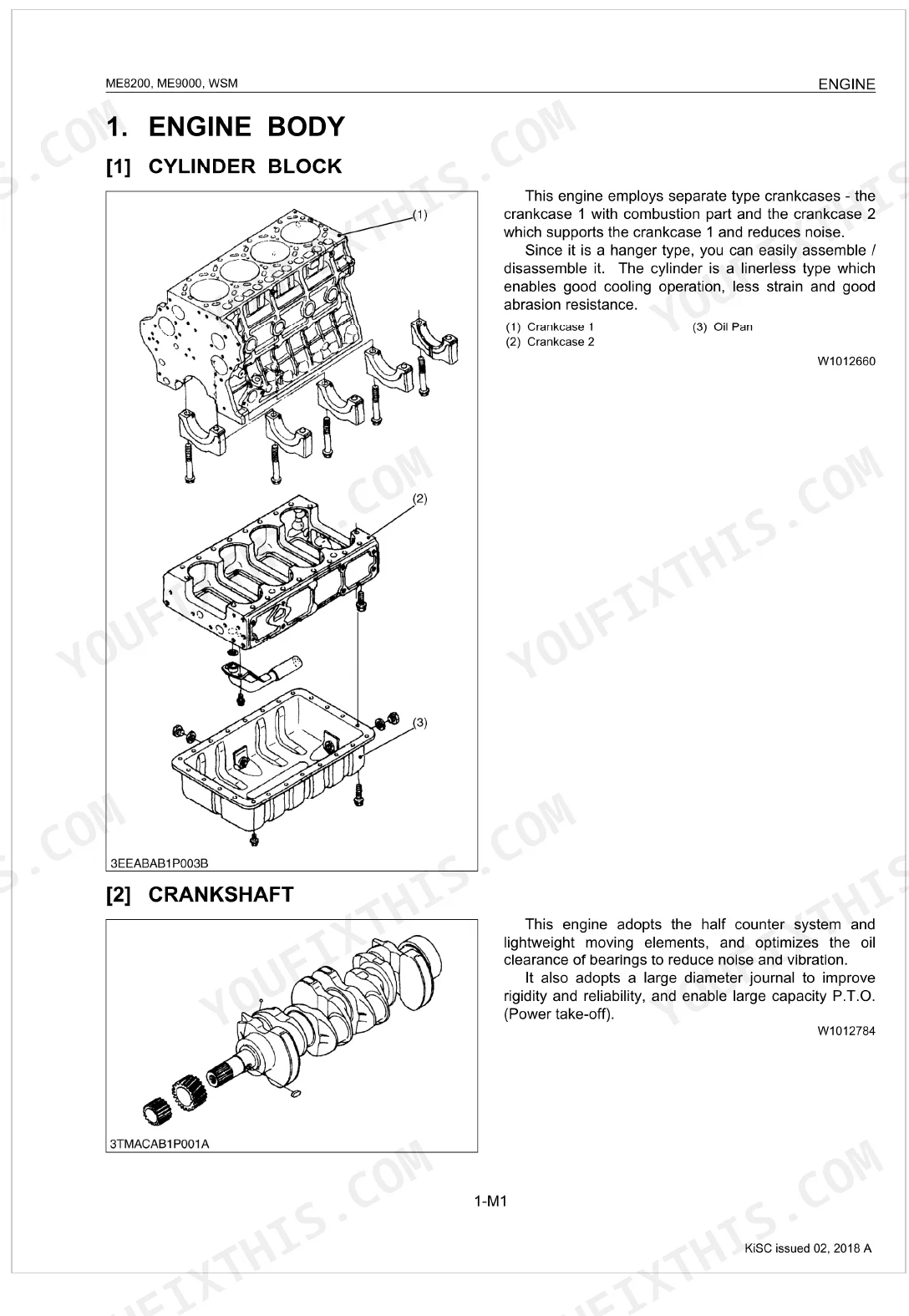

| Engine | 95-102 | Engine Body (Cylinder Block, Crankshaft), Fuel System (Fuel Filter), Lubricating System, Cooling System, Turbocharger System |
| Engine Servicing | 103-178 | Separating Engine From Tractor, Engine Body, Lubricating System, Cooling System, Fuel System, Turbocharger System |
| Clutch | 179-182 | Travelling Clutch, PTO Clutch (Structure, Oil Flow) |
| Clutch Servicing | 183-213 | Travelling Clutch, Hydraulic PTO Clutch |
| Transmission | 214-220 | Structure, Power Train for Travelling Gear (Shuttle Shift Section, Main Gear Shift Section, Auxiliary Gear Shift Section, Four Wheel Drive Section) |
| Transmission Servicing | 221-273 | Clutch Housing Case, Transmission Case |
| Rear Axle | 274-276 | Structure, Rear Axle Function, Rear Axle Type |
| Rear Axle Servicing | 277-290 | Rear Axle, Transmission Case, Lift Rods, Lower Links, Speed Change Base, Fender, ROPS, Fender Bracket |
| Brakes | 291-295 | Travelling Brake, Parking Brake, Brake Case |
| Brakes Servicing | 296-308 | Removing Master Cylinder and Equalizer, Separating Brake Case From Transmission Case, Disassembling Brake Case |
| Front Axle | 309-313 | Structure, Front Wheel Alignment |
| Front Axle Servicing | 314-333 | Separating Front Axle, Disassembling Front Axle |
| Steering | 334-336 | Steering Mechanism, Full Hydrostatic Power Steering Description, Steering System Components |
| Steering Servicing | 337-342 | Removing Steering Controller (ROPS Type), Removing Steering Controller (Cabin Type), Removing Steering Cylinder |

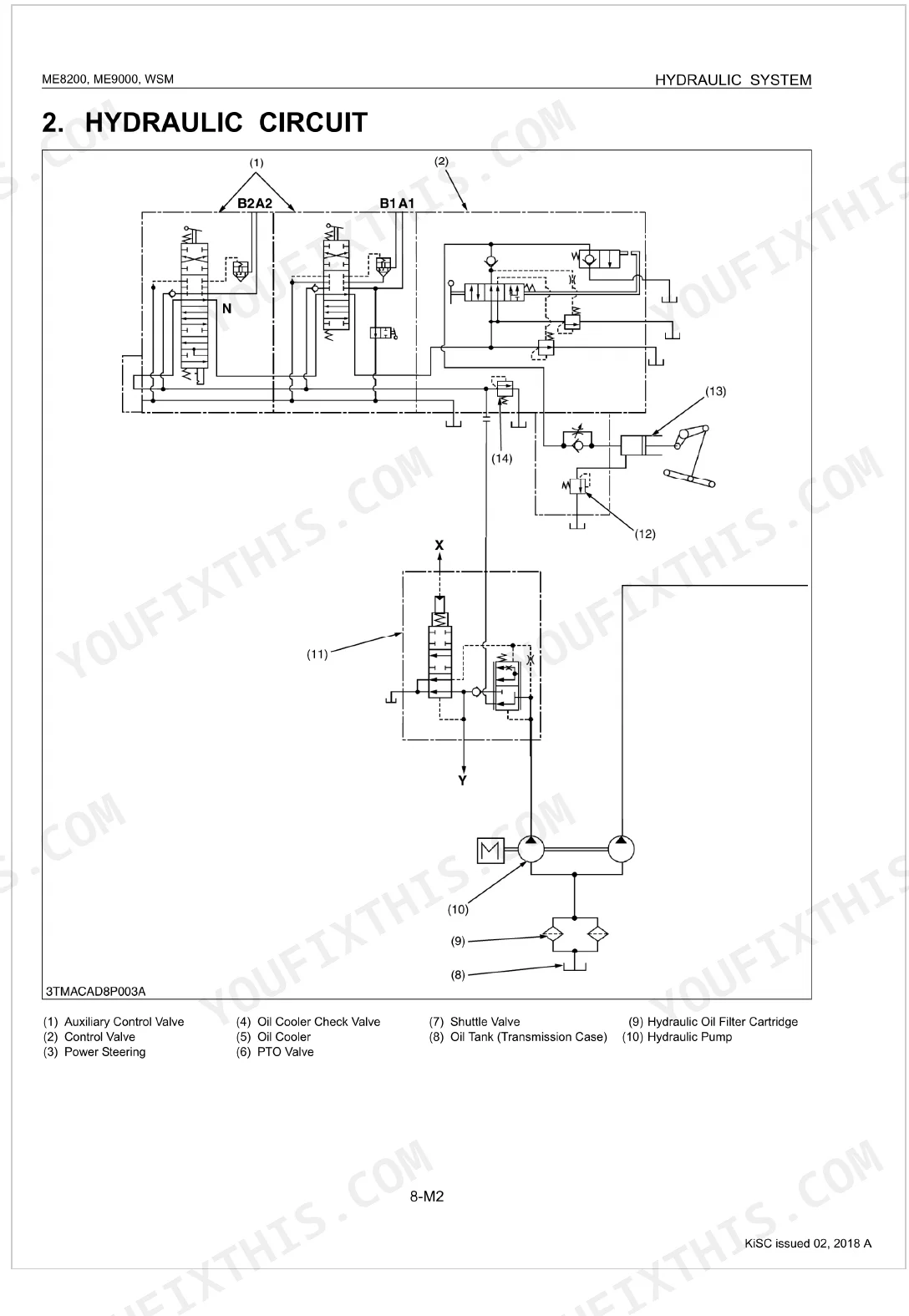

| Hydraulic System | 343-371 | Structure, Hydraulic Circuit, Hydraulic Shuttle Valve (Operation), PTO Clutch Valve, Hydraulic Trailer Brake Valve (Structure, Operation), Power Steering Hydraulic Circuit |
| Hydraulic System Servicing | 372-431 | PTO Clutch Valve, Hydraulic Shuttle System, Hydraulic Brake, Trailer Brake Valve, Hydraulic Pump for Power Steering, Steering Controller, Three Point Hydraulic System, Master Cylinder and Equalizer |
| Electrical System | 432-443 | Wiring Diagram, Cabin Type, Color of Wiring, Lighting System, Room Lamp (Cabin Type), Easy Checker, Trailer Socket, Others |
| Electrical System Servicing | 444-485 | Battery, Starting System, Stopping System, Charging System, Lighting System, Warning Lamp, Gauges, Trailer Socket |
| Cabin | 486-493 | Air Conditioning System (Structure), System Control, Air Conditioner Main Relay and Compressor Relay, Blower Switch |
| Cabin Servicing | 494-546 | Precautions at Repairing Refrigerant Cycle, Handling of Service Tools, Manifold Gauge Set, Refrigerant Charging Hose, Vacuum Pump Adaptor, Electric Gas Leak Tester, CAN Tap Valve, T-Joint |

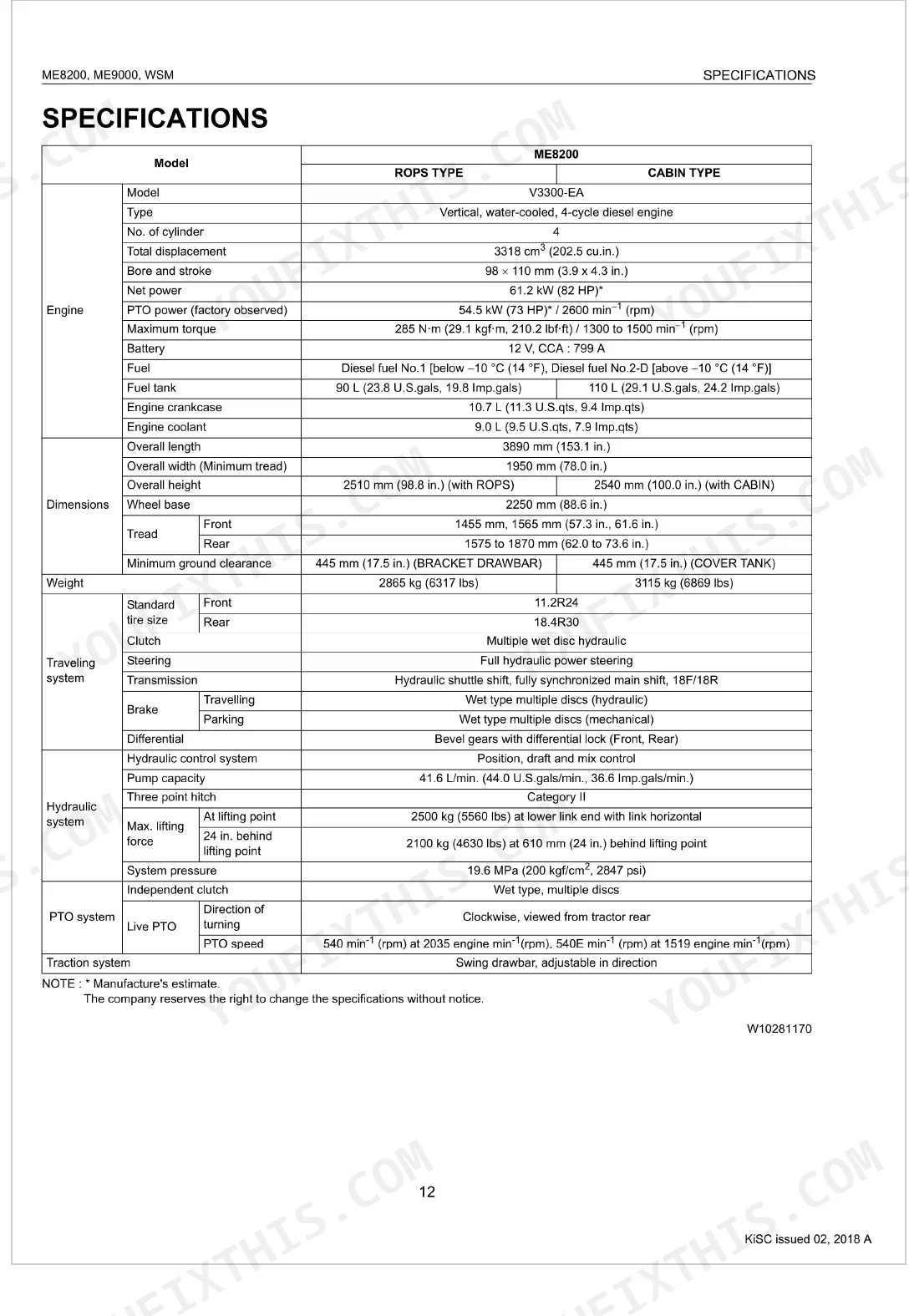

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

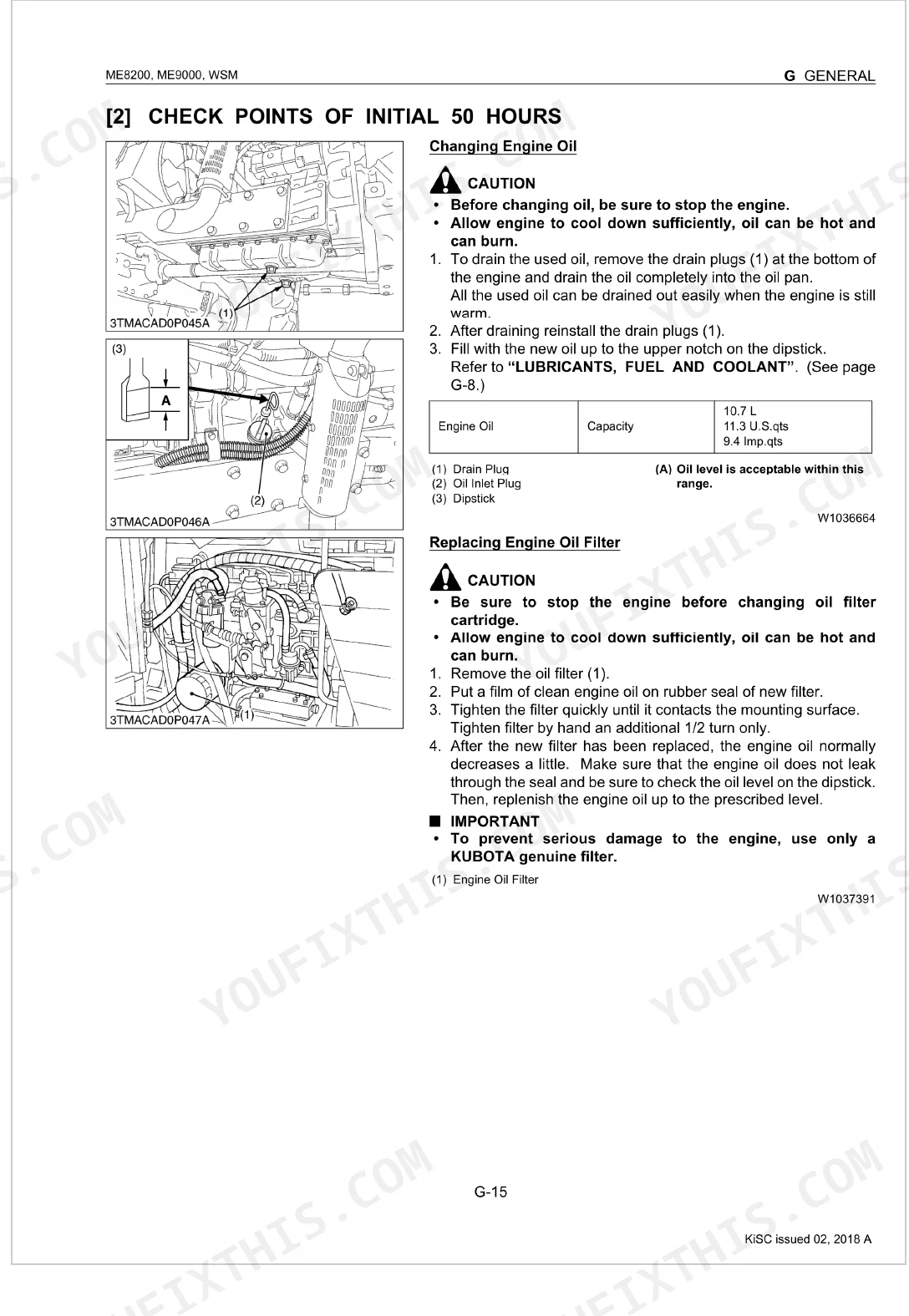

| Engine Oil Capacity | 10.7 L (11.3 U.S.qts, 9.4 Imp.qts) | p. 28 |
| Transmission Fluid Capacity | 55.0 L (58.1 U.S.qts, 48.4 Imp.qts) | p. 28 |
| Engine Cylinder Head Surface Flatness Allowable Limit | 0.05 mm | p. 108 |
| Engine Main Bearing Case Screw Torque | 137.3 to 147.1 N·m | p. 115 |
| PTO Clutch Valve Pressure | 2.45 to 2.55 MPa | p. 375 |
| Steering Cylinder I.D. Allowable Limit | 55.100 mm | p. 376 |
| Air Conditioner Drive Belt Tension | 10 to 12 mm deflection at 98 N | p. 501 |
| Brake Pedal Free Travel | 7 to 14 mm | p. 298 |
| ME8200 | ||
| Transmission Case Oil Capacity | 55.0 L | p. 28 |
| ME9000 | ||
| Transmission Case Oil Capacity | 65.0 L | p. 28 |
| ME8200 up to 54529 | ||
| Front Differential Case Oil Capacity | 5.0 L | p. 28 |
| ME8200 54530 and above, ME9000 | ||
| Front Differential Case Oil Capacity | 6.0 L | p. 28 |
Kubota ME8200, ME9000 Common Problems This Manual Covers
Hard starting or low engine power

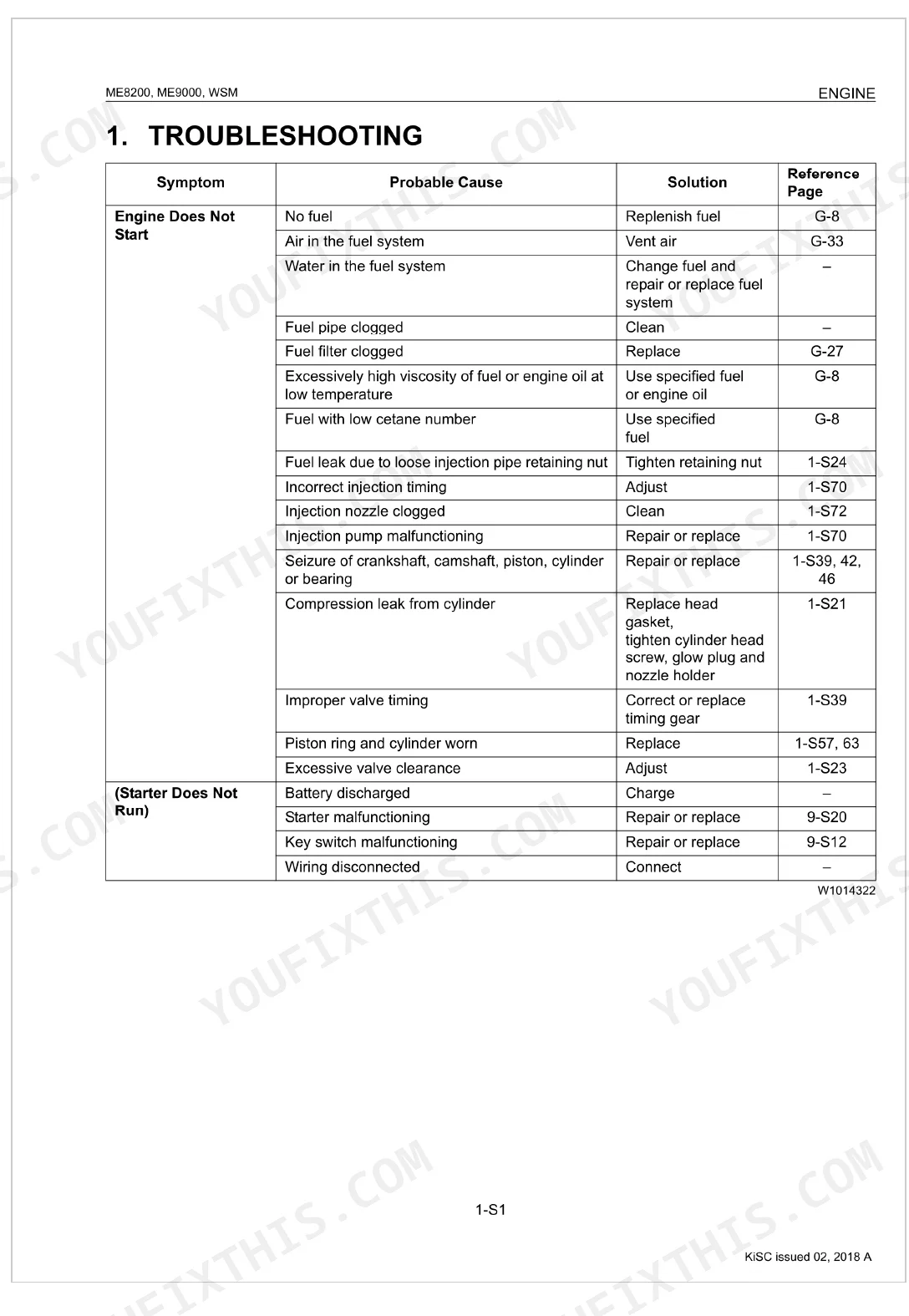

Hard starts, smoke, or lost power on these turbocharged diesels point to compression, fuel, or turbocharger trouble. The Engine Servicing section carries the troubleshooting, servicing specifications, tightening torques and checking procedures for the engine.
Manual Section: Engine Servicing p. 103Clutch drag or PTO engagement fault
A dragging travelling clutch or a PTO clutch that slips usually traces to worn friction parts or oil flow issues. The Clutch Servicing section covers troubleshooting, servicing specifications, tightening torques and checking for both clutches.
Manual Section: Clutch Servicing p. 183Hard shifting or transmission noise
Notchy shifts, jumping out of gear, or whine point to worn gears, forks or bearings in the shuttle, main or auxiliary shift sections. The Transmission Servicing section covers troubleshooting and the clutch housing and transmission case disassembly and servicing.
Manual Section: Transmission Servicing p. 221Weak or uneven braking
A spongy pedal or a tractor that pulls under braking traces to worn friction parts or the brake case. The Brakes Servicing section gives troubleshooting, servicing specifications, tightening torques and the checking steps.
Manual Section: Brakes Servicing p. 296Heavy or wandering power steering
Slow or heavy steering on the full hydrostatic system usually traces to the steering unit or hydraulic supply rather than the linkage. The Steering Servicing section covers troubleshooting, tightening torques and checking for the steering system.
Manual Section: Steering Servicing p. 337Hydraulic or trailer brake valve trouble
A hitch that lifts slowly or a trailer brake that will not apply points to the shuttle, PTO clutch or trailer brake valves. The Hydraulic System Servicing section covers troubleshooting, servicing specifications, tightening torques and checking of the hydraulic circuit.
Manual Section: Hydraulic System Servicing p. 372Charging or starting electrical faults
No crank, slow crank, or a battery that will not stay charged points to the starter or charging circuit. The Electrical System Servicing section covers troubleshooting, servicing specifications, tightening torques and checking.
Manual Section: Electrical System Servicing p. 444Frequently Asked Questions
Which tractors does this manual cover?
It is the Kubota Shop Manual for the ME8200 and ME9000 tractors, covering both models across all major systems.
Are wiring diagrams included?

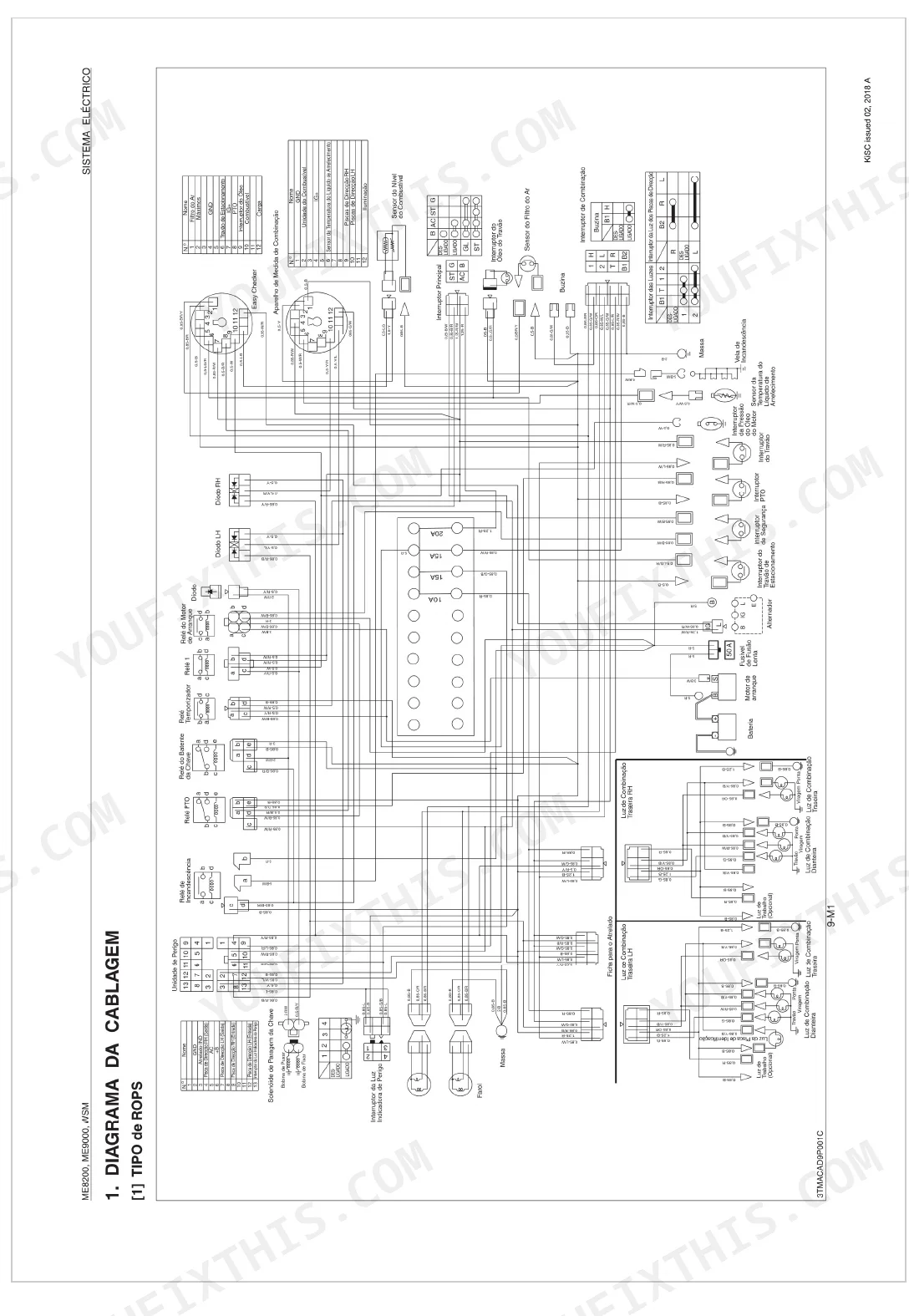

Yes. The Electrical System section contains the wiring diagram, the color of wiring, lighting system and other circuits for the cabin type machine. p. 432
Does it cover the hydraulic trailer brake valve?
Yes. The Hydraulic System section describes the hydraulic circuit, the shuttle valve, PTO clutch valve and the structure and operation of the hydraulic trailer brake valve. p. 343
Is this Kubota ME8200 Shop Manual a digital download?
A 546-page Shop Manual in searchable PDF, ready the moment your checkout completes. Open it on a computer, tablet, or phone with no shipping wait.
Can I print specific sections of this Kubota ME8200 Shop Manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Can I trace circuits with this Kubota ME8200 manual?
Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
