This is the factory Kubota MX5200 Service Manual (publication 9Y111-19580), covering the MX5200 and MX5200HD compact utility tractors in both manual transmission and HST types. Across 470 pages it documents the V2403-M-TE3 diesel engine and every major system on the machine: clutch, transmission, rear and front axle, brakes, steering, the three-point hydraulic system, and the electrical system with its Operator Presence Control circuit.You get exact service specifications, tightening torques, and step by step procedures for diagnosis, disassembly, and reassembly, backed by wiring diagrams and hydraulic circuits. Fluid capacities are listed as well, including 8.0 L engine oil, a 44.0 L transmission case, and a 48.0 L fuel tank.Whether you maintain your own tractor or run an independent shop, this PDF gives you the reference to service the MX5200 correctly instead of guessing. Instant download after purchase.
What's Inside This Kubota MX5200 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 19-27 | Operating Safety Precautions and Warning Decal Locations |

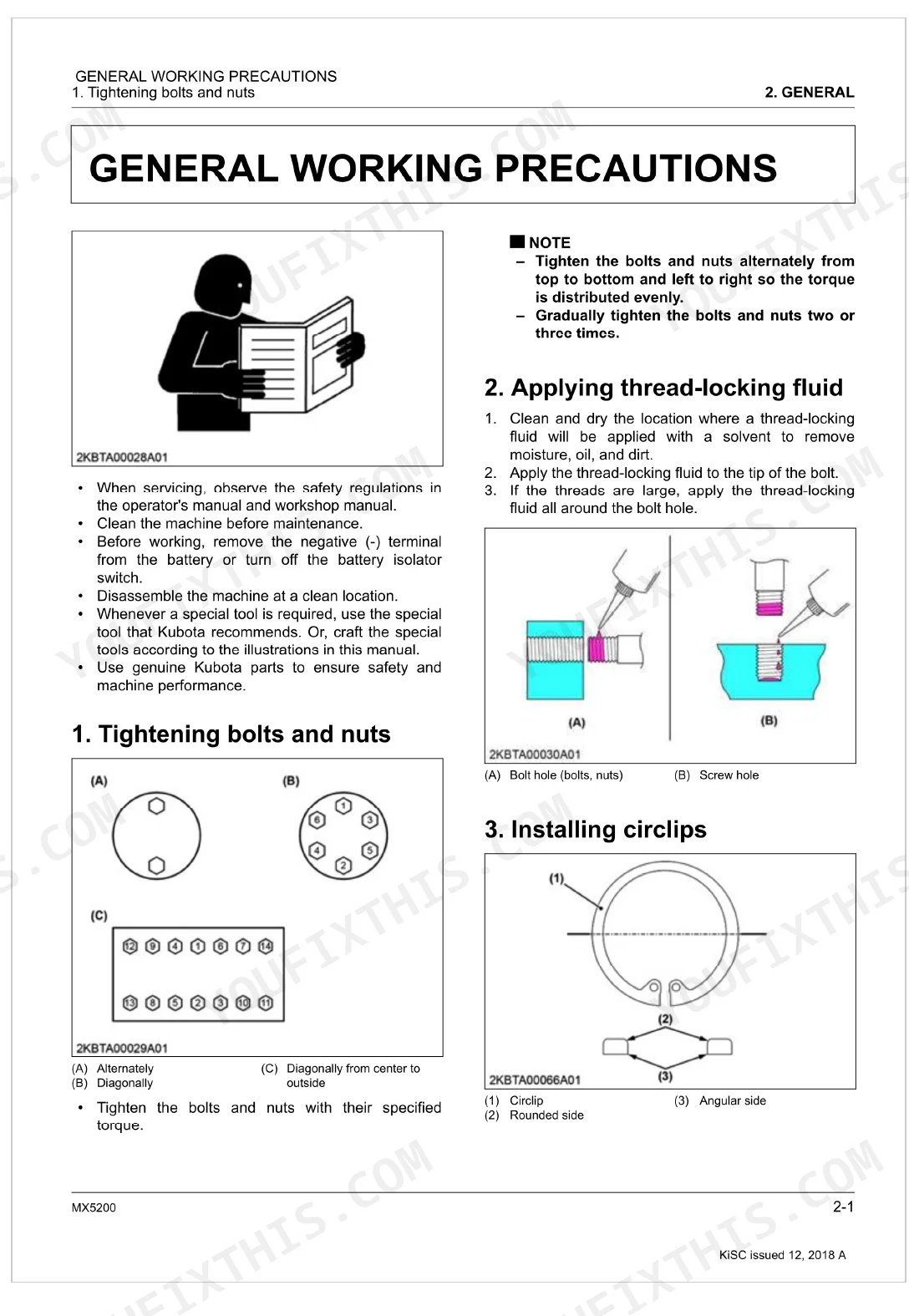

| General | 28-72 | Tightening Bolts and Nuts, Applying Thread-Locking Fluid, Installing Circlips, Installing Spring Pins, Handling Split Pin, Handling Chain Joint and Split Pin |
| Maintenance | 73-103 | Service Intervals Table, Greasing, Engine Start System [Manual Transmission Type], Engine Start System [HST Type], Wheel Bolts and Nuts Torque, Battery Condition, Fan Belt, Brake |
| Engine | 104-176 | Lubricating System, Cooling System, Fuel System, Servicing |
| Clutch | 177-195 | Structure of Clutch, Troubleshooting for Clutch, Service Specifications for Clutch, Tightening Torques for Clutch, Checking Clutch Pedal Free Travel, Checking PTO Clutch Operating Pressure, Preparation, Separating Engine From Clutch Housing |
| Transmission | 196-296 | Power Train for Traveling System (Manual Transmission Model, Hydrostatic Transmission Model, Shift Linkage Mechanism) |
| Rear Axle | 297-305 | Structure of Rear Axle, Troubleshooting for Rear Axle, Tightening Torques for Rear Axle, Separating Rear Axle Case From Brake Case, Disassembling Rear Axle Case |
| Brakes | 306-324 | Brake Linkage, Operation of Traveling Brake, Servicing, Troubleshooting, Service Specifications for Brakes, Tightening Torques |
| Front Axle | 325-345 | Front Wheel Alignment, Servicing, Troubleshooting, Service Specifications for Front Axle, Tightening Torques |
| Steering | 346-370 | Steering Linkage, Flow of Steering System, Hydraulic Pump |
| Hydraulic System | 371-407 | Hydraulic Circuit (Manual Transmission Model), Structure (Hydraulic System), Hydraulic Cylinder |
| Electrical System | 408-470 | Electrical Diagram, Operator Presence Control, Electrical Circuit of Opc System (Stop Condition, Does Not Stop Condition) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

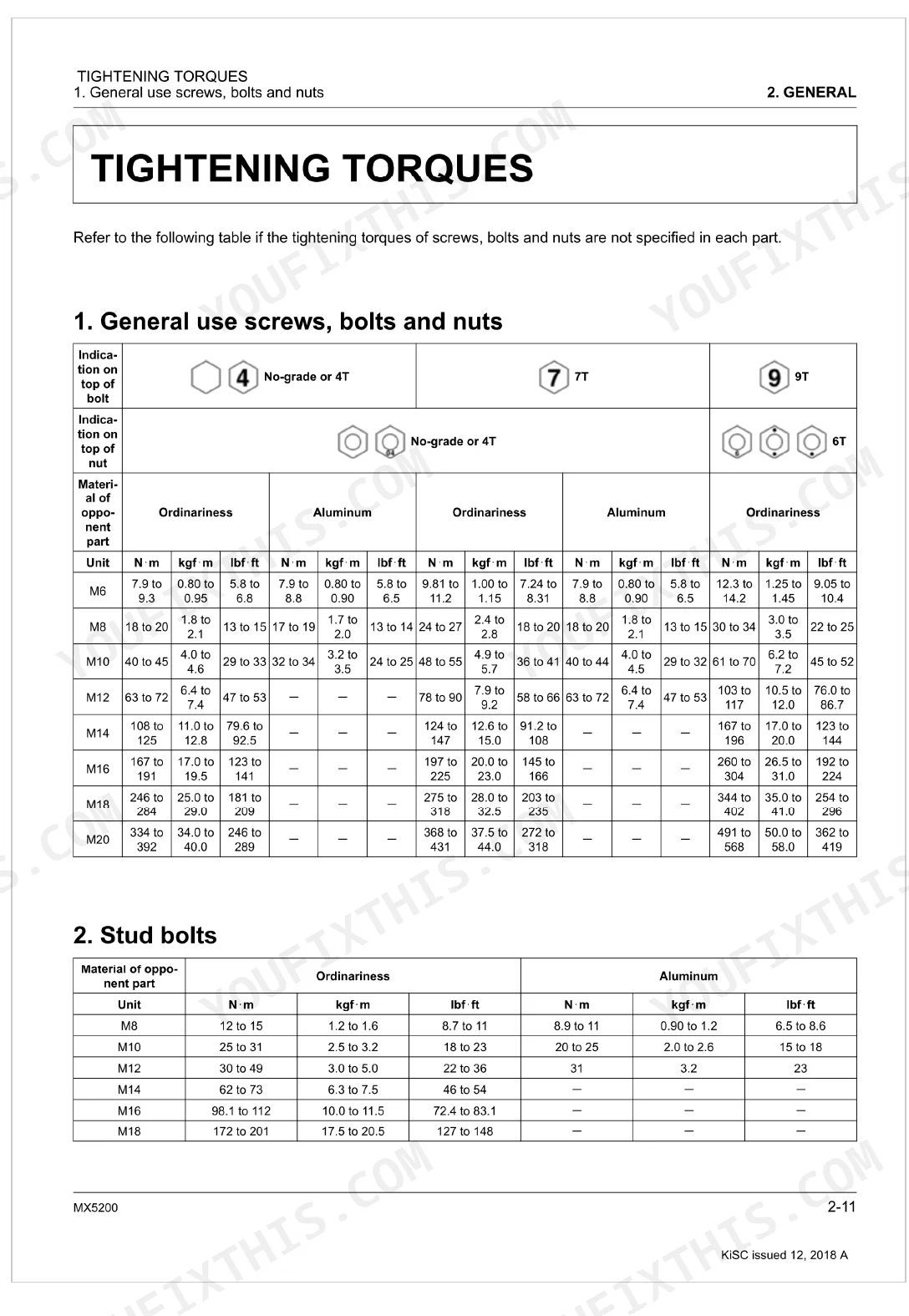

| M6, 4T bolt torque | 7.9 to 8.8 N·m | p. 39 |
| M8, 7T bolt torque | 18 to 20 N·m | p. 39 |
| Engine Oil Capacity (with filter) | 8.0 L | p. 44 |
| Transmission Case Capacity | 44.0 L | p. 44 |
| Fuel Tank Capacity | 48.0 L | p. 44 |
| Engine Coolant Capacity | 7.0 L | p. 44 |
| Front Axle Case Oil Capacity | 8.5 L | p. 44 |
| Engine Valve Clearance (When cold) | 0.18 to 0.22 mm | p. 113 |
| PTO Clutch Operating Pressure | 2.26 to 2.45 MPa | p. 182 |
| Brake Pedal Free Travel | 15 to 20 mm | p. 81 |
| Hydraulic Pump Delivery (Power Steering, at rated pressure) | Above 18.17 L/min | p. 357 |
| Battery Voltage (Normal) | More than 12 V | p. 429 |
Kubota MX5200 Common Problems This Manual Covers
HST loses drive power when hot
On HST-type MX5200 tractors, the hydrostatic transmission can feel weak or creep after the oil warms up, usually from internal wear or low charge pressure. The transmission section walks through the power train structure and the checks needed to find the cause.
Manual Section: Transmission p. 196Diesel hard to start or down on power

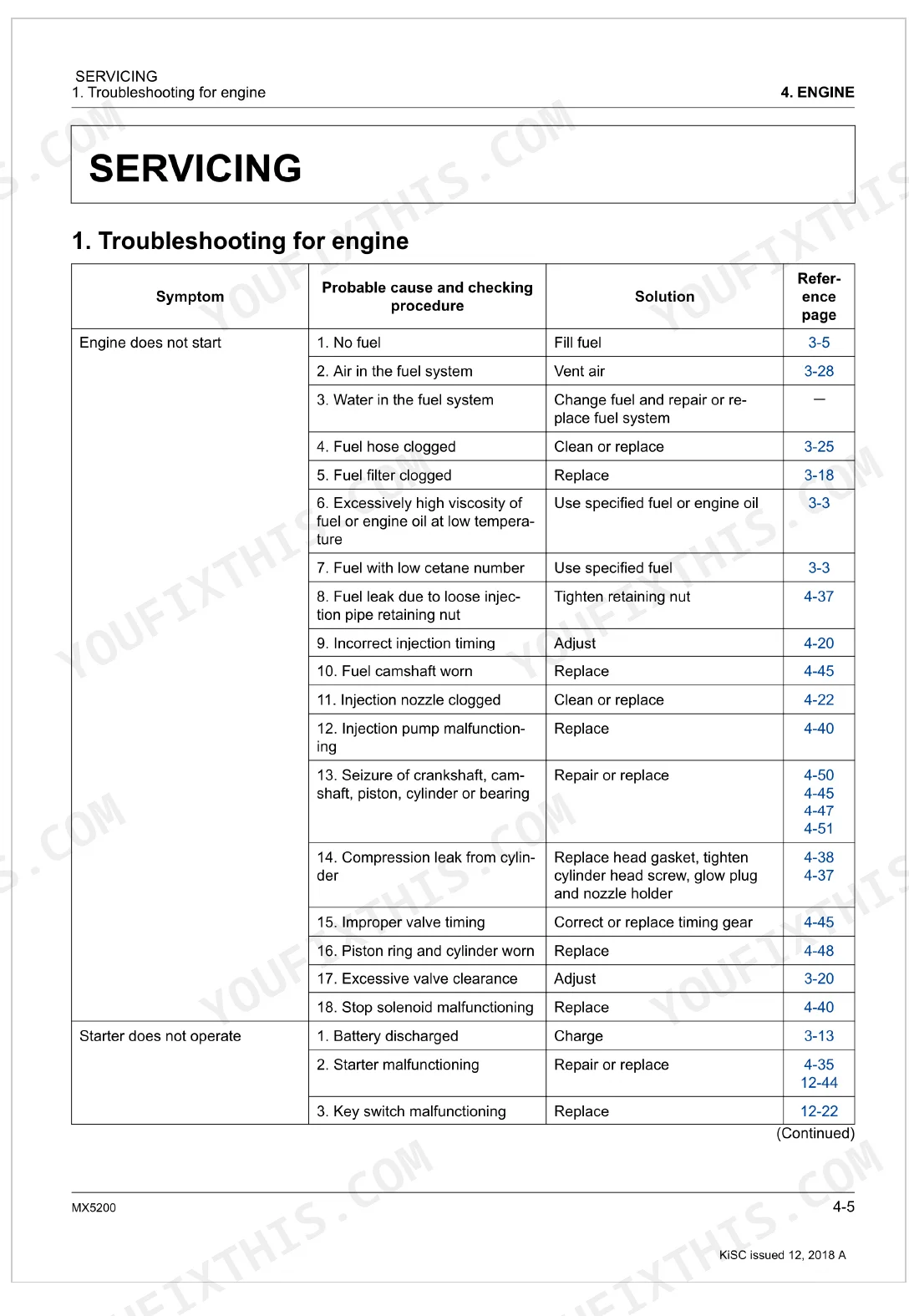

Hard starting, smoke, or lost power on the V2403-M-TE3 often trace back to the fuel system, valve clearance, or compression. The engine section covers the mechanism plus servicing procedures and specifications to isolate the fault.
Manual Section: Engine p. 104PTO clutch slips or drags
A PTO that slips under load or fails to disengage points to worn discs or low operating pressure. The clutch section gives the structure, troubleshooting, and service specifications for the PTO clutch.
Manual Section: Clutch p. 177Loader and hitch lift slow or weak

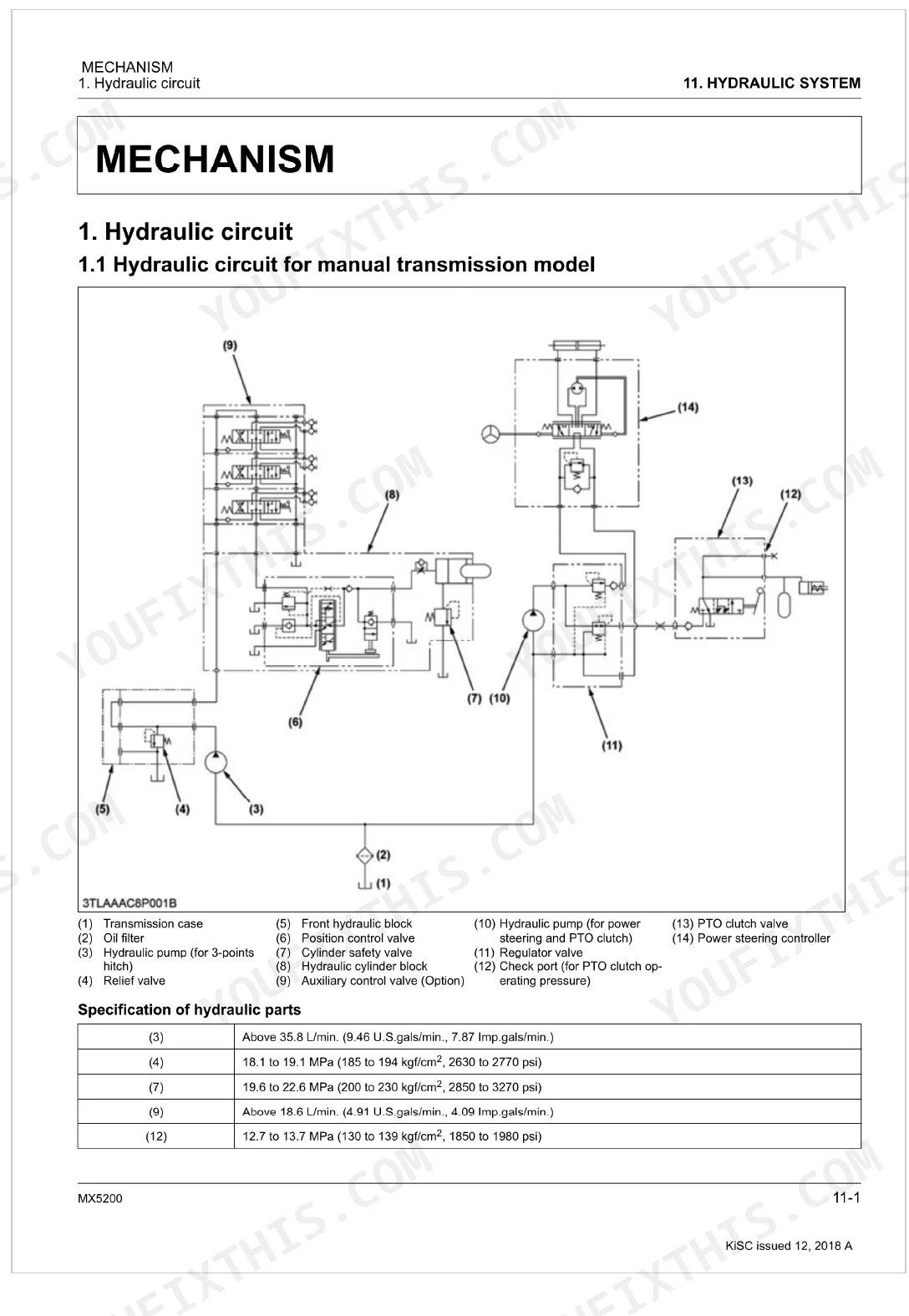

Slow loader action or a hitch that will not hold usually means pump wear, a relief valve issue, or cylinder leakage. The hydraulic system section details the circuit, structure, and cylinder servicing.
Manual Section: Hydraulic System p. 371Engine stops unexpectedly
An MX5200 that shuts off when the operator shifts or leaves the seat is often the Operator Presence Control system doing its job, or a faulty switch in that circuit. The electrical section maps the OPC circuit for both stop and does-not-stop conditions.
Manual Section: Electrical System p. 408Heavy or wandering steering
Increased steering effort or play can come from the hydraulic power steering pump or the steering linkage. The steering section covers the linkage structure, system flow, and pump structure.
Manual Section: Steering p. 346Frequently Asked Questions
Which tractors does this manual cover?
It covers the Kubota MX5200 and the MX5200HD variant, in both manual transmission and HST configurations.
What engine does it document?
The manual covers the Kubota V2403-M-TE3 diesel engine, with its mechanism, servicing procedures, and specifications detailed in the Engine section. p. 104
Does it include wiring diagrams?

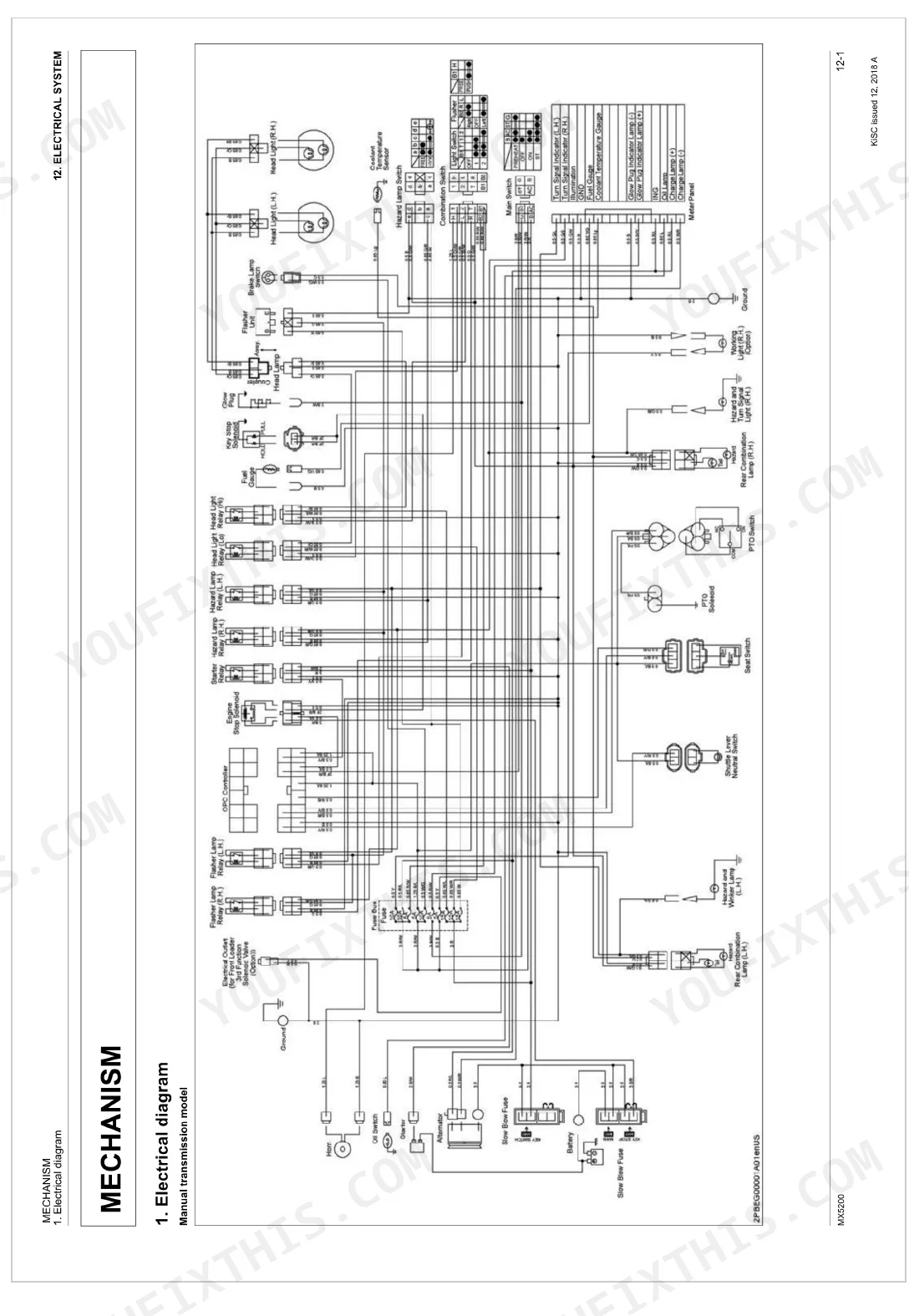

Yes. The Electrical System section provides the electrical diagram along with the Operator Presence Control circuit for both stop and does-not-stop conditions. p. 408
Does it cover HST transmission service?
Yes. The Transmission section covers both the manual and hydrostatic transmission models, including power train structure and shift linkage. p. 196
Is this Kubota MX5200 Service Manual a digital download?
A 470-page service manual in searchable PDF format, available the moment you finish checkout. Open it on a computer, tablet, or phone; there's no shipping wait.
Can I print this Kubota MX5200 manual?
Yes, print as many copies as you need; there are no restrictions. Plenty of mechanics print just the section they're working on and carry it to the shop floor.
Does this Kubota MX5200 manual include wiring diagrams?
Yes, this Kubota MX5200 Service Manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
