This is the factory Kubota M96S, M108S Shop Manual (publication 9Y111-00329), the 641-page workshop reference for both tractors in ROPS and CABIN configurations. It covers the V3800-CR-TI and V3800-DI-TI diesel engines and every major system, from the engine and shuttle-shift transmission to the front and rear axle, brakes, steering, hydraulics, and the full electrical system.Each system pairs a structure and mechanism overview with a dedicated servicing chapter carrying troubleshooting, service specifications, tightening torques, and disassembly and assembly steps. Wiring diagrams for the main, engine, CRS, body, and cabin harnesses are included, along with fluid capacities such as 10.7 L engine oil on the M96S, 9.6 L coolant, and a 175 L fuel tank.Written for owners and independent mechanics, this PDF gives you the manufacturer procedures needed to diagnose and repair the M96S and M108S correctly. Instant download after purchase.
What's Inside This Kubota M96S, M108S Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety First | 4-17 | - |

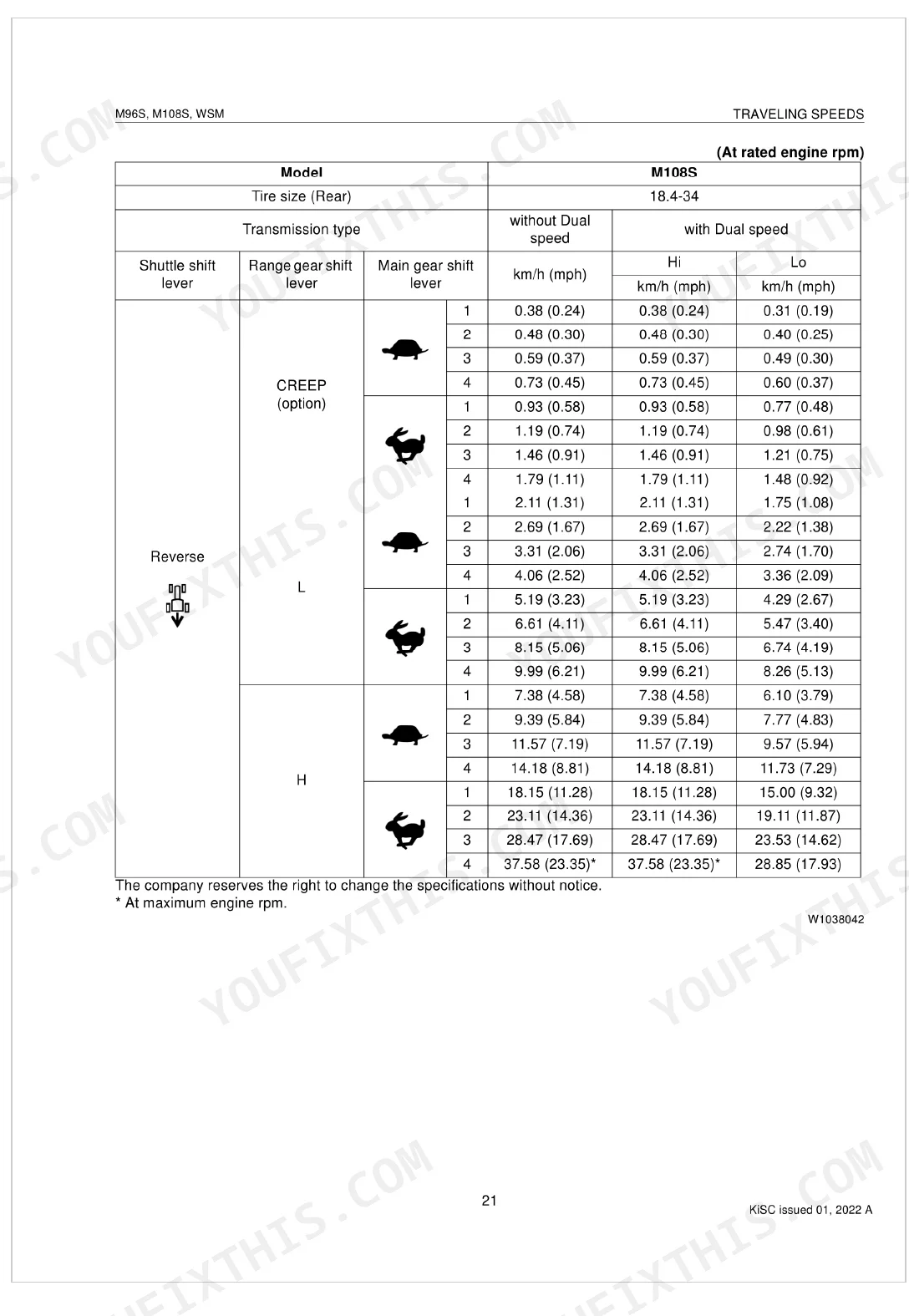

| Specifications | 18-26 | ROPS Model, Cabin Model, Traveling Speeds, Dimensions |
| General | 27-113 | Tractor Identification, Handling Precautions for Electrical Parts and Wiring (Battery, Fuse, Connector, Handling of Circuit Tester), Lubricants, Fuel and Coolant |

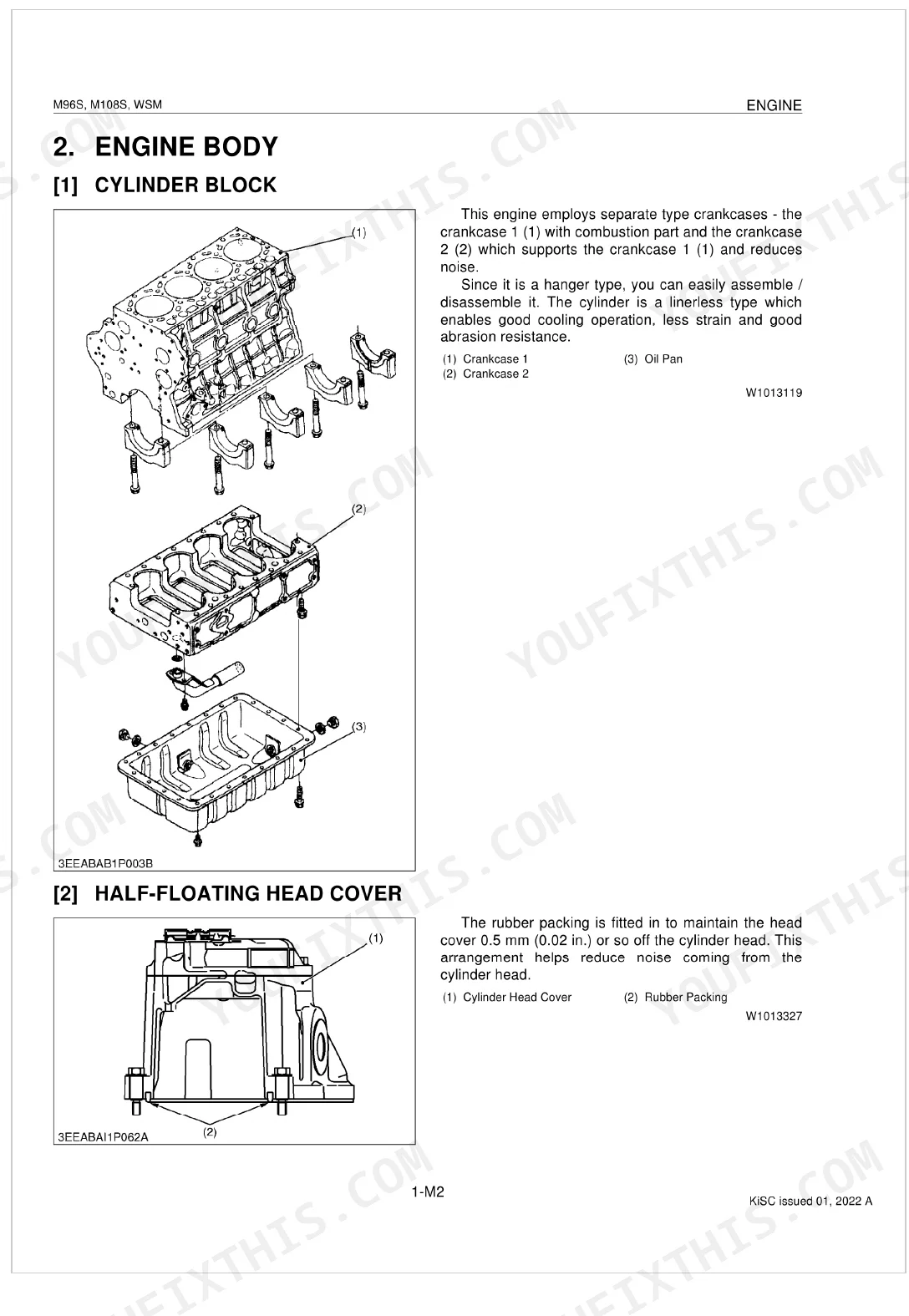

| Engine | 114-147 | Feature, Engine Body (Cylinder Block, Half Floating Head Cover, Cylinder Head, Center Direct Injection System, Piston, Built-In Dynamic Balancer), Lubricating System (Oil Cooler) |
| Servicing (Engine) | 148-259 | Checking and Adjusting [V3800-Cr-Ti], Checking and Adjusting [V3800-Di-Ti], Separating Engine, Disassembling and Assembling [V3800-Cr-Ti], Disassembling and Assembling [V3800-Di-Ti] |
| Clutch | 260-265 | Traveling Clutch, PTO Clutch (Structure, Oil Flow, Operation) |
| Transmission | 295-325 | Structure, Shuttle Shift Mechanism (Shuttle Shift Section, Regulator Valve, Hydraulic Shuttle Valve) |
| Rear Axle | 382-384 | Structure, Rear Axle Components, Planetary Gear System |
| Brakes | 399-401 | Feature, Travelling Brake System, Parking Brake System |
| Servicing (Brakes) | 402-422 | Brake Pedal, Master Cylinder, Equalizer, Brake Case, Parking Brake Lever, Parking Brake Pad, Brake Plate, Friction Plate |
| Front Axle | 423-426 | Structure, 2-Wheel Drive Type, 4-Wheel Drive Type |
| Servicing (Front Axle) | 427-454 | Front Axle, Front Wheel Alignment, Front Wheel, Bevel Gear Case, Differential Case, Pinion Bearing Case, Bearing Retainer, Planetary Gear |
| Steering | 455-457 | Structure, Steering Mechanism, Hydraulic Power Steering System |

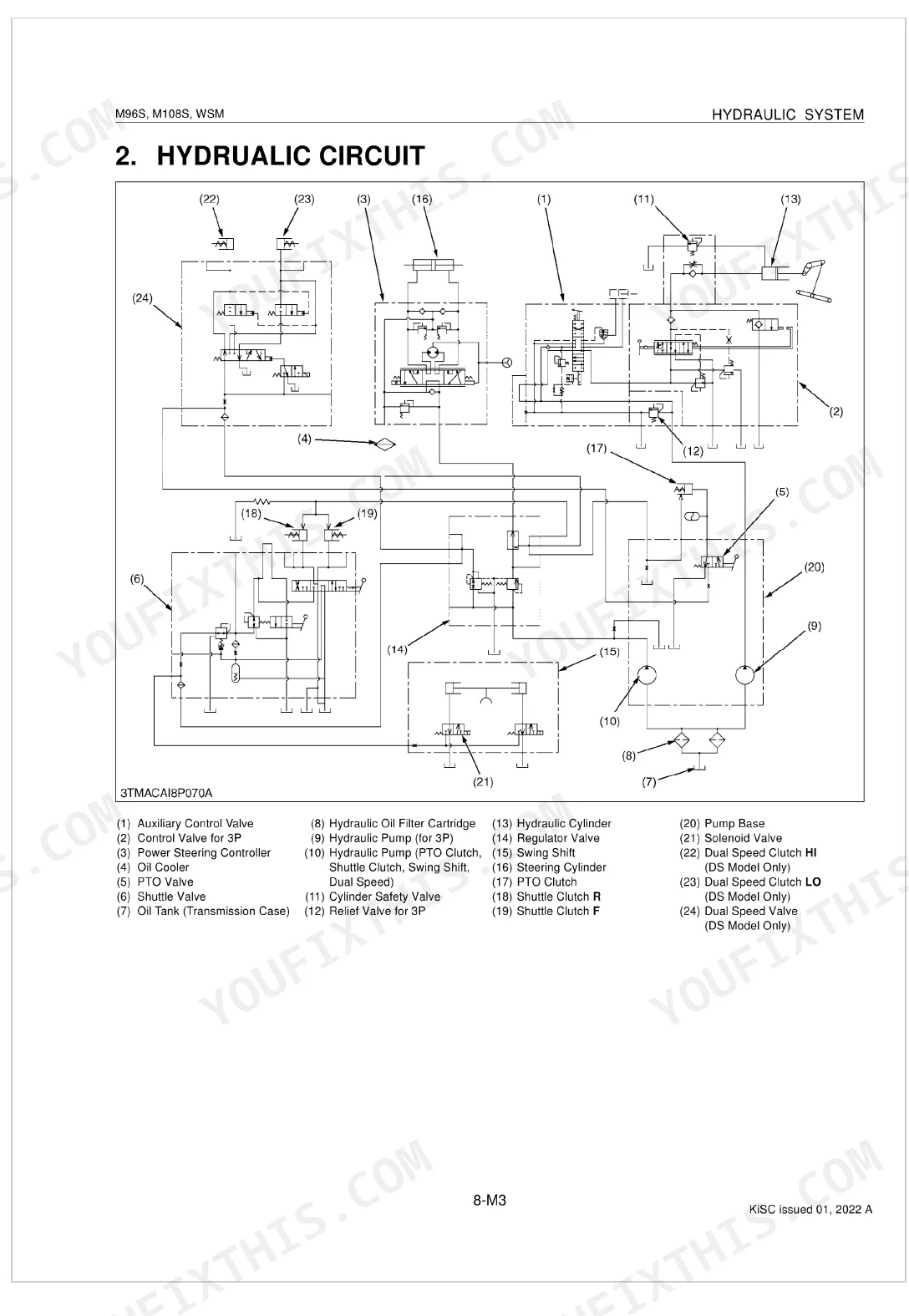

| Hydraulic System | 475-483 | Structure, Hydraulic Circuit, Control Valve, Position Control |
| Servicing (Hydraulic System) | 484-511 | Hydraulic Pump, Three-Point Hitch System, Three-Point Hitch Control Linkage, Auxiliary Control Valve Wire, Relief Valve, Cylinder Safety Valve, Control Valve, Control Valve Linkage |

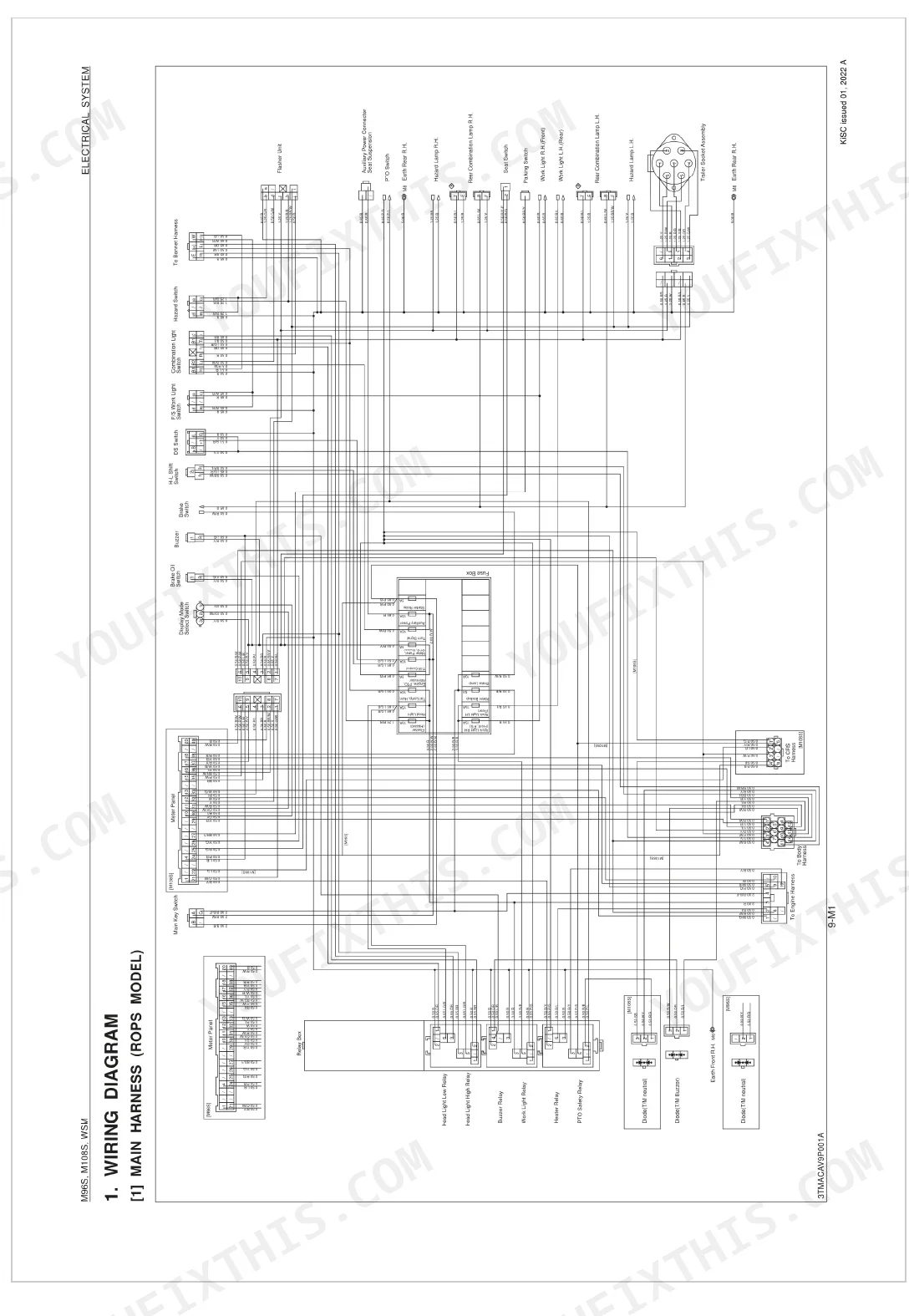

| Electrical System | 512-534 | Wiring Diagram (Main Harness, Engine Harness, Crs Harness, Body Harness and Bonnet Harness, Cabin Harness) |
| Servicing (Electrical System) | 535-580 | Battery and Fuse, Main Switch, Air Heater Relay, Air Heater, Starter Motor, Engine Stop Solenoid (M96S Only), Alternator, Meter Panel |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Transmission fluid capacity | 60.0 L | p. 36 |
| Coolant Capacity | 9.6 L | p. 19 |
| Fuel Tank Capacity | 175 L | p. 19 |
| Engine Oil Pressure (At Rated Speed) | 200 to 390 kPa | p. 29 |
| Valve Clearance (Cold) | 0.23 to 0.27 mm | p. 25 |
| Cylinder Head Surface Flatness (Allowable Limit) | 0.05 mm | p. 24 |

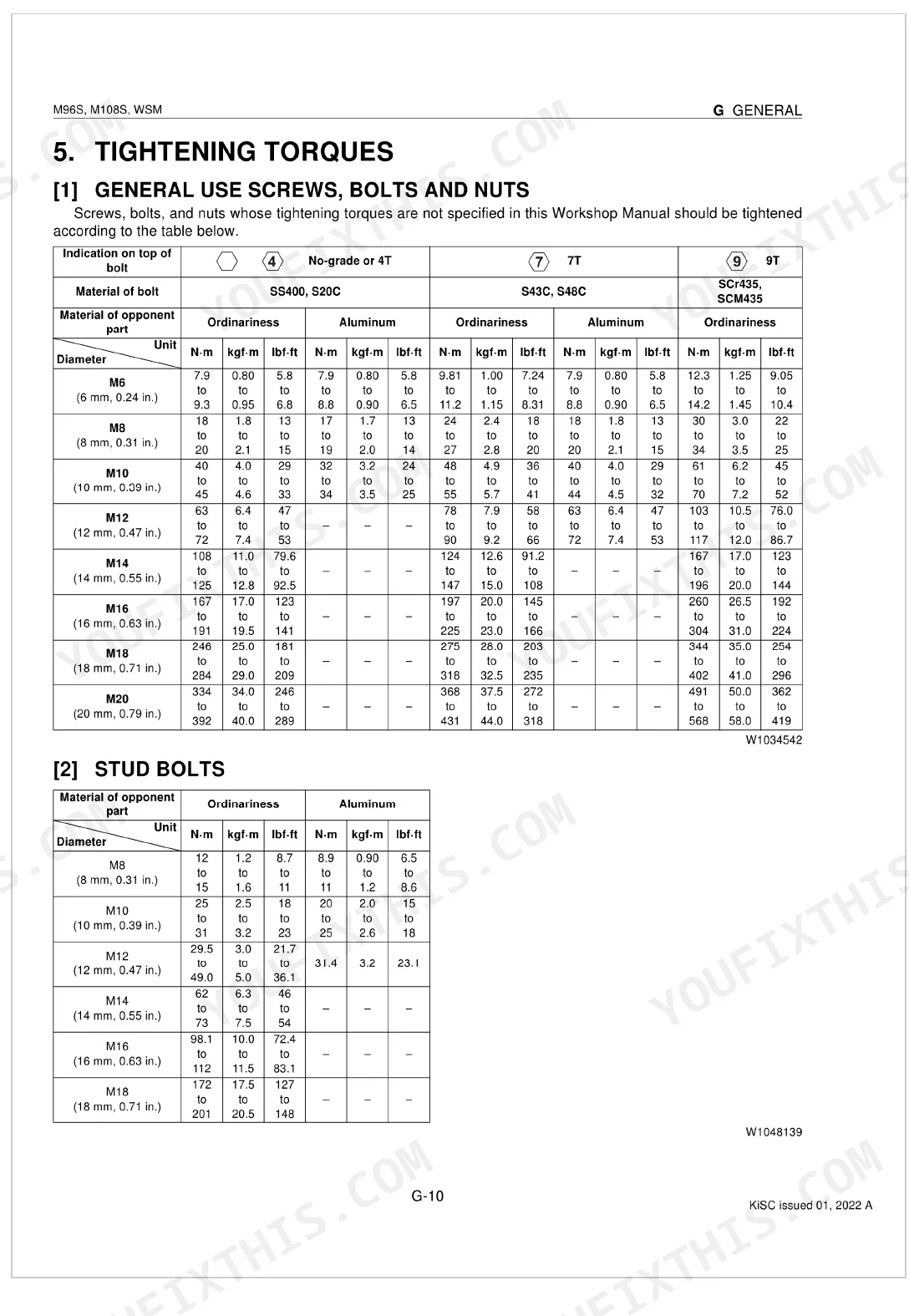

| Connecting Rod Screw Torque | 79 to 83 N-m | p. 38 |
| Rear Wheel Mounting Nut Torque | 344 to 402 N-m | p. 38 |
| M96S | ||

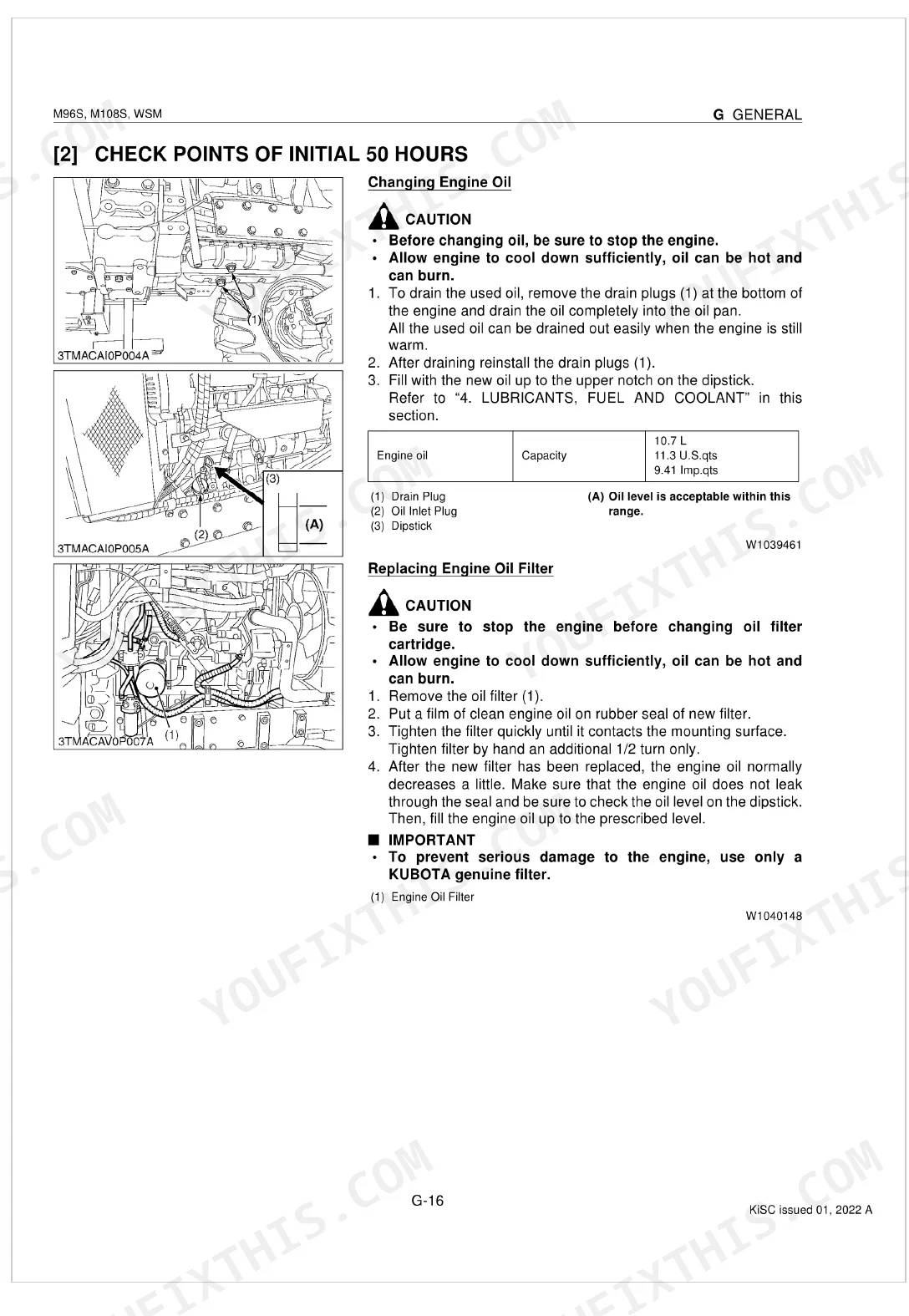

| Engine Oil Capacity (with filter) | 10.7 L | p. 19 |
| M108S | ||
| Engine Oil Capacity (with filter) | 12.0 U.S.qts | p. 19 |
| M96S (Serial No. below 10013, below 50299, below 70084) | ||
| PTO Clutch Disc Thickness (M96S, Serial No. below 10013) | 1.70 to 1.90 mm | p. 268 |
Kubota M96S, M108S Common Problems This Manual Covers
Low oil pressure or hard starting

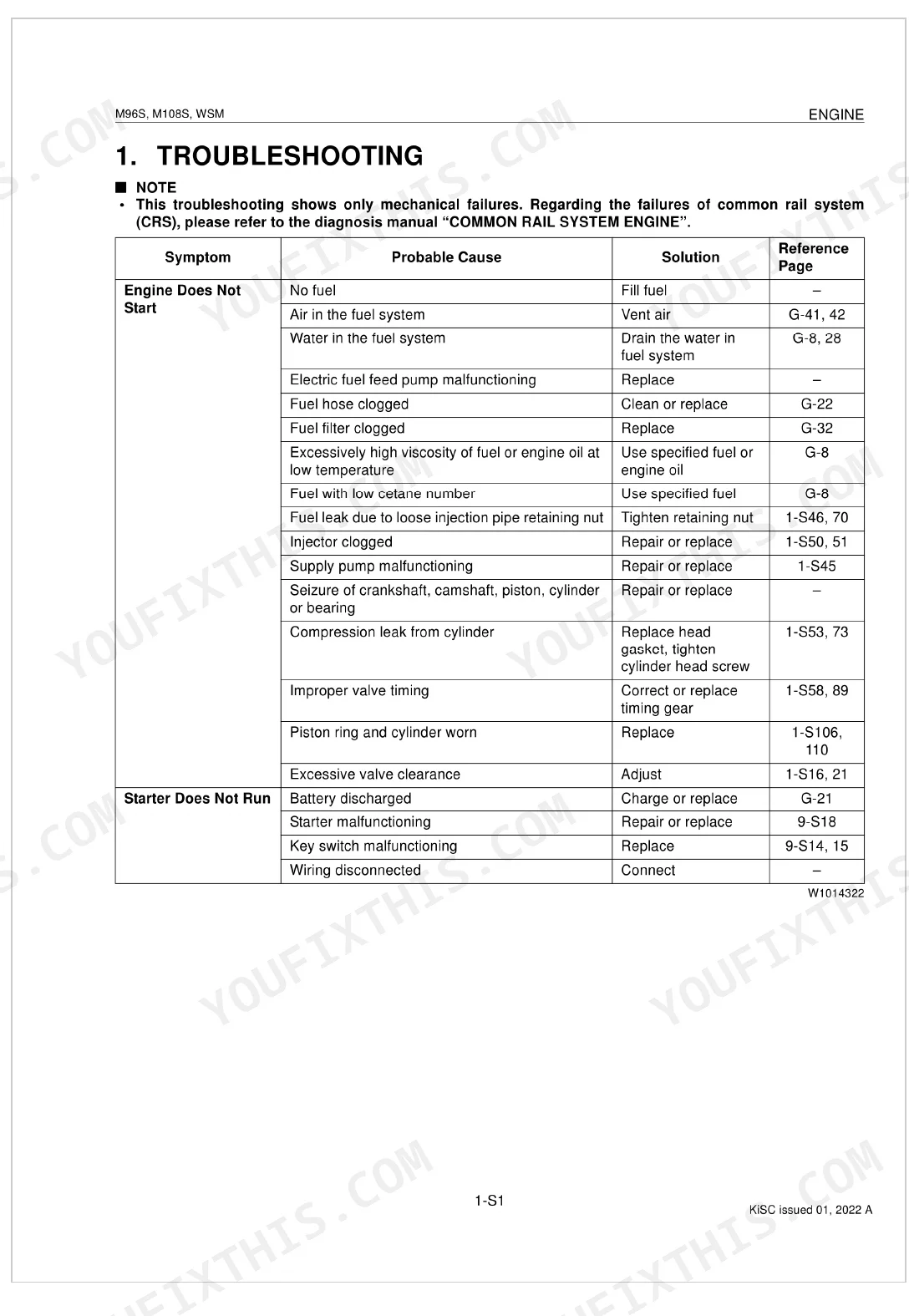

Hard starting, smoke, or a low oil-pressure warning on the V3800 engines usually traces to the fuel injection system, worn bearings, or valve clearance. The engine servicing section provides troubleshooting, specifications, and the checks to confirm the cause.
Manual Section: Servicing (Engine) p. 148Shuttle shift harsh or slow to engage
Rough directional changes or a delay engaging forward and reverse point to the hydraulic shuttle valve or regulator valve. The transmission section details the shuttle shift mechanism and its hydraulic operation.
Manual Section: Transmission p. 295PTO clutch slips under load
A PTO clutch that slips or fails to hold often means worn discs or low oil flow. The clutch section covers the traveling and PTO clutch structure, oil flow, and operation.
Manual Section: Clutch p. 260Three-point hitch weak or drifting
A hitch that lifts slowly or settles under load usually indicates pump wear, a control valve fault, or position control adjustment. The hydraulic system section maps the circuit, control valve, and position control.
Manual Section: Hydraulic System p. 475Brakes weak or dragging
Soft pedal, uneven braking, or a dragging brake can come from worn discs or a low brake oil level. The brakes servicing section provides troubleshooting, specifications, and disassembly procedures.
Manual Section: Servicing (Brakes) p. 402Front axle noise on 4WD models
Whine or knock from the front axle on 4WD tractors points to worn gears or bearings in the drive components. The front axle servicing section covers troubleshooting, specifications, and reassembly.
Manual Section: Servicing (Front Axle) p. 427Charging or wiring faults
No-charge conditions, blown fuses, or dead circuits are traced with the servicing chapter for the electrical system, which lists troubleshooting steps and specifications alongside the harness wiring diagrams.
Manual Section: Servicing (Electrical System) p. 535Frequently Asked Questions
Which tractors does this manual cover?
It covers the Kubota M96S and M108S utility tractors in both ROPS and CABIN model configurations.
What engines does it document?
It covers the V3800-CR-TI and V3800-DI-TI diesel engines, with structure, feature, and servicing detail in the Engine section. p. 114
Does it list specifications for ROPS and cabin versions?
Yes. The Specifications section gives separate figures for the ROPS and CABIN models, including traveling speeds and dimensions. p. 18
Does it include wiring diagrams?
Yes. The Electrical System section provides wiring diagrams for the main, engine, CRS, body, bonnet, and cabin harnesses. p. 512
How quickly can I access this Kubota M96S manual after buying?
A 641-page Shop Manual in searchable PDF, available the moment checkout completes. Read it on a computer, tablet, or phone with no shipping wait.
Can I print this Kubota M96S manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Does this Kubota M96S Shop Manual cover the hydraulic system?
Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the Kubota M96S, M108S.
