This Kubota L3240–L5740 Series Workshop Manual (OEM #9Y111-06241) runs 615 pages and covers the full repair and service scope for the L3240-3, L3540-3, L4240-3, L5240-3, and L5740-3 tractors. Wiring diagrams cover both ROPS and Cabin configurations; hydraulic circuit schematics handle manual and hydrostatic transmission variants. Torque tables list metric and standard fasteners, and 10 pages decode the electronic control panel error codes. Another 100-plus pages walk through exploded-view illustrations, disassembly and assembly across every major system, and pinout references for the control panel connectors. Engine oil capacity shifts by model: fill the L3240-3 to 5.7 L and the L5240-3 or L5740-3 to 9.4 L, then change oil and filter at every 200-hour mark. Five tractors, five spec sheets; stop flipping between sources. Download it, search any term by keyword, and pull up the right section on your phone or tablet at the machine.
What's Inside This Kubota L3240–L5740 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Information | 4-20 | Safety First, Safety Decals, Specifications, Traveling Speeds, Dimensions |
| General | 21-97 | Tractor Identification (Model Name And Serial Numbers), Handling Precautions For Electrical Parts And Wiring (Battery, Fuse, Connector, Handling Of Circuit Tester, Color Of Wiring) |
| Engine | 98-181 | Engine Body (Piston, Built-In Dynamic Balancer, Half-Floating Head Cover), Cooling System (Bottom Bypass System), Fuel System (Governor), Turbocharger System (Boost Compensator) |
| Clutch | 182-210 | Feature, Troubleshooting, Servicing Specifications, Tightening Torques, Checking and Adjusting, Preparation (Separating Clutch Housing and Engine), Disassembling and Assembling |
| Transmission | 211-337 | Structure (Manual Transmission Model, Hydrostatic Transmission Model), Manual Transmission Model (Power Train For Traveling Gear, Shift Linkage Mechanism) |
| Rear Axle | 338-349 | Mechanism, Structure, Servicing, Troubleshooting, Tightening Torques, Preparation, Disassembling and Assembling |
| Brakes | 350-366 | Structure, Operation, Troubleshooting, Servicing Specifications, Tightening Torques, Checking and Adjusting (Brake Pedal), Disassembling and Assembling (Brake: Pedal, Case) |
| Front Axle | 367-391 | Structure, Troubleshooting, Servicing Specifications, Tightening Torques, Checking and Adjusting |
| Steering | 392-408 | Mechanism, Structure, Hydraulic Circuit, Hydraulic Pump, Steering Controller, Steering Cylinder, Servicing, Troubleshooting |

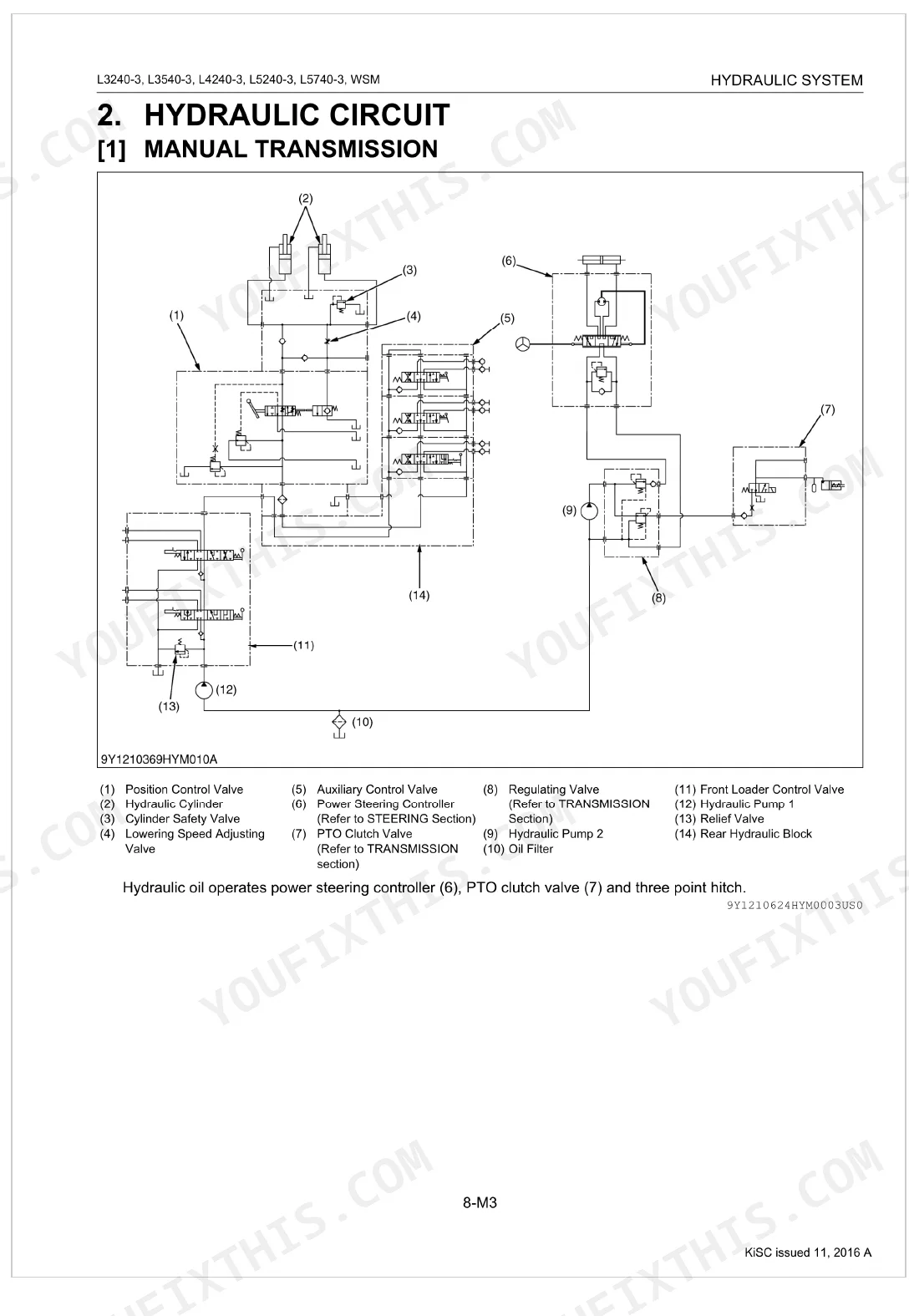

| Hydraulic System | 409-460 | Structure (Manual Transmission, Hydrostatic Transmission), Hydraulic Circuit (Manual Transmission, Hydraulic Pump |

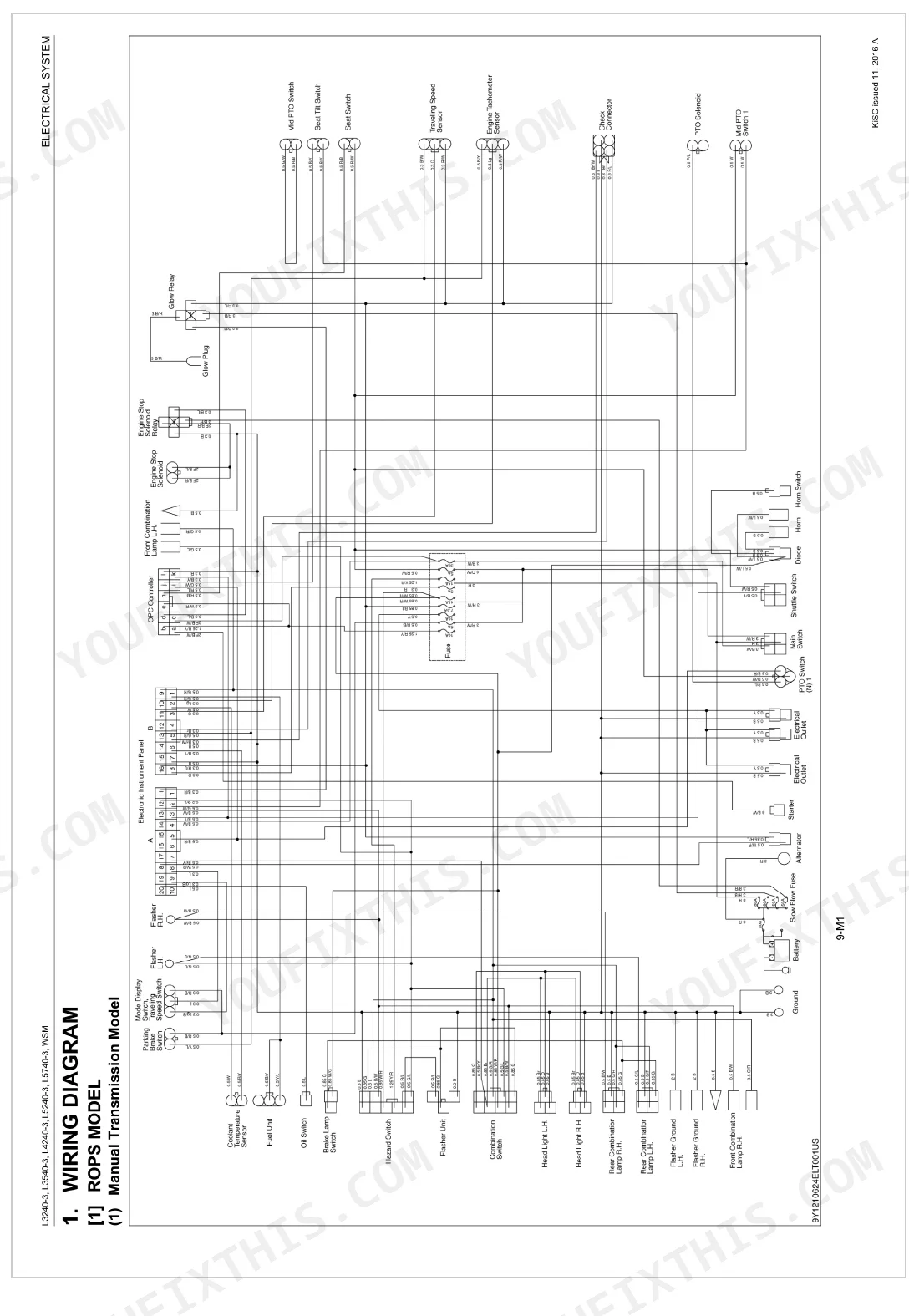

| Electrical System | 461-559 | Wiring Diagram, Electronic Control Panel (System Outline And Electrical Circuit, Construction And Function Of Components, Basic Control System, Assistant Control System) |
| Cabin | 560-615 | Air Conditioner System (Outline of Air Conditioning System, System Control, Electrical System) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| L3240-3 | ||
| Engine oil capacity (with filter) | 5.7 L (6.0 U.S.qts, 5.0 Imp.qts) | p. 30 |
| L3540-3 | ||
| Engine oil capacity (with filter) | 6.7 L (7.1 U.S.qts, 5.9 Imp.qts) | p. 30 |
| All Models | ||
| Engine oil change interval | every 200 Hr | p. 35 |
| Engine oil filter replacement interval | every 200 Hr | p. 35 |

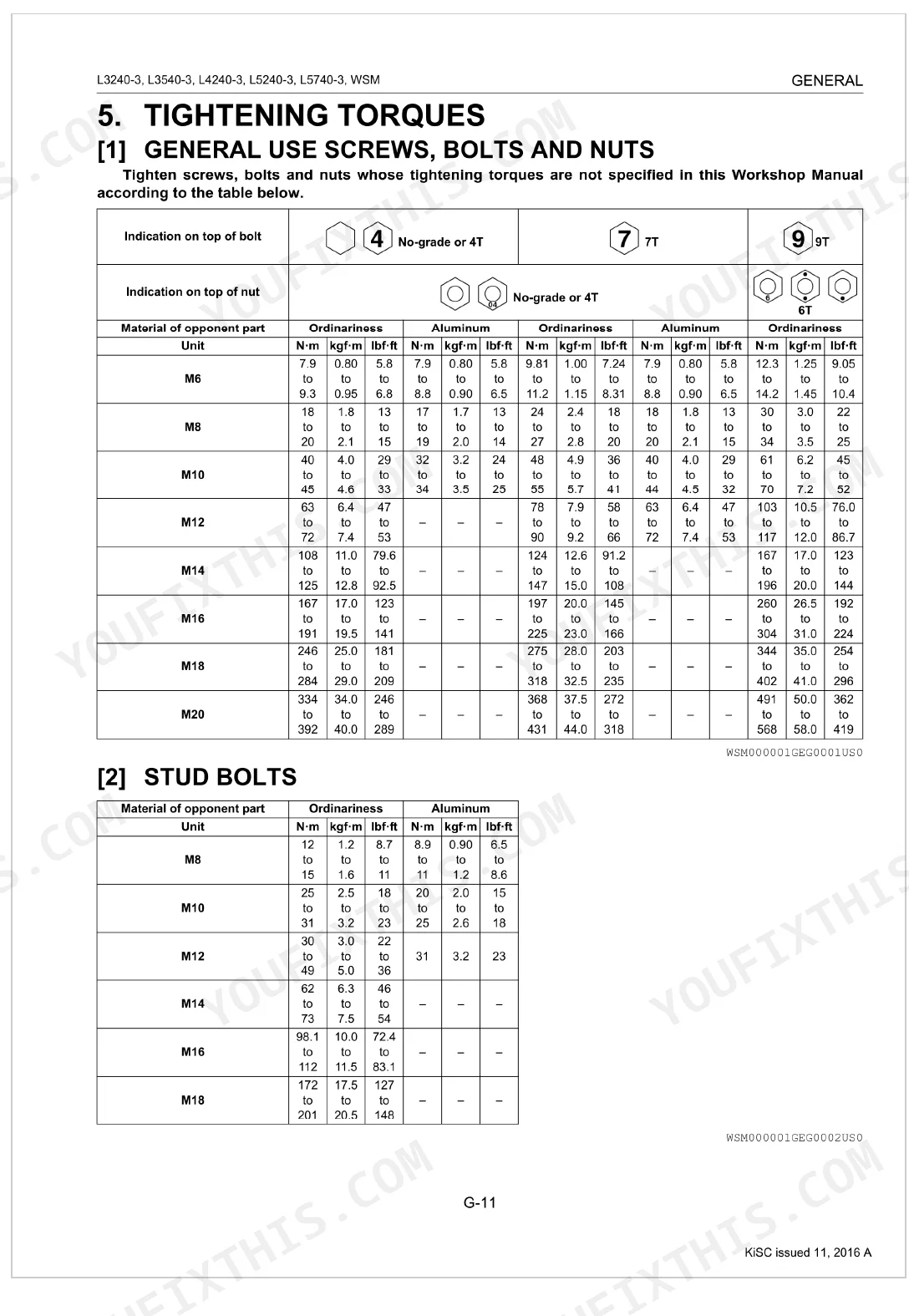

| General Use Screws, Bolts and Nuts (M6, No-grade or 4T) | 7.9 to 9.3 N·m | p. 33 |
| General Use Screws, Bolts and Nuts (M8, No-grade or 4T) | 18 to 20 N·m | p. 33 |
| Clutch Pedal Free Travel | 20 to 30 mm | p. 41 |
| Brake Pedal Free Travel | 15 to 20 mm | p. 41 |
| Fan Belt Tension (deflection) | 7.0 to 9.0 mm | p. 49 |
| Engine Oil Pressure (at idle speed) | 98 kPa or more | p. 117 |
| L4240-3 | ||
| Engine Oil Capacity (with filter) | 8.2 L | p. 16 |
| L3240-3, L3540-3 | ||
| Transmission Fluid Capacity | 42 L | p. 15 |
Kubota L3240–L5740 Series Common Problems This Manual Covers
Kubota L3240-3 three-point hitch slow to raise or won't reach maximum lift height
Check hydraulic oil level and confirm the filter hasn't passed the 400-hour replacement interval on page 35. If both are good, look at pump delivery flow. The hydraulic circuit diagram marks the relief valve and pump; test for internal bypass before condemning the pump or lift cylinder.
Manual Section: Hydraulic System TroubleshootingEngine cranks but won't fire in cold weather, glow lamp not cycling
Verify glow plug circuit operation and battery voltage under load. If the glow plugs aren't drawing current, test each one individually before pulling injectors. Compression below 2.5 MPa (page 108) points to worn rings or valves. Work through the engine no-start procedure to rule out fuel and air supply first.
Manual Section: Engine TroubleshootingHST transmission responds sluggishly uphill or loses drive power in both directions
Measure HST transmission oil level and swap the filter if you're past 200 hours (page 35). Look for air intrusion in the charge pressure circuit. Low charge pressure is the usual cause of sluggish response in both directions. Keep oil temperature below the warning threshold; overheating speeds seal wear and compounds the power loss.
Manual Section: Transmission Troubleshooting (HST System)Clutch slips under heavy drawbar load or chatter felt through pedal when engaging
Adjust clutch pedal free travel to 20 to 30 mm (page 41) before splitting the unit. If that brings it back in spec and the clutch still slips under load, pull the cover and measure disc thickness. Worn friction discs rarely recover with adjustment alone; plan on a disc and pressure plate inspection.
Manual Section: Clutch TroubleshootingTractor pulls hard to one side during braking, uneven pedal feel between left and right
Compare brake pedal free travel on both sides; spec is 15 to 20 mm per side (page 41). Match the shorter-traveling side before assuming the brakes are worn. If equal free travel doesn't cure the pull, inspect the discs for oil contamination from a rear axle seal leak, then clean or replace.
Manual Section: Brakes TroubleshootingEngine overheats quickly, temperature gauge climbs into red and coolant reservoir bubbles
Inspect fan belt deflection first: correct tension is 7.0 to 9.0 mm (page 49). A loose or glazed belt won't drive the water pump at full capacity. Check coolant level and watch for air pockets. Clear chaff from the radiator fins and confirm the thermostat opens fully under load.
Manual Section: Engine TroubleshootingFrequently Asked Questions
What are the recommended service intervals?
The manual lays out recommended service intervals in one table. Engine oil gets changed every 200 hours, and the oil filter is replaced on the same schedule. Grease the fittings every 50 hours; check radiator hoses and clamps every 200 hours or six months, and replace them every 2 years.
What fluids and capacities does this machine require?
Fluids and capacities depend on the model. On the L3240, the fuel tank holds 44 L (11.6 U.S.gals, 9.68 Imp.gals) and runs Diesel fuel No. 1 or No. 2-D. The engine crankcase with filter takes 5.7 L (6.0 U.S.qts, 5.0 Imp.qts) of API Service Classification CF or better oil.
How to troubleshoot engine won't start?
A no-start traces to a handful of causes: no fuel (replenish, page G-8), air in the fuel system (bleed, page G-42), or a discharged battery (charge, page G-29). It can also come from a clogged fuel pipe, incorrect injection timing, or a failed starter (repair or replace, page 9-S57).
What are the hydraulic system specifications?
Hydraulic specs vary by model. On the L3240 and L3540, pump delivery at no pressure runs above 31.5 L/min, and the relief valve is set to 17.1 to 18.1 MPa (175 to 184 kgf/cm², 2480 to 2620 psi). Across all models, the hydraulic cylinder I.D. measures 55.000 to 55.074 mm (2.1654 to 2.1682 in.), with an allowable limit of 55.100 mm (2.1693 in.).
How will I receive this Kubota L3240–L5740 Series Workshop Manual?
Checkout delivers a 615-page searchable PDF, downloadable right away. Open it on a laptop, tablet, or phone, and bring it straight to the shop floor.
Is this Kubota L3240–L5740 Series Workshop Manual printable?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text content. The OCR text is crisp and generally easy to read throughout the manual. Diagrams and illustrations are scanned raster images; while labels are readable, they may show slight pixelation when zoomed in. Pages are clean with no scan artifacts, stains, or skewed elements. Page 4 is a blank page serving as a section divider.
