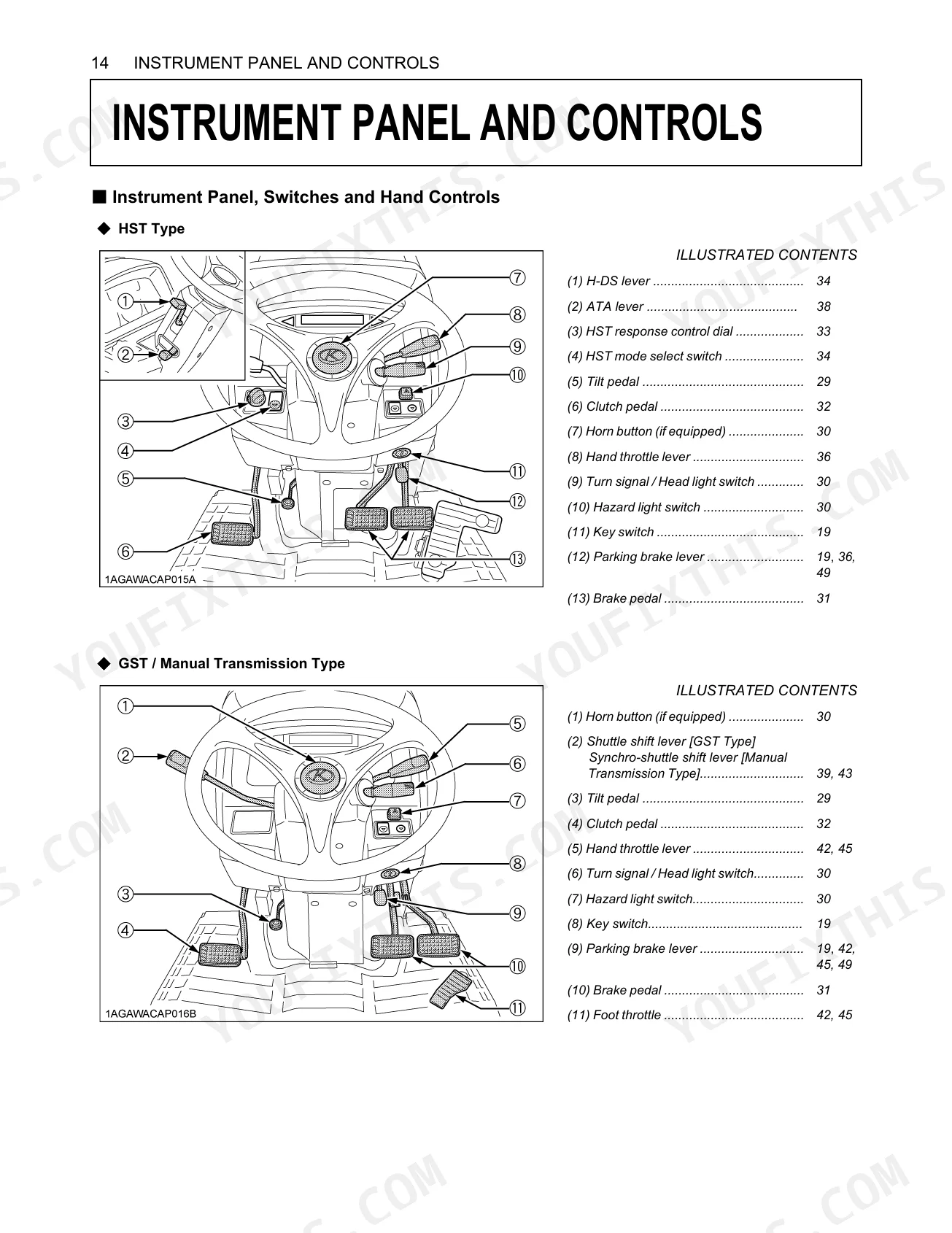

This is the operator's manual for the Kubota L3240-3, L3540-3, L3940-3, L4240-3, L4740-3, L5040-3, L5240-3, and L5740-3 tractors, a 148-page PDF covering daily operation and owner maintenance of all eight models in both HST and GST transmission versions.It explains the instrument panel and controls, pre-operation checks, operating the engine and the tractor, the PTO, the three-point hitch and drawbar, the hydraulic unit, and tyres, wheels, and ballast. Maintenance and periodic service sections give the service intervals and checks that keep the tractor running.With it you can set correct tire pressures and ballast, torque the wheel bolts to spec, follow the engine and hydraulic filter change intervals, adjust clutch and brake pedal free travel, and operate the PTO and hitch safely. Written for owners who run and maintain their own Kubota L-series tractors.
What's Inside This Kubota L3240–L5740 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Universal Symbols | 3 | Safety Alert Symbol, Engine-Rotational Speed, Power Take-Off Clutch Control, Differential Lock, Remote Cylinder, Four-Wheel Drive |
| Safety First | 4 | - |

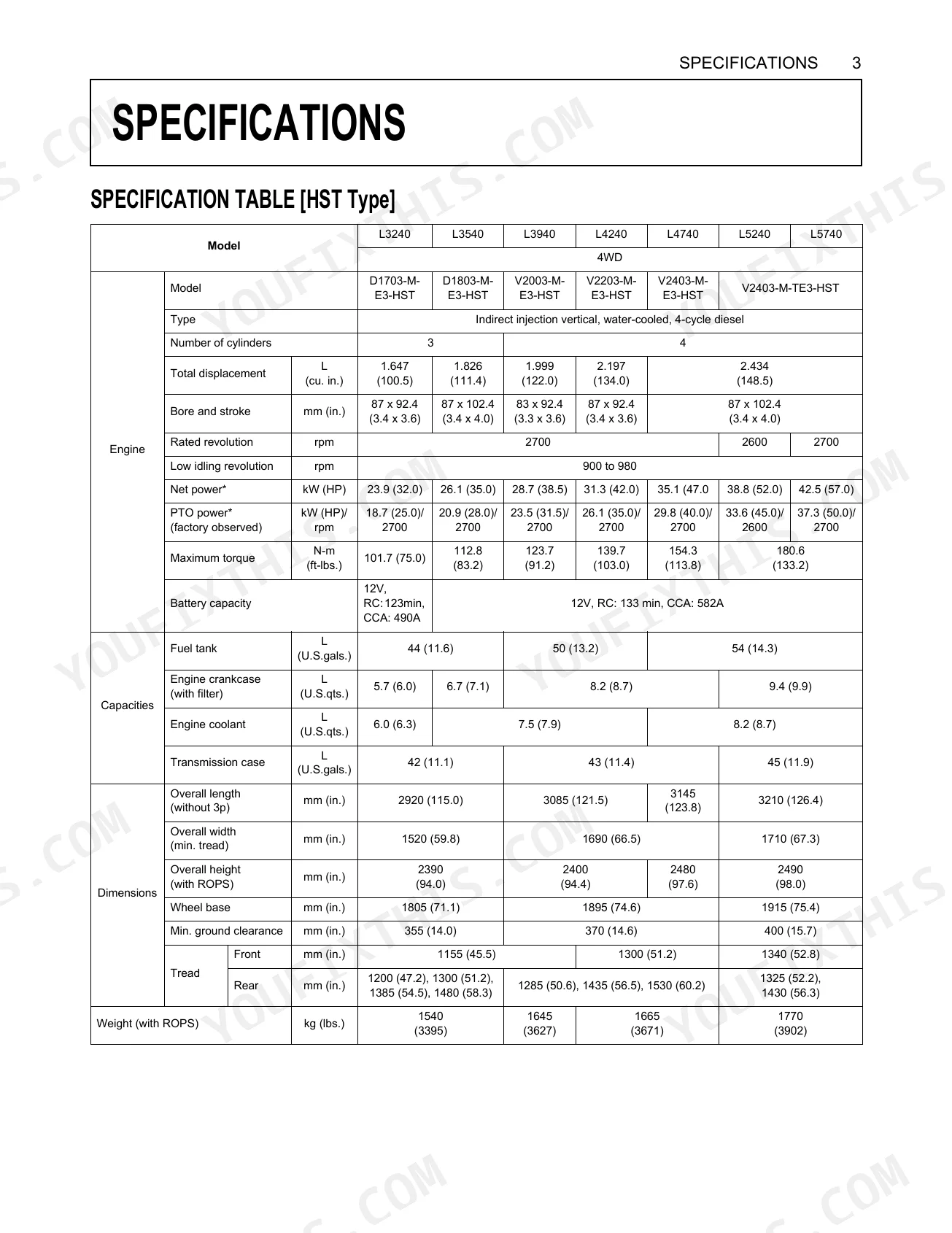

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| L3240, L3540, L3940, L4240, L4740 (4WD models) | ||
| Front wheel lug nuts torque | 137 N-m (14 kgf-m, 100 ft-lbs) | p. 88 |
| Front axle mounting bolt torque | 137 N-m (14 kgf-m, 100 ft-lbs) | p. 88 |
| All Models | ||
| Rear wheel lug nuts torque | 215 N-m (22 kgf-m, 160 ft-lbs) | p. 89 |
| Engine oil filter replacement interval | every 200 Hr | p. 72 |
| Low Idling Revolution | 900 to 980 rpm | p. 23 |
| Hydraulic System Pressure | 17.7 MPa (180 kgf/cm²) | p. 24 |
| Engine Oil Change Interval | Every 200 Hr | p. 72 |
| Transmission Oil Filter [HST] Replacement Interval | Every 200 Hr | p. 72 |
| HST Type models | ||
| Transmission oil filter [HST Type] replacement interval | every 200 Hr | p. 92 |
| L3240, L3540, L3940 | ||
| Front Axle Case [4WD] Capacity | 6.5 L (6.9 U.S.qts.) | p. 75 |
Kubota L3240–L5740 Series Common Problems This Manual Covers
Slow cranking or no start
After sitting, the tractor cranks slowly or not at all, usually a weak battery or dirty connections. The engine operation section covers correct starting.

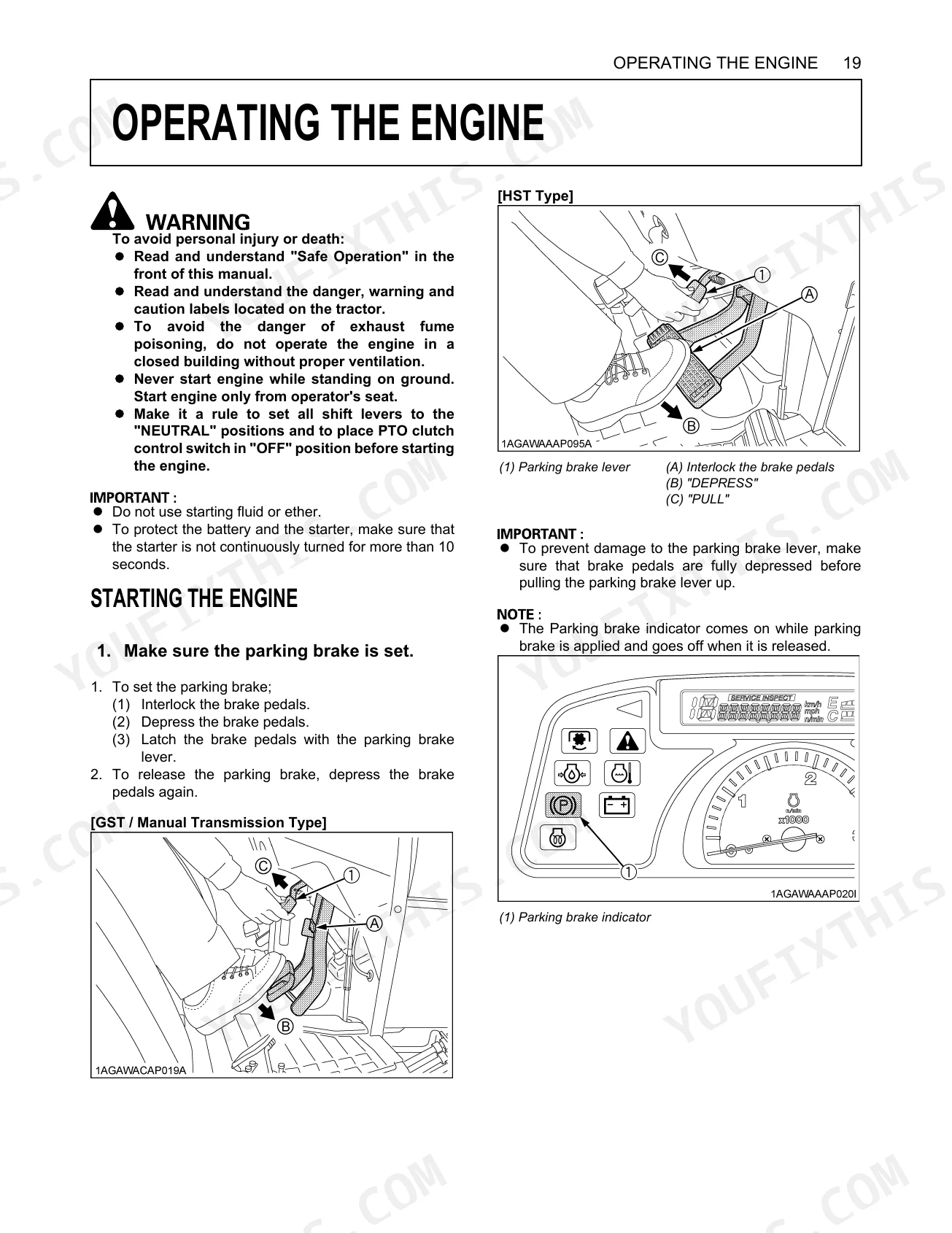

Manual Section: Operating the Engine p. 39Loader or 3-point hitch lifts slowly
Low fluid, a clogged filter, or air in the system makes the hydraulics weak or jerky. The hydraulic unit section covers the system and its pressure.
Manual Section: Hydraulic Unit p. 80Overheating under load
A plugged radiator screen or dirty fins restricts airflow and lets the engine run hot. The maintenance section covers cleaning the cooling system.
Manual Section: Maintenance p. 92PTO will not engage or slips
Improper control operation, a safety interlock, or worn linkage keeps the PTO from engaging or lets it disengage unexpectedly.

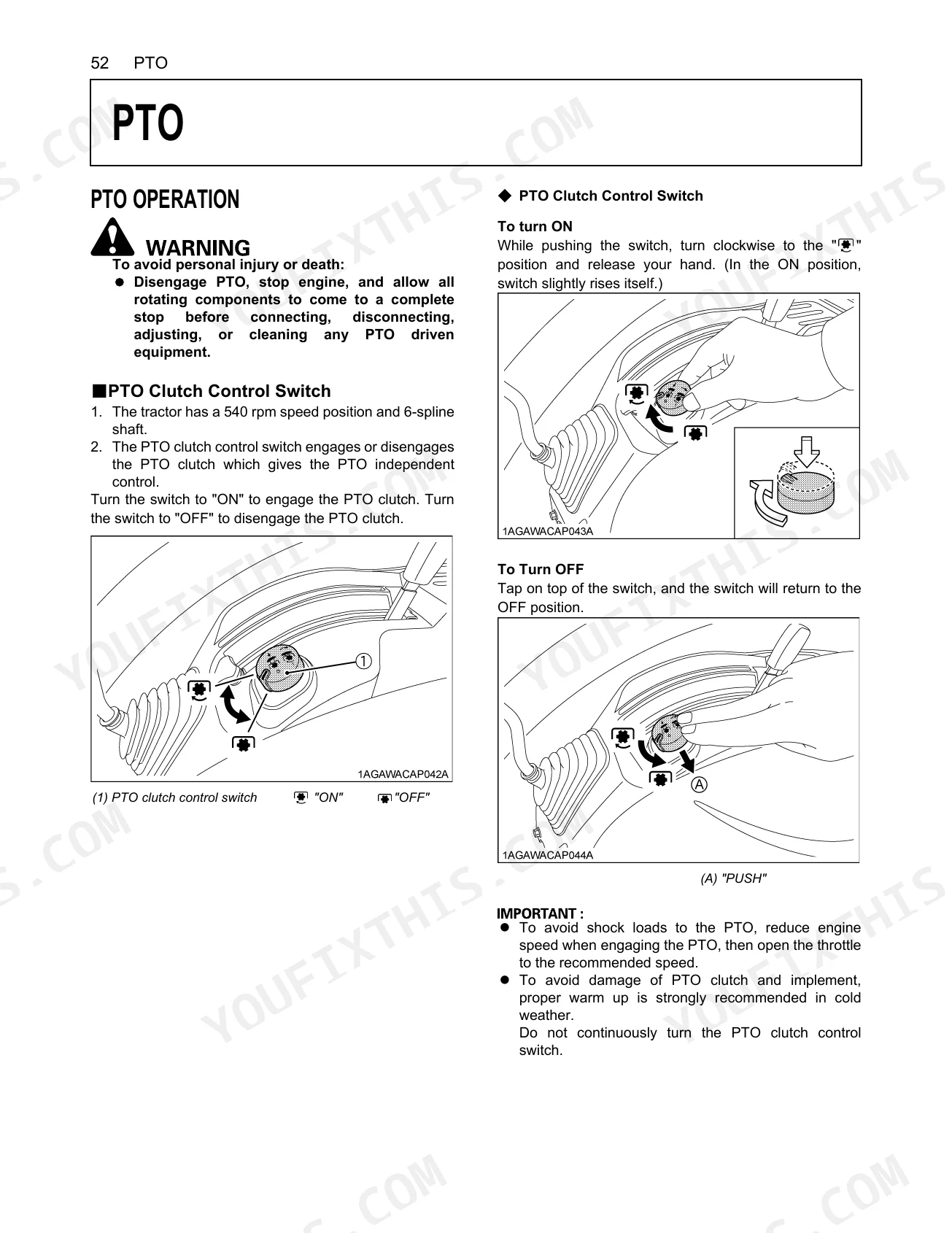

Manual Section: PTO p. 72Weak or noisy HST response
Overdue filters or the wrong fluid cause hesitation and noise. The periodic service section lists the filter change intervals.
Manual Section: Periodic Service p. 98Wheel bolts loosening after service
Lug bolts back off if not torqued after tire work. The rear wheel rim and disk bolts are set to 215 N-m (160 ft-lbs).
Manual Section: Tyres, Wheels and Ballast p. 86Frequently Asked Questions
Which tractors does this manual cover?
It covers eight Kubota tractors: the L3240-3, L3540-3, L3940-3, L4240-3, L4740-3, L5040-3, L5240-3, and L5740-3, in one 148-page operator's manual.
Which engines and transmissions are included?
The models use Kubota diesel engines such as the D1703-M-E3, V2003-M-E3, and V2403-M-TE3 in both HST and GST transmission versions.
Does it give wheel torque specs?
Yes. The tyres, wheels and ballast section lists the rear wheel rim and disk bolt torque at 215 N-m (160 ft-lbs), along with tire pressures and ballast guidance. p. 86
What are the service intervals?

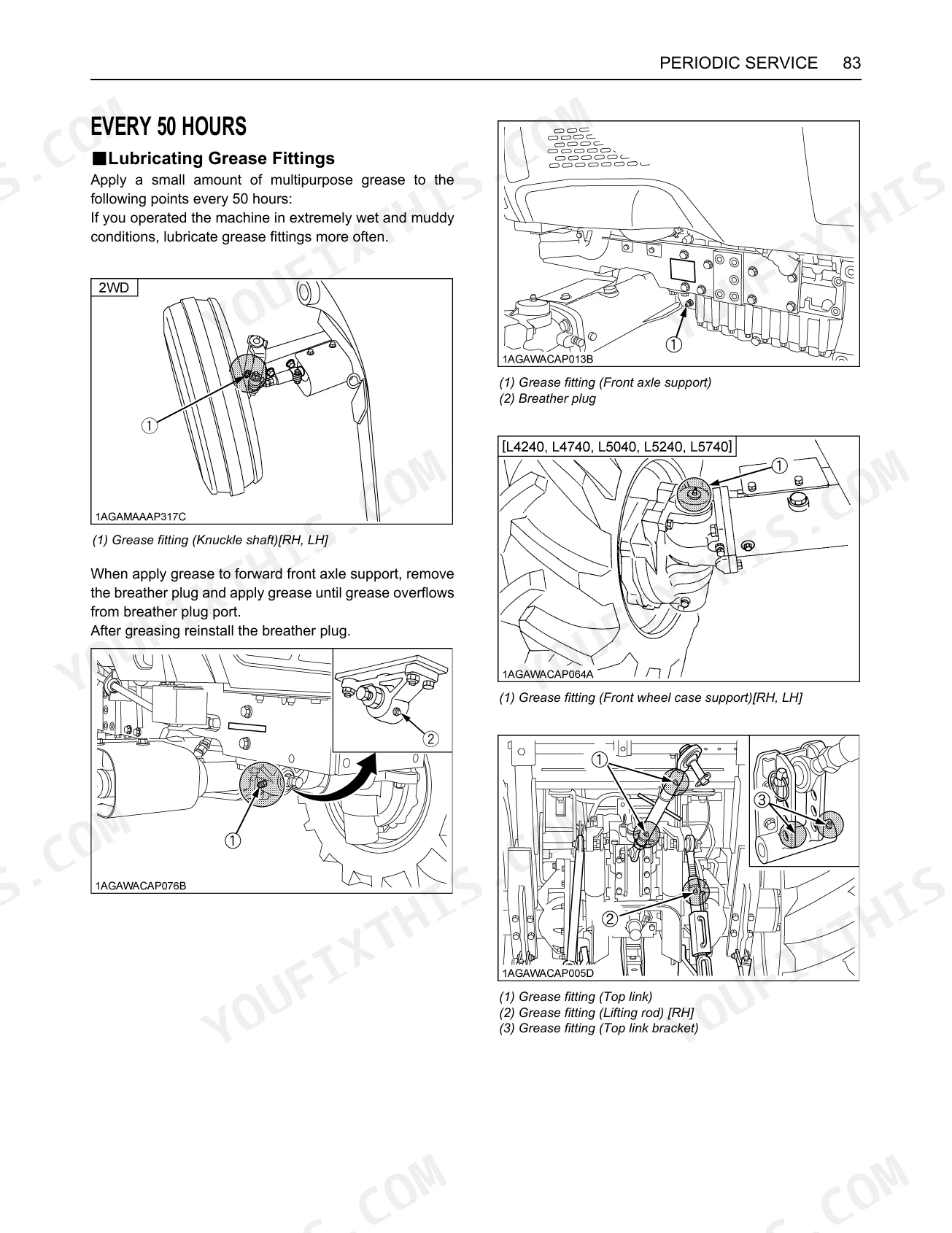

The periodic service section lists intervals such as engine oil every 200 hours and the hydraulic oil filter every 400 hours, with the full maintenance schedule. p. 98
How will I receive this Kubota L3240–L5740 Series Operator Manual?
After checkout, a 148-page searchable PDF downloads instantly. Open it on a laptop, tablet, or phone and take it straight to the shop floor.
Is this Kubota L3240–L5740 Series Operator Manual printable?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
