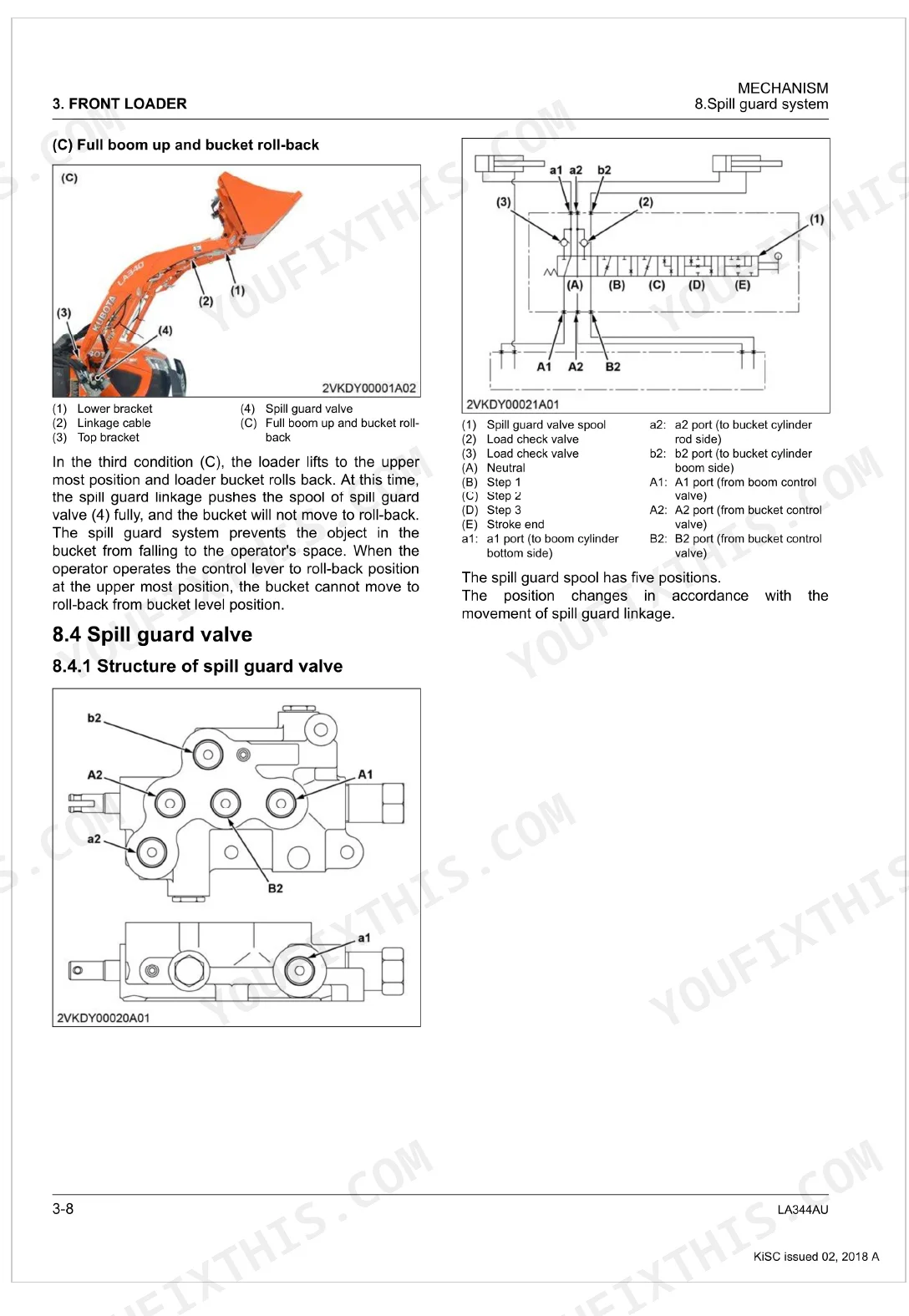

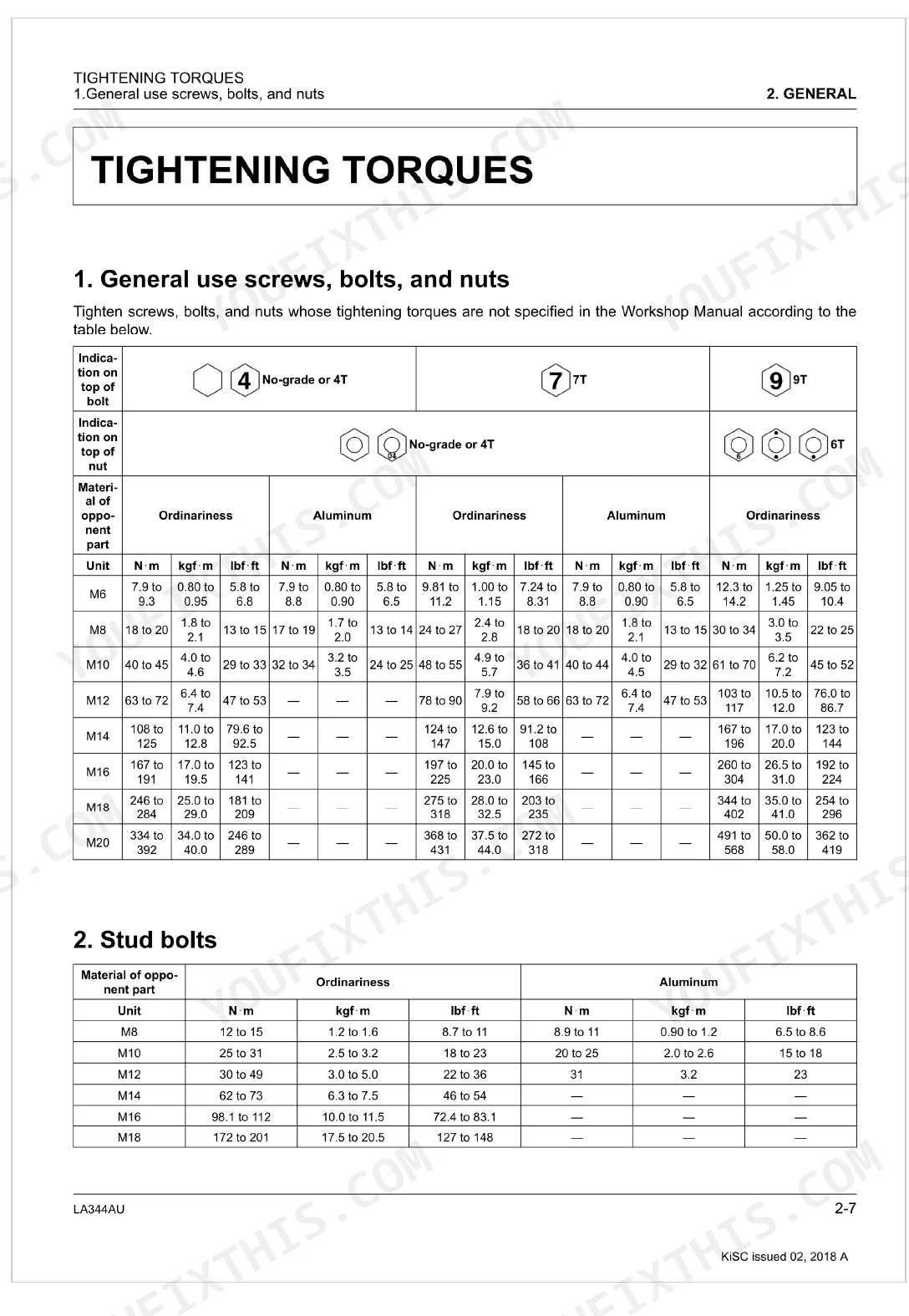

Built around a single machine, this 94-page Kubota LA344AU Workshop Manual (OEM #9Y111-18210) walks your front loader from safety decals and lubricant specs through a full hydraulic circuit teardown and reassembly. The schematics trace oil flow from the pump out to the boom and bucket cylinders. Wiring diagrams, a torque table spanning general fasteners, stud bolts, UNC/UNF threads, hydraulic fittings, and adapters, and 24 pages of step-by-step procedures fill out the rest. The spill guard section details spool position at 2-3 mm and 3-4 mm from neutral. Flare nut (UNF) hose fittings torque to 25-28 N·m at 9/16, 36-40 N·m at 3/4, and 43-50 N·m at 7/8; the M14 main frame mounting bolts take 115 N·m. Stop pulling numbers off forum threads that may not match your loader. Download it, search any spec by keyword, and open it on your tablet right at the machine.
What's Inside This Kubota LA344AU Manual
| System | Pages | Key Topics |
|---|---|---|
| Information | 7-21 | - |
| General | 22-40 | Identification (Checking loader identification), Lubricating System (Lubricants) |

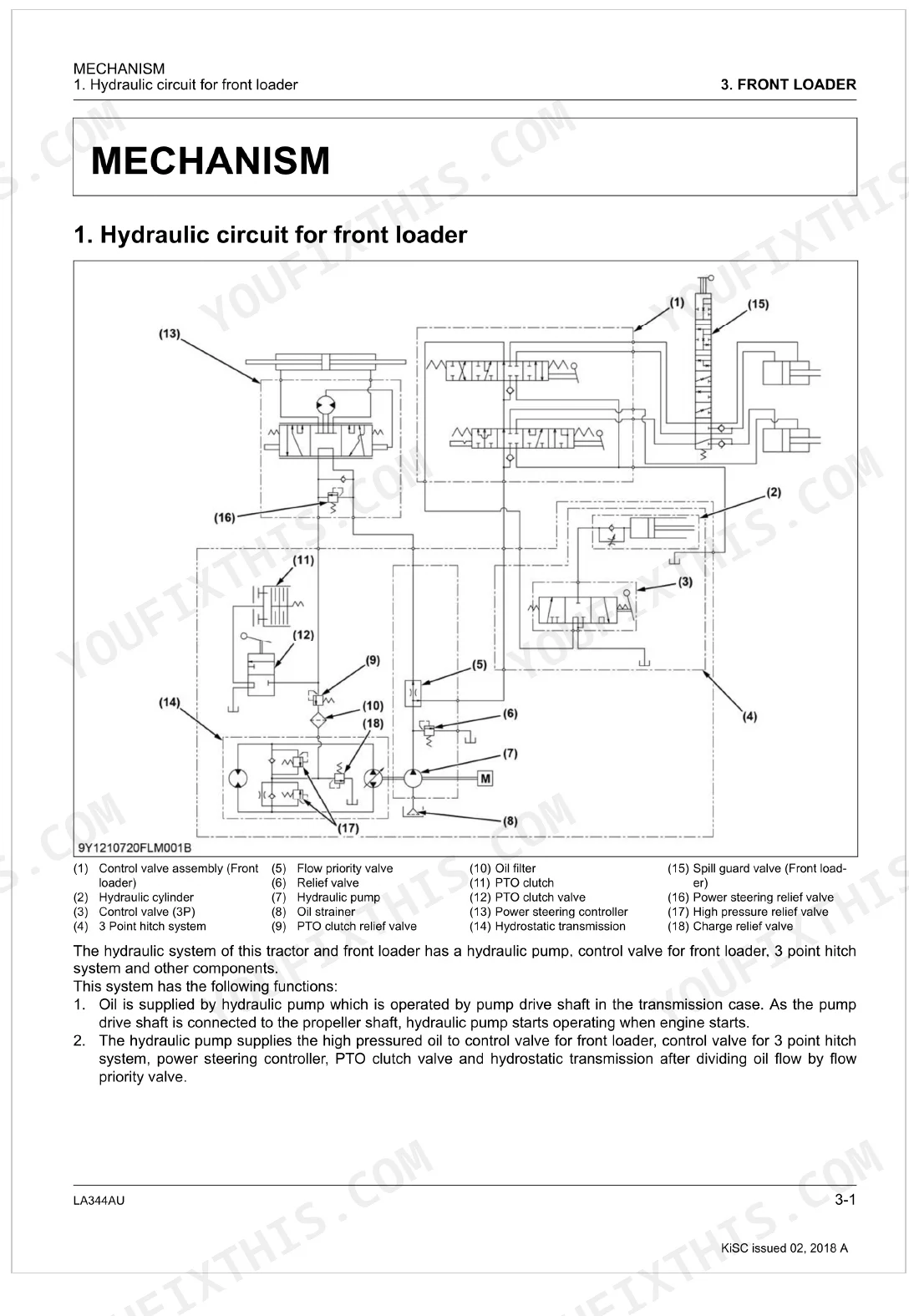

| Front Loader | 41-94 | Hydraulic Circuit for Front Loader (Oil Supplied by Hydraulic Pump, Hydraulic Pump Supplies High Pressured Oil), Specification of Hydraulic Parts |

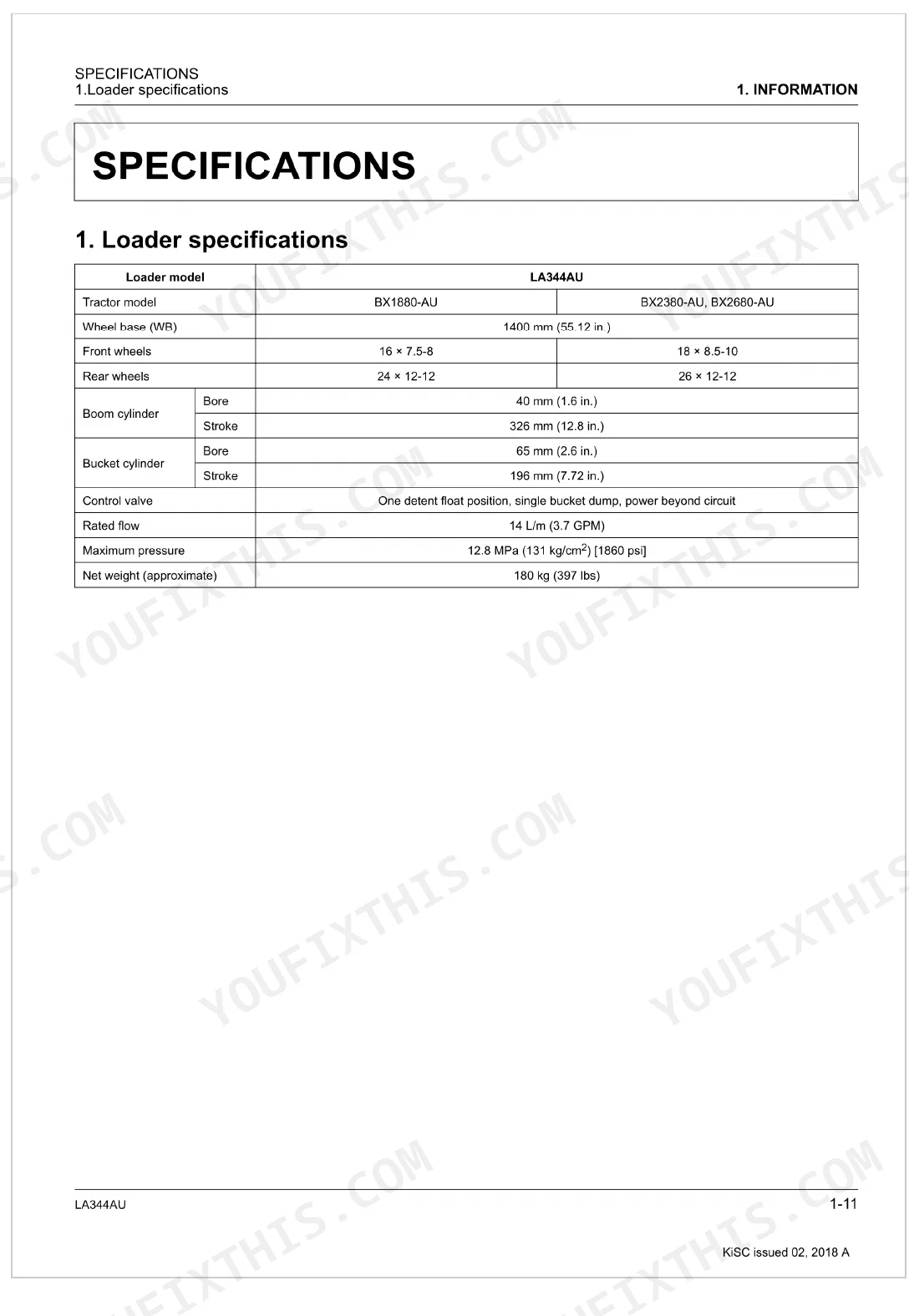

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Main frame mounting bolt (M14) torque | 115 N·m | p. 67 |
| Hose fitting, flare nut (UNF) torque | 9/16: 25 to 28 N·m, 3/4: 36 to 40 N·m, 7/8: 43 to 50 N·m | p. 31 |
| Wheel base (WB) | 1400 mm | p. 18 |
| Boom cylinder Bore | 40 mm | p. 18 |
| Bucket cylinder Stroke | 196 mm | p. 18 |
| Maximum pressure | 12.8 MPa | p. 18 |
| Net weight (approximate) | 180 kg | p. 18 |
| Bucket Width | 1219 mm | p. 19 |
| Lift capacity (500 mm forward, max. height) | 180 kg | p. 21 |
| Raising time | 3.3 s | p. 21 |
| Transmission case Capacity | 11.3 L | p. 27 |
| Piston rod bend allowable limit | 0.25 mm | p. 91 |
Kubota LA344AU Common Problems This Manual Covers

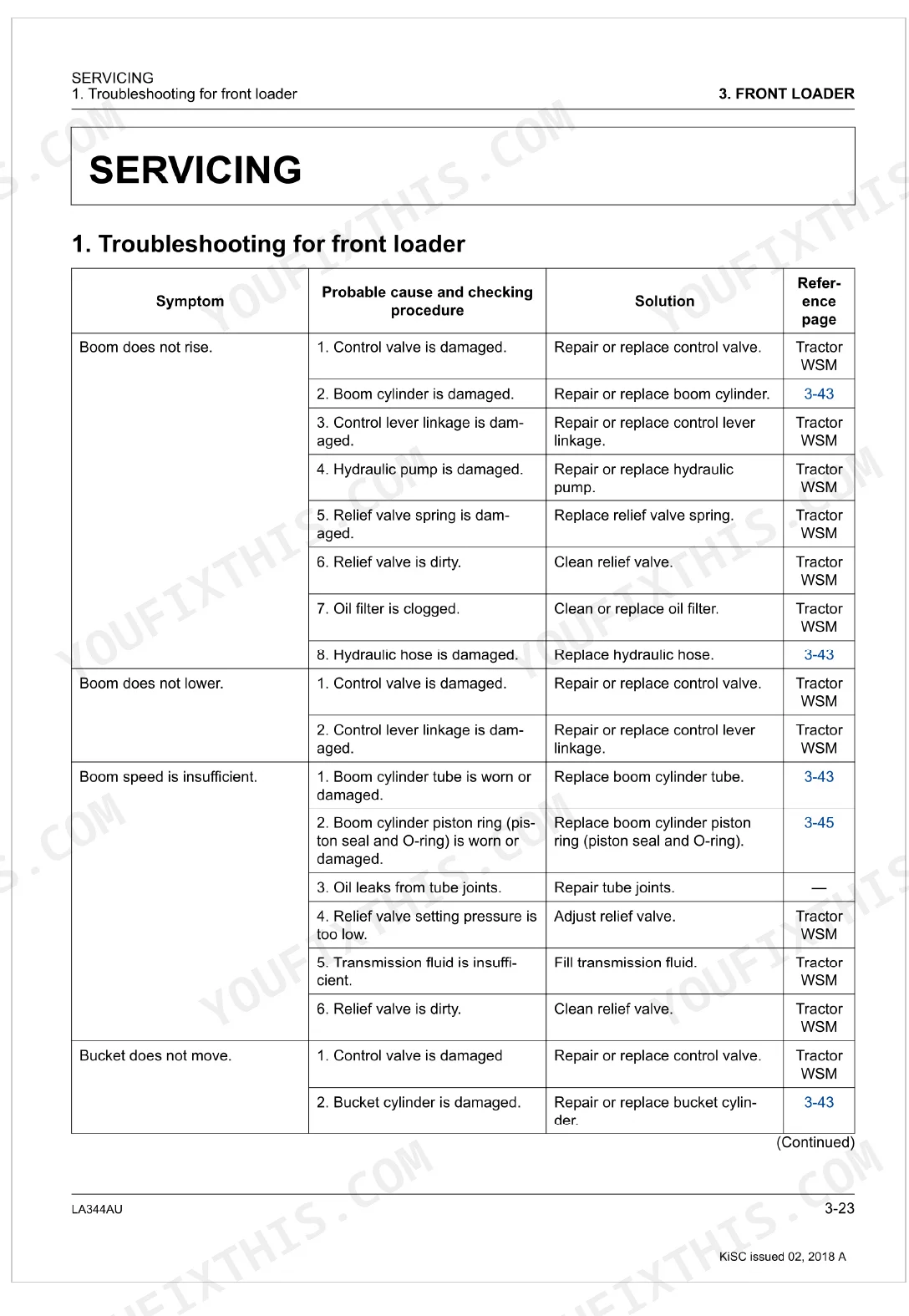

Kubota LA344AU loader weak lift performance and boom does not rise under load
Check the transmission case fluid level first, and fill to the 11.3 L capacity on page 27 if it sits low. Inspect the relief valve for dirt, then confirm maximum pressure reaches 12.8 MPa as listed on page 18. Clean the oil filter and swap out any damaged hydraulic hoses.
Manual Section: Boom does not riseVisible hydraulic fluid leaks around wet hoses and flare nut fittings at the control valve
Inspect the flare nut fittings for damage or loose connections. Torque the 9/16 UNF fittings to 25 to 28 N·m as page 31 directs, and bring the 3/4 fittings to 36 to 40 N·m. Replace worn hoses, then clear any trapped dirt from the coupling.
Manual Section: Boom speed is insufficientFront end loader falls by its own weight while holding position with engine running

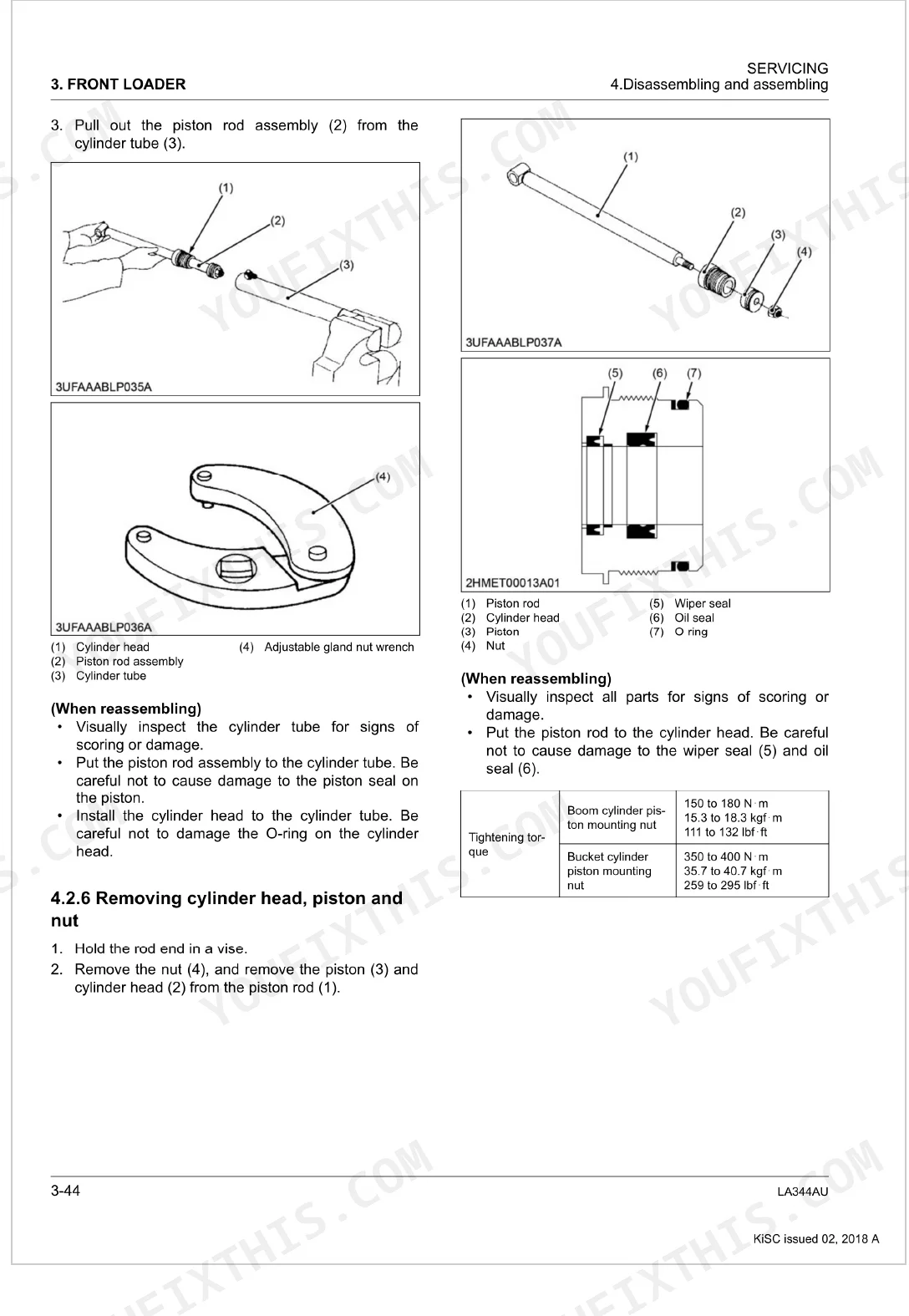

Measure the boom cylinder piston rod for straightness. Replace the rod if the bend exceeds the 0.25 mm limit shown on page 91. Inspect the cylinder tube and piston rings for internal wear, and check the control valve for internal leakage or spool damage.
Manual Section: Front end loader falls by its weightLoader stops operating normally after hookup and main frame mounting points snag during detachment p. 67
Clean dirt and stone buildup from the latch area. Check the main frame mounting bolts for looseness, then torque the M14 bolts to 115 N·m per the spec on page 67. Confirm every hydraulic quick disconnect is fully seated so fluid flows freely.
Manual Section: Front LoaderFrequently Asked Questions
How do I reset the Kubota LA344AU front loader after detaching it?

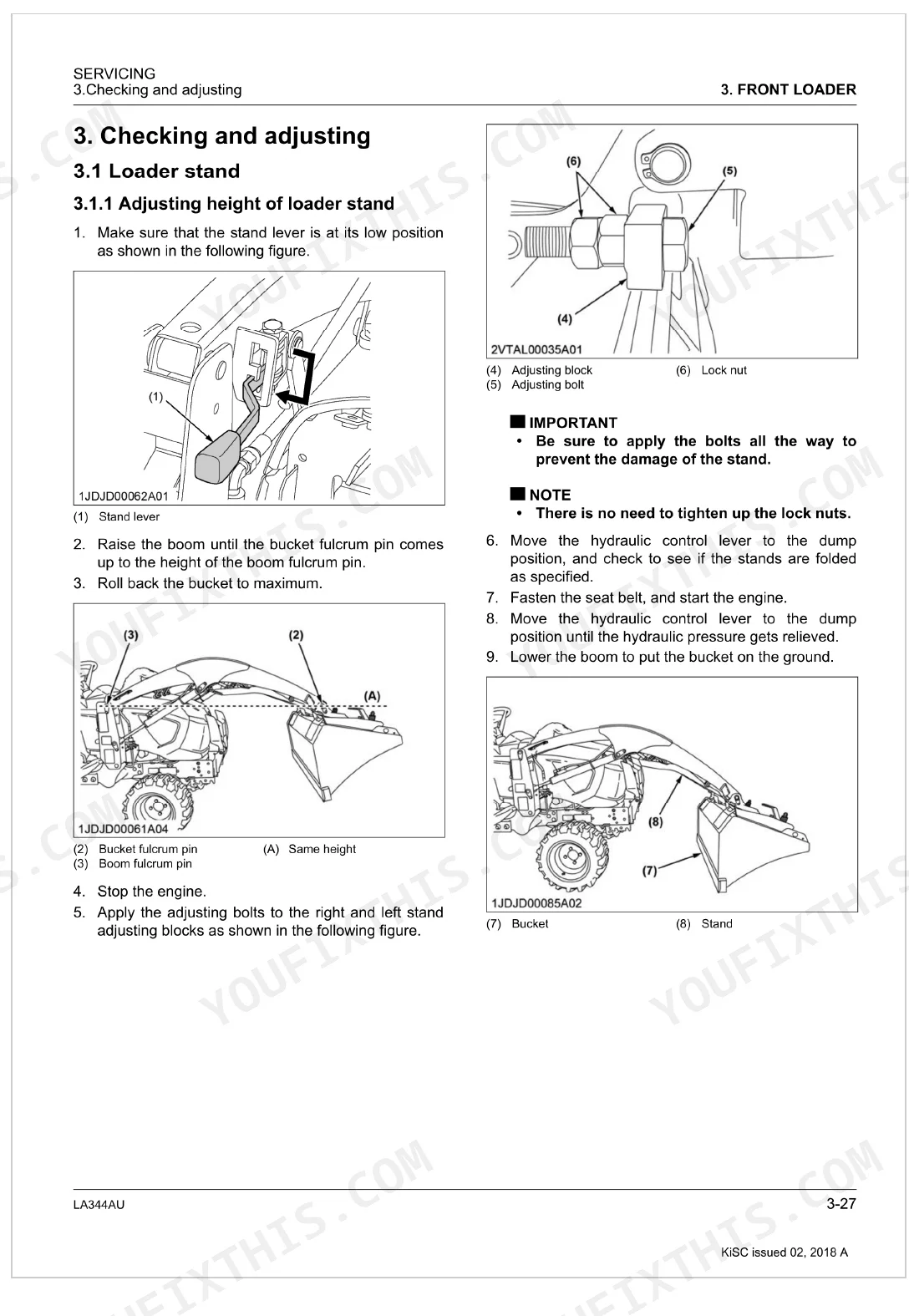

To reinstall the LA344AU front loader after detaching, drive the tractor slowly between the side frames until they touch the main frames. From there, connect the quick coupler, lower the lever until it stops, and turn the safety lock button clockwise. The full installation procedure is detailed on pages 77-80.
What are the torque specs for Kubota LA344AU loader mounting bolts and hydraulic fittings?
The main frame mounting bolt (M14) tightens to 115 N·m (85 lbf·ft). Hydraulic fitting torques vary by size and type: a 9/16 UNF adjustable elbow takes 37 to 44 N·m (28 to 32 lbf·ft), and a 1/4 NPT adapter takes 30 to 50 N·m (23 to 36 lbf·ft). Page 31 lays out the full fitting specifications.
How do I troubleshoot Kubota LA344AU loader error codes or hydraulic lock-up?
The manual's troubleshooting guide covers issues like the boom not rising or lowering, insufficient boom speed, and the bucket not moving. It does not, however, list error codes or a procedure for a "hydraulic lock-up" condition. Common hydraulic culprits there are damaged hoses or incorrect relief valve pressure.
Why won’t my Kubota LA344AU loader reconnect properly after removal?
To get the LA344AU loader reconnecting cleanly after removal, lock the quick coupler tight by working the lever up and down. Check that the mount hooks on both sides sit properly on the main frame and that the stand tips clear the ground. The complete installation procedure is detailed on pages 77-80.
How will I receive this Kubota LA344AU Workshop Manual?
This is a 94-page searchable PDF, ready for immediate download. It works on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Kubota LA344AU Workshop Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are there hydraulic schematics in this Kubota LA344AU manual?
Yes, this manual includes hydraulic system diagrams, circuit schematics, and component specifications.
Document Quality
This is a native digital PDF, so you can search and copy the full text, which is consistently crisp and easy to read throughout. Diagrams and illustrations are mostly clear raster images with readable labels, though a few vector-like diagrams are also present. All pages are clean, free from scan artifacts, stains, or skewed content, and you will find several blank pages that serve as intentional section breaks or fillers.
