Part of the Kubota Repair Manuals.
This Kubota Shop Manual covers the V2607-CR and V3307-CR diesel engines, including the E4B, TE4B, and TIE4B after-treatment variants. It is a 223 page PDF with a searchable text layer and bookmarks, sized to keep on a laptop or tablet in the shop.These are common-rail, Tier 4 engines, and the manual documents the systems that come with them: the center direct injection system, supply pump, rail and injectors, the engine ECU and sensors, the EGR system, and the DPF-based after-treatment. Alongside the design chapters you get troubleshooting, full servicing specifications, and the general and special-use tightening torques.Owners and diesel technicians use it to diagnose starting and emission faults, service the fuel and EGR systems, check cylinder head and valve tolerances, and torque the bottom end correctly during a rebuild.
What's Inside This Kubota V2607–V3307 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Information | 4-31 | - |
| General | 32-87 | Engine Identification (Model Name and Engine Serial Number, Cylinder Number), Muffler Full Assembly Identification (Part Number and Serial Number), Maintenance Check List |

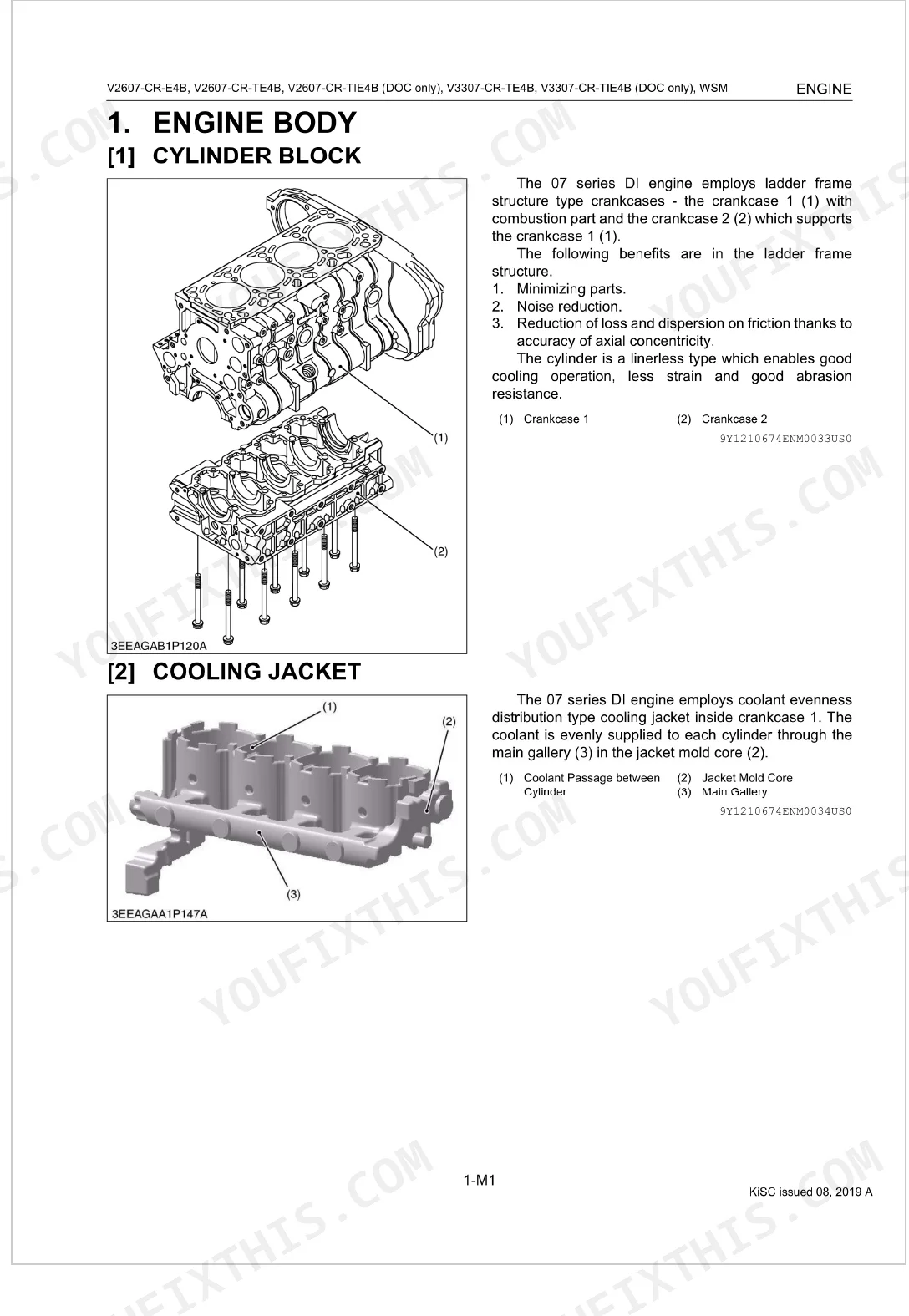

| Engine | 88-118 | Engine Body (Cylinder Block, Cooling Jacket, Half-Floating Head Cover, Cylinder Head, Screws per Each Cylinder Assembling Structure, Center Direct Injection System, Gear Train Configuration, Piston) |

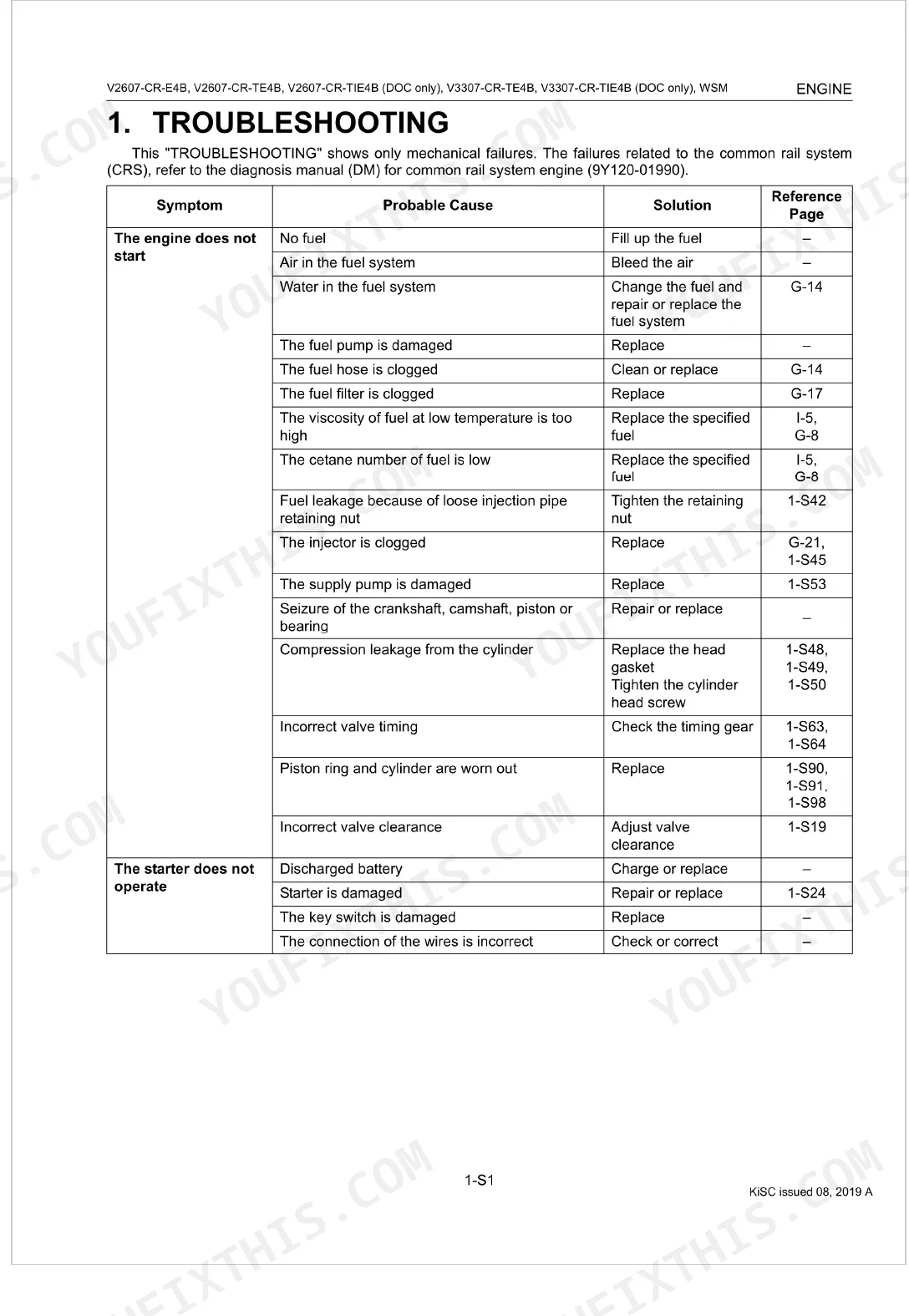

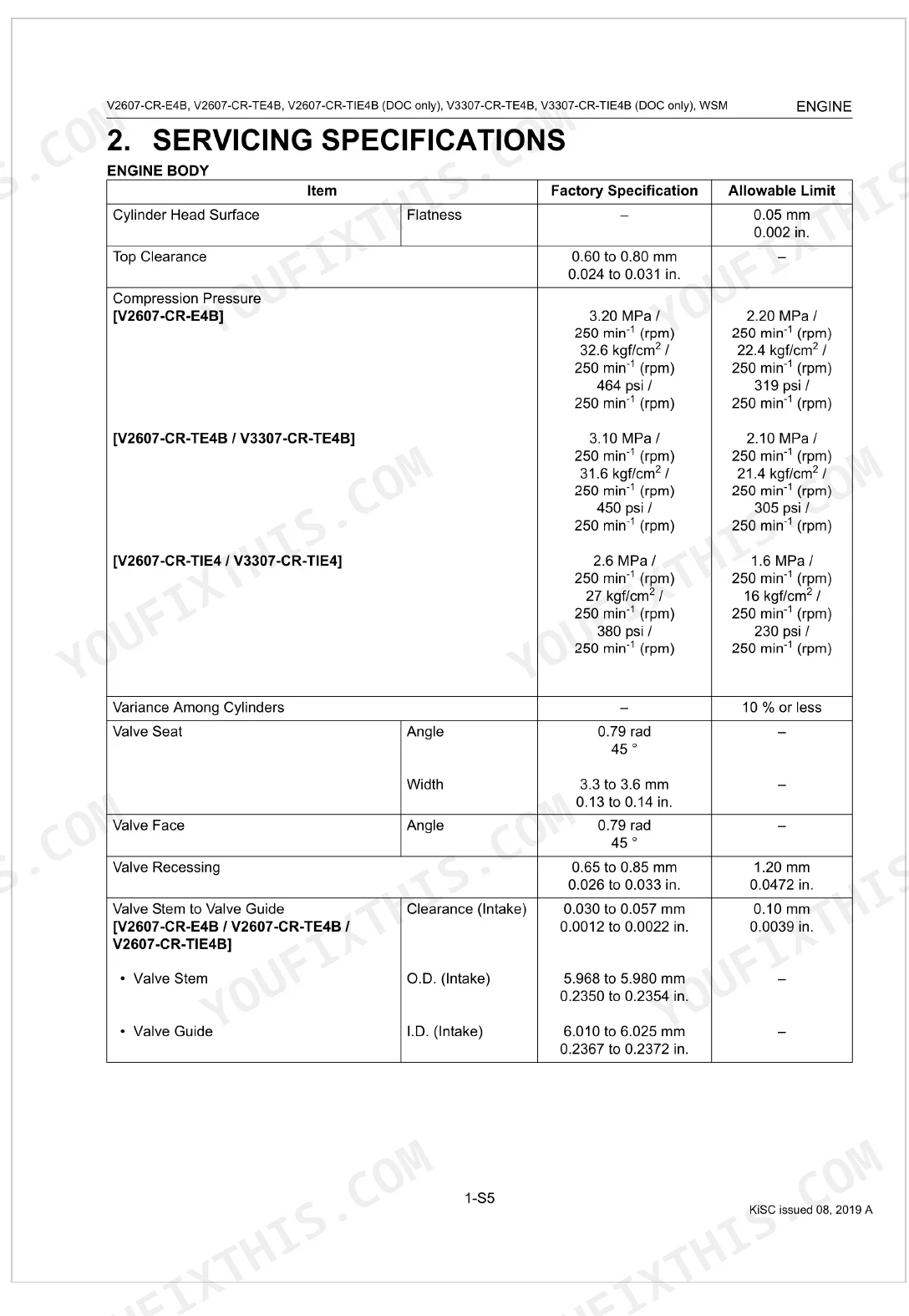

| Servicing | 119-223 | Troubleshooting, Servicing Specifications, Tightening Torques (Screws, Bolts: General Use, Special Use), Checking |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine oil replacement interval | Initial 50 hrs., Every 500 hrs or 1 year whichever comes first | p. 40 |
| DPF cleaning interval | Every 1500 hours | p. 39 |
| Number of Cylinder | 4 | p. 10 |
| Bore x Stroke | 87.0 x 110 mm | p. 10 |
| Total Displacement | 2615 cm³ | p. 10 |
| Lubricating Oil Capacity | 10.2 L | p. 10 |
| Cylinder Head Surface Flatness (Allowable Limit) | 0.05 mm | p. 124 |
| Valve Clearance (Cold) | 0.13 to 0.17 mm | p. 125 |
| Valve Spring Free Length (Factory Spec) | 35.4 to 35.9 mm | p. 126 |
| Engine Oil Pressure (At Idle Speed, Allowable Limit) | 50 kPa | p. 131 |
| Thermostat Valve Opening Temperature (Factory Spec) | 80 to 84 °C | p. 132 |
| M8 Bolt Tightening Torque (No-grade or 4T) | 18 to 20 N·m | p. 133 |
Kubota V2607–V3307 Series Common Problems This Manual Covers
Hard starting or injector faults
On these common-rail engines, worn injectors or a weak supply pump cause hard starting, smoke, and rough running. The engine section documents the rail, injectors, and supply pump.
Manual Section: Engine p. 88EGR valve fouling
Soot builds on the EGR valve and cooler, triggering rough idle and emission faults. The engine section covers the EGR valve, reed valve, and cooler.
Manual Section: Engine p. 88DPF clogging and regeneration
Short-cycle running loads the diesel particulate filter and forces frequent regeneration. The engine section explains the after-treatment devices for each variant.
Manual Section: Engine p. 88Low compression or head sealing
A warped head or worn valves drop compression below service limits. The servicing section gives the 0.05 mm head flatness limit and the 0.13 to 0.17 mm valve clearance.
Manual Section: Servicing p. 119Low oil pressure
Bearing or oil pump wear drops pressure below the 50 kPa idle limit, risking damage. The servicing section covers the pressure checks and service specifications.
Manual Section: Servicing p. 119Overheating and thermostat faults
A stuck thermostat or restricted cooling makes the engine run hot. The engine section covers the thermostat and bottom bypass cooling system.
Manual Section: Engine p. 88Loose bottom-end fasteners
Incorrectly torqued rod, main, or flywheel screws lead to noise and failure. The servicing section lists the general and special-use tightening torques.
Manual Section: Servicing p. 119Frequently Asked Questions
Which engines does this shop manual cover?
It covers the Kubota V2607-CR and V3307-CR diesel engines, including the E4B, TE4B, and TIE4B after-treatment variants.
Does it include tightening torques and service specs?
Yes. The servicing section lists the servicing specifications and both general and special-use tightening torques, such as the M12 general torque of 78 to 90 N·m. p. 119
Are wiring diagrams included?

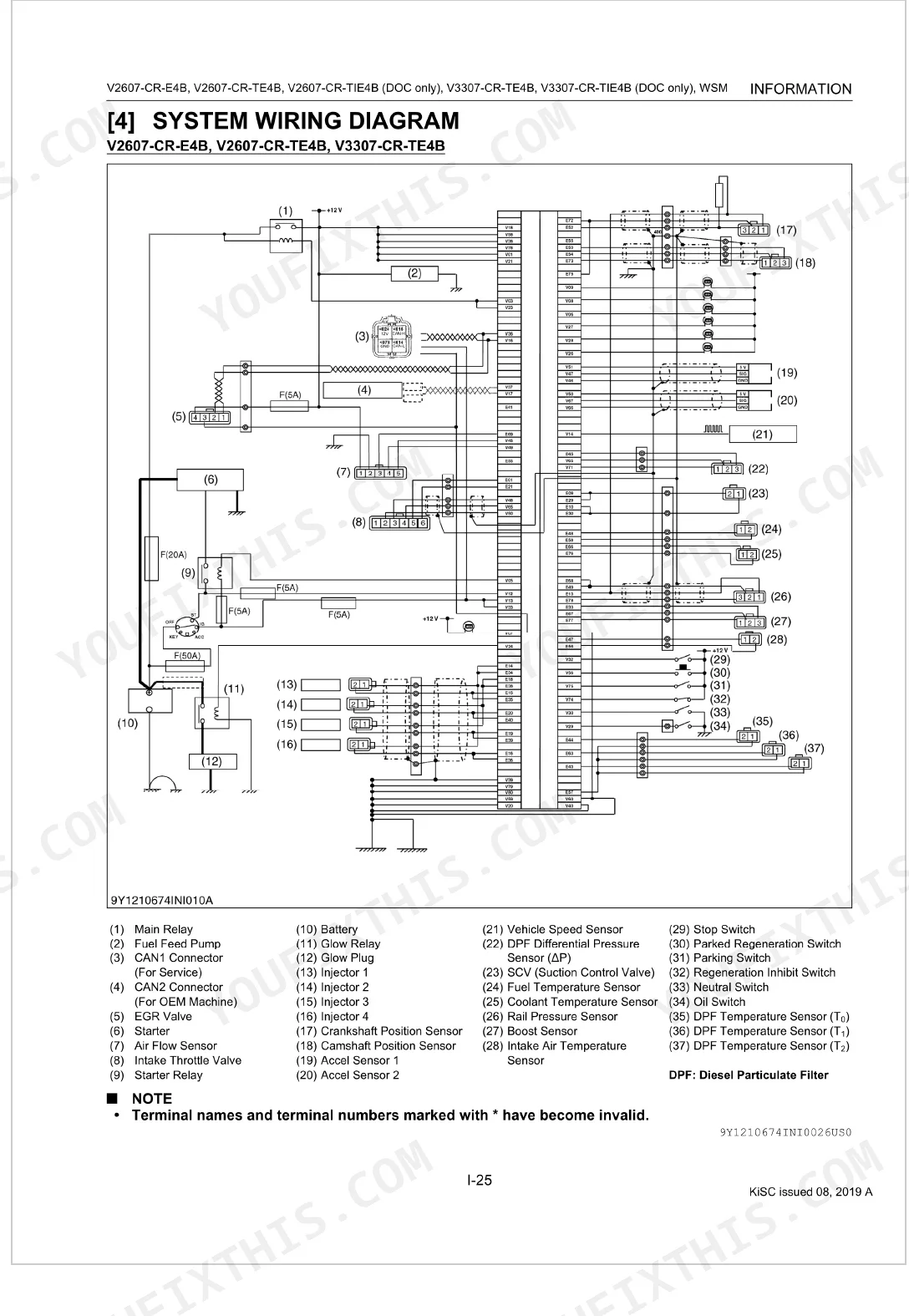

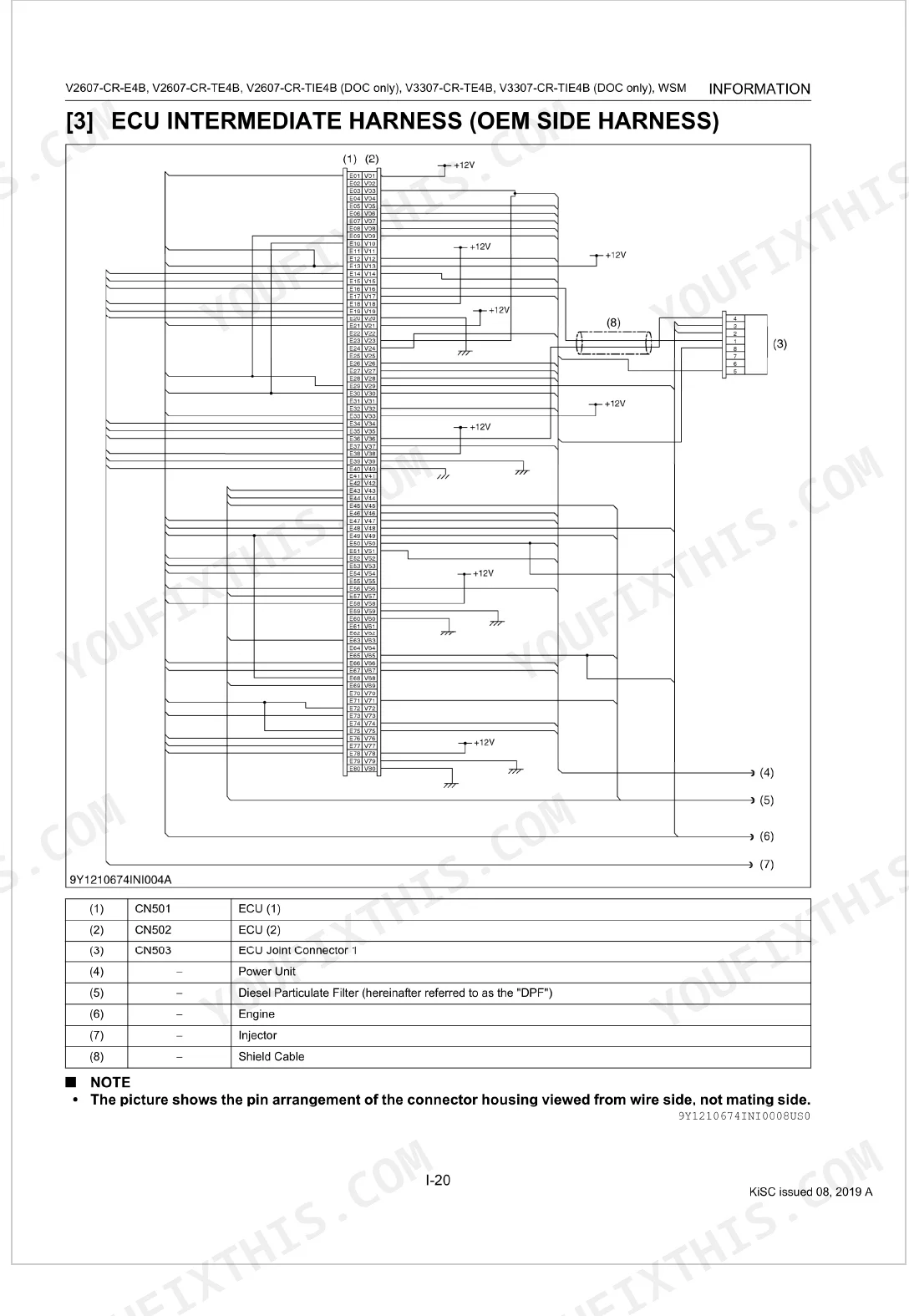

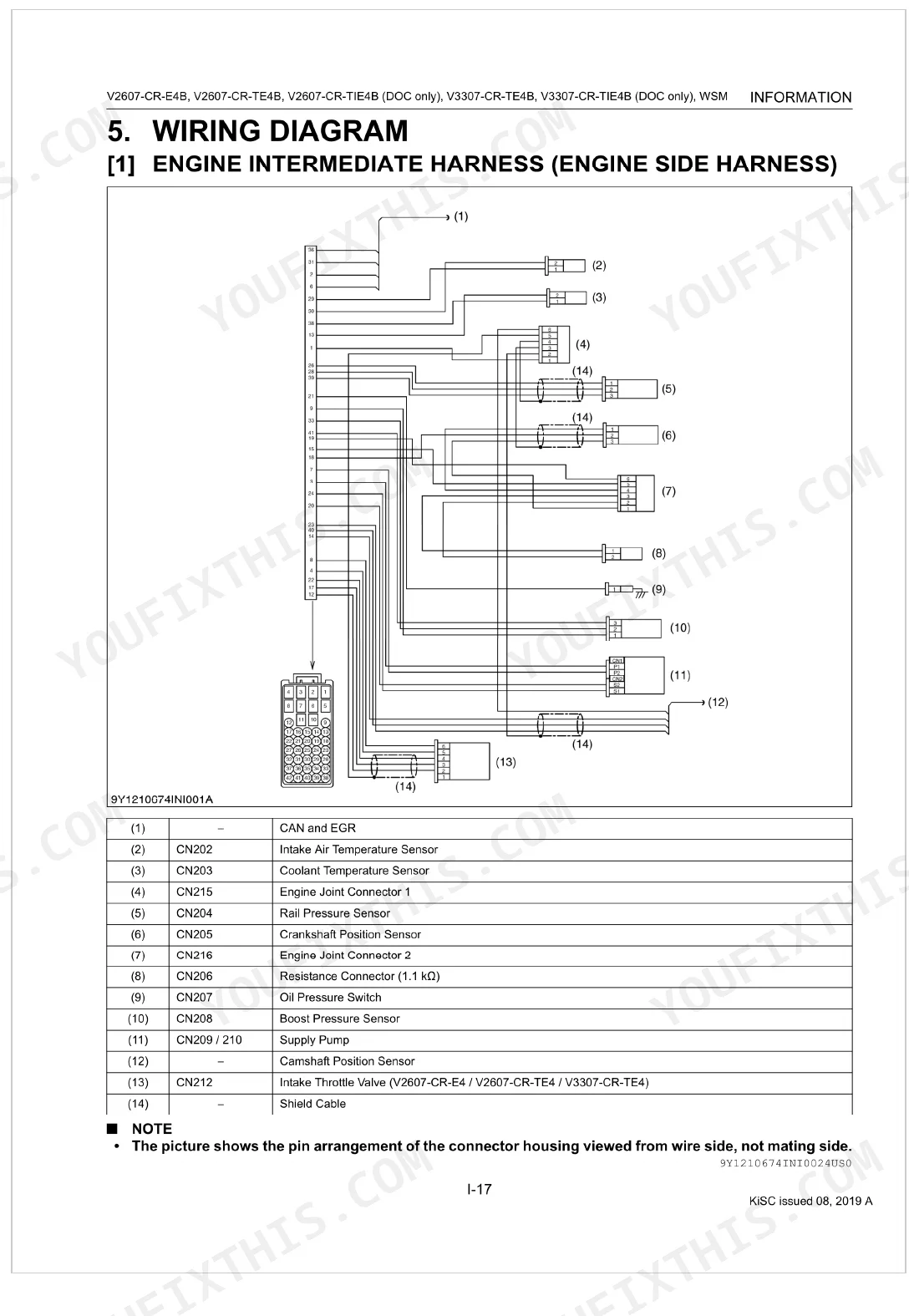

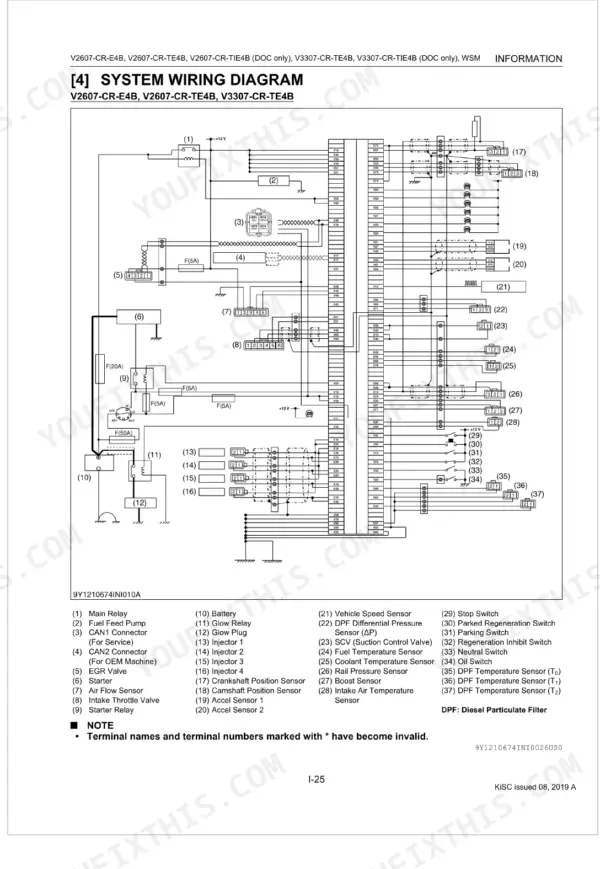

Yes. The information section includes the engine and injector harness diagrams, the ECU harness, and the system wiring diagram. p. 4
Does it cover the emission and after-treatment systems?
Yes. The engine section documents the EGR system and the DPF-based after-treatment devices for each engine variant. p. 88
What do I get after purchasing this Kubota V2607–V3307 Series manual?
You get a 223-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, bring it right to the shop floor.
Is this Kubota V2607–V3307 Series Shop Manual printable?
Yes, print as many copies as you want, there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Does this Kubota V2607–V3307 Series manual include hydraulic schematics?
Not included. This manual is for a DIESEL ENGINE and does not contain hydraulic schematics.
