This is the factory Kubota shop manual for the V3300DI-E2B and V3300DI-T-E2B diesel engines, a 147 page downloadable PDF. Both the naturally aspirated and turbocharged versions of this four cylinder, 3318 cm3 engine are covered.
The manual opens with specifications, performance curves, and dimensions, then moves through engine identification, a full maintenance check list, the engine mechanism, and a large servicing chapter with troubleshooting, servicing specifications, tightening torques, and disassembly procedures. Fluid capacities and service intervals are documented in detail.
Diesel technicians rebuilding or maintaining one of these engines can work directly from the factory figures, checking clearances, torques, and injection timing against the printed pages. Read it on a phone, tablet, or computer, or print the specific sections you need for bench work.
What's Inside This Kubota V3300DI-E2B, V3300DI-T-E2B Manual
| System | Pages | Key Topics |
|---|---|---|
| Record of Revisions | 3 | Correction of Workshop Manual (Model Name: Old Engine Serial Number, New Engine Serial Number), Battery Specific Gravity, Governor, Check the Fuel Leakage of the Overflow Pipe |
| Safety First | 4-7 | Danger, Warning, Caution, Important, Note, Before Servicing and Repairing, Safety Starting, Safety Working |
| Specifications | 8 | Model, Engine Type, Performance Data, Fuel System, Lubricating System, Cooling System, Starting System, Lubricating Oil |
| Performance Curves | 9-10 | V3300DI-E2B Performance Data (Sae-J1349 Curves, Iso-3046, 2534 Curves), Curve Legend, V3300DI-T-E2B Performance Data (Sae-J1349 Curves |
| Dimensions | 11 | V3300DI-E2B Dimensions, V3300DI-T-E2B Dimensions, Measurement Unit |
| General | 12-53 | Engine Identification (Model Name and Old Engine Serial Number, Model Name and New Engine Serial Number, Cylinder Number), Maintenance Check List |

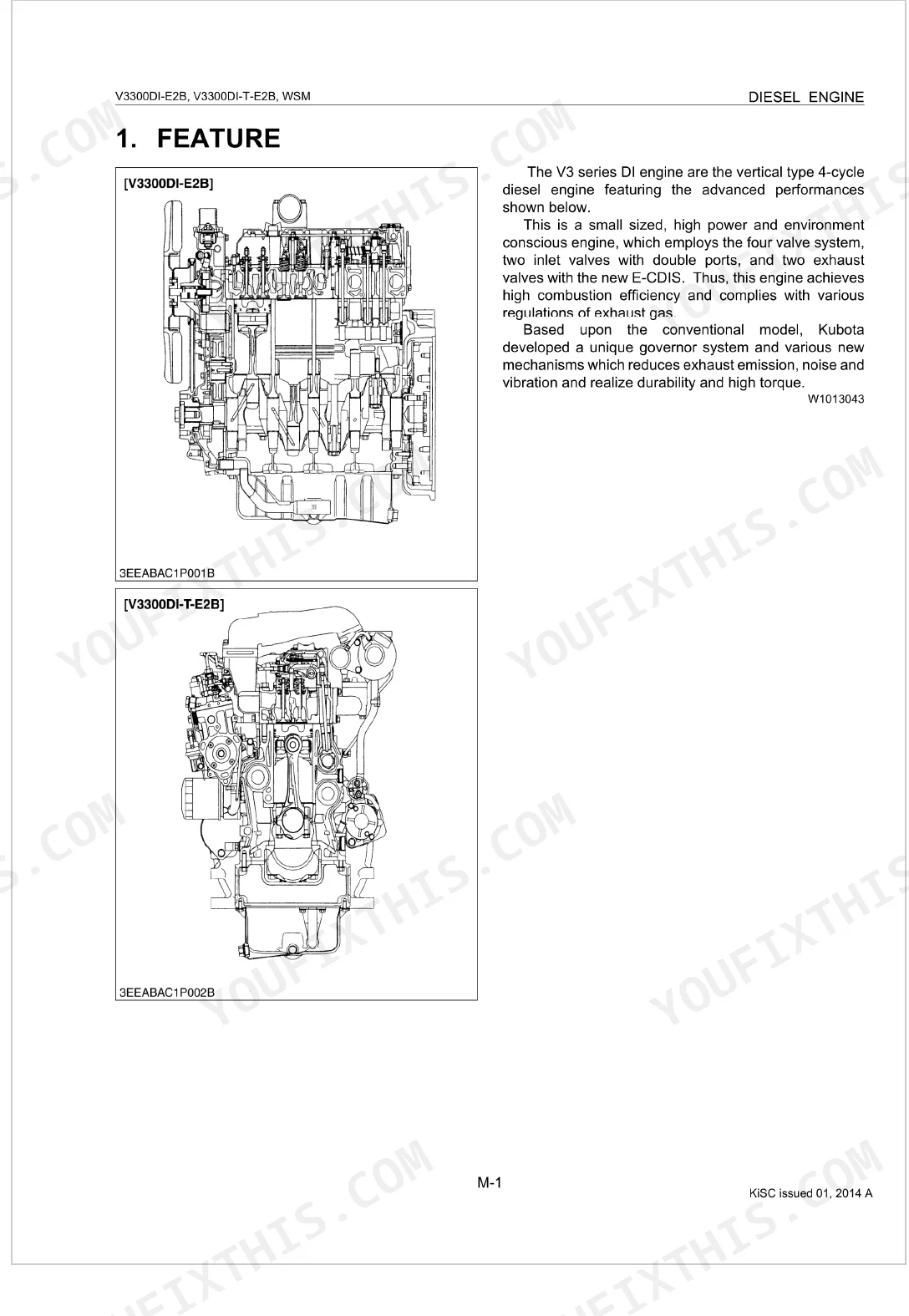

| Mechanism | 54-68 | Feature, Engine Body (Cylinder Block, Half-Floating Head Cover, Cylinder Head, Center Direct Injection System, Piston, Built-In Dynamic Balancer), Lubricating System (Oil Cooler) |

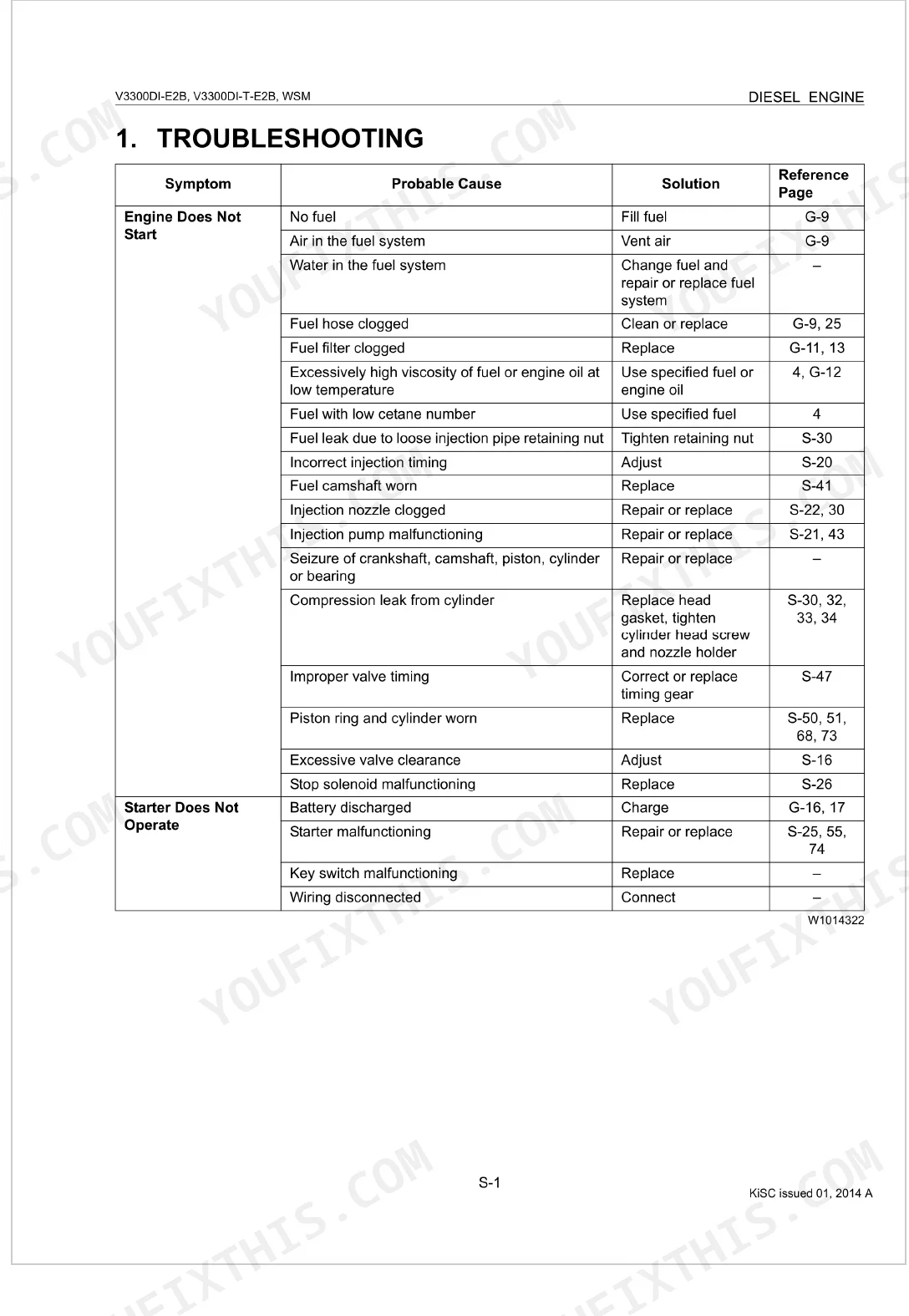

| Troubleshooting | 70-73 | - |

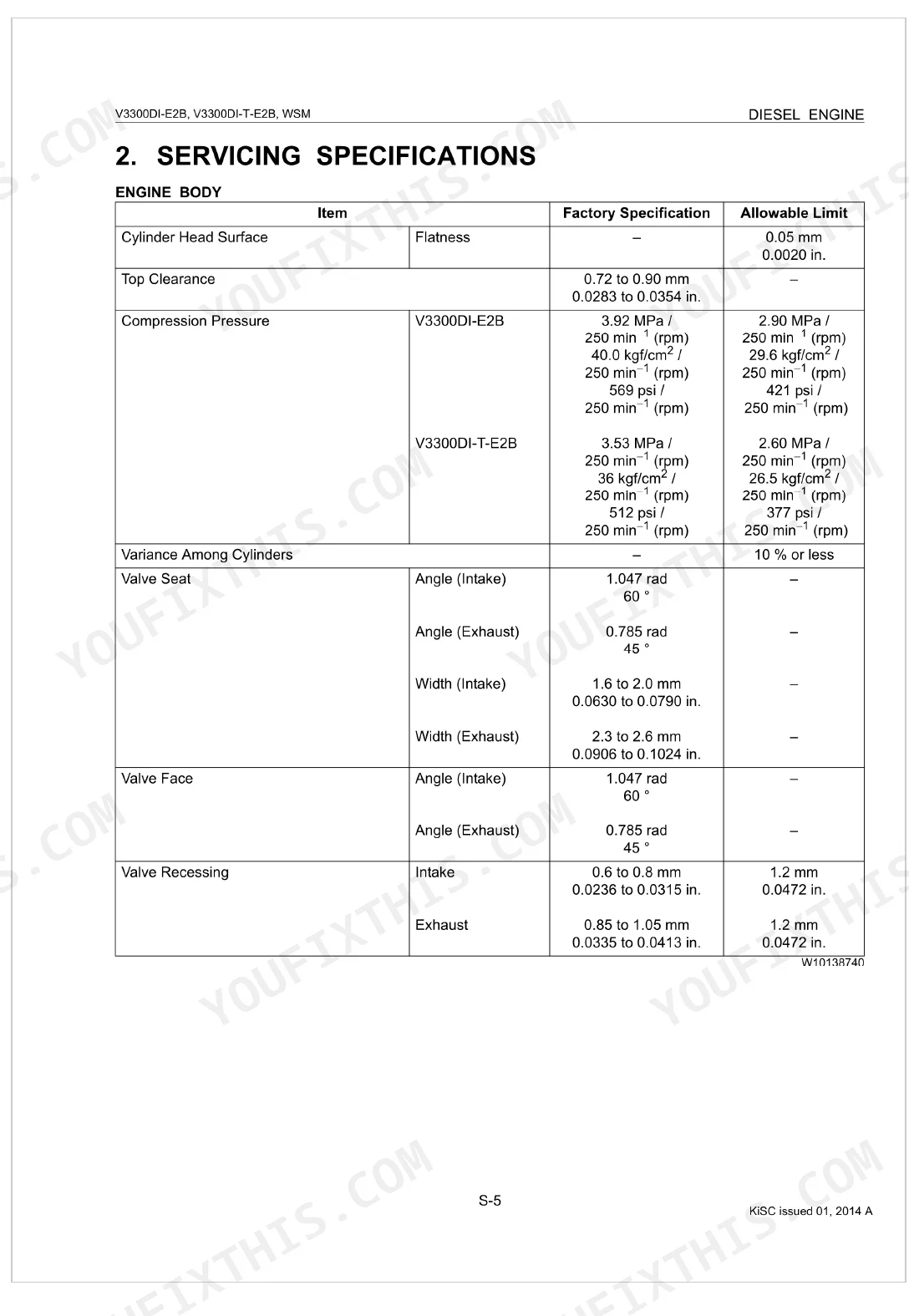

| Servicing Specifications | 74-80 | - |

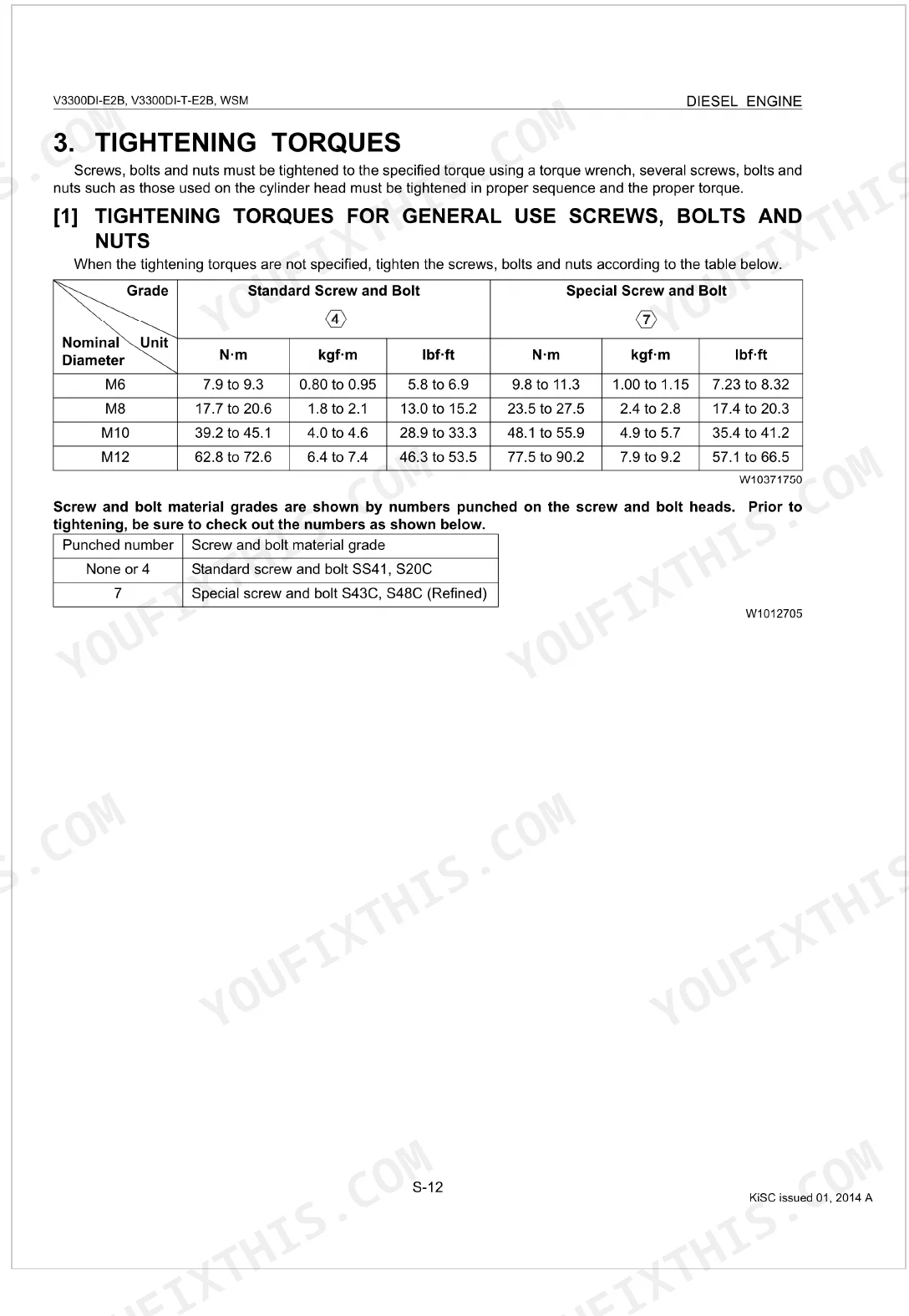

| Tightening Torques | 81-83 | Tightening Torques for General Use Screws, Bolts and Nuts, Tightening Torques for Special Use Screws |
| Checking, Disassembling and Servicing | 84-147 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Engine oil capacity | 13.2 L (3.49 U.S.gals) | p. 8 |

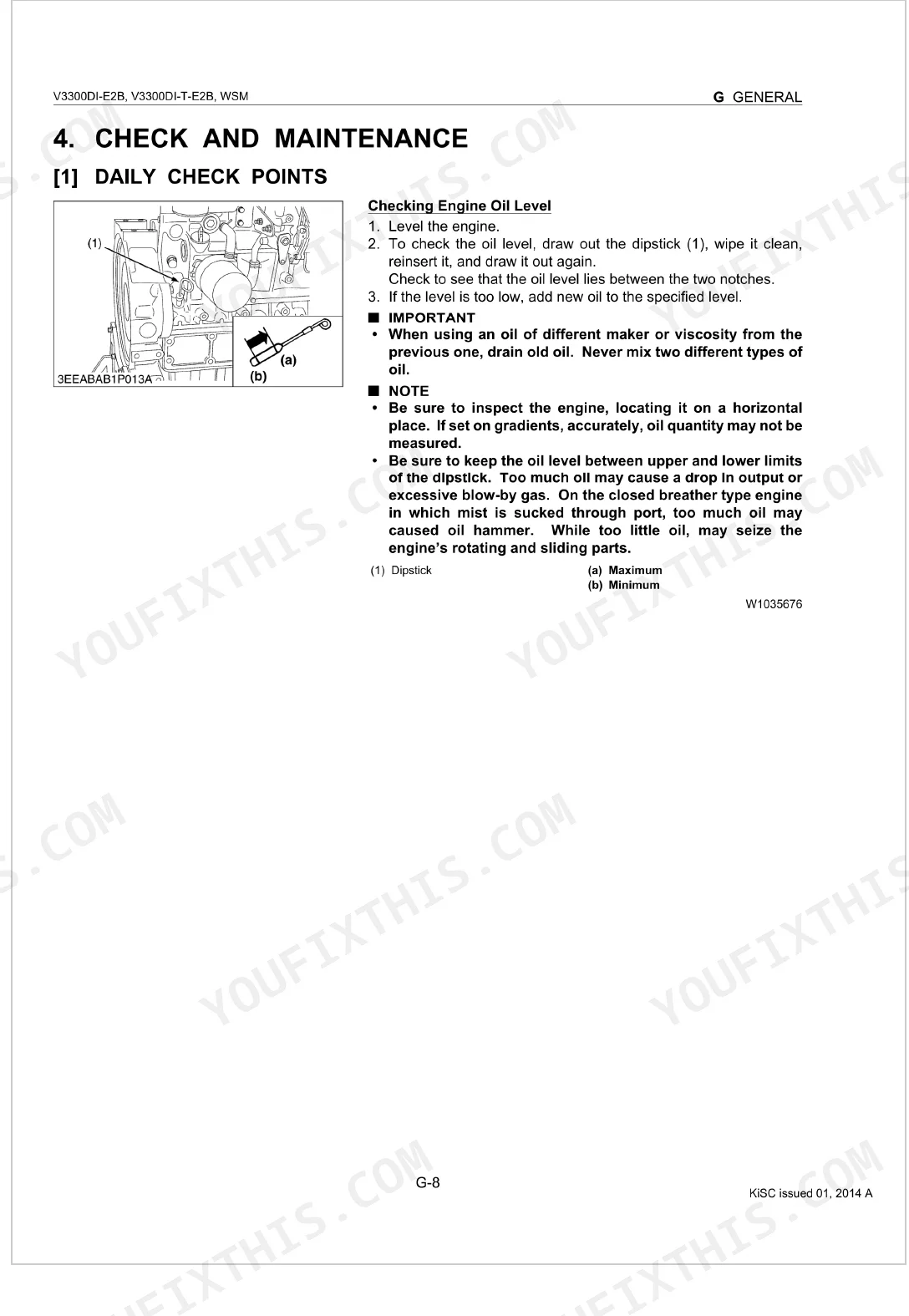

| Changing engine oil interval | Initial 50 hrs, Every 250 hrs | p. 18 |
| Number of Cylinders | 4 | p. 8 |
| Total Displacement | 3318 cm³ | p. 8 |
| Lubricating Oil Capacity | 13.2 L | p. 8 |
| Charging Alternator | 12 V, 540 W | p. 8 |
| Engine Oil Change Interval | Every 250 hours | p. 18 |
| Oil Filter Cartridge Replacement Interval | Every 250 hours | p. 18 |
| Radiator Coolant Replacement Interval | Every 2 years | p. 18 |
| Engine Oil Drain Plug Torque | 20.0 to 24.5 N·m | p. 22 |
| V3300DI-E2B | ||
| Compression Ratio | 20.0 | p. 8 |
| V3300DI-T-E2B | ||
| Compression Ratio | 19.3 | p. 8 |
Kubota V3300DI-E2B, V3300DI-T-E2B Common Problems This Manual Covers
Hard starting or no start
A diesel that cranks but will not fire usually comes down to injection, compression, or the fuel supply. The servicing section walks the troubleshooting checks in order.
Manual Section: Servicing p. 69High oil consumption and smoke
Burning oil and blue exhaust point to worn piston rings or bore. The servicing section covers checking and disassembly to find and correct the wear.
Manual Section: Servicing p. 69Slack fan belt and weak charging
A loose fan belt reduces alternator output and coolant flow. The general section maintenance check list gives the fan belt deflection and service interval.
Manual Section: General p. 12Overheating under load
Rising temperature often traces to a fouled radiator, weak coolant, or a tired belt. The general section covers the cooling checks and coolant replacement schedule.
Manual Section: General p. 12Low oil pressure warning
A drop in oil pressure can mean a worn pump, oil cooler issue, or bearing wear. The mechanism section describes the lubricating system and oil cooler.
Manual Section: Mechanism p. 54Valve train noise from clearance drift
Tapping from the top end means the valve clearance has fallen out of spec. The servicing section gives the clearance figure and the procedure to reset it.
Manual Section: Servicing p. 69Frequently Asked Questions
Which engines does this manual cover?
It covers the Kubota V3300DI-E2B and V3300DI-T-E2B diesel engines, the naturally aspirated and turbocharged versions of this four cylinder 3318 cm3 engine.
Are the key engine specifications listed?
Yes. The Specifications section on page 8 covers engine type, performance data, fuel, lubricating, cooling, and starting systems, with performance curves and dimensions following. p. 8
Does it include tightening torques and disassembly steps?
Yes. The Servicing section starting on page 69 covers troubleshooting, servicing specifications, tightening torques, and checking and disassembly procedures. p. 69
How do I get the manual after buying?
You download the PDF straight after purchase and keep your own copy, so nothing is shipped and there is no wait.
Is this Kubota V3300DI-E2B Shop Manual a digital download?
Immediate download of the complete 147-page searchable Shop Manual. Read it on any device, from the laptop at your desk to the phone out in the field.
Does this Kubota V3300DI-E2B manual allow printing?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
