Part of the Kubota Repair Manuals.
This Kubota Workshop Manual covers the OC60-E4 and OC95-E4 diesel engines, the compact single-cylinder units used across Kubota-powered equipment. Running 107 pages, it is the factory service documentation, organised into Information, General, Engine Mechanism, and Servicing sections that carry specifications, performance curves, maintenance schedules, and full overhaul procedures.You can work to Kubota's published figures: valve clearance of 0.14 to 0.18 mm, compression of 35.0 to 40.0 kgf/cm², rated oil pressure of 147 to 490 kPa, and engine oil capacities of 1.3 L for the OC60-E4 and 1.7 L for the OC95-E4. Tightening torques, troubleshooting charts, and step by step checking and disassembly let an owner or mechanic diagnose starting faults, low oil pressure, and lost compression, then rebuild the engine correctly.It is delivered as a searchable, printable PDF download.
What's Inside This Kubota OC60-E4, OC95-E4 Manual
| System | Pages | Key Topics |
|---|---|---|
| Information | 3-15 | - |
| General | 16-36 | Engine Identification (Model Name and Engine Serial Number), E4 Engine, Lubricants, And Fuel, Maintenance Check List |
| Engine Mechanism | 37-52 | Feature, Engine Body (Cylinder Head, Crank Case and Cylinder Liner, Unaxial Balancer System), Lubricating System (General, Oil Strainer, Oil Pump, Oil Pressure Switch) |
| Servicing | 53-107 | Troubleshooting, Servicing Specifications, Tightening Torques (General Use Screws, Bolts and Nuts, Special Use Screws, Bolts and Nuts), Checking |

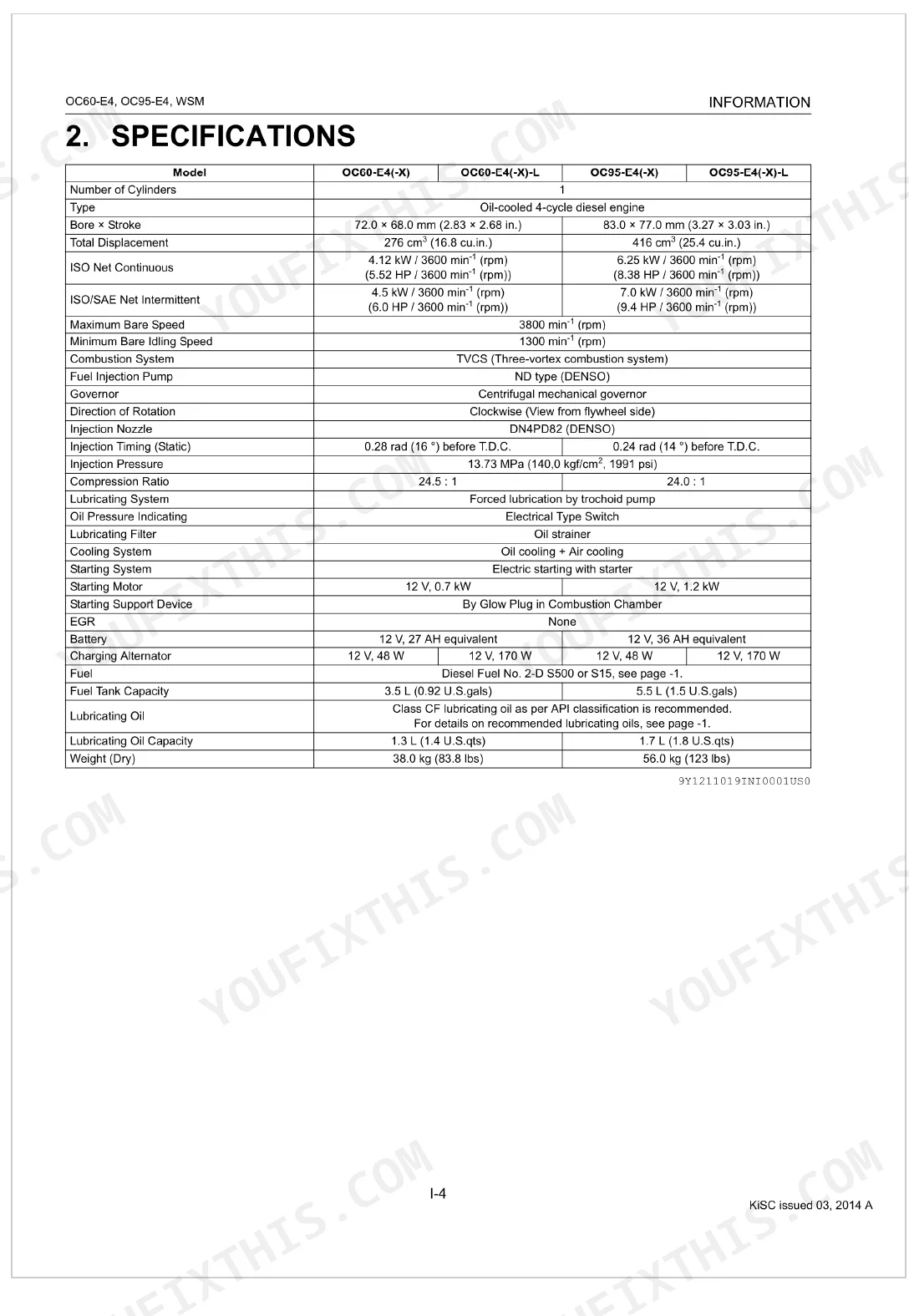

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

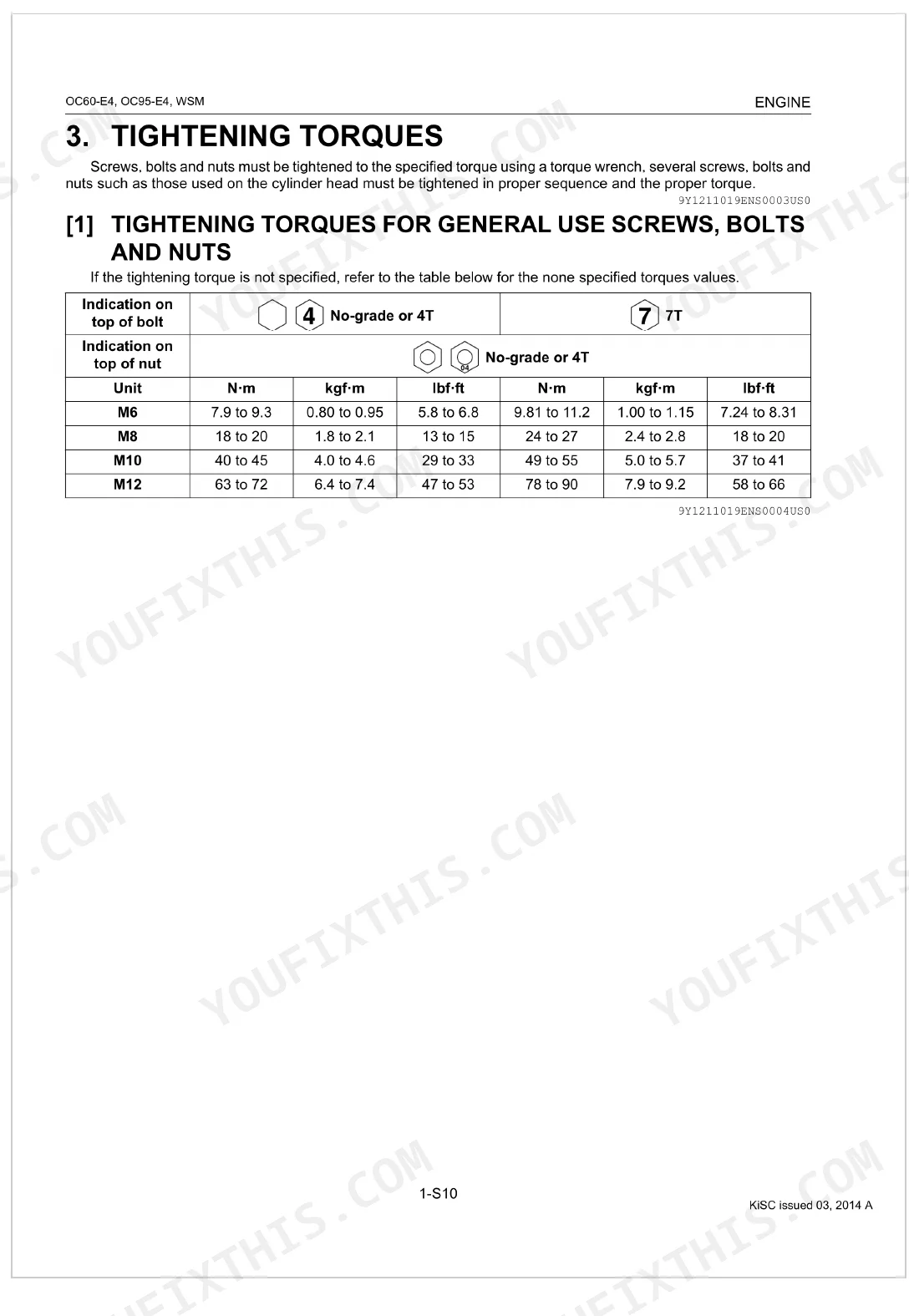

| Tightening Torque (M8, No-grade or 4T) | 18 to 20 N·m (1.8 to 2.1 kgf·m, 13 to 15 lbf·ft) | p. 63 |
| Tightening Torque (M8, No-grade or 7T) | 24 to 27 N·m (2.4 to 2.8 kgf·m, 18 to 20 lbf·ft) | p. 63 |
| Valve Clearance (Cold) | 0.14 to 0.18 mm | p. 57 |
| Compression Pressure | 35.0 to 40.0 kgf/cm² | p. 57 |
| Engine Oil Pressure (At Idle Speed) | 49 kPa | p. 61 |
| Engine Oil Pressure (At Rated Speed) | 147 to 490 kPa | p. 61 |
| Cylinder Head Mounting Screw Torque (M8) | 18 to 20 N-m | p. 63 |
| Cylinder Head Mounting Screw Torque (M10) | 40 to 45 N-m | p. 63 |
| OC60-E4 | ||
| Engine Oil Capacity | 1.3 L | p. 22 |
| Fuel Tank Capacity | 3.5 L | p. 22 |
| OC95-E4 | ||
| Engine Oil Capacity | 1.7 L | p. 22 |
| Fuel Tank Capacity | 5.5 L | p. 22 |
Kubota OC60-E4, OC95-E4 Common Problems This Manual Covers

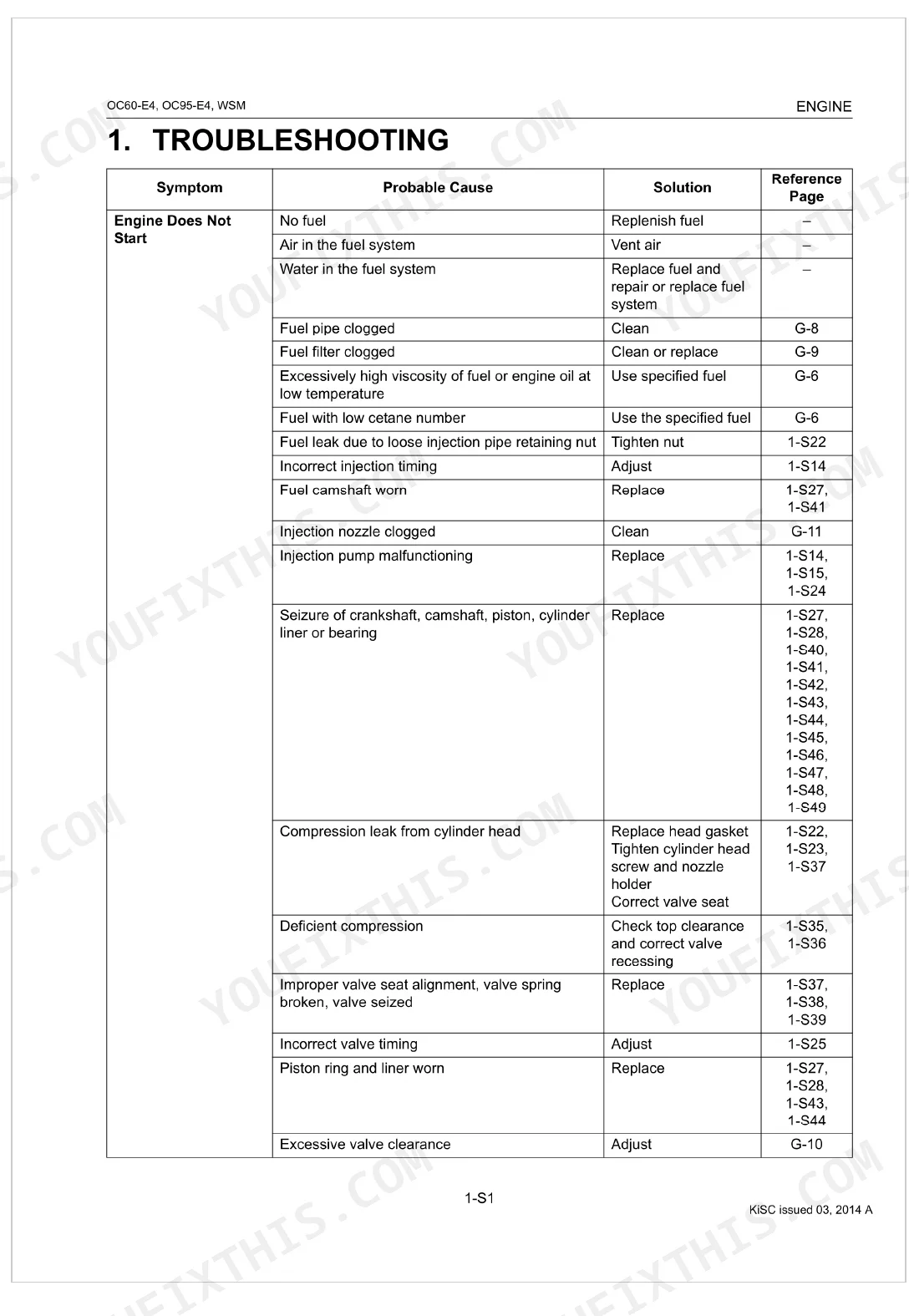

Hard starting or no start
A single-cylinder diesel that will not fire usually traces to fuel delivery, glow, or compression trouble. The Servicing section opens with troubleshooting and the servicing specifications needed to pin down the cause.
Manual Section: Servicing p. 53Low oil pressure
A dropping oil pressure warning points to a worn pump, clogged strainer, or failing pressure switch. The Engine Mechanism section details the lubricating system, oil strainer, pump, and pressure switch.
Manual Section: Engine Mechanism p. 37Excessive smoke or blowby

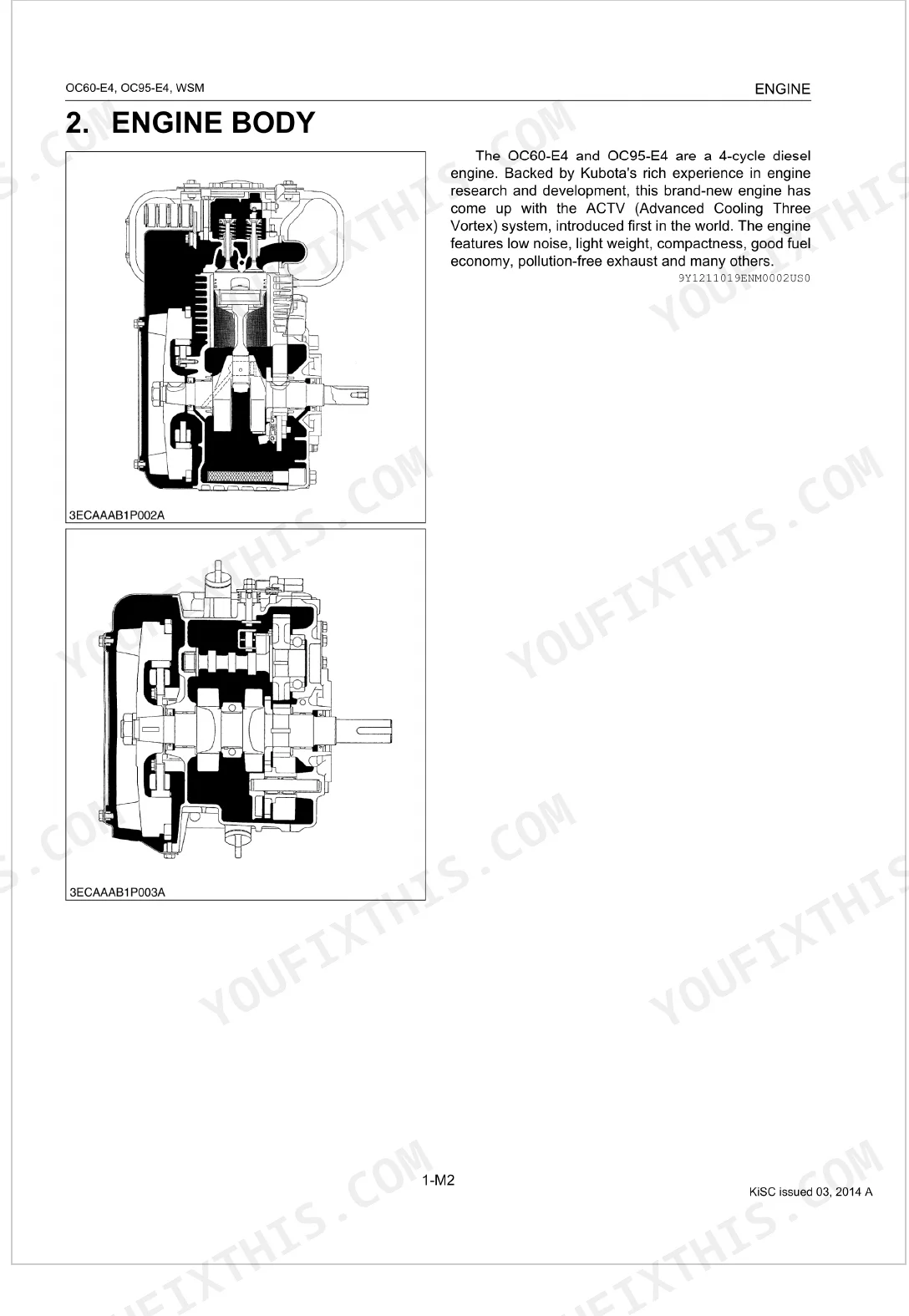

Heavy exhaust smoke or crankcase blowby signals worn rings, liners, or valves. The Engine Mechanism section covers the engine body, including the cylinder head, crank case, and cylinder liner.
Manual Section: Engine Mechanism p. 37Loss of compression and power
Falling compression below the 35.0 to 40.0 kgf/cm² spec robs the engine of power. The Servicing section gives the servicing specifications and checking procedures to measure and correct it.
Manual Section: Servicing p. 53Overheating and oil temperature
Running hot on these oil-cooled units traces to the cooling and lubricating systems. The Engine Mechanism section describes the oil cooler and lubricating circuit that keep the engine within temperature.
Manual Section: Engine Mechanism p. 37Missed maintenance intervals

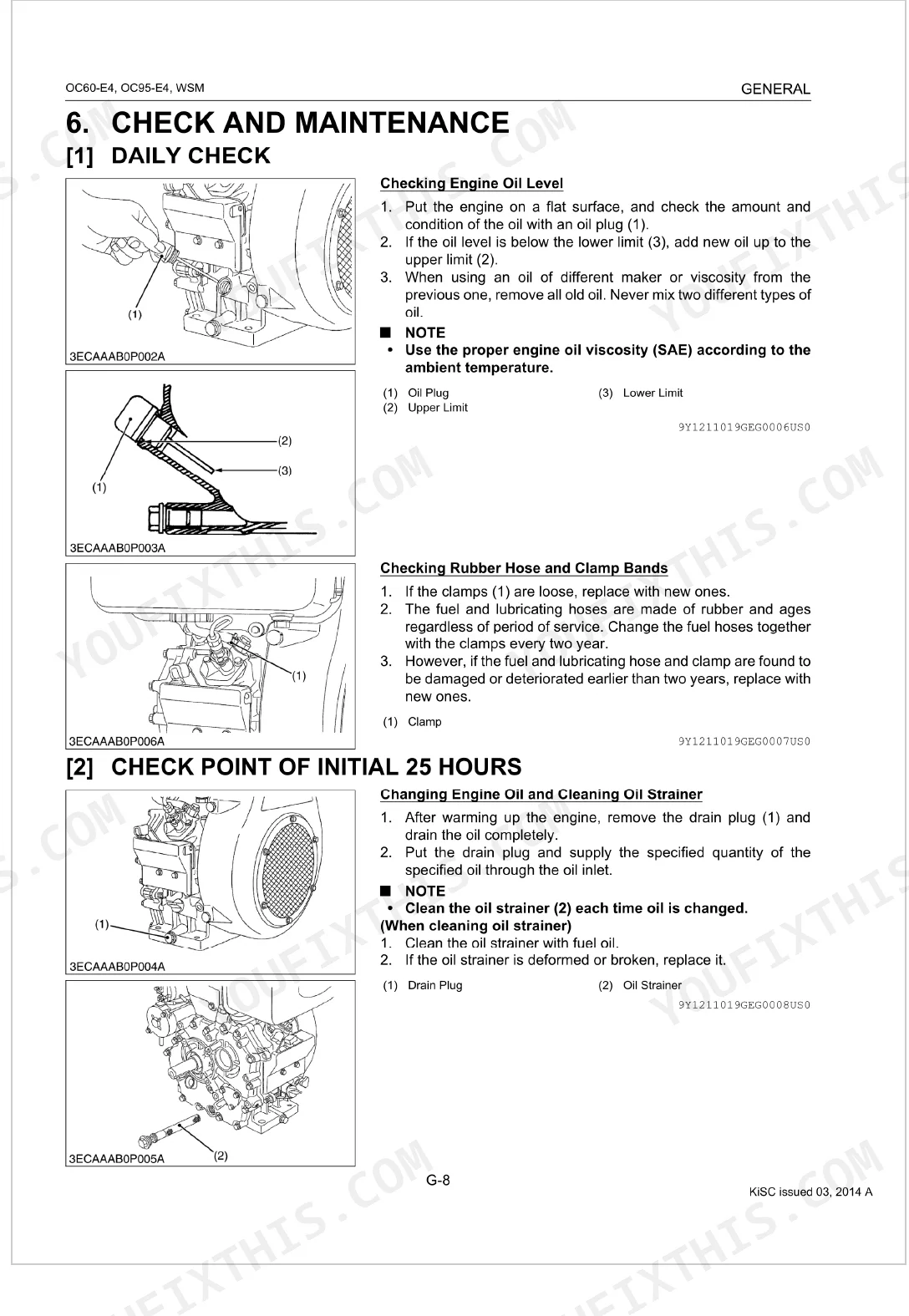

Skipped oil, filter, and air cleaner service shortens engine life. The General section carries the maintenance check list with the correct intervals and the lubricant and fuel specifications.
Manual Section: General p. 16Frequently Asked Questions
Which engines does this manual cover?
It covers the Kubota OC60-E4 and OC95-E4 compact diesel engines, including their differing oil and fuel tank capacities and cylinder head torque figures.
Is this an engine-only manual?
Yes. It documents the OC60-E4 and OC95-E4 engines themselves. The Engine Mechanism section covers the engine body, lubricating, cooling, fuel, and electrical systems and their function. p. 37
Does it include tightening torques?
Yes. The Servicing section lists tightening torques for general and special use screws, bolts, and nuts, alongside servicing specifications and disassembly procedures. p. 53
Does it cover maintenance intervals?
Yes. The General section includes the maintenance check list with daily, 100 hour, and longer interval tasks, plus the lubricants and fuel the engines require. p. 16
Is this Kubota OC60-E4 Workshop Manual a digital download?
This is a 107-page searchable PDF, and it downloads the moment checkout clears. Open it on a laptop, tablet, or phone and take it straight to the shop floor.
Can I print this Kubota OC60-E4 manual?
Yes. Print as many copies as you like, with no restrictions. Plenty of mechanics just print the one section they're working from and keep it on the bench.
