One job drives all 81 pages of this Kubota RCK60-30BB and RC72-30BB Workshop Manual (OEM #9Y111-23370): holding your mid-mount deck to factory spec. Fifteen pages walk through maintenance, from gear box oil changes and belt replacements to blade inspections and deck cleaning intervals. Another 10 cover step-by-step disassembly and reassembly of the gear box, blade shaft, and pulley system. The four torque-table pages list every fastener value you need, including the blade bolt at 102.9 to 117.7 N·m and the 0.36 L gear box fill of SAE 90 API GL5 oil. Since the two decks use separate cutting-height procedures, there's no guessing which spec fits yours. When the machine is down, you want the factory number, not a forum estimate. Sections are bookmarked, so you land on the right page on any device.
What's Inside This Kubota RCK60-30BB, RC72-30BB Manual
| System | Pages | Key Topics |
|---|---|---|
| Supplementary Information | 3-6 | Model Name And Related Manuals, Manual Applicability, Model Name |
| Safety | 7-15 | Safety First, Working Precautions, Preparing For Emergencies, Working Cautions, Starting Machine Safely, Preventing Fires, Preventing Acid Burns, Avoiding High Pressure Fluid |

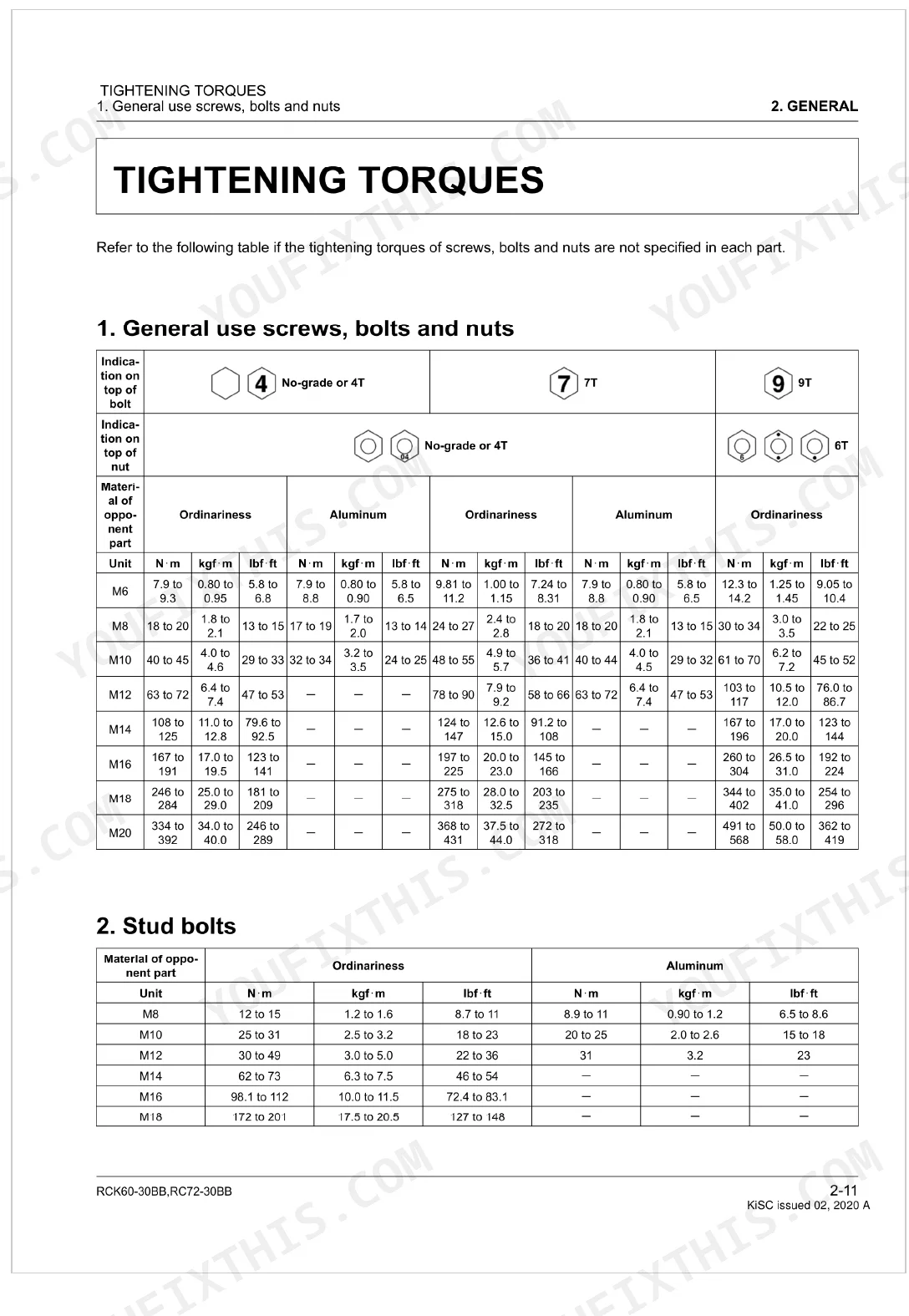

| General | 16-48 | Tightening Bolts And Nuts, Applying Thread-Locking Fluid, Installing Circlips, Installing Spring Pins, Handling Split Pin, Handling Chain Joint And Split Pin |

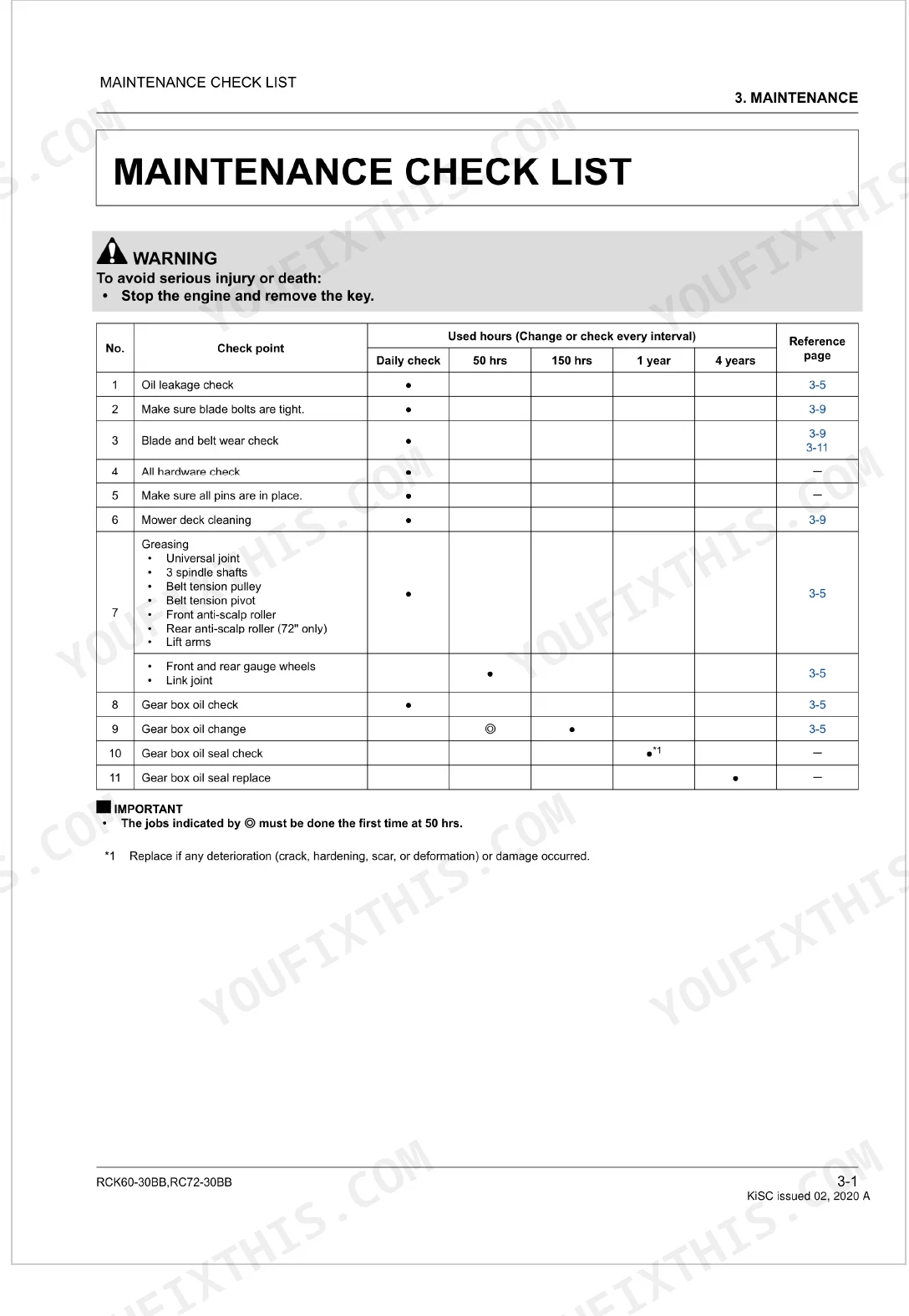

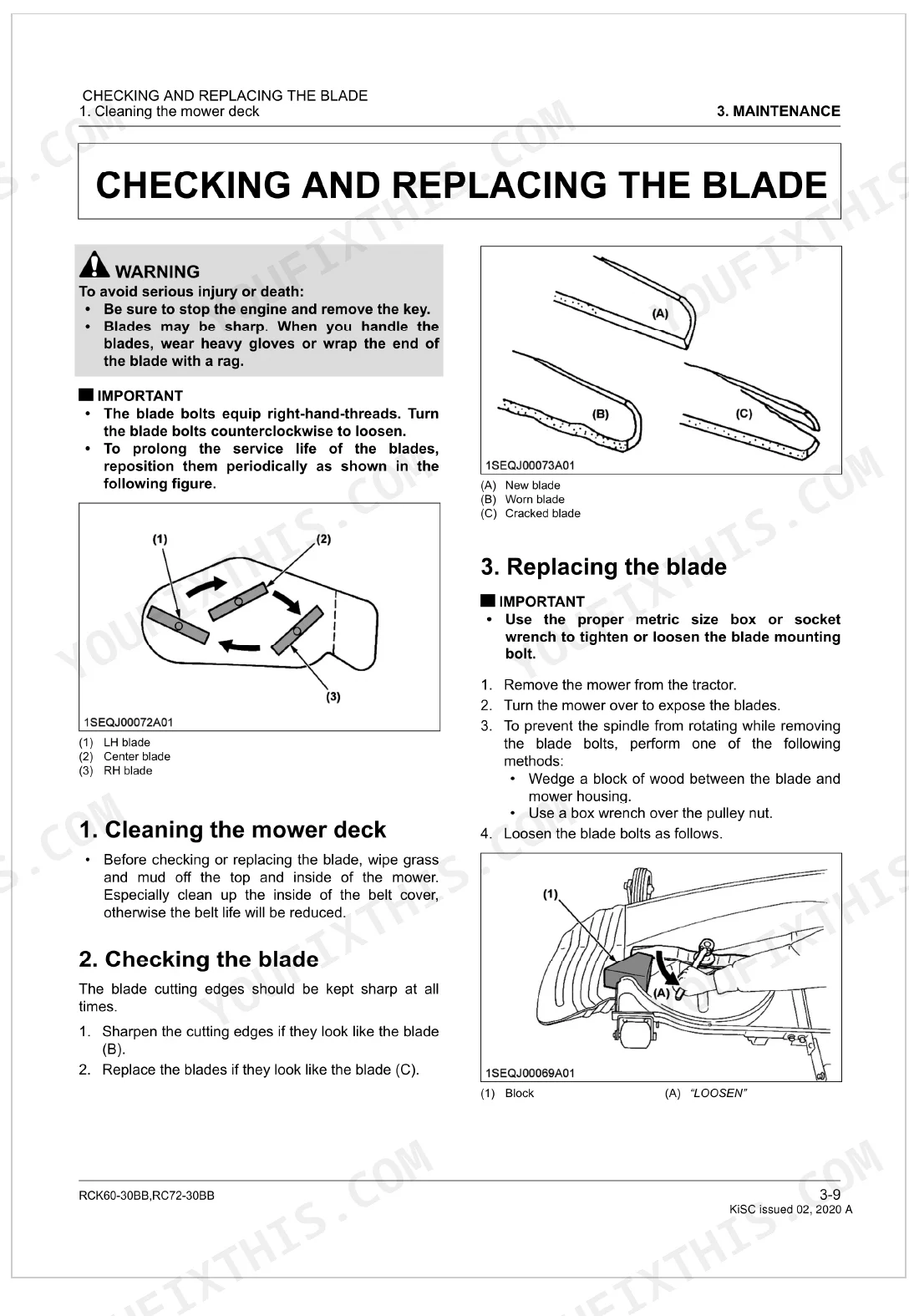

| Maintenance | 49-63 | Maintenance Check List, Lubricants, Check And Maintenance, Checking And Changing The Gear Box Oil, Greasing, Checking And Replacing The Blade, Cleaning The Mower Deck |

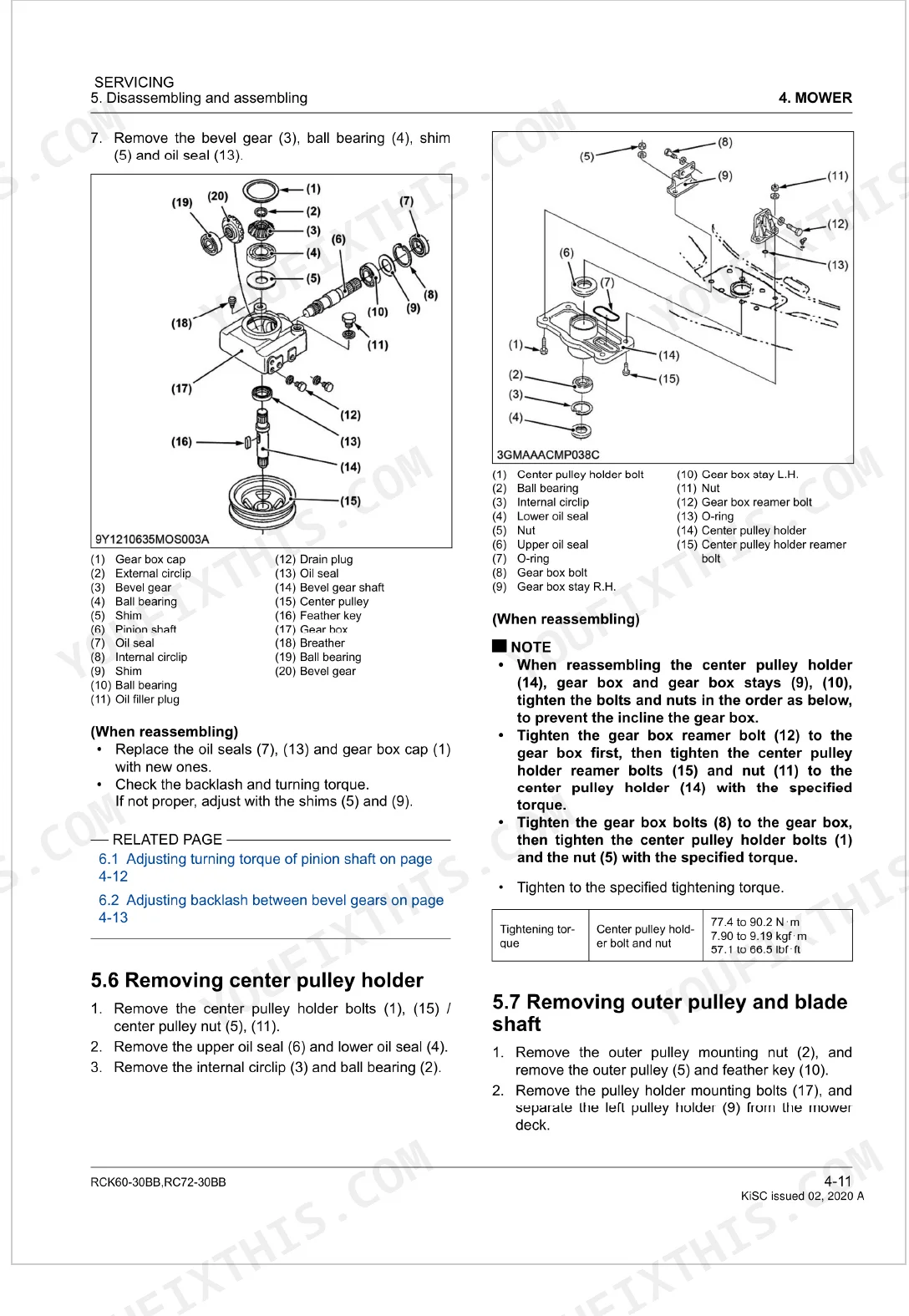

| Mower | 64-78 | Mechanism, Structure Of Power Transmission Of Mower, Structure Of Lifting Mechanism Of Mower, Servicing, Troubleshooting For Mower, Service Specifications For Mower |
| Contact Information | 81 | Editor, Address, Phone, Fax, E-mail, KUBOTA Corporation, Printed In Japan, Code No |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Gear box mounting bolt and nut (M12 standard type) torque | 77.4 to 90.2 N·m | p. 70 |
| Blade bolt torque | 102.9 to 117.7 N·m | p. 70 |
| Gear box oil capacity | 0.36 L | p. 52 |
| Gear box oil type | SAE 90 API GL5 gear oil | p. 52 |
| Blade bolt tightening torque | 102 to 117.6 N·m | p. 59 |
| Bevel gears backlash (Service specification) | 0.13 to 0.25 mm | p. 69 |
| Bevel gears backlash (Service limit) | 0.4 mm | p. 69 |
| Cutting height range | 38 to 102 mm | p. 32 |
| RCK60-30BB | ||
| Pinion shaft turning force | Less than 56 N | p. 69 |
| Weight (approximation) | 170 kg | p. 32 |
| RC72-30BB | ||
| Pinion shaft turning force | Less than 118 N | p. 69 |
| Weight (approximation) | 210 kg | p. 32 |
Kubota RCK60-30BB, RC72-30BB Common Problems This Manual Covers

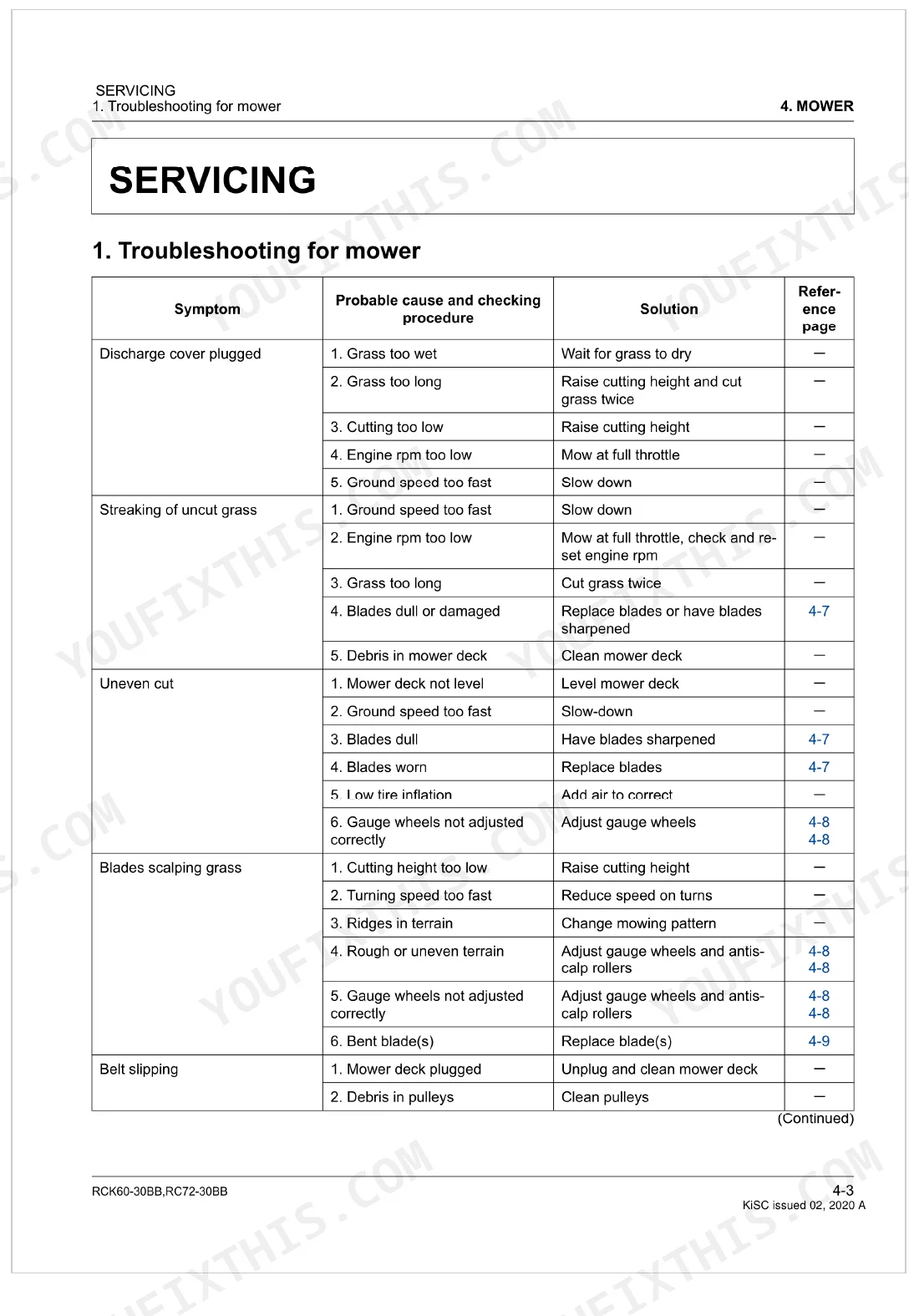

Kubota RCK60-30BB deck leaving uncut strips and streaks across the lawn after each pass p. 67
Inspect the blades using the procedures on page 58; dull or damaged edges leave streaks. Sharpen or replace them, then torque the blade bolts to 102 to 117.6 N·m. Confirm the cutting height sits within 38 to 102 mm, and ease off ground speed in thick or wet grass. Page 67 lists further discharge and cut-quality checks.
Manual Section: Mower Operational TroubleshootingMower belt squealing, slipping, or throwing off pulleys during operation in heavy grass p. 67
Examine the belt for glazing, cracks, or stretch, and swap it out if worn, following the removal and installation steps in the Mower Belt Replacement section. Clear any packed debris and verify pulley alignment. With the new belt on, torque the blade bolts to 102 to 117.6 N·m before running. If slipping persists, page 67 has the next steps.
Manual Section: Mower Belt ReplacementOil dripping from gear box output shaft or visible wet seals after use p. 62
Check the oil level before running: gear box capacity is 0.36 L of SAE 90 API GL5 gear oil (page 52). Follow the annual seal inspection on page 50. Pull the gear box and renew the seals per the Gear Box Oil Seal Replacement section, then refill to 0.36 L and watch for leaks after a short test run.
Manual Section: Gear Box Oil Seal ReplacementExcessive vibration through deck frame and tractor body while blades are running p. 67
Remove blades and inspect for cracks, missing sections, or bent tips; even minor blade damage creates severe imbalance. Sharpen and balance both blades, or replace them per page 58. Reinstall and torque blade bolts to 102 to 117.6 N·m. Also check for debris packed around spindle shafts. Page 67 lists additional vibration causes including loose gear box mounts.
Manual Section: Mower Blade Inspection and ReplacementGrinding or rumbling noise from gear box that increases with blade spindle load p. 77
Drain the gear box oil and check it for metal particles or a milky look. Refill with 0.36 L of SAE 90 API GL5 gear oil (page 52). Measure bevel gear backlash against the 0.13 to 0.25 mm service spec, and replace the gears once wear passes the 0.4 mm limit. Change the oil at 50 hrs initially, then every 150 hrs per page 50.
Manual Section: Bevel Gear Backlash AdjustmentFrequently Asked Questions
What are the recommended service intervals?
The maintenance check list sets intervals at daily, 50 hours, 150 hours, 1 year, and 4 years. The oil leakage check, for instance, is daily, while the gear box oil change comes after the first 50 hours and every 150 hours after that.
What fluids and capacities does this machine require?
The gear box takes 0.36 L (0.38 U.S.qts, 0.32 Imp.qts) of SAE 90 API GL5 gear oil. Other components, including universal joints, spindle shafts, pulleys, anti-scalp rollers, lift arms, link joints, and gauge wheels, get Multipurpose EP2 grease (NLGI grade No.2), applied until grease overflows.
What torque specifications are listed?
Torque values are listed throughout. General-use M8 bolts call for 18 to 20 N·m (1.8 to 2.1 kgf·m, 13 to 15 lbf·ft) ordinarily, or 24 to 27 N·m (2.4 to 2.8 kgf·m, 18 to 20 lbf·ft) at property class 8.8. On the mower itself, blade bolts need 102.9 to 117.7 N·m (10.5 to 12.0 kgf·m, 75.9 to 86.8 lbf·ft).
How will I receive this Kubota RCK60-30BB, RC72-30BB Workshop Manual?
Download starts immediately and gives you the complete 81-page searchable Workshop Manual. Open it on any device, from a laptop at your desk to a phone out in the field.
