This Kubota T2090BR-AU, T2290KW-AU, T2290KWT-AU Workshop Manual PDF (OEM #9Y111-18082) runs to 191 pages built around one job: servicing your Australian-spec riding mowers to factory standards. Schematics trace the complete Kubota Reverse Awareness system, every relay, override mode, and electrical circuit. Troubleshooting spans engine, transaxle, brakes, front axle, steering, lift, electrical system, and mower deck. Model-specific procedures split the brake rod removal steps between the T2090BR-AU and T2290KW-AU and the KWT-AU variant. Fill the T2290KWT-AU HST case to 2.7 to 2.75 L; the T2090BR-AU crankcase holds 1.9 L. With your mower parked in the shed, the right numbers are the only thing missing, and bookmarks drop you straight to any system on whatever device you open it on.
What's Inside This Kubota T2090BR-AU, T2290KW-AU, T2290KWT-AU Manual

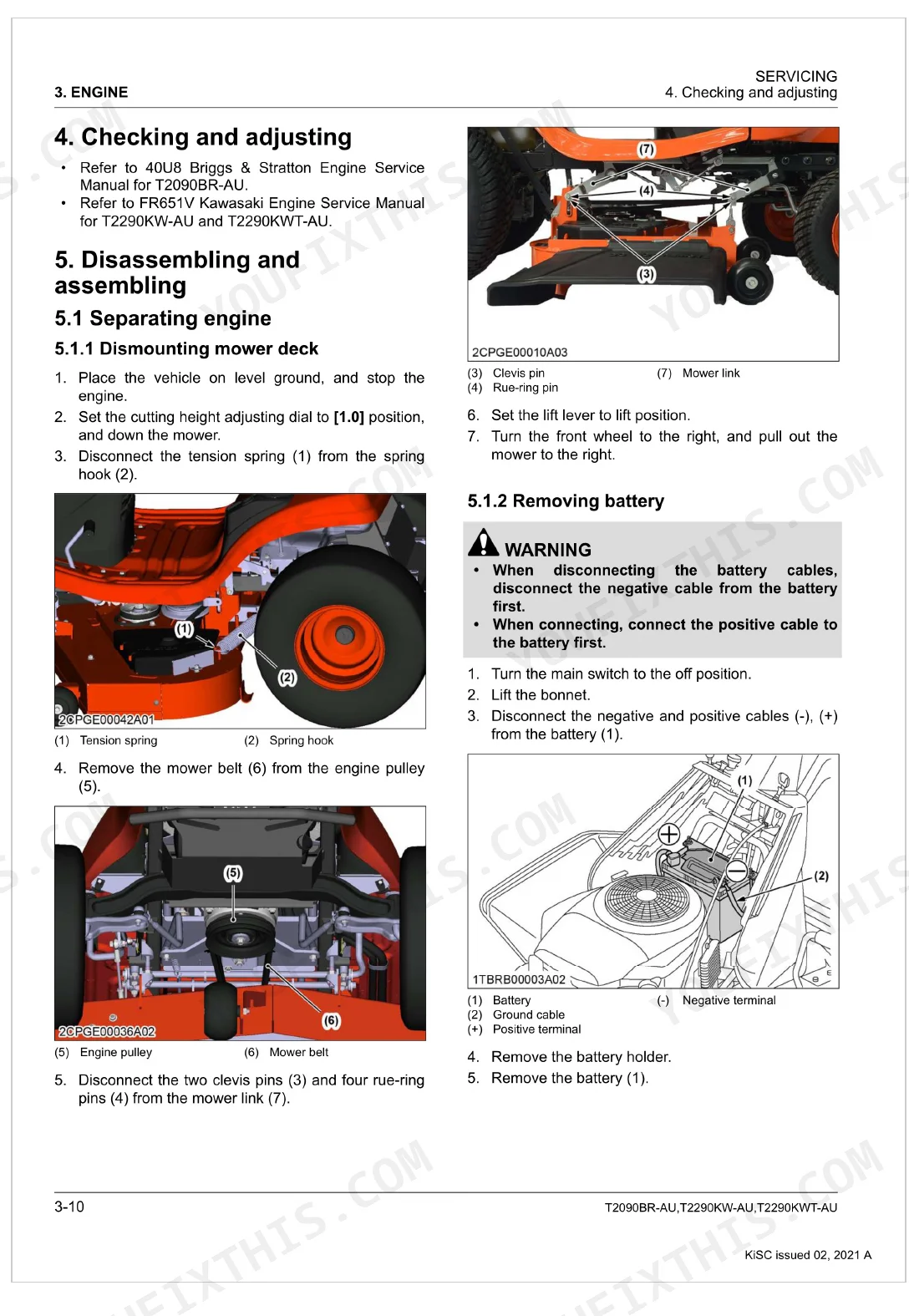

| System | Pages | Key Topics |
|---|---|---|
| Information | 11-25 | - |
| General | 26-68 | Identification, General Precautions, Handling Precautions for Electrical Parts and Wiring, Lubricants and Fuel, Tightening Torques, Service Intervals, Check and Maintenance |
| Engine | 69-83 | Fuel System, Lubrication System, Cooling System, Troubleshooting, Servicing Specifications |
| Transaxle | 84-94 | Transaxle Specification, Troubleshooting, Servicing Specifications, Tightening Torques, Adjusting HST Maximum Speed, Checking and Replacing HST Belt |
| Brakes | 95-107 | Brake Pedal and Parking Brake, Brake Assembly, Troubleshooting, Servicing Specifications, Tightening Torques, Adjusting Brake Spring, Removing Parking Brake System, Removing Battery |
| Front Axle Assembly | 108-116 | Front Axle, Troubleshooting, Servicing Specifications, Tightening Torques, Adjusting Toe-In, Separating Front Wheel and Wheel Bracket, Dismounting Mower, Removing Battery |
| Steering | 117-129 | Steering System, Troubleshooting, Servicing Specifications, Tightening Torques, Checking Steering Wheel Play, Dismounting Mower, Removing Battery, Removing Bonnet |
| Lift System | 130-138 | Troubleshooting, Tightening Torques, Checking and Adjusting (Inspecting Gas Spring, Lift Link) |
| Electrical System | 139-169 | Wiring Diagram |
| Mower | 170-191 | Structure for Mower, Power Transmission for Mower, Mower Blades, Troubleshooting, Servicing Specifications, Tightening Torques |
Every system also includes mechanism.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| T2090BR-AU | ||
| Engine crankcase capacity | 1.9 L (2.0 U.S.qts.) | p. 35 |
| T2290KW-AU, T2290KWT-AU | ||
| Engine crankcase capacity | 2.1 L (2.2 U.S.qts.) | p. 35 |
| T2090BR-AU, T2290KW-AU | ||
| Hydrostatic transmission case capacity | 2.0 L (2.1 U.S.qts.) | p. 35 |
| T2290KWT-AU | ||
| Hydrostatic transmission case capacity | 2.7 to 2.75 L (2.85 to 2.9 U.S.qts.) | p. 35 |
| All Models | ||
| Fuel tank capacity | 13.6 L (3.6 U.S.gals.) | p. 35 |

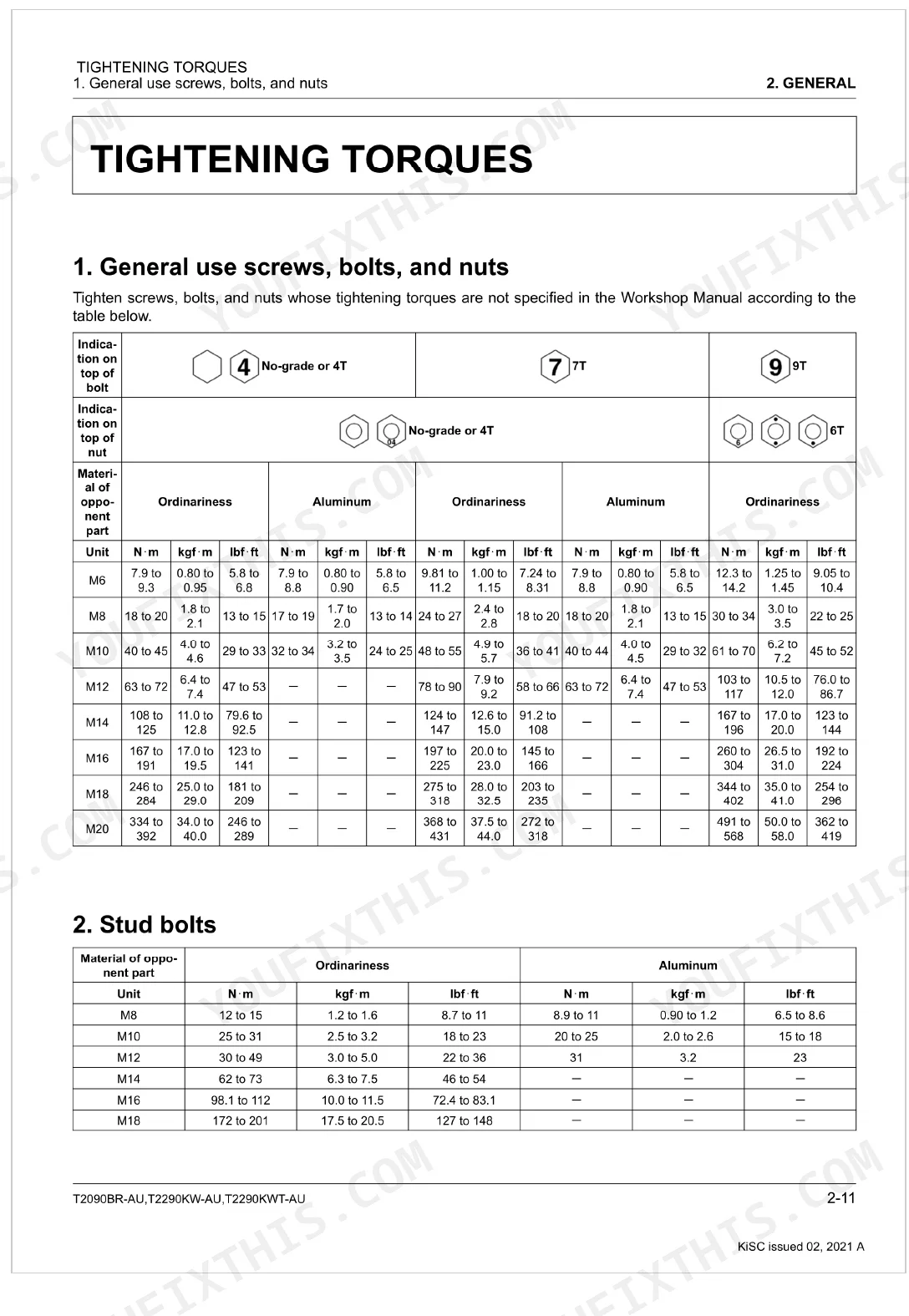

| General use screws, bolts, and nuts torque M6 Ordinariness | 7.9 to 9.3 N·m (0.80 to 0.95 kgf·m, 5.8 to 6.8 lbf·ft) | p. 37 |
| General use screws, bolts, and nuts torque M8 Ordinariness | 18 to 20 N·m (1.8 to 2.1 kgf·m, 13 to 15 lbf·ft) | p. 37 |
| General use screws, bolts, and nuts torque M10 Ordinariness | 40 to 45 N·m (4.0 to 4.6 kgf·m, 29 to 33 lbf·ft) | p. 37 |
| General use screws, bolts, and nuts torque M12 Ordinariness | 63 to 72 N·m (6.4 to 7.4 kgf·m, 47 to 53 lbf·ft) | p. 37 |
| General use screws, bolts, and nuts torque M14 Ordinariness | 108 to 125 N·m (11.0 to 12.8 kgf·m, 79.6 to 92.5 lbf·ft) | p. 37 |
| General use screws, bolts, and nuts torque M16 Ordinariness | 167 to 191 N·m (17.0 to 19.5 kgf·m, 123 to 141 lbf·ft) | p. 37 |
| General use screws, bolts, and nuts torque M18 Ordinariness | 246 to 284 N·m (25.0 to 29.0 kgf·m, 181 to 209 lbf·ft) | p. 37 |
Kubota T2090BR-AU, T2290KW-AU, T2290KWT-AU Common Problems This Manual Covers

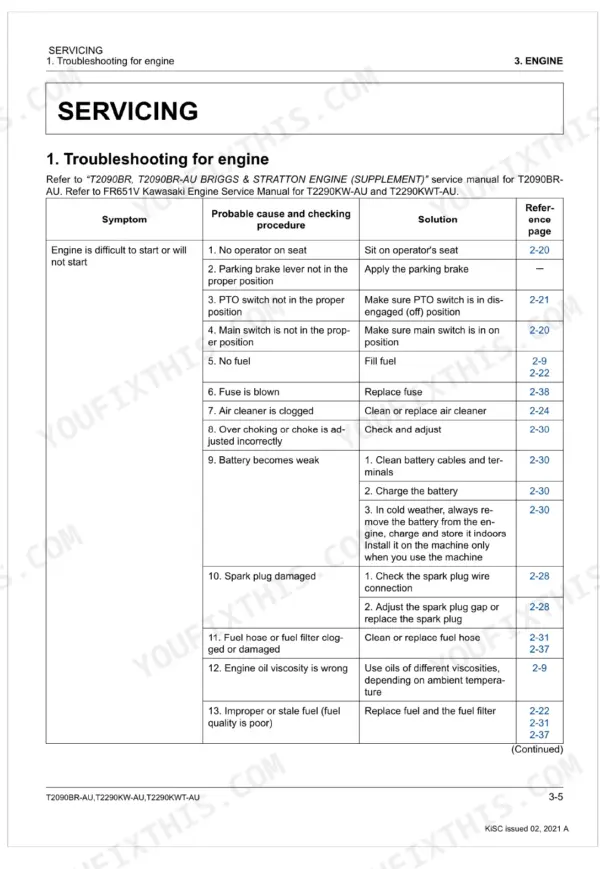

Kubota T2090BR-AU engine turns over but won't fire, hard to start in cold weather
Check the spark plug gap and clean or replace if fouled; spec is 0.76 mm (page 55). Verify the choke cable moves freely and closes fully when cold. Confirm fuel flow from the tank by loosening the line at the carb. Walk through the no-start diagnostic tree on page 74 before pulling the carb.
Manual Section: Troubleshooting for Engine p. 74PTO switch engaged but blades won't turn or spin noticeably slow at full throttle
Gauge the electric PTO clutch air gap at three equally spaced points around the rotor; the spec is 0.35 to 0.45 mm (page 155). Adjust the retaining nuts evenly if out of range. Inspect the mower drive belt for glazing, cracking, or slippage. Confirm the PTO safety switch completes the circuit before condemning the clutch coil.
Manual Section: Electrical System Troubleshooting p. 155Hydrostatic transmission jerks on takeoff or drive pedal has no response
Verify the HST belt guide clearance is 1 to 3 mm (page 88); a guide set too tight drags the belt and produces the jerky response. With belt tension confirmed, check for air in the transaxle circuit by engaging and releasing the drive pedal slowly several times. Review transaxle structure starting on page 84.
Manual Section: Troubleshooting for Transaxle p. 88Mower leaves strips of uncut grass or uneven height across the cutting width
Inspect all blades for bends, missing tips, or uneven wear; replace in matched sets. After fitting new blades, torque each blade bolt to 103 to 117 N·m (page 178). Level the deck side-to-side and front-to-back on flat ground. Check spindle bearing play while you have the blades off.
Manual Section: Troubleshooting for Mower p. 178Brake pedal travels to the floor with little or no stopping power

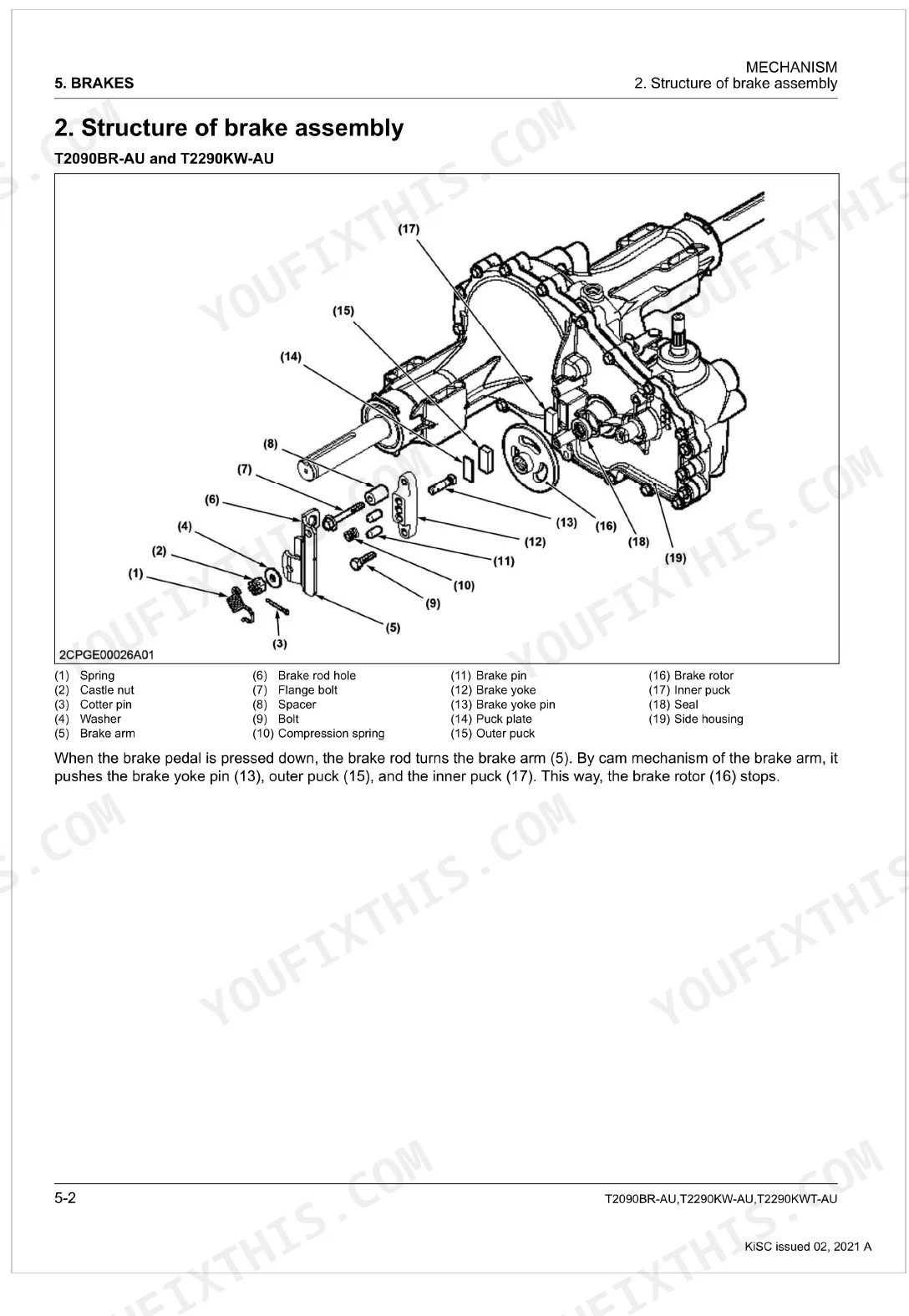

Measure the brake return spring free length; it must be 28 to 29 mm (page 51). A stretched spring won't fully apply the brake shoes. Inspect pads and drum for glazing or oil contamination; clean with brake cleaner or replace. Check the brake rod and cable for proper adjustment. See the brakes section starting on page 95.
Manual Section: Troubleshooting for Brakes p. 51Frequently Asked Questions
What are the recommended service intervals?

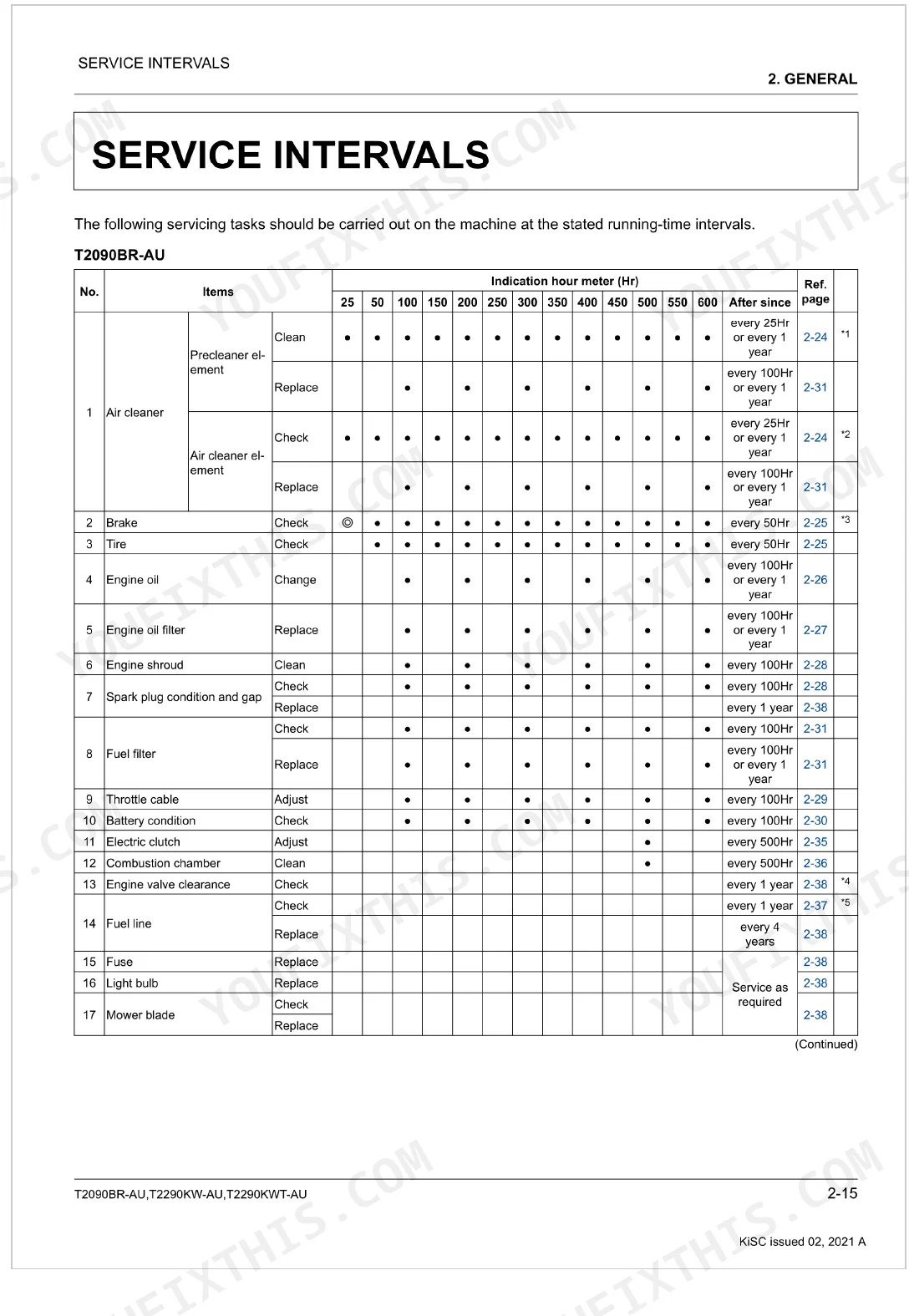

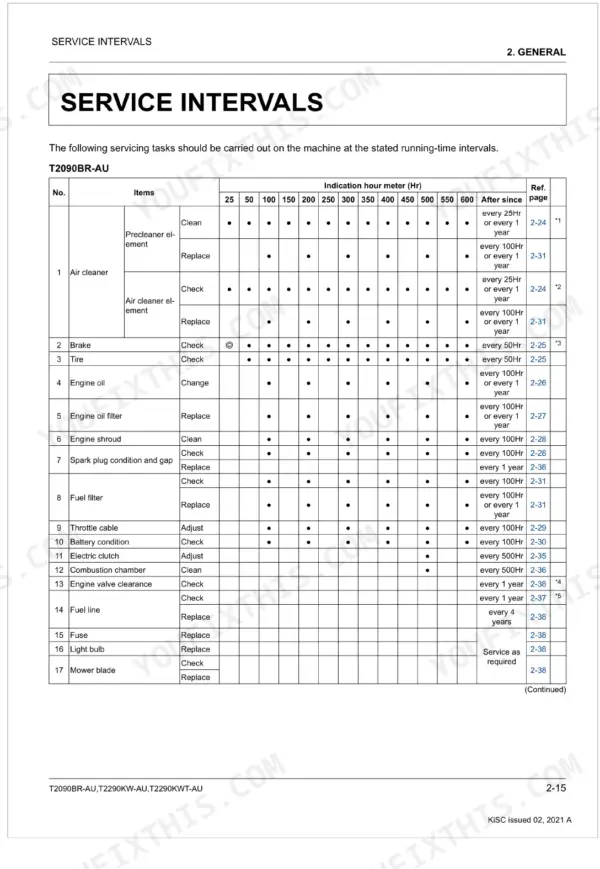

The manual lays out a full service interval schedule. For instance, the air cleaner precleaner element should be cleaned every 25 hours or annually, and replaced every 100 hours or annually. Engine oil should be changed every 100 hours or annually, and the engine oil filter (T2090BR-AU) replaced at the same interval. Spark plugs and fuel filters should be checked every 100 hours and replaced every 1 year, while fuel lines require checking every 1 year and replacement every 4 years. p. 41
What fluids and capacities does this machine require?
The engine crankcase for T2090BR-AU requires 1.9 L (2.0 U.S.qts.) of API service classification SG, SH, SJ or higher engine oil, while T2290KW-AU and T2290KWT-AU require 2.1 L (2.2 U.S.qts.). The hydrostatic transmission (T2290KWT-AU) needs 2.7 to 2.75 L (2.85 to 2.9 U.S.qts.) of API SL SAE 20W-50 engine oil. The fuel tank has a capacity of 13.6 L (3.6 U.S.gals.) and should be filled with automobile unleaded or regular gasoline with 87 octane or higher. p. 35

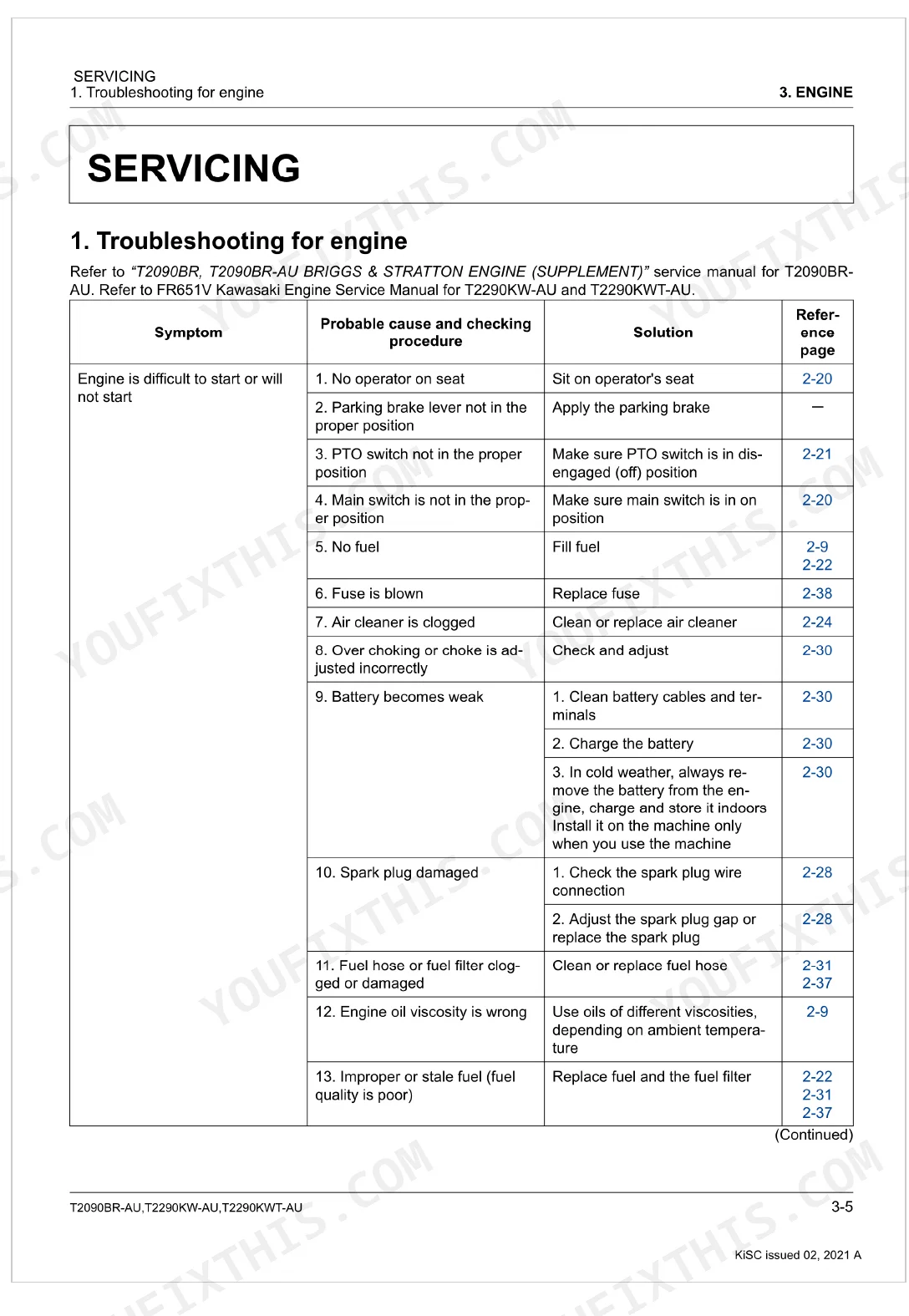

How to troubleshoot engine won't start?
If the engine is difficult to start or won't start, common issues include no operator on the seat, the parking brake lever not in the proper position, or the PTO switch not disengaged. Solutions involve ensuring the operator is seated (page 2-20), applying the parking brake, and confirming the PTO switch is off (page 2-21). Other causes can be low fuel, a blown fuse (page 2-38), a clogged air cleaner (page 2-24), or a weak battery (page 2-30). p. 74
What are the hydraulic system specifications?
For the hydrostatic transmission (a hydraulic system), the HST neutral at maximum engine speed specification is that the rear wheels do not rotate when the HST pedal is in the neutral position. The maximum speed at maximum engine rpm for T2090BR-AU and T2290KW-AU is 8.2 to 10 km/h (5.1 to 6.3 mph), and for T2290KWT-AU it is 9.9 to 11 km/h (6.1 to 7.3 mph). The HST belt guide clearance should be 1 to 3 mm (0.04 to 0.1 in.) from the HST belt. p. 88
How quickly can I access this Kubota T2090BR-AU, T2290KW-AU, T2290KWT-AU?
Instant PDF download. The full 191-page searchable Workshop Manual is yours immediately after payment. Open it on a laptop, tablet, or phone right in the shop.
Am I able to print pages from this Kubota T2090BR-AU, T2290KW-AU, T2290KWT-AU?
Yes. The PDF carries no DRM restrictions, so you can print any page or section you need for your shop. Works with any standard printer.
Can I find wiring schematics in this Kubota T2090BR-AU, T2290KW-AU?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Kubota T2090BR-AU, T2290KW-AU, T2290KWT-AU.
